Honda VT250F Motorcycles


1982 VT250F

Engine

Engine Type Two cylinder 90° V Twin, Four stroke
Displacement 248 cc
Bore and Stroke 60 mm x 44 mm
Compression Ratio 11:1
Valvetrain DOHC, 4 valves per cylinder
Ignition System Transistor contactless system
Maximum power 26.1 kW (35 hp) @ 11,000 rpm
Maximum torque 21.5 N·m (15.9 lb·ft) @ 10,000 rpm
Starter Electric
Cooling system Water cooled

DRIVETRAIN

Transmission Six speed
Clutch Hydraulic
Final drive Chain
Wheels Comstar

CHASSIS / SUSPENSION / BRAKES

Front Suspension TRAC(R) anti-dive
Rear Suspension Pro-Link(R)
Brakes Front single inboard disc
Brakes Rear drum
Tires Front 100/90-16
Tires Rear 110/80-18

DIMENSION

Overall Length 2000 mm (78.7 inches)
Overall Width 750 mm (29.5 inches)
Overall Height 1175 mm (46.3 inches)
Seat Height 780 mm (30.7 inches)
Wheelbase 1385 mm (54.5 inches)
Fuel Capacity 12 litres (3.2 Gal)
Dry Weight (without fluids): 149 kg (328.5 pounds)

OTHER

1983 VT250F

Engine

Engine Type 248 cc, 4 Stroke – Liquid Cooled – V-Twin
Bore and Stroke 60 mm x 44 mm
Compression Ratio 11:1
Valves DOHC, 4 valves/cylinder
Fuel Delivery VD6
Ignition System Full transistor
Horsepower 35 hp (26.1 kW) @ 11000 rpm
Maximum Torque 21.5 Nm (15.6 ft. lbs) @ 10000 rpm

DRIVETRAIN

Transmission 6 speed
Final drive Chain

CHASSIS / SUSPENSION / BRAKES

Brakes Front single inboard disc
Brakes Rear drum
Tires Front 100/90-16
Tires Rear 110/80-18

DIMENSION

Overall Length 2000 mm (78.7 inches)
Overall Width 750 mm (29.5 inches)
Overall Height 1190 mm (46.9 inches)
Seat Height 780 mm (30.7 inches)
Wheelbase 1385 mm (54.5 inches)
Fuel Capacity 12 l (3.2 Gal)
Dry Weight (without fluids): 152 kg (335.1 pounds)

OTHER

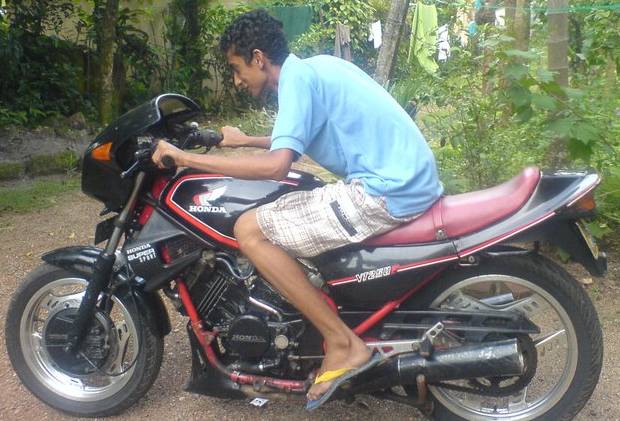

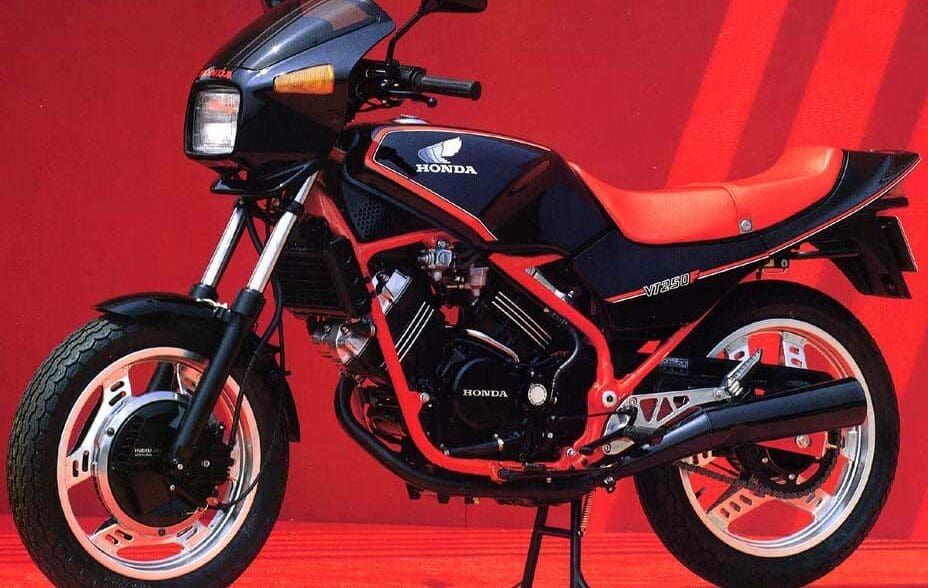

VT250F Image Gallery
