Honda VF400F Motorcycles


OLYMPUS DIGITAL CAMERA

1982 VF400F

Engine

Engine Type 399 cc, 4 Stroke – Liquid Cooled – V Four
Bore and Stroke 55 mm x 42 mm
Compression Ratio 11:1
Valves DOHC, 4 valves/cylinder
Fuel Delivery VD40
Ignition Full transistor
Horsepower 55.5 hp (41.9 kW) @ 12500 rpm
Maximum Torque 35.5 Nm (26.8 ft. lbs) @ 10500 rpm
Starting Electronic

Drivetrain

Transmission 6-speed
Final drive Chain, 3.000
Final drive et multiple plate coil springs
Gear Ratios 1st 2.733, 2nd 1.850, 3th 1.478, 4th 1.240, 5th 1.074, 6th 0.931

CHASSIS / SUSPENSION / BRAKES

Frame Type Double cradle
Front Suspension Telescopic (cylindrical air cushion combined use)
Rear Suspension Swing arm (cylindrical air cushion combined use)
Front Brakes single inboard disc
Rear Brakes single inboard disc
Front Tire 100/90-16
Rear Tire 110/90-18

DIMENSION

Overall Length 2060 mm (81.1 inches)
Overall Width 750 mm (29.5 inches)
Overall Height 1160 mm (45.7 inches)
Seat Height 780 mm (30.7 inches)
Wheelbase 1415 mm (55.7 inches)
Ground clearance 160 mm (6.3 inches)
Fuel Capacity 17 litres (4.5 Gal)
Dry weight 173 kg (381.4 pounds)

OTHER

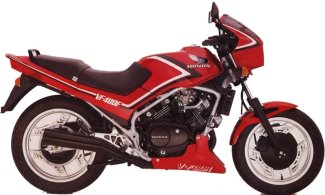

1983 VF400F

Engine

Engine Type 399 cc, 4 Stroke – Liquid Cooled – V Four
Bore and Stroke 55 mm x 42 mm
Valves 4 valves/cylinder
Horsepower 55.5 hp (41.9 kW) @ 12500 rpm
Maximum Torque 35.5 Nm (26.8 ft. lbs) @ 10500 rpm

Drivetrain

Transmission 6-speed
Final drive Chain, 3.000

CHASSIS / SUSPENSION / BRAKES

Front Brakes single inboard disc
Rear Brakes single inboard disc
Front Tire 100/90-16
Rear Tire 110/90-18

DIMENSION

Overall Length 2060 mm (81.1 inches)
Overall Width 750 mm (29.5 inches)
Overall Height 1160 mm (45.7 inches)
Seat Height 780 mm (30.7 inches)
Wheelbase 1415 mm (55.7 inches)
Fuel Capacity 17 l (4.5 Gal)
Dry weight (without fluids): 175 kg (385.8 pounds)

OTHER
