Honda V45 Sabre, Sabre 750 (VF750S) Motorcycles


1982 VF750S’82 V45 Sabre

Engine

Engine Type Liquid-cooled in-line V-4
Displacement 748cc
Bore And Stroke 70mm x 48.6mm
Compression Ratio 10.5:1
Valve Train 16-valve DOHC
Fuel Delivery Four 32mm integrated dual-draft type carburetors
Exhaust system Two-into-two
Ignition system Transistorized ;plointless with electronic advance
Starting system Electric
Fuel type Regular gasoline

DRIVETRAIN

Transmission Six-speed including overdrive
Clutch Wet, multi-plate, Hydraulic-operated
Final Drive Shaft

CHASSIS / SUSPENSION / BRAKES

Front Suspension Air-assisted telescopic fork with TRACTM anti-dive
Rear Suspension Air-assisted Pro-LinkTM single shock with adjustable damping
FrontBrake Dual disc, dual piston caliper
Rear Brake  Drum
Front Tire 110/90H18
Rear Tire 130/90H17

DIMENSION

Wheelbase 1570mm (61.8 in.)
Overall length 2245mm (88.4 in.)
Overall width 830mm (32.7 in.)
Seat height 790mm (31.1 in.)
Fuel capacity 18 liters (4.8 GalUS) including 4 liter (1.1 gal) reserve
Dry weight 225 kg (496 lb)

OTHER

Colors
  • Black
  • Candy Bourgogne Red
  • The front fender and exhaust system were chrome
  • The air cleaner cover had a silver “V-FOUR” decal
  • The speedometer had a 85 mph (135 kph) limit
  • The front disc brake grooves were straight
  • The serial number began JH2RC070*CM000025.

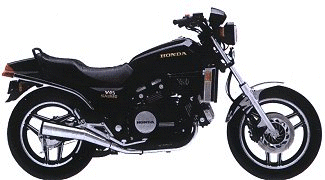

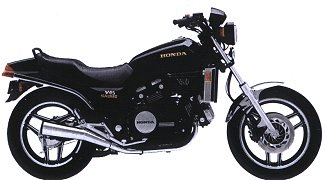

1983 VF750S’83 V45 Sabre

Engine

Engine Type Liquid-cooled in-line V-4
Displacement 748cc
Bore And Stroke 70mm x 48.6mm
Compression Ratio 10.5:1
Valve Train 16-valve DOHC
Fuel Delivery Four 32mm integrated dual-draft type carburetors
Exhaust system Two-into-two
Ignition system Transistorized ;plointless with electronic advance
Starting system Electric
Fuel type Regular gasoline

DRIVETRAIN

Transmission Six-speed including overdrive
Clutch Wet, multi-plate, Hydraulic-operated
Final Drive Shaft

CHASSIS / SUSPENSION / BRAKES

Front Suspension Air-assisted telescopic fork with TRACTM anti-dive
Rear Suspension Air-assisted Pro-LinkTM single shock with adjustable damping
FrontBrake Dual disc, dual piston caliper
Rear Brake  Drum
Front Tire 110/90H18
Rear Tire 130/90H17

DIMENSION

Wheelbase 1570mm (61.8 in.)
Overall length 2245mm (88.4 in.)
Overall width 830mm (32.7 in.)
Seat height 790mm (31.1 in.)
Fuel capacity 18 liters (4.8 GalUS) including 4 liter (1.1 gal) reserve
Dry weight 225 kg (496 lb)

OTHER

Colors
  • Black
  • Candy Wineberry Red
  • The air cleaner cover “V4” decal was black with a white outline.
  • The speedometer had a 150 mph (240 kph) limit.
  • The front disc brake grooves were curved.
  • The front fender and exhaust system were chrome.
  • Handlebars: Adjustable
  • The serial number began JH2RC070*DM100006..

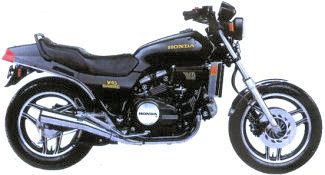

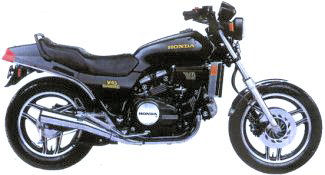

1984 VF750S’84 V45 Sabre

Engine

Engine Type Liquid-cooled in-line V-4
Displacement 748cc
Bore And Stroke 70mm x 48.6mm
Compression Ratio 10.5:1
Valve Train 16-valve DOHC
Fuel Delivery Four 32mm integrated dual-draft type carburetors
Exhaust system Two-into-two
Ignition system Transistorized ;plointless with electronic advance
Starting system Electric
Fuel type Regular gasoline

DRIVETRAIN

Transmission Six-speed including overdrive
Clutch Wet, multi-plate, Hydraulic-operated
Final Drive Shaft

CHASSIS / SUSPENSION / BRAKES

Front Suspension Air-assisted telescopic fork with TRACTM anti-dive
Rear Suspension Air-assisted Pro-LinkTM single shock with adjustable damping
FrontBrake Dual disc, dual piston caliper
Rear Brake  Drum
Front Tire 110/90H18
Rear Tire 130/90H17

DIMENSION

Wheelbase 1570mm (61.8 in.)
Seat height 790mm (31.1 in.)
Fuel capacity 18 liters (4.8 gal.) including 4 liter (1.1 gal) reserve
Dry weight 225 kg (496 lb)

OTHER

Handlebars Adjustable

The serial number began JH2RC070*EM100006.

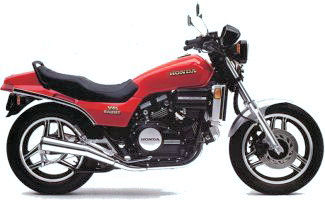

750 (VF750S) Image Gallery
