Honda FMX650 Motorcycles


2007 FMX650

Engine Type Air-cooled, 4-stroke single
Bore and Stroke 100 x 82mm
Displacement  644cc
Compression Ratio 8.3:1
Carburation 40 mm VE-type carburetor
Max. Power Output 37 bhp at 5,750 rpm
Max. Torque 52.3 Nm at 4,500 rpm
Ignition Fully transistorised electronic
Starter Electric
Gearbox 5-Speed
Final Drive O-ring sealed chain
Length x Width x Height 2,151 x 823 x 1,157 mm
Wheelbase 1,490 mm
Seat Height 875 mm
Ground Clearance 216 mm
Fuel Capacity Fuel Capacity
Dry Weight 163 kg
Wheels Front 17M/C x MT3.50 aluminum rim/steel spoke
Wheels Rear 17M/C x MT4.00 aluminum rim/steel spoke
Tires Front 120/70 R17M/C 58H
ires Rear 150/60 R17M/C 66H
Suspension Front 45mm inverted leading-axle telescopic fork,218mm axle travel
Suspension Rear Pro-Link, 186mm axle travel
Brakes Front 296 x 4mm hydraulic disc with dual-pistoncaliper and sintered metal pads
Brakes Rear 220 x 5mm hydraulic disc with single-piston caliper and sintered metal pads

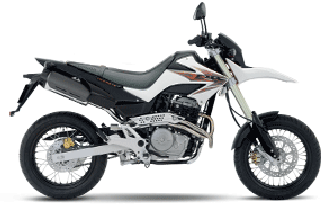

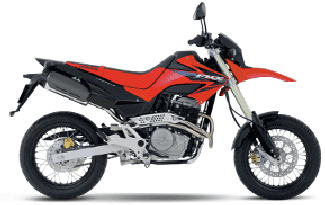

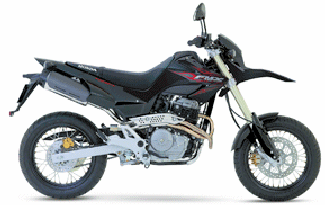

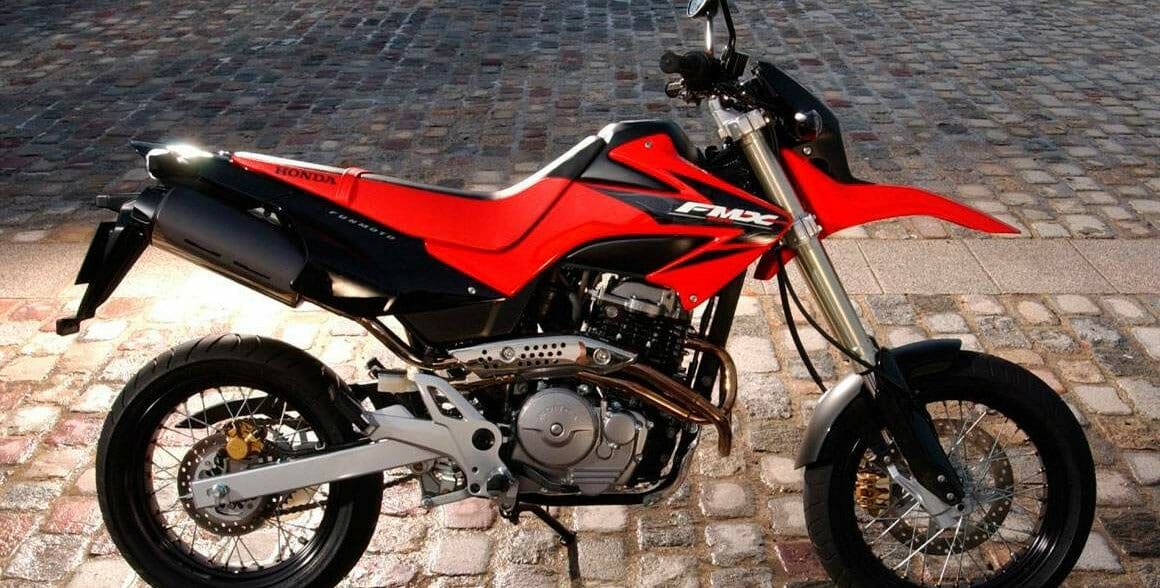

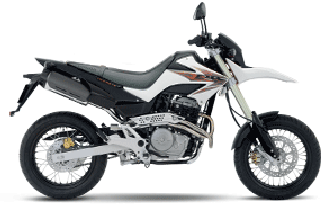

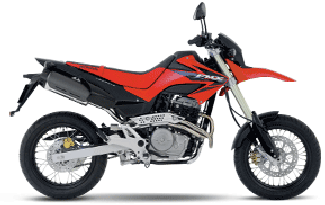

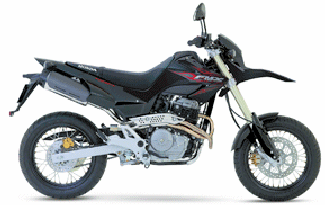

FMX650 Image Gallery
