Honda Firestorm 1000 (VTR1000) Motorcycles

2004 Firestorm VTR1000

Engine

Engine Type Liquid-cooled 4-stroke 8-valve DOHC 90° V-twin
Displacement 996cc
Bore and Stroke 98 x 66mm
Compression Ratio 9.4:1
Fuel Delivery 48mm slanted flat-slide CV- type x 2
Max. Power Output 105 bhp at 9000 rpm
Max. Torque 93Nm at 7000 rpm
Ignition Computer-controlled digital transistorised with electronic advance and HISS
Starter Electric
Transmission 6-speed
Final Drive ‘O’-Ring sealed chain
Length x Width x Height 2050 x 720 x 1155mm
FronSuspension 41mm HMAS cartridge-type telescopic fork with adjustable spring preload and rebound
Rear Suspension Pro-Link with gas-charged HMAS damper, with adjustable spring preload and rebound
Front Wheel 17 x MT3.50 hollow-section triple-spoke cast aluminum
Rear Wheel 17 x MT3.50 hollow-section triple-spoke cast aluminum
Rear Tire 120/70 ZR17 (58W)
Rear Tire 180/55 ZR17 (73W)
Front Brakes 296 x 4.5mm dual hydraulic disc with 4-piston caliper and sintered metal pads
Rear Brakes 220 x 5mm hydraulic disc with single-piston calipers and sintered metal pads
Seat Height 810mm
Wheelbase 1430mm
Dry Weight 193kg
Fuel Capacity 19 litres (including 3.5 litre LCD reserve)

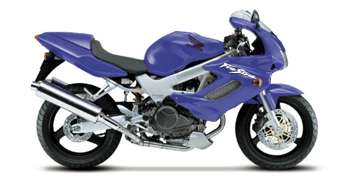

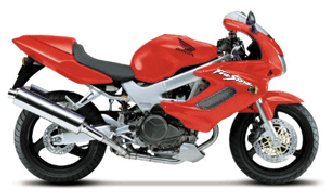

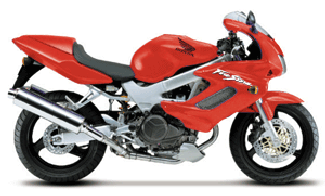

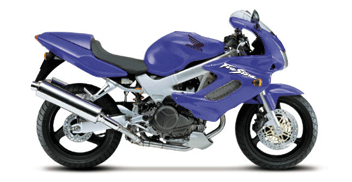

1000 (VTR1000)Image Gallery
