Honda CRF 450R Motorcycles

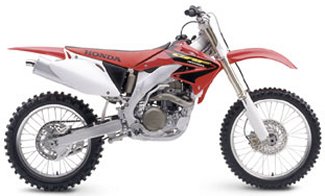

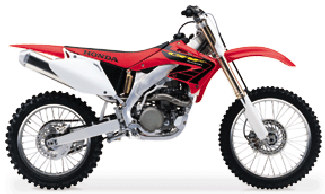

2003 CRF450R’03

Engine

Engine Type 449cc liquid-cooled single-cylinder four-stroke
Fuel Delivery 40mm KeihinTM flat-slide
Bore and Stroke 96.0 x 62.1 mm

Drivetrain

Transmission Close-ratio five-speed
Final drive #520 chain; 13T/50T

CHASSIS / SUSPENSION / BRAKES

Front Suspension 47mm inverted Showa fork with 16-position compression- and 16-position rebound-damping adjustability; 315mm (12.4 in.) travel
Rear Suspension Pro-Link Showa single-shock with spring-preload, 13-position (low-speed) and 3.5-turn (high-speed) compression-damping and 17-position rebound-damping adjustability; 315mm (12.4 in.) travel
Front Brakes Single disc with twin-piston caliper
Rear Brakes Single disc

DIMENSION

Ground clearance 337mm (13.3 in.)
Seat height 952mm (37.5 in.)
Wheelbase 1485mm (58.5 in.)
Fuel capacity 7.5 liters
Dry weight 102 kg (225 lb)

OTHER

Color Red

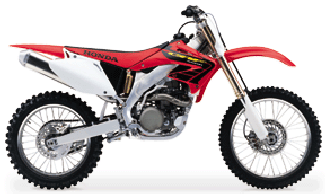

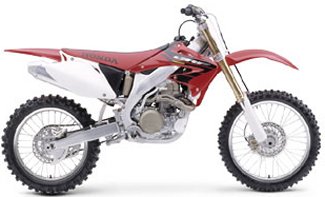

2004 CRF450R

Engine

Engine Type 449cc liquid-cooled single-cylinder four-stroke
Fuel Delivery Keihin 40mm flat-slide
Bore and Stroke 96.0mm x 62.1mm
Compression Ratio 12.0:1
Valve Train Unicam; four-valve
Ignition Solid-state CD with electronic advance

Drivetrain

Transmission Close-ratio five-speed
Final drive #520 chain; 13T/50T

CHASSIS / SUSPENSION / BRAKES

Front Suspension 47mm inverted Showa fork with 16-position compression- and 16-position rebound-damping adjustability; 315mm (12.4 in.) travel
Rear Suspension Pro-Link Showa single-shock with spring-preload, 13-position (low-speed) and 3.5-turn (high-speed) compression-damping and 17-position rebound-damping adjustability; 315mm (12.4 in.) travel
Front Brakes Single 240mm disc with twin-piston caliper
Rear Brakes Single 240mm disc
Front Tire 80/100-21
Rear Tire 110/90-19

DIMENSION

Rake 26.91 degrees
Trail 108.0mm (4.25 inches)
Seat height 37.6 inches
Wheelbase 58.5 inches
Fuel capacity 2.0 gallons
Dry weight 222.0 pounds

OTHER

Color Red

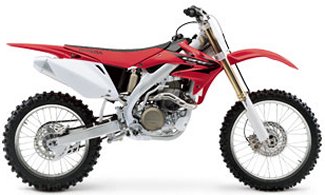

2005 CRF450R

Engine

Engine Type 449cc liquid-cooled single-cylinder four-stroke
Fuel Delivery Keihin 40mm flat-slide
Bore and Stroke 96.0mm x 62.1mm
Compression Ratio 12.0:1
Valve Train Unicam; four-valve
Ignition Solid-state CD with electronic advance

Drivetrain

Transmission Close-ratio five-speed
Final drive #520 chain; 13T/50T

CHASSIS / SUSPENSION / BRAKES

Front Suspension 47mm inverted Showa fork with 16-position compression- and 16-position rebound-damping adjustability; 315mm (12.4 in.) travel
Rear Suspension Pro-Link Showa single-shock with spring-preload, 13-position (low-speed) and 3.5-turn (high-speed) compression-damping and 17-position rebound-damping adjustability; 315mm (12.4 in.) travel
Front Brakes Single 240mm disc with twin-piston caliper
Rear Brakes Single 240mm disc
Front Tire 80/100-21
Rear Tire 110/90-19

DIMENSION

Rake 26.79 degrees
Trail 109.4mm (4.3 inches)
Seat height 37.6 inches
Wheelbase 58.7 inches
Fuel capacity 1.9 gallons
Dry weight 218.5 pounds

OTHER

Color Red

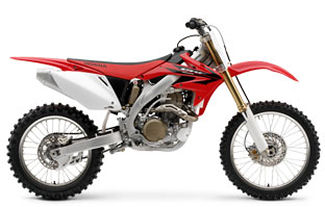

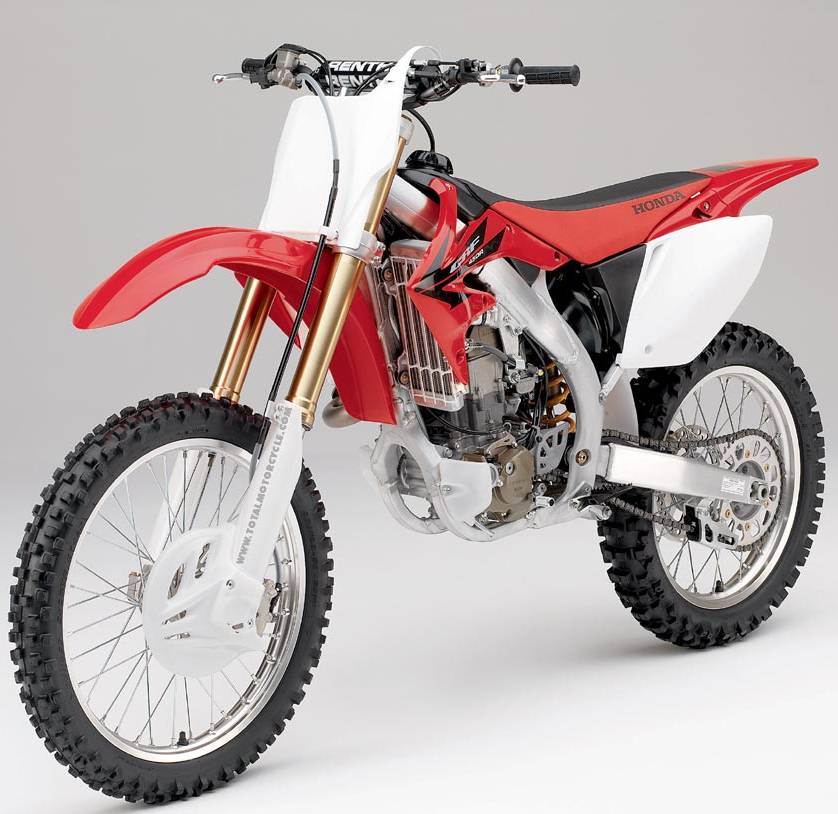

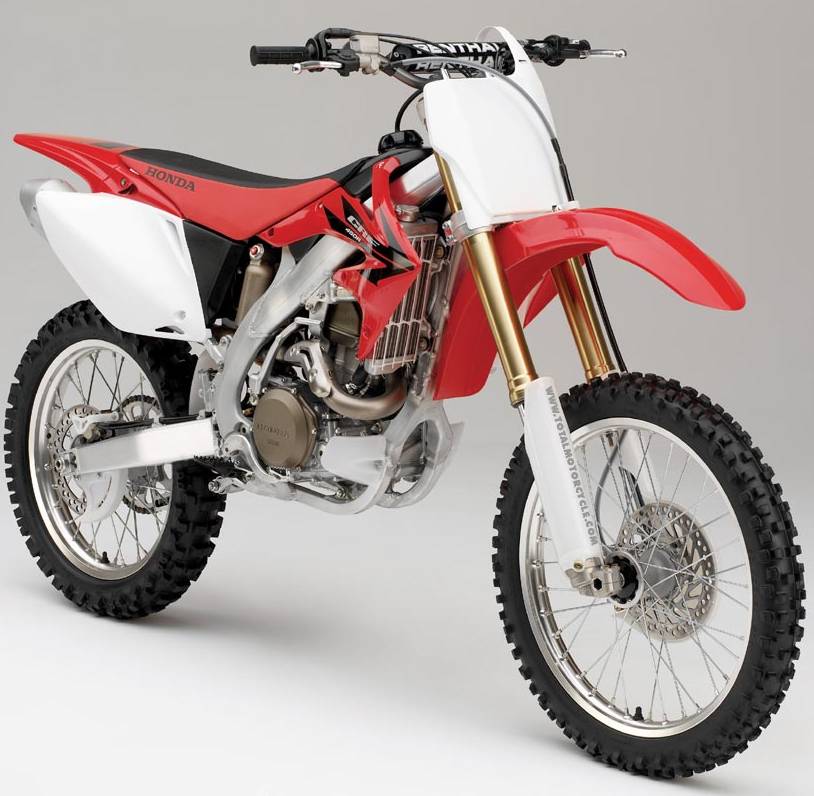

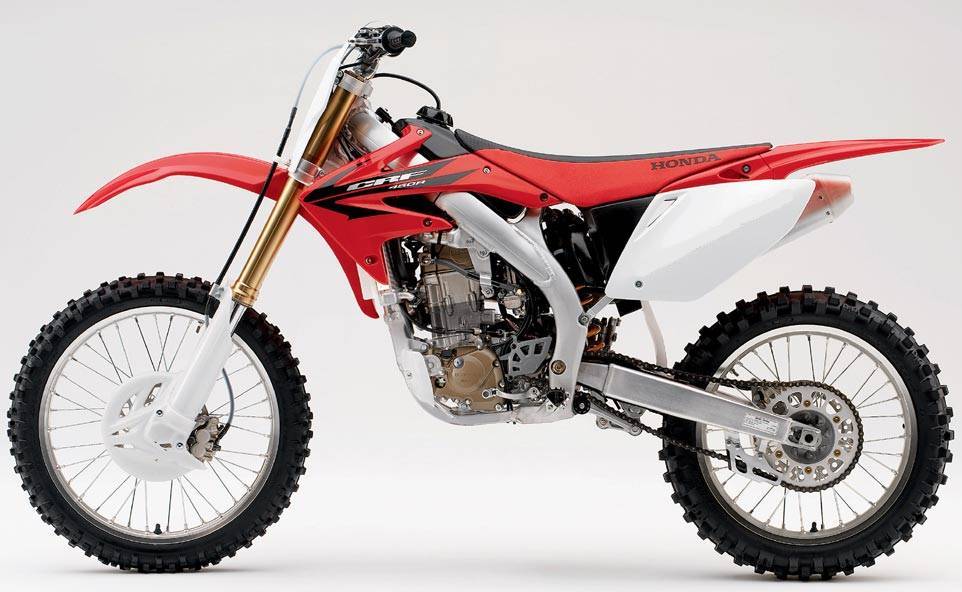

2006 CRF450R

Engine

Engine Type 449cc liquid-cooled single-cylinder four-stroke
Fuel Delivery Keihin 40mm flat-slide
Bore and Stroke 96.0mm x 62.1mm
Compression Ratio 12.0:1
Valve Train Unicam; four-valve
Ignition Solid-state CD with electronic advance

Drivetrain

Transmission Close-ratio five-speed
Final drive #520 chain; 13T/50T

CHASSIS / SUSPENSION / BRAKES

Front Suspension 47mm inverted Showa fork with 16-position compression- and 16-position rebound-damping adjustability; 315mm (12.4 in.) travel
Rear Suspension Pro-Link Showa single-shock with spring-preload, 13-position (low-speed) and 3.5-turn (high-speed) compression-damping and 17-position rebound-damping adjustability; 315mm (12.4 in.) travel
Front Brakes Single 240mm disc with twin-piston caliper
Rear Brakes Single 240mm disc
Front Tire 80/100-21
Rear Tire 110/90-19

DIMENSION

Rake 26.79 degrees
Trail 109.4mm (4.3 inches)
Seat height 37.6 inches
Wheelbase 58.7 inches
Fuel capacity 1.9 gallons
Dry weight 218.5 pounds

OTHER

Color Red
Model ID CRF450R

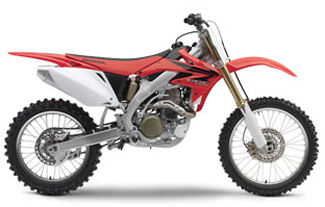

2007 CRF450R

OVERVIEW

  • Overview: Cycle World’s 2006 MX Bike of the Year. Five years in a row. The CRF450R has won pretty much every honor thrown its way — and it has no plans of letting up. Which is why we’ve made it even lighter, more responsive and better handling than ever, retooling the cylinder head and intake valves, boosting the carb to 41mm, and adding a new brake lever linkage to improve stopping power, a new subframe and a Dunlop 742 FA front tire. Wicked, eh?

Engine

Engine Type 449cc liquid-cooled single-cylinder four-stroke
Fuel Delivery Keihin 40mm flat-slide
Bore and Stroke 96.0mm x 62.1mm
Compression Ratio 12.0:1
Valve Train Unicam; four-valve
Ignition CD with electronic advance

Drivetrain

Transmission Close-ratio five-speed
Final drive #520 chain; 13T/48T

CHASSIS / SUSPENSION / BRAKES

Front Suspension 47mm inverted Showa cartridge fork with 16-position rebound- and 16-position compression-damping adjustability; 12.4-inch travel
Rear Suspension Pro-Link Showa single shock with spring-preload, 17-position rebound-damping adjustability, and compression-damping adjustment separated into low speed (13 positions) and high-speed (3.5 turns); 12.5-inch travel
Front Brakes Single 240mm disc with twin-piston caliper
Rear Brakes Single 240mm disc
Front Tire 80/100-21
Rear Tire 110/90-19

DIMENSION

Rake 26.79 degrees
Trail 109.4mm (4.3 inches)
Seat height 37.6 inches
Wheelbase 58.7 inches
Fuel capacity 1.9 gallons
Dry weight 218.5 pounds

OTHER

Color Red
Model ID CRF450R

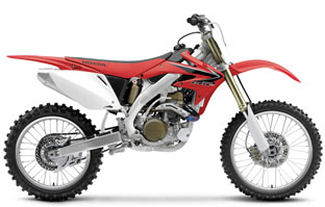

2008 CRF450R

OVERVIEW

  • The experts are pretty much unanimous in hailing the CRF450R as the best MXer in its class. Holding that advantage, however, demands constant improvement, and the 2008 CRF450R is sharper than ever, with all-new works-style brake rotors, retooled frame geometry, and the revolutionary new Honda Progressive Steering Damper (HPSD). The gauntlet has been thrown. Again.

Engine

Engine Type 449cc liquid-cooled single-cylinder Unicam four-stroke
Fuel Delivery 41.0mm Keihin® flat-slide
Bore and Stroke 96.0mm x 62.1mm
Compression Ratio 12.0:1
Ignition CD

Drivetrain

Transmission Close-ratio five-speed
Final drive #520 chain; 13T/48T

CHASSIS / SUSPENSION / BRAKES

Front Suspension 47mm inverted Showa cartridge fork with 16-position rebound- and 16-position compression-damping adjustability; 12.4-inch travel
Rear Suspension Pro-Link Showa single shock with spring-preload, 17-position rebound-damping adjustability, and compression-damping adjustment separated into low speed (13 positions) and high-speed (3.5 turns); 12.5-inch travel
Front Brakes Single-disc with twin-piston caliper
Rear Brakes Single-disc
Front Tire 80/100-21
Rear Tire 110/90-19

DIMENSION

Rake 26.76 degrees
Trail 111.4 mm (4.3 inches)
Seat height 37.6 inches
Ground Clearance 13.4 inches
Wheelbase 58.6 inches
Fuel capacity 1.9 gallons, including .07 gallon reserve
Curb weight 238 lbs (Includes all standard equipment, required fluids and a full tank of fuel — ready to ride)

OTHER

Color
  • Red

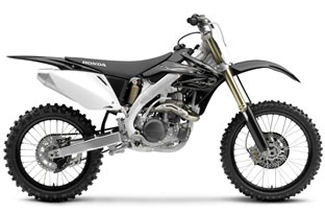

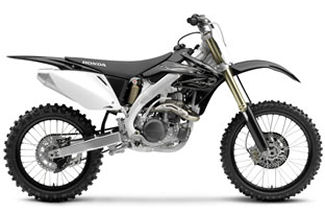

  • Black (2008 Special Color, Limited Availability)
Model ID CRF450R

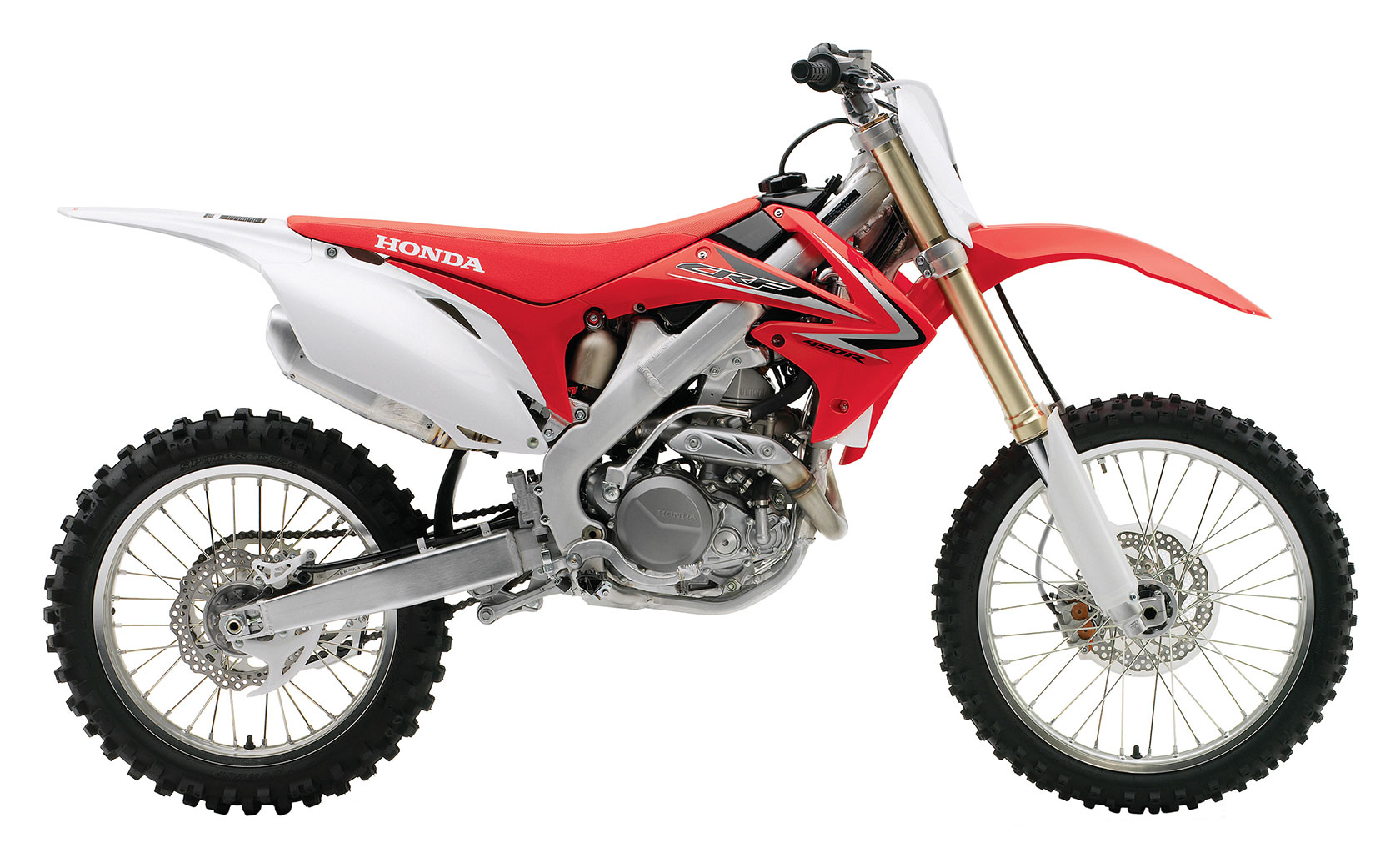

2010 CRF 450R

Engine

Engine Type 449cc
Engine Detail Liquid-cooled single-cylinder four-stroke
Bore and Stroke 96mm x 62.1mm
Compression Ratio 12.0:1
Fuel System Programmed Fuel Injection (PGM-FI), 50mm throttle body
Ignition Full transistor with electronic advance

Drivetrain

Transmission Close-ratio five-speed
Final drive #520 chain; 13T/48T

CHASSIS / SUSPENSION / BRAKES

Front Suspension 48mm inverted KYB® Air-Oil-Separate (AOS) with rebound and compression-damping adjustability; 12.2 inches travel
Rear Suspension Pro-Link KYB single shock with spring preload, rebound damping adjustability, and compression damping adjustment separated into low-speed and high-speed; 12.6 inches travel
Front Brakes Single 240mm disc with twin-piston caliper
Rear Brakes Single 240mm disc
Front Tire 80/100-21
Rear Tire 110/90-19

DIMENSION

Seat height 37.6 in.
Ground Clearance 13.4 inches
Wheelbase 58.7 in.
Fuel capacity 1.5 gal.
Curb weight 234.8 lbs.

OTHER

Color
  • Red
Model ID $8099

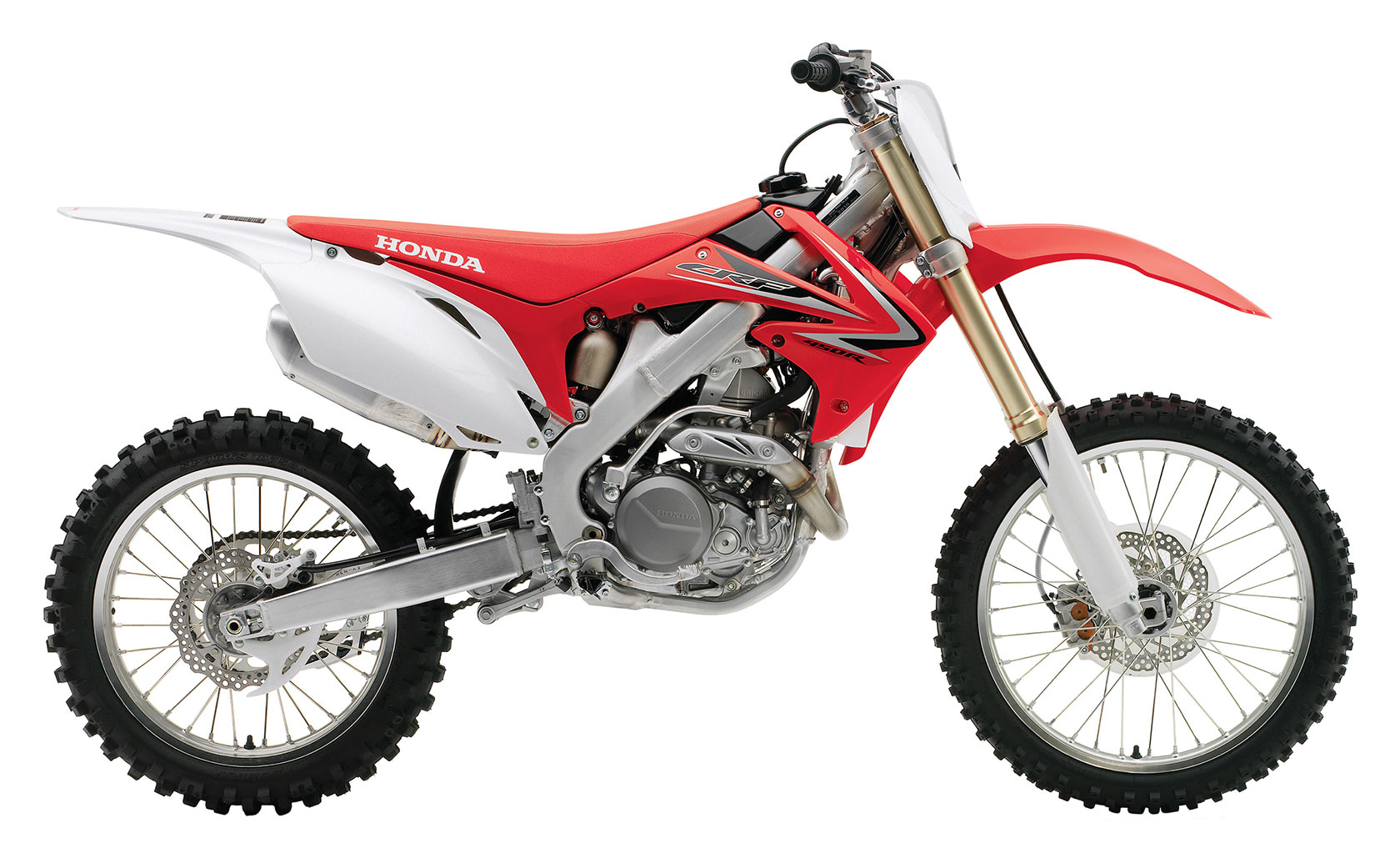

2012 CRF450R

Engine

Engine Type Liquid-cooled 4-stroke 4-valve SOHC single
Engine Displacement 449cc
Engine Detail Liquid-cooled single-cylinder four-stroke
Bore and Stroke 96 x 62.1mm
Compression Ratio 12:1
Fuel Delivery Programmed Fuel Injection (PGM-FI), 46mm throttle body
Max. Power Output 39.4kW
Max. Torque 48.8Nm
Ignition Full transistor with electronic advance

Drivetrain

Transmission Close-ratio five-speed
Final drive #520 roller chain
Front sprocket 13T
Rear sprocket 48T
Front Wheels Aluminium rim/wire spoke 21 x 1.6
Rear Wheels Aluminium rim/wire spoke 19 x 2.15

CHASSIS / SUSPENSION / BRAKES

Front Suspension 48mm inverted KYB leading-axle twin-chamber cartridge-type telescopic fork with 18-step adjustable compression and 18-step rebound damping; 273mm (12.2 inch) axle travel
Rear Suspension Pro-Link with KYB shock, adjustable low-speed (18-step) and high-speed (1.5-turn) compression and 20-step rebound damping; 320mm (12.4 inch) axle travel
Front Brakes 240mm hydraulic disc with dual-piston caliper and sintered metal pads
Rear Brakes 240mm hydraulic disc with single-piston caliper and sintered metal pads
Front Tire
  • UK: 80/100-21 (51M)
  • N.America: 80/100-21 Dunlop MX51
Rear Tire
  • UK: 110/90-19 (62M)
  • N. America: 120/80-19 Dunlop MX51

DIMENSION

Seat height 954mm (37.6 inches)
Rake 27°05′ (Caster Angle)
Trail 116mm (4.57 inches)
Overall Length 1491mm (58.7 inches)
Overall Width 2191mm (86.2 inches)
Overall Width 827mm (32.6 inches)
Overall Height 1273mm (50.1 inches)
Ground Clearance 332mm (13.1 inches)
weight 108.9 kg (239.6 lb)

    Front: 53.7 kg (118.2 lb) Rear: 55.2 kg (121.4 lb)

OTHER

Color Red
Model ID CRF450R
