Honda Metropolitan II (CHF50P) Motorcycles


2003 Metropolitan II (CHF 50P)

Engine

Engine 49cc liquid-cooled single-cylinder four-stroke
Fuel Delivery 15.0mm CV with automatic choke
Spark plug CR8EH-9
Plug gap .036
Ignition CDI

DRIVETRAIN

Transmission Automatic V-Matic belt drive

CHASSIS / SUSPENSION / BRAKES

Front Suspension Twin-downtube fork; 1.9-inch travel
Rear Suspension Single shock; 2.6-inch travel
Front Brake Drum
Rear Brake Drum with CBS
Front Tire 90/90-10
Rear Tire 90/90-10

DIMENSION

Wheelbase 46.9 inches
Seat Height 28.0 inches
Dry Weight 157.0 pounds
Fuel Capacity 1.3 gallons

OTHER

2004 Metropolitan II (CHF50P)

Engine

Engine 49cc liquid-cooled single-cylinder four-stroke
Fuel Delivery 15.0mm CV with automatic choke
Spark plug CR8EH-9
Plug gap .036
Ignition CDI

DRIVETRAIN

Transmission Automatic V-Matic belt drive

CHASSIS / SUSPENSION / BRAKES

Front Suspension Twin-downtube fork; 1.9-inch travel
Rear Suspension Single shock; 2.6-inch travel
Front Brake Drum
Rear Brake Drum with CBS
Front Tire 90/90-10
Rear Tire 90/90-10

DIMENSION

Wheelbase 46.9 inches
Seat Height 28.0 inches
Dry Weight 157.0 pounds
Fuel Capacity 1.3 gallons

OTHER

  • Colors:

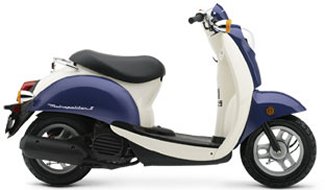

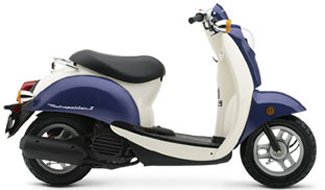

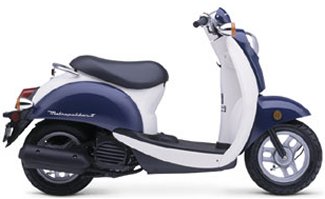

    • Denim

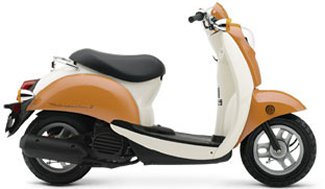

    • Juice

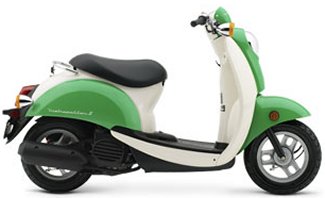

    • Kiwi

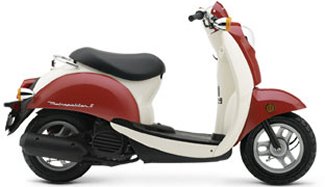

    • Salsa

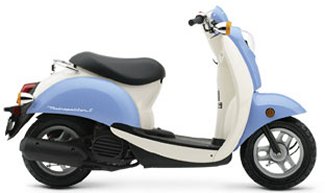

    • Sky

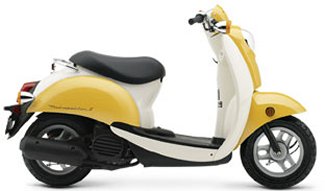

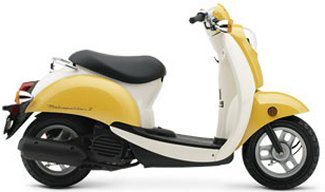

    • Solar

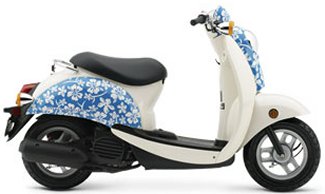

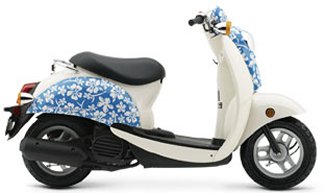

    • Blue Hibiscus

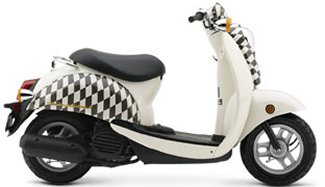

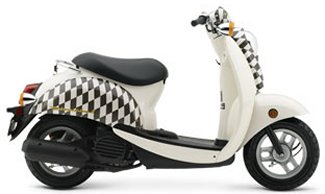

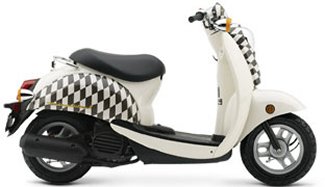

    • Checkers
  • Warranty: 1 year

2005 Metropolitan II (CHF50P)

Engine

Engine 49cc liquid-cooled single-cylinder four-stroke
Fuel Delivery 15.0mm CV with automatic choke
Spark plug CR8EH-9
Plug gap .036
Ignition CDI

DRIVETRAIN

Transmission Automatic V-Matic belt drive

CHASSIS / SUSPENSION / BRAKES

Front Suspension Twin-downtube fork; 1.9-inch travel
Rear Suspension Single shock; 2.6-inch travel
Front Brake Drum
Rear Brake Drum with CBS
Front Tire 90/90-10
Rear Tire 90/90-10

DIMENSION

Wheelbase 46.9 inches
Seat Height 28.0 inches
Dry Weight 157.0 pounds
Fuel Capacity 1.3 gallons

OTHER

  • Colors
    • Denim
    • Kiwi
    • Salsa
    • Solar

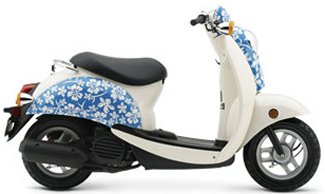

    • Blue Hibiscus
    • Checkers

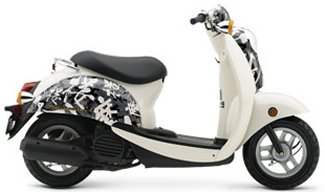

    • Kanji

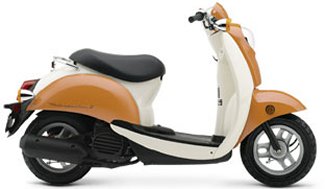

    • Orange Ice
  • Warranty: 1 year

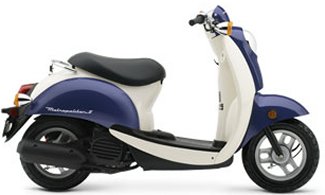

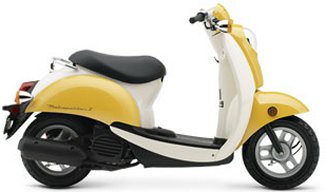

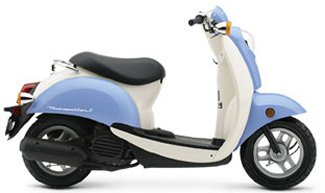

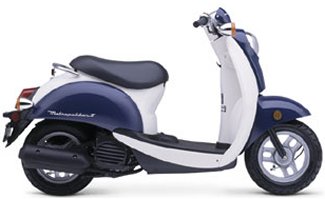

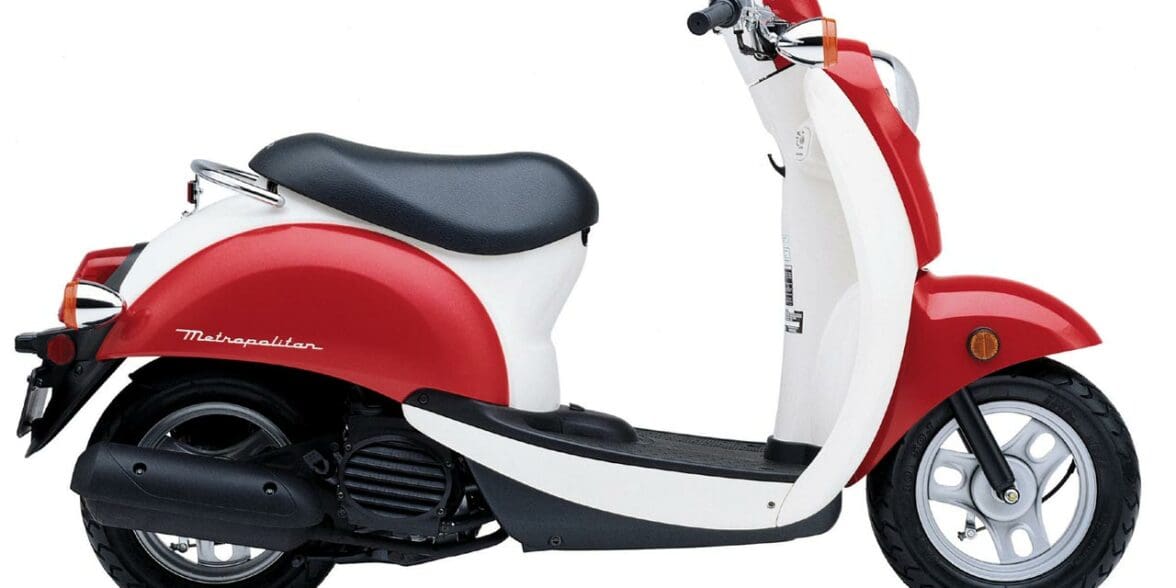

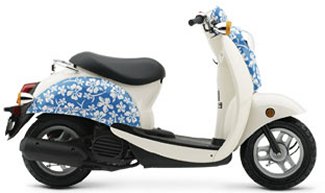

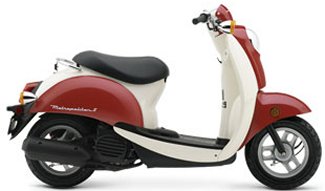

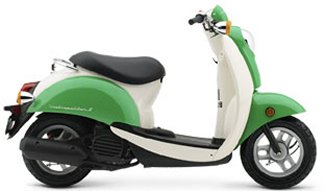

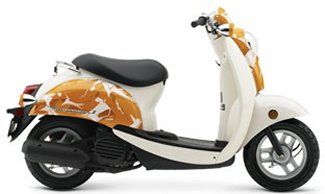

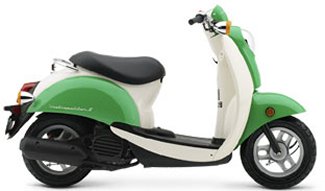

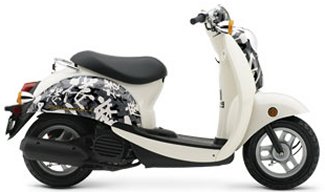

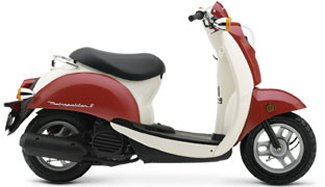

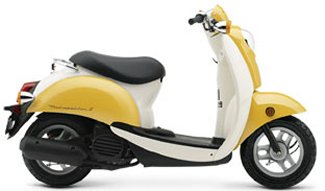

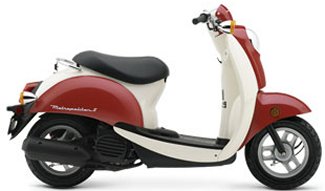

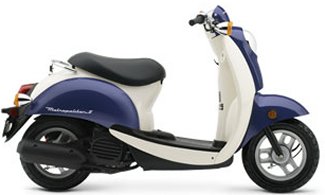

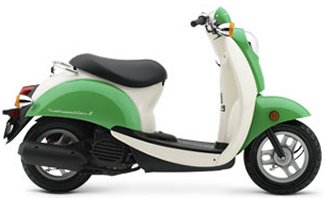

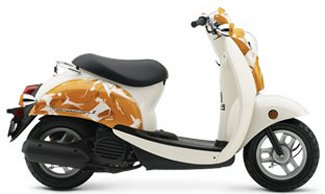

CHF50P Image Gallery
