Honda CBX750F Motorcycles


1984 CBX750F



Engine

Engine Type In-line four, four-stroke
Displacement 747.00 ccm (45.58 cubic inches)
Power 91.00 HP (66.4 kW)) @ 9500 RPM
Top speed 211.0 km/h (131.1 mph)
Compression 9.3:1
Bore x stroke 67.0 x 53.0 mm (2.6 x 2.1 inches)
Valves per cylinder 4
Fuel control DOHC
Cooling system Air
Horsepower 93 hp (69.4 kW) @ 9500 rpm
Maximum Torque 70.6 Nm (52.7 ft. lbs) @ 8500 rpm

DRIVETRAIN

Transmission 6-speed
Final Drive Chain

CHASSIS / SUSPENSION / BRAKES

FrontBrake dual 260 mm discs with 2-piston calipers
Rear Brake single 280 mm disc with 2-piston calipers
Front Tire 110/90-16
Rear Tire 130/80-18

DIMENSION

Seat Height 795 mm (31.3 inches)
Wheelbase 1465 mm (57.7 inches)
Fuel Capacity 22 litres (5.8 Gal) including 4 litres (1.1 Gal) reserve
Dry weight
  • (without fluids): 218 kg (480.6 pounds)
  • Weight incl. oil, gas, etc: 241.0 kg (531.3 pounds)

OTHER

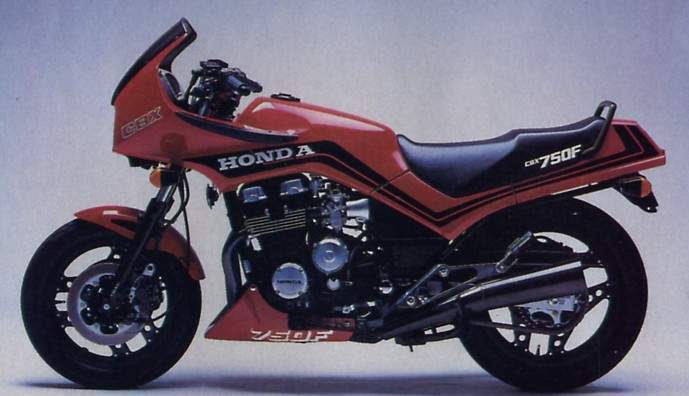

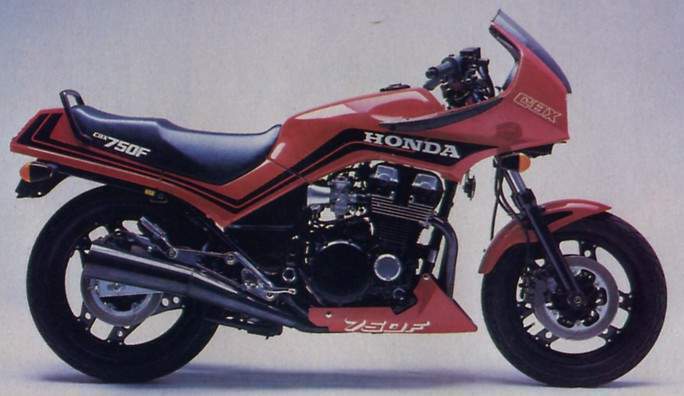

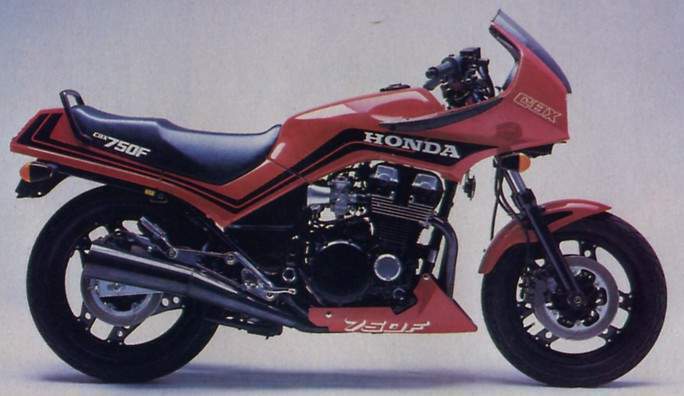

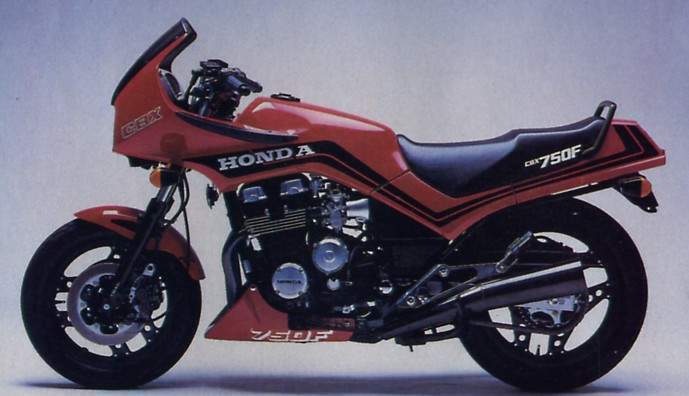

CBX750F Image Gallery
