Honda CBR600RR Motorcycles

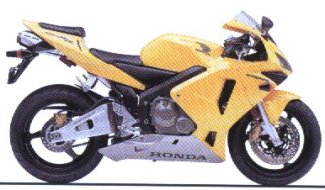

2003 CBR600RR

ENGINE

Engine Type 599cc DOHC liquid-cooled inline four-cylinder four-stroke
Bore and Stroke 67.0 x 42.5 mm
Compression Ratio 12.0:1
Valve Train DOHC; four valves per cylinder
Fuel Delivery Dual Stage Fuel Injection (DSFI)

DRIVETRAIN

Transmission Close-ratio six-speed
Final Drive #525 O-ring-sealed chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension 45mm HMAS cartridge fork with spring preload, rebound and compression damping adjustability; 120mm travel
Rear Suspension Unit Pro-Link HMAS single shock with spring preload, rebound and compression damping adjustability; 120mm travel
Front Tire 120/70ZR-17 radial
Rear Tire 180/55ZR-17 radial
Front Brakes Dual full-floating 310mm discs with four-piston calipers
Rear Brakes Single 220mm disc with single-piston caliper

DIMENSION

Seat Height 820mm (32.3 in.)
Wheelbase 1390mm (54.7 in.)
Fuel Capacity 18 litres (4.7 GalUS)
Dry weight 68 kg (370 lb)

OTHER

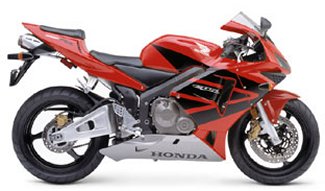

Colors

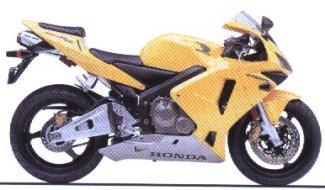

  • Pearl Yellow
  • Black
  • Red/Black

2004 CBR600RR

ENGINE

Engine Type 599cc liquid-cooled inline four-cylinder
Bore and Stroke 67.0mm x 42.5mm
Compression Ratio 12.0:1
Valve Train DOHC; four valves per cylinder
Fuel Delivery Dual Stage Fuel Injection (DSFI)
Ignition Computer-controlled digital transistorized with three-dimensional mapping

DRIVETRAIN

Transmission Close-ratio six-speed
Final Drive #525 O-ring-sealed chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension 45mm HMAS cartridge fork with spring preload, rebound and compression damping adjustability; 120mm travel
Rear Suspension Unit Pro-Link HMAS single shock with spring preload, rebound and compression damping adjustability; 120mm travel
Front Tire 120/70ZR-17 radial
Rear Tire 180/55ZR-17 radial
Front Brakes Dual 310.0mm discs with four-piston calipers
Rear Brakes Single 220.0mm disc

DIMENSION

Rake 24.0 degrees
Trail 95.0mm (3.7 inches)
Seat Height 32.3 inches
Wheelbase 54.7 inches
Fuel Capacity 4.8 gallons, including 0.9-gallon reserve
Dry weight 370.0 pounds

OTHER

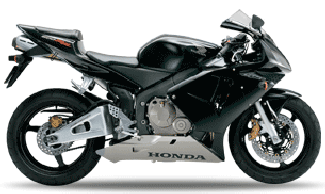

Colors

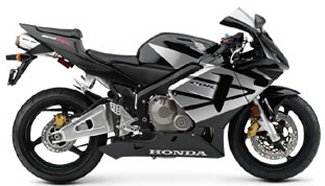

  • Black/Silver

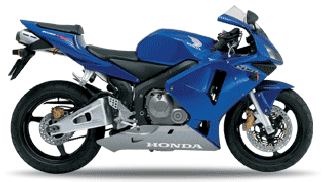

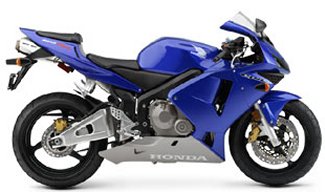

  • Candy Blue
  • Red/Black
Emissions California version meets CARB 2004 emissions standards.
Model ID CBR600RR
Warranty 1 year

2005 CBR600RR

ENGINE

Engine Type 599cc liquid-cooled inline four-cylinder
Bore and Stroke 67.0mm x 42.5mm
Compression Ratio 12.0:1
Valve Train DOHC; four valves per cylinder
Fuel Delivery Dual Stage Fuel Injection (DSFI)
Ignition Computer-controlled digital transistorized with three-dimensional mapping

DRIVETRAIN

Transmission Close-ratio six-speed
Final Drive #525 O-ring-sealed chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension 41.0mm inverted HMAS cartridge fork with spring-preload, rebound and compression-damping adjustability; 4.7-inch travel
Rear Suspension Unit Pro-Link HMAS single shock with spring-preload, rebound and compression-damping adjustability; 5.1-inch travel
Front Tire 120/70ZR-17 radial
Rear Tire 180/55ZR-17 radial
Front Brakes Dual radial-mounted four-piston calipers with 310.0mm discs
Rear Brakes Single 220.0mm disc

DIMENSION

Rake 24.0 degrees
Trail 95.0mm (3.7 inches)
Seat Height 32.3 inches
Wheelbase 54.7 inches
Fuel Capacity 4.8 gallons, including 0.9-gallon reserve
Dry weight 361 pounds

OTHER

Colors

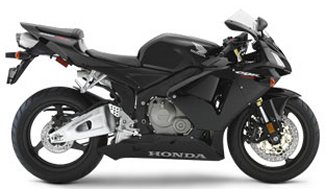

  • Black

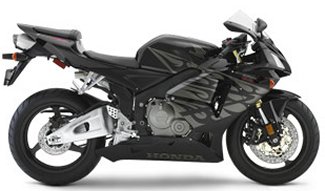

  • Black/Tribal
  • Metallic Silver/Black
  • Red/Black
Emissions N/A
Model ID CBR600RR
Warranty 1 year

2006 CBR600RR

ENGINE

Engine Type 599cc liquid-cooled inline four-cylinder
Bore and Stroke 67.0mm x 42.5mm
Compression Ratio 12.0:1
Valve Train DOHC; four valves per cylinder
Fuel Delivery Dual Stage Fuel Injection (DSFI)
Ignition Computer-controlled digital transistorized with three-dimensional mapping

DRIVETRAIN

Transmission Close-ratio six-speed
Final Drive #525 O-ring-sealed chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension 41.0mm inverted HMAS cartridge fork with spring-preload, rebound and compression-damping adjustability; 4.7-inch travel
Rear Suspension Unit Pro-Link HMAS single shock with spring-preload, rebound and compression-damping adjustability; 5.1-inch travel
Front Tire 120/70ZR-17 radial
Rear Tire 180/55ZR-17 radial
Front Brakes Dual radial-mounted four-piston calipers with 310.0mm discs
Rear Brakes Single 220.0mm disc

DIMENSION

Rake 24.0 degrees
Trail 95.0mm (3.7 inches)
Seat Height 32.3 inches
Wheelbase 54.7 inches
Turning Radius 10.5 feet
Fuel Capacity 4.8 gallons, including 0.9-gallon reserve
Dry weight 361 pounds

OTHER

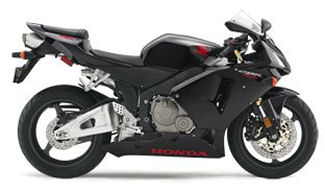

Colors
  • Black

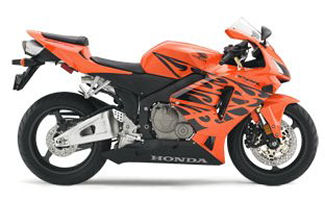

  • Pearl Orange/Black Tribal
  • Light Silver Metallic
  • Red/Black
Emissions N/A
Model ID CBR600RR

2007 CBR600RR

OVERVIEW

  • Overview: Serious sportbike pilots have eagerly anticipated the arrival of the potent new 2007 CBR600RR, and now the industry experts have confirmed this incredible machine was well worth the wait. Cycle News crowned this middleweight missile winner of its ’07 600cc Class Shootout, with the more compact, more powerful and lighter-weight 600RR easily besting the competition on both track and street. Roadracing World went one better, calling the CBR600RR “the best 600cc sportbike ever.” Praise doesn’t come much higher. And neither does performance.

ENGINE

Engine Type 599cc liquid-cooled inline four-cylinder
Bore and Stroke 67.0mm x 42.5mm
Compression Ratio 12.0:1
Valve Train DOHC; four valves per cylinder
Fuel Delivery Dual Stage Fuel Injection (DSFI)
Ignition Computer-controlled digital transistorized with three-dimensional mapping

DRIVETRAIN

Transmission Close-ratio six-speed
Final Drive #525 O-ring-sealed chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension 41mm inverted HMAS cartridge fork with spring preload, rebound and compression damping adjustability; 4.7 inches travel
Rear Suspension Unit Pro-Link HMAS single shock with spring preload, rebound and compression damping adjustability; 5.1 inches travel
Front Tire 120/70ZR-17 radial
Rear Tire 180/55ZR-17 radial
Front Brakes Dual radial-mounted four-piston calipers with 310mm discs
Rear Brakes Single 220.0mm disc

DIMENSION

Rake 23.7 degrees
Trail 96.3mm (3.8 inches)
Seat Height 32.3 inches
Wheelbase TBD
Turning Radius 10.5 feet
Fuel Capacity 4.8 gallons, including 0.9-gallon reserve
Dry weight 345 pounds

OTHER

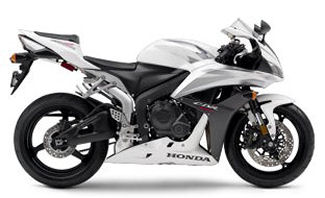

Colors
  • Black
  • Pearl White/Silver
  • Red/Black

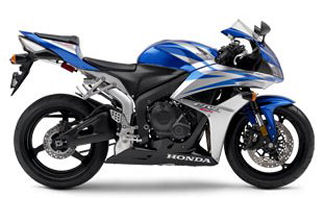

  • Ultra Blue Metallic/Silver
Emissions N/A
Model ID CBR600RR

2008 CBR600RR

OVERVIEW

  • Overview: If 2007 gave any clue, the CBR®600RR has only just begun to write its legacy in the annals of 600-class performance. Crowned the Best Middleweight of 2007 by both Cycle World and Rider magazines, the CBR600RR oozes MotoGP-bred tech. Dual Stage Fuel Injection, Pro-Link® rear suspension, HESD electronic steering damper, wicked new colors for 2008 there’s no other 600 like it. And there never will be.

ENGINE

Engine Type 599cc liquid-cooled inline four-cylinder
Bore and Stroke 67.0mm x 42.5mm
Compression Ratio 12.0:1
Valve Train DOHC; four valves per cylinder
Carburetion Dual Stage Fuel Injection (DSFI) with 40mm throttle bodies, Denso 12-hole injectors
Ignition Computer-controlled digital transistorized with three-dimensional mapping

DRIVETRAIN

Transmission Close-ratio six-speed
Final Drive #525 O-ring-sealed chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension 41mm inverted HMAS cartridge fork with spring preload, rebound and compression damping adjustability; 4.7 inches travel
Rear Suspension Unit Pro-Link HMAS single shock with spring preload, rebound and compression damping adjustability; 5.1 inches travel
Front Tire 120/70ZR-17 radial
Rear Tire 180/55ZR-17 radial
Front Brakes Dual radial-mounted four-piston calipers with 310mm discs
Rear Brakes Single 220.0mm disc

DIMENSION

Rake (Caster Angle): 23.55°
Trail 97.7mm (3.8 inches)
Seat Height 32.3 inches
Wheelbase 53.9 inches
Turning Radius 10.5 feet
Fuel Capacity 4.8 gallons, including 0.9-gallon reserve
Curb weight 410 lbs (Includes all standard equipment, required fluids and a full tank of fuel — ready to ride)

OTHER

Colors
  • Red/Black
  • Pearl Orange/Black

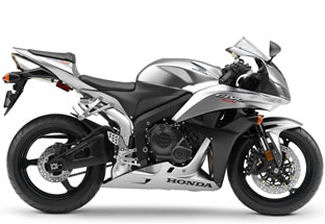

  • Metallic Silver
  • Graffiti
One year Unlimited mileage limited warranty; extended coverage
Model ID CBR600RR

2009 CBR600RR

ENGINE

Engine Type 599cc
Engine Detail liquid-cooled inline four-cylinder
Bore and Stroke 67mm x 42.5mm
Compression Ratio 12.2:1
Valve Train DOHC; four valves per cylinder
Fuel System Dual Stage Fuel Injection (DSFI) with 40mm throttle bodies, Denso 12-hole injectors
Ignition Computer-controlled digital transistorized with three-dimensional mapping

DRIVETRAIN

Transmission Close-ratio six-speed
Final Drive #525 O-ring-sealed chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension 41mm inverted HMAS cartridge fork with spring preload, rebound and compression damping adjustability; 4.7 inches travel
Rear Suspension Unit Pro-Link HMAS single shock with spring preload, rebound and compression damping adjustability; 5.1 inches travel
Front Tire 120/70ZR-17 radial
Rear Tire 180/55ZR-17 radial
Front Brakes Dual radial-mounted four-piston calipers with 310 mm discs
Rear Brakes Single 220.0mm disc

DIMENSION

Seat Height 32.3 in.
Wheelbase 53.9 in.
Fuel Capacity 4.8 gal.
Curb weight 410 lbs.

OTHER

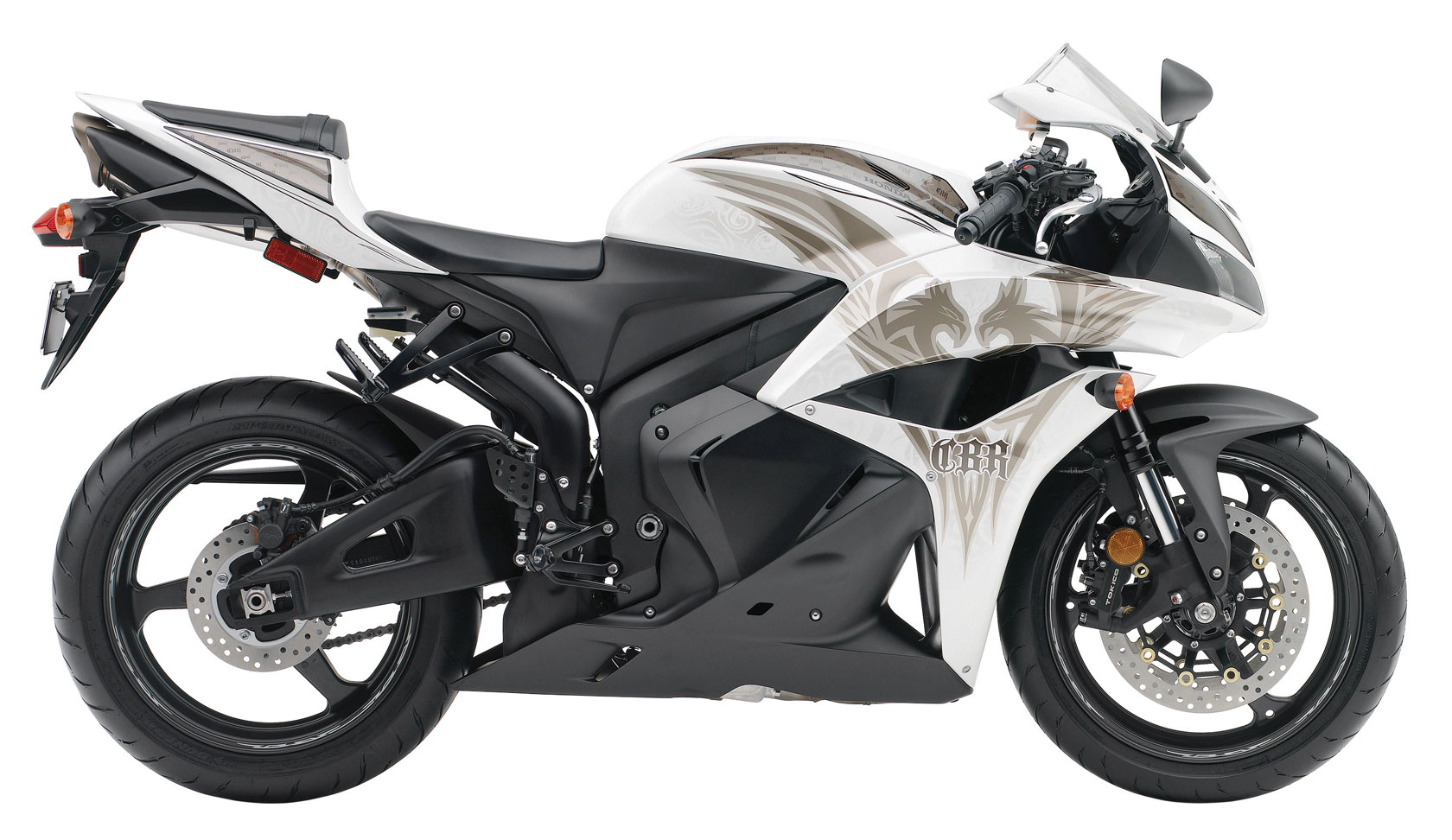

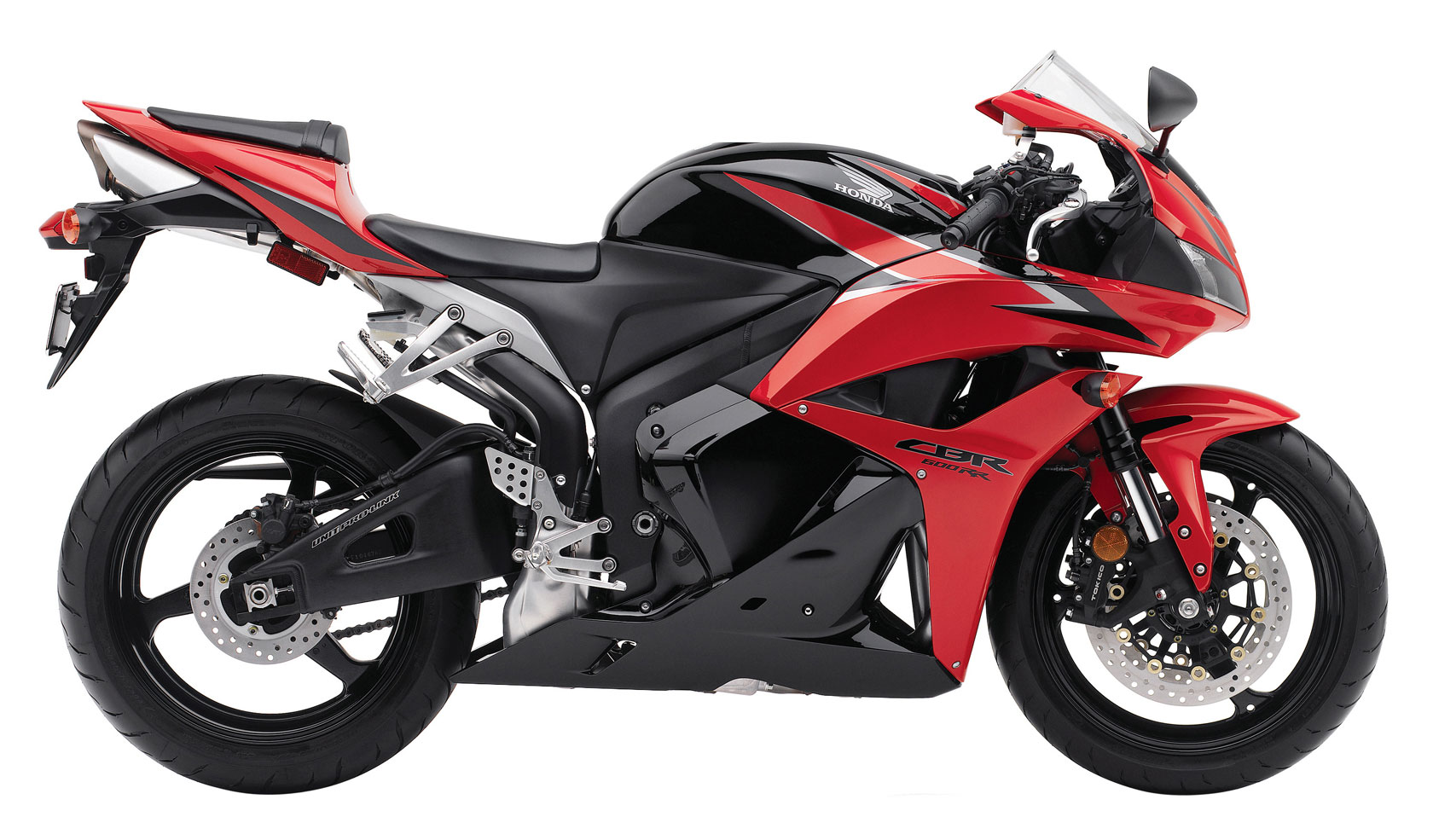

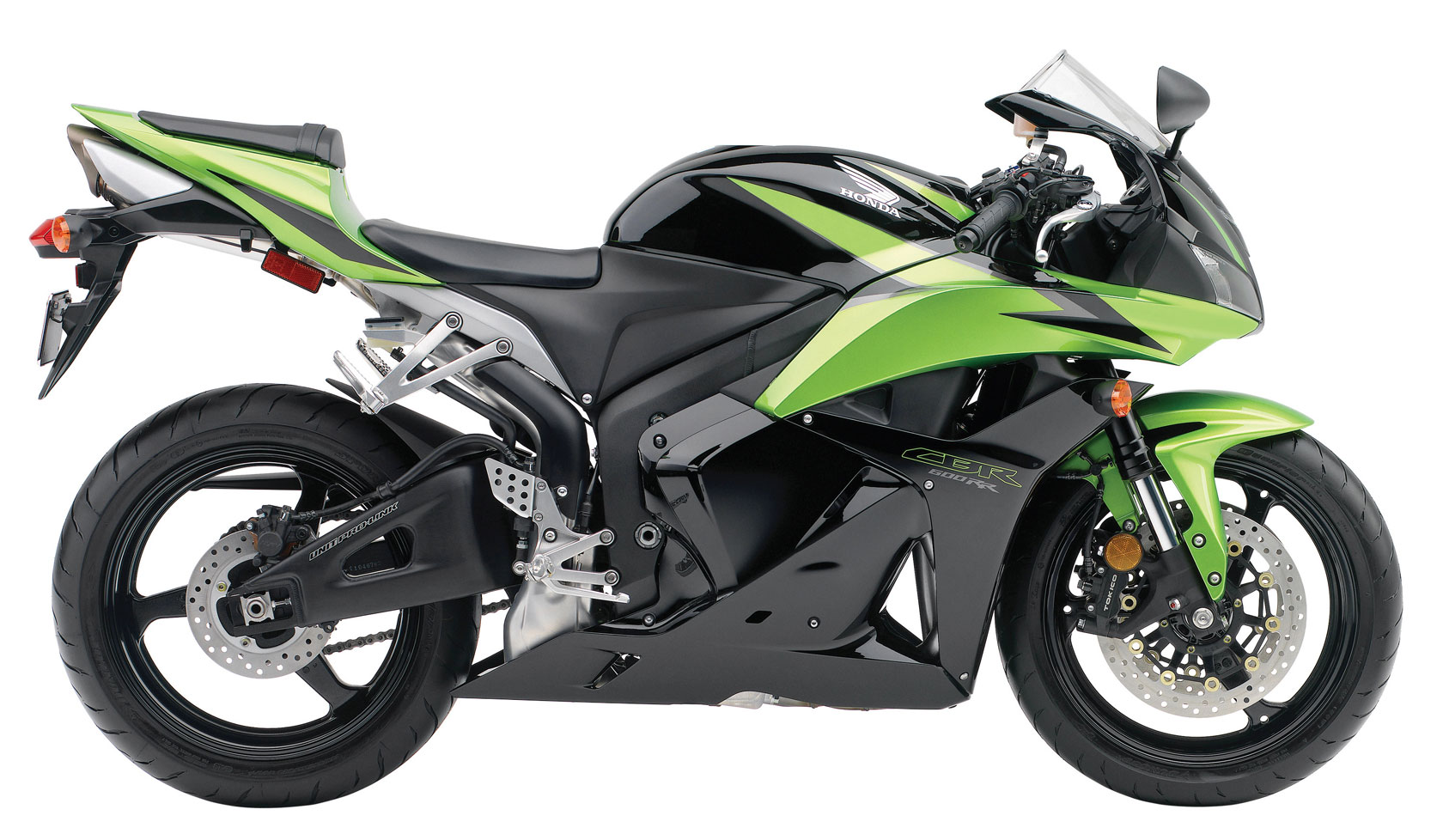

Colors Red / Black, Black / Bright Green Metallic, Metallic Black, Phoenix, [Pearl White / Pearl Blue / Red – limited edition]
One year Unlimited mileage limited warranty; extended coverage
Price $9799
Warranty 1 Year

2010 CBR 600RR

ENGINE

Engine Type Liquid-cooled inline-four
Displacement 599 cc
Bore and Stroke 67 mm x 42.5 mm
Compression Ratio 12.2:1
Valve Train Chain-driven DOHC, 4 valves per cylinder
Fuel Delivery Dual Stage Fuel Injection (DSFI) with 40mm throttle bodies, Denso 12-hole injectors
Ignition Computer-controlled digital transistorized with three-dimensional mapping

DRIVETRAIN

Transmission Close-ratio six-speed
Final Drive #525 O-ring-sealed chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension 41 mm inverted HMAS cartridge fork with full adjustability; 110 mm (4.3 in) travel
Rear Suspension Unit Pro-Link HMAS single shock with full adjustability; 129 mm (5.1 in.) travel
Front Tire 120/70ZR-17 radial
Rear Tire 180/55ZR-17 radial
Brake option Electronically Controlled Combined ABS
Front Brakes Dual 310 mm discs with radial-mounted four-piston calipers.
Rear Brakes Single 220 mm disc with single-piston caliper.

DIMENSION

Seat Height 820 mm (32.3 in.)
Wheelbase 1,370 mm (53.9 in.)
Fuel Capacity 18 litres (4.8 GalUS)
Curb weight
  • Non-ABS: 186 kg (410 lb)
  • ABS: 196 kg (432 lb)

OTHER

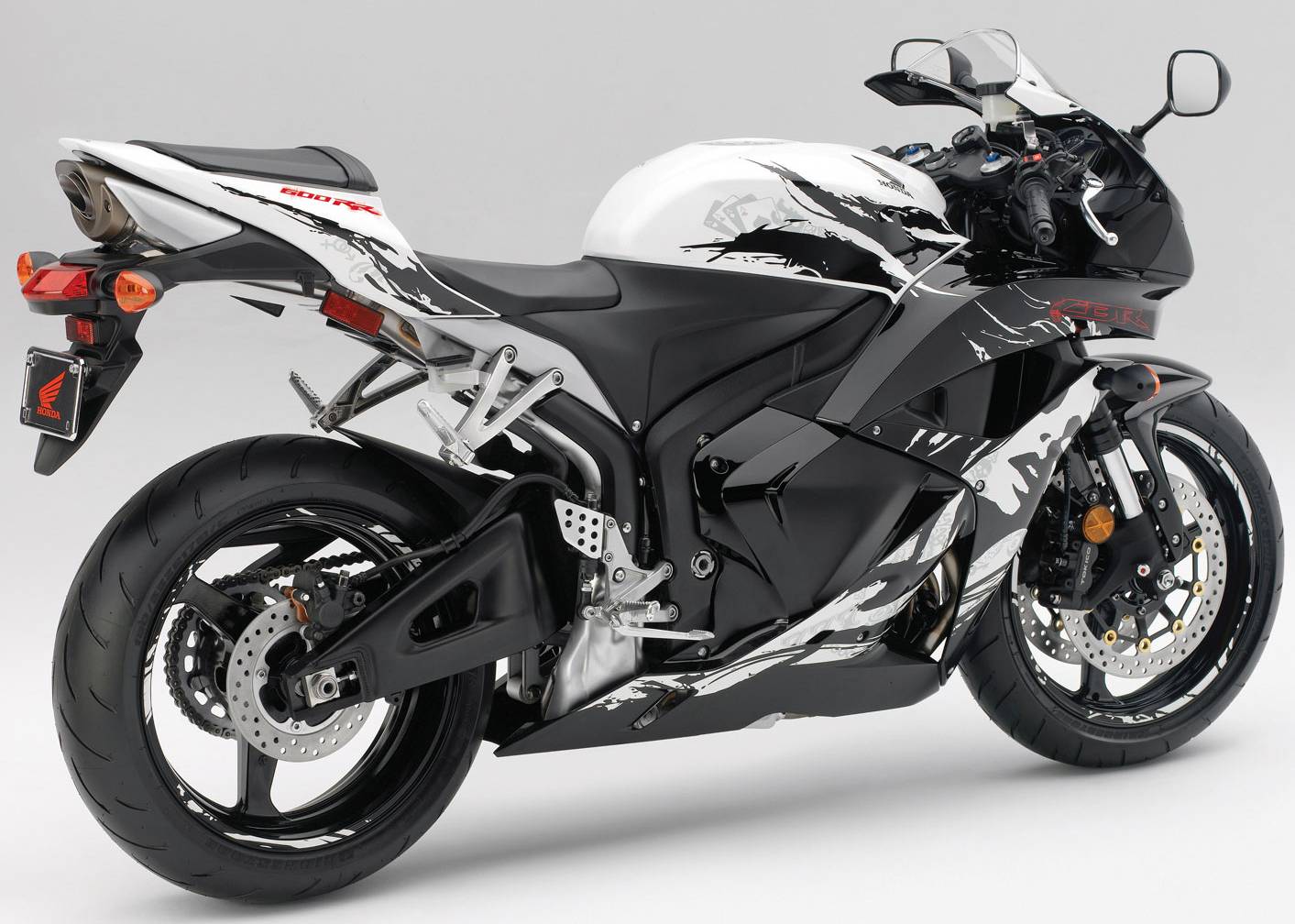

Colors

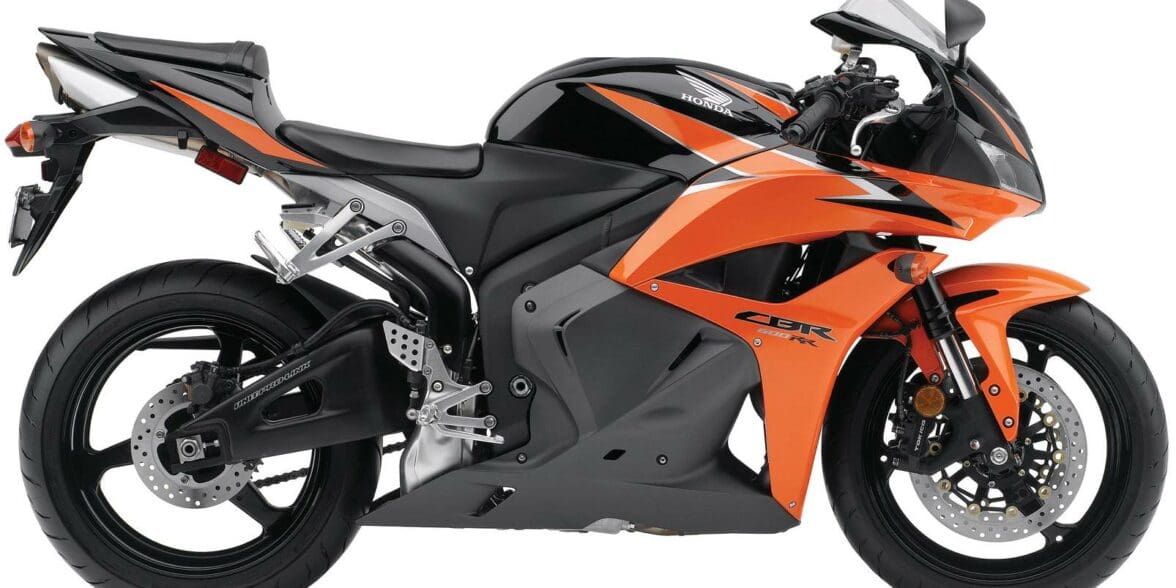

  • Pearl Orange/Black

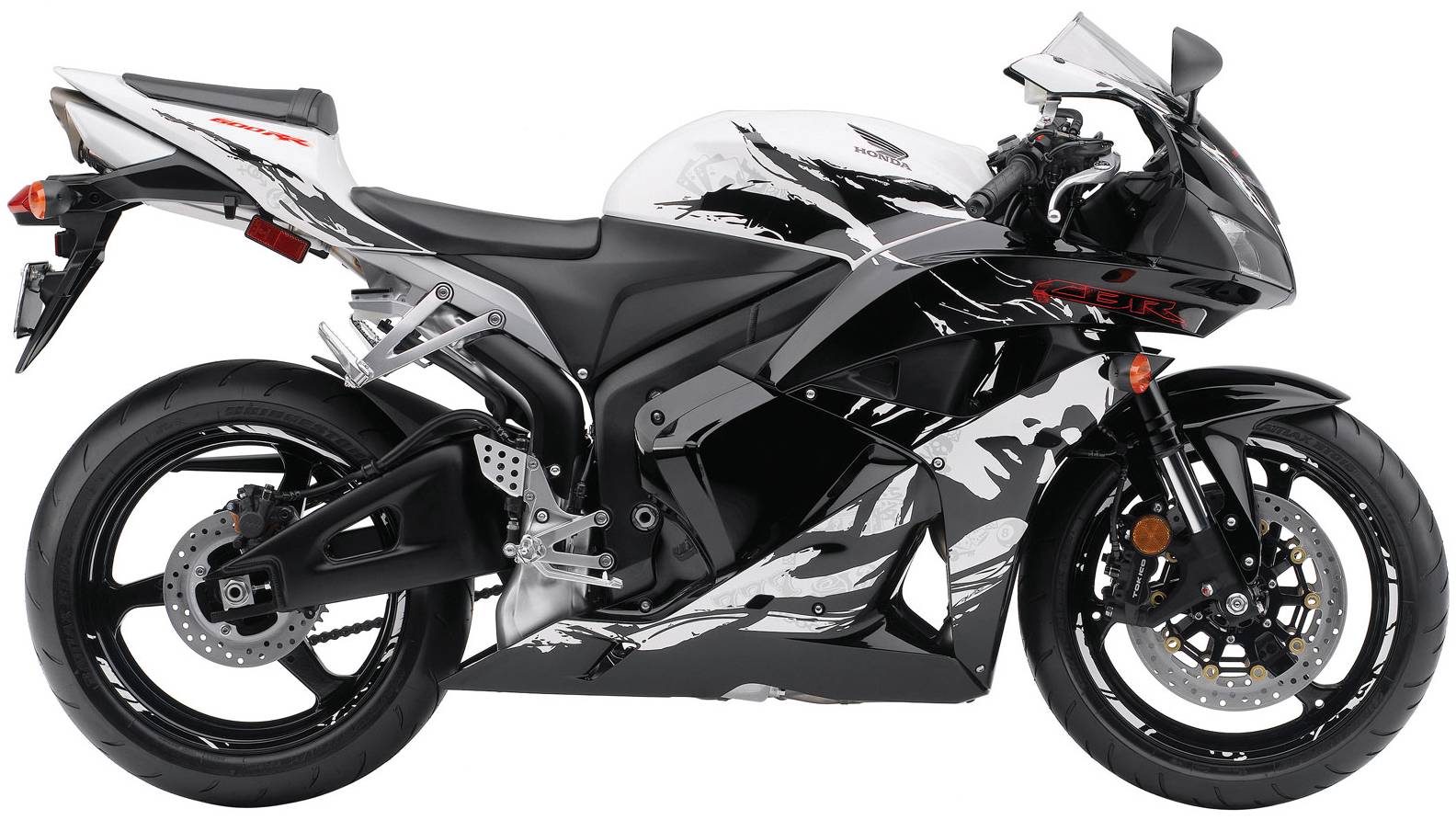

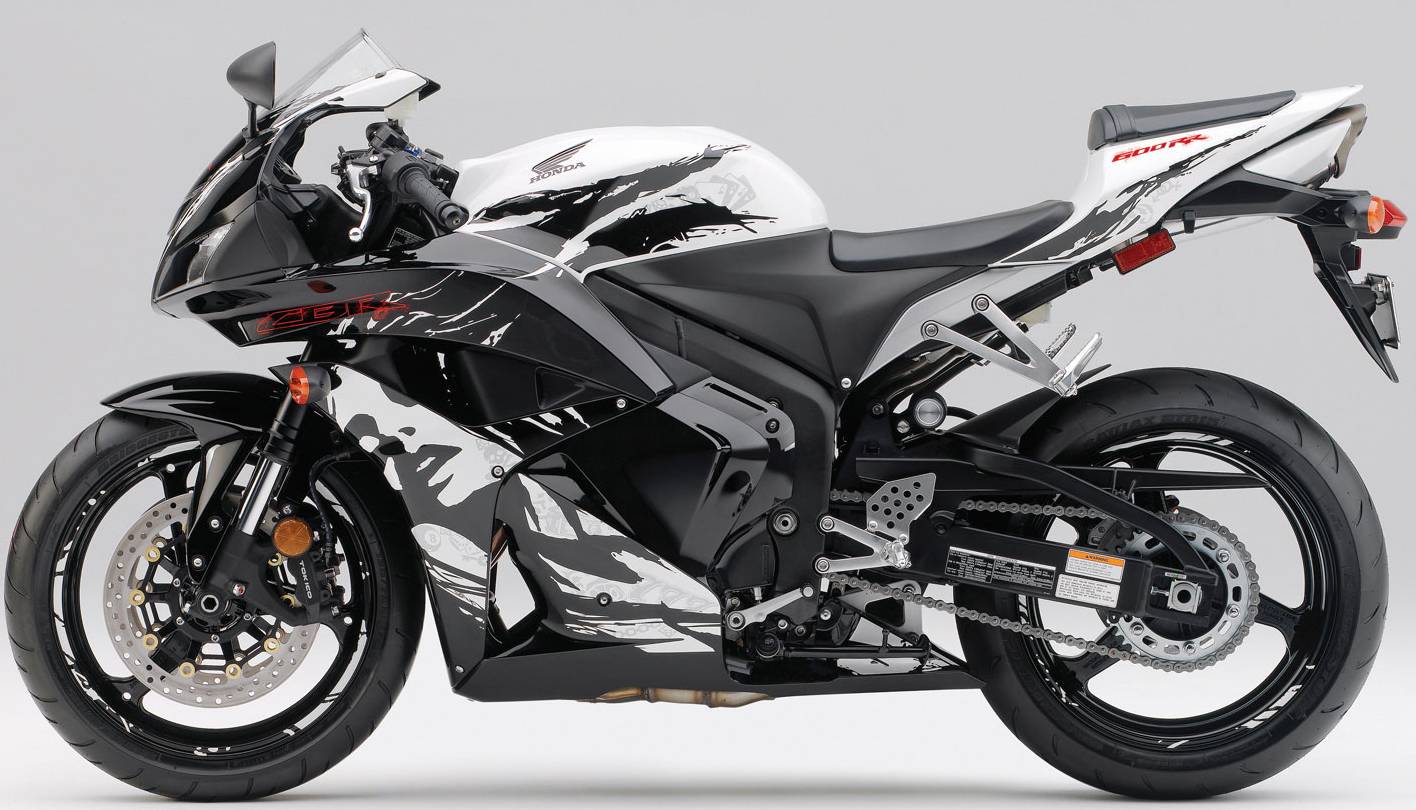

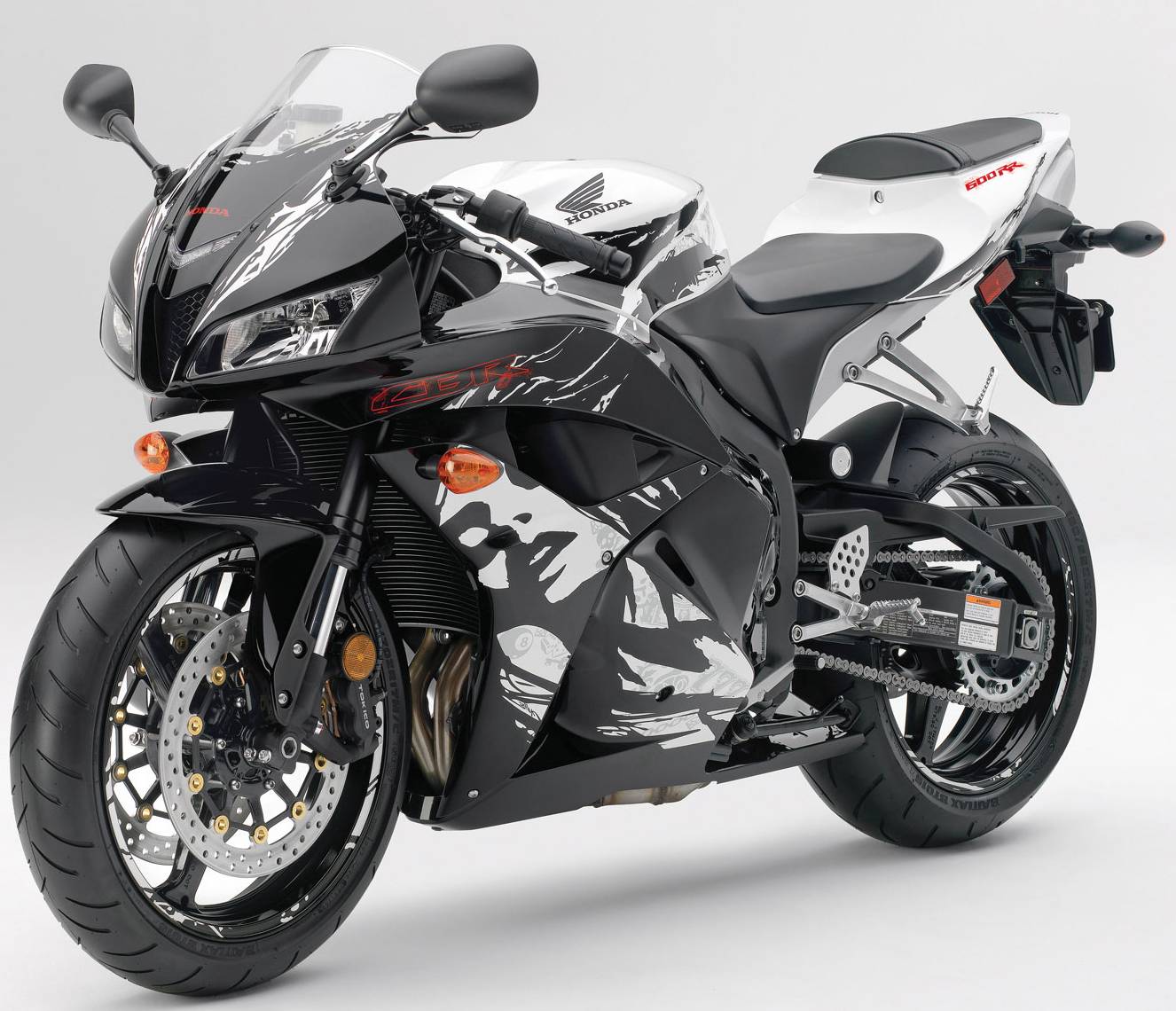

  • Leyla
  • Victory Red/Black
MSRP
  • Non-ABS: $11,199
  • ABS: $13,799
Warranty 1 Year

2012 Honda CBR600RR





ENGINE

Engine Type Liquid-cooled inline-four cylinder
Displacement 599 cc
Bore and Stroke 67 mm x 42.5 mm
Compression Ratio 12.2:1
Valve Train Chain-driven DOHC, 4 valves per cylinder
Fuel Delivery Dual Stage Fuel Injection (DSFI) with 40mm throttle bodies, Denso 12-hole injectors
Ignition Computer-controlled digital transistorized with three-dimensional mapping

DRIVETRAIN

Transmission Close-ratio six-speed
Final Drive O-ring-sealed chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension 41 mm inverted HMAS cartridge fork with full adjustability; 110 mm (4.3 in) travel
Rear Suspension Unit Pro-Link HMAS single shock with full adjustability; 129 mm (5.1 in.) travel
Front Tire 120/70ZR-17 radial
Rear Tire 180/55ZR-17 radial
Brake option Electronically Controlled Combined ABS
Front Brakes Dual 310 mm discs with radial-mounted four-piston calipers.
Rear Brakes Single 220 mm disc with single-piston caliper.

DIMENSION

Rake 23.5 degrees (Caster Angle)
Trail 97.7mm (3.9 inches)
Seat Height 820 mm (32.3 in.)
Wheelbase 1,370 mm (53.9 in.)
Fuel Capacity 18 litres (4.8 galUS)
Curb weight 196 kg (432 lb) including required fluids and full tank of gas — ready to ride

OTHER

Colors
  • Graphite Black
  • Red
Fuel Consumption 5.9 L/100km (40 mpgUS)
Emissions Meets current EPA standards. California version meets current CARB standards and may differ slightly due to emissions equipment.
Warranty 1 Year
Model Id CBR600RR
MSRP $13,599

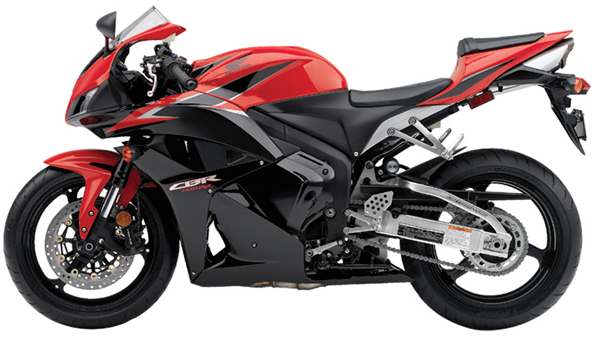

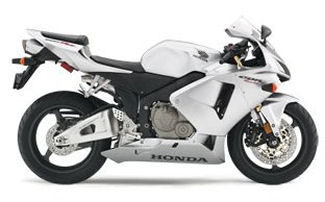

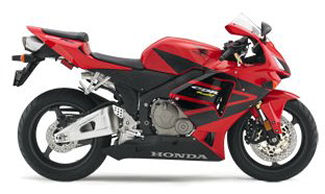

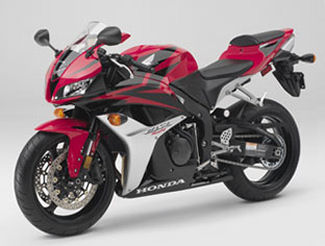

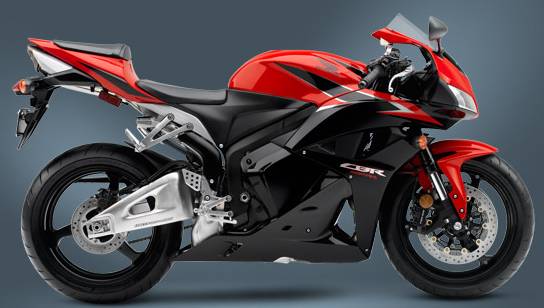

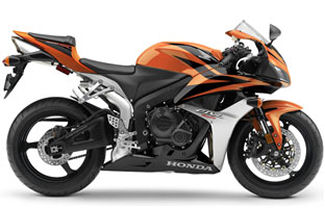

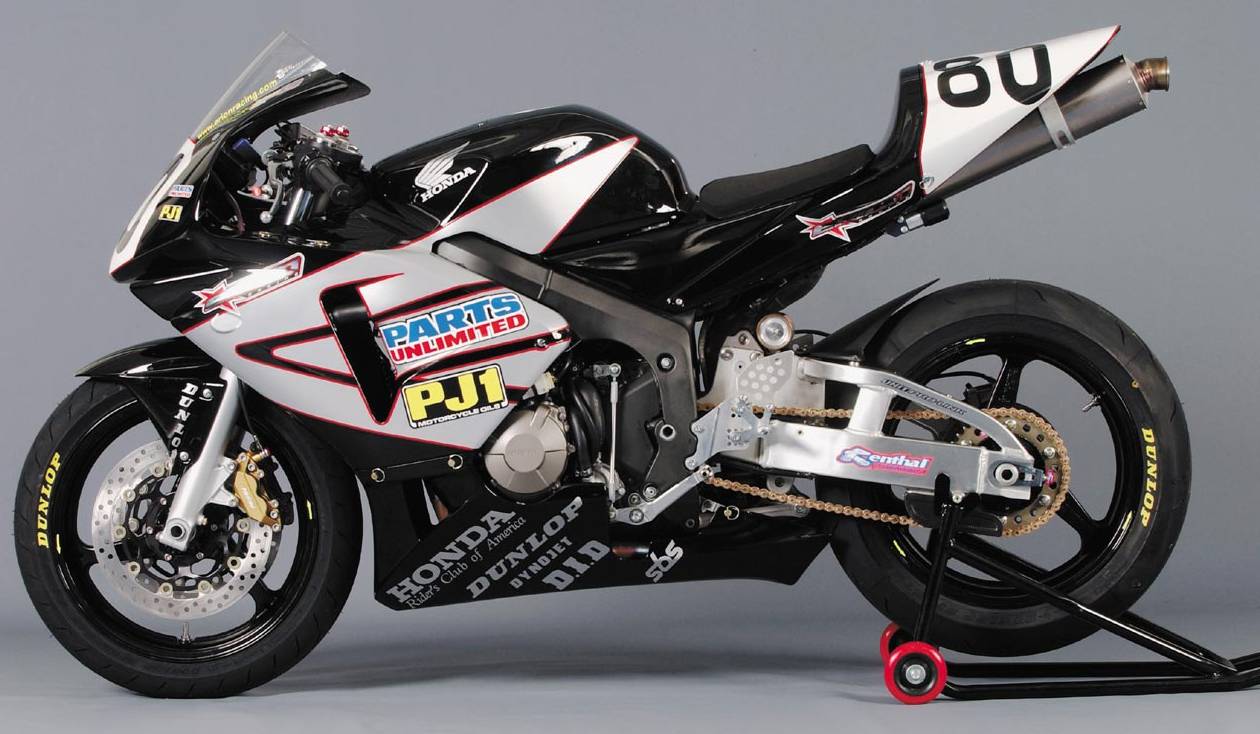

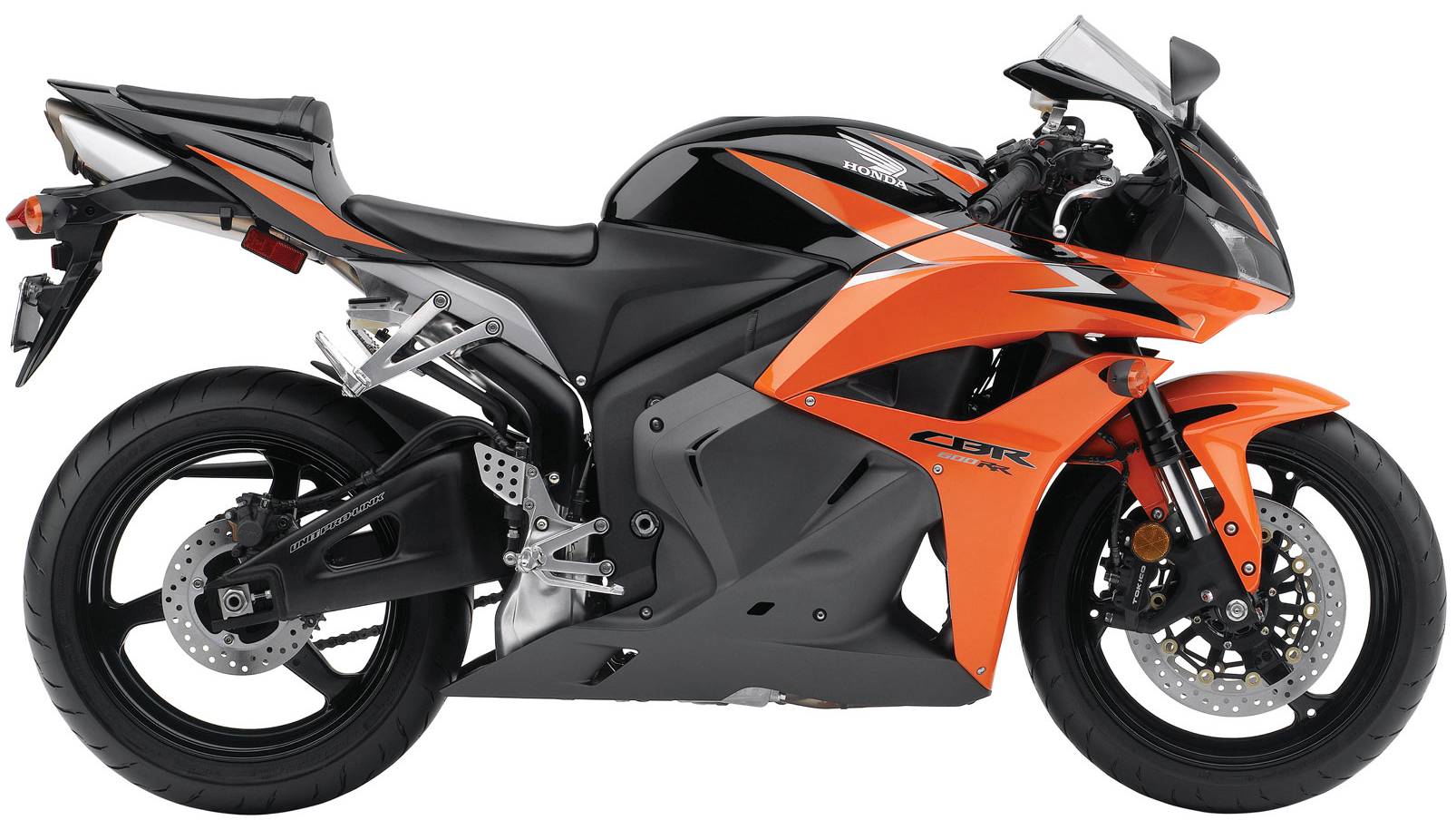

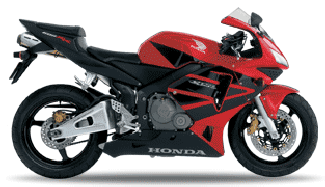

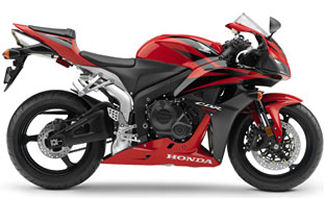

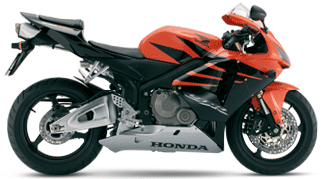

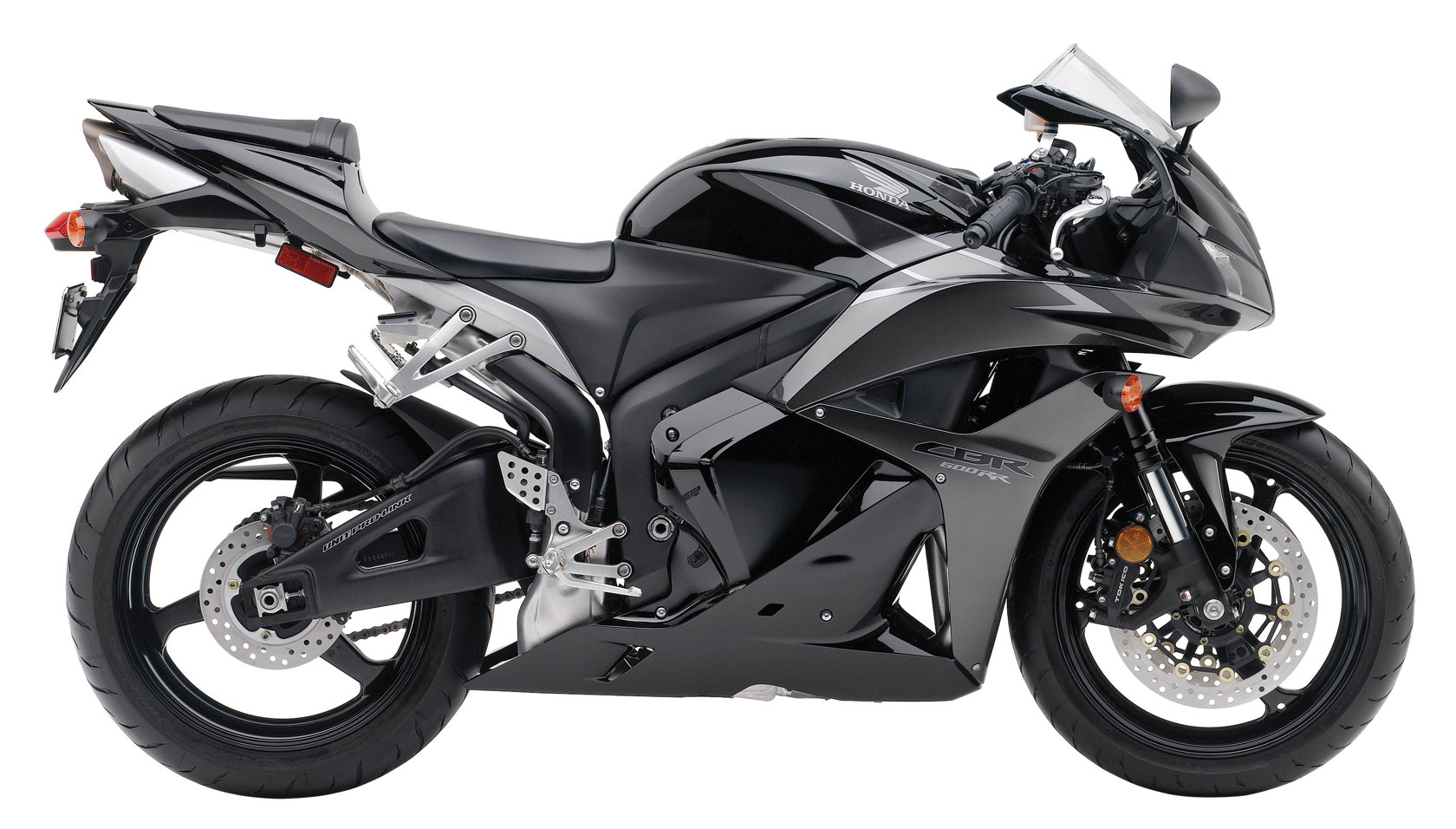

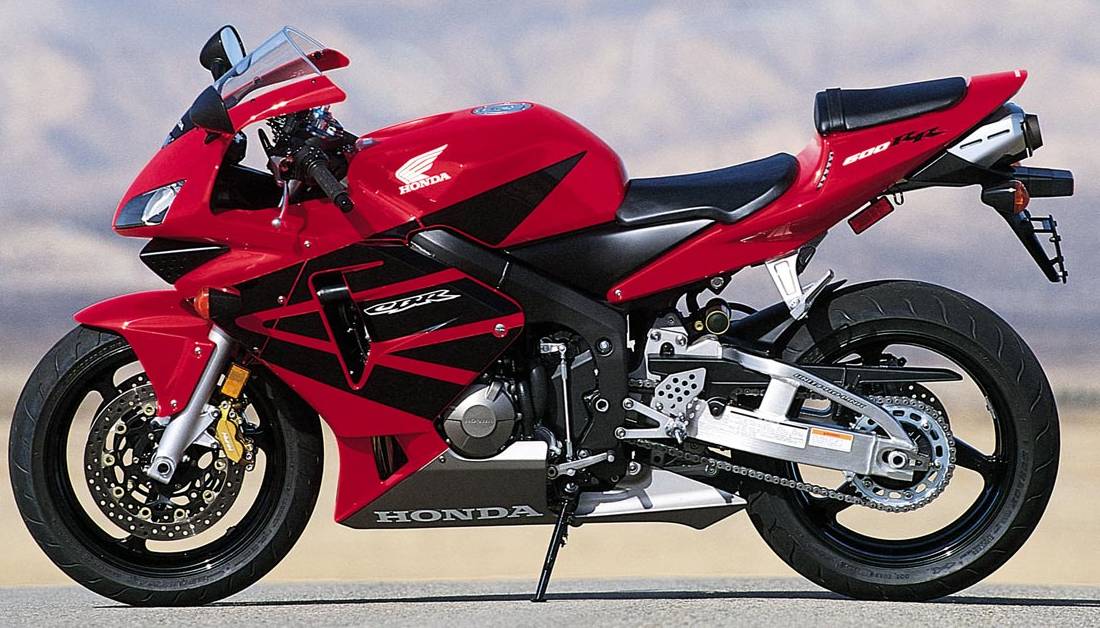

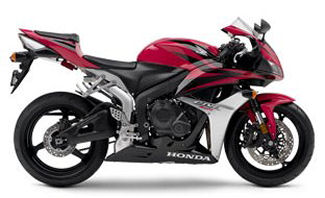

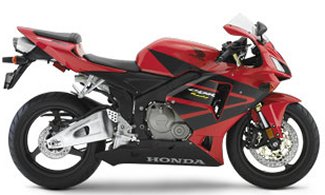

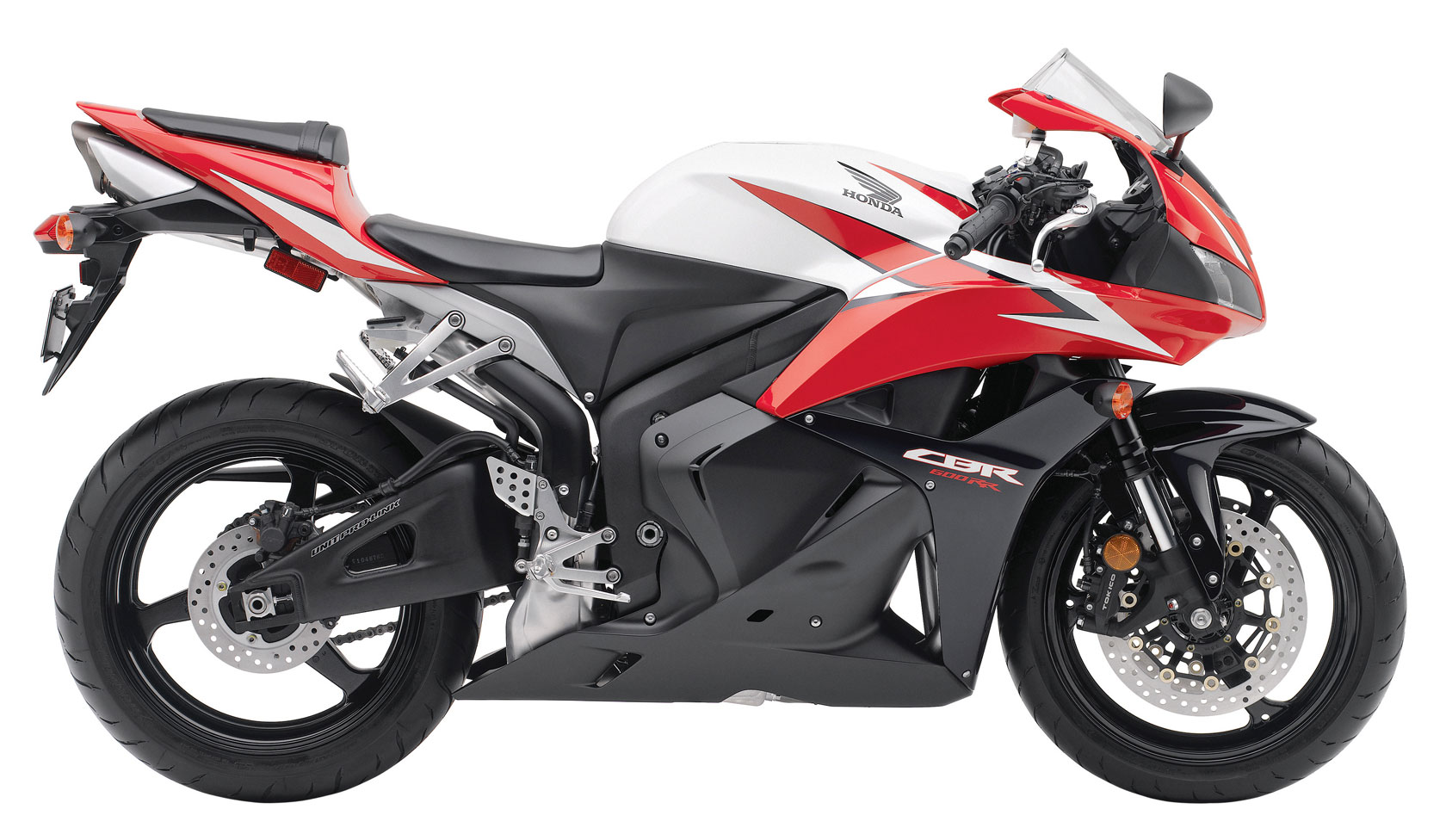

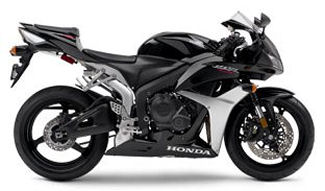

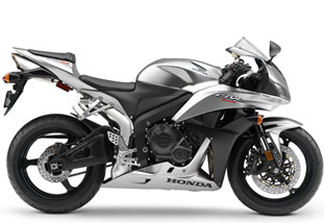

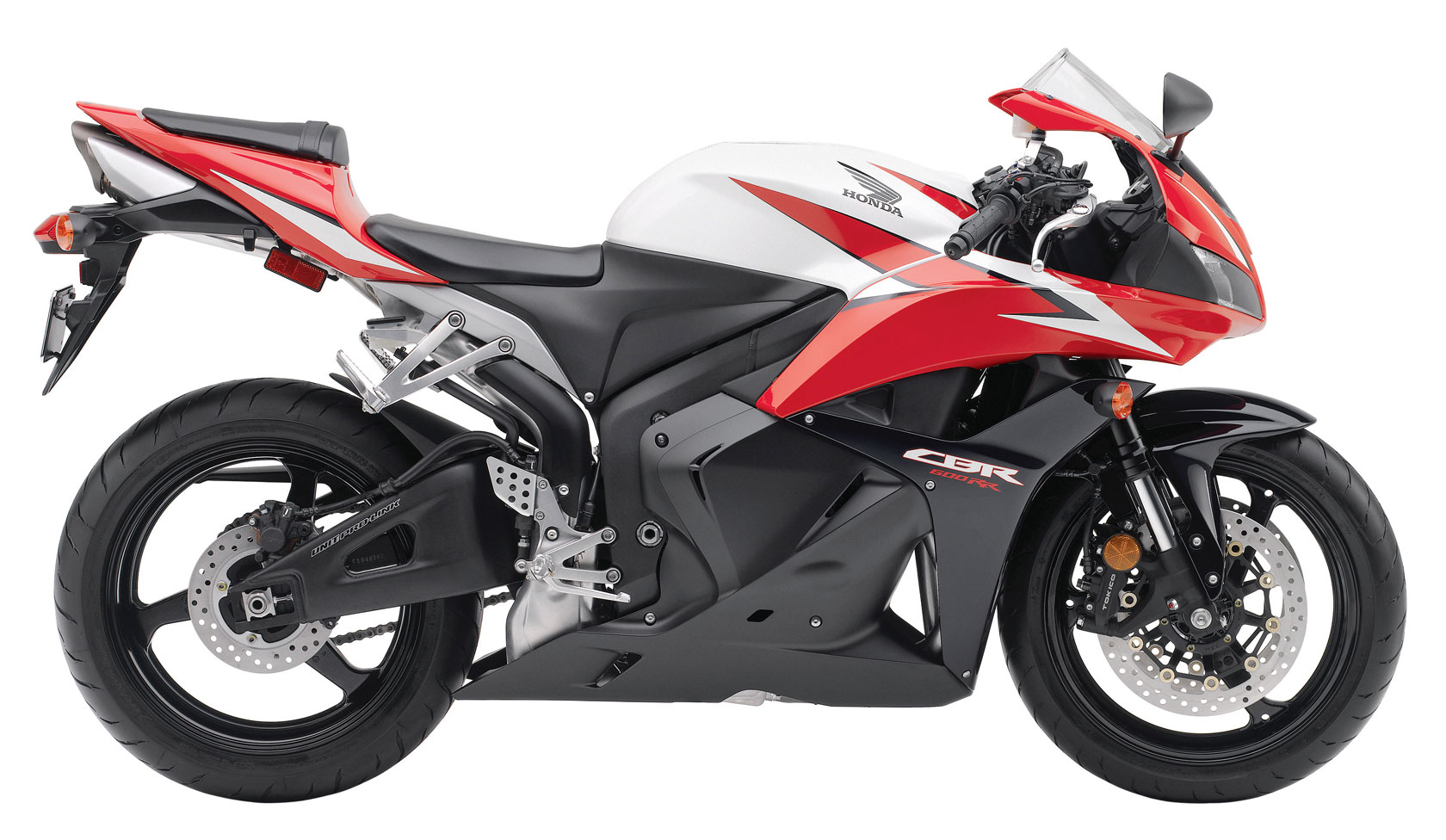

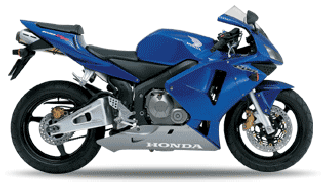

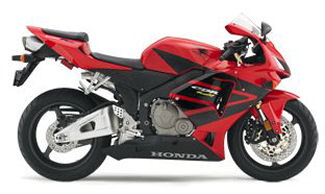

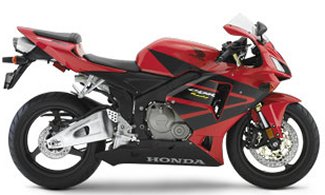

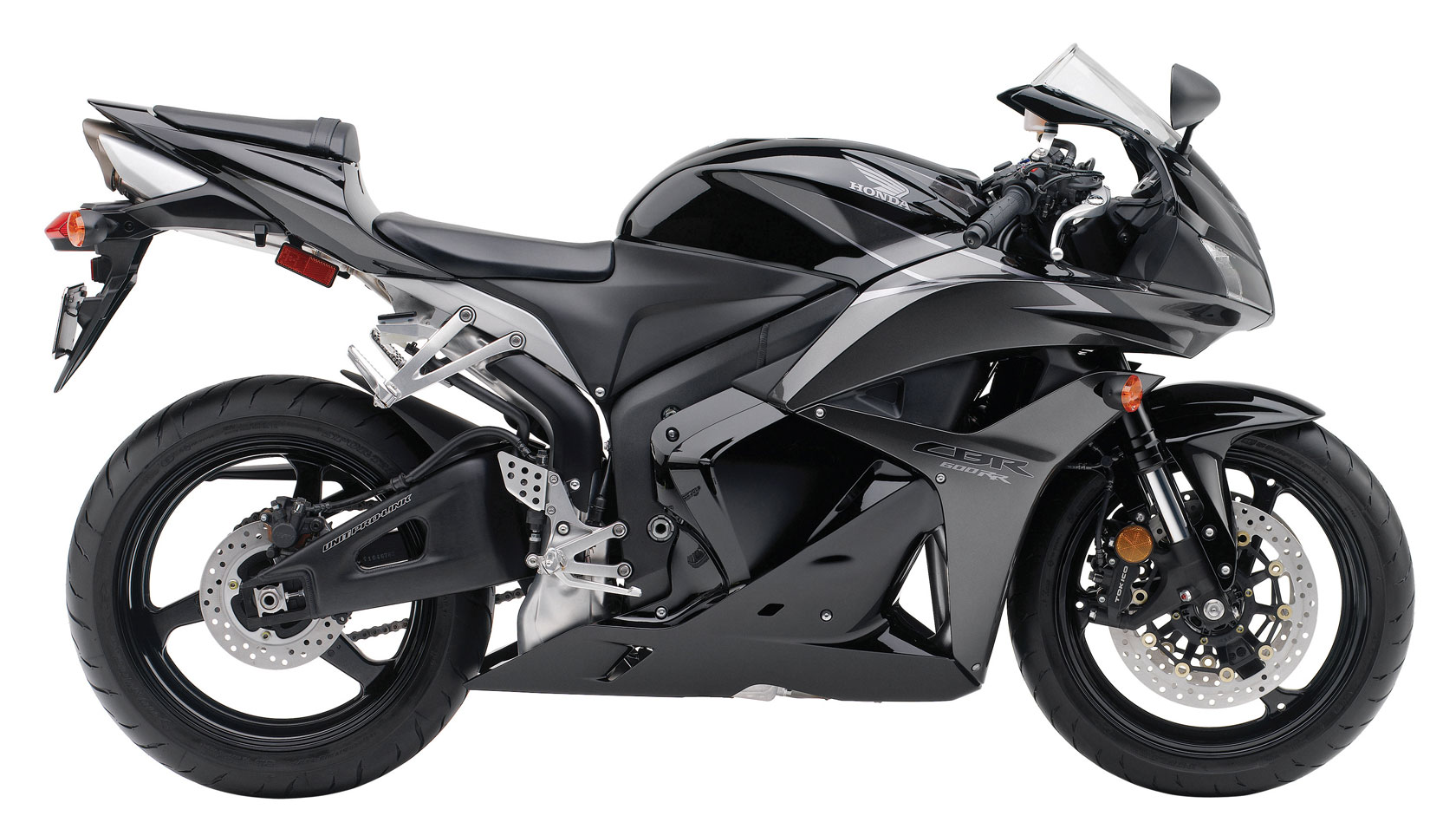

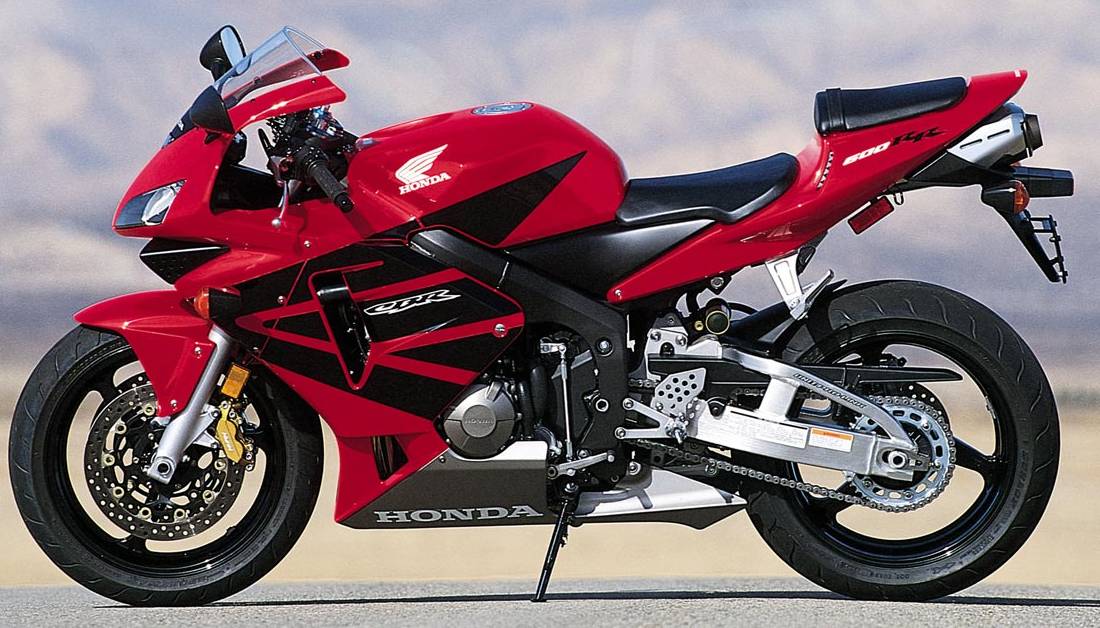

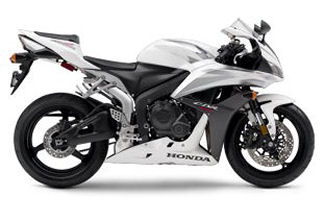

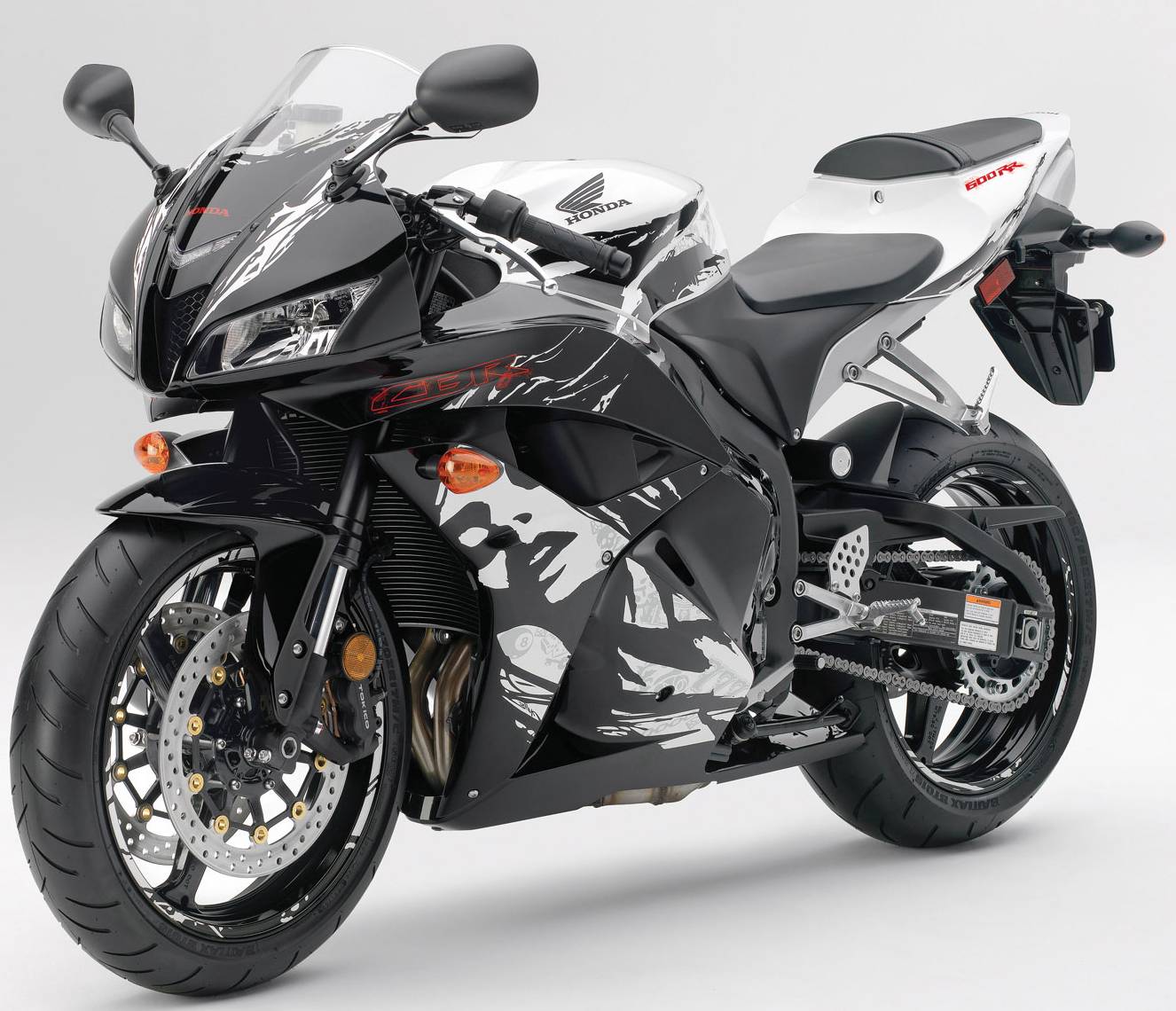

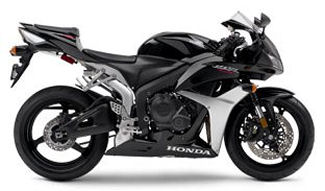

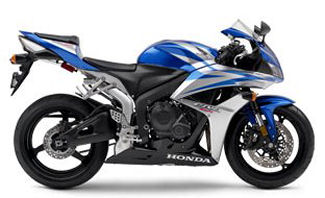

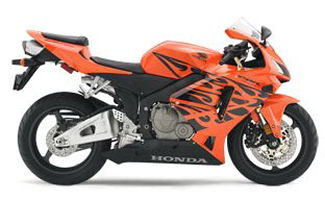

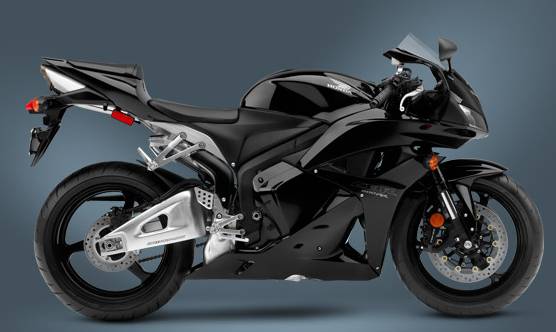

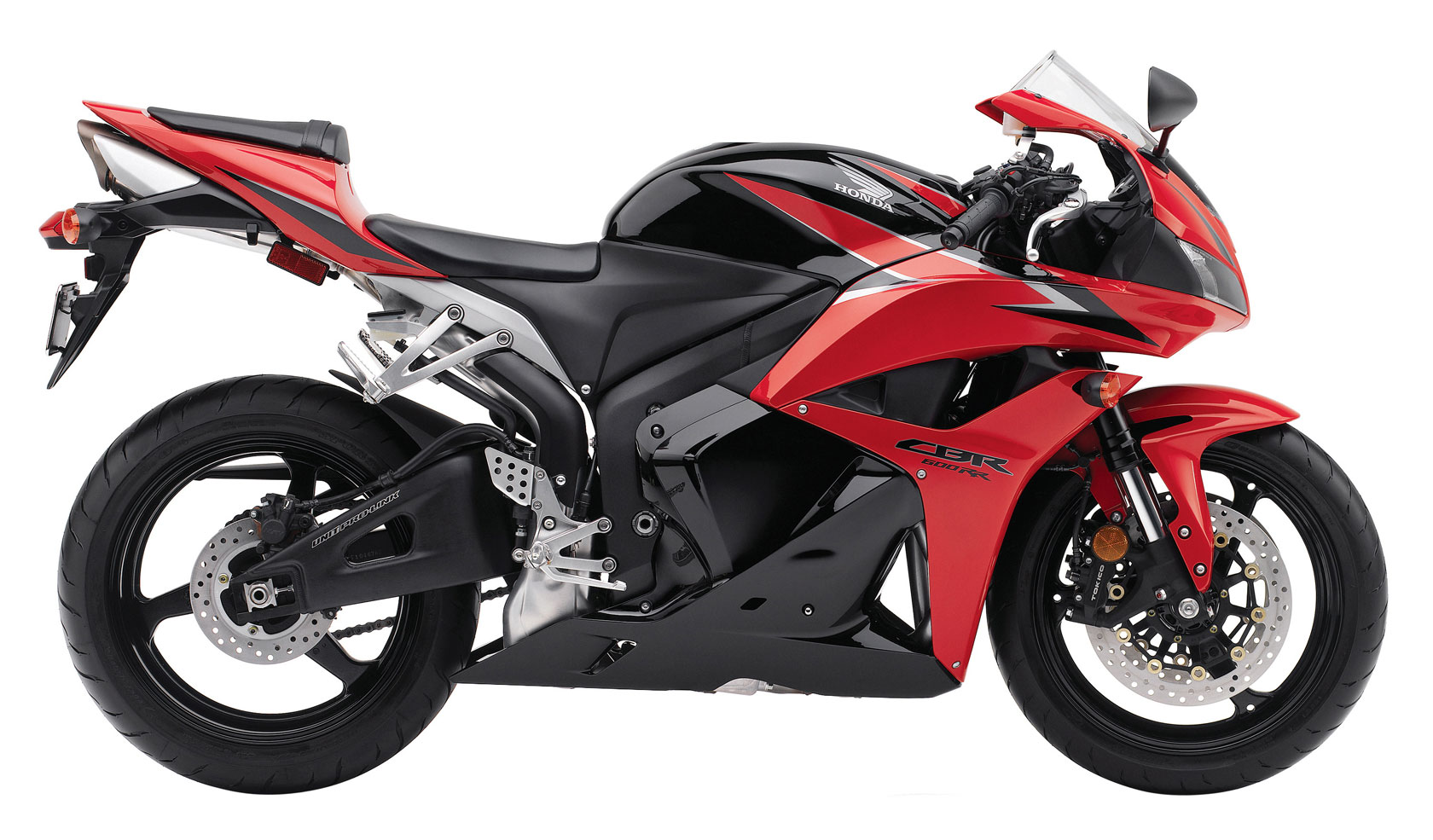

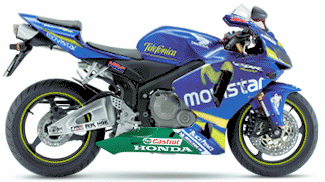

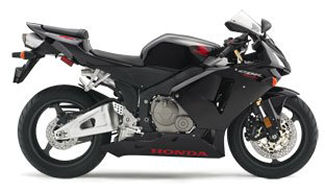

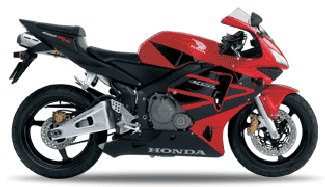

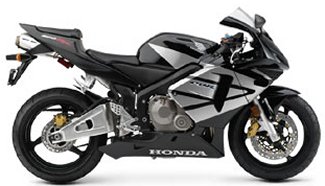

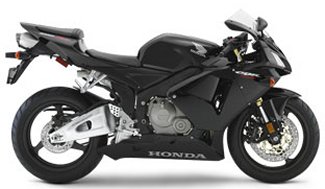

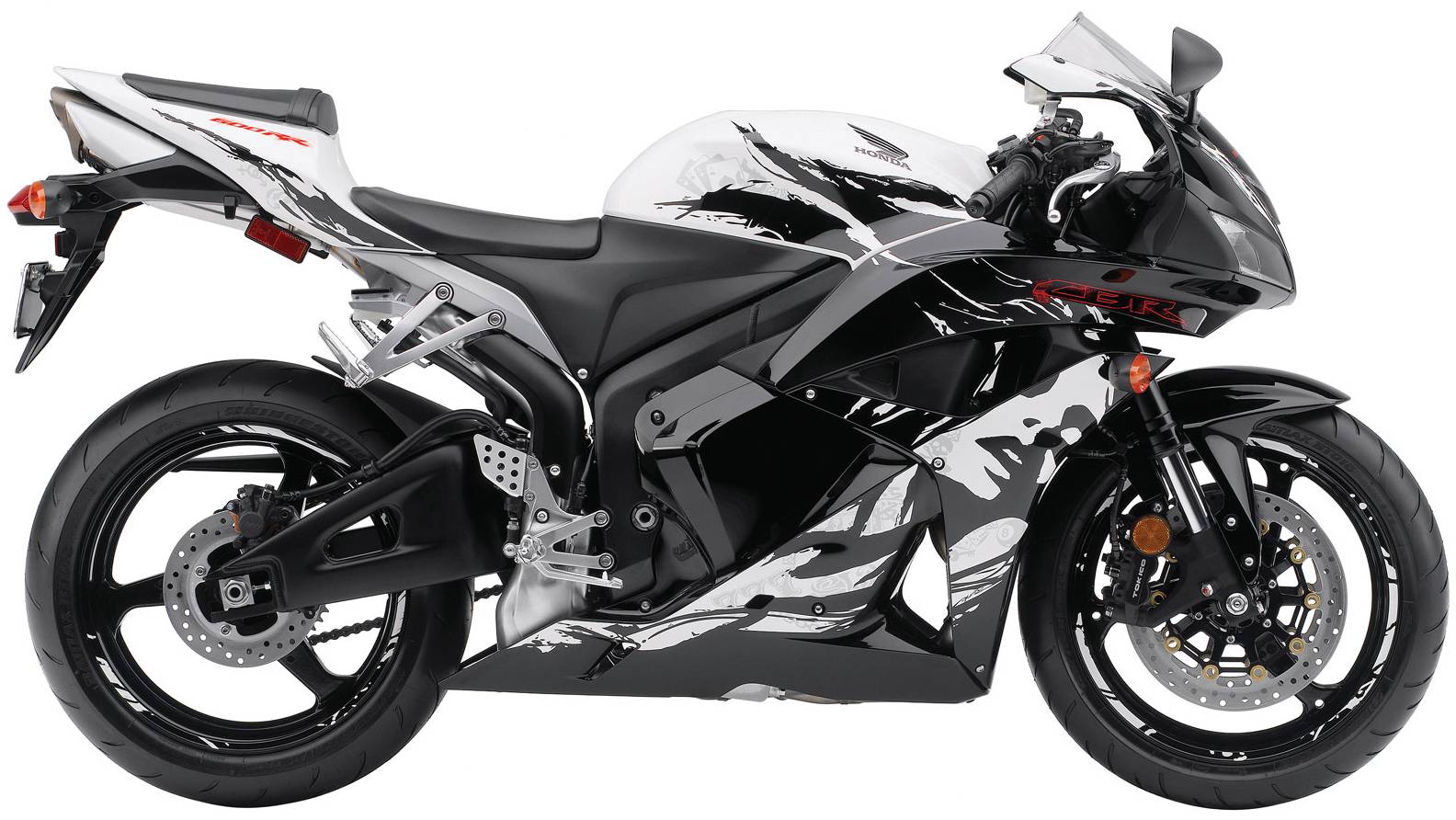

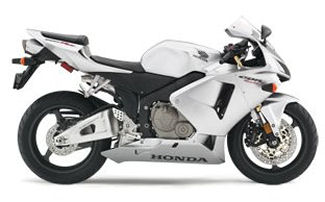

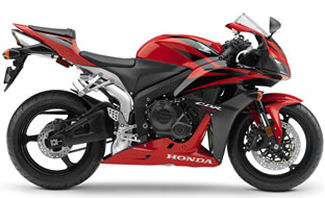

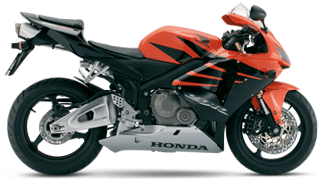

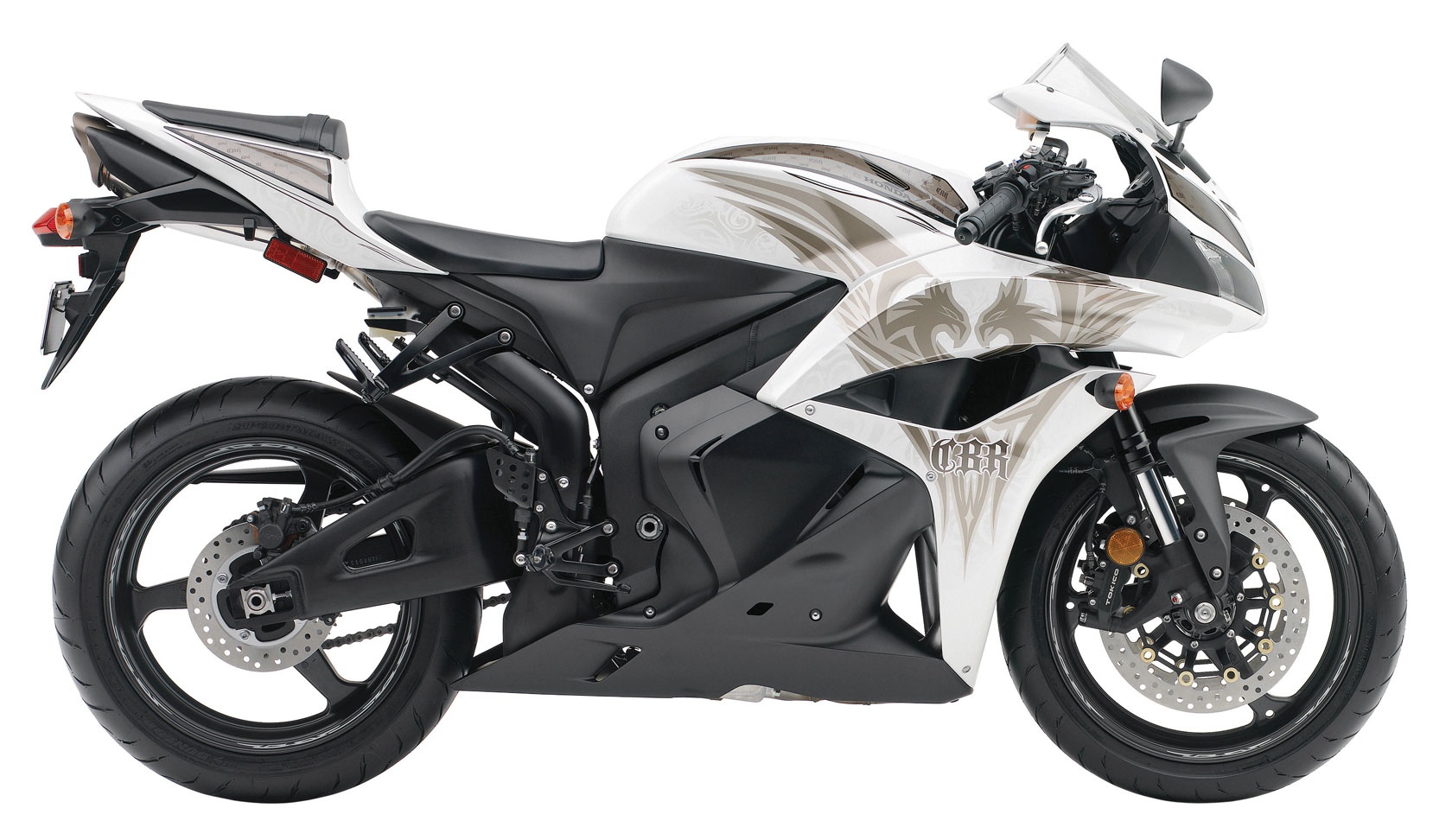

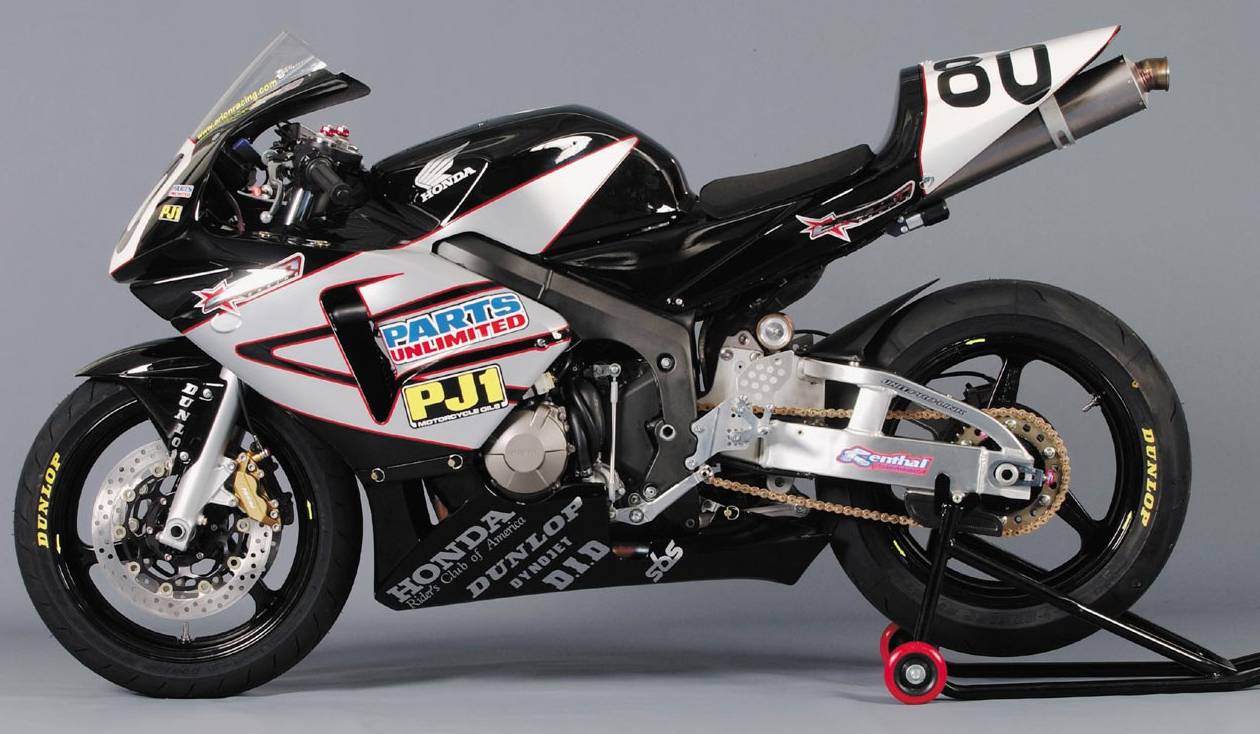

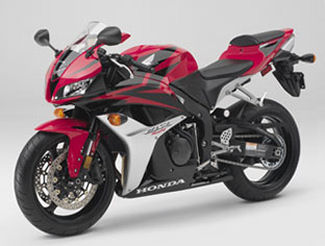

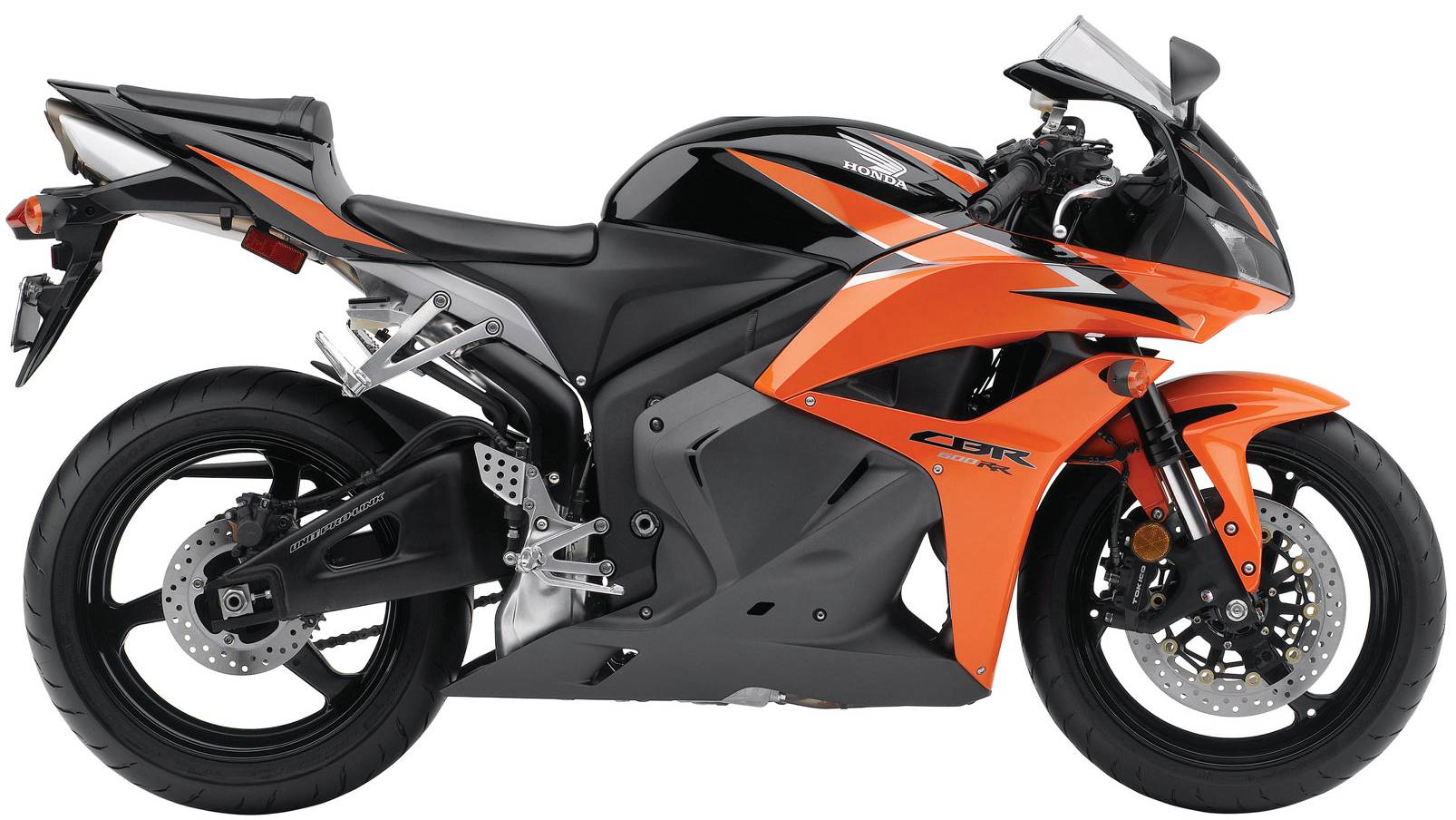

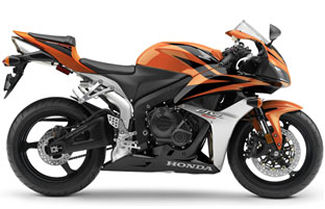

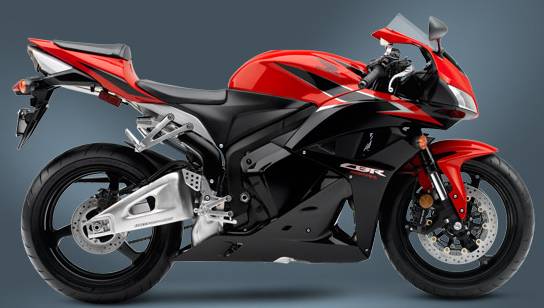

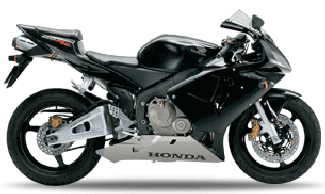

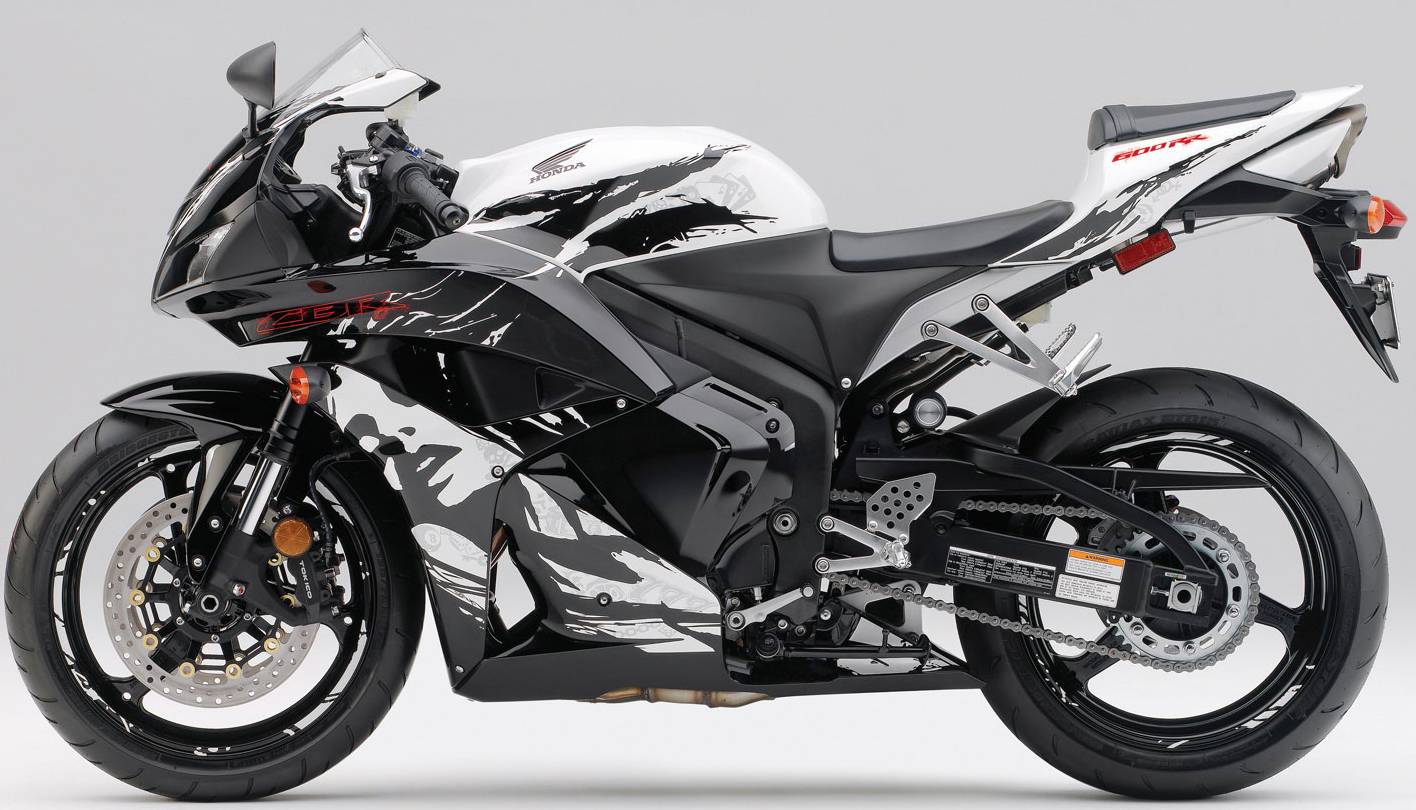

CBR600R Image Gallery
