Honda CBR600F Motorcycles

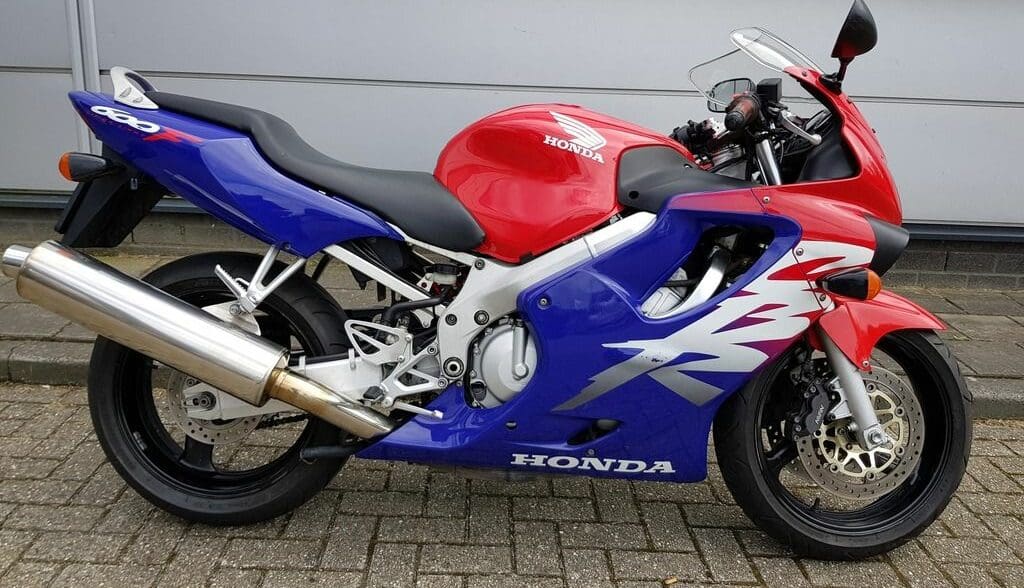

2007 CBR600F

Engine Type Liquid-cooled 4-stroke 16-valve DOHC inline-4
Bore and Stroke 67 x 42.5mm
Displacement 599cm3
Compression Ratio 12.0 : 1
Carburation Electronic fuel injection
Max. Power Output 108 bhp at 12,500min
Max. Torque 63Nm at 10,000 rpm
Ignition Computer-controlled digital transistorised with electronic advance and HISS
Starter Electric
Gearbox 6-speed
Final Drive ‘O’-Ring sealed chain
Length x Width x Height 2,065 x 685 x 1,135mm (2,100 x 685 x 1,135mm ABS)
Wheelbase 1,390mm (1,385 ABS)mm
Seat Height 805mm
Ground Clearance 135mm
Fuel Capacity 18 litres (including 3.5 litre warning light reserve)
Dry Weight 170kg
Wheels Front 17 x MT3.50 hollow-section triple-spoke cast aluminium
Wheels Rear 17 x MT5.50 hollow-section triple-spoke cast aluminium
Tires Front 120/70 ZR17 (58W)
ires Rear 180/55 ZR17 (73W)
Suspension Front 43mm cartridge-type telescopic fork, 120mm axle travel
Suspension Rear Pro-Link with gas-charged remote reservoir damper, spring preload and compression and rebound damping, 120mm axle travel
Brakes Front 296mm dual hydraulic disc with dual-opposed four-piston callipers, floating rotors and sintered metal pads
Brakes Rear 220mm hydraulic disc with single-piston calliper and sintered metal pads
