Honda Activa Motorcycles


2005 Activa



Engine

Engine Type 4-stroke, Single cylinder, air cooled, OHC
Displacement 102cc
Max. Power 7 Bhp @ 7000 rpm
Max. Torque 0-8 Kg-m @ 5500 rpm
Ignition Electric start or kick
Battery 12V, 5Ah

DRIVETRAIN

Transmission V-matic belt drive

CHASSIS / SUSPENSION / BRAKES

Front Suspension Bottom Link with spring loaded hydraulic damper
Rear Suspension Unit swing with spring loaded hydraulic damper
Front Brakes Drum, 130 mm dia
Rear Brakes Drum, 130 mm dia
Front Tire 3.50 – 10, 4 PR
Rear Tire 3.50 – 10, 4 PR

DIMENSION

Overall length 1765mm
Width 715mm
Wheelbase 1235 mm
Height 1130mm
Seat Height 760 mm
Ground Clearance 145 smm
Fuel Tank Capacity 6 litres

OTHER

Headlamp 35W
Colors
  • Metallic Black
  • Precious Gold Metallic
  • Strand Silver
  • Strings Red Metallic
  • Geny Gray Metallic
  • Azure Blue Metallic

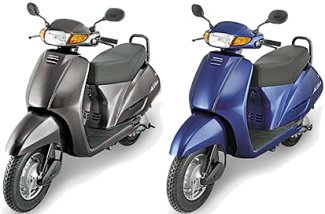

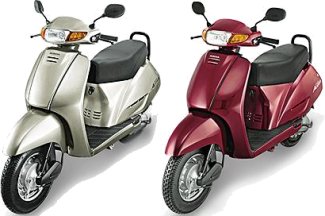

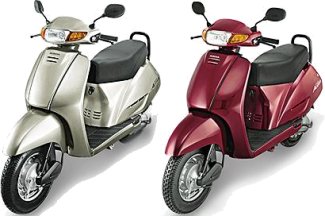

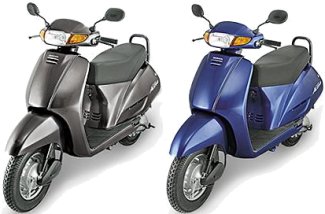

Activa Image Gallery
