2023 Zero DS: Unleashing Silent Power on Two Wheels

Model Overview
Specifications
Features
Photos
Videos
Links

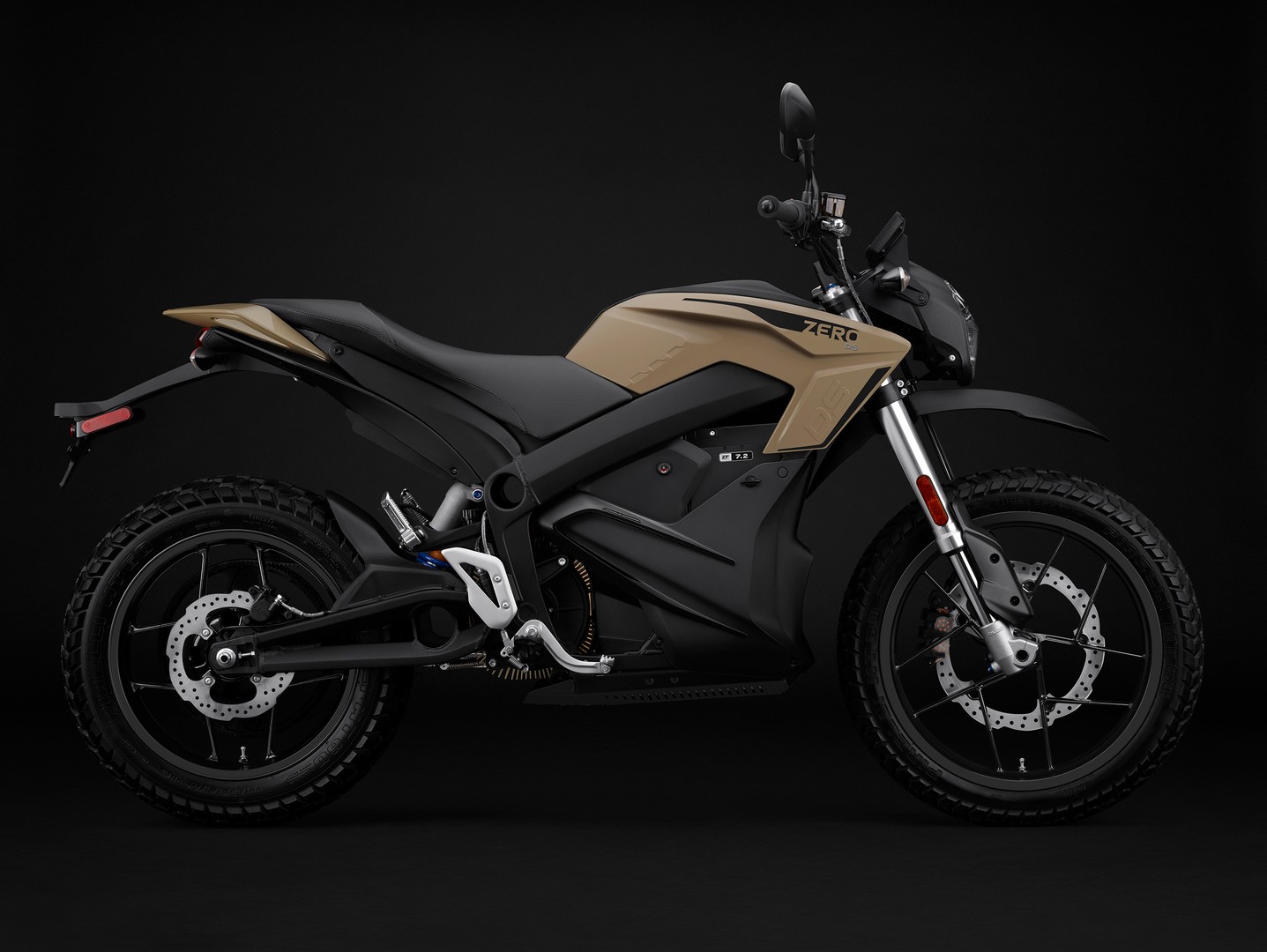

The 2023 Zero DS is ready to redefine your biking experience. Powering the Zero DS lies the Z-Force® 75-5 passively air-cooled, high efficiency, radial flux, interior permanent magnet, brushless motor which is used by multiple models in Zero’s 2023 lineup. This model delivers a smooth power output of up to 46 horsepower at 4,300 RPM, with a peak torque of 78 foot-pounds.

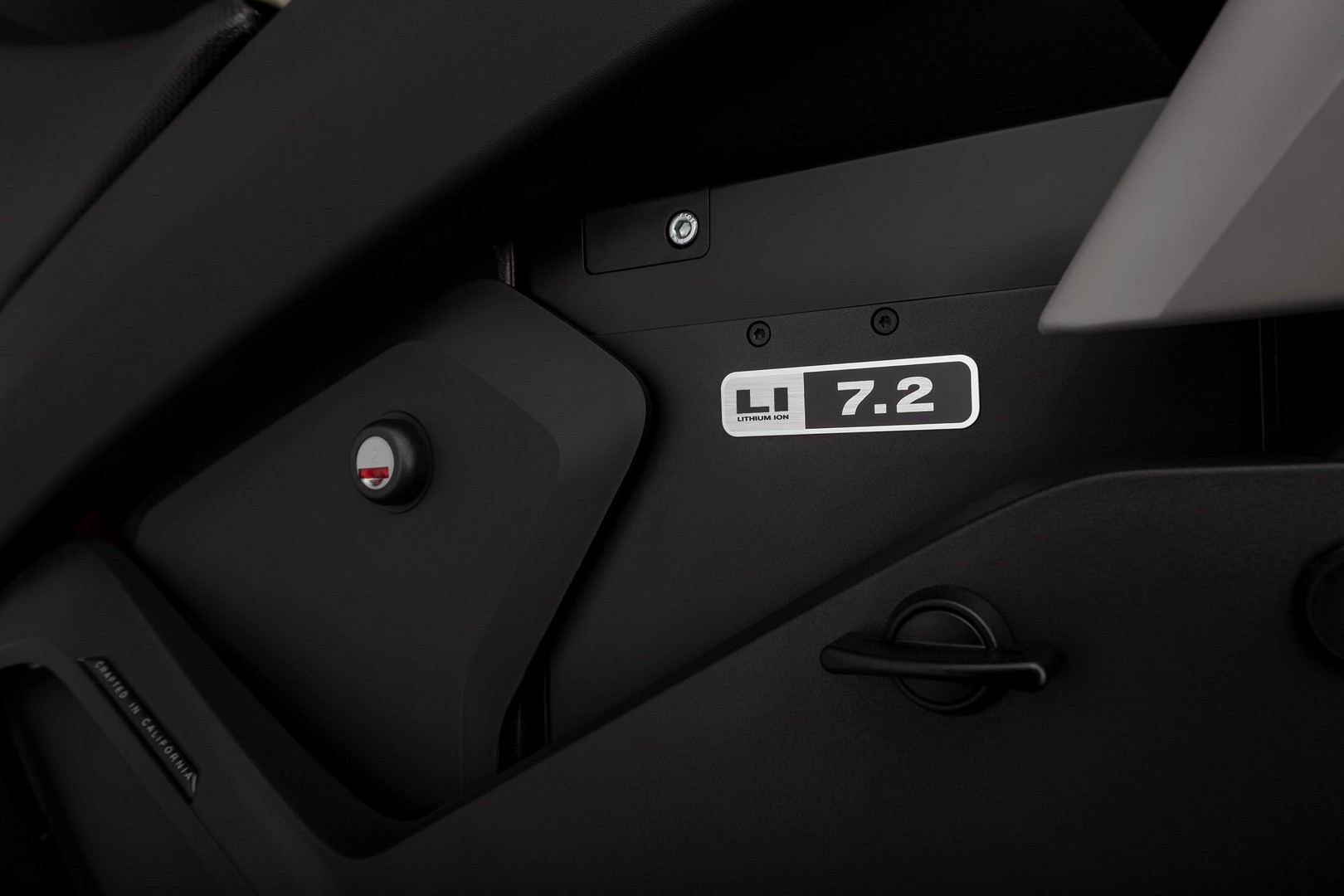

The American-made Zero DS doesn’t just pack a punch with power. Its unique Z-Force® Li-Ion intelligent integrated power pack, with a maximum capacity of 7.2 kWh, ensures a riding experience that lasts up to 82 miles of city riding, 61 miles at a combined highway speed of 55 mph, and 53 miles at a combined highway speed of 70 mph. And when you do need to recharge, the DS’s charging system is as easy as plugging into a household outlet. In fact, you can charge up to 6 times faster with the optional Charge Tank, compatible with Level 2 charging stations

The chassis and suspension are also impressive. The twin-spar aircraft-grade aluminum chassis offers superior torsional rigidity. Combine this with Showa’s 41 mm inverted cartridge forks at the front and a 40 mm piston, piggy-back reservoir shock at the rear, you’ll have a ride that’s smooth, comfortable, and responsive

The Zero brand doesn’t compromise on the technology front either. The full-color display gives you all the information you need right at your fingertips. Speed, state of charge, power output, and selected riding mode are all there on the dash, with the added bonus of syncing to your smartphone for a more personalized experience.

Ownership of the DS is easy and they have practically eliminated routine maintenance. There’s no need to worry about oil changes, spark plugs, or clutches. Even chain maintenance is a thing of the past, thanks to the carbon fiber belt that directly connects the motor to the rear wheel..

The 2023 Zero DS starts at $11,745 USD/$15,120 CAD

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new 2023 Zero DS in one place.

Motorcycle Overview

General Info

Price: $11,745 USD/$15,120 CAD
Key Features:
- 82 city mile range
- 98 mph top speed
- Standard 1.3 kW onboard charger plugs into any household outlet
- Full color display

Main Specs

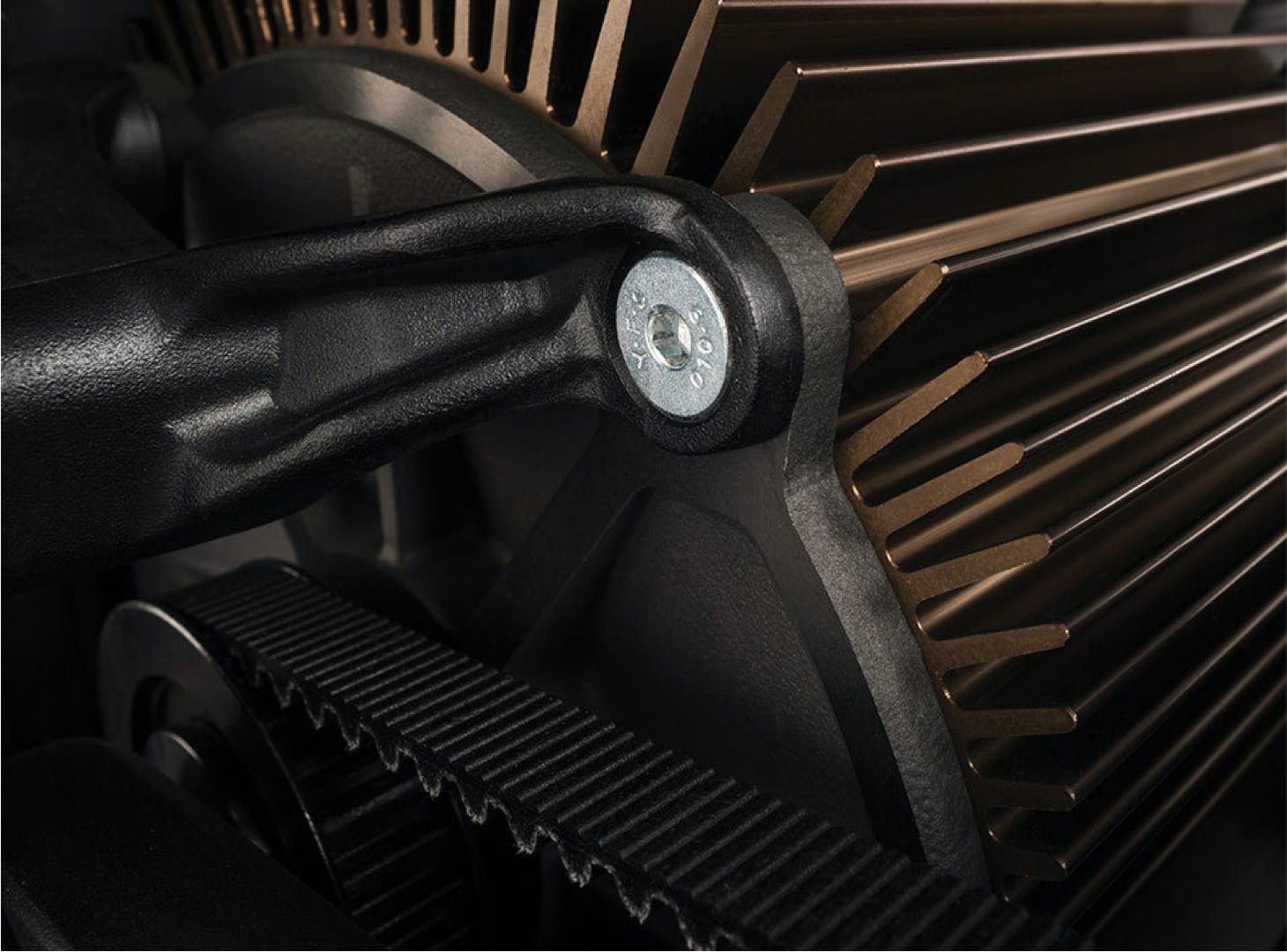

Engine: Z-Force® 75-5 air-cooled, permanent magnet, brushless motor
Power: 46 horsepower
Torque: 78 ft-lbs
Weight: 317 lbs (144 kgs)
Seat Height: 33.26 inches (843 mm)

Competitors

2023 Zero DS Specifications

From Zero Motorcycles

Motor
Peak torque	78 ft-lb (106 Nm)
Peak power	46 hp (34 kW) @ 4,300 rpm
Top speed (max)	98 mph (158 km/h)
Type	Z-Force® 75-5 passively air-cooled, high efficiency, radial flux, interior permanent magnet, brushless motor
Controller	High efficiency, 550 amp, 3-phase brushless controller with regenerative deceleration
Lubrication
Drivetrain
Transmission	Clutchless direct drive
Clutch
Final Drive	90T / 18T, Poly Chain® HTD® Carbon™ belt
Chassis
Suspension Front	Showa 41 mm inverted cartridge forks, with adjustable spring preload, compression and rebound damping
Suspension Rear	Showa 40 mm piston, piggy-back reservoir shock with adjustable spring preload, compression and rebound damping

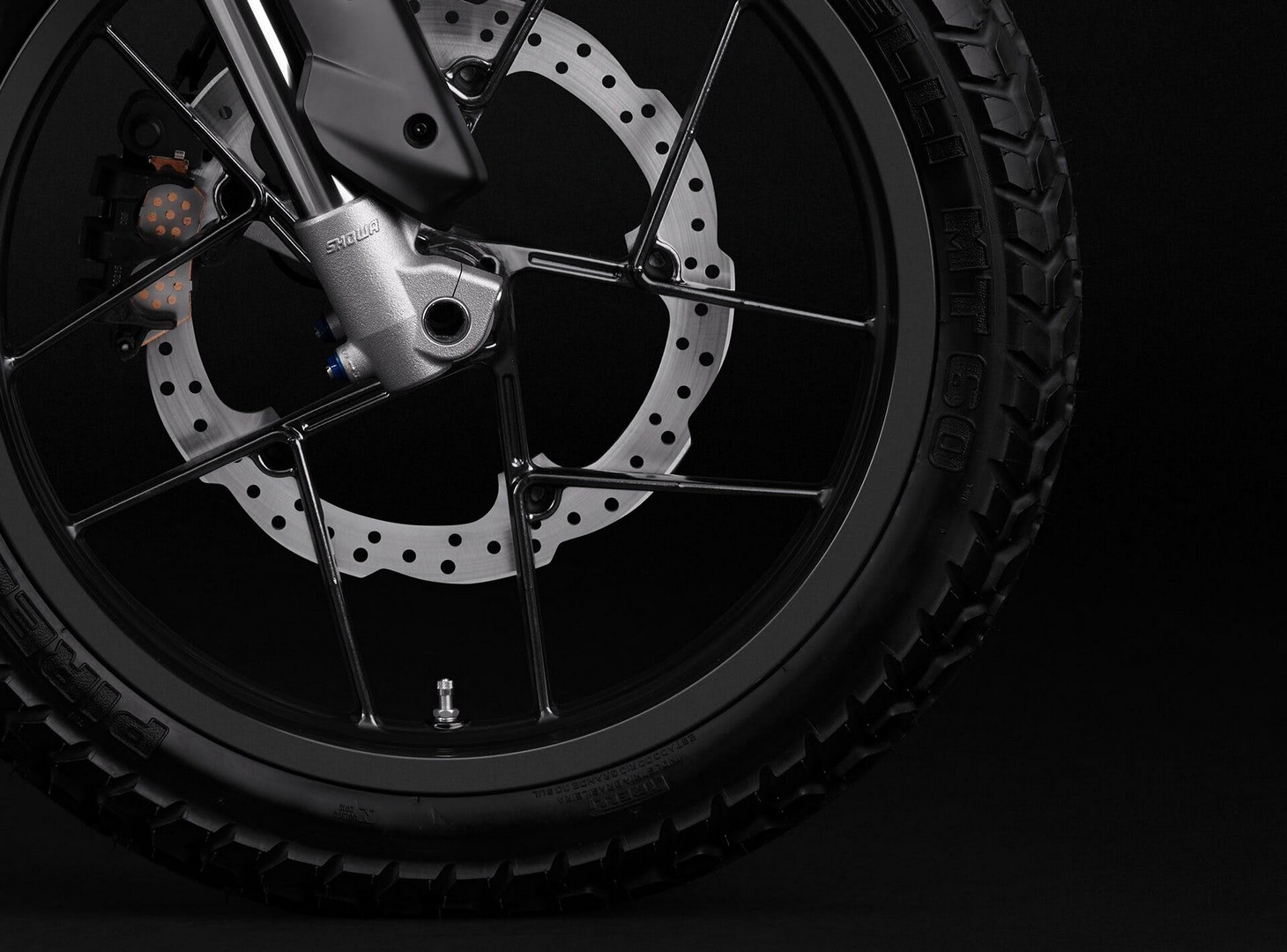

Brakes Front	Bosch Gen 9 ABS, J-Juan asymmetric dual piston floating caliper, 320 x 5 mm disc
Brakes Rear	Bosch Gen 9 ABS, J-Juan single piston floating caliper, 240 x 4.5 mm disc
Tires Front	Pirelli MT-60 100/90-19
Tires Rear	Pirelli MT-60 130/80-17
Fuel Tank Capacity	N/A
Color
Power system
Power pack	Z-Force® Li-Ion intelligent integrated
Charger type	1.3 kW, integrated
Charge time (standard)	5.2 hours (100% charged) / 4.7 hours (95% charged)
Dimensions
Wheelbase	56.2 in (1,427 mm)
Overall Width
Trail	4.6 in (117 mm)
Rake	26.5°
Seat Height	33.2 in (843 mm)
Curb Weight	317 lb (144 kg)
Warranty
Warranty	2 years
Power pack warranty*	5 years/unlimited miles

2023 Zero DS Features

Crossing from smooth asphalt to loose gravel fire roads? All good. Change performance profiles at the press of a button to master any terrain. The Zero DSR is pre-programmed with Eco or Sport modes and performance can be fully customized using the Zero Motorcycles app where you can also see detailed ride stats.

Grab lunch. Have a coffee. Recharge. Live your life while adding up to 94 miles of range for every hour you’re plugged in. The Charge Tank option is compatible with Level 2 charge stations and delivers roughly 6x faster charging than when compared to a standard wall outlet. Depending on the battery, a typical recharge can now take as little as an hour.

No special equipment required: your standard household outlets can be used as fueling stations for a fraction of the cost of gasoline. Plug in at night and start the day with a full tank.

The Zero DSR carries the highest power and energy density battery in the EV industry. With over thirteen years of rigorous off-road experience, the Z-Force® battery confidently delivers you to your destination.

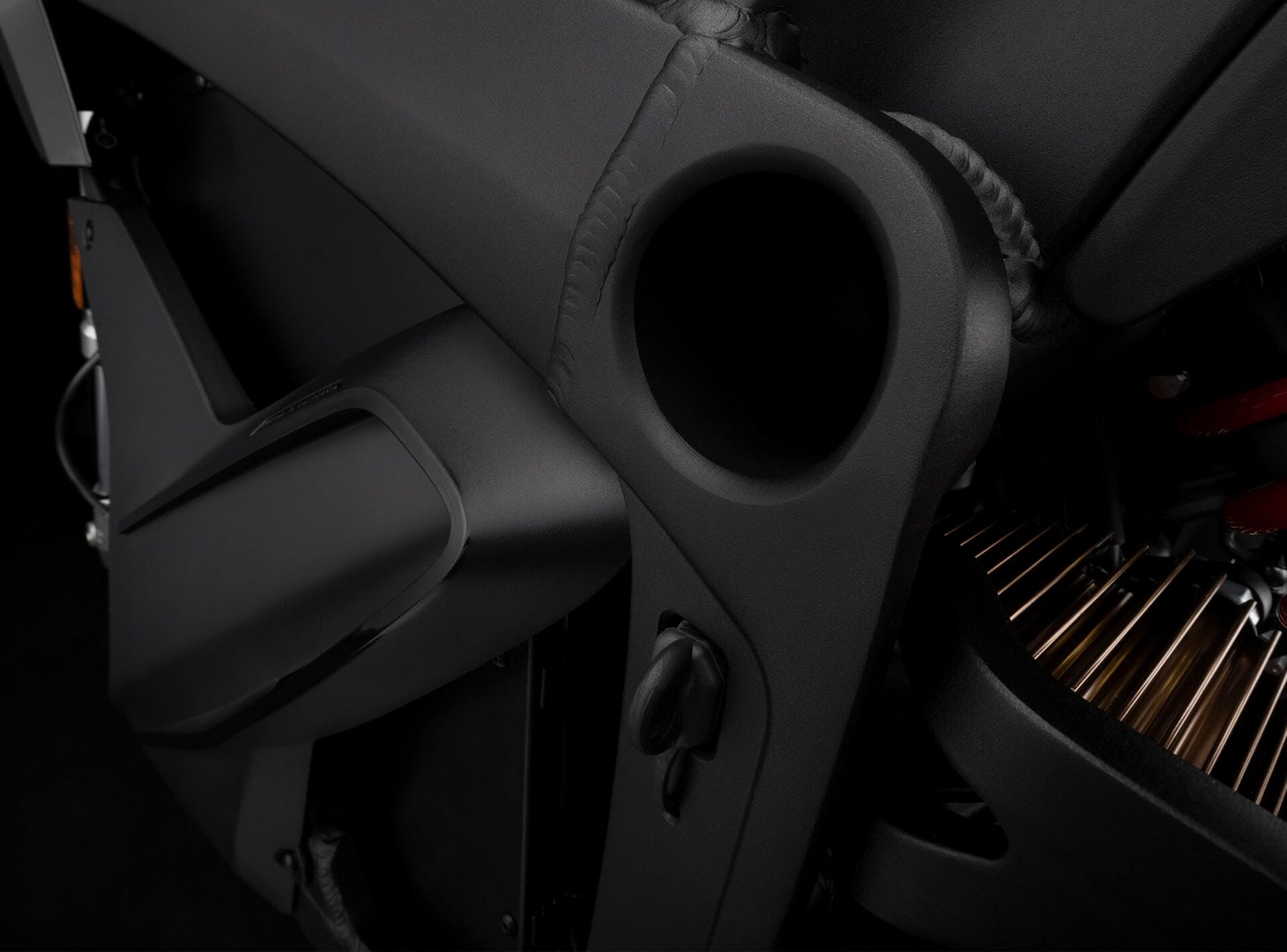

Featuring a twin-spar aircraft-grade aluminum chassis, the Zero DS’s frame offers superior torsional rigidity.

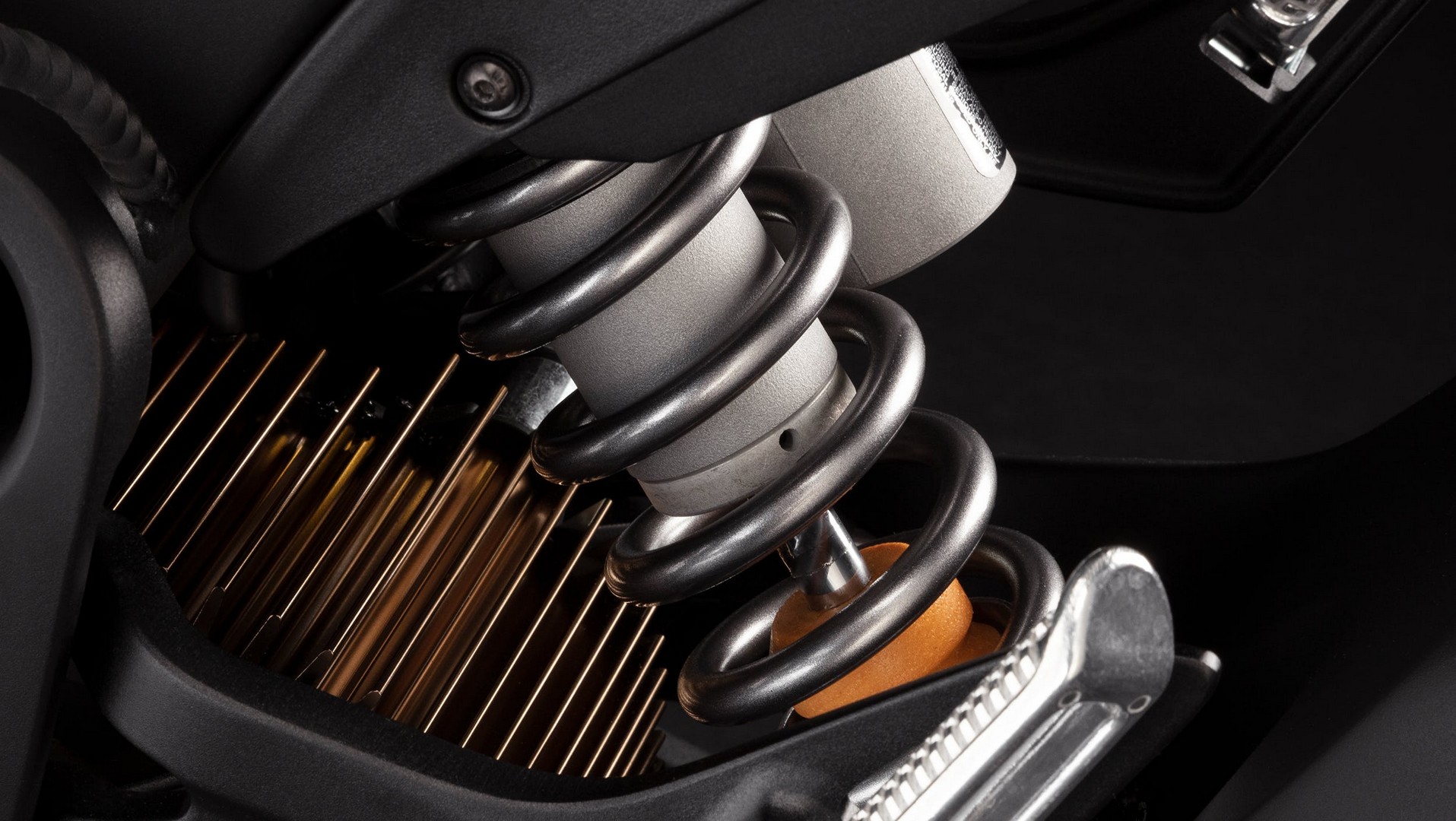

Custom-tuned for Zero by Showa, the Zero DSR suspension offers 7 inches of plush travel that enables you to tackle virtually any terrain thrown your way. The entire suspension system can be fully and easily adjusted to glide over any city street or rip down your favorite fire road.

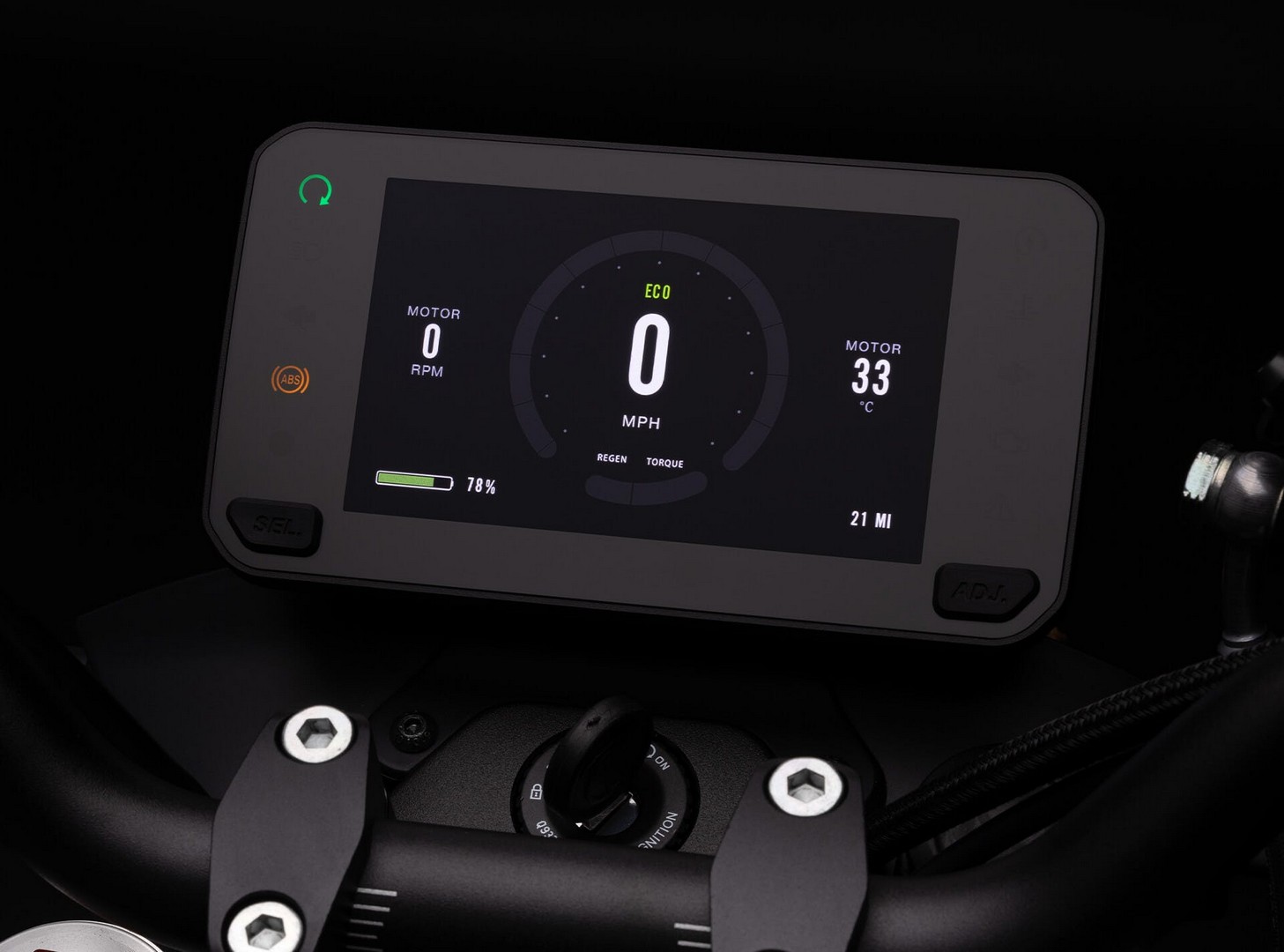

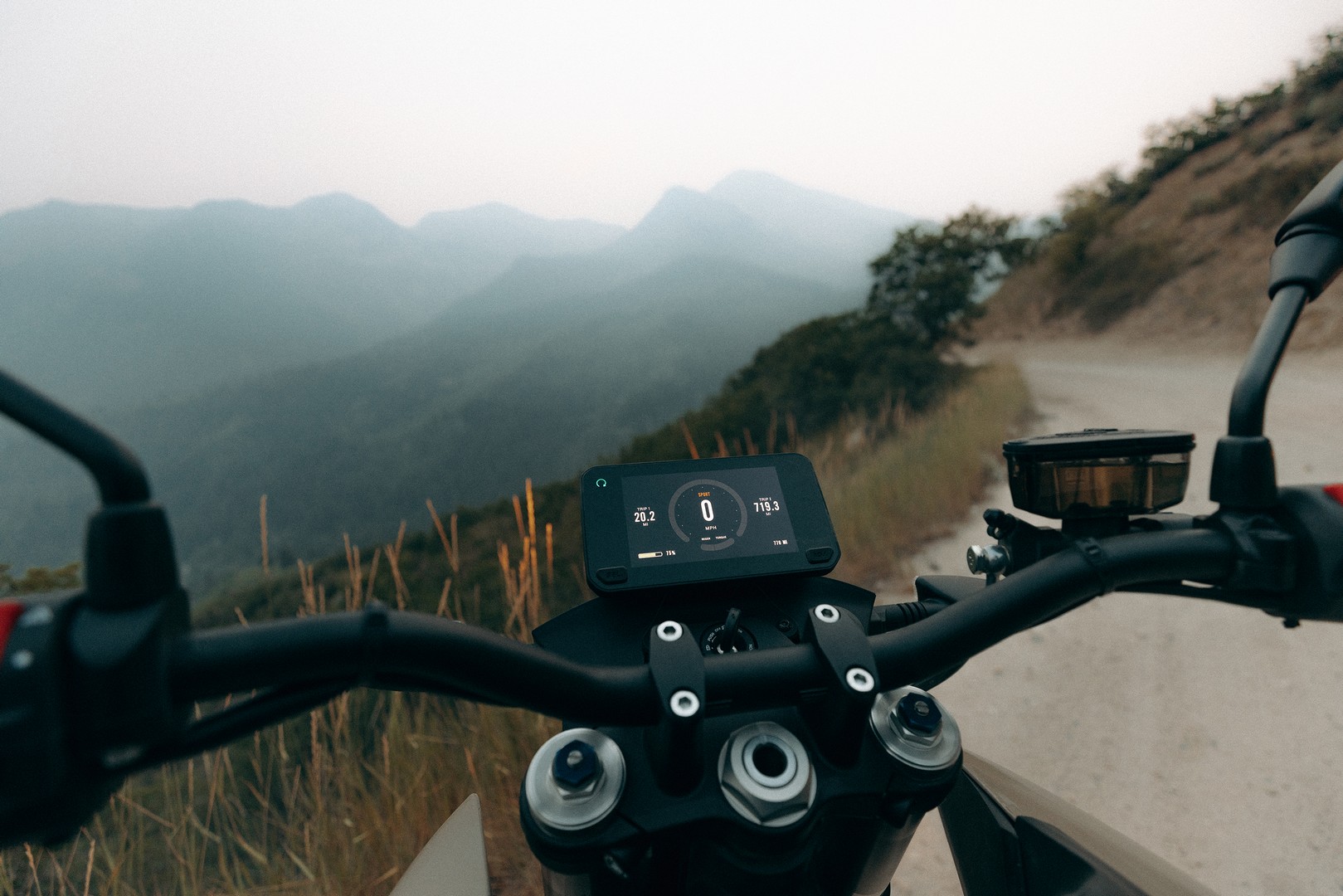

The Zero DSR comes equipped with a full color display to project the specs you need: speed, state of charge, power output, selected riding mode and more. Sync with your smartphone to customize the information that is displayed on your dash.

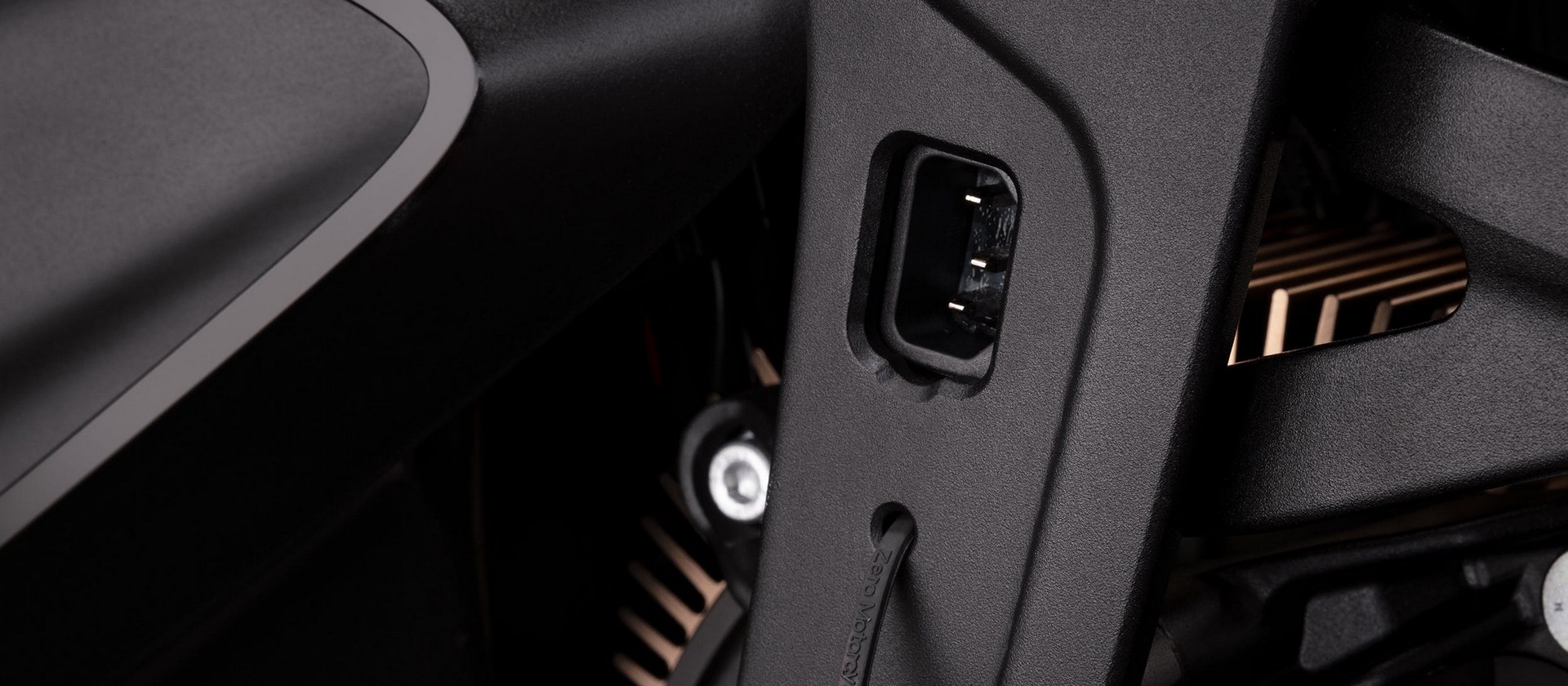

No additional charging equipment required. The standard 1.3 kW onboard charger plugs into any household outlet. It can be operated in conjunction with the off-board Quick Charger accessory and/or the Charge Tank option to accelerate charge times.

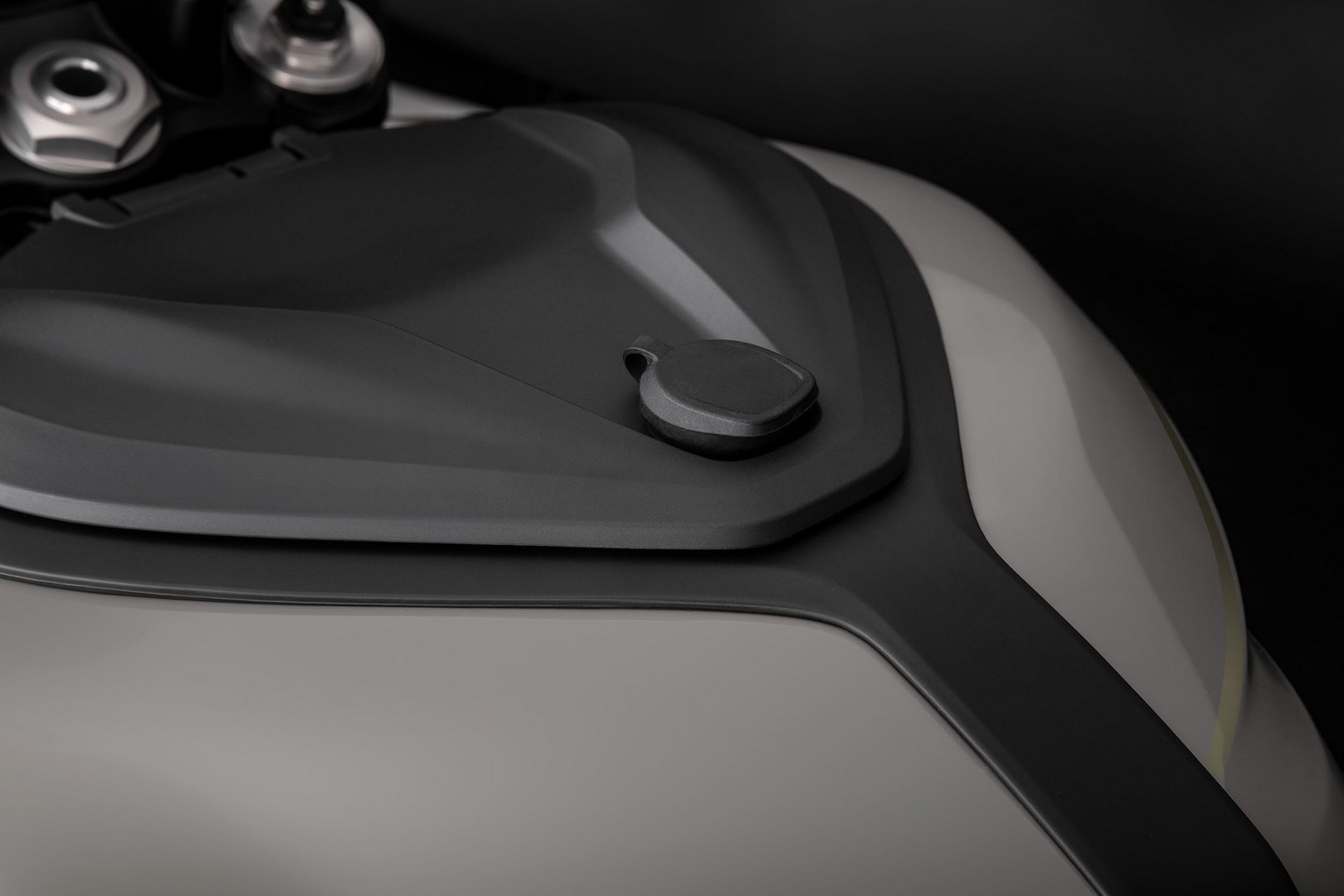

The standard Zero DSR “tank” is equipped with spacious lockable storage—perfect for stowing personal items like cell phones, wallets, or gloves. Interested in faster charging or greater range? Swap the standard tank for the Charge Tank option for 6x faster charging or the Power Tank accessory that adds an additional 3.6 kWh of battery.

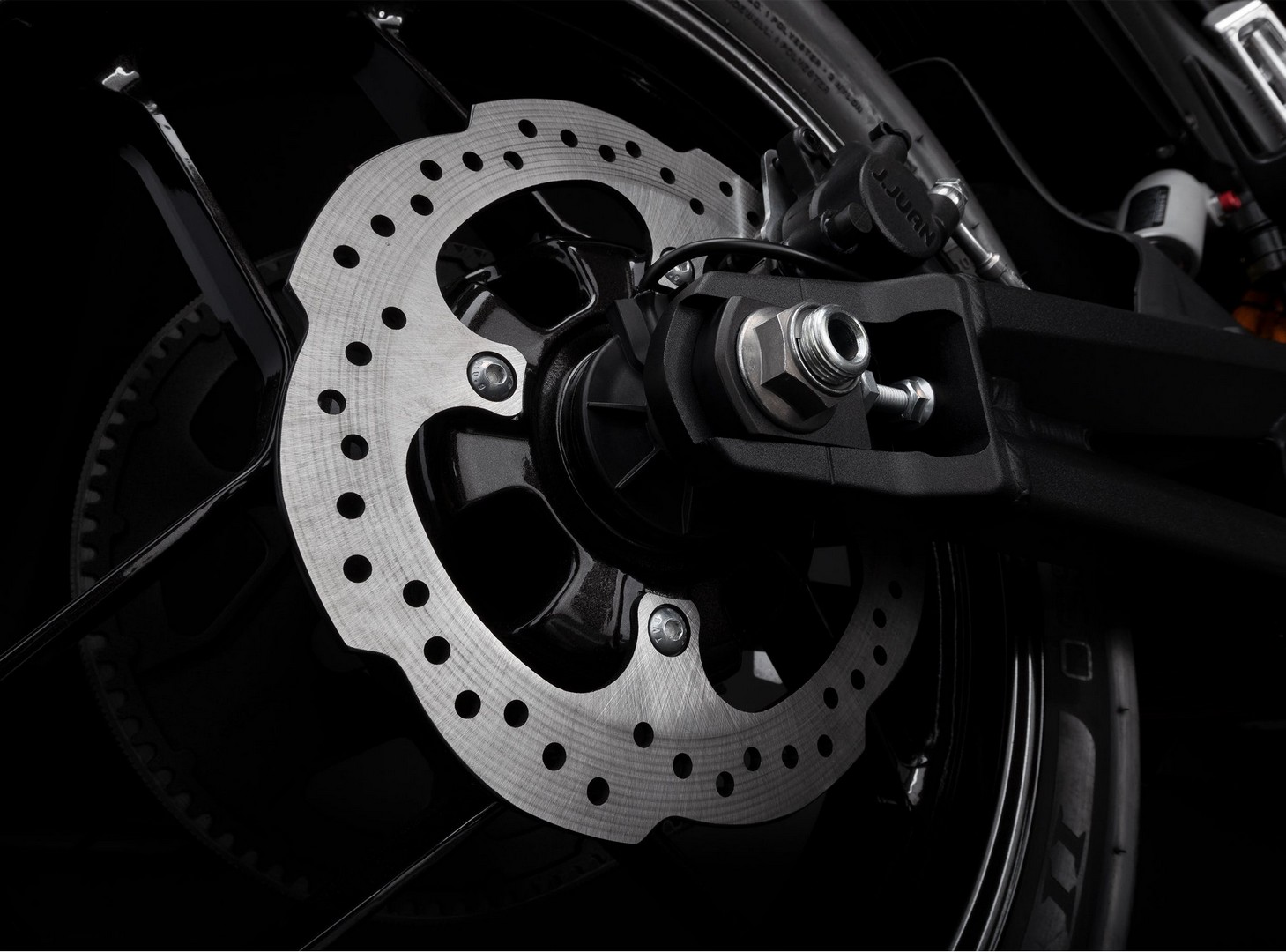

The Bosch anti-lock brake system (ABS) delivers confident braking. Tested for just about any situation you can imagine, the system optimizes deceleration when you hit your brakes hard. Braking is actuated via levers that can be adjusted for improved ergonomics. ABS can be switched on or off by the rider.

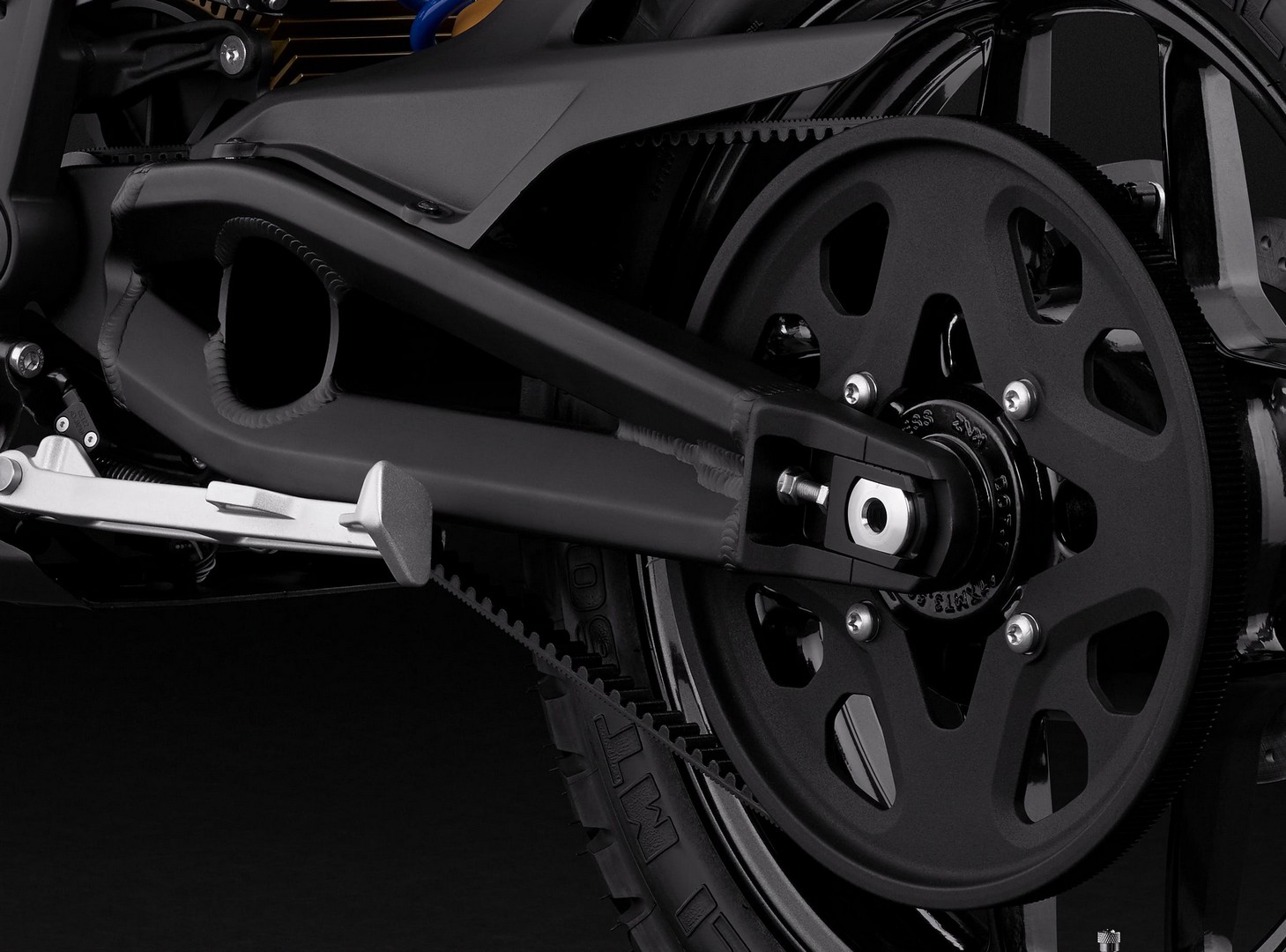

Strip away clutches, gears, shifting, chains and all their weighty complexities. Seamlessly rocket to speeds in excess of 95 mph with pure efficiency as energy quietly transforms into propulsion. The Zero DSR is direct drive. Its state-of-the-art motor connects directly to the rear wheel using a carbon fiber belt.

Shred confidently on anything from twisting tarmac to loose fire roads, the Zero DSR’s Pirelli MT-60 tires
