2022 Harley Davidson Pan America 1250 [Specs, Features, Photos]

2022 Harley Davidson Pan America 1250
Last updated:

The 2022 Harley Davidson Pan America 1250: The New Adventure

After a very successful launch in 2021, the Pan America 1250 and 1250 Special, have been heaped with praise from the ADV riding community.  Harley Davidson has successfully taken on the best of the world and shown that an American-made Adventure bike will kick dirt in the faces of all rivals.

The Revolution® Max 1250 Engine is a liquid-cooled V-Twin designed to offer flexible, engaging performance with a broad powerband that builds to a rush of high-RPM power. Making 150 HP and 94 ft. lbs of torque, this engine spins up to 9500 RPM. The 60o V-Twin has an optimized design for lightweight and is a structural component of the motorcycle chassis, a front frame element, mid-frame element, and the tail section bolt directly to the powertrain.

The Pan America 1250 and Pan America 1250 Special models are equipped with a collection of technologies designed to match motorcycle performance to available traction during acceleration, deceleration, and braking. The systems are designed to aid the rider in controlling the motorcycle while accelerating and braking in a straight line or while in a turn.

  • Cornering Enhanced Electronically Linked Braking (C-ELB)
  • Cornering Enhanced Antilock Braking System (C-ABS)
  • Cornering Enhanced Traction Control System (C-TCS)
  • Cornering Enhanced Drag-Torque Slip Control System (C-DSCS)
  • Hill Hold Control (HHC)
  • Tire Pressure Monitoring System (TPMS)

5 Pre-programed ride modes (4 are pre-programmed and one can be customized) for the Pan America 1250 models include Road, Sport, Rain, Off-Road, and Off-Road Plus. The Pan America™ 1250 Special model has two additional modes that can be customized by the owner, each ride mode consists of a specific combination of power delivery, engine braking, Cornering Enhanced Antilock Braking System (C-ABS), and Cornering Enhanced Traction Control System (C-TCS) settings.

For their 2022 model,Harley Davidson improved the visibility of the TFT display, and the active time for the hill hold control has been extended from 10 seconds to up to 5 minutes.

  • Semi-active Front And Rear Suspension With Vehicle Load Control
  • Tire Pressure Monitoring System (TPMS)
  • Center Stand
  • Multi-position Rear Brake Pedal
  • Brush Guard
  • Aluminum Skid Plate
  • Daymaker Signature Adaptive Headlamp
  • Hand Wind Deflectors And Heated Hand Grips
  • Steering Damper
  • Factory-installed Option Adaptive Ride Height
  • Factory-installed Option Tubeless Laced Wheels

The 2022 Harley Davidson Pan America 1250 comes in Vivid Black

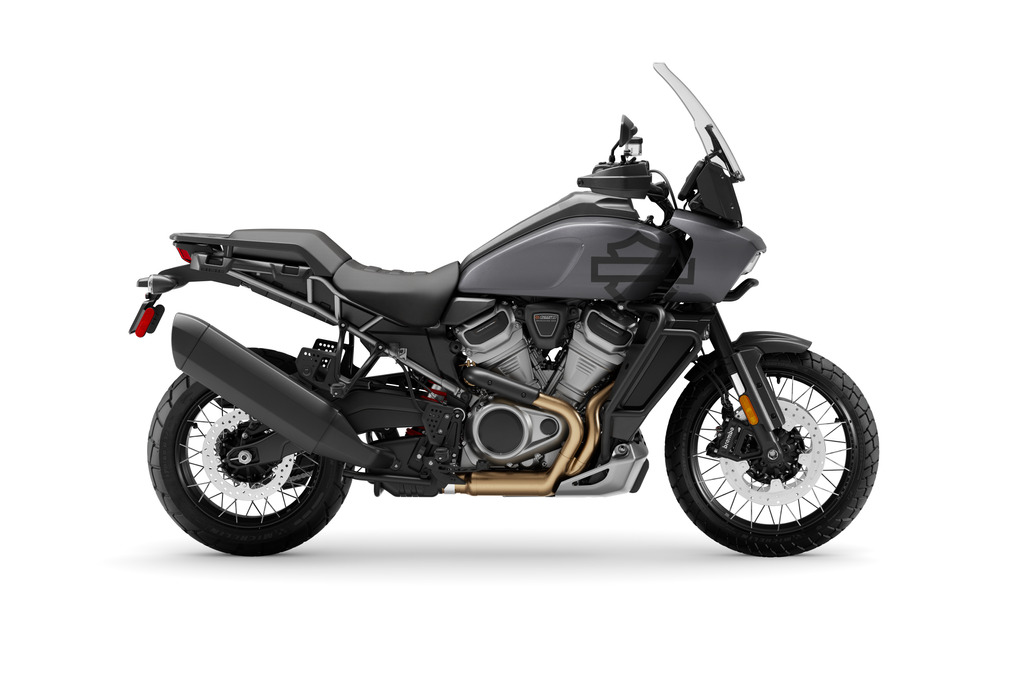

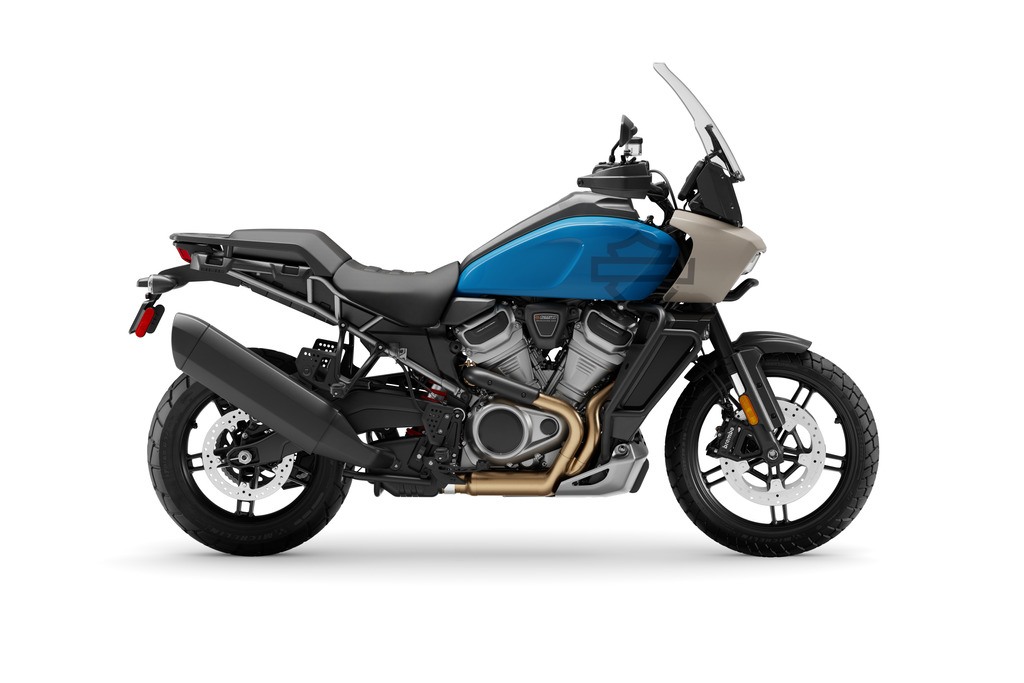

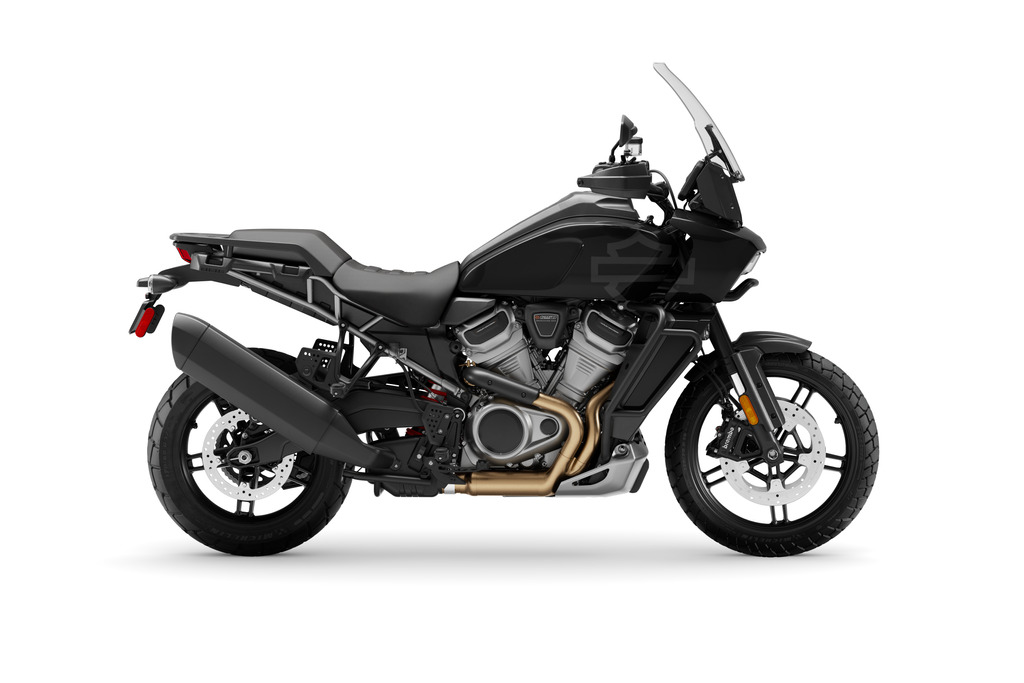

The 2022 Harley Davidson Pan America 1250 Special comes in Vivid Black, Gauntlet Gray Metallic, and Fatback Blue / White Sand, with a choice of Cast or Laced wheels

The 2022 Harley Davidson Pan America 1250 starts at $17,319 / $21,599 CAD.

The 2022 Harley Davidson Pan America 1250 Special  starts at $19,999 / $24,999 CAD

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new 2022 Harley Davidson Pan America 1250 in one place.

2022 Harley Davidson Pan America 1250


Model Overview

General Info

  • Price: Standard $17,319 / $21,599 CAD, Special $19,999 / $24,999 CAD
  • Key Features:
    • Revolution® Max 1250 Engine
    • Cornering Rider Safety Enhancements
    • Selectable Ride Modes
    • Improved TFT touchscreen
    • Improved Hill Hold system

Main Specs

  • Engine: 1252cc V-twin
  • Power: 150 HP
  • Torque: 94 lbs-ft
  • Wet Weight: Std – 534 lb. (242 kg) , Special – 559 lb. (254 kg)
  • Seat Height: Std – 31.8 in. (807 mm), Special – 31.1 in. (789 mm)

2022 Harley Davidson Pan America 1250


2022 Harley Davidson Pan America 1250 Specifications

From Harley-Davidson



ENGINE

Engine 1252cc V-twin, Revolution® Max 1250
Engine Torque 94 ft-lb
Bore x Stroke 4.13 in. x 2.85 in.
Compression Ratio
13.0:1
Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
Starter
Exhaust 2-into-1-into-1; catalyst in header

DRIVETRAIN

Clutch
Transmission 6-speed
Primary Drive
Gear, 49/89 ratio

CHASSIS

Front Fork
47mm inverted fork with electronically adjustable semi-active damping control. Aluminum fork triple clamps.
Rear Shocks
Linkage-mounted monoshock with automatic electronic preload control and semi-active compression & rebound damping.
Wheels, Front Type
Annodized aluminum tubeless laced
Wheels, Rear Type
Aluminum cast, satin black
Brakes Front
radially mounted, monoblock, 4-piston caliper
Brakes Rear floating, single piston caliper
Tires Front
120/70R19 60V
Tires Rear
170/60R17 72V
Fuel Tank Capacity 5.6 gal.
Color Gauntlet Gray Metallic w/ Cast Wheels, Fastback Blue/White Sand w/ Cast Wheels, Vivid Black w/ Laced Wheels, Gauntlet Gray Metallic w/ Laced Wheels, Fastback Blue/White Sand w/ Laced Wheels,

ELECTRICAL

Ignition
Spark Plugs
Headlight All LED headlamp
Tail Light LED

DIMENSIONS

Length
89.4 in.
Trail
4.3 in.
Rake 25
Wheelbase
62.4 in.
Ground Clearance
6.9 in.
Seat Height
32 in.
Weight, As Shipped
534 lb.

WARRANTY

Warranty
Extension

2022 Harley Davidson Pan America 1250


2022 Harley Davidson Pan America 1250 Features

Different by Design

H-D design and engineering teams have crafted a vision guided by utility, rooted in the spirit of iconic American off-road vehicles. In a landscape of bikes that are achieving uniformity, Pan America is a rugged take where function feeds form in a package that is uniquely Harley-Davidson.

All Terrain Long Hauler

Informed by H-D’s touring legacy, Pan America™ is designed to maintain high-speed ride and handling performance even when at the limit of its luggage and weight capacity. Refined, capable and intuitive, Pan America™ is a motorcycle that stays composed and confident no matter how hard you push it.

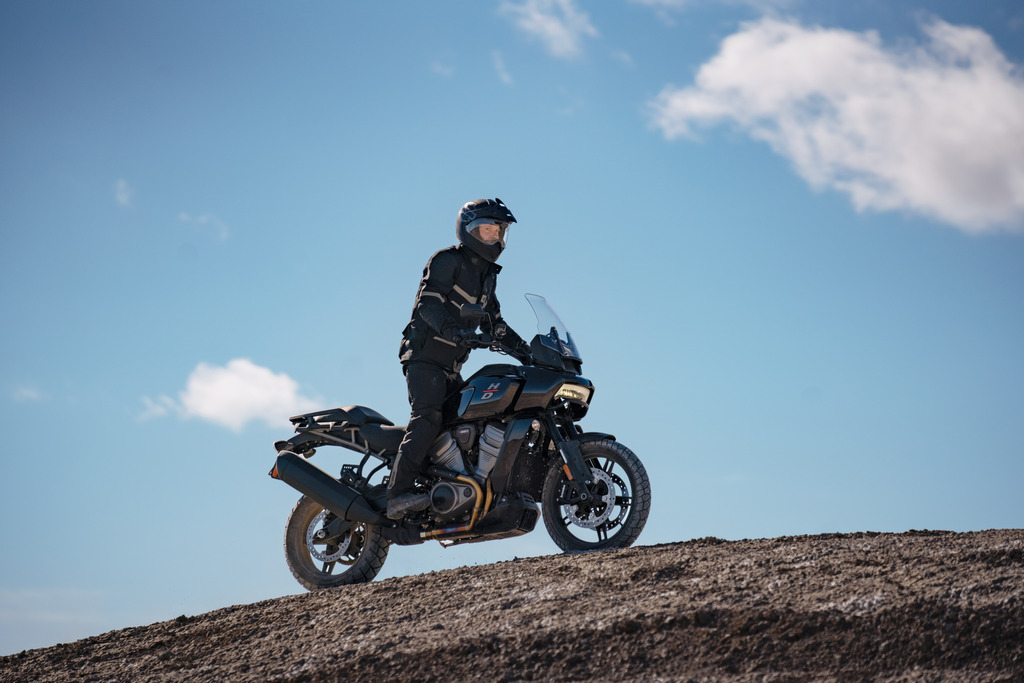

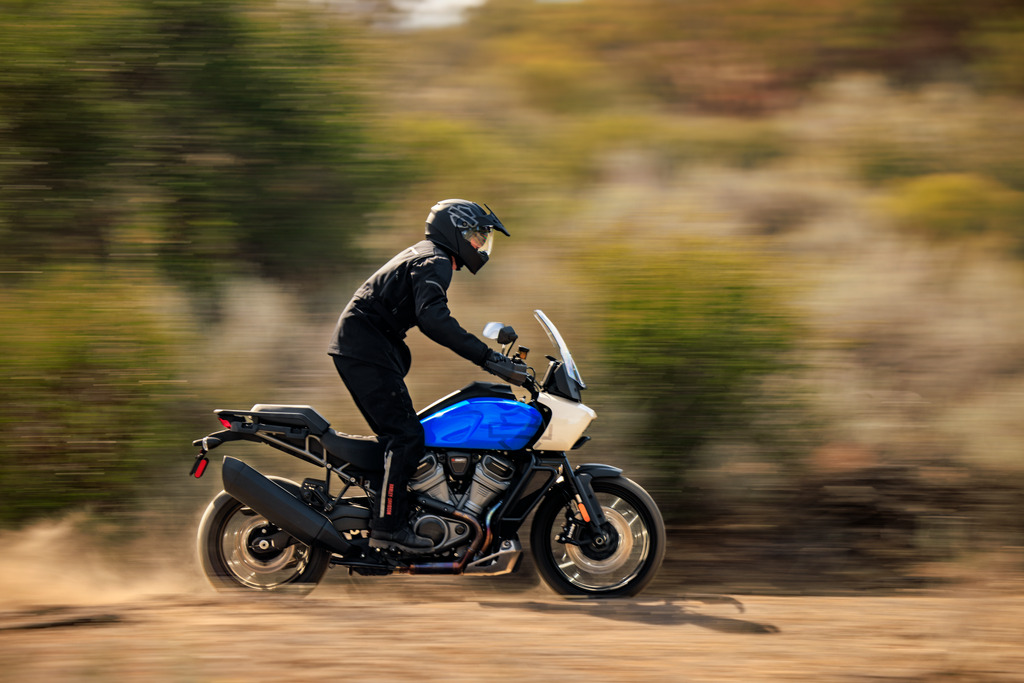

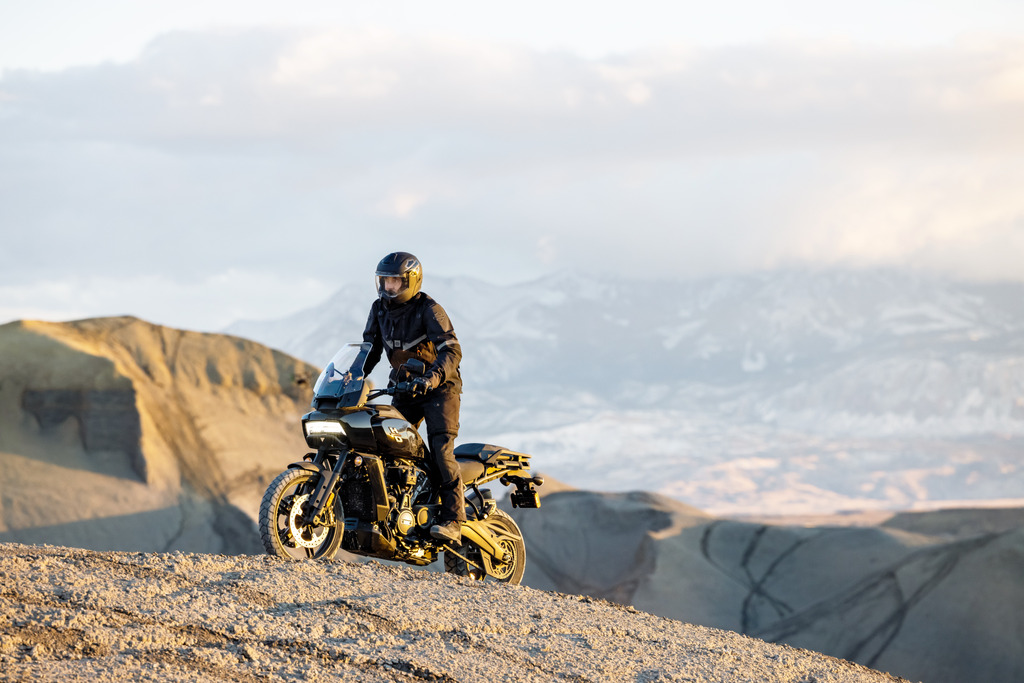

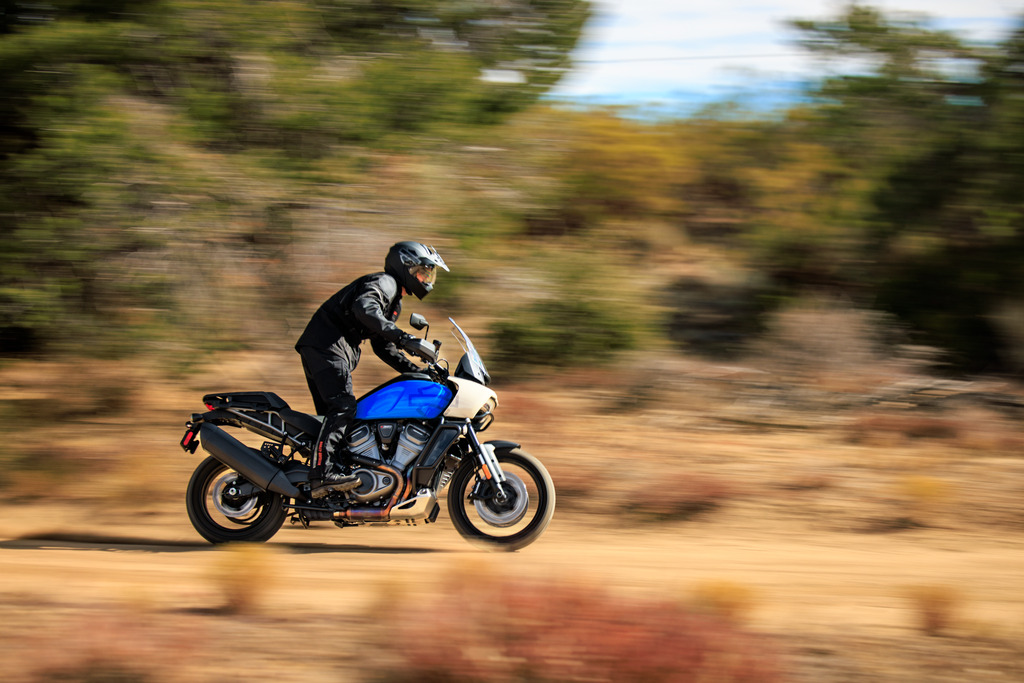

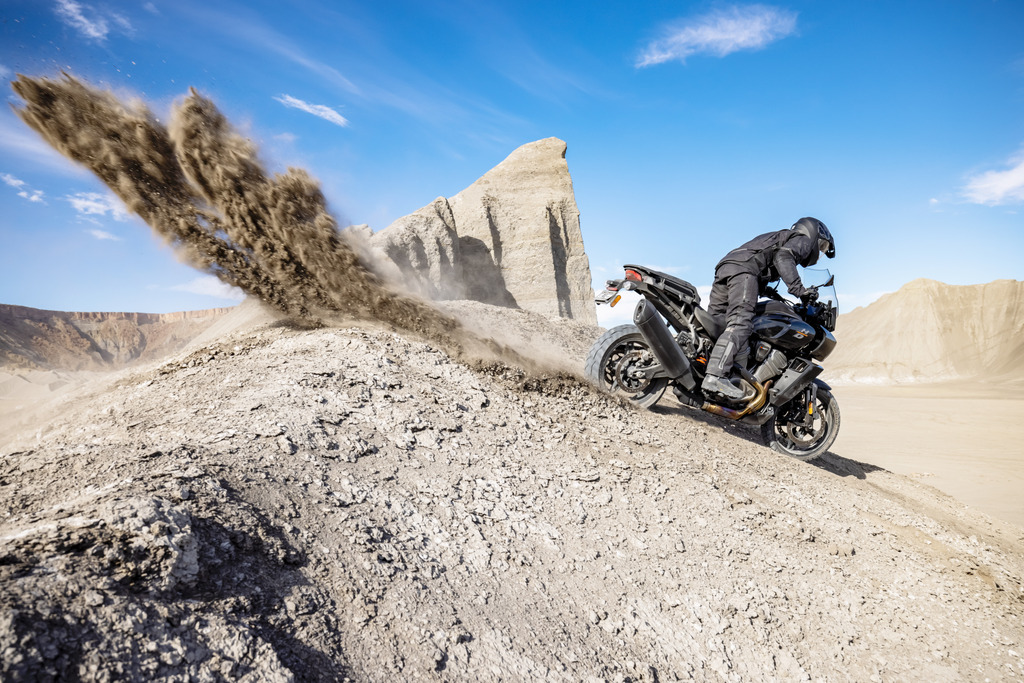

2022 Harley Davidson Pan America 1250 Photos
