2020 Yamaha XMAX [Model Overview]

2020 Yamaha XMAX

2020 Yamaha XMAX

The 2020 Yamaha XMAX is one of the offspring of the Japanese-market Yamaha X-City scooter line from the mid-2000s. Sporting a 292 cc four-stroke, liquid-cooled single-cylinder engine, the XMAX is able to produce 27 crank HP and 22 lbs-ft of crank torque. Paired with an automatic transmission and belt drive to the rear wheel, the XMAX aims to be a premium maxi-scooter in an already crowded market segment.

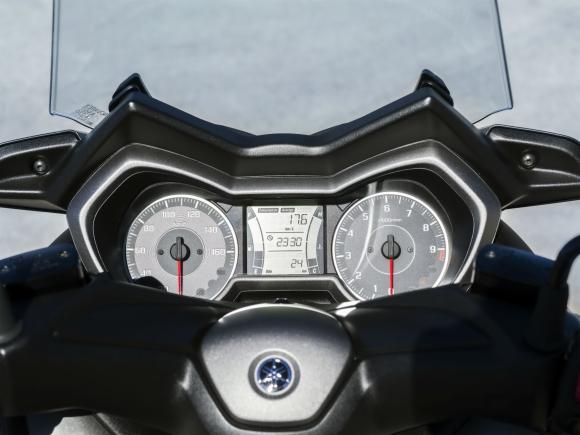

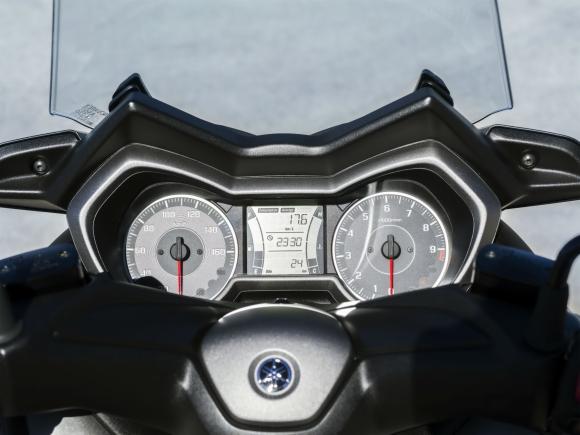

What makes the XMAX the more desirable option is the multi-mode traction control system, a multifunction LCD nestled between two easy to read and stylish gauges, standard LED head and tail lights, standard touring windscreen, and, as with many cars these days, smart key access to storage as well as smart key pushbutton start.

The 2020 Yamaha XMAX starts at $5,699 US and is not available in Canada.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new Yamaha XMAX in one place.

2020 Yamaha XMAX


Model Overview

General Info

  • Price: $5,699
  • Key Features:
    • Anti-Lock Braking System
    • Traction Control
    • LED Lighting

Key Specs

  • Engine type: 292cc liquid-cooled 4-stroke
  • Power: 27 Hp
  • Wet weight: 397 lb
  • Seat height: 31.3 in

Key Competitors

2020 Yamaha XMAX


2020 Yamaha XMAX Specifications

From Yamaha

ENGINE

Engine 292cc liquid-cooled 4-stroke, SOHC single-cylinder; 4 valves
Power 21 Hp
Bore x Stroke 70.2mm x 75.9mm
Compression Ratio 10.9:1
Fuel System Fuel Injection
Starter Electric
Lubrication

DRIVETRAIN

Clutch
Transmission Automatic CVT
Final Drive V-Belt

CHASSIS

Suspension Front 33mm telescopic fork; 4.3-in travel
Suspension Rear Dual shocks; 3.1-in travel
Brakes Front Hydraulic disc, 267mm; ABS
Brakes Rear Hydraulic disc, 245mm; ABS
Tires Front 120/70-15 Dunlop® Scoot Smart
Tires Rear 140/70-14 Dunlop® Scoot Smart
Fuel Tank Capacity 12.8 L (3.4 US gal.)
Color Shadow Gray

ELECTRICAL

Ignition TCI: Transistor Controlled Ignition
Spark Plugs
Headlight LED
Tail Light LED

DIMENSIONS

Overall Length
Overall Width
Overall Height
Wheelbase 60.6 in (1540 mm)
Ground Clearance 5.3 in (135 mm)
Seat Height 31.3 in (795 mm)
Curb Weight 397 lbs (180 kg)

WARRANTY

Warranty 1 Year (Limited Factory Warranty)
Extension


2020 Yamaha XMAX Features

TOP FEATURES

  • MAX Series DNA
    More than just a practical commuter, the stylish XMAX™ features aggressive, angular bodywork for a high-class appearance that elevates the XMAX beyond expectations.
  • Sporty, Fuel Efficient Engine
    Featuring technology developed for use in Yamaha’s high-performance sport bikes, the XMAX motor is smooth, efficient and ready for everything from the day-to-day commute to fun rides on the weekend.
  • Convenience and Technology
    With a fully-automatic transmission, the XMAX is exceedingly simple to ride and comes standard with an extensive list of rider aids, including traction control and ABS. Combined with a frame designed for light and neutral handling, the XMAX makes for a confidence-inspiring ride on any road.
  • Luxury + Comfort + Practicality
    High-tech features distance the XMAX from your typical bare-bones scooter, including LED lighting and advanced instrumentation. With plenty of lockable onboard storage, a 12V power port to recharge small devices and an adjustable handlebar and windscreen, the XMAX is a ready-to-go whenever you are, whether you need to get groceries down the street or head across the state.

ENGINE

  • All-New Engine
    The XMAX is powered by an advanced 292cc liquid-cooled, four-valve single that develops smooth, tractable power. The cylinder is crafted from Yamaha’s DiASil aluminum for excellent heat dissipation, with a lightweight forged piston and forged crankshaft. A counterbalancer ensures minimal vibration, while the offset cylinder layout and semi-dry-sump lubrication system help reduce friction and drag inside the engine.
  • Full Automatic Convenience
    Thanks to Yamaha’s Continuously Variable Transmission, the XMAX offers the convenience of truly ‘twist and go’ riding, which no gears and no clutch. This gives the XMAX an easy-going riding character that is ideal for busting city traffic on weekdays and enjoying a relaxing ride on the weekend. The CVT system also features a large air-cooling path for the drive belt, reducing heat and engine noise significantly.
  • Fuel Injection and Traction Control
    Modern fuel injection features a 12-hole injector for excellent response, and just like Yamaha’s cutting edge supersport and sport-touring machines, the XMAX features a traction control system. TCS continuously monitors wheel speeds, and if the system detects rear tire slip, the engine smoothly cuts power to help prevent uncontrolled wheelspin.
  • Impressive Fuel Economy and Range
    Thanks to the efficient engine design features and advanced powertrain, the XMAX delivers 75 mpg. Combined with a large 3.4-gallon fuel tank, the XMAX boasts an impressive cruising range.

CHASSIS/SUSPENSION

  • MAX Series DNA
    The XMAX pushes the design envelope with advanced sport styling and aggressive, angular cues that set this Yamaha way ahead of the competition, for a high-class appearance that elevates the XMAX beyond expectations.
  • Motorcycle-Type Front Fork
    Unlike most scooters, the XMAX features a large motorcycle-type front fork that bolts to the steering stem at both the top and bottom triple clamps. This provides an ideal balance of strength and chassis rigidity, allowing for better damping feel and shock absorption compared to typical scooter-style forks.
  • Lightweight Steel Frame
    Designed for light and neutral handling character, the XMAX’s steel frame results in a wet weight of only 397 pounds fully fueled, for exceptional maneuverability.
  • Large Wheels and Tires
    The XMAX features a large 15-inch front and 14-inch rear wheels for enhanced handling and sporty style. The XMAX also mounts the latest Dunlop® Scoot Smart tires for good traction in both wet and dry conditions.
  • Anti-Lock Braking System
    With large 267mm and 245mm front and rear disc brakes, the XMAX gives the rider controllable braking power backed up by the security of Yamaha’s anti-lock braking system, for confidence in all sorts of road conditions.

ADDITIONAL FEATURES

  • Smart Key System
    Yamaha’s Smart Key system eliminates the need to use the key to access the machine. Starting the bike, accessing the storage compartments and fuel tank, and locking the handlebar can all be done using the proximity Smart Key.
  • All-Inclusive Storage
    Further boosting convenience is a huge underseat storage area that locks securely to keep valuables safe, is large enough for two full-face helmets, and comes standard with LED lighting. The fairing also includes two additional storage bays, one of which locks electronically and includes a 12V DC outlet.
  • LED Lighting
    Boosting both style and visibility, the XMAX uses LED lighting, with sharp LED taillights and brilliant all-LED headlights. LEDs also use less power and last much longer than conventional bulbs, reducing maintenance needs.

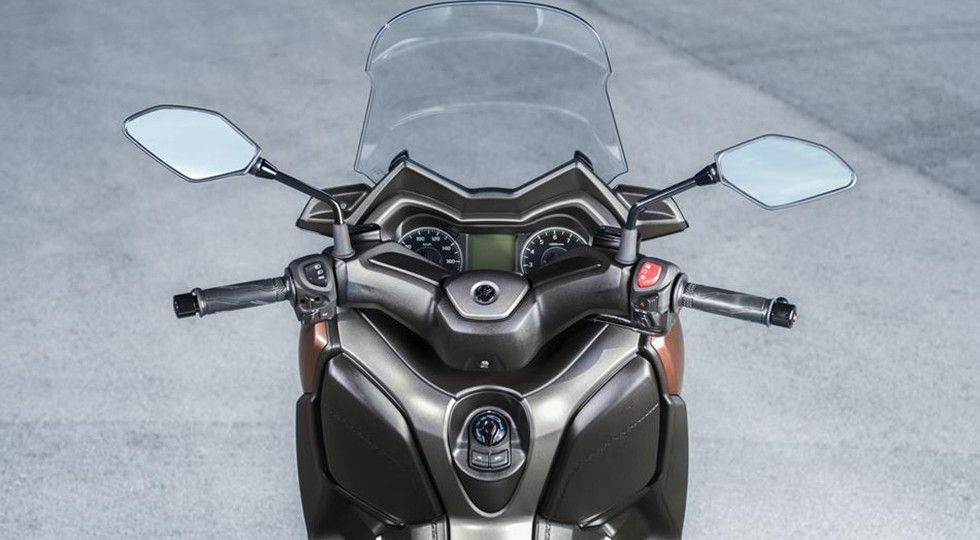

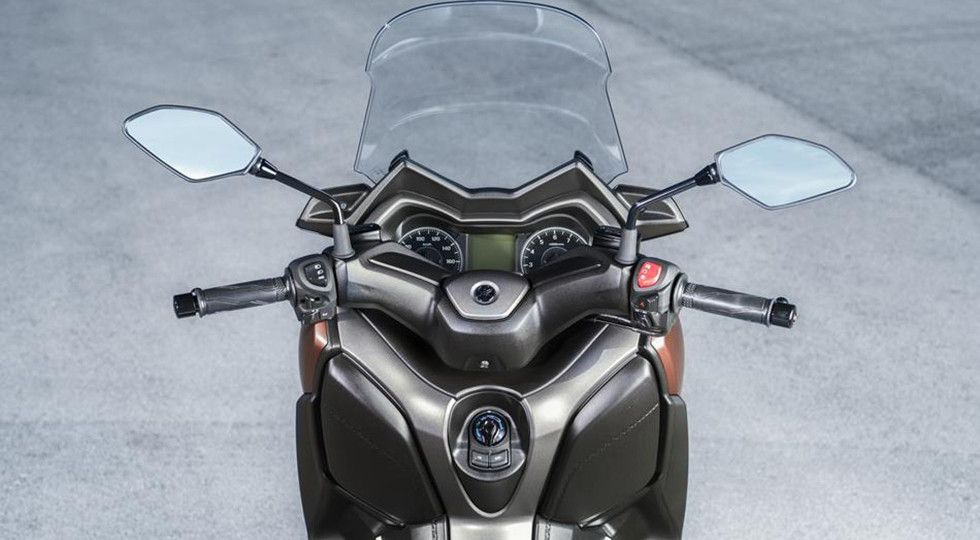

  • Adjustable Handlebar and Windscreen
    The XMAX includes an adjustable handlebar, with 20mm of rearward adjustment, which can be changed quickly with zero additional parts. The XMAX also features a two-position windscreen that can be shifted two inches higher for additional wind protection. Finally, the sculpted saddle makes it easier to reach the ground at stops and works with the floorboards for a flexible all-day riding position.
  • Ready to Accessorize
    Personalize your XMAX with a range of Genuine Yamaha Accessories, including luggage, accessory mounts, backrests and more. See the full range of accessories on www.ShopYamaha.com.

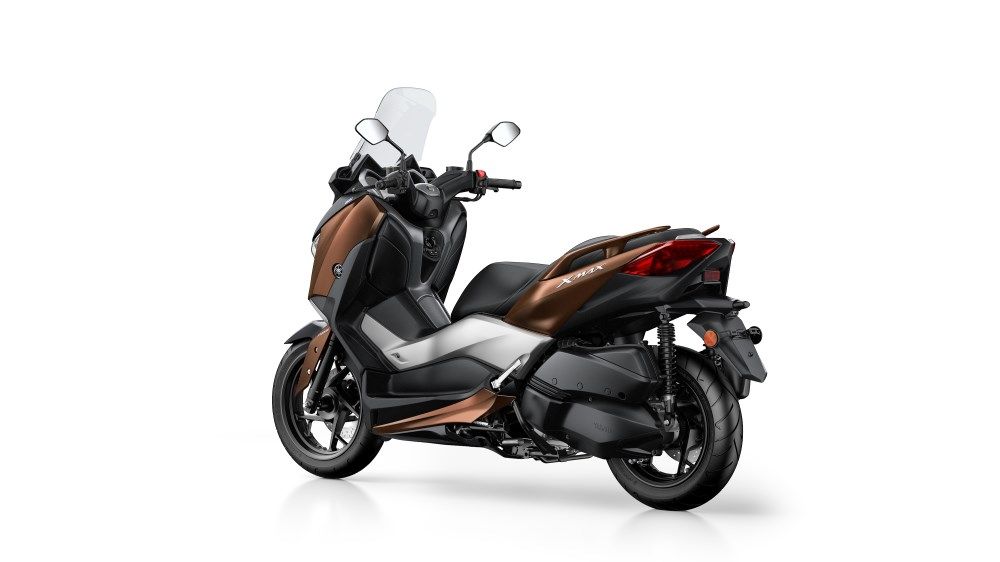

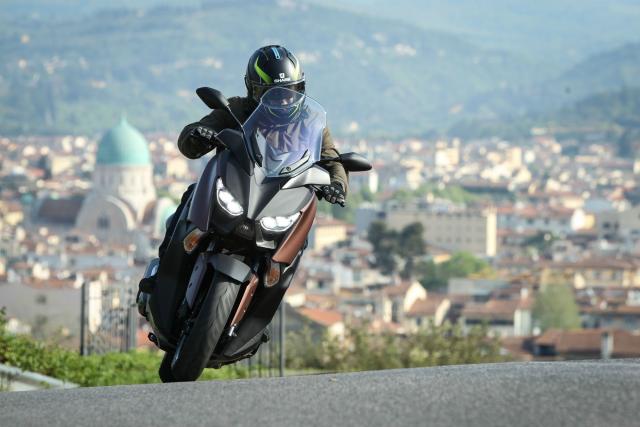

2020 Yamaha XMAX Photos
