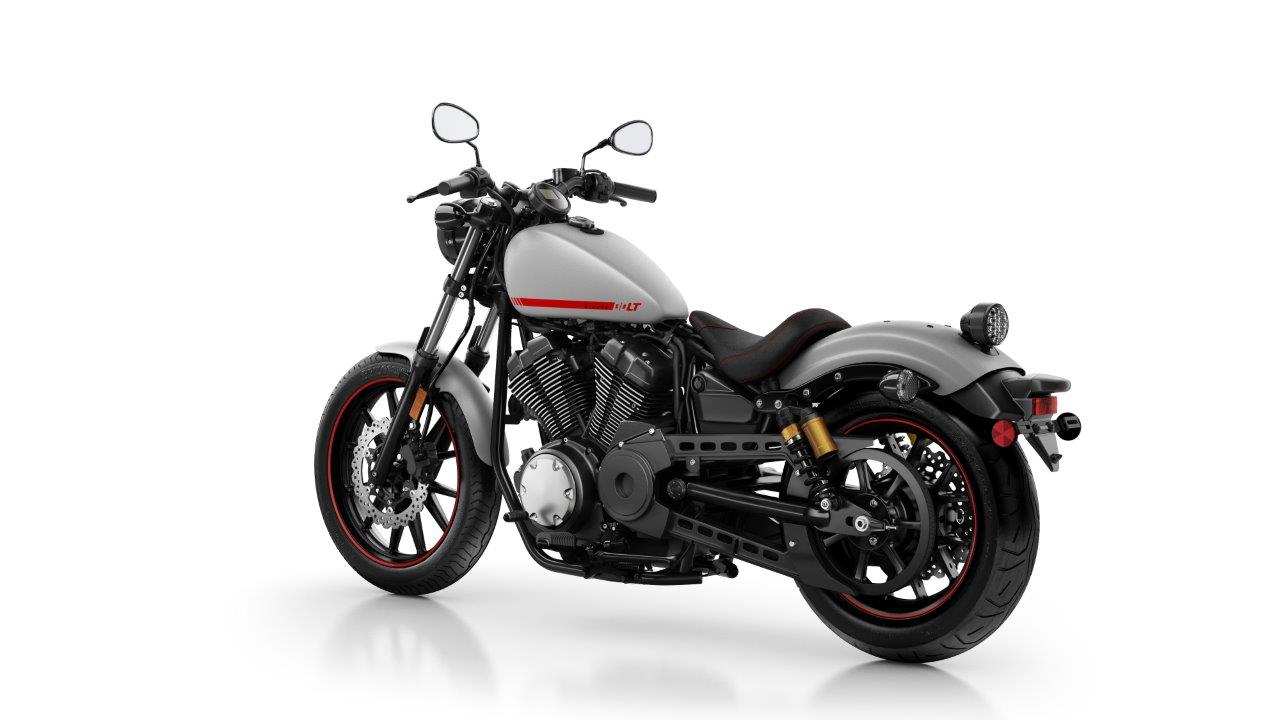

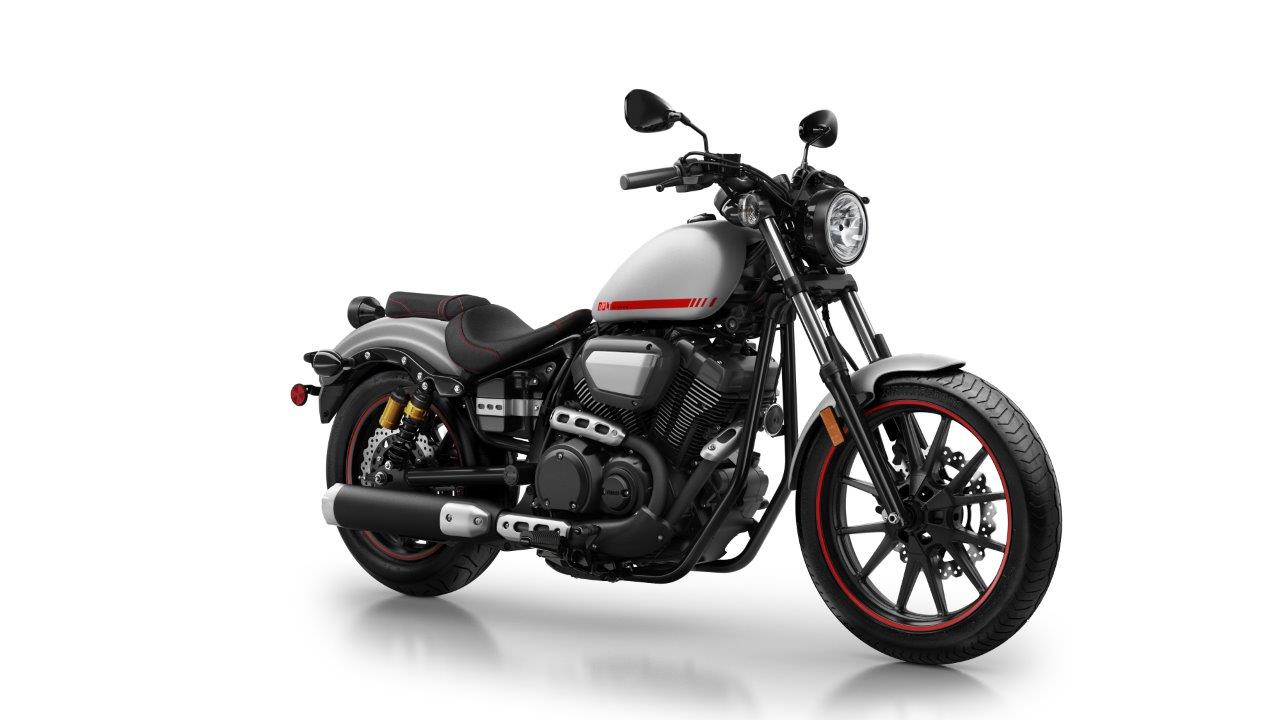

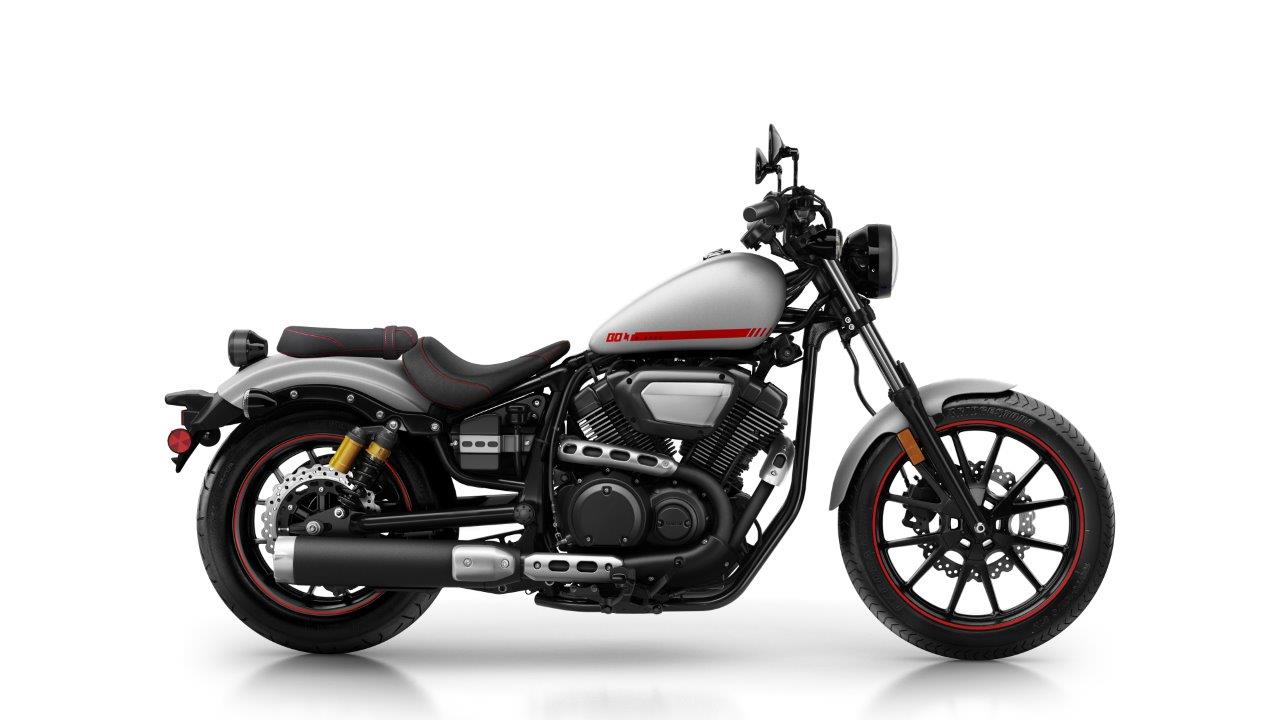

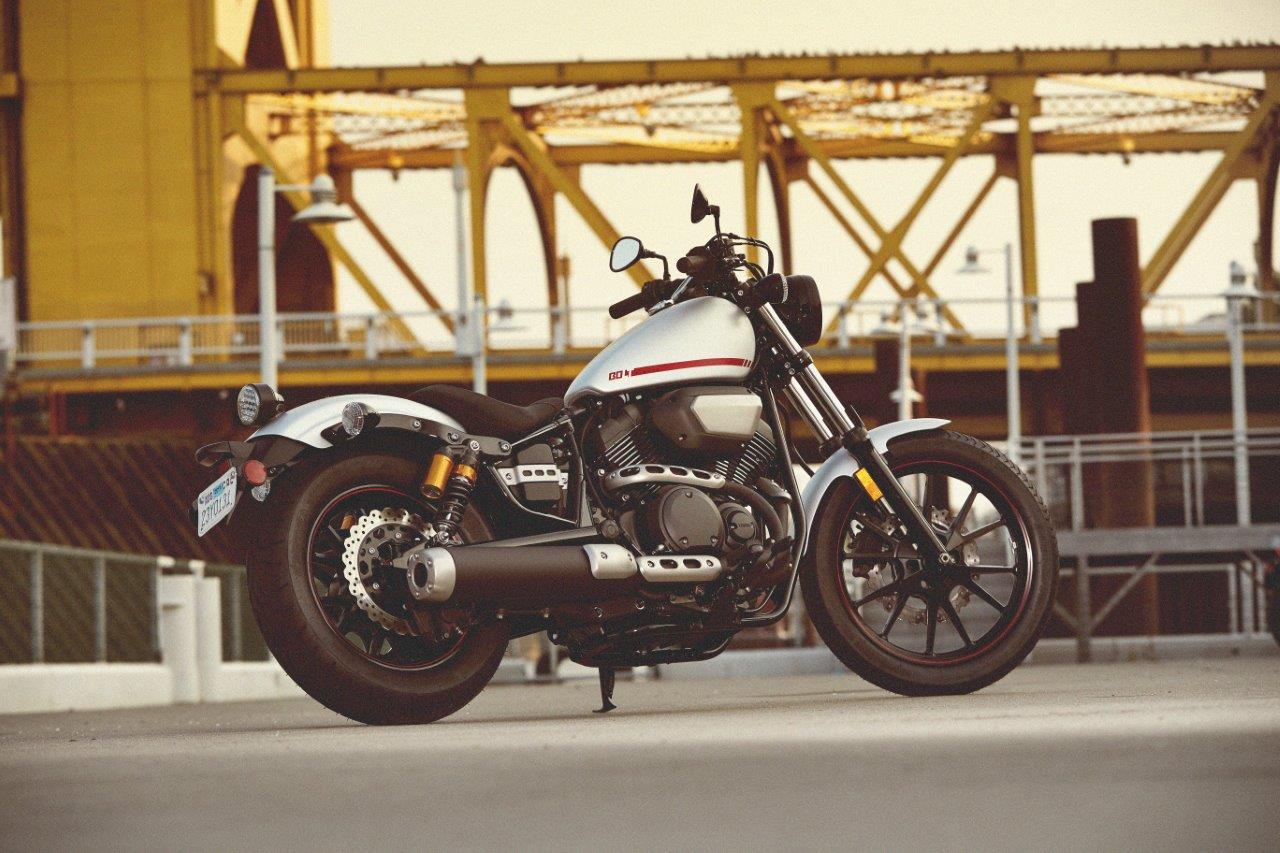

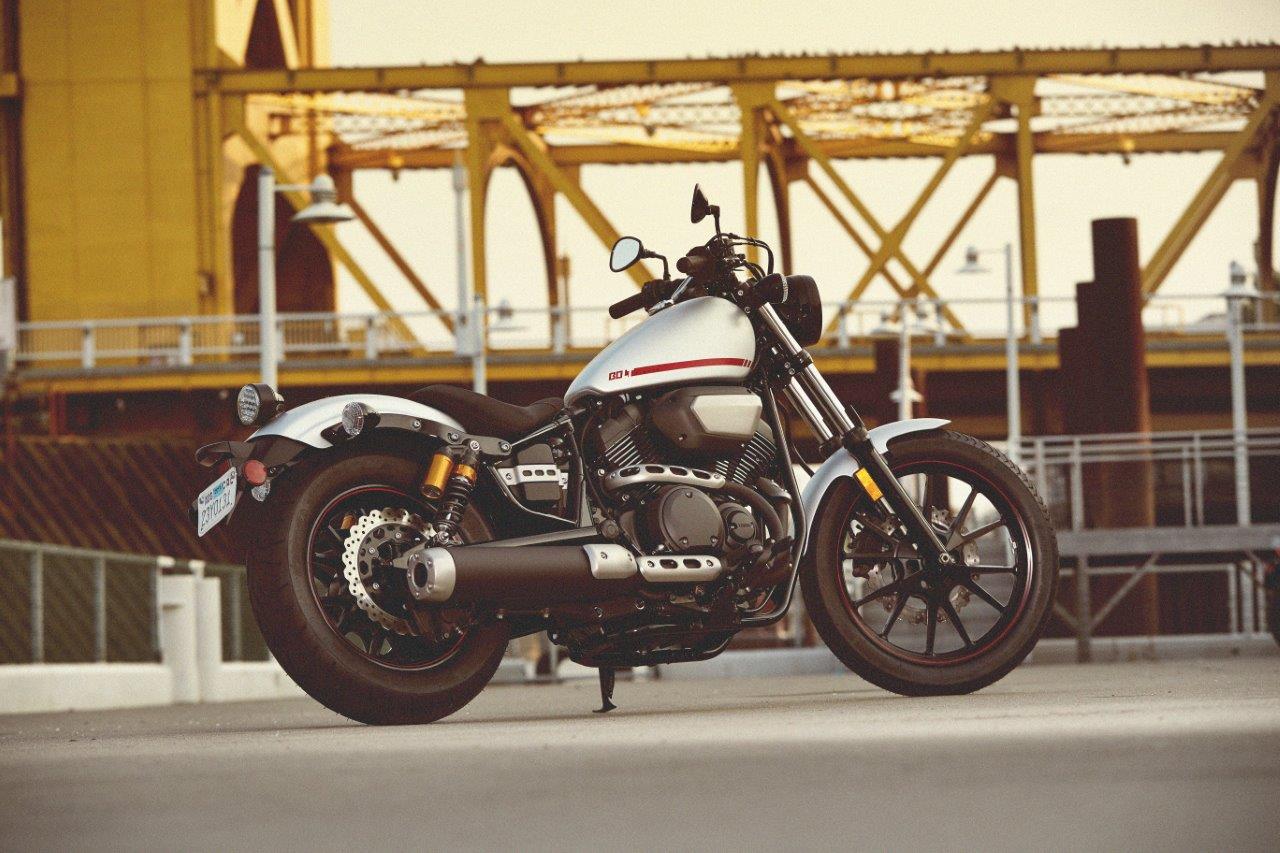

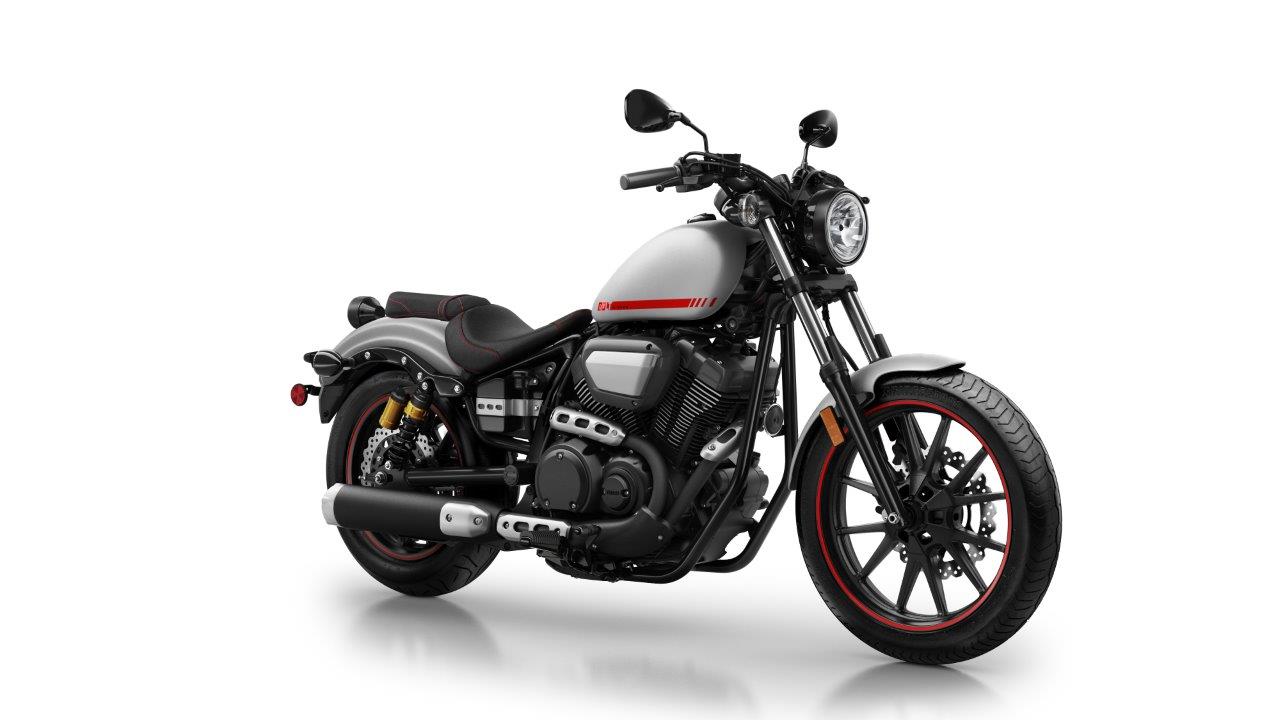

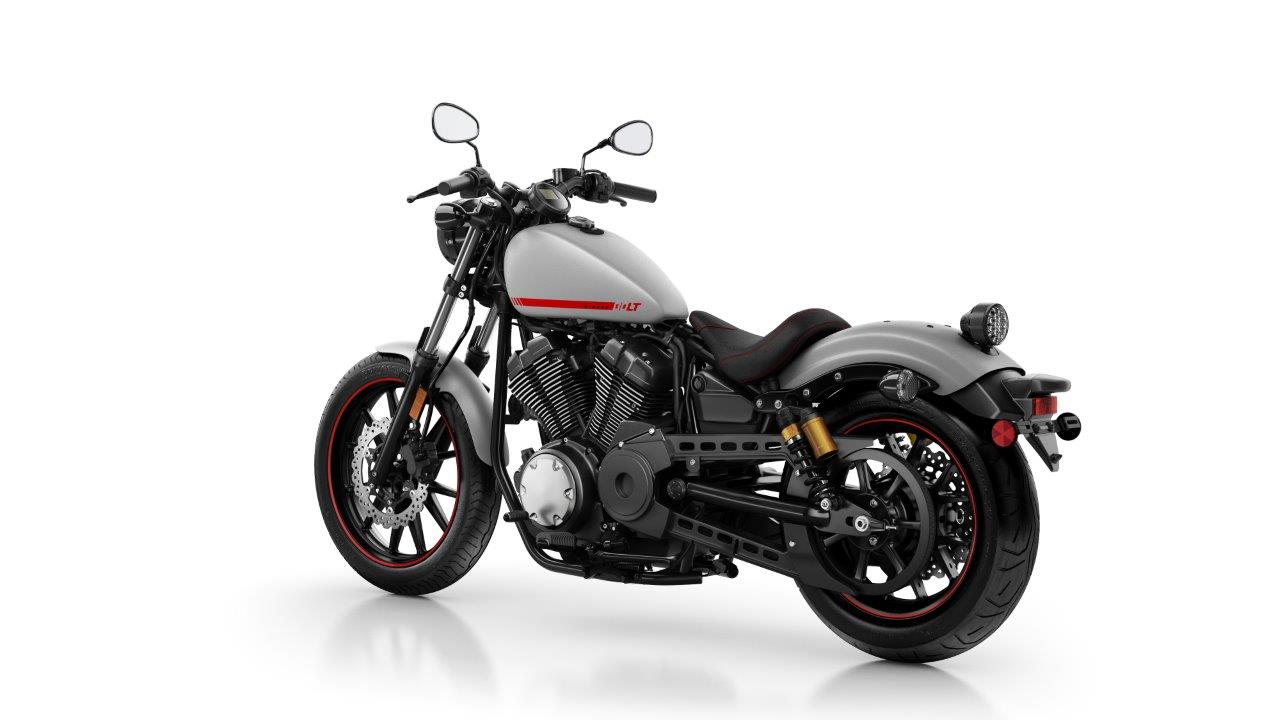

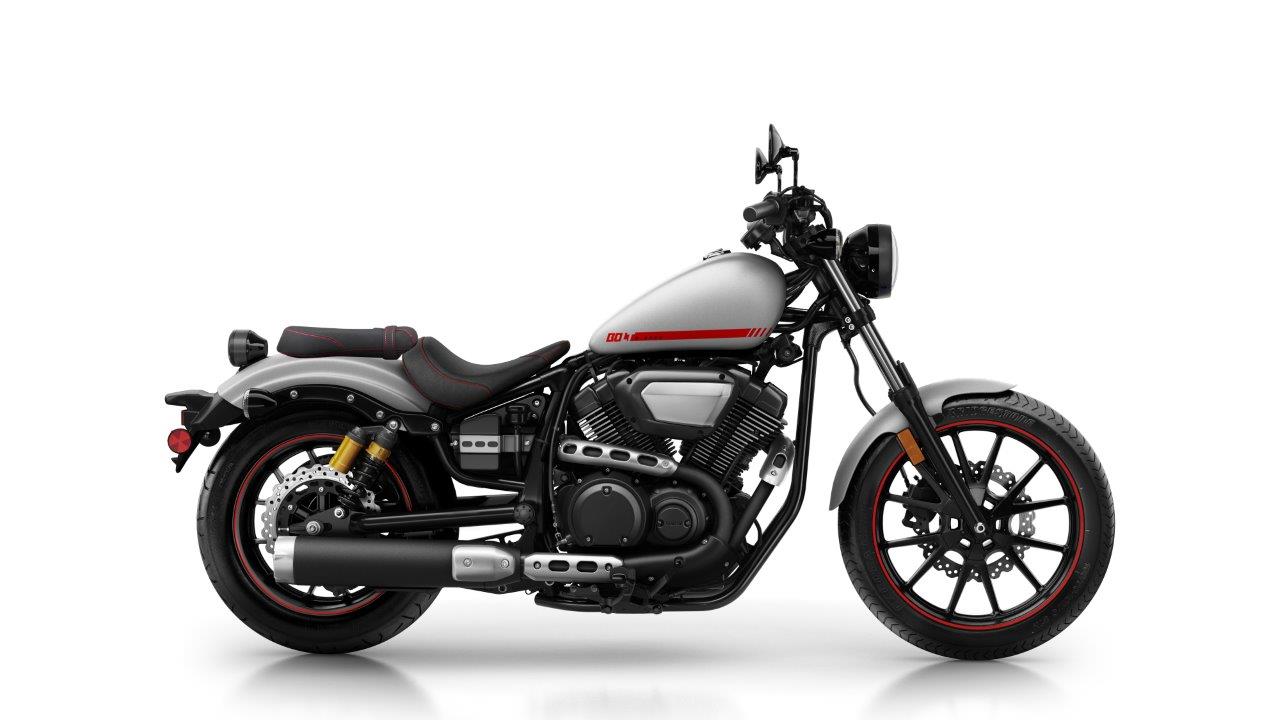

2020 Yamaha Bolt R-Spec
The 2020 Yamaha Bolt R-Spec shares the same frame, engine, readouts, pretty much everything from the standard 2020 Bolt, meaning the same 65 crank HP V-twin. The key differences that make the R-Spec a bit more special are the fact that it has adjustable remote reservoir gas shocks, a more sporting color scheme, a different seat made of softer, more textured leather, and blacked-out mirrors and aluminum wheels.

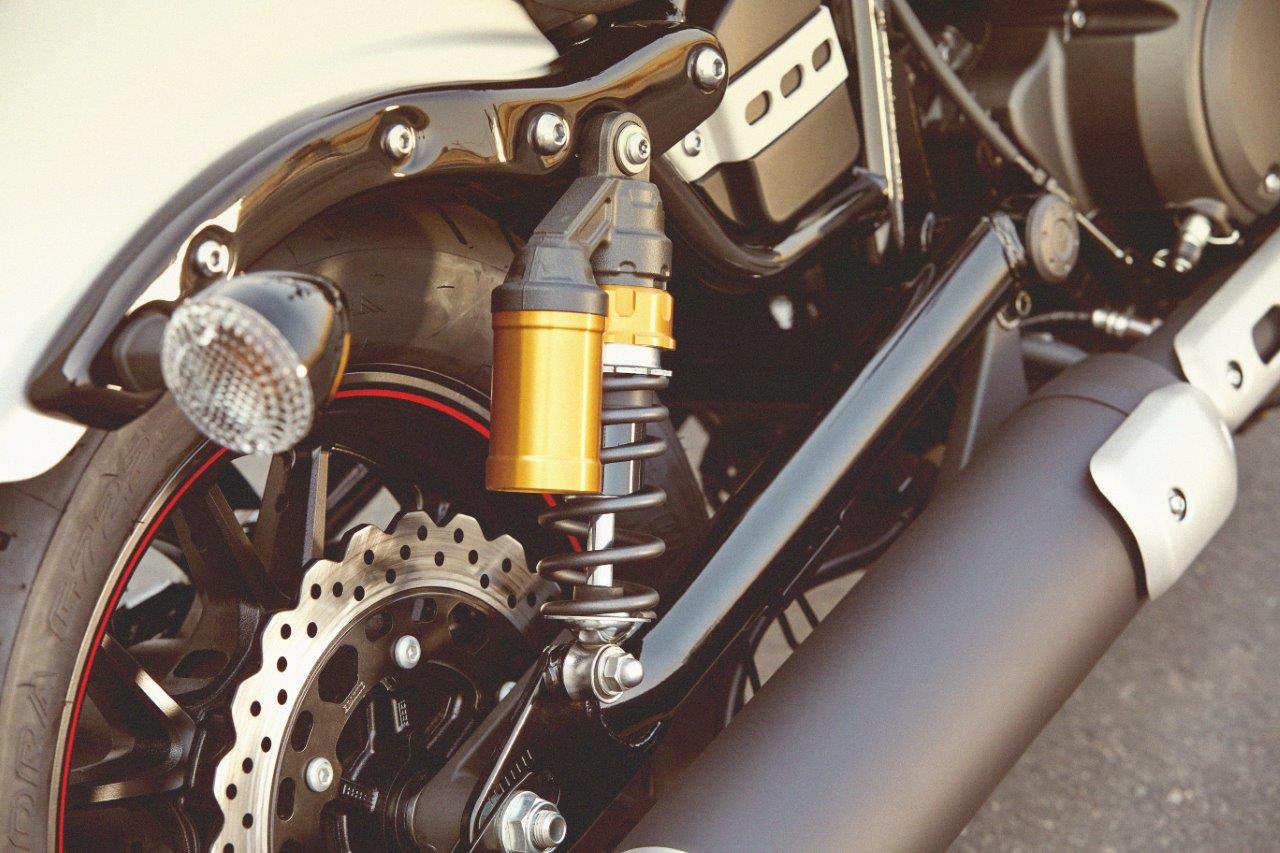

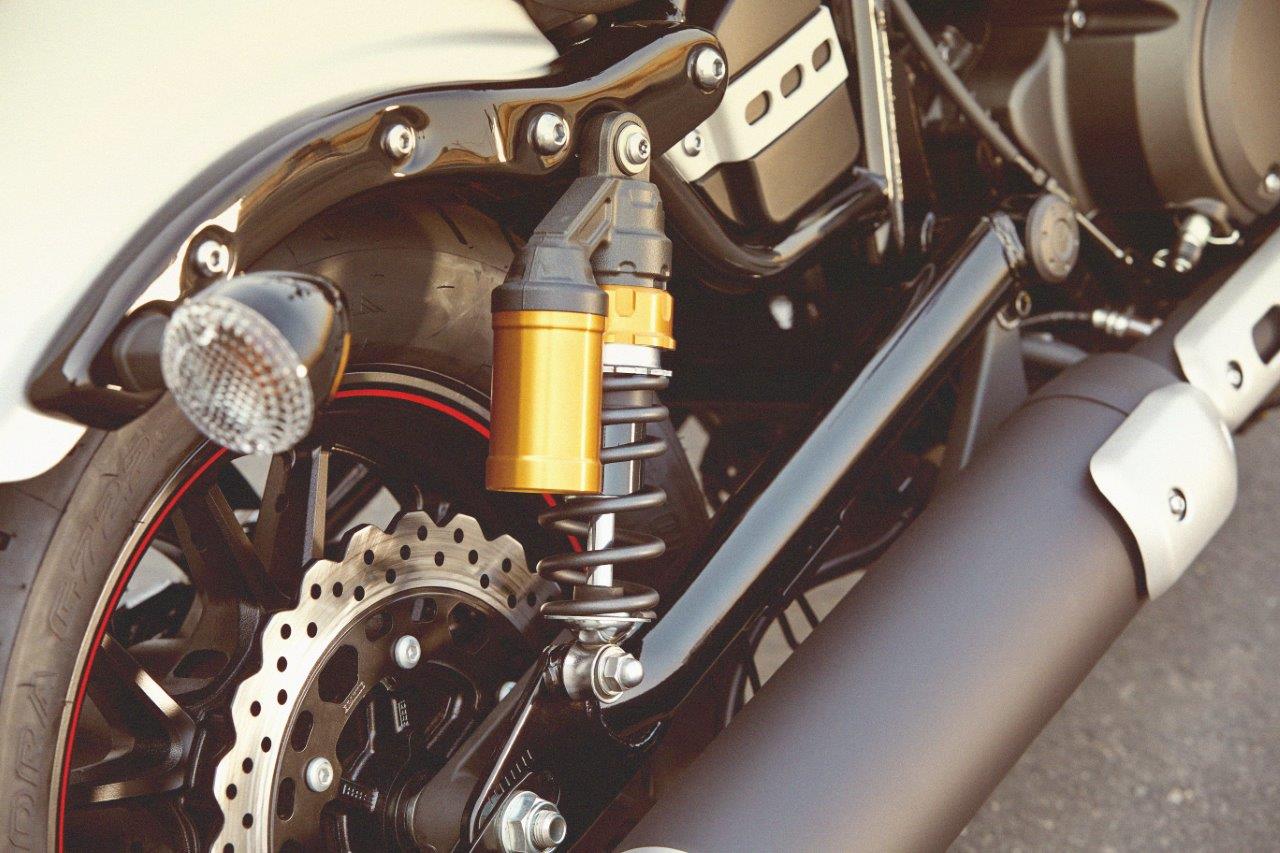

The major benefit of the uprated shocks comes from the remote reservoir being more open to airflow, allowing for the gas to remain cooler and provide more consistent shock dampening over longer rides. This, along with the almost Alcantara-type seat, means less heat will transfer up into your legs and torso, allowing you to keep cooler during your ride.
The 2020 Yamaha Bolt R-Spec starts at $8,399 US/$9,499 CA.
On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new Yamaha Bolt R-Spec in one place.
- Price: $8,399 US / $9,499 CA
- Key Features:
- Powerful Braking
- Fuel Injection
- Modern Lighting
- Engine type: 942 cc air-cooled SOHC V-twin
- Power: 65 hp
- Wet weight: 542 lb
- Seat height: 27.2 in
- Triumph Bonneville Bobber
- Kawasaki Vulcan S Cafe
- Indian Scout Bobber
2020 Yamaha Bolt R-Spec Specifications
|Engine||942 cc air-cooled SOHC V-twin; 4 valves|
|Bore x Stroke||85.0mm x 83.0mm|
|Fuel System||Fuel Injection|
|Clutch||Multiplate wet clutch|
|Suspension Front||Telescopic fork, 4.7-in travel|
|Suspension Rear||Dual piggyback shocks, 2.8-in travel|
|Brakes Front||Wave-type disc, 298mm|
|Brakes Rear||Wave-type disc, 298mm|
|Fuel Tank Capacity||13 L (3.4 US gal.)|
|Ignition||TCI: Transistor Controlled Ignition|
|Wheelbase||61.8 in (1570 mm)|
|Ground Clearance||5.1 in (130 mm)|
|Seat Height||27.2 in (690 mm)|
|Curb Weight||542 lbs (245 kg)|
|Warranty||1 Year (Limited Factory Warranty)|
2020 Yamaha Bolt R-Spec Features
- Urban Performance Styling
The Bolt® is stripped down with minimal chrome, epitomizing the “Urban Performance Bobber” look. The compact chassis proudly showcases the 58 cubic inch (942cc), air-cooled, 60° V-twin sitting at the heart of the bike.
- High-Tech Engine
The Bolt uses modern technology to create a riding experience superior to other similarly sized machines. Fuel injection and ignition timing maps have been chosen specifically for this bike to deliver class-leading performance with strong low and midrange torque sure to bring a smile to every rider’s face.
- Compact, Stable Chassis
The slim body and low seat design combine to give the motorcycle light maneuverability and a stable handling feeling. The upright riding posture helps the rider feel the wind, hear the sounds and experience the pulse of the machine.
- Ready to Customize
For riders who value personalization, the options for the Bolt are limited only by the owner’s imagination. As we say with the Star® cruiser line, “We build it. You make it your own.”® And as the perfect canvas for customization, Bolt is the ultimate example of that philosophy.
- Unique Bolt Persona
Components such as the 3.4-gallon fuel tank, belt drive, front and rear wheels, digital meter and steel fenders combine to create a distinct look in the Star cruiser line-up.
- Modern Air-Cooled V-Twin
The 58 cubic inch (942cc) engine is an air-cooled SOHC 60° V-twin with four valves per cylinder, a pent-roof shaped combustion chamber, and 9.0:1 compression ratio. The engine is designed to provide excellent power and superior low-end torque.
- Low Friction Internals
To keep friction loss to a minimum, increase durability and help the engine achieve the ideal performance characteristics, special roller-type rocker arms with needle bearings are used.
- Advanced Cylinder Design
The pent-roof combustion chamber shape was precisely engineered to direct the fuel/air charge to the center of the piston for more efficient combustion and maximum power. Ceramic-composite plated cylinders provide excellent heat dissipation and reduced oil consumption.
- Lightweight Performance Pistons
High-quality forged aluminum pistons have a lightweight, high-strength, compact design that contributes to reduced vibration and increased durability.
- Fuel Injection
Sophisticated twin-bore fuel injection is used on the Bolt to deliver ultimate urban riding fun with strong acceleration. 3D maps for ignition timing and fuel injection have been developed to deliver outstanding acceleration in the mid- and low-speed ranges.
- Compact Air Cleaner
The stainless steel air cleaner cover provides a “raw metal” look that accentuates the Bolt’s distinctive styling. In addition, the air cleaner design provides great intake efficiency and enhanced torque characteristics.
- Unique Bolt Exhaust System
A 2-into-1 exhaust pipe layout on the right side of the engine contributes to the lively performance and styling of the machine. The minimalist-style exhaust system delivers a throaty and pleasing exhaust note.
- Handling-Focused Frame
A double-cradle frame enhances city riding enjoyment thanks to an engine mounted to the frame with a rigid mount system that provides precise handling.
- Low Seat Height
The low-set seat is a mere 27.2 inches off the pavement, so most riders can easily put both feet firmly on the ground at a stop, as well as enjoy the great riding position the seat provides.
- Agile Wheelbase
Bolt’s short, 61.8-inch wheelbase contributes to the bike’s great handling, providing precise, tight turns in city riding and solid handling on the open road.
- Advanced Suspension
The beefy front 41mm fork tubes offer excellent suspension performance and the twin rear shocks have been tuned to provide great comfort and handling while contributing to the machine’s low profile.
- Low Maintenance Belt Drive
At just 21mm wide, the drive belt contributes to the slim and clean look of the rear end. The belt has a carbon-fiber core which adds strength and durability for longevity.
- Custom Wheels and Tires
Newly designed spoke wheels with black anodized aluminum rims combine lightweight strength with timeless style. Bridgestone® 100/90-19 front and 150/80-16 rear tires help provide excellent road grip.

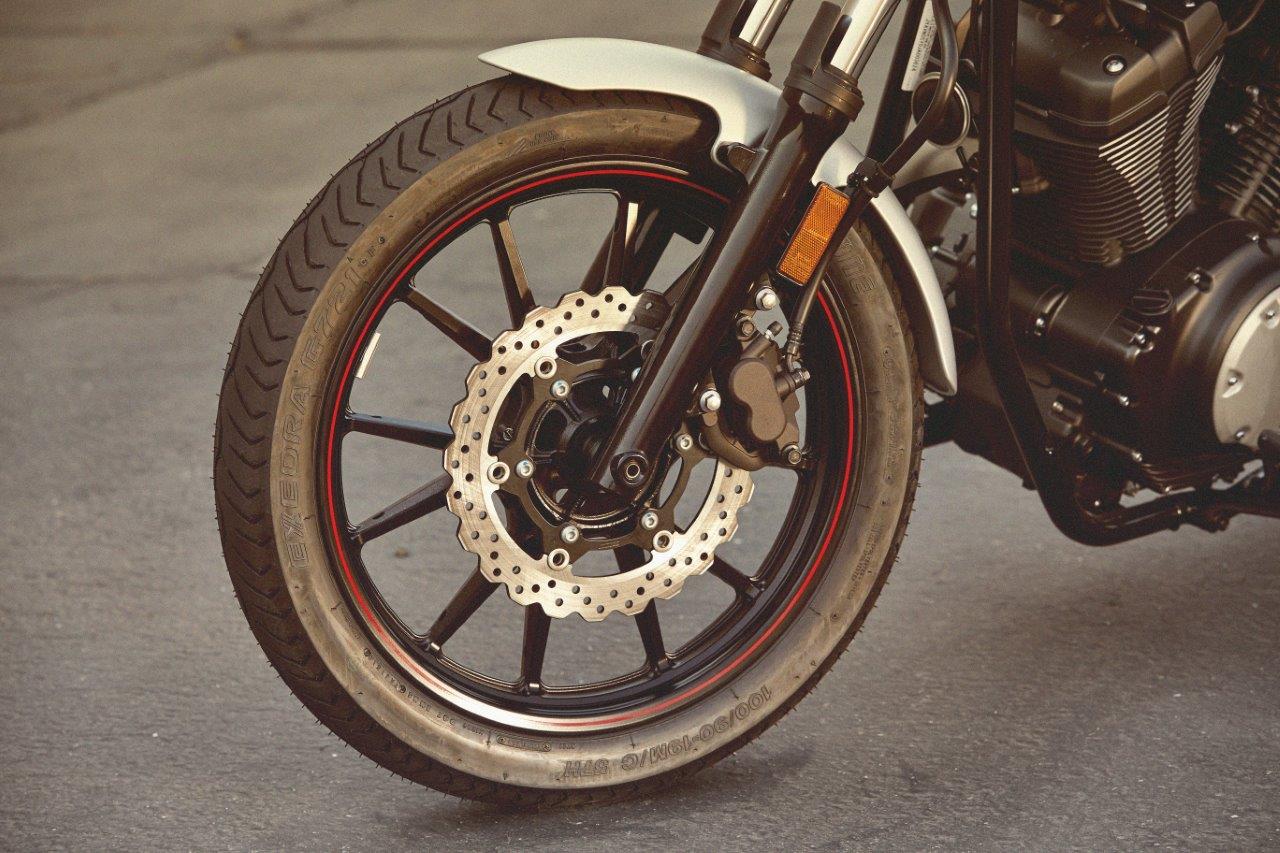

- Powerful Braking

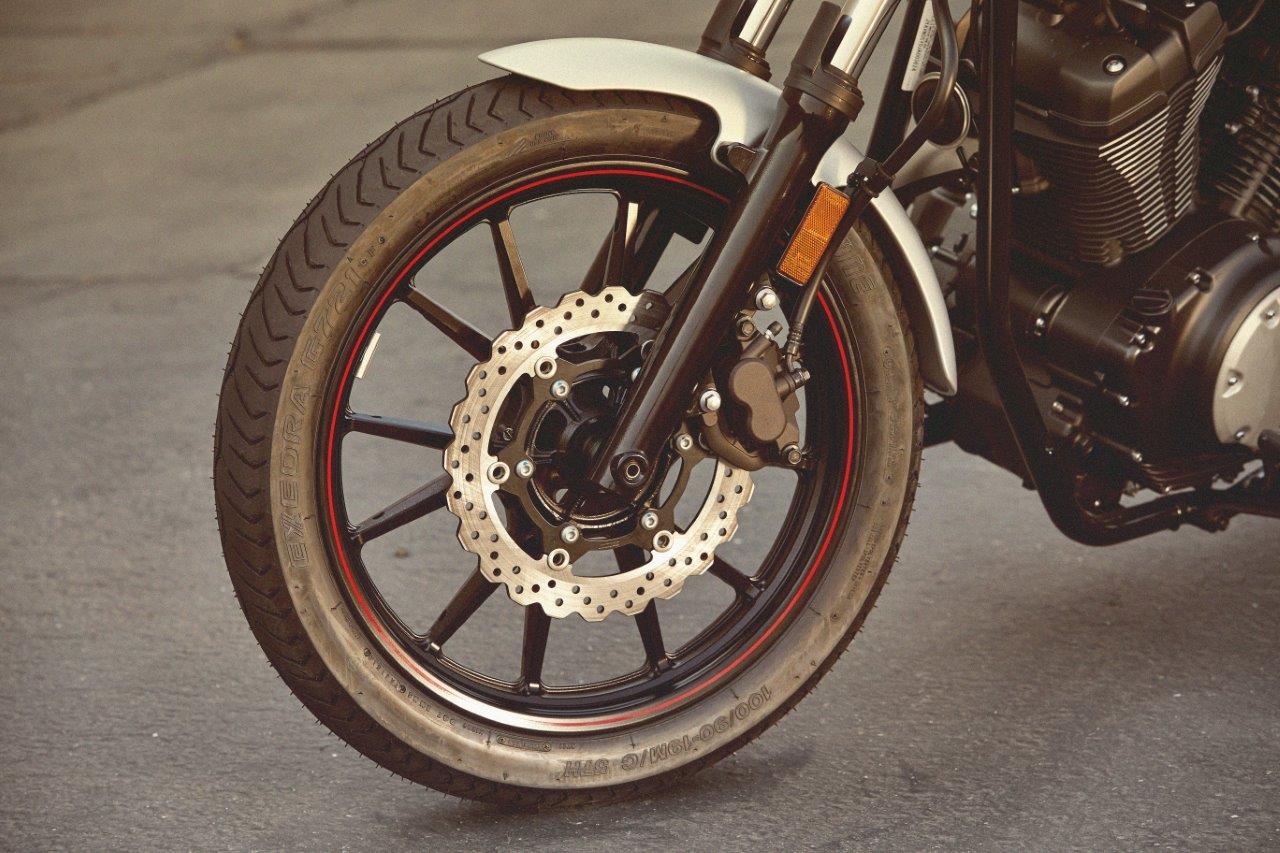

The 298mm front disc brake and 298mm rear disc brake both use wave rotors, the style usually found on sport bikes. The front brake uses a floating mount for great heat-distortion resistance, contributing to excellent braking performance.

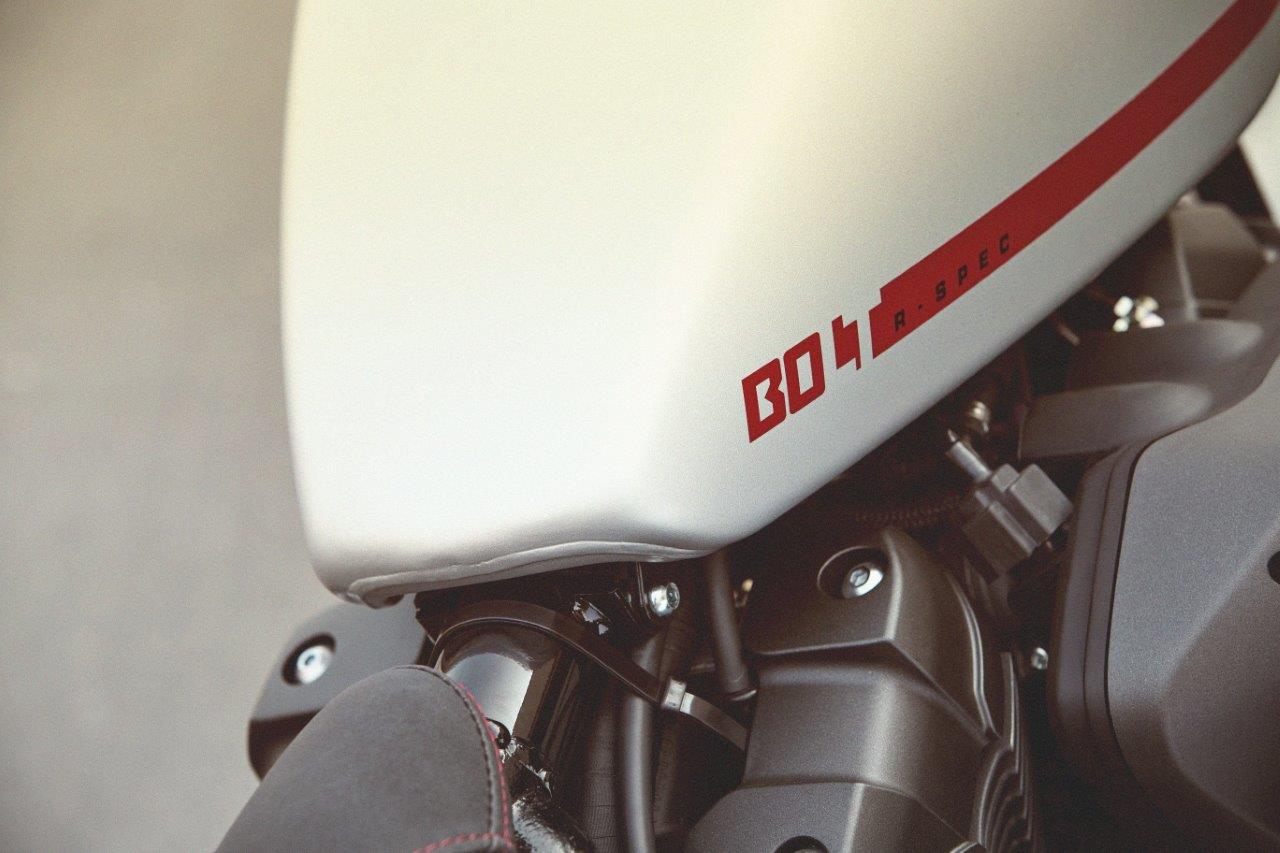

- Slim, Stylish Fuel Tank

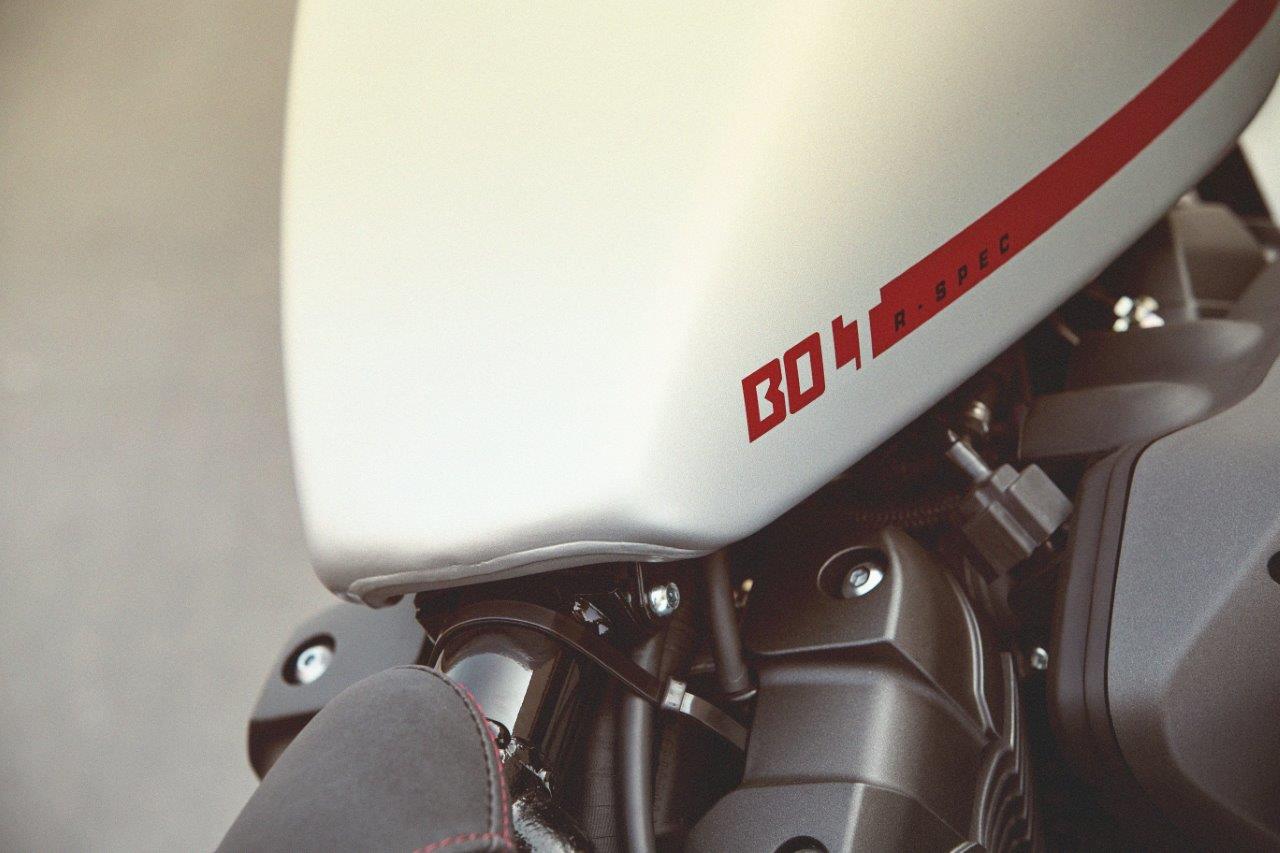

The 3.4-gallon fuel tank is a traditional teardrop style, with a slim shape that includes flattened top and side surfaces to enhance Bolt styling. The tank features a flangeless design for even cleaner lines.
- Modern Lighting
LED rear taillight looks cool and adds to the modern bobber appeal.
- Slick Instruments
Compact digital LCD meter assembly provides clean styling with excellent visibility.
- Real Steel Fenders
Steel front and rear fenders are ideal for personalization, including paint and customization.

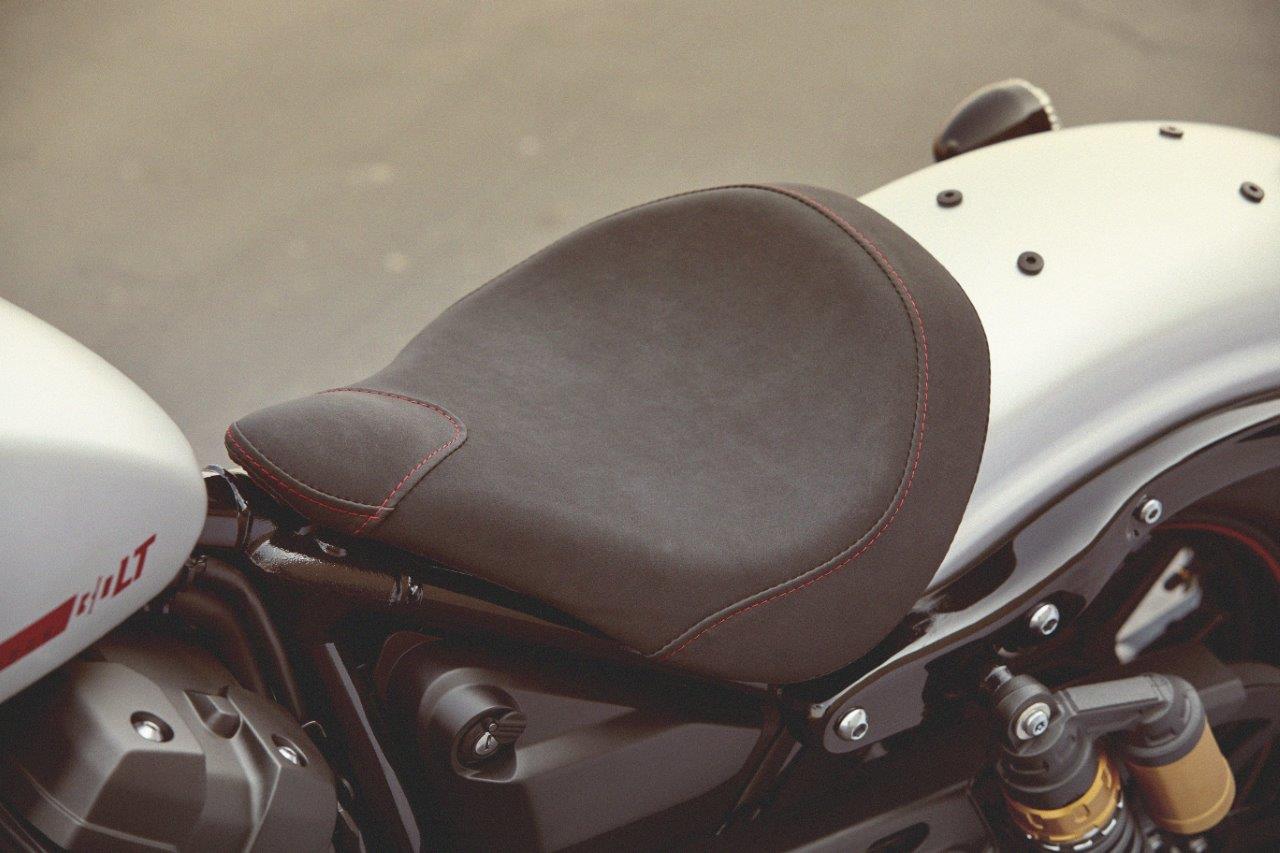

- Bobber-Style Seat

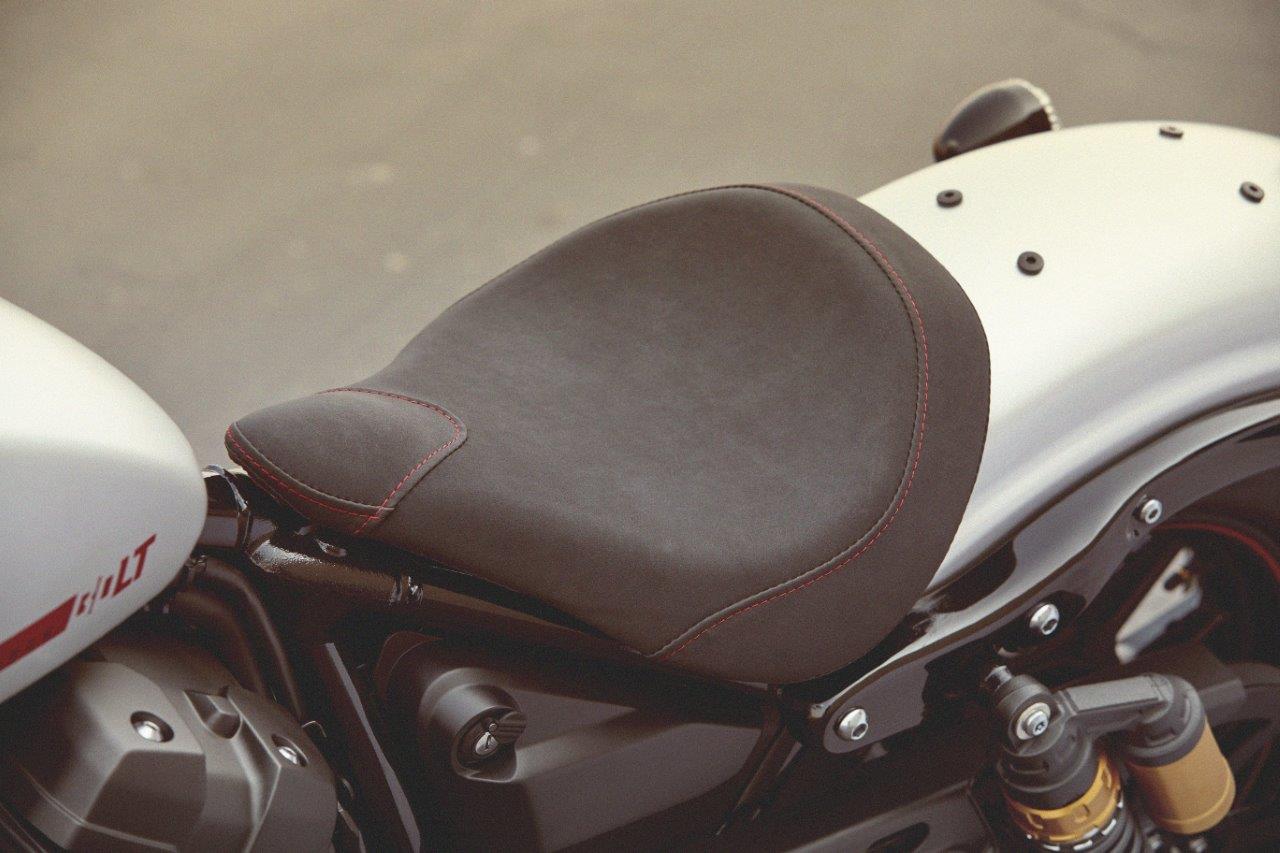

Solo rider saddle adds to the minimalist bobber look while providing good support for longer rides.
