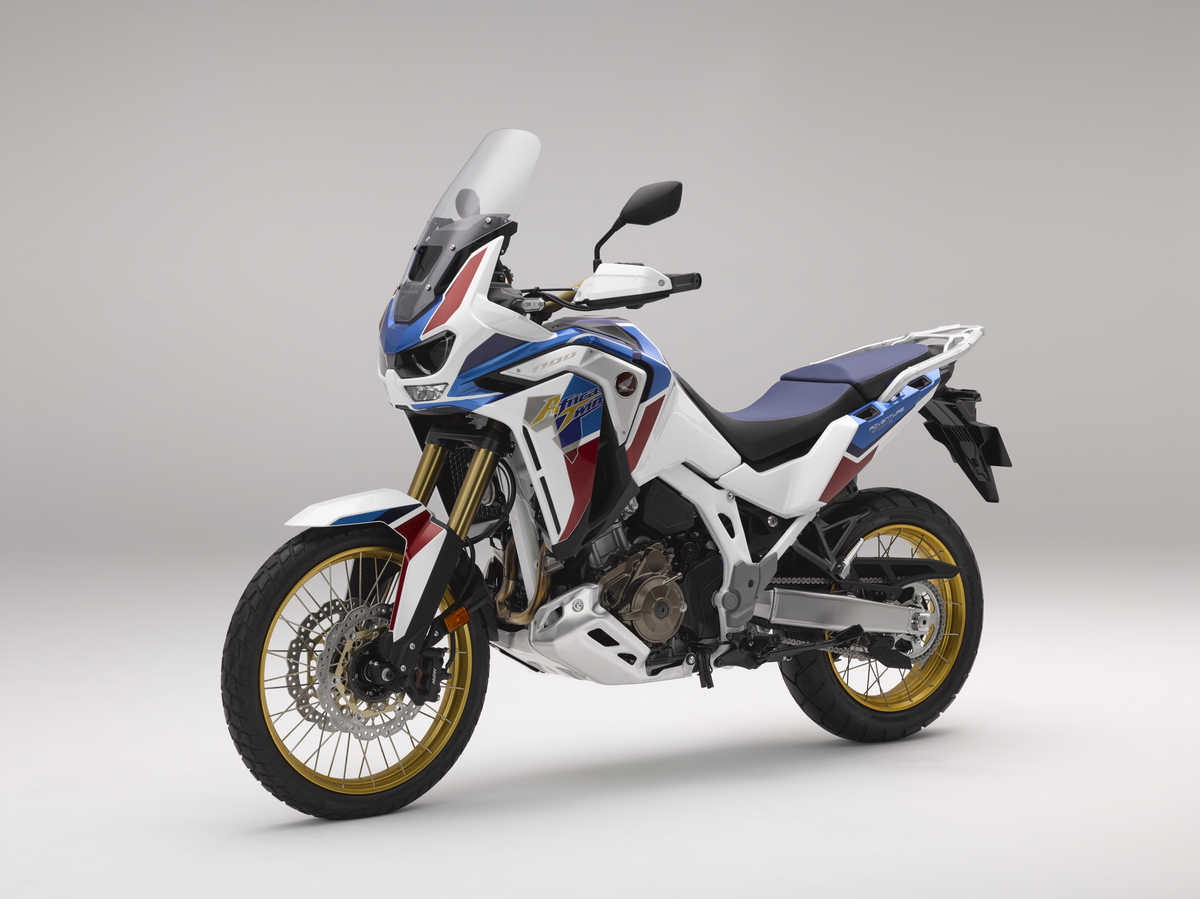

New For 2020: The Honda Africa Twin Adventure Sport ES
The legendary Honda Africa Twin returns for 2020 with some serious updates. The engine is bigger, the chassis is lighter, and the technology is out of this world—but the most important update is the addition of two new models to the range: the Africa Twin Adventure Sport ES and Africa Twin Adventure Sport DCT.
The new Adventure Sport ES models come equipped with the Africa Twin’s legendary adventure-loving DNA, but it seems like Honda has tweaked the Adventure Sport for long-distant riding and every day practicality rather than full-on off-roading. New Showa Electronically Equipped Ride Adjustment suspension smoothens out the road for you, with the addition of other rider comforts such as tubeless tires, heated grips, a larger 6.5 gallon gas tank, and a cool aluminum rear rack.
For 2020, the entire Africa Twin line receives a nice increase in displacement to the tune of 86cc, raising the Africa Twin from 998cc to 1084cc, increasing power and torque right across the rev range, to the tune of 6%. The new power is complimented with a new electronics suite that includes Cornering ABS, Wheelie Control, Rear Lift Control, and Honda’s Traction Control, all controlled by a six-axis inertial measurement unit.

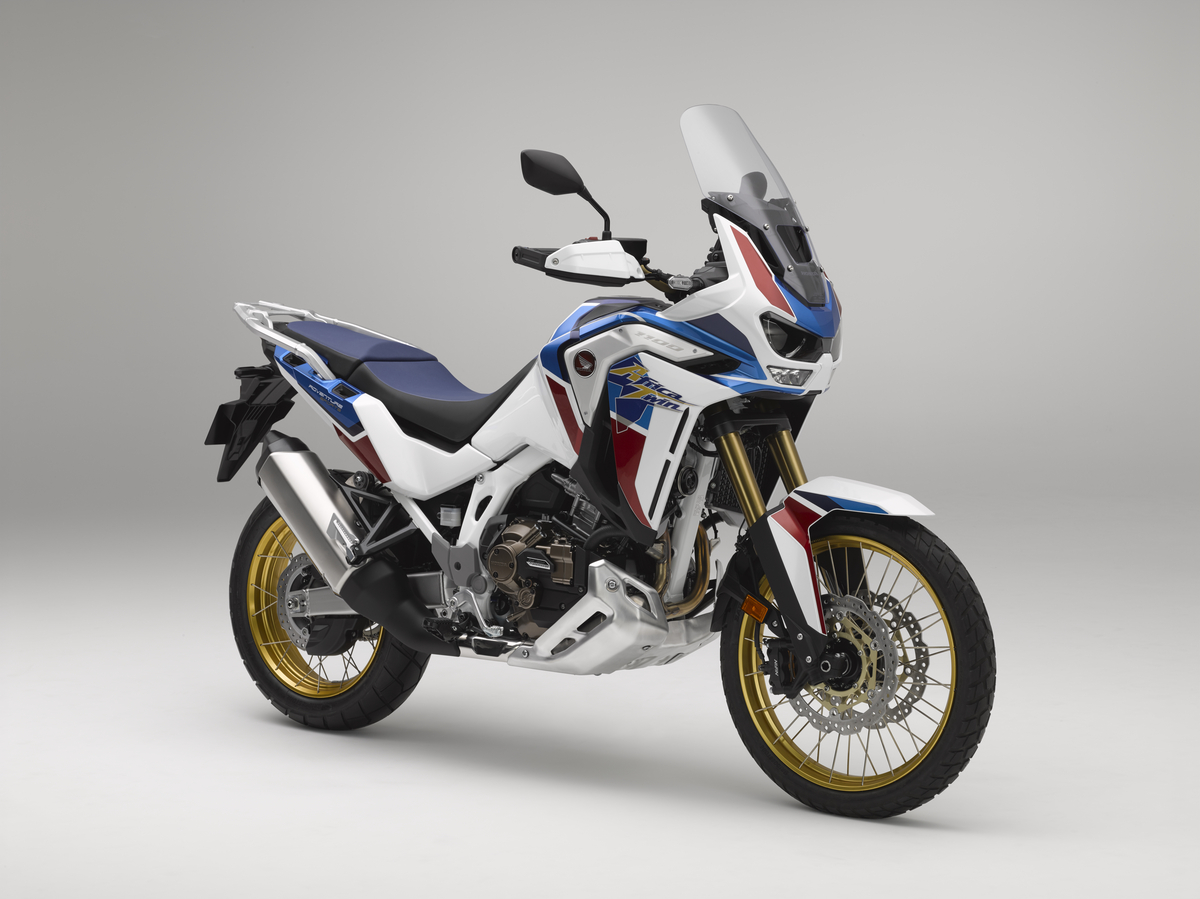

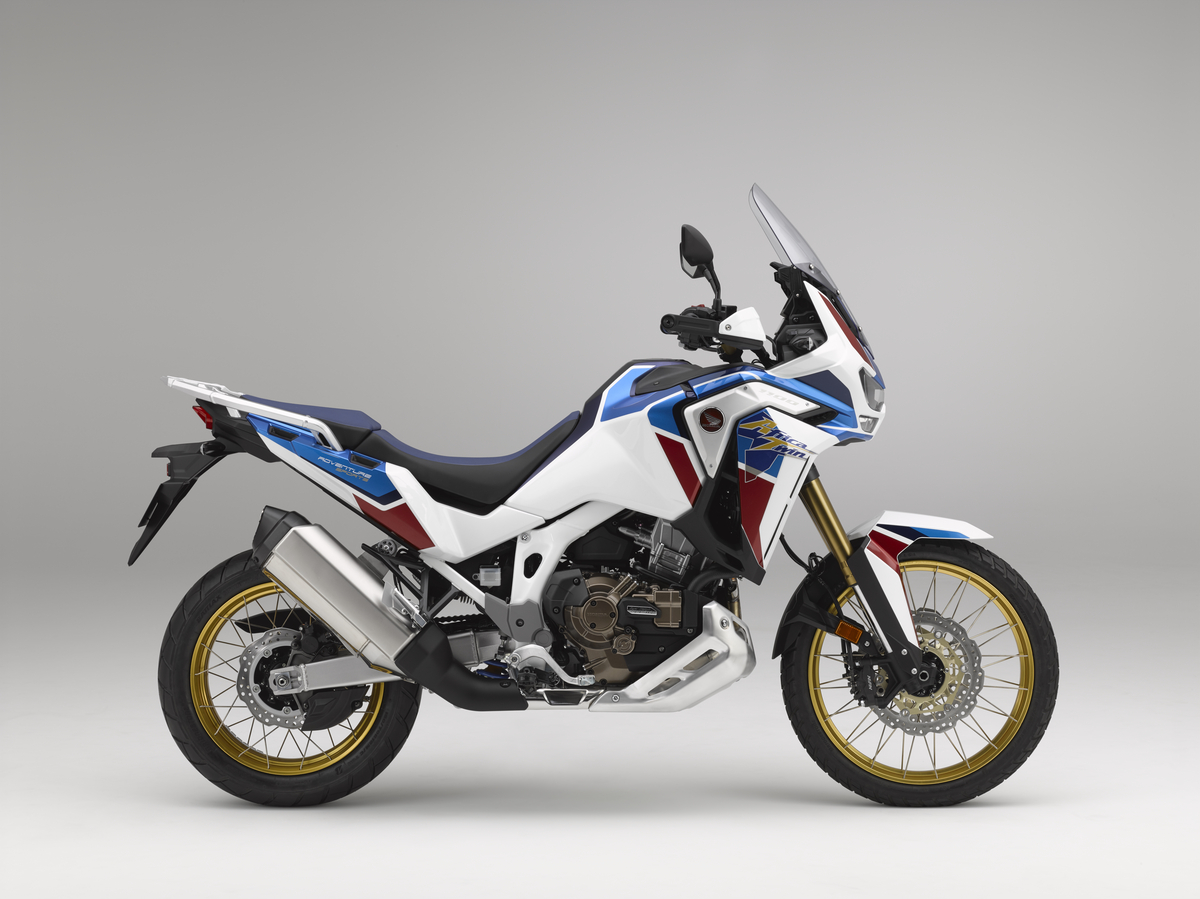

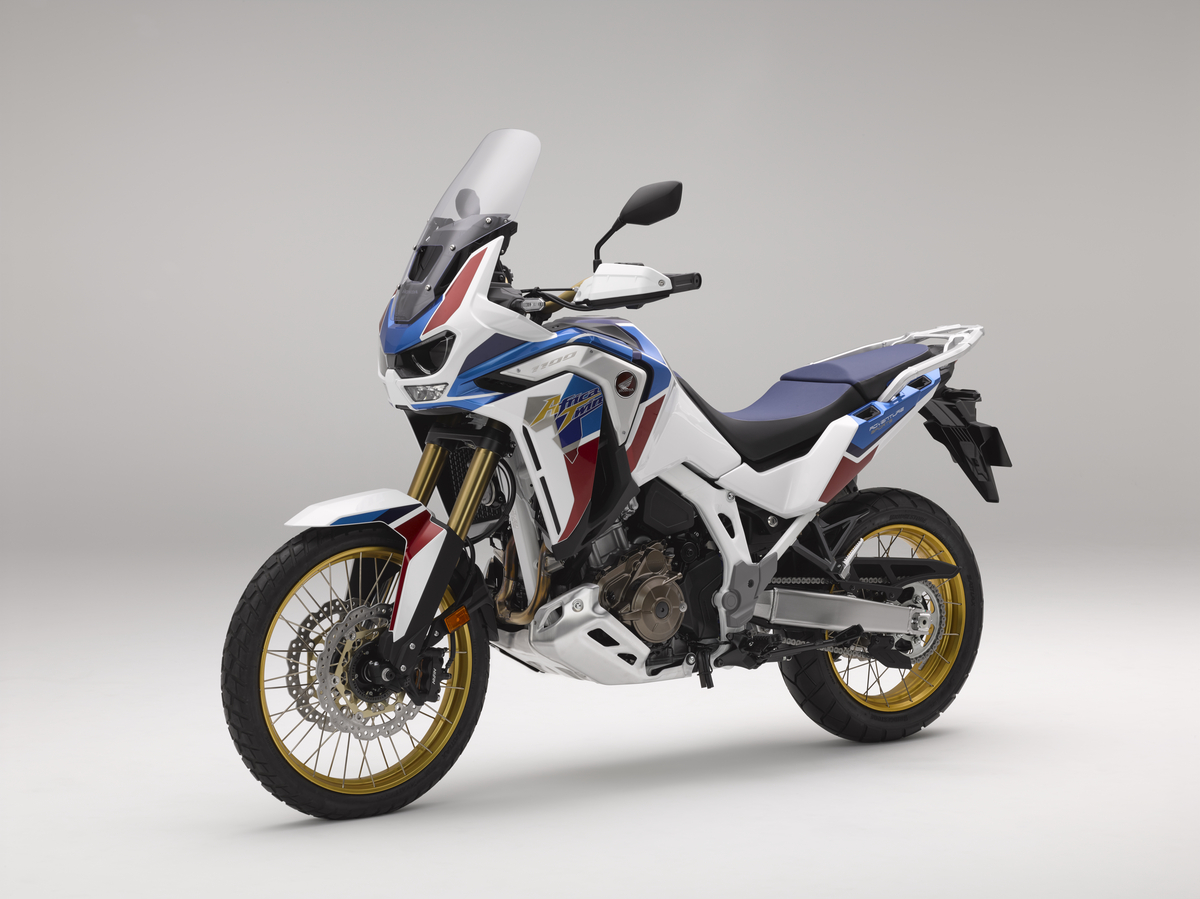

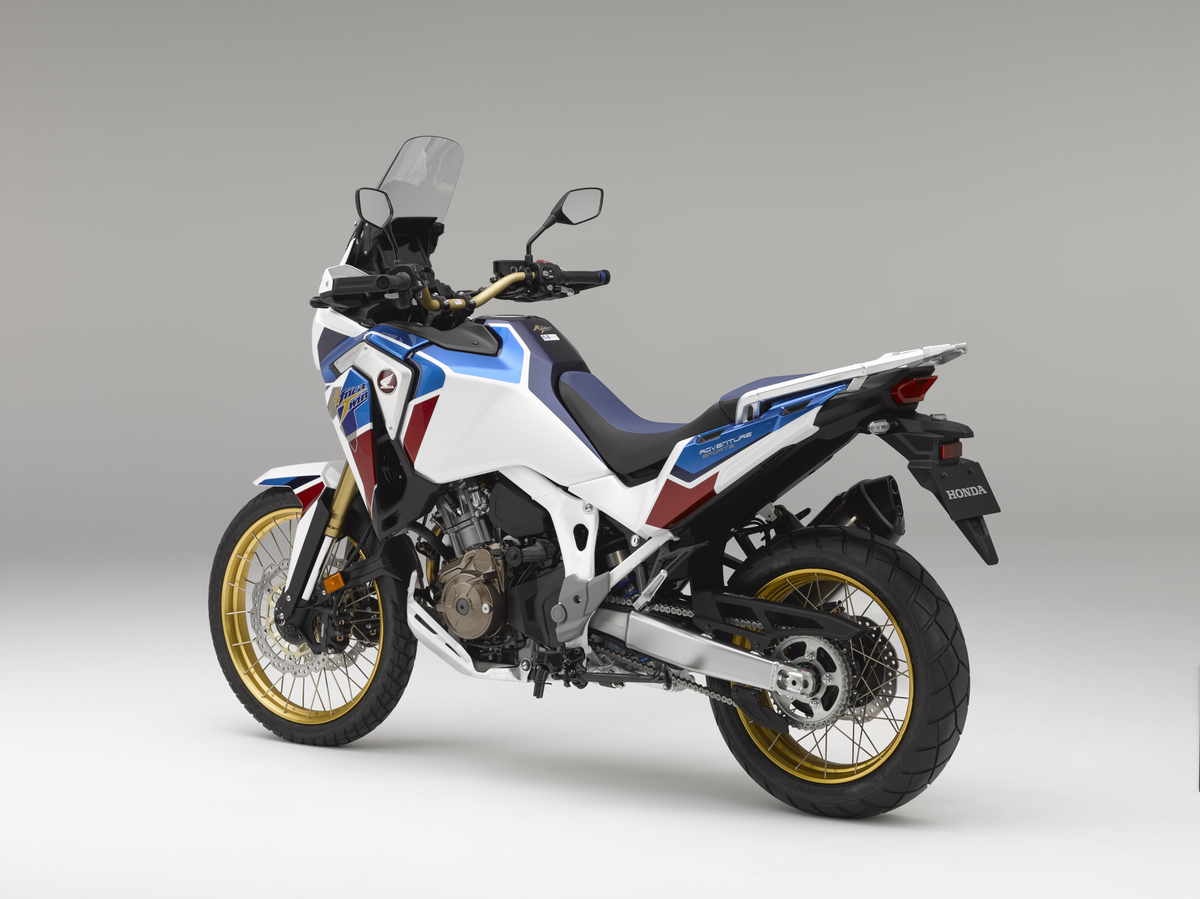

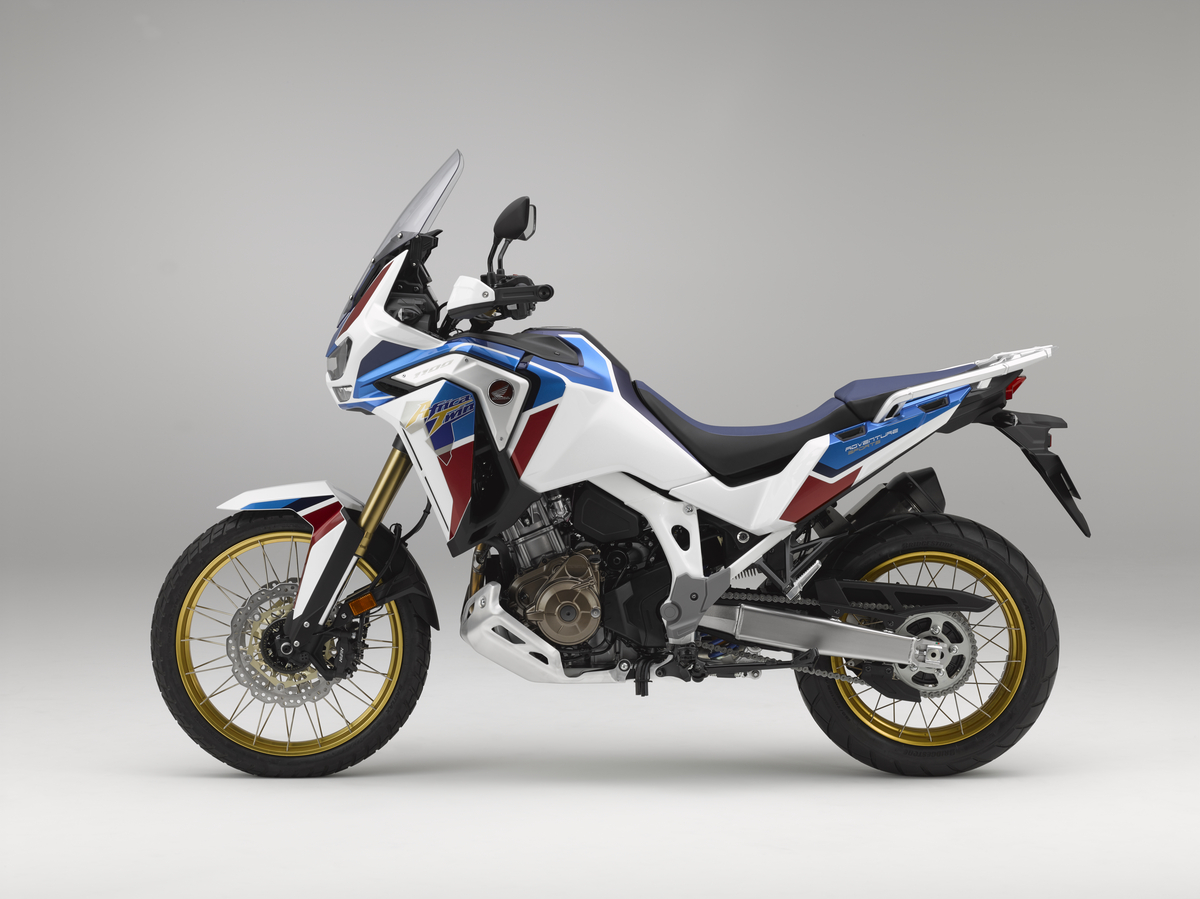

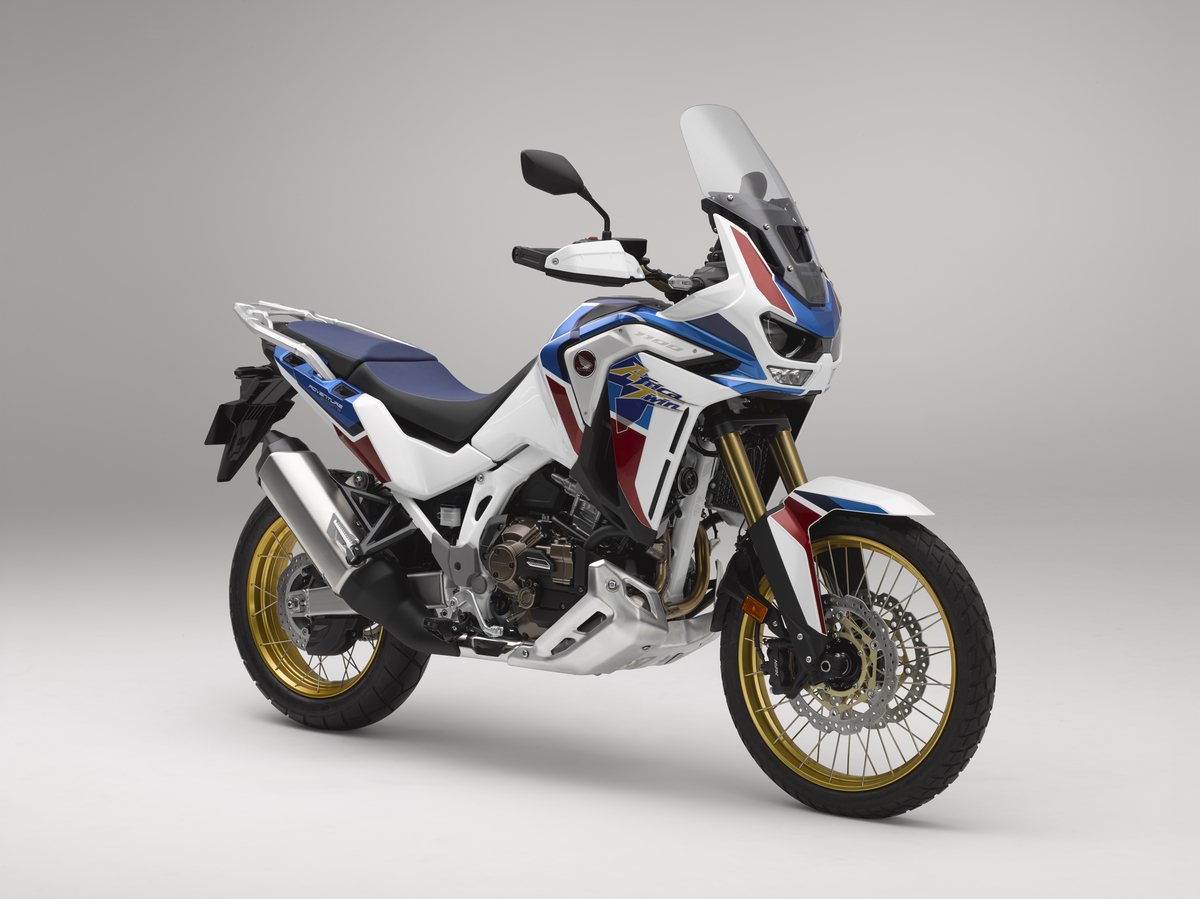

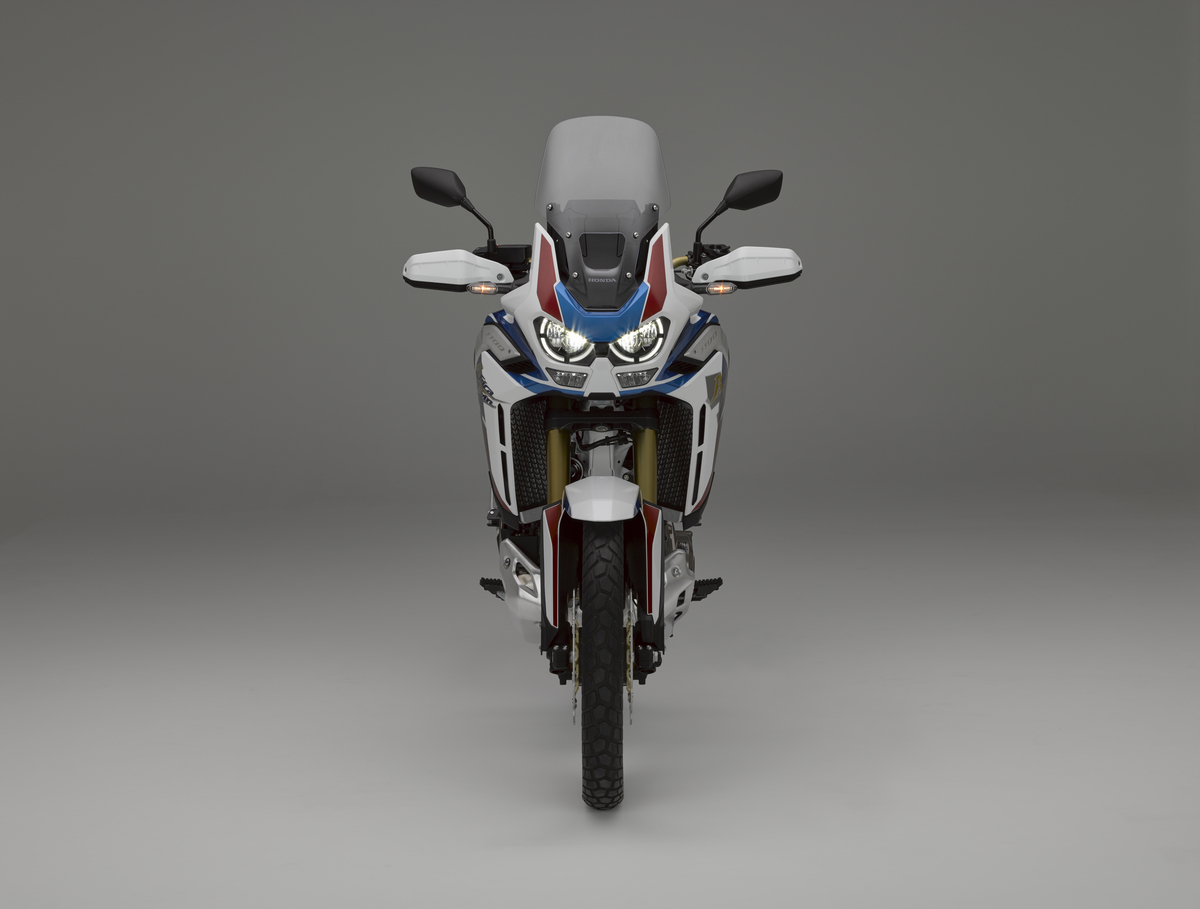

The 2020 Africa Twin Adventure Sport ES is available in a cool Pearl Glare White / Blue Honda tricolor color scheme.
On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new Honda Africa Twin Adventure Sports ES in one place.
- Price: $ 17,199
- Key Features:
- Anti-lock brakes (ABS)
- LED lights
- Cruise Control
- Engine type: 1084cc liquid-cooled, parallel-twin
- Power: 75.0kW/7500min-1
- Wet weight: 530 lbs
- Seat height: 34.3 Inch
Africa Twin Adventure Sports ES Specifications
|Engine||1084cc liquid-cooled Unicam® four-stroke 22.5º parallel-twin|
|Bore x Stroke||94mm x 81.5mm|
|Fuel System||PGM-FI electronic fuel injection (Throttle By Wire)|
|Final Drive||#525 Chain; 16T/42T|
|Suspension Front||45mm inverted telescopic fork; 9.1 inches of travel|
|Suspension Rear||Pro-Link® system w/ single shock; 8.7 inches of travel|
|Brakes Front||Two four-piston hydraulic calipers w/ 310mm disks; ABS|
|Brakes Rear||Single one-piston hydraulic caliper w/ 256mm disk; ABS|
|Fuel Tank Capacity||24.6 L (6.5 US gal.)|
|Color||Pearl Glare White/Blue|
|Wheelbase||1574 mm (62in.)|
|Ground Clearance||250 mm (9.84 in.)|
|Seat Height||871 mm (34.3 in.)|
|Curb Weight||240 kg (530 lb.)|
|Warranty||12-month Transferable, unlimited-mileage limited warranty|
|Extension||Extended coverage available with a HondaCare Protection Plan®|
Africa Twin Adventure Sports ES Features
NEW, BIGGER 1084cc ENGINE
We gave our new CRF1100L Africa Twin a bigger engine for 2020. By increasing the stroke by 6.4mm, you get more power and torque everywhere from idle to redline. You’ll have more grunt down low, and cruise easier on the open road.
PARALLEL-TWIN ENGINE LAYOUT
The Africa Twin’s parallel-twin engine layout makes the bike shorter front-to-back. That means the front wheel can tuck in closer to the engine, shortening wheelbase and making the bike more nimble off road and on pavement.
The Africa Twin uses a unique twin air-intake design with two vertical filtration elements. All that clean air helps the engine deliver excellent performance, even under prolonged operation in dusty conditions.
UNICAM ENGINE DESIGN
Honda’s exclusive Unicam® engine design helps us give the Africa Twin a compact cylinder head for optimal engine placement. But the engine also benefits from superior performance, thanks to the entire cylinder-head layout. It’s the best of both worlds!
COMPACT DUAL-CATALYZER EXHAUST
Using the same muffler-valve technology as our CBR1000RR Superbike, the Africa Twins’ new exhaust silencer helps lower emissions while highlighting ridability and power output.
Here’s one of the worst-kept secrets in the motorcycling world—Honda’s Africa Twins make great long-distance touring bikes. To that end we’ve equipped our 2020 models with cruise control, just like our Gold Wings. Your next adventure really starts a couple of hundred miles away? No problem!
THROTTLE BY WIRE
Our throttle-by-wire system greatly expands the Africa Twin’s versatility. First, you get seven levels of Honda Selectable Torque Control. Second, you can choose from four power delivery modes: Tour, Urban, Gravel, and a fourth that’s user-programmable. First used on our RC213V-S, throttle-by-wire is an excellent example of how Honda’s technology works for you.
Most twins use a 180-degree crank. By phasing the Africa Twin’s at 270 degrees, you get a unique power delivery that’s easy to modulate, especially in terrain where traction is challenging.
Our 2020 Africa Twin models offer two ABS modes: on-road and off-road. A third setting lets you turn the rear ABS off altogether for riding in the dirt.
CORNERING ANTI-LOCK BRAKES
The Africa Twin’s Anti-lock Brake System (ABS) comes standard integrated with a 6-axis IMU, it knows when you’re leaned over, and compensates accordingly.
The Africa Twin’s dry-sump engine design is the only way to go. The more compact sump increases ground clearance and eliminates the vulnerability of a conventional wet sump.
LOW CENTER OF GRAVITY, COMPACT MASS
By locating heavy components like the battery as close to the bike’s center of gravity as possible, and using a compact engine, the Africa Twin provides a superior platform for excellent handling.
Can you see the Africa Twin’s water pump? Trick question! It’s tucked behind the right side cover, out of harm’s way. There are no vulnerable hoses leading to it either, a weakness on some bikes. Driven by the balancer shaft, in case of a tip-over or in rocky sections, it’s one less thing to worry about.
LIGHTWEIGHT LITHIUM-ION BATTERY
Conventional batteries are notoriously heavy—that’s why we gave the Africa Twin a high-tech, lightweight lithium-ion battery. Compared with a similar lead-acid battery, it holds a charge approximately four times longer, and its shelf life is 1.6 times longer. Plus, it’s way lighter.
Apple CarPlay™* seamlessly integrates your compatible iPhone®* into your new Africa Twin. That means you can use your iPhone® to access Apple Maps, Apple Music, and other services easily. You’ll have access to weather, playlists and telephone numbers while aboard. Available Bluetooth®**-enabled wireless headsets let you communicate more easily than ever. And best of all, with more apps available every day, Apple CarPlay™ keeps your bike’s technology and convenience on the cutting edge.
*Apple CarPlay and iPhone are trademarks of Apple Inc.
**For using Apple CarPlay, connection to a commercially available Bluetooth headset is necessary. See owner’s manual for Bluetooth headset requirements.
NEW TFT TOUCHSCREEN DISPLAY
The new Africa Twins feature a 6.5-inch touch-panel LCD multi-information dash display. You can choose between three displays, too, depending on how much information you want to see at once. The screen also enables the Africa Twin to offer integrated Apple CarPlay.
SIX-SPEED MANUAL TRANSMISSION
The Africa Twin features a conventional six-speed manual gearbox with a handlebar-mounted clutch lever. It’s a proven, tough design that’s a little bit lighter, too.
OPTIONAL ALUMINUM LUGGAGE
Our optional three-piece hard luggage is sure to be one of your favorite accessories.. All three bags feature weather-resistant liners, and the top box is big enough to hold a full-face helmet. And all three boxes use the same locking key, too.
LARGE FUEL TANKS
Our Africa Twin and Africa Twin DCT feature 18.8-liter (5.0-gallon) fuel tanks, while our two Adventure Sports ES models increase that capacity to 24-liters (6.3 gallons), enough for super-sized adventures.
ELECTRONICALLY CONTROLLED SUSPENSION
The Africa Twin Adventure Sports ES and Adventure Sports ES DCT are equipped with SHOWA EERA® (Electronically Equipped Ride Adjustment) electronically controlled suspension. You can choose between five suspension damper settings: hard, medium, soft, and off-road, as well as a customizable “user” setting. It’s easy to switch between them, too, so you can choose one for the highway and another when the going gets rougher.
NEW STEEL FRAME
The 2020 Africa Twin’s frame is almost four pounds lighter than our previous model’s. Plus, we’ve fine-tuned it by making the steering head more resistant to twist.
The Africa Twin’s semi-double-cradle frame layout has been proven in countless Honda dirtbikes. In principle it’s similar to the design we use on our CRF450R Rally bike—a machine that’s designed to perform in the challenging Dakar rally and similar events.
ELECTRIC PRELOAD ADJUSTER
Changing your shock’s preload is a snap. Choose from one of four settings: solo, solo with luggage, two-up, and two-up with luggage. It’s all done electrically, so forget about wrenching on some hard-to-access shock collar.
LONG-TRAVEL FRONT SUSPENSION
The Africa Twin doesn’t just look like an adventure bike—it’s the real deal. Exhibit A: Check out its long-travel front suspension. The inverted Showa® fork is fully adjustable with huge 45mm tubes and 9.1 inches of travel—the most front-end travel in the 1000cc off-road class.
Up front, the Africa Twin features twin four-piston brake calipers for powerful braking performance. The radial-mount design also helps make them stiffer, increasing brake feel and control.
43-DEGREE STEERING LOCK
With 43 degrees of steering lock both left and right, the Africa Twin provides excellent maneuverability on tight trails. This is one of the reasons the Africa Twin feels so much more nimble than many of the other bigger adventure bikes out there.
We shaved 500 grams from the 2020 Africa Twin’s swingarm—that’s more than a pound. This new piece uses technology developed on our CRF450R motocrosser. Any time you can take weight out of the suspension it’s a good thing, and helps handling and response.
HOLLOW AXLE SHAFTS
The Africa Twin uses large-diameter hollow steel axles front and rear. They’re super strong, durable, but also light: a combination which describes just about everything associated with this bike.
Honda SELECTABLE TORQUE CONTROL
The Africa Twin’s throttle-by-wire system lets us offer Honda Selectable Torque Control (HSTC). You can dial in exactly the kind of power delivery you want for the conditions at hand. Honda Selectable Torque Control features seven settings for a wide range of conditions, from pavement to fast, loose fire roads to challenging singletrack. You can also turn it off.
Front and rear wheel-speed sensors working with the Honda Selectable Torque Control (HSTC) let you dial in three levels of wheelie control. There’s also an “off” position—you’re the wheelie control here.
Both manual-transmission and DCT models offer six riding modes: Tour, Urban, Gravel, Off-Road, User 1 and User 2. The last two let you customize the system to your individual preference.
TIRES AND WHEELS
Real adventure bikes use spoked wheels because they better survive the dings and hits of off-road riding. All Africa Twin models feature a 21-inch front and an 18-inch rear for superior performance, especially when it comes to off-road riding.
Standard on our 2020 Adventure Sports ES models. Tubeless tires run cooler, and there’s a great selection of adventure-bike rubber available today. Get a flat? Flat tire repairs are a lot easier too.
We raised the handlebar 22.5mm higher for 2020. That helps open up the cockpit, and works in concert with the new seat and windscreen to give you a more comfortable rider’s triangle for those long days in the saddle.
TAPERED ALUMINUM HANDLEBAR
Another example of fitting premium equipment to the Africa Twin wherever we can, the aluminum handlebar is lighter than a steel unit. The design tapers from a thinner diameter under your grips to a thicker section at the top clamp, and is fine-tuned for optimal flex and rigidity.
By narrowing the Africa Twin’s seat by 20mm, we’ve made it easier to move around on the bike, and also made it easier to get a foot on the ground at stoplights or in parking lots.
NARROWER REAR SUBFRAME
Two things here: First, the aluminum subframe is removable, to aid in servicing and repairs. Second, we narrowed it by 40mm for 2020. That helps the whole bike feel narrower and more nimble—a big plus in challenging terrain.
Standard on the Africa Twin Adventure Sports ES models, these seem like a luxury until the first time you really need them. Then there’s never going back.

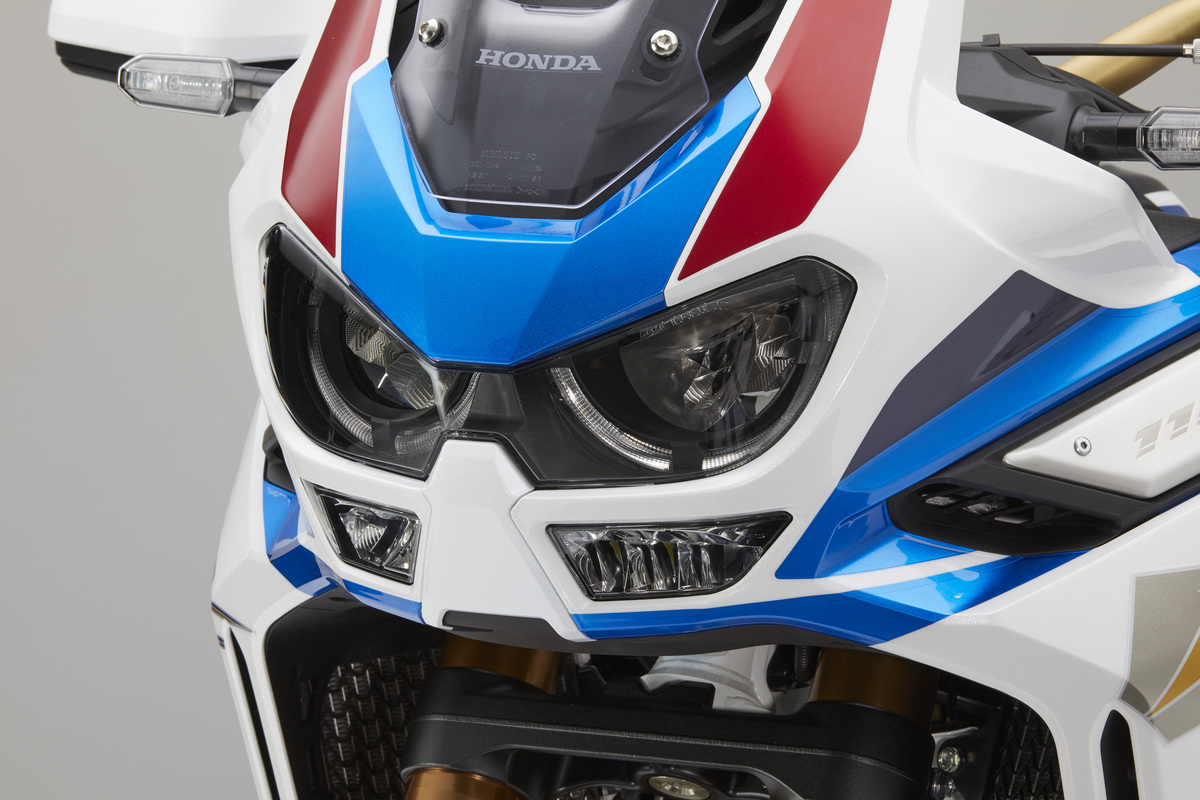

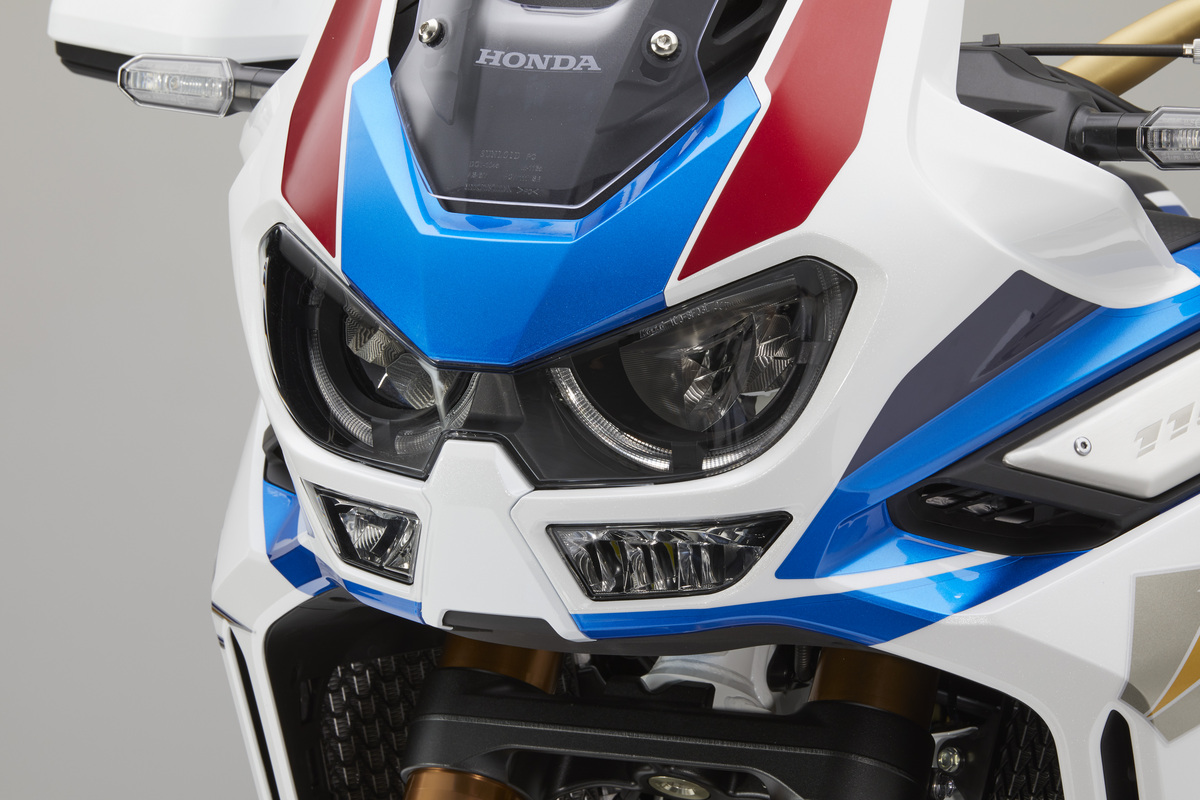

We’ve changed the Africa Twin’s fairing to give you better wind management. We’ve also taken the opportunity to fine-tune the headlights. You’re sure to appreciate the changes on longer rides—plus the new fairing just looks great, too.
We changed up the seat on the Africa Twin Adventure Sports models for 2020. In addition to being lower (the same height now as the Africa Twin), it features two-position adjustability, from 850 to 870mm (33.5 to 34.3 inches) offers an adjustable rider’s seat. Seat adjustment is quick and positive, and lets the bike fit a wide range of riders.
By using counterbalancing elements on two axes, Honda’s engineers can cancel out both primary and coupling vibrations from the engine. The result is that we can mount the engine solidly for superior strength and handling, yet you still get an extraordinarily smooth, vibration-free ride.
ATHLETIC RIDING POSITION
Adventure riding is an active sport, and that means you need to be able to move around on your bike naturally and athletically. The Africa Twin is extremely narrow where you sit, and the peg-bar-seat triangle lets you move up and forward and far back as well, to enhance handling, especially under demanding trail conditions.
Standard on the 2020 Africa Twin Adventure Sports ES models, the new five-position windscreen offers excellent wind protection, and lets you set your bike up for off-road sections or long highway rides. Great for both taller and shorter riders. Other Africa Twin models come with fixed, Rally-style windscreens.
FULL ACCESSORY LINEUP
Right from the start, you can outfit your new CRF1100L Africa Twin with a full range of Honda accessories, items like a centerstand, quick shifter, top and side boxes, a rally seat, rally footpegs, and much more
