1974 Honda MR50 Elsinore Engine Engine 49cc 2-stroke single cylinder. It also required a premix lubrication system. Spark plug B6HS...
2003 CRF450R’03 Engine Engine Type 449cc liquid-cooled single-cylinder four-stroke Fuel Delivery 40mm KeihinTM flat-slide Bore and Stroke 96.0 x 62.1...
1979 XR250’79 Engine Engine Type 249cc OHC 4-valve single cylinder with 2 head pipes Spark plug D8EA Plug gap .028 DRIVETRAIN Transmission 5-speed Chain #520 x 102 Front sprocket 13 T Rear sprocket 53 T CHASSIS / SUSPENSION / BRAKES Front wheel 23″ Rear wheel 18″ DIMENSION N/A OTHER Color...
Honda CA125 Rebel Engine Engine Type Air cooled, twin cylinder, four stroke Displacement 125cc Max. Power Output 8 kW (11...
1997 CBR1100XX’97 It was available in one color: Mute Black Metallic The engine was a light weight 1137cc inline four...
1981 Honda NX50M’81 Express SR Engine Engine 49cc 2-stroke reed valve single cylinder Spark plug BP5HS Plug gap .028 Electrical system 12 volt Starter both electric and kick starter Battery YB4L-B DRIVETRAIN Transmission automatic Drive belt drive CHASSIS / SUSPENSION / BRAKES N/A DIMENSION N/A OTHER Colors Angel Blue (with...
2004 Varadero XL125V Engine Engine Type Liquid cooled 4-stroke 4-valve SOHC 90° V-twin Displacement 125cc Bore and Stroke 42 x...
2003 VTX1300S Engine Engine Type 1312cc liquid-cooled 52° V-twin Bore and Stroke 89.5mm x 104.3mm Compression Ratio 9.2:1 Valve...
1978 XL250S’78 Engine Engine Type 249cc OHC 4-valve single cylinder with two head pipes Spark plug D8EA Plug gap .028 Electricals 6N4-2A-4 — 6-volt DRIVETRAIN Transmission 5-speed Chain #520 x 102 Front sprocket 14 T Rear sprocket 53 T CHASSIS / SUSPENSION / BRAKES Front wheel 23″ Rear wheel 18″...
1988 Honda NX250’88 (NX250L’88 in California) Engine Engine Type 4-stroke liquid-cooled DOHC, 4-valve single cylinder Displacement 249cc DRIVETRAIN Transmission 6-speed...
1974 XL125K0 Engine Engine Type OHC single cylinder Displacement 122cc Cylinder head One piece unit DRIVETRAIN Transmission 5-speed CHASSIS /...
1980 CB400T’80 HAWK OVERVIEW Honda fielded two 400 Hawks: in 1978 and 1979 (possibly earlier) a basic Hawk (called Hawk I CB400Ti) had drum front brakes, wire spoke wheels, and just a speedo in 1976 to 1979 a more expensive Hawk (called Hawk II CB400Tii) had disc front brakes, Comstar wheels, and...
Honda CRF70F Motorcycles Engine Engine Type 72cc air-cooled single-cylinder four-stroke Valve Train SOHC; two-valve Bore and Stroke 72cc air-cooled single-cylinder...
20029 Honda CB400SS Engine Engine Air cooled, four stroke, single cylinder, OHC, 4 valve, Displacement 397cc Bore x Stroke 85...

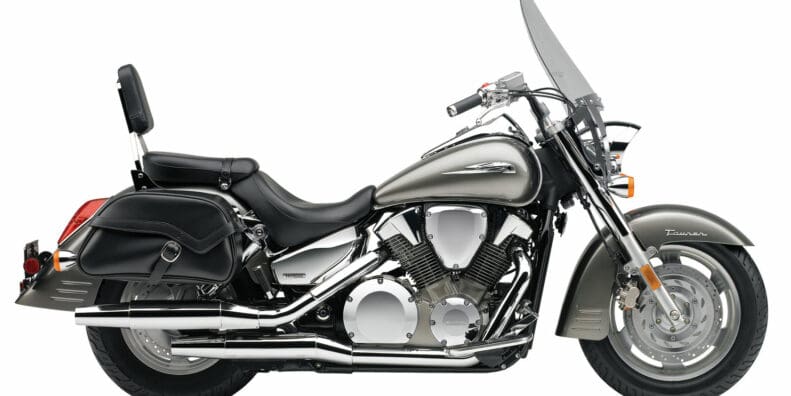

2008 VTX1300T Overview: We weren’t about to let the VTX1800 family have all the touring fun, so allow us to introduce the all-new VTX1300T. Built with the same purpose as its VTX1800T sibling, complete with large touring windshield, spacious leather saddlebags and handy passenger backrest, the VTX1300T is the perfect...
1977 Honda NC50’77 Express Engine Engine 49cc 2-stroke single cylinder. The engine was lubricated by oil injection. Spark plug BP4HS...
1983 XL125R Engine Engine Type 124 cc, 4-Stroke, Air Cooled, Single Bore and Stroke 56.5 mm x 49.5 mm...
2007 NT700V Deauville Engine Engine Type Liquid-cooled 4-stroke 8-valve SOHC 52° V-twin Engine Displacement 680.2cc Bore and Stroke 81 x 66cm Valves 10 :1 Carburation PGM-FI electronic fuel injection Max. Power Output 48.3 kW/8,000 min (95/1/EC) (65bhp) Max. Torque 66.2 Nm/6,500 min (95/1/EC) Ignition Digital transistorised with electronic advance DRIVETRAIN...
webbike·
Off-Road & Motocross Helmet ReviewsOff-RoadnotfpSingle-Cylinder125 - 249ccClassic & Vintage Motorcycles
··2 min read2004 CRF230F Engine Type 223cc air-cooled single-cylinder four-stroke Bore and Stroke 65.5mm x 66.2mm Compression Ratio 9.0:1 Valve Train SOHC;...
1979 Honda NA50’79 Express II Engine Engine 49cc 2-stroke single cylinder with oil injection It also had a wind-up spring...
1969-71 Trail 70 (CT70K0) Engine Engine Type 72cc OHC single cylinder Spark plug C7HSA Plug gap .028 Battery 6N5.5-1D — 6 volt DRIVETRAIN Transmission 3-speed with automatic clutch Chain #420 x 86 Front sproket 15 T 35 T CHASSIS / SUSPENSION / BRAKES N/A DIMENSION N/A OTHER Colors andy Ruby...
2004 XR125L Engine Engine Type Air-cooled 4-stroke OHV single Displacement 124cc Bore and Stroke 56.5 x 49.5mm Compression Ratio 9.5...
1998 Honda X-Four Engine Engine Type Liquid cooled, four stroke, transverse four cylinders, Displacement 1284cc Bore and Stroke 78...
1959-63 CA95 Benly Touring 150 (early model) Engine Engine Type OHC parallel twin Displacement 154cc Carburetor Single DRIVETRAIN Transmission 4-speed CHASSIS / SUSPENSION / BRAKES DIMENSION N/A OTHER Color Black Scarlet Red Blue White The headlight was square with an integrated speedometer The fuel tank had small rubber knee pads...
1970-71 Trail 70 (CT70HK0) (also called “Mini Trail 70”) Engine Engine Type 72cc OHC single cylinder Spark plug C7HSA Plug...
1984 Honda Rebel 250 CM250C’84 Engine Engine Type 234cc OHC, Parallel Twin Bore And Stroke 53 x 53 mm Compression...
2003 CRF150F Engine Type 156.8cc air-cooled single-cylinder four-stroke Bore and Stroke 63.5mm x 49.5mm Compression Ratio 9.0:1 Valve Train SOHC; two-valve Fuel Delivery 24mm piston-valve Ignition CDI Transmission Five-speed Final Drive #520 O-ring-sealed chain; 13T/48T Front Suspension 35mm leading-axle Showa fork; 9.1-inch travel Rear Suspension Pro-Link Showa single-shock; 8.8-inch travel...
1982 XL250R’82 Engine Engine Type 249cc OHC 4-valve single cylinder with two exhaust pipes Spark plug DR8ES-L Plug gap 028...
1981 XR200R’81 Engine Engine Type OHC, 2-valve, single cylinder Displacement 195cc DRIVETRAIN Transmission 6-speed CHASSIS / SUSPENSION / BRAKES Rear...
1984 GYRO 50 NN50MD OVERVIEW It had two rear wheels and pivoting-link frame to let the front part lean during cornering while rear power unit stays flat Engine Engine Type two-stroke air cooled single Oil supply oil injection Displacement 49cc Compression ratio 7.2:1 Fuel Delivery 14mm piston-valve type Spark...
1969 Honda CL70 “Scrambler 70” Engine Engine Type 72cc OHC single cylinder Spark plug C7HSA Plug gap .028 Battery 6N5.5-1D-1...
1971-72 Honda SL70 K0 Motosport Engine Engine Type 72cc OHC single cylinder Spark plug C7HSA Plug gap .028 Battery 6N2A-2C...
1974 Honda XL70K0 Engine Engine Type 72cc OHC single cylinder Spark plug C7HSA Plug gap .028 Battery 6N4C-1B — 6 volt DRIVETRAIN Transmission 4-speed with manual clutch Drive chain #420 x 96 Front sprocket 13 T Rear sprocket 44 T CHASSIS / SUSPENSION / BRAKES N/A DIMENSION N/A OTHER Colors...
1968 CB125 ENGINE Engine Type: 122cc OHC single cylinder with a one-piece cylinder head The ignition used breaker points DRIVETRAIN...
1972-73 Motosport 250 XL250 Engine Engine Type 248cc 4-stroke OHC 4-valve single cylinder Spark plug D8EA Plug gap 028 Battery...
1997 XR70R’97 Engine Engine Type 70cc Spark plug CR6HSA Plug gap .028 DRIVETRAIN Drive chain #420 x 86 Front sprocket 14 T Rear sprocket 49 T CHASSIS / SUSPENSION / BRAKES N/A DIMENSION N/A OTHER A new off road model (i.e., no headlight or mirrors, etc.) Available color: Shasta White...
Honda CB125SS Engine Engine Type Air cooled, twin cylinder, OHC, 2 valve per cylinder Displacement 124cc Bore and Stroke 44...
1977 Honda XL75’77 Engine Engine Type 75cc OHC single cylinder Spark plug C7HSA Plug gap .028 Battery 6N4C-1B — 6...
2012 Honda CBF125 Engine Engine Type Air-cooled 4-stroke 2-valve OHC single Displacement 124.7cc Bore and Stroke 52.4 x 57.8mm Compression Ratio 9.2:1 Fuel Delivery PGM-FI electronic fuel injection Ignition Computer controlled fully transistorised with electronic advance Max. Power Output 8.3kW/8,000min-1 Max. Torque 11.2Nm/6,250min-1 Starter Electric DRIVETRAIN Transmission 5-speed Final Drive...
1984 CR500R’84 It descended from a long line of Elsinores, although it was not called by that name It was...
