Honda CT70 Mini Trail Motorcycles

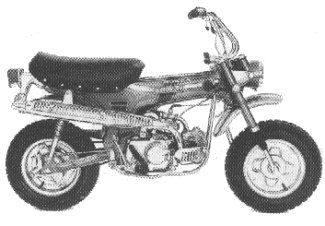

1970-71 Trail 70 (CT70HK0) (also called “Mini Trail 70”)

Engine
Engine Type	72cc OHC single cylinder
Spark plug	C7HSA
Plug gap	.028
Battery	6N2A-2C
DRIVETRAIN
Transmission	4-speed with a manual clutch
Chain	#420 x 86
Front sprocket	15 T
Rear sprocket	35 T
CHASSIS / SUSPENSION / BRAKES	N/A
DIMENSION	N/A
OTHER
Colors	Candy Blue Green Candy Emerald Green Candy Topaz Orange

• Handlebars were easily folded down so that the bike could be transported in the trunk of a car
• The chrome exhaust pipe had a chrome heat shield
• Fuel tank: contained in the upper frame structure rather than a separate, removable unit
• Decal “TRAIL 70” was red and the stripe was black.
• The “HONDA” decal above the model name was white, while the side decals were black
• Speedometer was part of the headlight bucket
• Serial number began: CT70H-100001

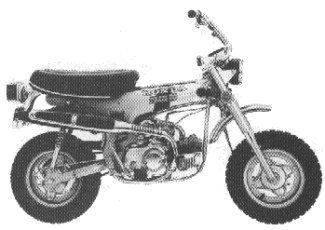

1972-73 Trail 70 (CT70HK1) (also called “Mini Trail 70”)

Engine
Engine Type	72cc OHC single cylinder
Spark plug	C7HSA

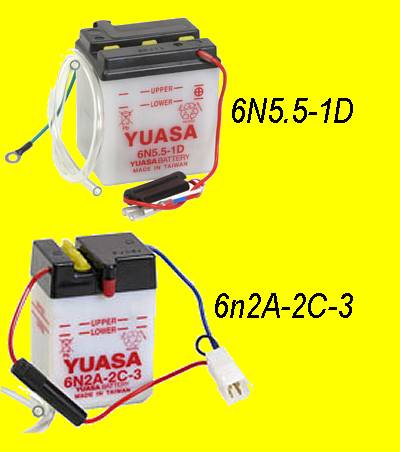

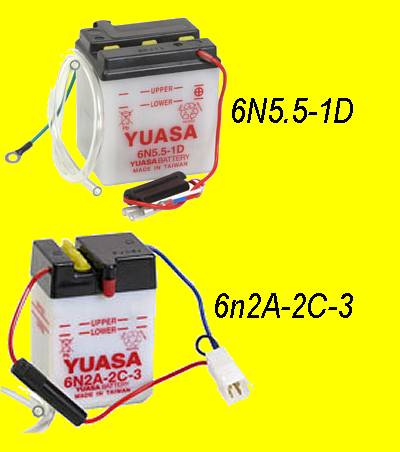

Battery	6N5.5-1D Note the type of ends
Battery	6N2A-2C-3 Note the type of ends
DRIVETRAIN
Transmission	4-speed with manual clutch
Chain	#420 x 86
Front sprocket	15 T
Rear sprocket	35 T
CHASSIS / SUSPENSION / BRAKES	N/A
DIMENSION	N/A
OTHER
Colors	Candy Ruby Red Candy Yellow Special

• The handlebars were easily folded down so that the bike could be transported in the trunk of a car
• The black exhaust pipe had a chrome and black heat shield
• The fuel tank was contained in the upper frame structure rather than a separate, removable unit
• The decal “TRAIL 70” was red and the stripe was black
• The “HONDA” decal above the model name was white, while the side decals were red and black
• The speedometer was separate from the headlight
• Serial number began: CT70H-2000001

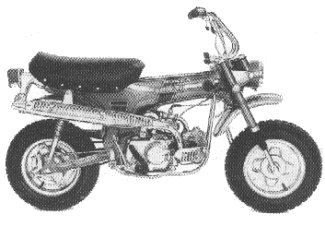

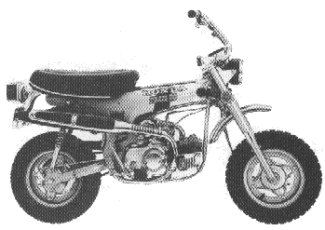

CT70 Image Gallery
