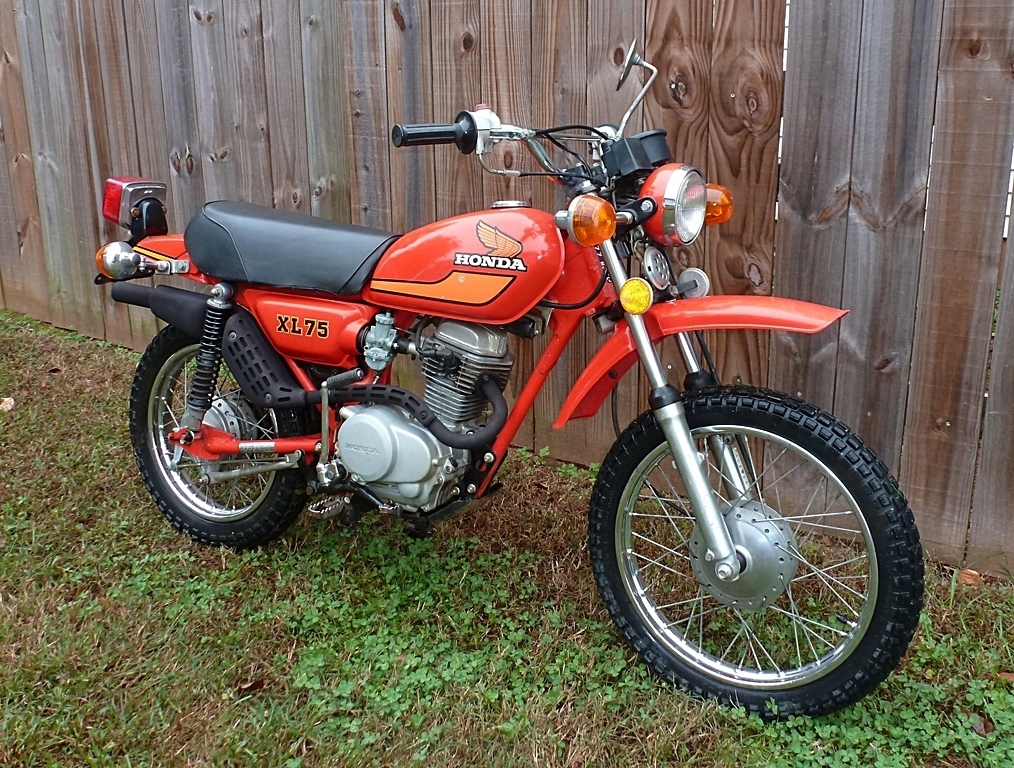

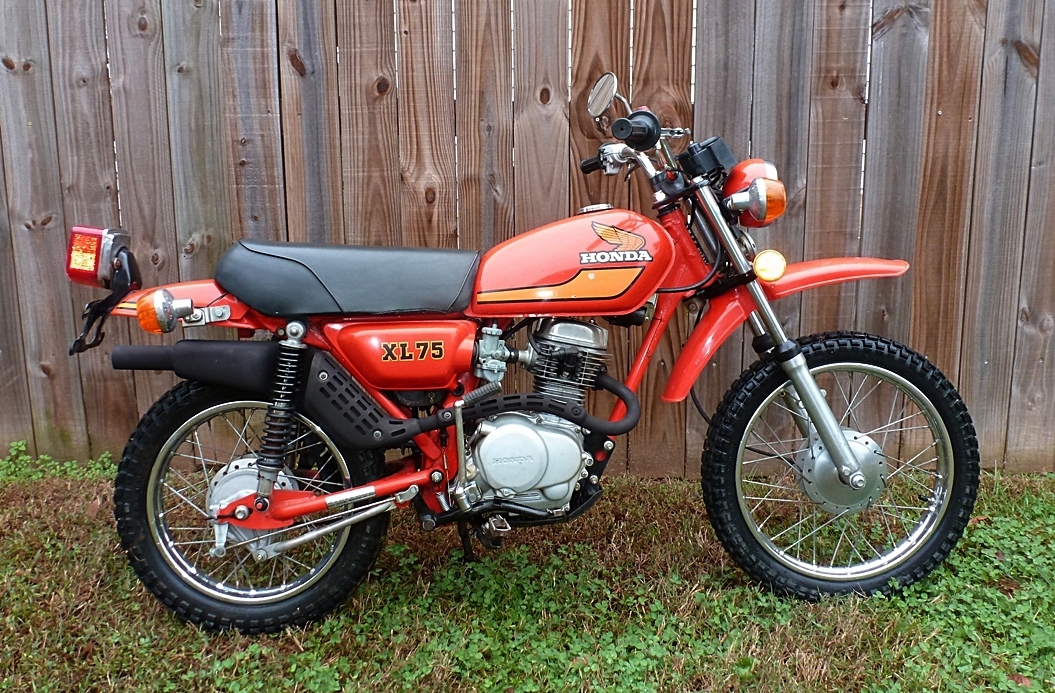

1977 Honda XL75’77
Engine |
|
| Engine Type | 75cc OHC single cylinder |
| Spark plug | C7HSA |
| Plug gap | .028 |
| Battery | 6N4C-1B — 6 volt |
DRIVETRAIN |
|
| Drive chain | 4-speed with manual clutch |
| Chain | #420 x 94 |
| Front sprocket | 14 T |
| ear sprocket | 36 T |
CHASSIS / SUSPENSION / BRAKES |
N/A |
DIMENSION |
N/A |
OTHER |
|
| Colors | Tahitian Red |
- Fuel tank stripe was yellow
- The “HONDA” decal on the tank was also yellow
- The “XL75” decal on the side covers was black outlined in yellow
- The frame and headlight shell were red
- The wheel hubs were silver
- Serial number began: XL75-1000005

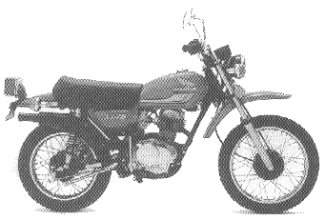

1978 Honda XL75’78
Engine |
|
| Engine Type | 75cc OHC single cylinder |
| Spark plug | C7HSA |
| Plug gap | .028 |
| Battery | 6N4C-1B — 6 volt |
DRIVETRAIN |
|
| Drive chain | 4-speed with manual clutch |
| Chain | #420 x 94 |
| Front sprocket | 14 T |
| ear sprocket | 36 T |
CHASSIS / SUSPENSION / BRAKES |
N/A |
DIMENSION |
N/A |
OTHER |
|
| Colors | Tahitian Red |
- Fuel tank stripe was orange and yellow
- “XL75” decal on the side covers was yellow and white
- Frame and headlight shell were black
- Wheel hubs were black
- Serial number began XL75-1100005

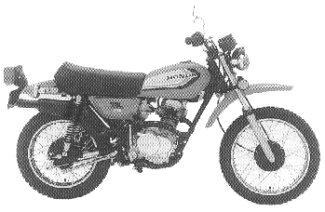

1979 Honda XL75’79
Engine |
|
| Engine Type | 75cc OHC single cylinder |
| Spark plug | C7HSA |
| Plug gap | .028 |
| Battery | 6N4C-1B — 6 volt |
DRIVETRAIN |
|
| Drive chain | 4-speed with manual clutch |
| Chain | #420 x 94 |
| Front sprocket | 14 T |
| ear sprocket | 36 T |
CHASSIS / SUSPENSION / BRAKES |
N/A |
DIMENSION |
N/A |
OTHER |
|
| Colors | Tahitian Red |
- Fuel tank stripe was black, silver, and yellow
- “HONDA” decal was black
- The “XL75” decal on the side covers was black and white
- Frame and headlight shell were black
- Wheel hubs were black
- Serial number began: XL75-1100005.

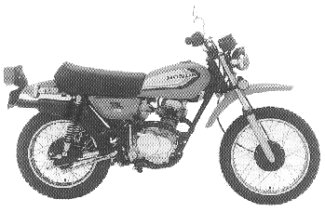

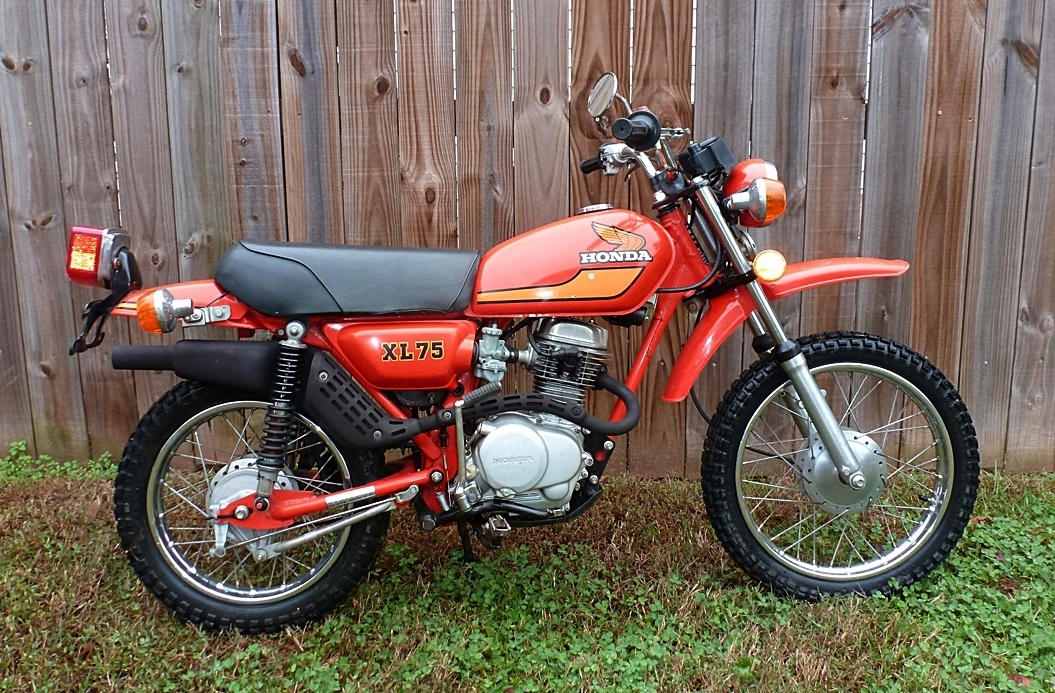

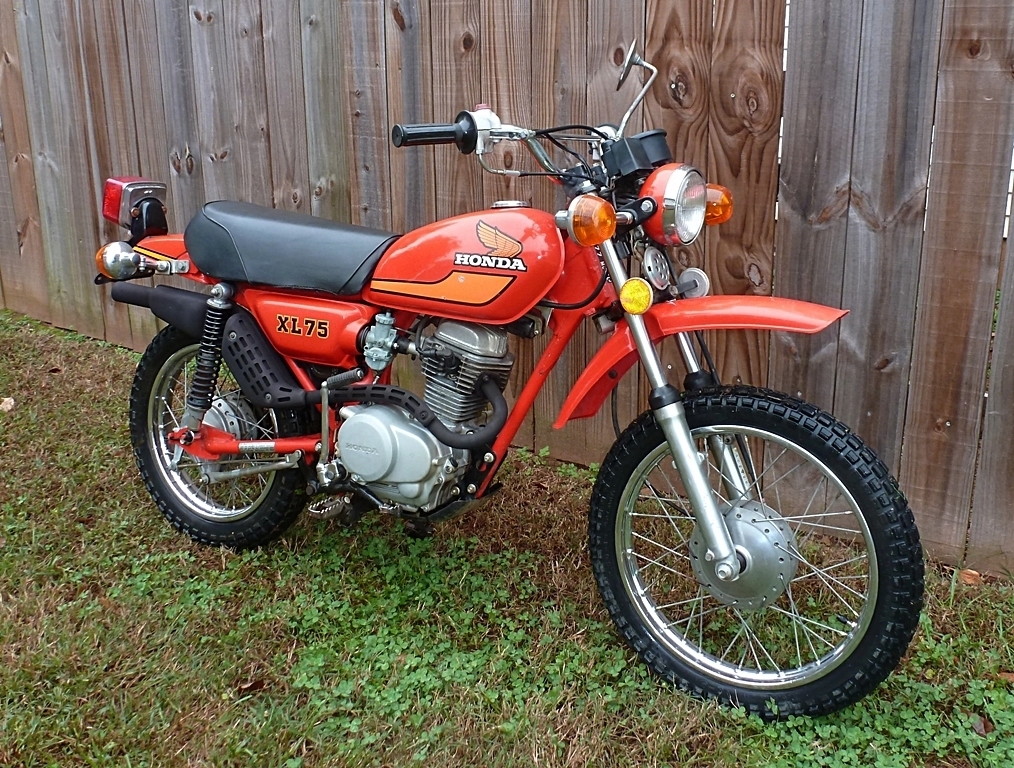

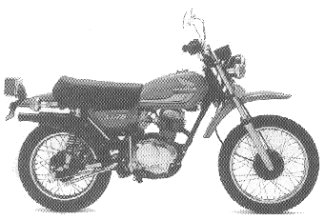

XL75 Image Gallery
