Honda CB125SS Motorcycles

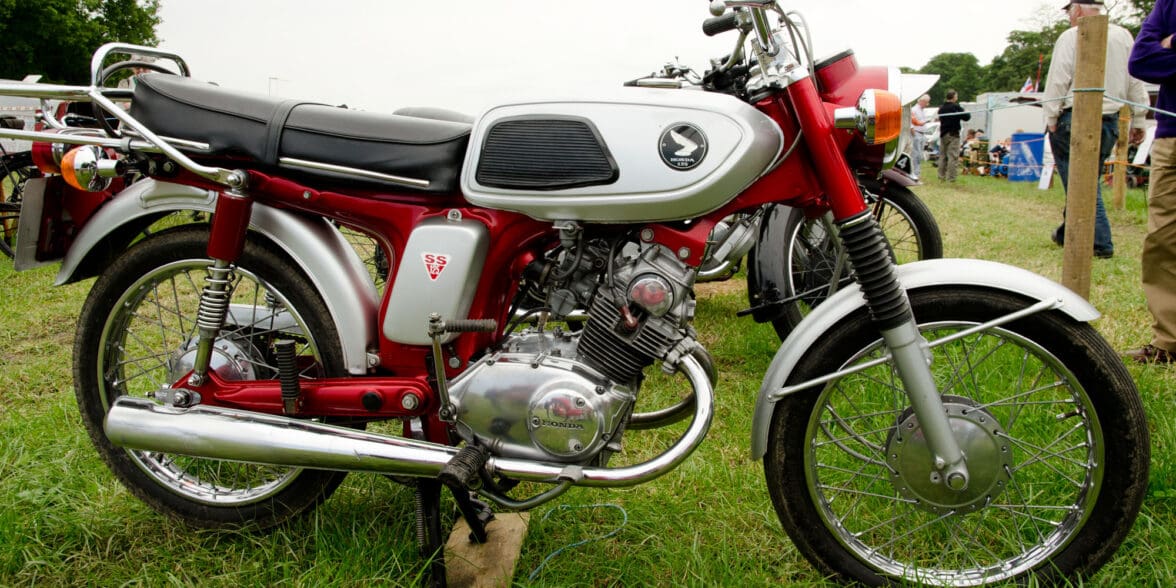

Honda SS125 (1969)

Honda CB125SS

Engine

Engine Type Air cooled, twin cylinder, OHC, 2 valve per cylinder
Displacement 124cc
Bore and Stroke 44 X 41mm
Compression Ratio 9.4:1
Fuel Delivery 2x Keihin 22mm slide type
Max. Power Output 15 hp @ 11000 rpm
Max. Torque 1.05 kg-m @ 9000 rpm
Starter Electric

DRIVETRAIN

Transmission 5-speed
Final Drive Chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension Oil-damped telescopic forks
Rear Suspension Swinging arm
Front Brakes Drum
Rear Brakes Drum
Front Tire 2.50-18
Rear Tire 2.75-18

DIMENSION

Dry-Weight 110 kg (242 lb)
Fuel Capacity 9 Litres (2.4 Gal.)
