2022 KTM 690 SMC R [Specs, Features, Photos]

2022 KTM 690 SMC R

The 2022 KTM 690 SMC R Rules the Supermoto Realm

The KTM 690 SMC R takes supermoto riding to a new level, thanks partly to a lightweight chassis, its legendary LC4 engine, and sophisticated electronics.

So whether you’re cornering on a mountain road or drifting on asphalt going full throttle, you won’t be short of smiles and adrenaline with this bike from KTM’s 2022 lineup.

KTM improved handling with the addition of the latest fully adjustable WP APEX suspension, so all you have to worry about is concentrating on the road ahead and putting the pedal to the metal.

The 690 cc single-cylinder engine offers a combination of great acceleration from idle with refined upshifting. The PASC (Power Assist Clutch) system helps minimize the force required to engage the clutch. In addition, the bike comes with two-channel Bosch 9.1 MP ABS (incl. Cornering ABS and Supermoto mode Disengegable).

The smooth six-speed gearbox on this Austrian bike allows quicker clutchless shifts thanks to its Quickshifter+ system, especially when cornering, which gives the rider greater control of the motorcycle by maintaining control of the handlebars and enhances rear-wheel traction.

The trellis frame comprises lightweight sections of tubes of varying thicknesses in high-quality chrome-molybdenum steel. In contrast, the subframe effectively uses the rear fuel tank as the main structural element to minimize the weight and eliminate design complexity.

The 2022 KTM 690 SMC R starts at $12,499 USD / $13,499 CAD.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new 2022 KTM 690 SMC R in one place.



2022 KTM 690 SMC R


Model Overview

General Info

  • Price: $12,499 USD / $13,499 CAD
  • Key Features:
    • 690 cc, single cylinder 74 hp engine
    • Quickshifter+ technology
    • Power Assist Clutch (PASC) an
    • Two channel Bosch 9.1 MP ABS (cornering ABS)

Main Specs

  • Engine: 690 cc, liquid cooled, single cylinder
  • Power: 74 hp (55kW) at 7,500 rpm
  • Torque: 54 lb-ft (73 Nm) at 6,000 rpm
  • Wet Weight:  324 (146 kg)
  • Seat Height: 33.4 in. (892 mm)

Competitors

2022 KTM 690 SMC R


2022 KTM 690 SMC R Specifications

From KTM

ENGINE

Engine 690cc, 1-cylinder, 4-stroke engine
Power 75 Hp
Bore x Stroke 80 mm X 105 mm
EMS Keihin EMS with RBW, twin ignition
Power in KW 85 kW
Starter Electric starter
Lubrication Forced oil lubrication with 2 oil pumps

DRIVETRAIN

Clutch APTC(TM) slipper clutch, hydraulically actuated
Transmission 6-speed
Chain X-Ring 5/8 x 1/4″

CHASSIS

Suspension Front WP APEX 43
Suspension Rear WP APEX with Pro-Lever linkage
Brakes Front 300 mm
Brakes Rear 240 mm
Suspension travel (front)
Suspension travel (rear)
Tank capacity (approx.)
Color Orange

ELECTRICAL

Ignition
Spark Plugs
Headlight LED
Tail Light LED

WARRANTY

Warranty
Extension

2022 KTM 690 SMC R


2022 KTM 690 SMC R Features

Engine

The LC4 690 cc single-cylinder engine combines powerful acceleration from the very lowest revs with an outstanding free-revving nature and refined engine running. Another big plus is besides the engine being extremely economical with fuel it also has long service intervals of 10,000 km, keeping running costs low.

Frame

The trellis frame is manufactured from lightweight sections of top-quality chrome-molybdenum steel tubing of varying thicknesses. This type of balanced frame design provides high torsional rigidity for best handling and rideability, while a more specifically-tuned longitudinal flexibility can absorb the wheel impact energy, supporting the suspension for reduced rider fatigue.

Cylinder Head

A lightweight, compact cylinder head contains four valves and a single camshaft placed over the intake valves, and a secondary balancer shaft driven by the timing chain. The intake valves are actuated by finger followers and the exhaust valves by a rocker arm.

Frame

The incredible handling characteristics of the KTM 890 DUKE are founded on the dynamic, loadbearing design of the tubular chassis. Engineers had one goal in mind, and that was to keep the chassis as rigid and compact as possible for sharper turn-in and greater lean angles, allowing it to slice through the turns with extreme responsiveness.

Swingarm

This swingarm design allows for an optimal mounting position of the rear shock ensuring a high progression rate. The single-component casting process eliminates any inconsistencies and weak points that would be inherent in a welded swingarm.

Triple clamp

Highly rigid forged triple clamps with an offset of 24 mm (adjustable to 22 mm), provide a solid grip on the forks for precise handling. They allow forwards and backwards adjustment of the handlebars in four different positions for optimum rider ergonomics.

Wheels & tyres

The KTM wheels use lightweight, CNC machined hubs and high-end black 17″ rims to combine maximum strength with minimum weight. They are fitted with BRIDGESTONE S21 tires for maximum performance on the street, and plenty of grip for racetrack usage.

Brakes

The BREMBO brakes deliver class-leading stopping power that is combined with lightweight discs – 320 mm diameter on the front wheel and 240 mm on the rear – to provide a crucial combination of stopping power and a consistent brake feel.

Handlebar

The lightweight tapered 808 mm wide handlebars are rubber mounted to reduce vibrations. Their width and shape are aimed at providing optimum control in all situations.

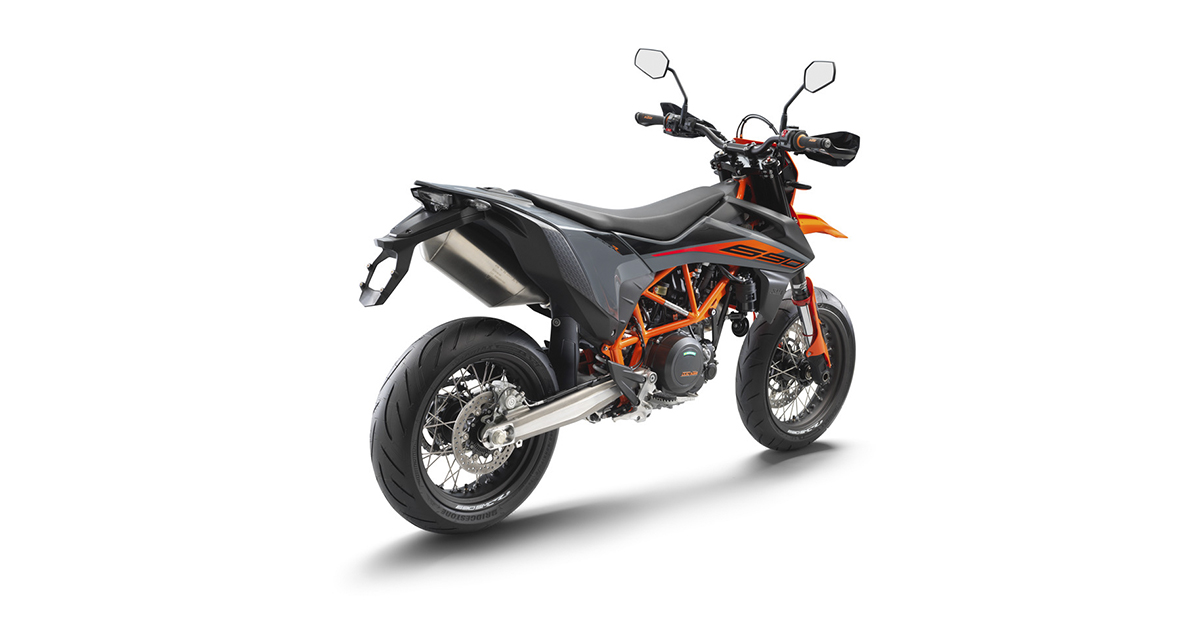

2022 KTM 690 SMC R Photos
