2014 Honda Motorcycles


2014 Honda CTX700N

2014 Honda CTX700N With DCT and ABS

More wBWMotorcycle Reviews  |  Product Reviews  |  Helmet Reviews

November 21, 2013 – “The brilliance of Honda engineering shines once again in the form of the 2014 CTX700N. This is a bike specifically engineered to make motorcycling more approachable, affordable and fun than ever before.”

Thanks to a low seat height of only 28.3 inches, riders can quickly get acclimated to life in the saddle. Honda’s acclaimed automatic Dual Clutch Transmission (DCT) provides either a fully automatic mode or the option of more active gear selection via paddle-shift type buttons on the handlebar, and the DCT version also comes with an Antilock Braking System (ABS).

The 670cc parallel-twin engine features cylinders canted 62 degrees forward for enhanced weight distribution and a lower center of gravity for ease of handling.

This smooth-running fuel-injected engine pumps out loads of low-end and midrange torque to simplify launching from stops even with the optional six-speed manual gearbox, and there’s enough power on tap for wherever the road may lead.

Beneath the fuel tank cover there’s a handy glove box area, and the fuel is carried below. All in all, the CTX700N is an amazingly affordable, fun, friendly and comfortable bike that is perfect for everyday rides, weekend trips, two-up exploring or just about anything else you can dream up.

Also: 2014 Honda Motorcycles webBikeWorld Report

2014 Honda CTX700ND With DCT and ABS
2014 Honda CTX700ND With DCT and ABS.

Features & Benefits

Sophisticated liquid-cooled SOHC eight-valve 670cc parallel-twin engine pumps out abundant torque in the low-end and midrange for easily accessible power.

An impressively broad torque curve gives the CTX700N a linear and smooth power delivery.

A relatively long engine stroke (80.0mm combined with a 73.0mm bore) and a high-inertia crankshaft are design elements that add to the CTX700N’s extremely tractable power characteristics.

The 62-degree forward lean given to the cylinder assembly facilitates near-vertical mounting of the single 36mm throttle body for superior intake port positioning and shaping. In addition, special shaping to the combustion chambers further enhance engine combustion efficiency for clean burning and optimal power production.

An engine balancer shaft quells vibration for smooth, comfortable operation, and rubber-mounted footrests add to rider comfort.

Programmed Fuel Injection (PGM-FI) continuously monitors numerous variables to ensure the correct fuel mixture for existing riding and atmospheric conditions, thereby delivering optimal performance and remarkably crisp throttle response over a wide range of operating conditions.

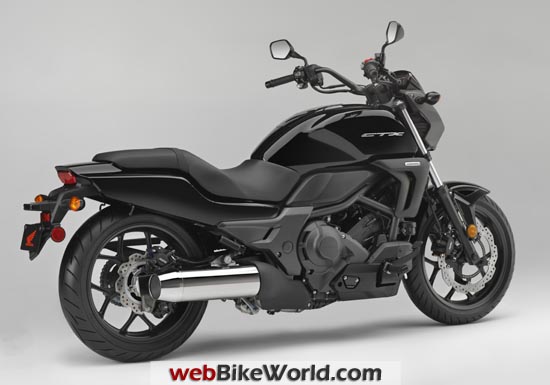

2014 Honda CTX700ND With DCT and ABS Right Side

Two Model Options

  • CTX700ND with DCT/ABS features a second-generation automatic six-speed Honda Dual Clutch Transmission that uses two hydraulically controlled clutches to deliver quick and smooth gear changes in a choice of three modes: Manual (MT), which allows the rider to shift gears using buttons, and two automatic (AT) modes: S for sport riding and D for everyday use. The DCT model also features an Antilock Braking System (ABS) to provide full antilock functionality for secure braking action.
  • CTX700N features a manual six-speed transmission.

Honda CTX700N and CTX700ND Features

  • Low seat height, along with the new Honda parallel-twin engine design, creates a very low center of gravity, making the CTX700N feel remarkably nimble and fun to ride.
  • Fuel capacity of 3.27 gallons and great fuel efficiency give the CTX700N a long cruising range.
  • A rigid and compact diamond-shape steel frame, low center of gravity and plush suspension help make the CTX700N responsive, agile and enjoyable to ride all day.
  • Stout 41mm front fork provides 4.2 inches of travel, while the Pro-Link® rear suspension system delivers 4.3 inches of wheel travel.
  • A remarkably low seat height of 28.3 inches helps instill rider confidence.
  • Open, roomy ergonomics position the rider in a well-balanced seating position for all-day comfort and fun.
  • A large array of available accessories allows owners to add just the right combination of capabilities to suit individual preferences and expand their adventures.
Honda CTX700N Black
Here’s a full size (5,000 pixel wide) photo of the 2014 Honda CTX700ND.

Honda Genuine Accessories

Tall Windscreen (cowl version only), Heated Grips, Heated Grips Attachment, Saddlebags, Saddlebag Stay, Saddlebag Panel (color-matched), Rear Carrier, Backrest, Backrest Bracket, Sub Harness, Accessory Socket, Chrome Master Cylinder Cover, Chrome License Plate Frame.

One-year warranty begins on the day accessories are purchased by the customer.

2014 Honda CTX700N and CTX700ND Specifications

  • Models: CTX700N (Manual Transmission) or CTX700ND (Automatic Dual Clutch Transmission and ABS).
  • Engine Type: 670cc liquid-cooled parallel-twin.
  • Bore and Stroke: 73.0 mm x 80.0 mm.
  • Compression ratio: 10.7:1
  • Valve Train: SOHC; four valves per cylinder.
  • Induction: PGM-FI with 36mm throttle body.
  • Ignition: Digital transistorized with electronic advance.
  • Transmission: Six-speed (CTX700N) / Automatic DCT six-speed (CTX700ND).
  • Final Drive: Chain.
  • Suspension: Front: 41mm fork; 4.2 inches travel. Rear: Pro-Link single shock; 4.3 inches travel.
  • Brakes: Front: Single 320mm disc with two-piston caliper. Rear: Single 240mm disc with single-piston caliper. Optional ABS available with DCT.
  • Tires: Front: 120/70-17. Rear: 160/60-17.
  • Wheelbase: 60.2 inches.
  • Rake (Caster angle): 27.7°
  • Trail: 114.0 mm (4.4 inches).
  • Seat Height: 28.3 inches .
  • Fuel Capacity: 3.27 gallons.
  • Estimated Fuel Economy: 64 MPG (CTX700N) / 61 MPG (CTX700ND)
  • Colors: CTX700N: Candy Red, Black. CTX700ND: Black.
  • Curb Weight: 478 pounds (CTX700N) or 500 pounds (CTX700ND). Includes all standard equipment, required fluids and full tank of fuel, ready to ride.
Note: For informational use only. All material and photographs are Copyright © webWorld International, LLC since 2000. All rights reserved. See the webBikeWorld® Site Info page. Product specifications, features and details may change or differ from our descriptions. Always check before purchasing. Read the Terms and Conditions!
