KNUCKLEHEAD Spartan Frameworks

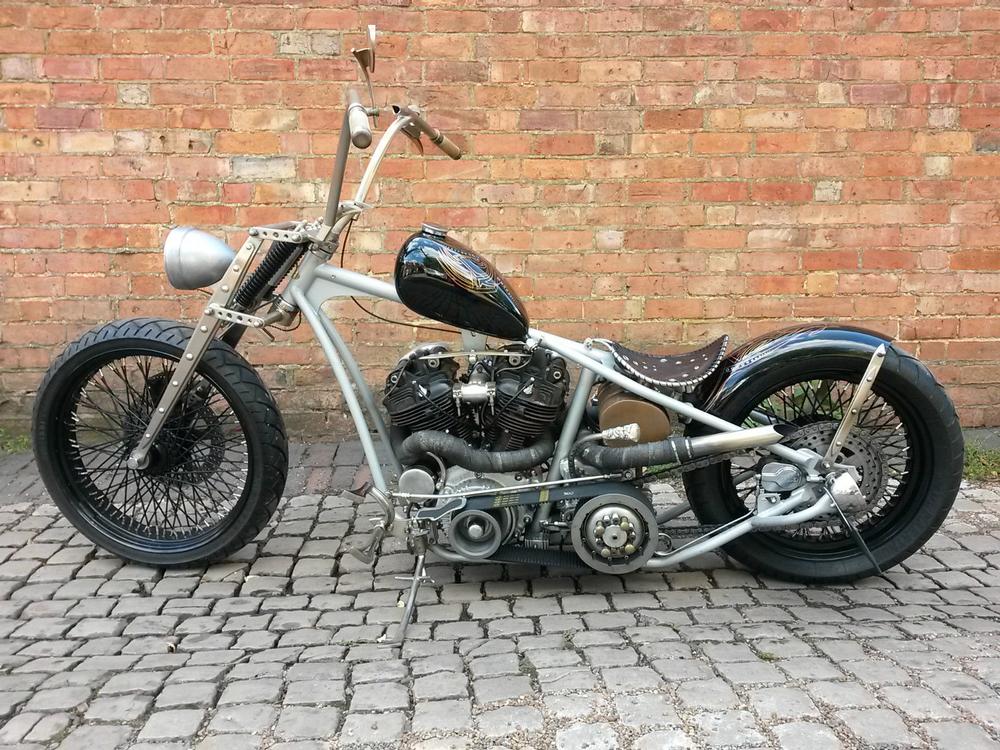

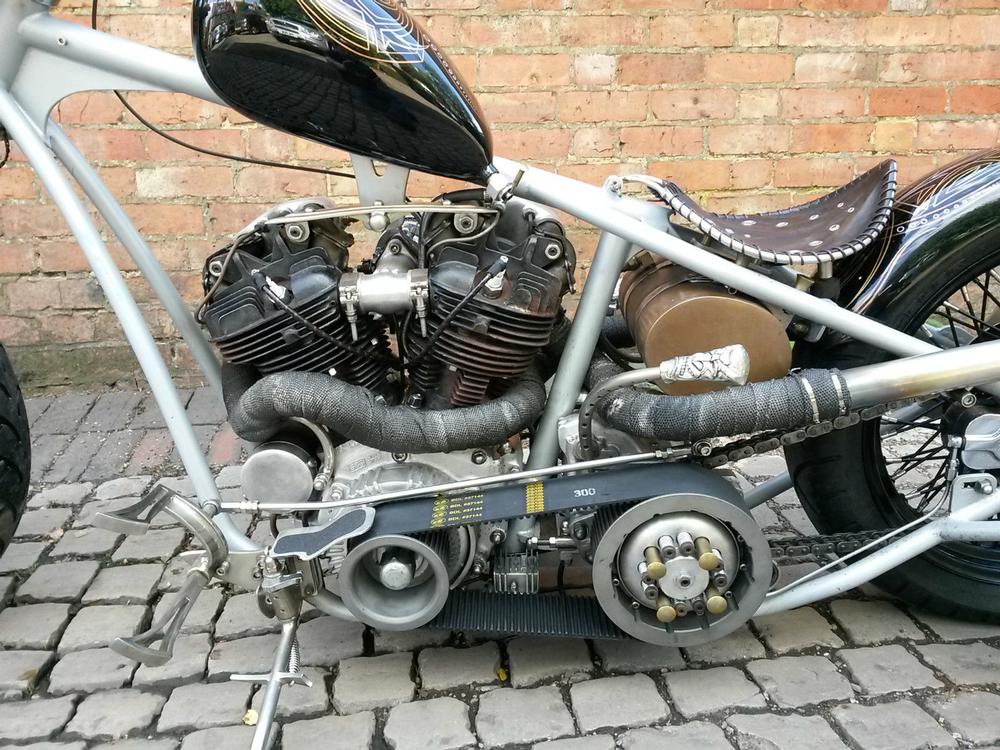

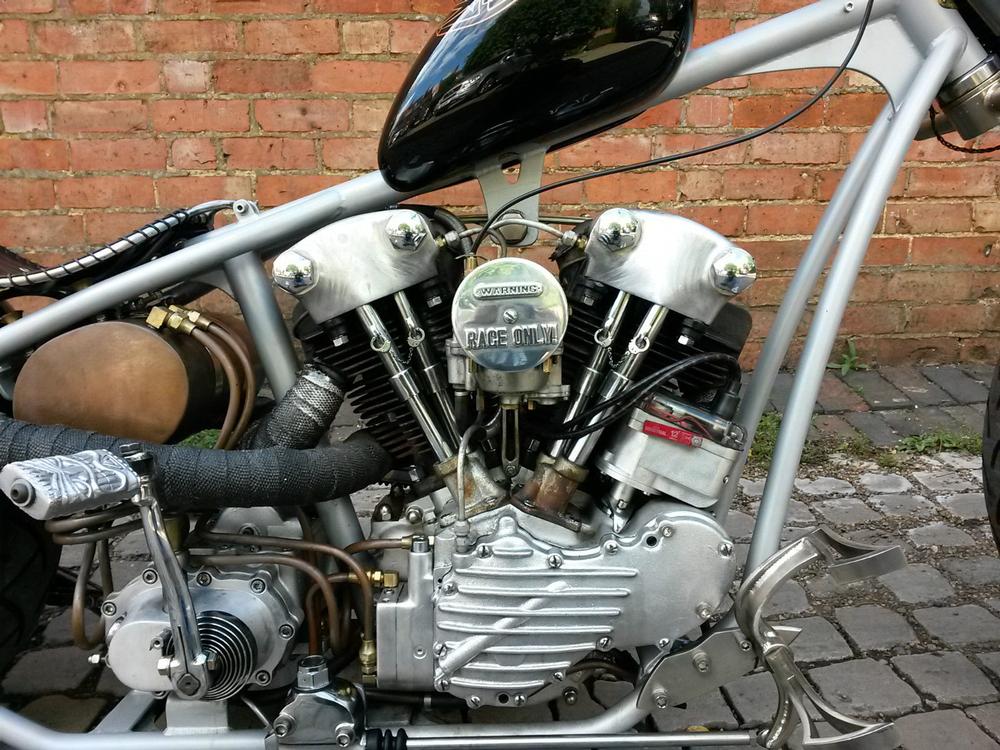

Custom replica Knucklehead, S&S bottom end, VTwin top end with bored and honed cylinders, Wiseco pistons, approximately 90 cubic inch displacement. Rocker boxes custom engraved to match paint and design theme.In a Spartan Frameworks straight leg frame with a slight radius in the front down tubes and custom axle plates, powder coated in matte silver. Carb is S&S Super E Shorty with Chopper Dave’s cast aluminum race air cleaner. -Transmission: Harley Davidson 4 speed, Ultima aluminum case. -Shifting: Foot clutch only, slop top (Jockey shift). Slop top 4 speed very easy to get use to. -Clutch/Drive: 3″ open belt drive with BDL clutch. -Kick Starter. -Electrics: All hidden wiring, Joe Hunt magneto. -Gas Tank: Modified Triumph tank with invisible mounts. -Exhaust: Custom Spartan Frameworks crossover system, header wrapped and brush nickel plated -Rear Fender: Chica. Exile rear sprotor, FRC finned font disc. -Paint: Base coat of HOK Kahanu black, pin-stripping by Johnny Vega.

Built In: England Bike Style: Chopper

Image Gallery

Knucklehead Bike Specifications – Spartan Frameworks

Class Styling Chopper
Engraving Engraving
Featured Parts Kickstart, Magneto, Open Primary, Sprotor, Jockey / Suicide Shift, Brass / Copper Accents
Frame Spartan Frameworks Frame
Motor Brand S & S
Motor Config Knucklehead
Motor Size (ci) 088ci
Paint Color(s) Black, Bare Metal
Paint Theme Pinstripe
Seat Leather / Handtooled, Solo Sprung
Suspension Front Springer
Suspension Rear Rigid / Hardtail
