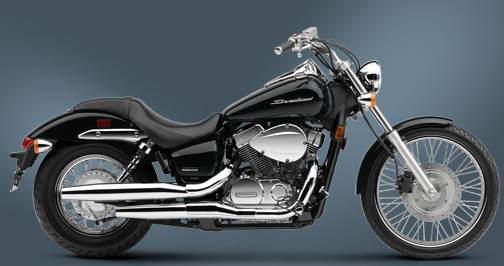

Honda 750 Shadow Spirit (VT750C2) Motorcycles

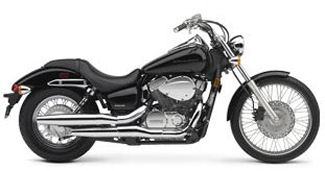

2007 VT750C2 Shadow Spirit 750

With an all-new 21-inch front wheel and low-profile tires, this cruiser sports a low-low 25.7-inch seat height. Up to 60 pounds lighter than competitive models, this is the most agile and comfortable cruiser to “Be Seen” on! Plus, the bobbed fenders and smooth shaft drive make the Shadow Spirit 750 (VT750C2) a stunner in the classic chopped dragbike mold.

Engine
Engine Type	745cc liquid-cooled 52-degree V-twin
Bore And Stroke	79mm x 76mm
Compression Ratio	9.6:1
Valve Train	SOHC; three valves per cylinder
Fuel Delivery	Single 34mm constant-velocity
Ignition	CD with electronic advance, two spark plugs per cylinder
DRIVETRAIN
Transmission	Wide-ratio five-speed
Final Drive	Shaft
CHASSIS / SUSPENSION / BRAKES
Front Suspension	41mm fork;4.6 inches travel
Rear Suspension	Dual shocks with five-position spring preload adjustability;3.5 inches travel
FrontBrake	Single 296mm disc with twin-piston caliper
Rear Brake	180mm Drum
Front Tire	120/90-17
Rear Tire	160/80-15
DIMENSION
Rake	34-degree 30′
Trail	158mm (6.2 inches)
Seat Height	25.7 inches
Wheelbase	65.0 inches
Curb Weight	503.5 pounds
Fuel Capacity	3.7 gallons, including 0.9-gallon reserve
OTHER
Model ID	VT750C2
Emissions	Meets current EPA standards California version meets current CARB standards and may differ slightly due to emissions equipment

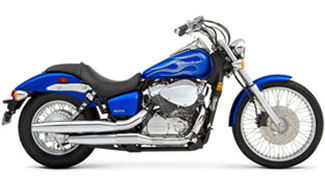

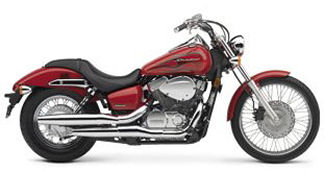

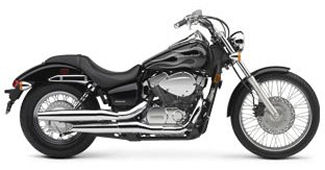

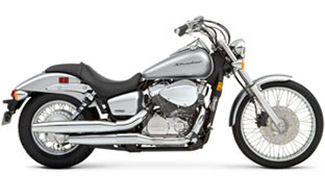

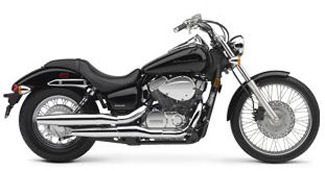

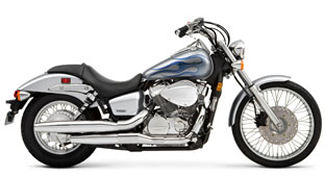

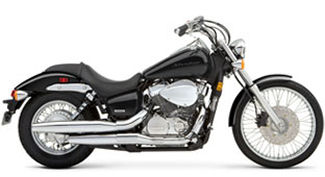

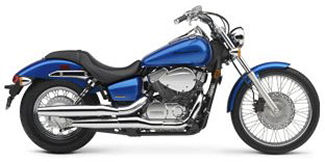

Colors	Black, Red/Flame, Black/Flame, Ultra Blue Metallic

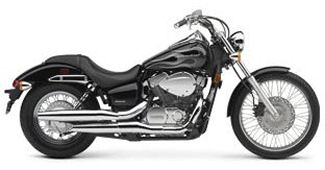

A must-be-seen-on bad boy that should have a special place in every cruiser rider’s garage, the Shadow Spirit 750 (VT750C2) is a stunner in the classic dragbike mold. Bobbed fenders wrap around low tires, while dual shorty pipes snake behind a super-low, 25.7-inch seat, delivering classic custom lines, light steering and agility. Style, performance and comfort — talk about the best of all worlds.

Engine
Engine Type	745cc liquid-cooled 52-degree V-twin
Bore And Stroke	79mm x 76mm
Compression Ratio	9.6:1
Valve Train	SOHC; three valves per cylinder
Fuel Delivery	Single 34mm constant-velocity
Ignition	CD with electronic advance, two spark plugs per cylinder
DRIVETRAIN
Transmission	Wide-ratio five-speed
Final Drive	Shaft
CHASSIS / SUSPENSION / BRAKES
Front Suspension	41mm fork;4.6 inches travel
Rear Suspension	Dual shocks with five-position spring preload adjustability;3.5 inches travel
FrontBrake	Single 296mm disc with twin-piston caliper
Rear Brake	180mm Drum
Front Tire	90/90-21
Rear Tire	160/80-15
DIMENSION
Rake	34-degree 30′
Trail	158mm (6.2 inches)
Seat Height	25.7 inches
Wheelbase	65.0 inches
Curb Weight	N/A
Fuel Capacity	3.7 gallons, including 0.9-gallon reserve
OTHER
Model ID	VT750C2
Emissions	Meets current EPA standards. California version meets current CARB standards and may differ slightly due to emissions equipment
Colors	Black, Red/Flame, Black/Flame, Ultra Blue Metallic

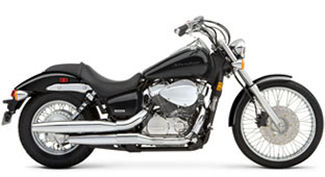

1 year Warranty	Coverage of defects in materials and workmanship

Engine
Engine Type	745cc liquid-cooled 52-degree V-twin
Bore And Stroke	79mm x 76mm
Compression Ratio	9.6:1
Valve Train	SOHC; three valves per cylinder
Fuel Delivery	Single 34mm constant-velocity
Ignition	CD with electronic advance, two spark plugs per cylinder
DRIVETRAIN
Transmission	Wide-ratio five-speed
Final Drive	Shaft
CHASSIS / SUSPENSION / BRAKES
Front Suspension	41mm fork;4.6 inches travel
Rear Suspension	Dual shocks with five-position spring preload adjustability;3.5 inches travel
FrontBrake	Single 296mm disc with twin-piston caliper
Rear Brake	Drum
Front Tire	90/90-21
Rear Tire	160/80-15
DIMENSION
Rake	34-degree 30′
Trail	158mm (6.2 inches)
Seat Height	25.7 inches
Wheelbase	65.0 inches
Curb Weight	536 pounds (Includes all standard equipment, required fluids and a full tank of fuel ready to ride)
Fuel Capacity	3.7 gallons, including 0.9-gallon reserve
OTHER
Model ID	VT750C2
Emissions	Meets current EPA standards. California version meets current CARB standards and may differ slightly due to emissions equipment
Colors	Candy Dark Red, Pearl White/Silver Pinstripe, Pearl Black/Red Pinstripe, Black
Note	Big-bike looks in a surprisingly affordable package FACTORY WARRANTY INFORMATION: One Year: Transferable one-year unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan

Engine
Engine Type	Liquid-cooled 52-degree V-twin
Displacement	745 cc
Bore And Stroke	79mm x 76mm
Compression Ratio	9.6:1
Valve Train	Chain-driven SOHC, 3 valves per cylinder
Fuel Delivery	PGM-FI electronic fuel injection
DRIVETRAIN
Transmission	Wide-ratio five-speed
Final Drive	Shaft
CHASSIS / SUSPENSION / BRAKES
Front Suspension	41mm fork;4.6 inches travel
Rear Suspension	Dual shocks with adjustable spring preload; 89 mm (3.5 in.) travel
FrontBrake	ASB: Single 296 mm disc with dual-piston caliper. Combined Braking System with ABS Non-ABS: Single 296 mm disc with dual-piston caliper
Rear Brake	ASB: Single 276 mm disc with single-piston caliper. Combined Braking System with ABS Non-ABS: Drum
Front Tire	90/90 – 21 front; 160/80 – 15 rear
DIMENSION
Ground Clearance:	N/A
Seat Height	652 mm (25.7 in.)
Wheelbase	1651 mm (65 in.)
Curb Weight	Non-ABS: 248 kg (547 lb) ASB: 251 kg (553 lb)
Fuel Capacity	14.6 litres (3.9 GalUS), including 3.5-litre (1 Gal) reserve
OTHER
Warranty	1 year, unlimited mileage, freely transferable warranty, extended coverage available with Honda Plus MSRP:
Colors	Graphite Black Candy Blaze Orange With Flame
MSRP	Non-ABS: $8,899 ASB: $9,699
