Honda NSR50R Motorcycles

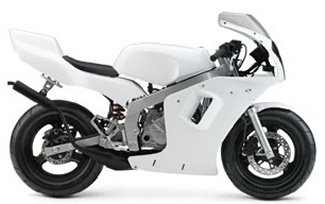

2004 NSR50R



Engine

Engine Type 49cc liquid-cooled two-stroke
Bore and Stroke 39.0mm x 41.4mm
Compression Ratio 7.2:1
Spark plug BR9ES
Plug gap .028
Fuel Delivery 20.0mm
Ignition CD

DRIVETRAIN

Transmission Six-speed
Clutch Wet multi-plate

CHASSIS / SUSPENSION / BRAKES

Front Suspension Telescopic fork
Rear Suspension Swingarm with twin shocks
Front Brake Single hydraulic disc
Rear Brake Single hydraulic disc
Front Tire 100/90-12 48J
Rear Tire 120/80-12 54J

DIMENSION

Length 62.2 inches
Width 23.2 inches
Height 36.8 inches
Wheelbase 42.7 inches
Dry Weight 161.0 pounds
Fuel Capacity 1.95 gallons

OTHER

Product Notice Not street legal
Colors White
Model ID NRS50
