2020 Harley-Davidson Road King [Model Overview]

2020 Harley-Davidson Road King

2020 Harley-Davidson Road King

The 2020 Harley-Davidson Road King is the quintessential touring motorcycle from Harley. It’s a fantastic cruiser motorcycle with a large windshield and hard bags. It features classic styling and can gobble up miles like nobody’s business. Calling it the king is apt.

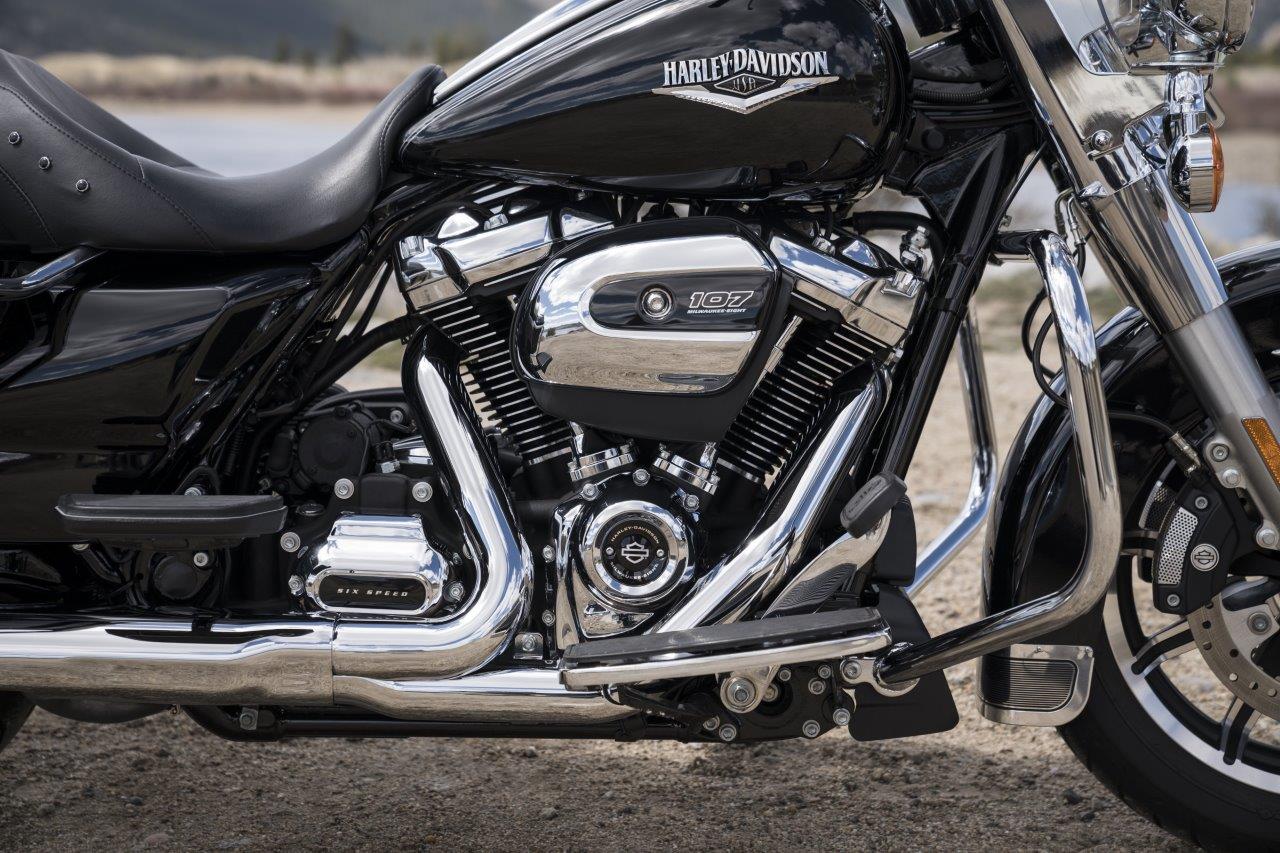

The Road King has the Milwaukee-Eight 107 engine. It’s an air-cooled V-twin that has a displacement of 1,753cc. The 107 engine is mated to a six-speed manual transmission and it makes 111 lb-ft of torque.

The Road King is the kind of bike you get if you love the Harley-Davidson brand and you want a classic touring motorcycle. The Road King is a fantastic option for long touring rides but it’s also good around town. The company has a price tag of $19,499 on it.

The motorcycle is available in several different colors: Vivid Black, Billiard Red, Stone Washed White Pearl, Silver Pine/Spruce, and Stilletto Red.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new Harley-Davidson Road King in one place.

2020 Harley-Davidson Road King

Model Overview

General Info

  • Price: $ 19,499
  • Key Features:
    • Low Seat Height
    • Softail® Frame
    • LED Lighting

Key Specs

  • Engine type: 1,753cc, Milwaukee-Eight® 107
  • Torque: 111 ft-lb
  • Wet weight: 794 lbs
  • Seat height: 26.3 Inch

2020 Harley-Davidson Road King

2020 Harley-Davidson Road King Specifications

From Harley-Davidson


Engine 1,753cc, Milwaukee-Eight® 114
Engine Torque 111 ft-lb
Bore x Stroke 3.937 in x 4.374 in
Compression Ratio 10.0:1
Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
Starter Electric


Transmission 6-speed
Final Drive Chain, 34/46 ratio


Suspension Front Slicer II Cast Aluminum
Suspension Rear Slicer II cast aluminum
Brakes Front 32 mm, 4-piston fixed front
Brakes Rear 32 mm, 4-piston fixed front
Tires Front BW 130/70B18 63H
Tires Rear BW 180/55B18 80H
Fuel Tank Capacity 22.71 L (6 US gal.)
Color Vivid Black, Billiard Red, Stone Washed White Pearl, Silver Pine/Spruce, and Stilletto Red


Spark Plugs
Headlight LED
Tail Light LED


Overall Length 96.5 in (2,450 mm)
Overall Width
Overall Height
Wheelbase 64 in (1,625 mm)
Ground Clearance 5.3 in (150 mm)
Seat Height 26.3 in (670 mm)
Curb Weight 794 lbs (360 kg)



2020 Harley-Davidson Road King

2020 Harley-Davidson Road King Features

Milwaukee-Eight® 114 Engine

The most displacement in standard H-D® Touring models. You get 114 cubic inches of passing and horizon-chasing power.

H-D™ Connect Service

H-D™ Connect service enables you to remotely connect to your bike through your smart phone using the latest version of the Harley-Davidson® App. You can see your bike’s vitals, track its location, get security alerts, and more.

Reflex™ Linked Brembo® Brakes With Standard ABS

Designed to help prevent the wheels from locking under braking to assist the rider in maintaining control when braking in a straight-line. ABS operates independently on front and rear brakes to keep the wheels rolling and help prevent uncontrolled wheel lock in urgent situations.

Reflex™ Defensive Rider Systems (Optional)

A new collection of technologies that help give you confidence and control in less-than-ideal situations. The systems utilize advanced chassis control, electronic brake control and powertrain technology to assist you with accelerating and braking in a straight line or while in a turn.

BOOM!™ Box GTS Infotainment System

An evolved interface experience that offers a contemporary look, feel and function, with exceptional durability and features designed specifically for motorcycling. Every element is optimized to enhance the rider’s interaction with the bike and connectivity with the world.

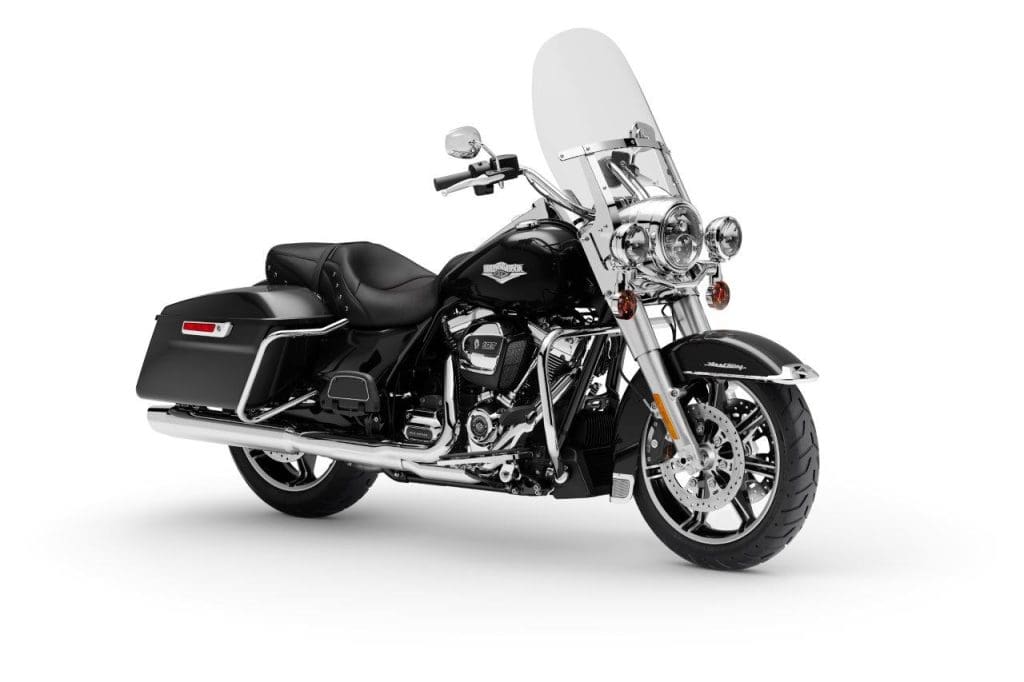

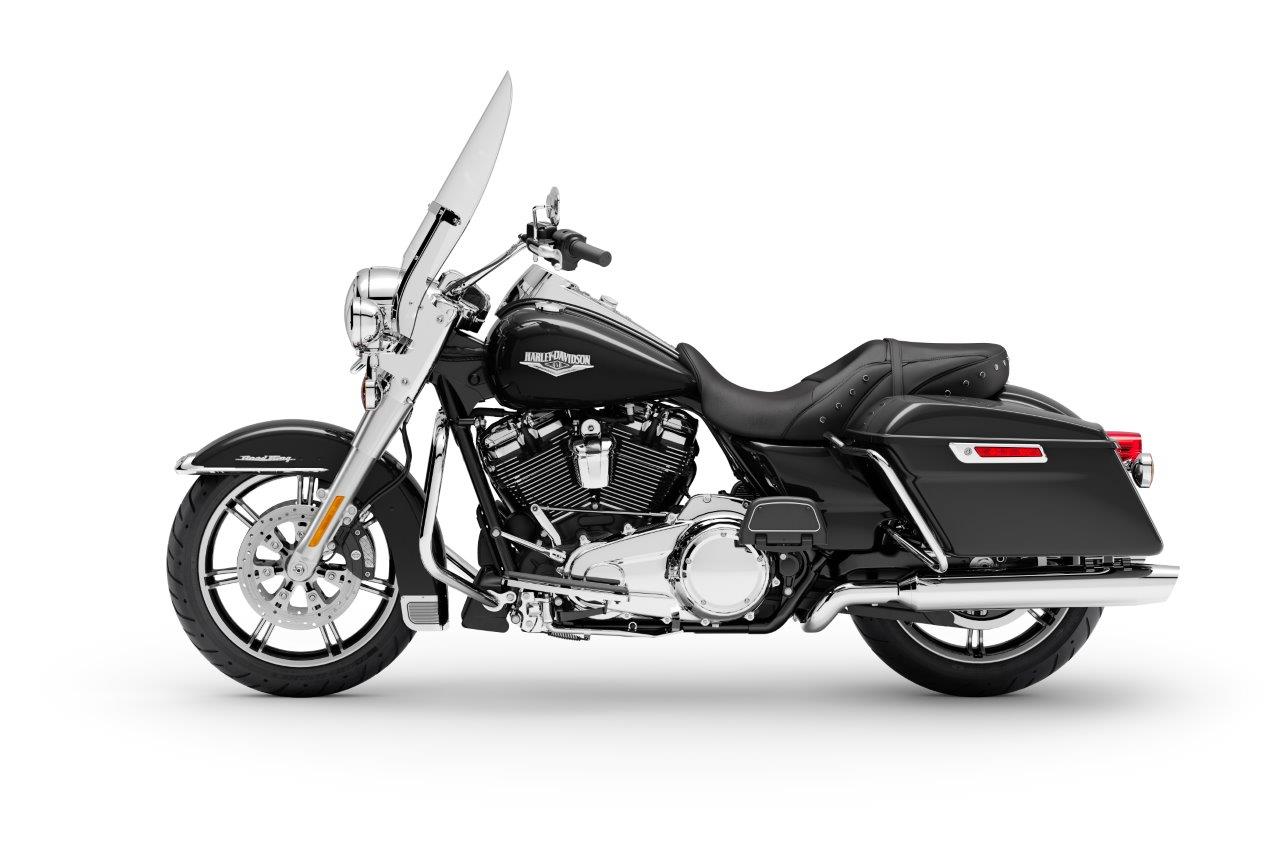

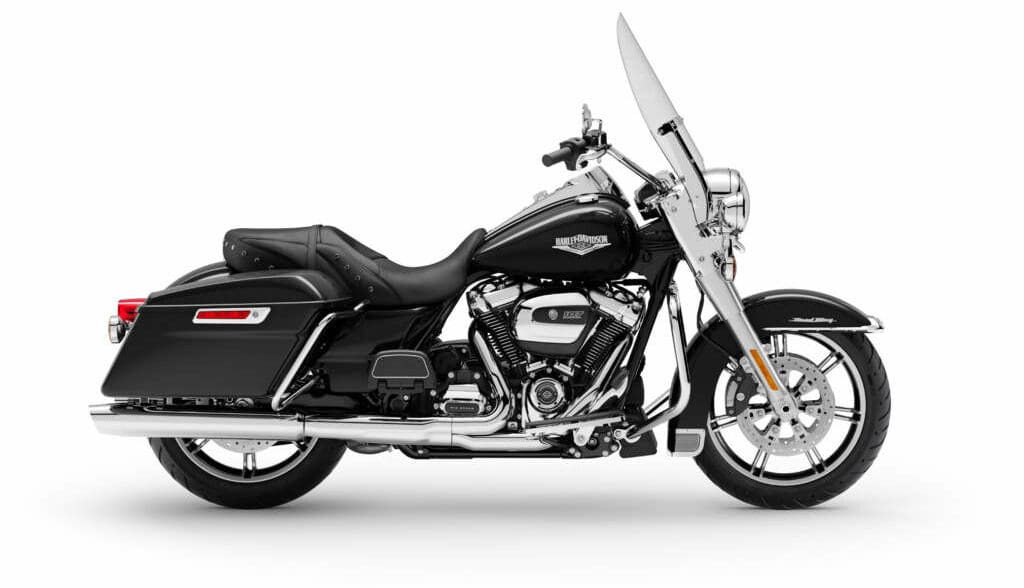

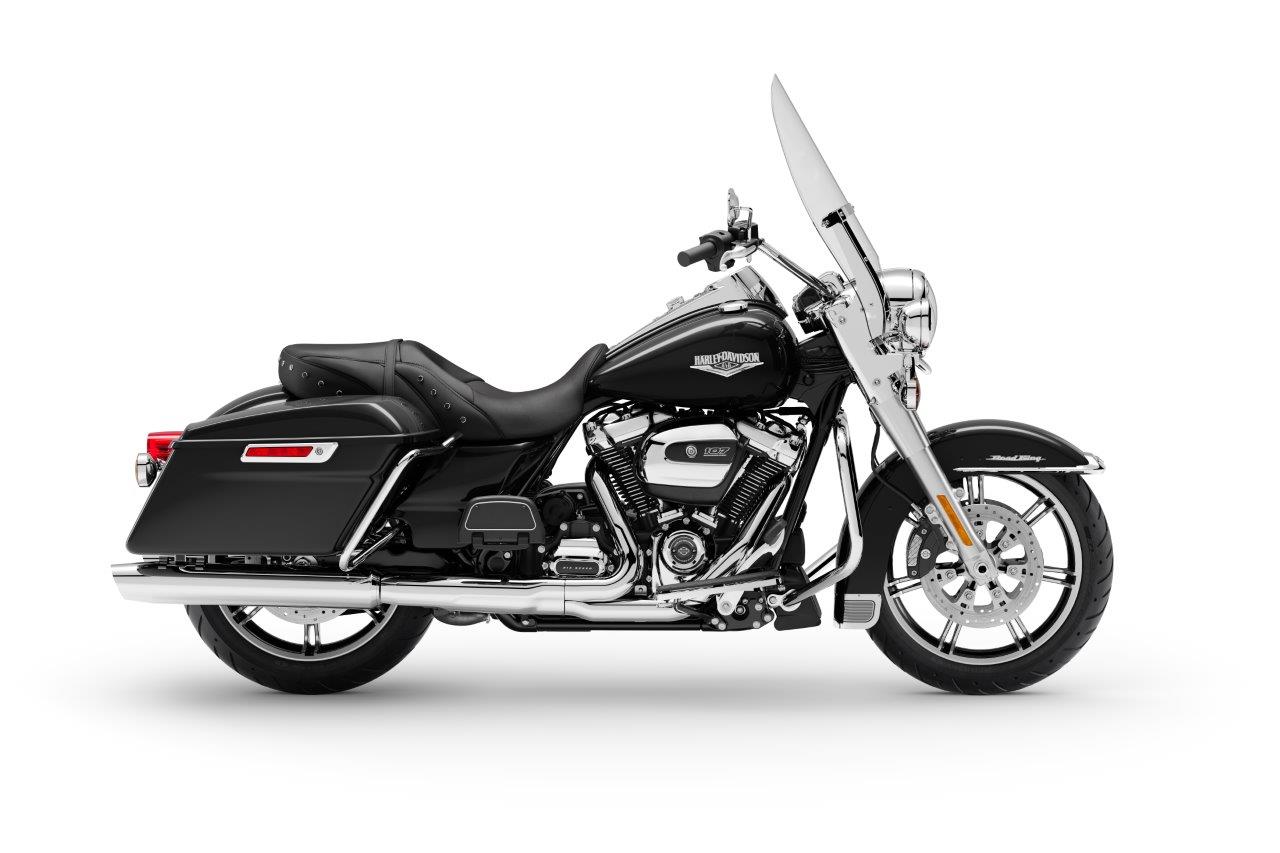

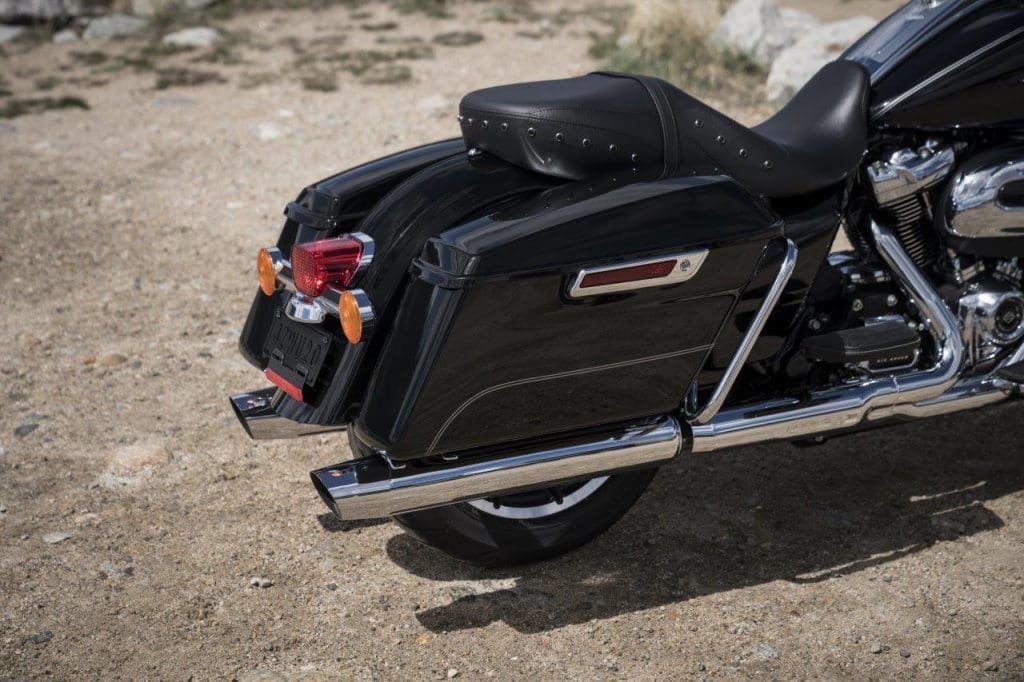

2020 Harley-Davidson Road King Photos
