Engine
|
|
| Engine |
Air cooled, parallel twin cylinder, SOHC, 2 valve per cylinder, |
| Displacement |
357cc |
| Bore x Stroke |
67.0 x 50.6 mm |
| Compression Ratio |
9.3:1 |
| Fuel Delivery |
2 CV carburetors |
| Ignition |
Breaker points and condenser |
| Starter |
Electric and kickstart |
| Max Power |
24.8 KW (34 hp) @ 9000 rpm |
Drivetrain
|
|
| Transmission |
6-speed |
| Final Drive |
Chain |
CHASSIS / SUSPENSION / BRAKES
|
|
| Front Suspension |
Telescoping forks |
| Rear Suspension |
Adjustable shocks |
| Front Brakes |
Single disc (hydraulic) |
| Rear Brakes |
Drum |
| Front Tires |
3.00-18 |
| Rear Tires |
3.50-18 |
DIMENSION
|
|
| Fuel Capacity |
11 Litres (2.9 Gal) |
OTHER
|
|
| Colors |

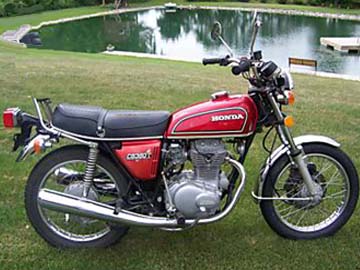

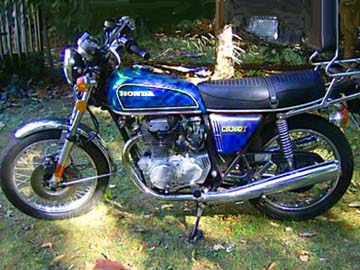

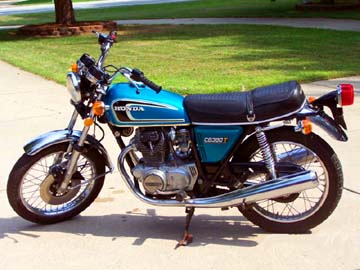

- Candy Riviera Blue Metallic
- Light Ruby Red
|
|
- The gas tank stripes were black and white
- The “CB360T” side cover emblem was white and yellow
- The breaker points cover was black
- The front brake was a hydraulic disc
- The engine was a 356cc OHC parallel twin linked to a 6-speed transmission
- The serial number began CB360T-2000001.
|
