Honda Shadow 1100 American Classic Edition Tourer (VT1100T) Motorcycles

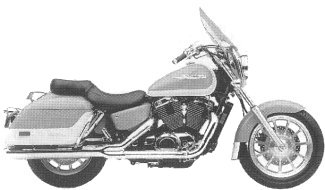

1998 VT1100T ACE Tourer 1100 (American Classic Edition Tourer

  • Hard saddle bags and windshield (standard equipment)
  • Exhaust was specially designed 2-into-2 system
  • Colors:
    • Black
    • Black with Pearl Ivory Cream
    • Pearl Jade Green with Pearl Ivory Cream
    • Pearl Sedona Red with Black
  • Model designation: VT1100T (California designation: VT1100TL)
  • Serial number began: 1HFSC370*WA000001 (Calif: 1HFSC371*WA000001)
  • Engine serial began: SC37E-2000001 (Calif: SC37E-2000001)

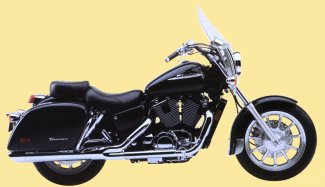

2001 VT1100T’01 ACE Tourer 1100

Engine

Engine Type Liquid cooled, 45° V-twin, dual offset pin crank
Displacement 1099cc
Bore and Stroke 87.5mm x 91.4mm
Compression Ratio 8:1
Valve Train SOHC, 3 valve per cylinder, self-adjusting hydraulic
Fuel Delivery Twin 36mm, diaphragm-type CV
Transmission Wide-Ratio, 5-speed
Final Drive Shaft
Front Suspension 41mm fork, 150mm travel
Rear Suspension Dual shocks with 5-way spring preload adjustment, 95mm travel
Front Tire 130/80H-18
Rear Tire 170/70H-16
Front Brakes Single 316mm disc with twin piston caliper
Rear Brakes Single 276mm disc with single piston caliper
Seat Height 730mm (28.7″)
Wheelbase 1656mm (65.2″)
Dry Weight 285 kg (626 lb)
Fuel Capacity 15.8 liters
Color Black

(VT1100T) Image Gallery
