The 2022 Harley Davidson Nightster: All New

Introducing an all-new member of the “Sport” family into their 2022 model lineup, the Nightster is a welcome leap forward for this American staple.

Wrapped around the new Revolution® Max 975T liquid-cooled V-Twin, is a familiar-looking Sportster chassis with traditional features like the rear outboard mounted shocks, round intake cover, and peanut styled fuel tank.

Harley Davidson has tuned the new powertrain for a stout 70 ft-lb of torque and 90hp. The new chassis should prove quite nimble with a 16” rear and 19” front wheel setup. LED lighting and selectable rider modes round out the modern features.

3 color choices exist for the 2022 Harley Davidson Nightster: Vivid Black, Gunship Gray, and Redline Red.

The 2022 Harley Davidson Nightster starts at $13,499 USD / $16,499 CAD.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new 2022 Harley Davidson Nightster in one place.

2022 Harley Davidson Nightster


Model Overview

General Info

  • Price: $13,499 USD / $16,499 CAD
  • Key Features:
    • Revolution Max 975T Engine
    • Tradional Sportster Styling
    • Selectable Rider Modes
    • Rear suspension is dual outboard with adjustable pre-load

Main Specs

  • Engine: 975 cc V-twin
  • Power: 90 HP / 67 kW @ 7500 rpm
  • Torque: 70 ft-lb (95 Nm)
  • Wet Weight: 481 lb. (218 kg)
  • Seat Height: 27.8 in. (705 mm)

Competitors

  • Indian Scout Bobber Sixty
  • Triumph Bonneville Bobber
  • Honda Rebel 1100

2022 Harley Davidson Nightster


2022 Harley Davidson Nightster Specifications

From Harley-Davidson

ENGINE

Engine 975 cc V-twin, Revolution® Max 975T
Engine Torque 90 HP / 67 kW @ 7500 rpm
Bore x Stroke 3.82 in x 2.6 in.
Compression Ratio
12:1
Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
Starter Electric
Exhaust 2-into-1; catalyst in header

DRIVETRAIN

Clutch
Transmission 6-speed
Primary Drive
Gear, 49/89 ratio

CHASSIS

Front Fork
41mm SHOWA® Dual Bending Valve conventional forks. Aluminum fork triple clamps.
Rear Fork
Rear suspension is dual outboard, direct-acting (no linkage) emulsion technology shock absorbers with coil springs and a threaded collar for pre-load adjustment.
Wheels, Front Type
Aluminum cast, satin black
Wheels, Rear Type
Aluminum cast, satin black
Brakes Front
Axially mounted, 4-piston caliper
Brakes Rear Floating, single piston caliper
Tires Front
100/90-19 57H
Tires Rear
150/80B16 77H
Fuel Tank Capacity 3.1 gal.
Color Redline Red, Gunship Gray, Vivid Black

ELECTRICAL

Ignition
Spark Plugs
Headlight All LED headlamp
Tail Light LED

DIMENSIONS

Length
86.9 in.
Trail
5.4 in.
Rake 30
Wheelbase
61.3 in.
Ground Clearance
4.5 in.
Seat Height
27.1 in.
Weight, As Shipped
462 lb.

WARRANTY

Warranty
Extension

2022 Harley Davidson Nightster


2022 Harley Davidson Nightster Features

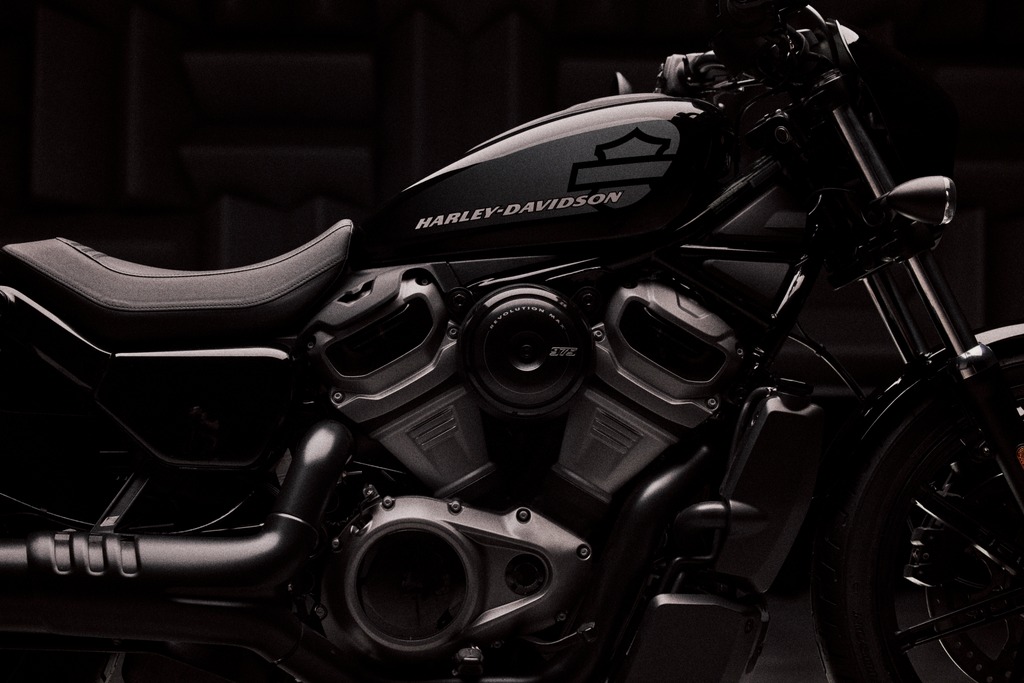

Air box cover

The most obvious resemblance to its Sportster lineage is the shape of the airbox cover, which shares its profile with the classic Sportster

Wheels

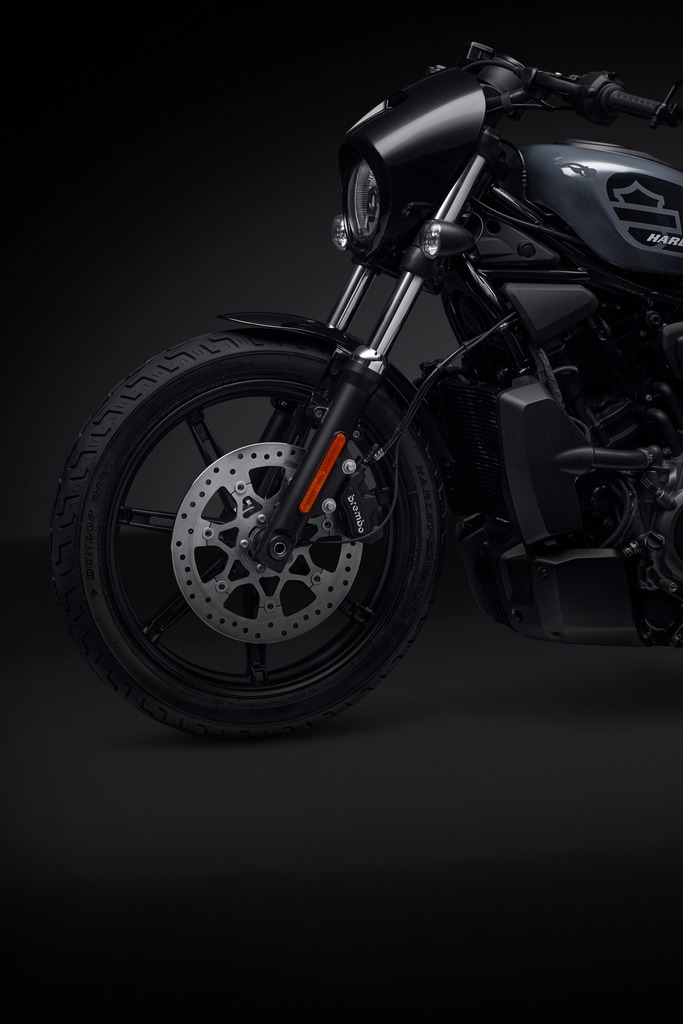

The Nightster is equipped with a 19-inch front wheel and a 16-inch rear wheel, dimensions selected to deliver nimble performance and distinctive style.

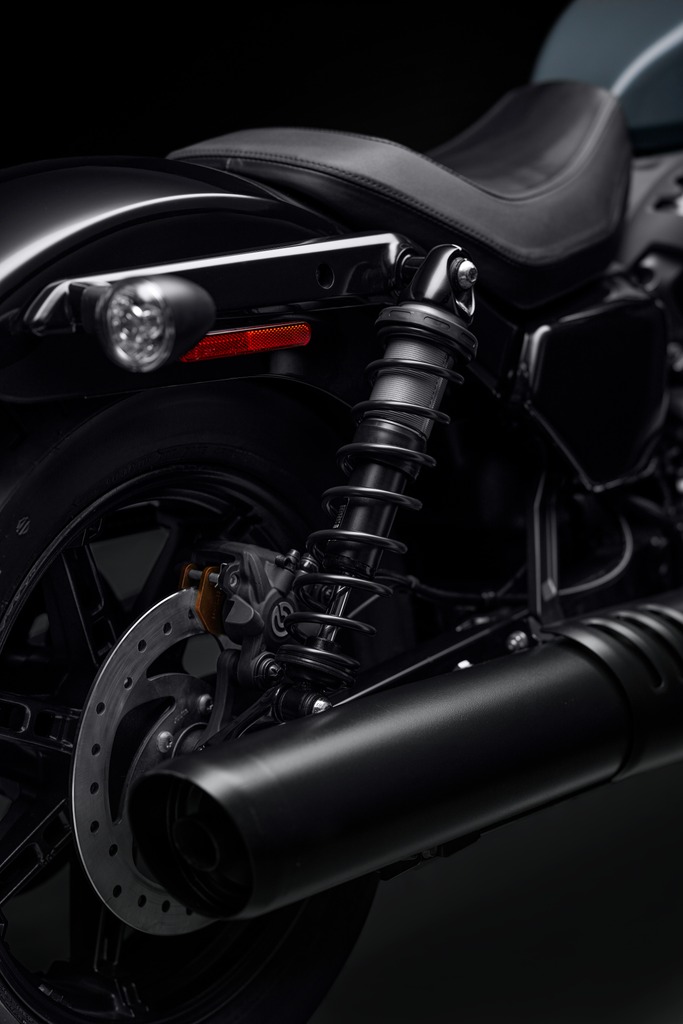

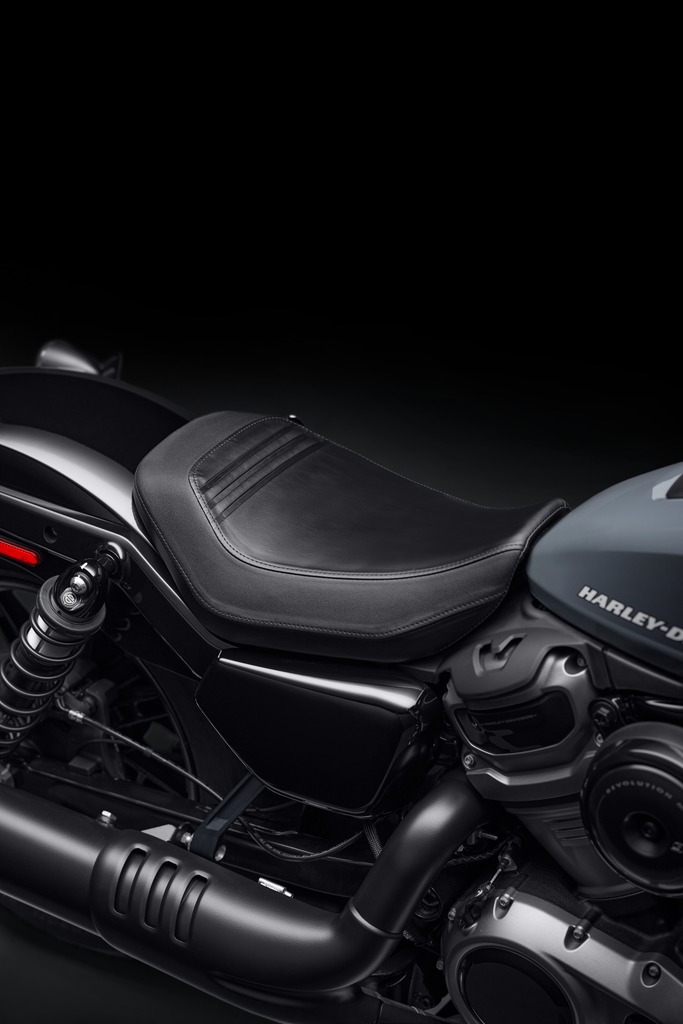

Exposed dual rear shocks

Modeled after a previous Sportster chassis, Nightster features exposed dual rear shocks that provide a critical style line at the rear of the motorcycle.

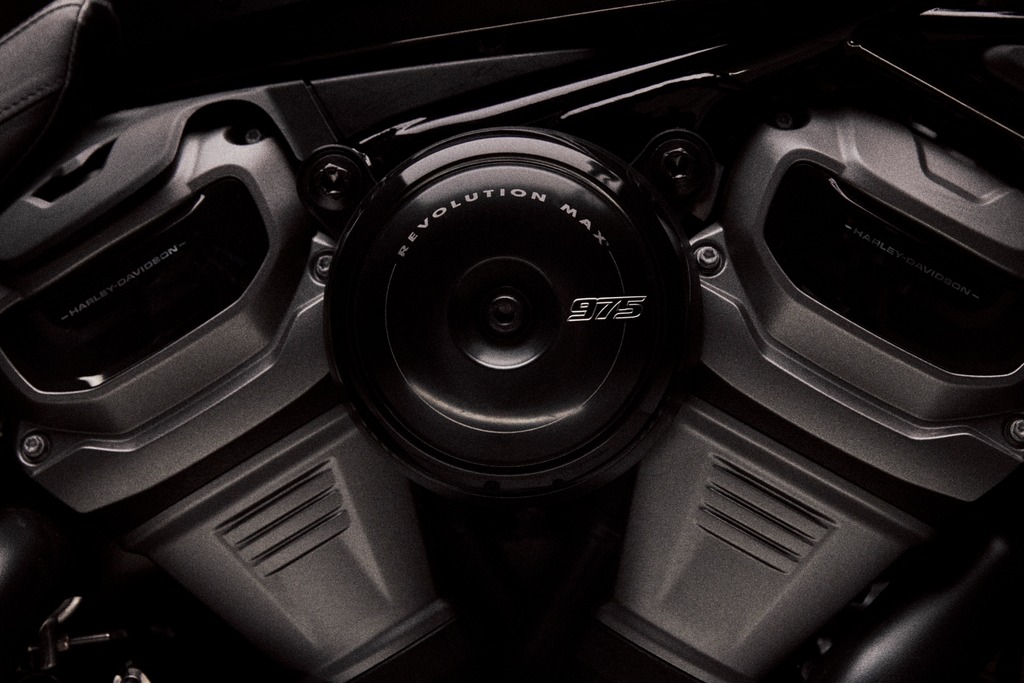

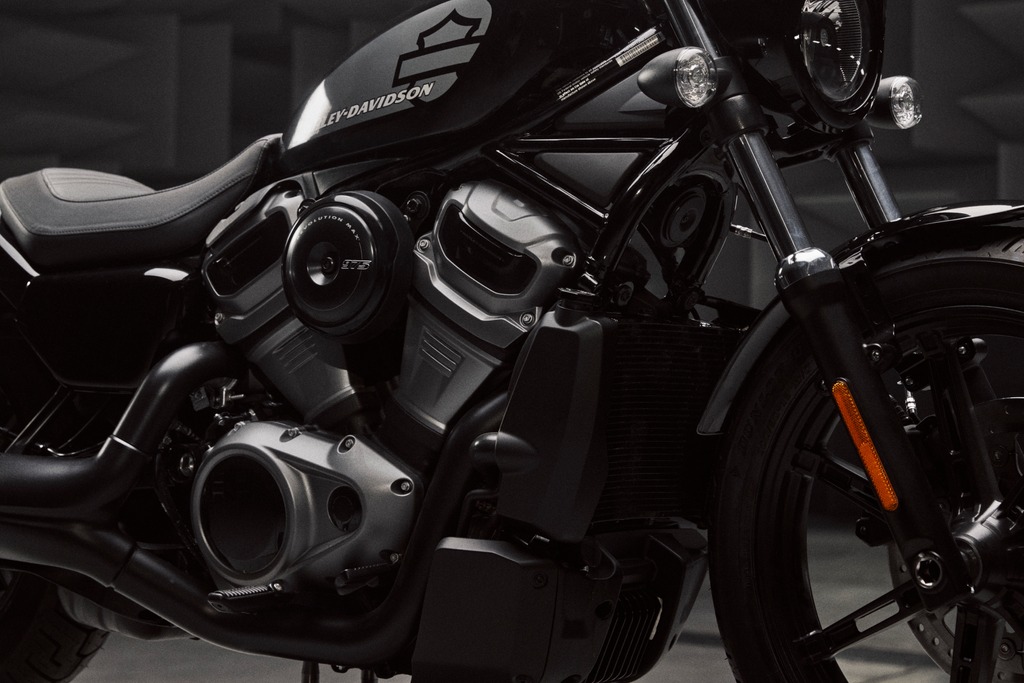

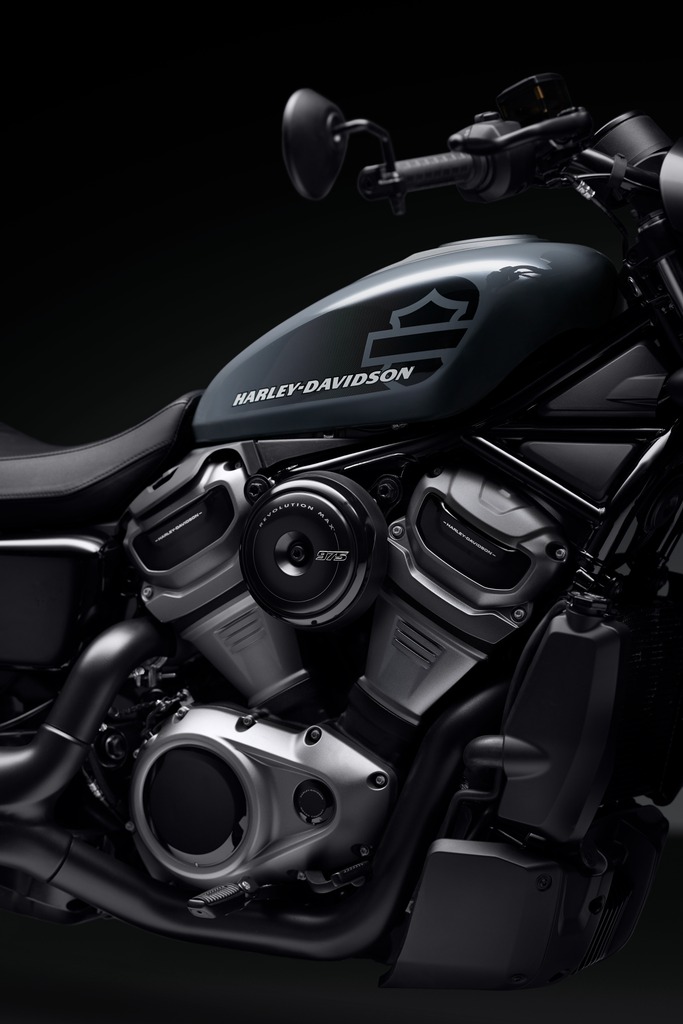

Liquid Cooled Revolution Max 975T

Performance when you need it, the Revolution Max 975T engine is a liquid-cooled V-Twin tuned to make tremendous torque at low RPM, delivering strong acceleration from the start with robust power through the mid-range.

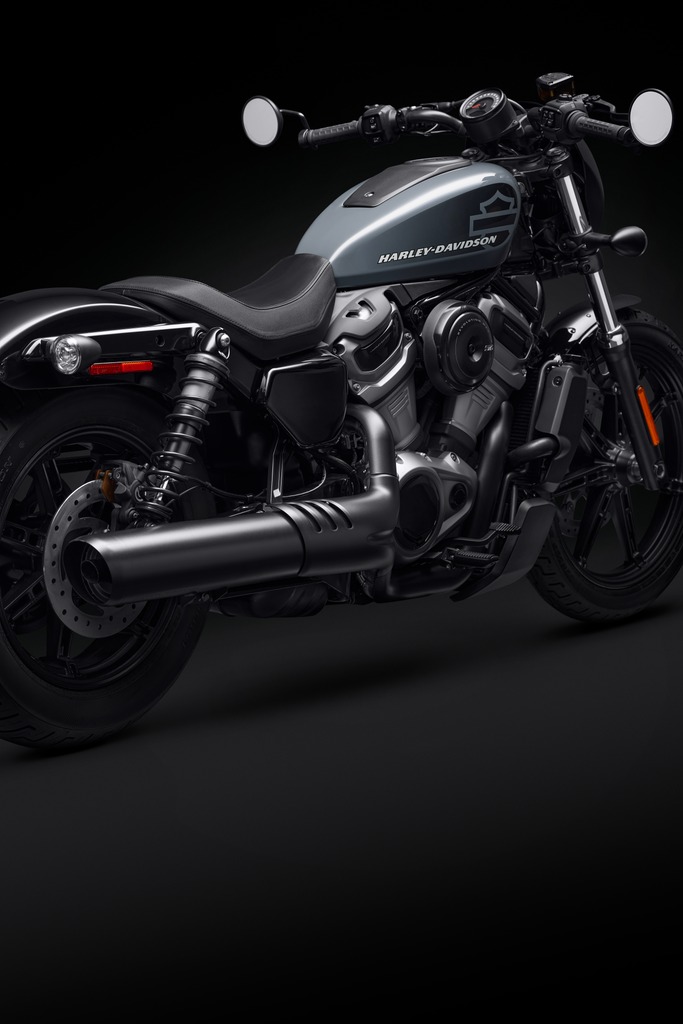

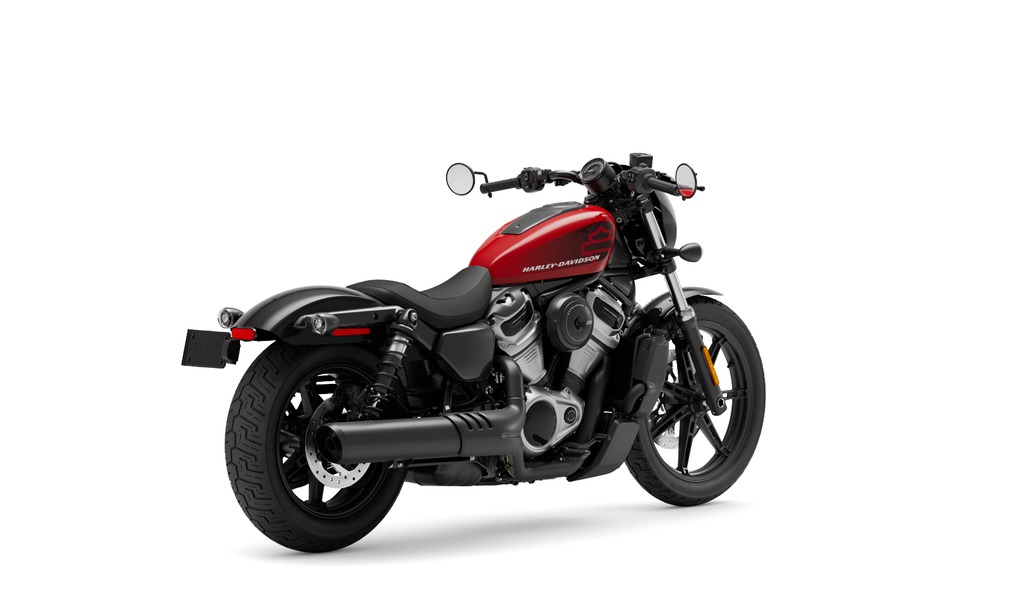

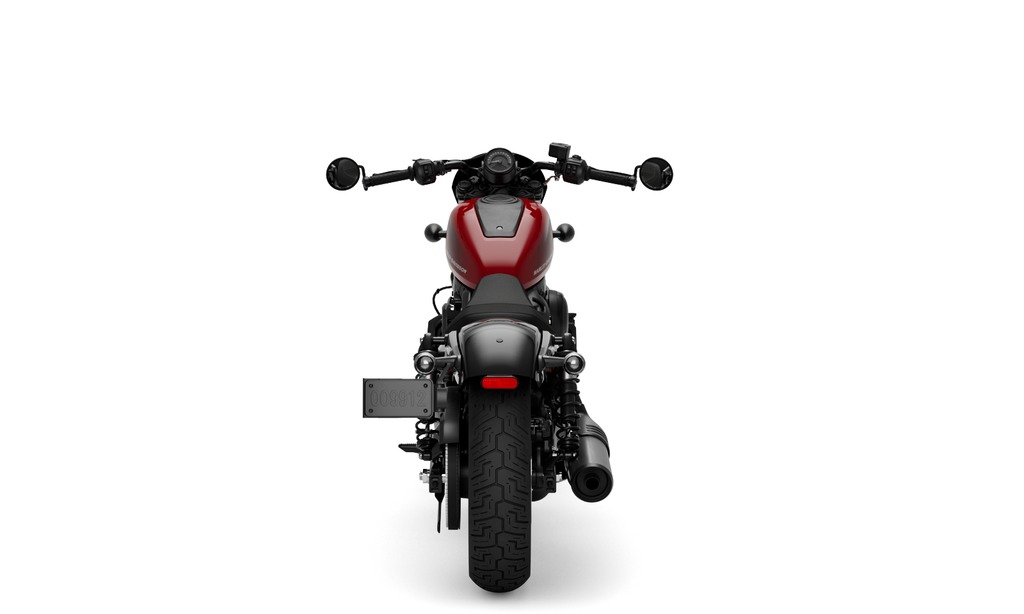

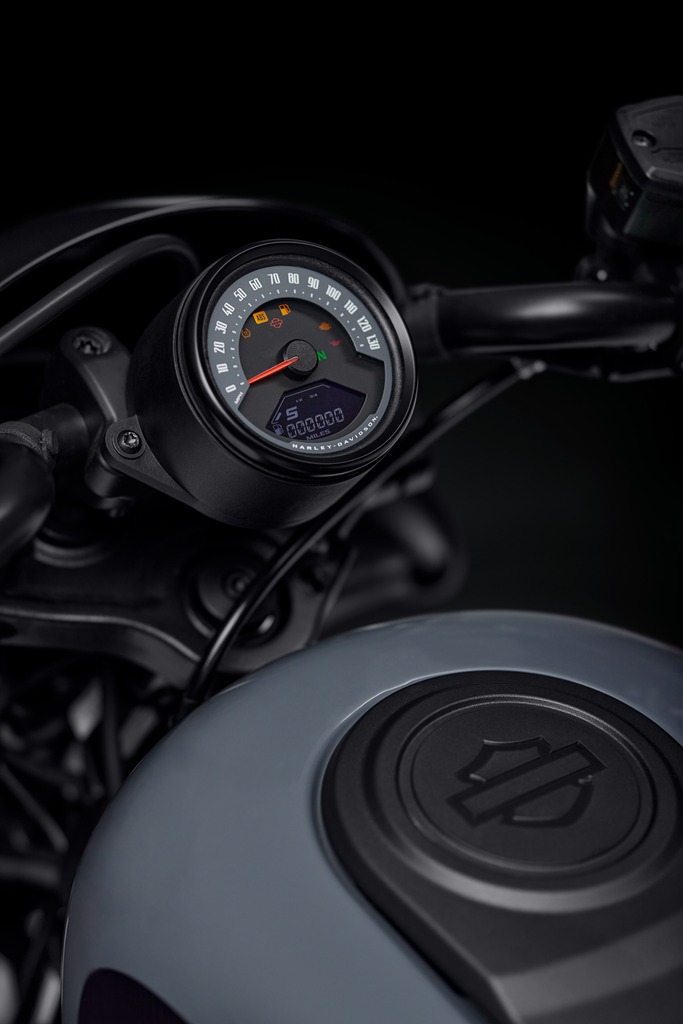

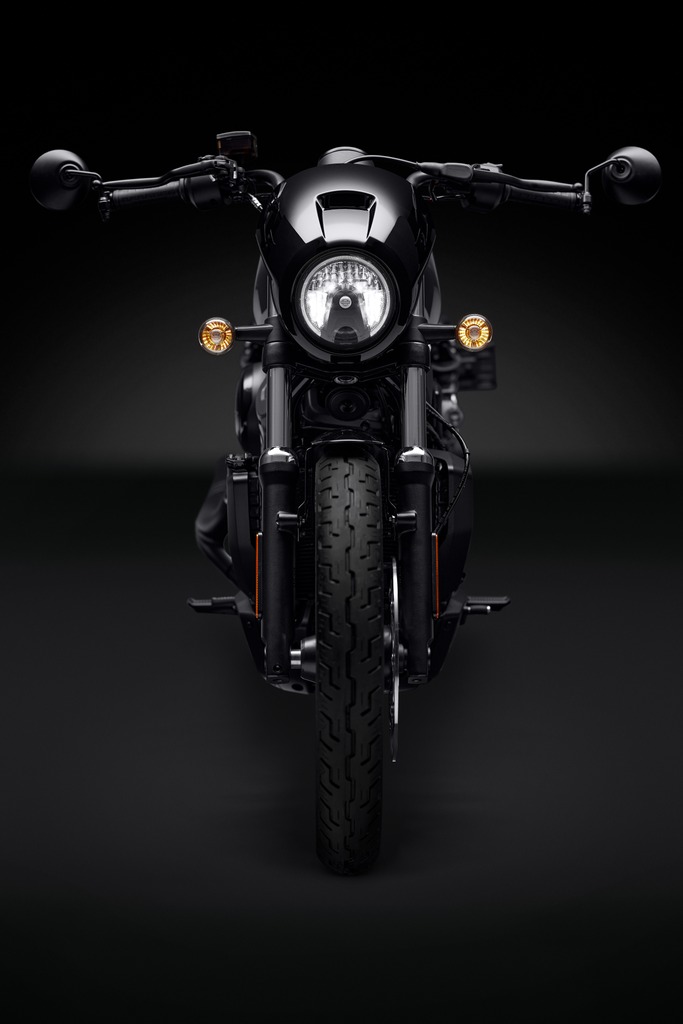

2022 Harley Davidson Nightster Photos
