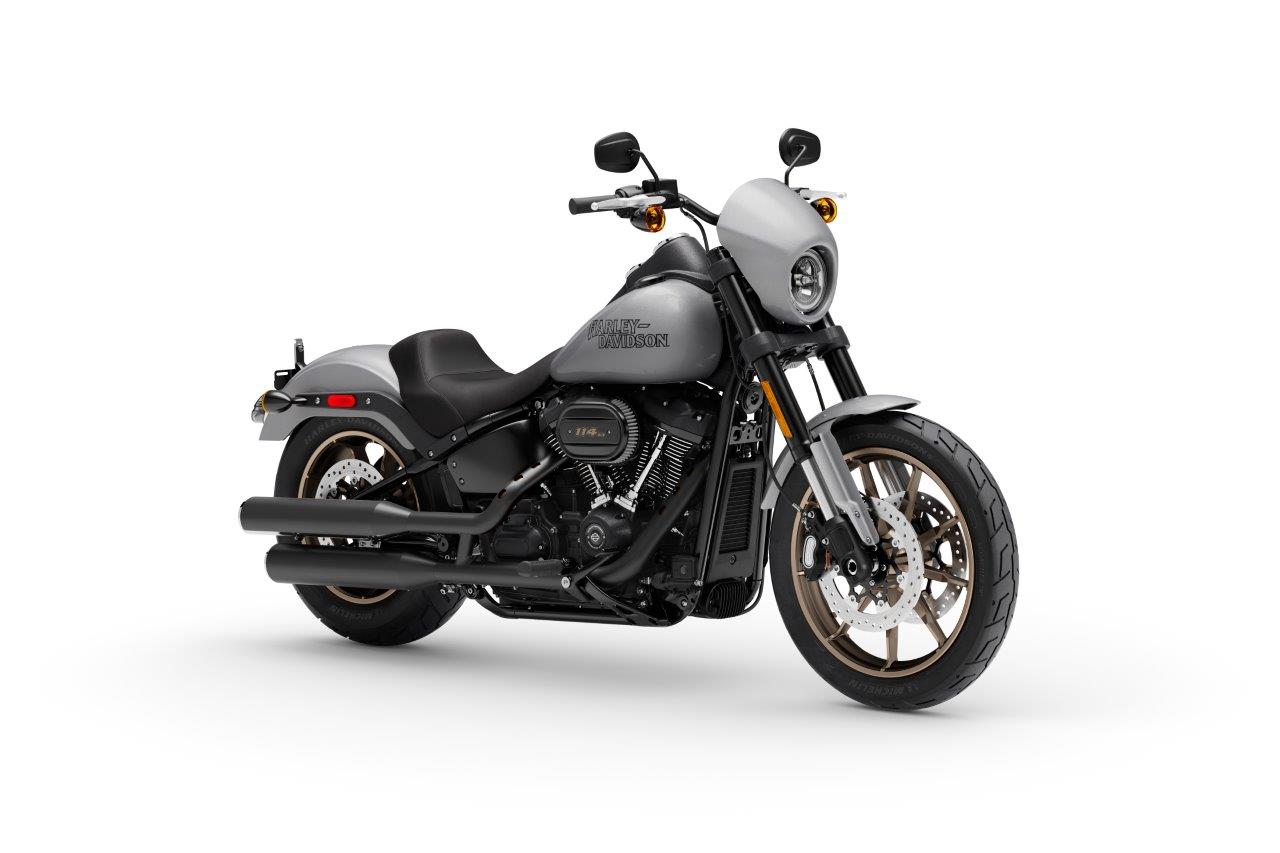

2020 Harley-Davidson Low Rider S

The 2020 Harley-Davidson Low Rider S utilizes the Softail design to make a performance cruiser that looks blacked out and fantastic. The Low Rider S features a small fly screen, slightly taller handlebars than some of the other Softail models, and the venerable Milwaukee-Eight 114 engine.

The Low Rider S’s engine is an air-cooled V-twin that has a displacement of 1,868cc. The engine is mated to a six-speed manual transmission and it makes 100 hp and 119 lb-ft of torque.

The Low Rider S is one of the most unique Softail designs in Harley’s lineup. The Softail design is complex but the Low Rider S brings something that only the Dyna Low Rider S, which is no longer in the lineup can bring. It’s a unique bike that should satisfy the folks who miss the Dyna line. The bike has a starting price of $17,999.

The motorcycle is available in two colors: Vivid Black and Barracuda Silver.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new Harley-Davidson Low Rider S in one place.

2020 Harley-Davidson Low Rider S


Model Overview

General Info

  • Price: $ 17,999
  • Key Features:
    • Classic Chrome
    • Milwaukee-Eight® Engine
    • LED Lighting

Key Specs

  • Engine type: 1,868cc, Milwaukee-Eight® 114, V-Twin
  • Engine Torque: 119 lb-ft
  • Wet weight: 650 lbs
  • Seat height: 26.5

Key Competitors

2020 Harley-Davidson Low Rider S


2020 Harley-Davidson Low Rider S Specifications

From Harley-Davidson

ENGINE

Engine 1,868, Milwaukee-Eight® 114, V-Twin
Engine Torque 119 lb-ft
Bore x Stroke 4.016 in x 4.5 in.
Compression Ratio 10.5:1
Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
Starter Electric
Lubrication

DRIVETRAIN

Clutch
Transmission 6-speed
Final Drive Gear, 34/46 ratio

CHASSIS

Suspension Front Dark bronze, Radiate cast aluminium wheel
Suspension Rear Dark bronze, Radiate cast aluminium wheel
Brakes Front 4-piston fixed front
Brakes Rear 2-piston floating rear
Tires Front 110/90B19,62H,BW
Tires Rear 180/70B16,77H,BW
Fuel Tank Capacity 18.9 L (5 US gal.)
Color Vivid Black and Barracuda Silver

ELECTRICAL

Ignition
Spark Plugs
Headlight LED
Tail Light LED

DIMENSIONS

Overall Length 92.7 in (2,355 mm)
Overall Width
Overall Height
Wheelbase 63.6 in (1,615 mm)
Ground Clearance 4.7 in (120 mm)
Seat Height 26.5 in (675 mm)
Curb Weight 650 lbs (294 kg)

WARRANTY

Warranty
Extension

2020 Harley-Davidson Low Rider S


2020 Harley-Davidson Low Rider S Features

Milwaukee-Eight 114 Engine

Loads of torque for blasting off from stoplights, hitting entrance ramps, and rolling on the passing power. Pure sound with a soul-satisfying rumble.

Reduced Rake

The Low Rider® S model frame rake is reduced to 28 degrees from the 30 degree rake of the standard Low Rider® model, resulting in more responsive handling.

Inverted Front Fork

Inverted design stiffens the front end for improved response to steering input, and the single-cartridge internal technology responds quickly to inputs and keeps the front wheel planted for improved braking and handling performance.

Softail® Frame

The frame retains the classic Softail® lines, but its lightweight design and stiffness translate to a responsive ride unlike anything you’ve felt before.

Mono-shock rear suspension

Easily adjustable mono-shock rear suspension allows for dynamic cornering capability, quicker acceleration, and braking while preserving the hardtail look.

Raw Dark Look

Blacked-out finishes, moto-style bars with 4-inch risers, and mini speed screen let everyone know that this machine wasn’t built for those who want to take the conventional route.

Raised Controls

The defining element of the tall-bike style. The 1-inch diameter motocross-style handlebar is mounted on 4-inch risers to put you in an aggressive riding position.

Cast-Aluminum Wheels

Radiate Cast-Aluminum Wheels are finished in a matte dark bronze to complete its raw dark look.

Dual Front Disc Brakes

Stronger braking performance with less lever effort than the single front disc brake on the standard Low Rider® model, and standard ABS (anti-lock braking system) for confident braking performance when conditions are less than ideal.

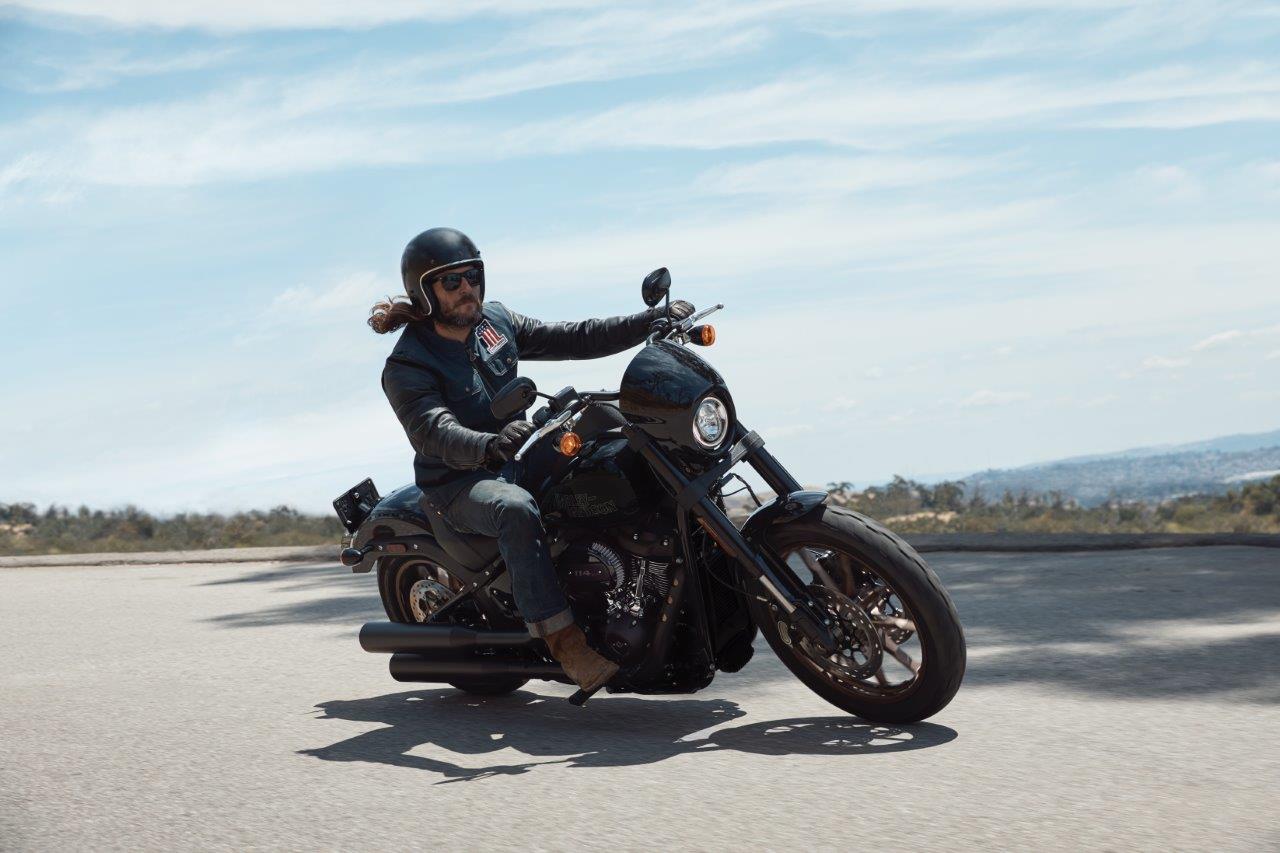

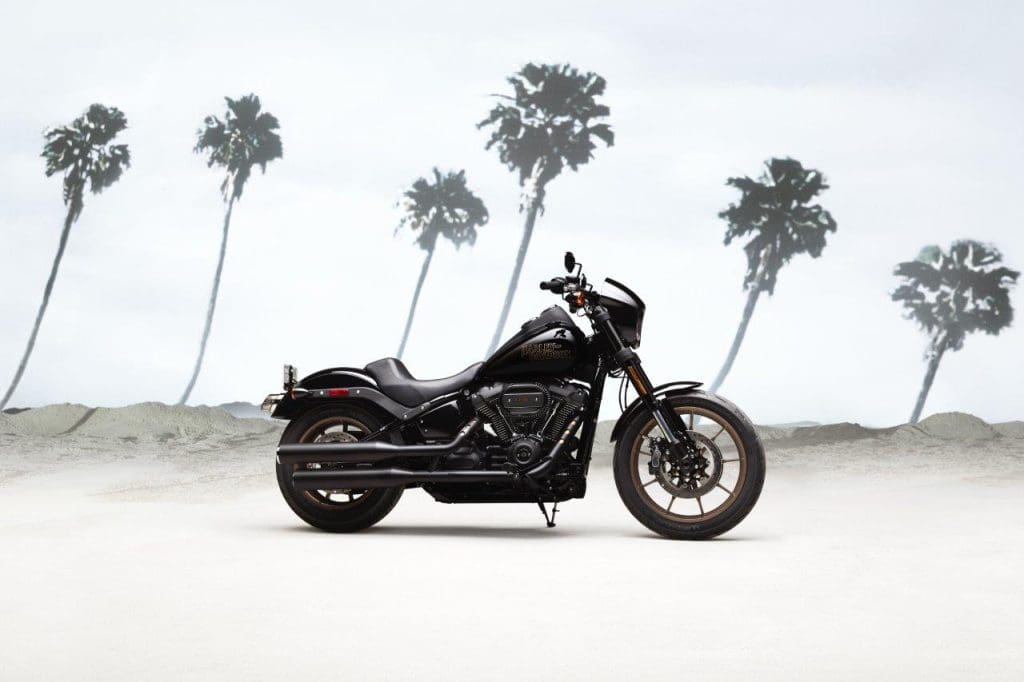

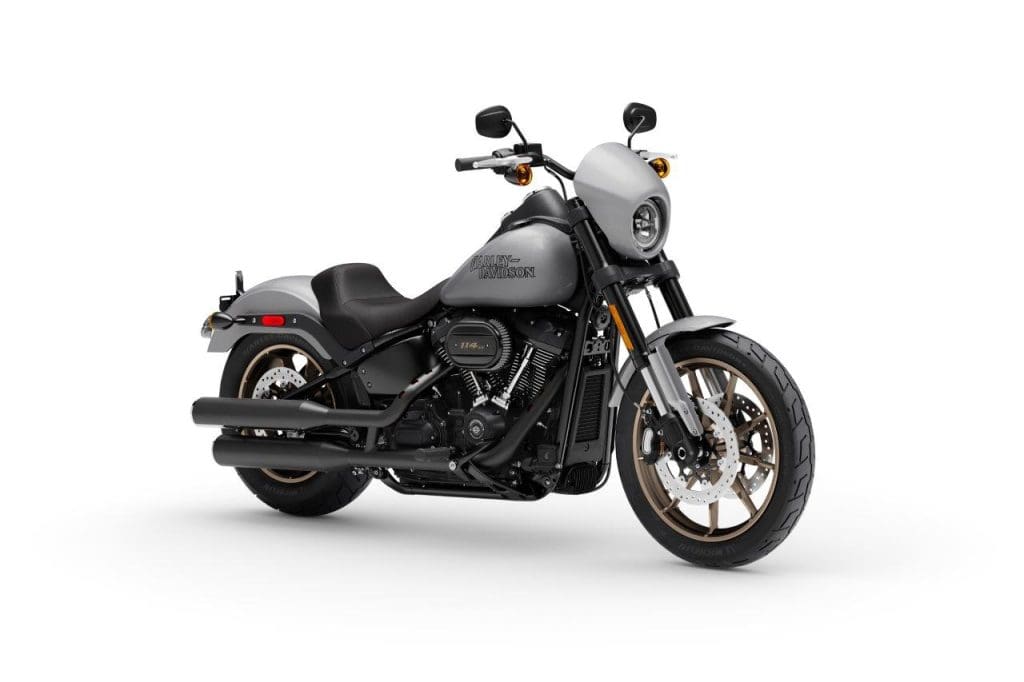

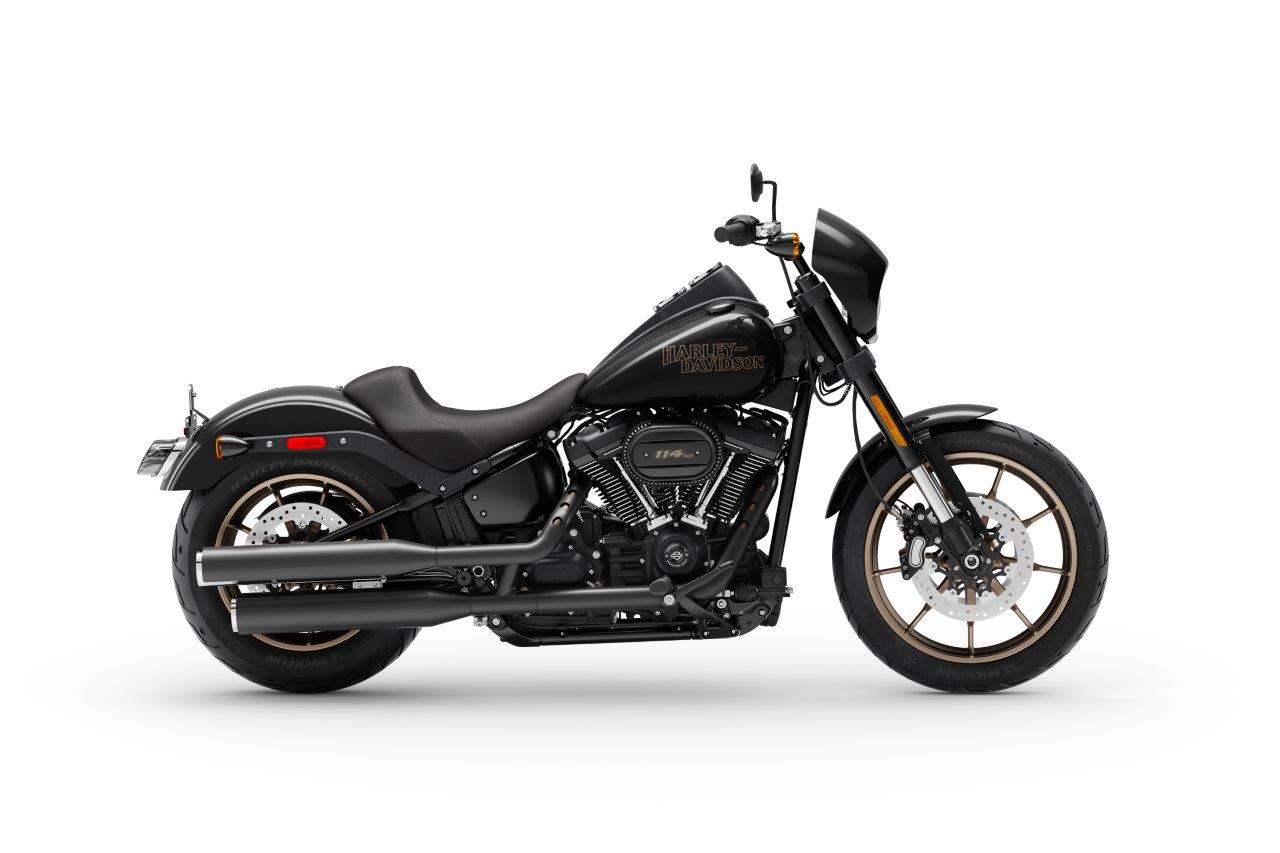

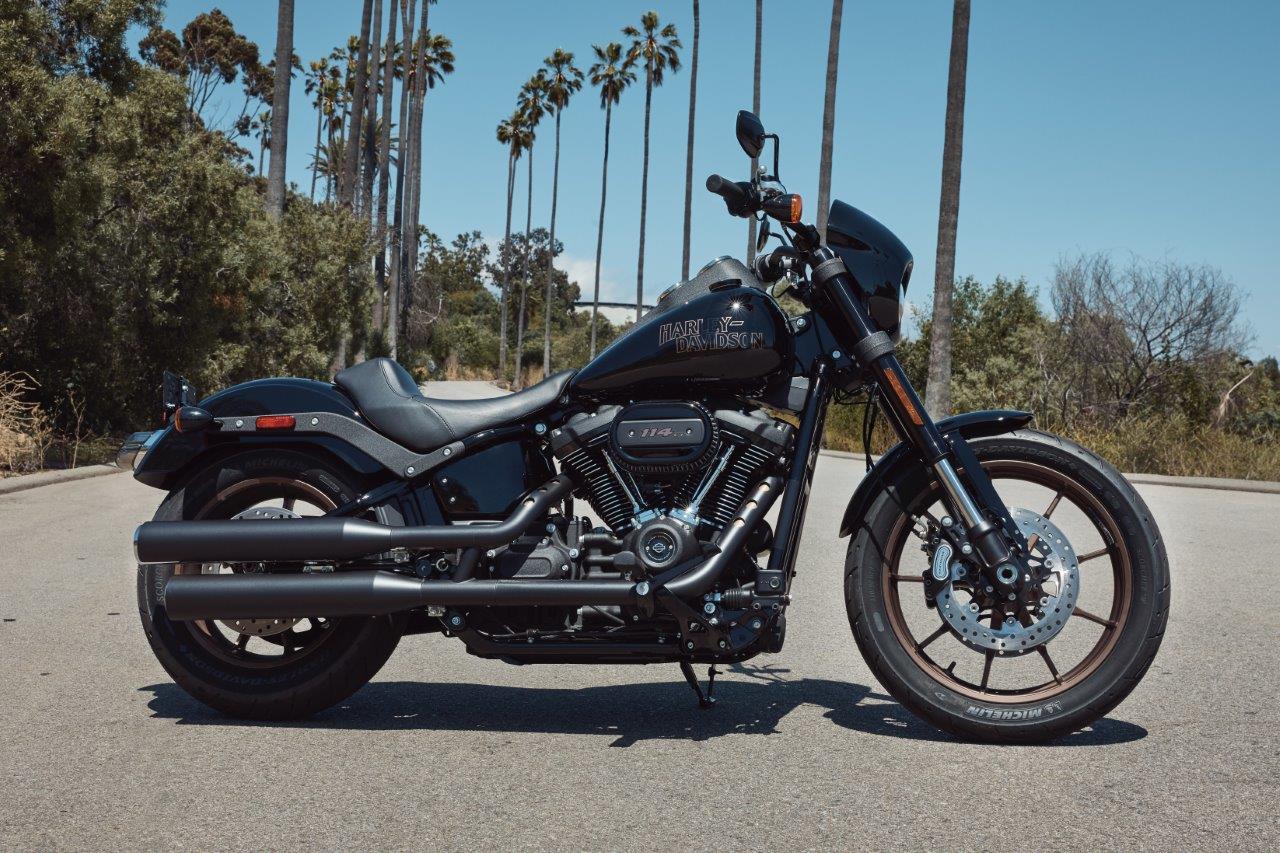

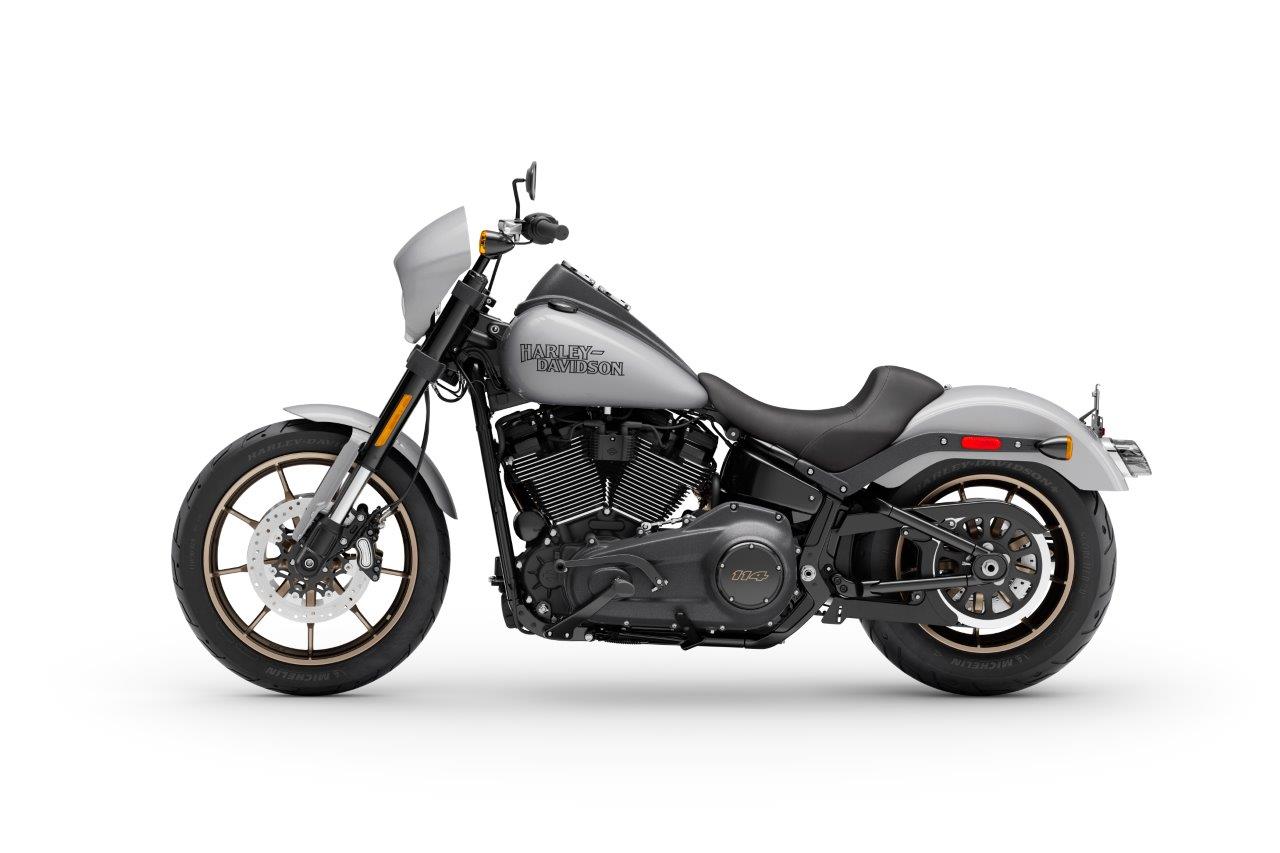

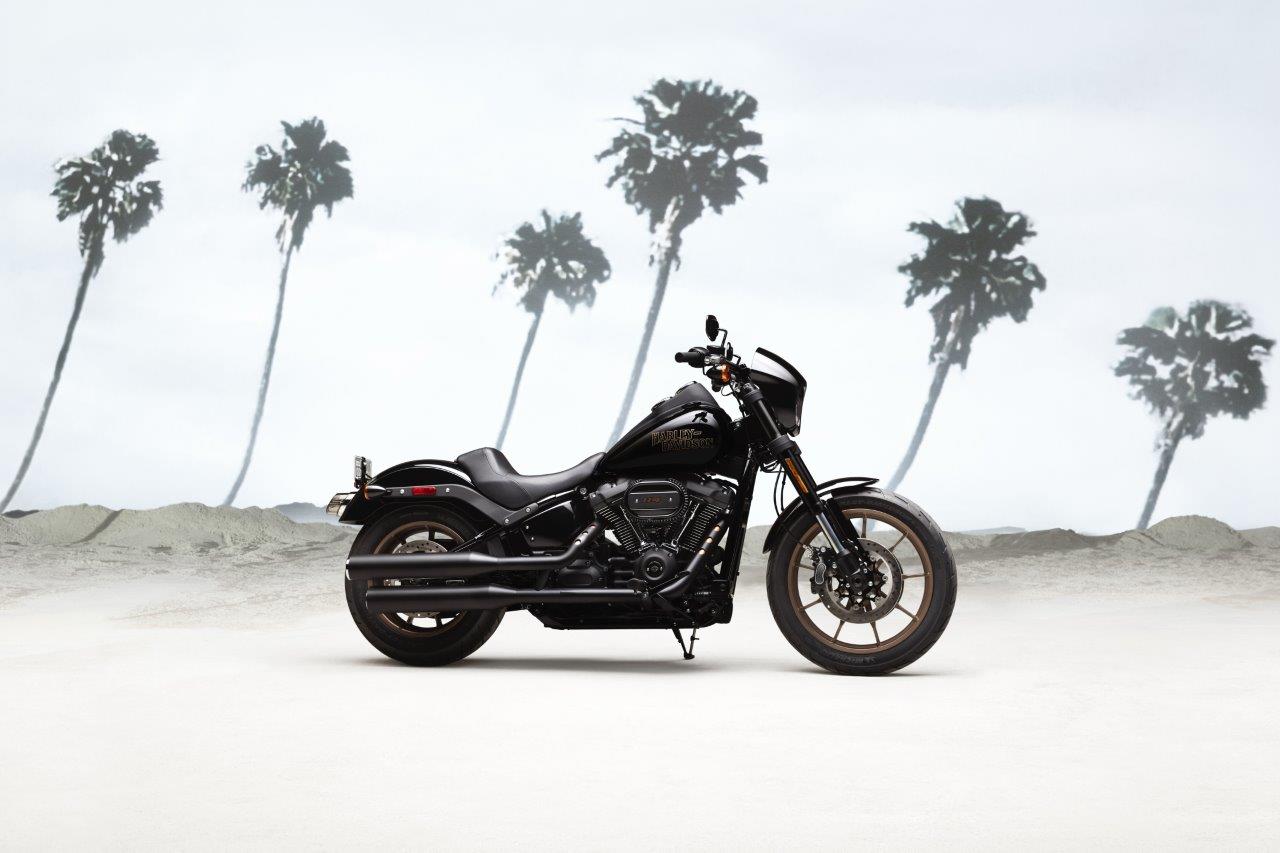

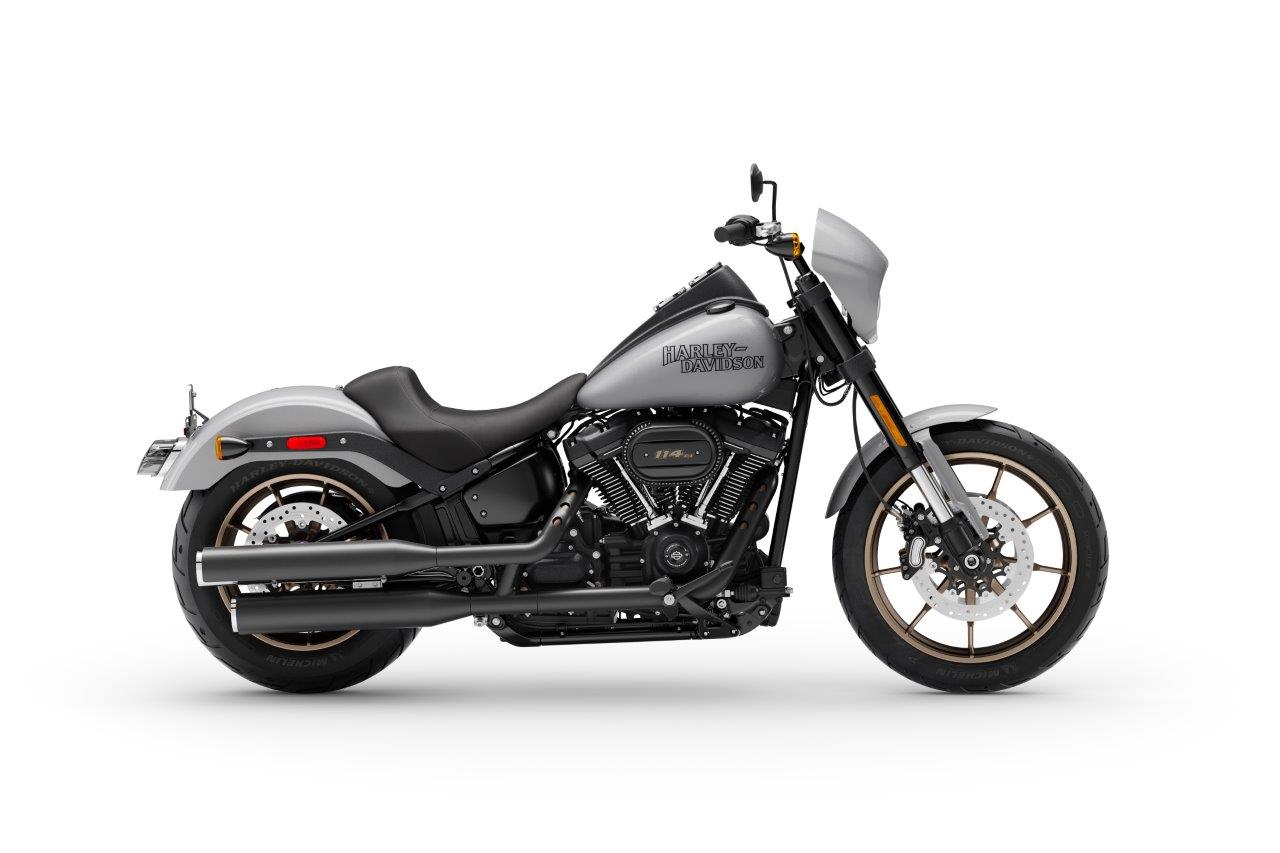

2020 Harley-Davidson Low Rider S Photos
