2020 Harley-Davidson Freewheeler [Model Overview]

2020 Harley-Davidson Freewheeler

2020 Harley-Davidson Freewheeler

The 2020 Harley-Davidson Freewheeler is the company’s lowest tier three-wheeler. The bike is a highway-ready machine that can be piloted around town easily, too. The bike is large, comfortable, and ready tour.

The Freewheeler has the Milwaukee-Eight 114 engine. It’s an air-cooled V-twin that has a displacement of 1,868cc. The 114 engine is mated to a six-speed manual transmission and it makes 122 lb-ft of torque.

The Freewheeler is the kind of bike you get if you love the Harley-Davidson brand but can’t handle the weight of the brand’s touring machines. It’s perfect for the rider who has joint pain or some other condition that would otherwise keep them off the bike. That privilege comes with a price tag only slightly higher than the two-wheel machines. The company has a price tag of $27,999 on it.

The motorcycle is available in a few different colors, including Vivid Black, Barracuda Silver Denim, Performance Orange, and Stiletto Red.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new Harley-Davidson Freewheeler in one place.

2020 Harley-Davidson Freewheeler


Model Overview

General Info

  • Price: $ 27,999
  • Key Features:
    • Low Seat Height
    • Softail® Frame
    • LED Lighting

Key Specs

  • Engine type: 1,868cc, Milwaukee-Eight® 107
  • Torque: 122 ft-lb
  • Wet weight: 1085 lbs
  • Seat height: 26.12 Inch

2020 Harley-Davidson Freewheeler


2020 Harley-Davidson Freewheeler Specifications

From Harley-Davidson

ENGINE

Engine 1,868cc, Milwaukee-Eight® 114
Engine Torque 122 ft-lb
Bore x Stroke 4.016 in x 4.5 in
Compression Ratio 10.5:1
Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
Starter Electric
Lubrication

DRIVETRAIN

Clutch
Transmission 6-speed
Final Drive Chain, 34/46 ratio

CHASSIS

Suspension Front Enforcer Cast Aluminum
Suspension Rear Enforcer Cast Aluminum
Brakes Front 32mm 4 piston fixed
Brakes Rear 36mm piston integrated park brake
Tires Front MT 130/60B19 M/C 61H
Tires Rear P205/65R15
Fuel Tank Capacity 22.71 L (6 US gal.)
Color Vivid Black, Barracuda Silver Denim, Performance Orange, and Stiletto Red

ELECTRICAL

Ignition
Spark Plugs
Headlight LED
Tail Light LED

DIMENSIONS

Overall Length 103 in (2,615 mm)
Overall Width
Overall Height
Wheelbase 65.7 in (1,670 mm)
Ground Clearance 4.9 in (125 mm)
Seat Height 26.2 in (665 mm)
Curb Weight 1085 lbs (492 kg)

WARRANTY

Warranty
Extension

2020 Harley-Davidson Freewheeler


2020 Harley-Davidson Freewheeler Features

Twin-Cooled™ Milwaukee-Eight® 114 Engine

The most displacement in standard H-D® Touring models. You get 114 cubic inches of passing and horizon-chasing power.

Reflex™ Defensive Rider Systems (RDRS)

A new collection of technologies that help give you confidence and control in less-than-ideal situations. The systems utilize advanced chassis control, electronic brake control and powertrain technology to assist you with accelerating and braking in a straight line or while in a turn.

Reflex™ Linked Brembo® Brakes with Standard ABS

Designed to help prevent the wheels from locking under braking to assist the rider in maintaining control when braking in a straight-line. ABS operates independently on front and rear brakes to keep the wheels rolling and help prevent uncontrolled wheel lock in urgent situations.

High Performance Suspension

Premium Harley-Davidson touring suspension technology is calibrated specifically for Trike models, delivering a smooth and responsive ride.

12″ Mini-Ape Hanger Bars

The 12-inch Mini-Ape hanger bars on the Freewheeler® model are the tallest rise you can get from an OE manufacturer. They pull the hand controls back toward the rider, and reduce the force it takes to turn the front wheel for easy riding and easy handling.

Bobtail Rear Fenders

The pair of Harley-Davidson® bobtail rear fenders give the bike classic cruiser lines and styling details.

Chrome Slash Cut Mufflers

The Milwaukee-Eight® 114 engine puts its exhaust note out to the world through these chrome slash down pipes.

Enforcer Cast Aluminum Wheels

There’s an Enforcer front wheel leading the way, and you’ve got two more to match in the back. Up front, the brake rotors have been redesigned to show off more of the premium custom look of the wheels.

7-Piece Nacelle

A classic style chrome headlight nacelle is tucked tight against the frame and forks for a tighter, smaller look. It also accommodates a clean-looking windshield mounting system.

Unique Trunk System

It’s a one-of-a-kind design that opens left to right (with one hand) and extends the entire length of the body for a clean look. Enough cargo space to easily accommodate two full-face helmets.

Steering Head and Front Forks

The responsiveness is dialed in with a stiff front end and 49mm front forks, plus a steering damper that controls feedback from the road.

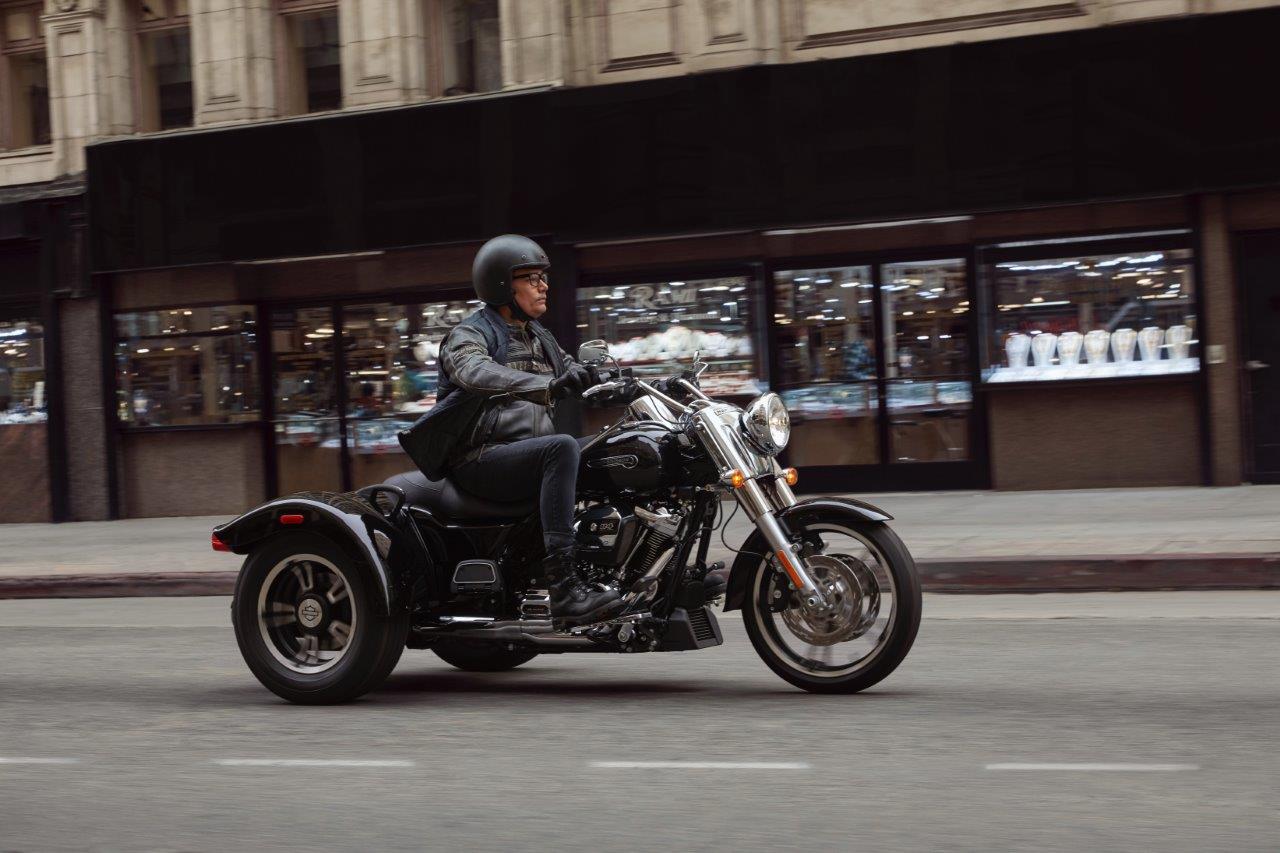

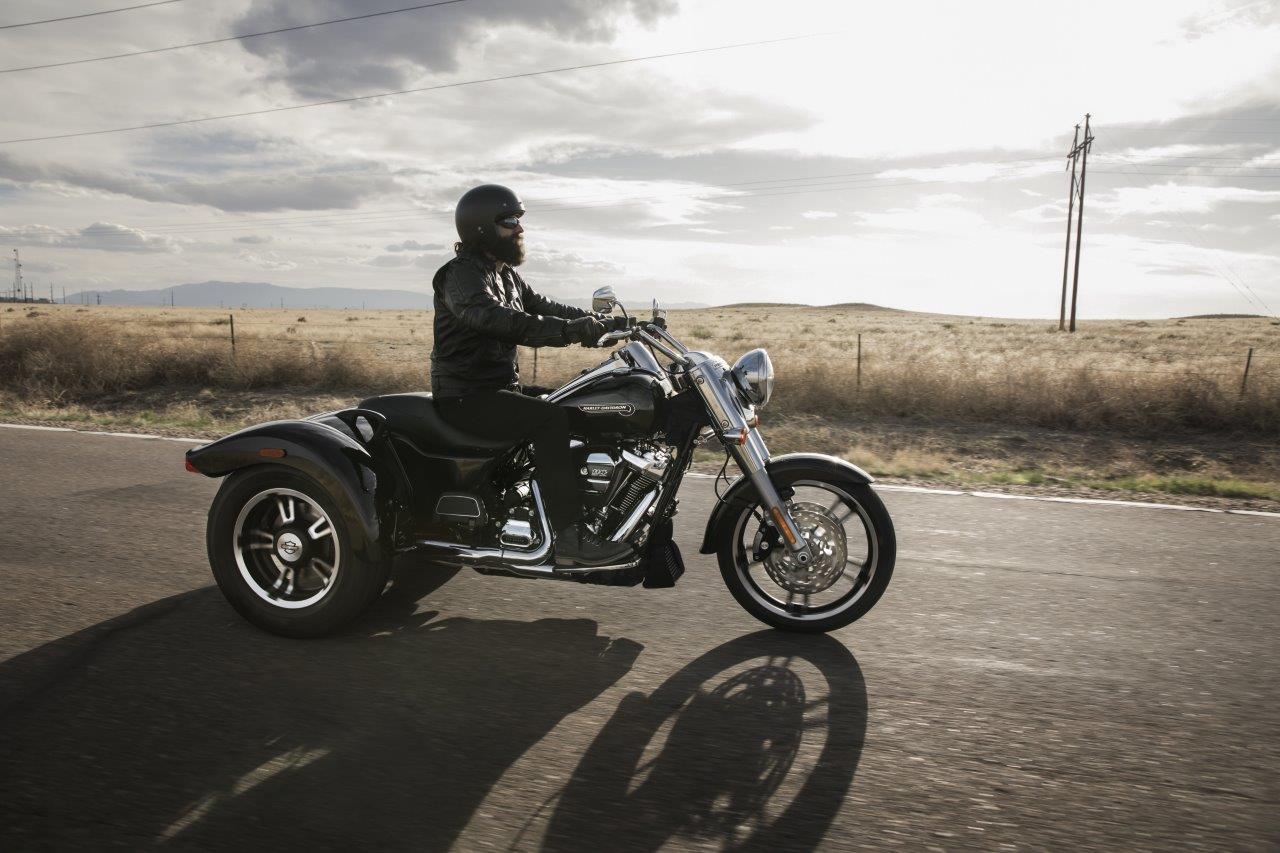

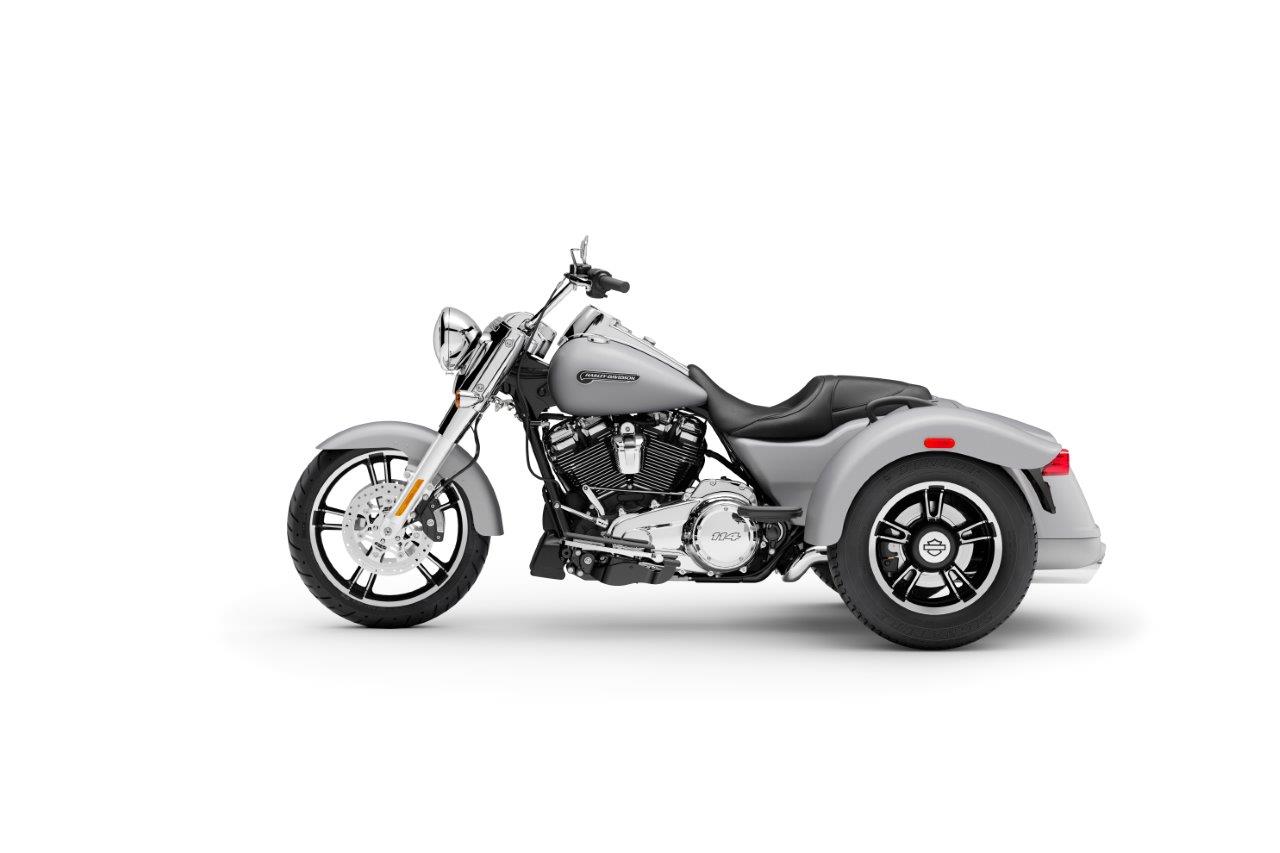

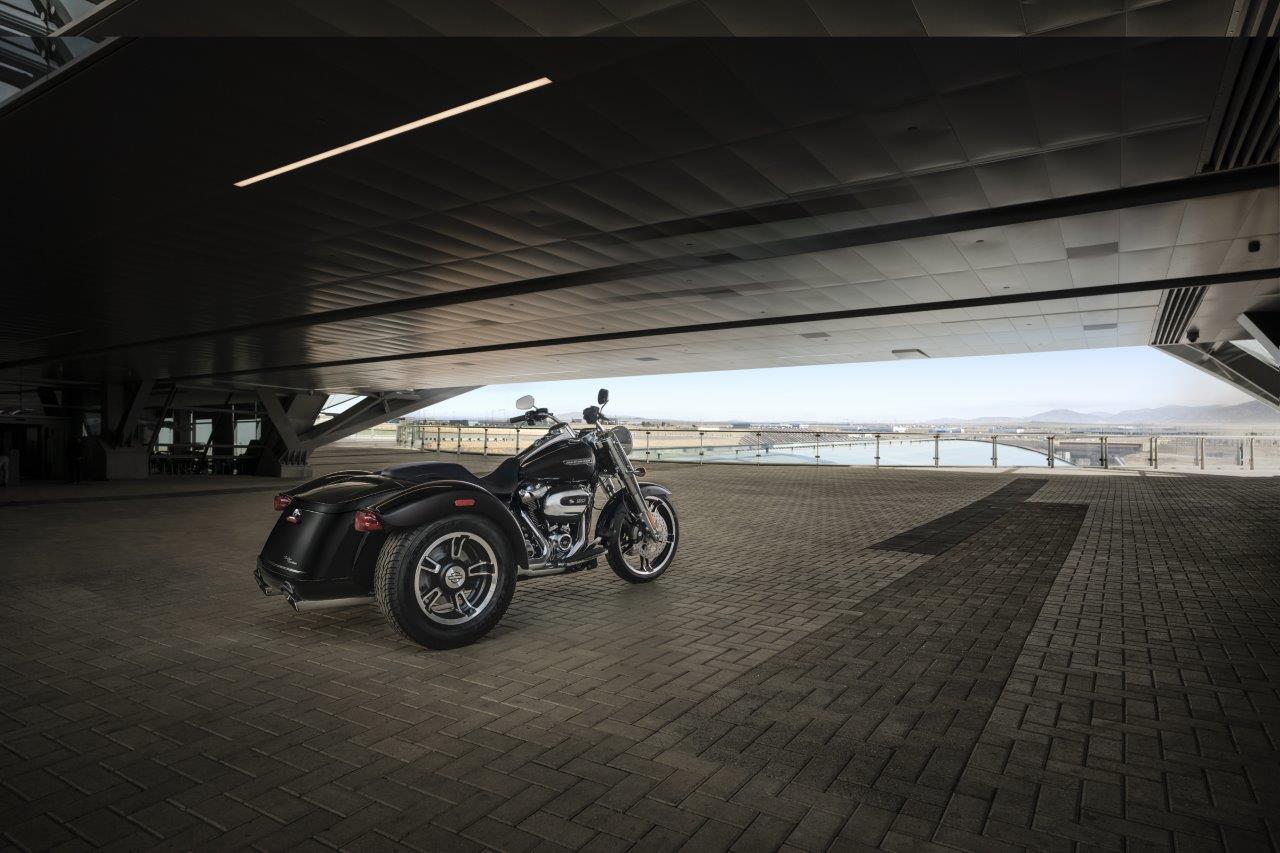

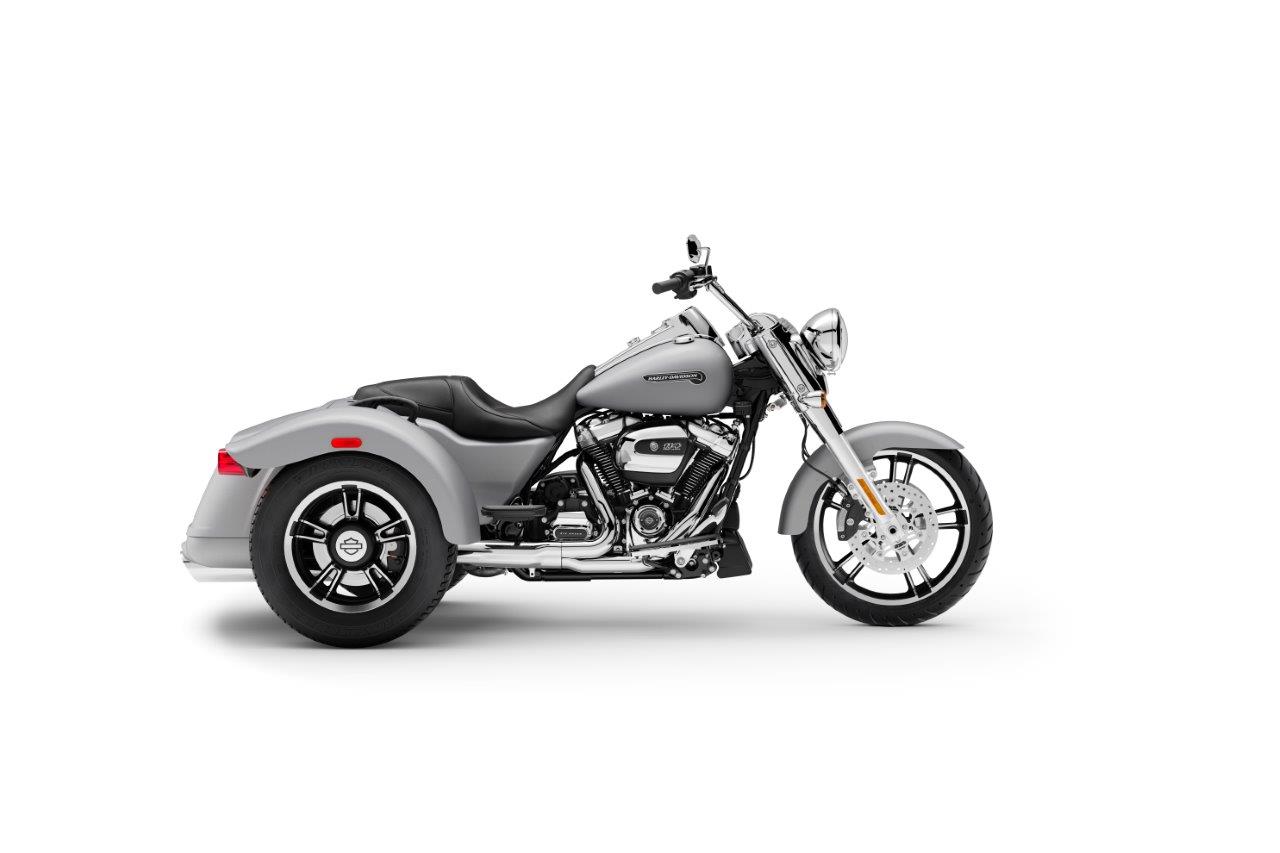

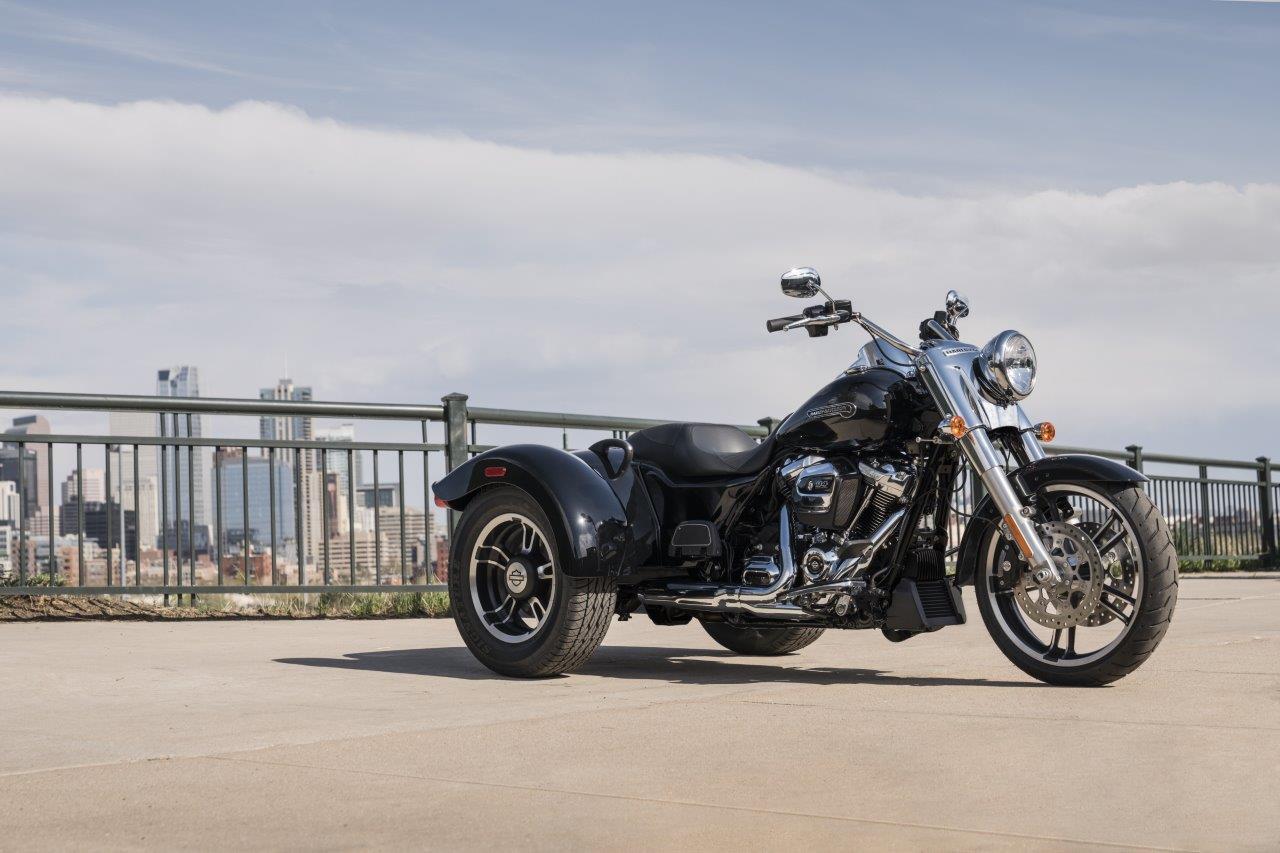

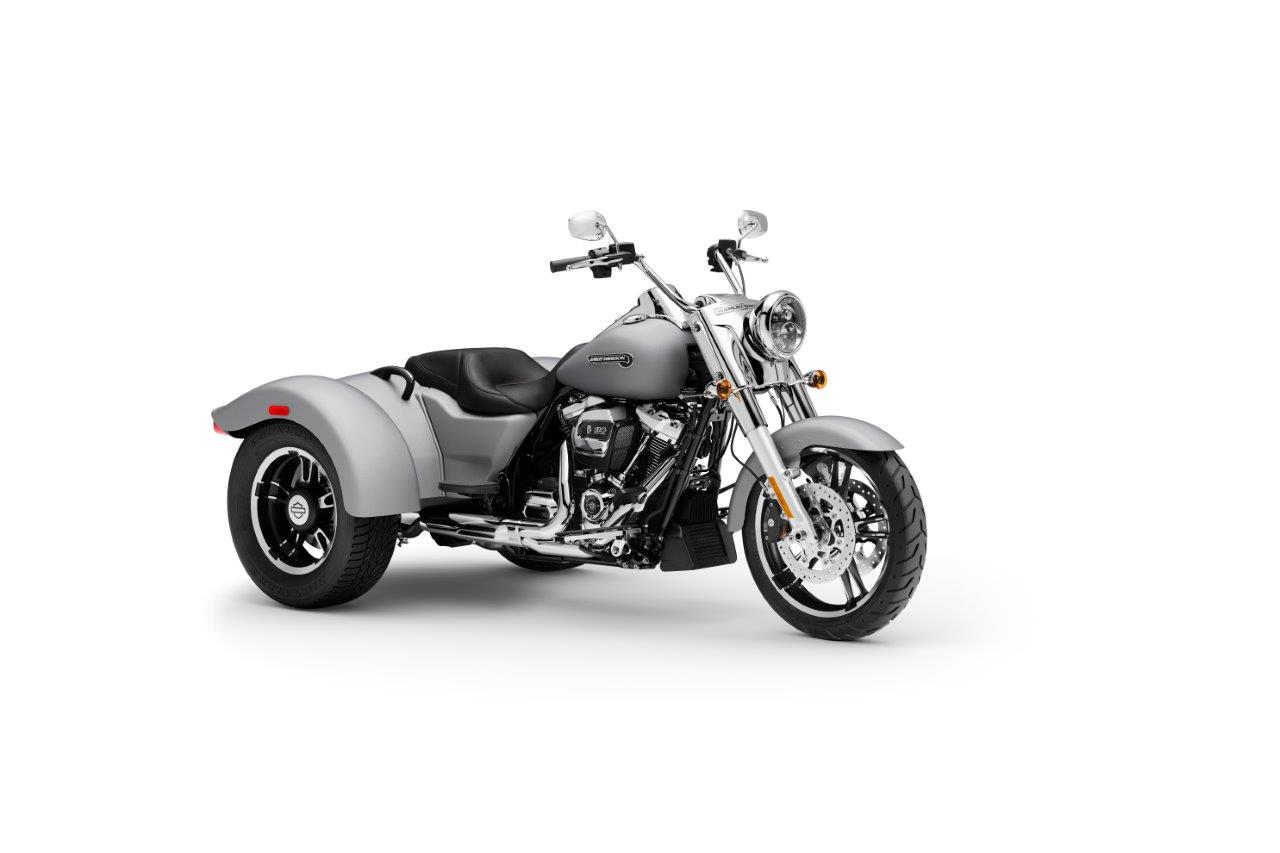

2020 Harley-Davidson Freewheeler Photos
