2020 Harley-Davidson Forty-Eight

The 2020 Harley-Davidson Forty-Eight is one of the lower-level Sportsters. It’s a sportier motorcycle with a strong engine and a unique, stripped-down styling. The bike is a step up from the Iron 883.

The Forty-Eight gets a good looking V-twin engine with a displacement of 1,200cc. The V-twin is air-cooled and sounds like the classic Harley you expect. The engine is mated to a five-speed manual transmission. The engine makes 60 hp and 73 lb-ft of torque.

The Forty-Eight offers a lot of what the Iron 883 does but also offers a bigger engine for only a little bit more money. It’s not the most powerful motorcycle out there, but it offers beautiful styling and commendable handling. The bike has a starting price of $11,299.

The motorcycle is available in several colors: Vivid Black, River Rock Gray Denim, Stone Washed White Pearl, Performance Orange, and Stiletto Red.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new Harley-Davidson Forty-Eight in one place.

2020 Harley-Davidson Forty-Eight


Model Overview

General Info

  • Price: $ 11,299
  • Key Features:
    • Fat Front Wheel
    • Foundation Brake System
    • LED Lighting

Key Specs

  • Engine type: 1,200cc, Air-cooled, Evolution, V-Twin
  • Engine Torque: 73 lb-ft
  • Wet weight: 545 lbs
  • Seat height: 26.2

Key Competitors

2020 Harley-Davidson Forty-Eight


2020 Harley-Davidson Forty-Eight Specifications

From Harley-Davidson

ENGINE

Engine 1,200cc, Air-cooled, Evolution, V-Twin
Engine Torque 73 lb-ft
Bore x Stroke 3.5 in x 3.8 in
Compression Ratio 10:1
Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
Starter Electric
Lubrication

DRIVETRAIN

Clutch
Transmission 5-speed
Final Drive Chain, 38/57 ratio

CHASSIS

Suspension Front Black, Split 9-Spoke Cast Aluminum w/ Machined Highlights
Suspension Rear Black, Split 9-Spoke Cast Aluminum w/ Machined Highlights
Brakes Front Dual-piston front
Brakes Rear Dual-piston rear
Tires Front 130/90B16 73H
Tires Rear 150/80B16 77H
Fuel Tank Capacity 7.94 L (2.1 US gal.)
Color Vivid Black, River Rock Gray Denim, Stone Washed White Pearl, Performance Orange, and Stiletto Red

ELECTRICAL

Ignition
Spark Plugs
Headlight LED
Tail Light LED

DIMENSIONS

Overall Length 85.2 in (2,165mm)
Overall Width
Overall Height
Wheelbase 58.9 in (1,495mm)
Ground Clearance 4.3 in (110 mm)
Seat Height 26.2 in (665 mm)
Curb Weight 545 lbs (247 kg)

WARRANTY

Warranty
Extension

2020 Harley-Davidson Forty-Eight


2020 Harley-Davidson Forty-Eight Features

1200 cc Air-Cooled Evolution® Engine

An iconic V-Twin engine that is renowned for its massive low-end torque and soul-satisfying sound. Lightweight aluminum heads and cylinders improve air-cooling efficiency.

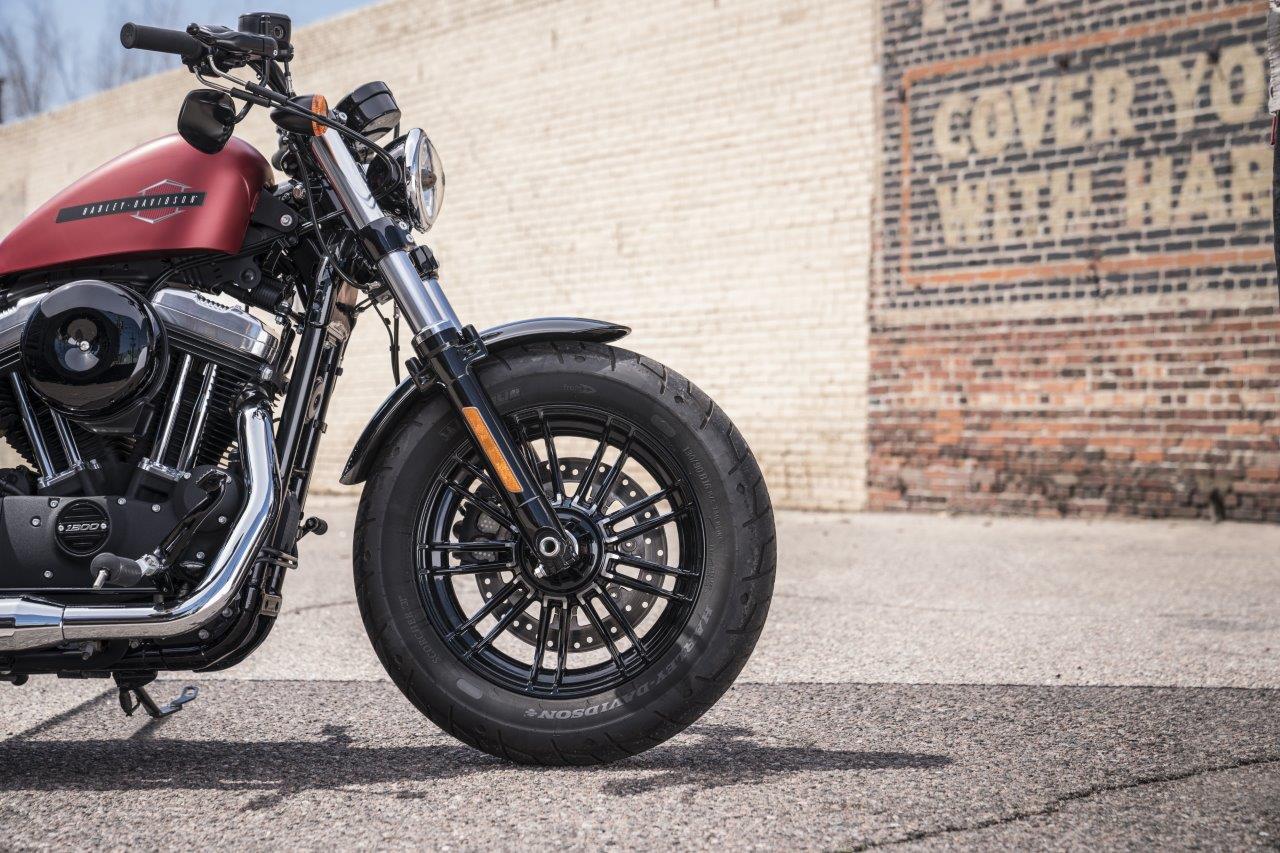

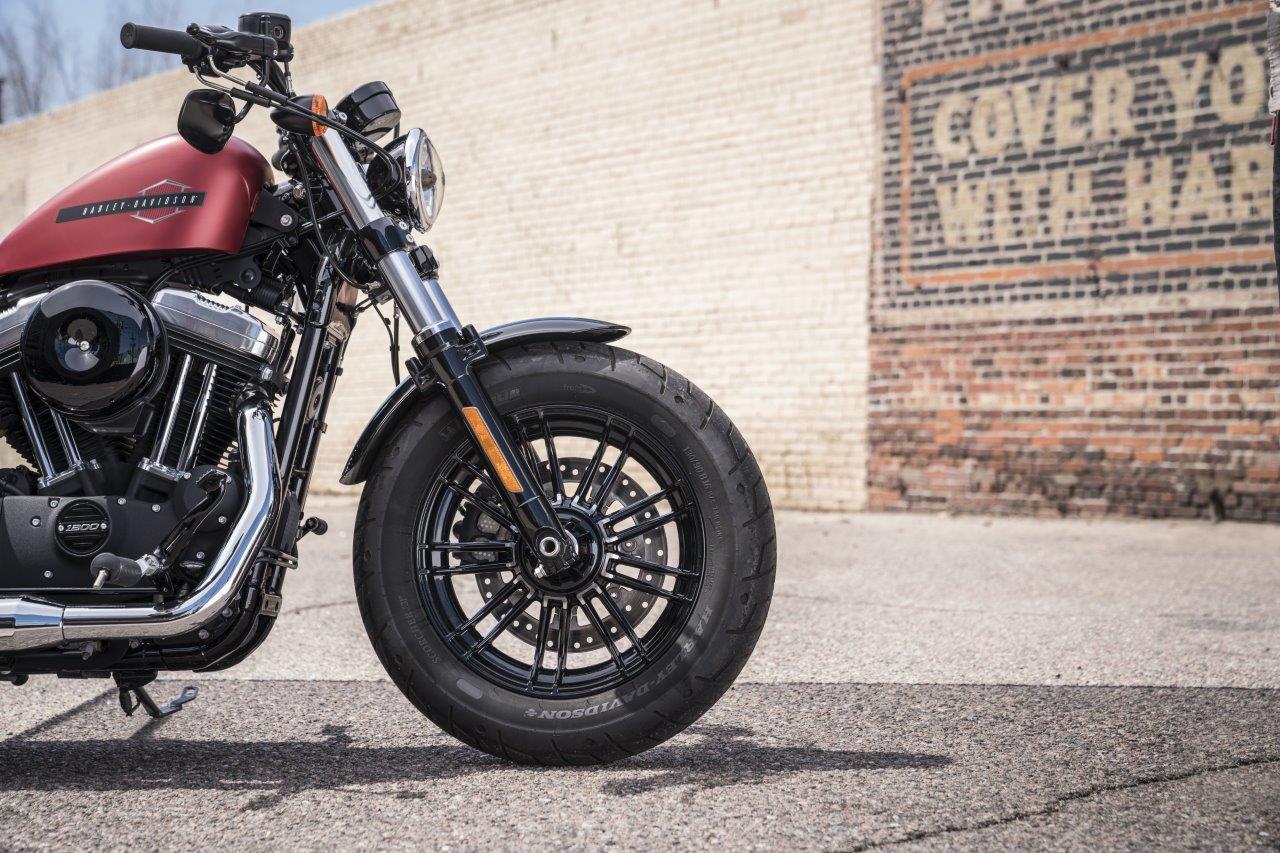

Fat Front Wheel

Custom rubber reminiscent of the lead-sled culture. You get a beefy front end with a tall, fat MT90 tire that gives the bike a dominating presence up front and provides a smooth ride and solid handling.

49mm Fork with Cartridge Dampening

The brawny 49mm front fork is accentuated by massive triple clamps and fork brace. We’ve also added cartridge damping technology to keep the handling crisp and confident, no matter how rough or winding the road ahead.

Emulsion Rear Shock with Screw Adjuster

Features an Emulsion rear shock with a screw pre-load adjuster that soaks up every bump the street throws your way, and easily adjusts to fit your riding style.

Split 9-Spoke Cast Aluminum Wheels

A set of black hardcore rims with added machined highlights to set off the design. They’re built of lightweight cast aluminium, so even with the plentitude of fat black rubber rolling underneath the ride feels light and nimble.

Foundation Brake System

An innovative, high-performing system that gives riders more confidence on the road and more power and predictability when you squeeze the brakes.

Iconic 2.1 Gallon Fuel Tank

A classic peanut fuel tank design that adds to the machine’s low, powerful bulldog look, showing off the solid mass of the engine and the rawboned style of the lean Sportster® frame.

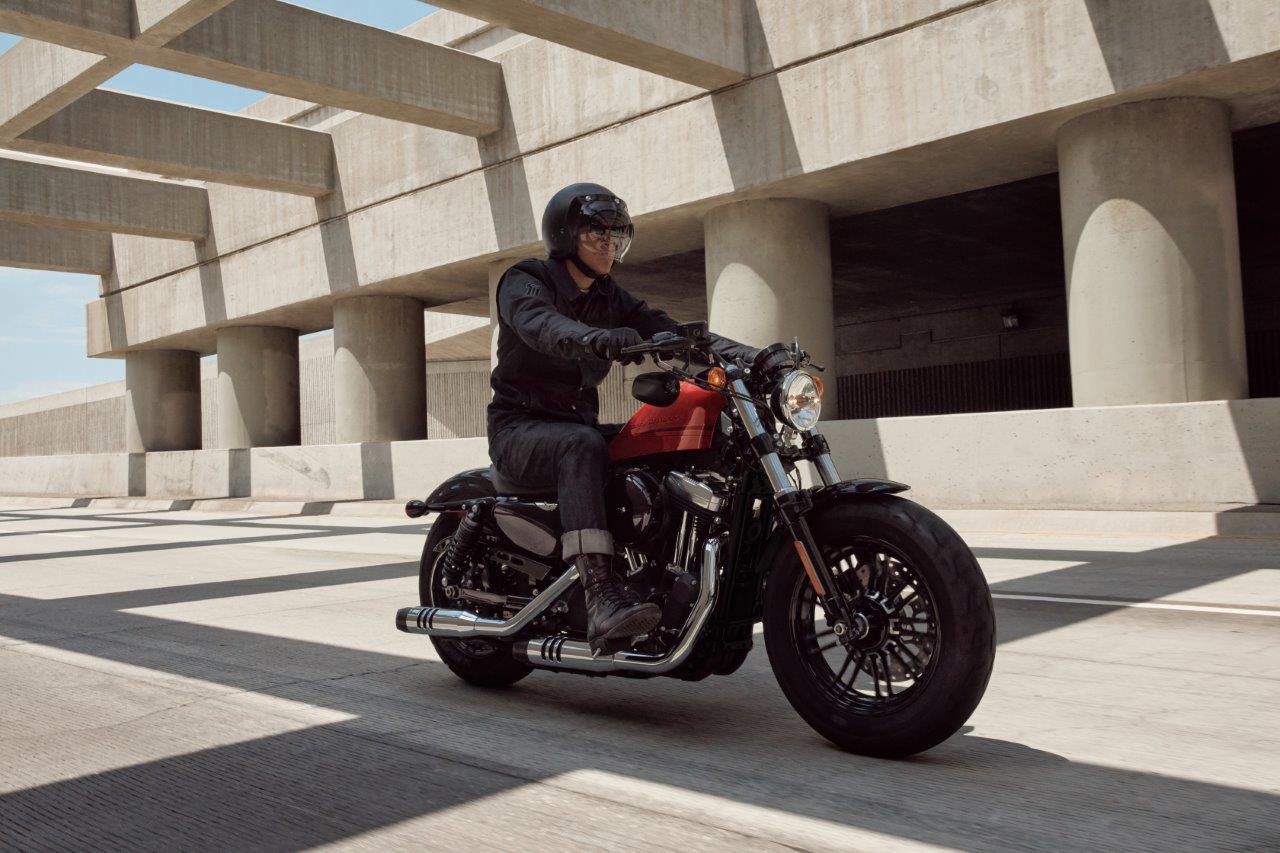

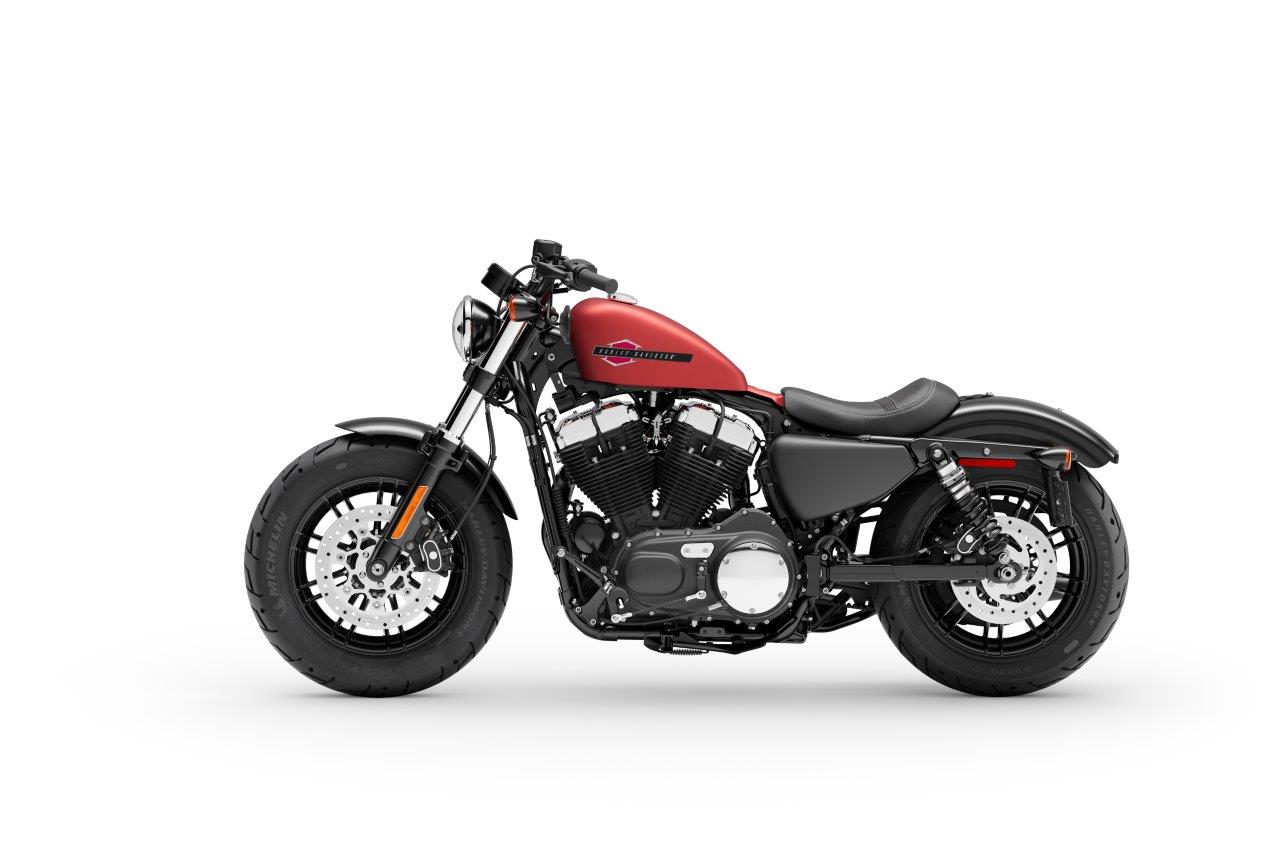

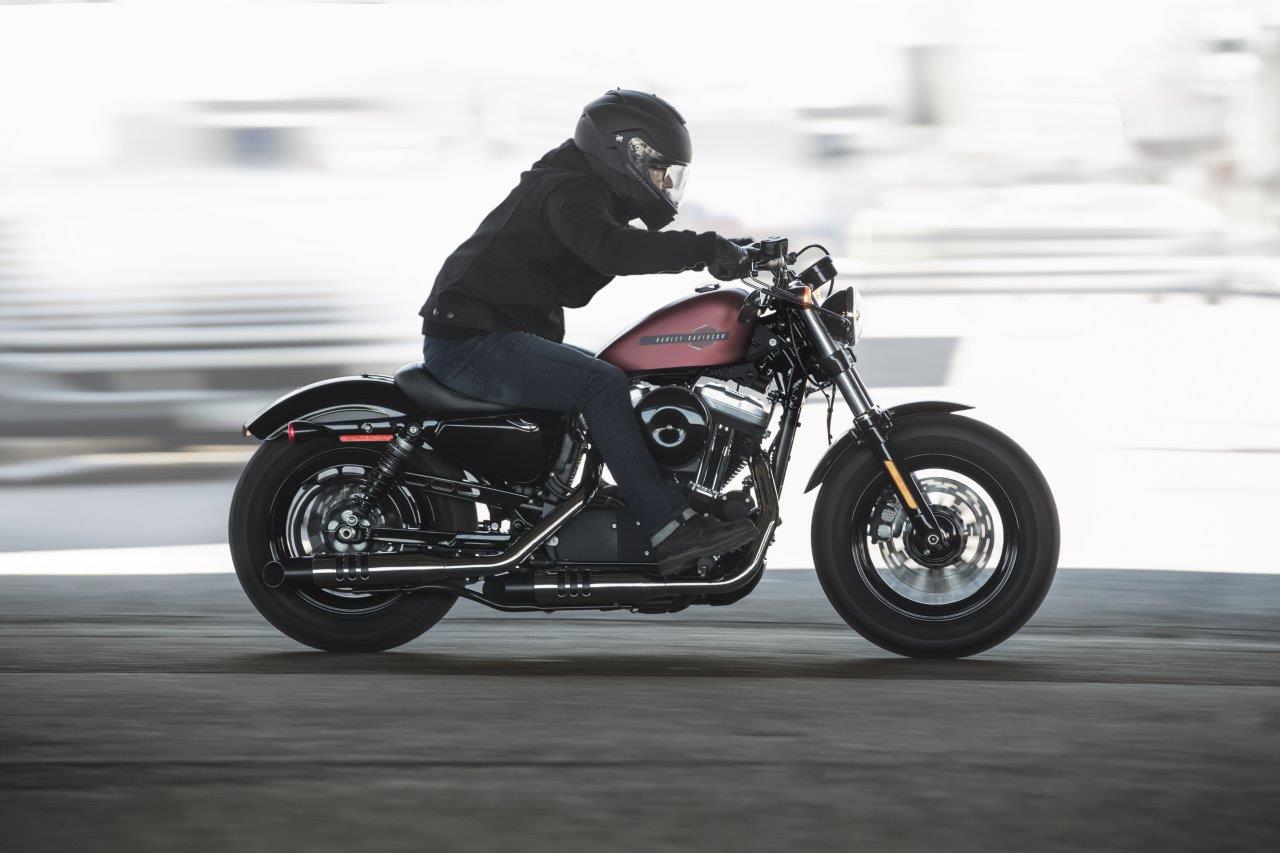

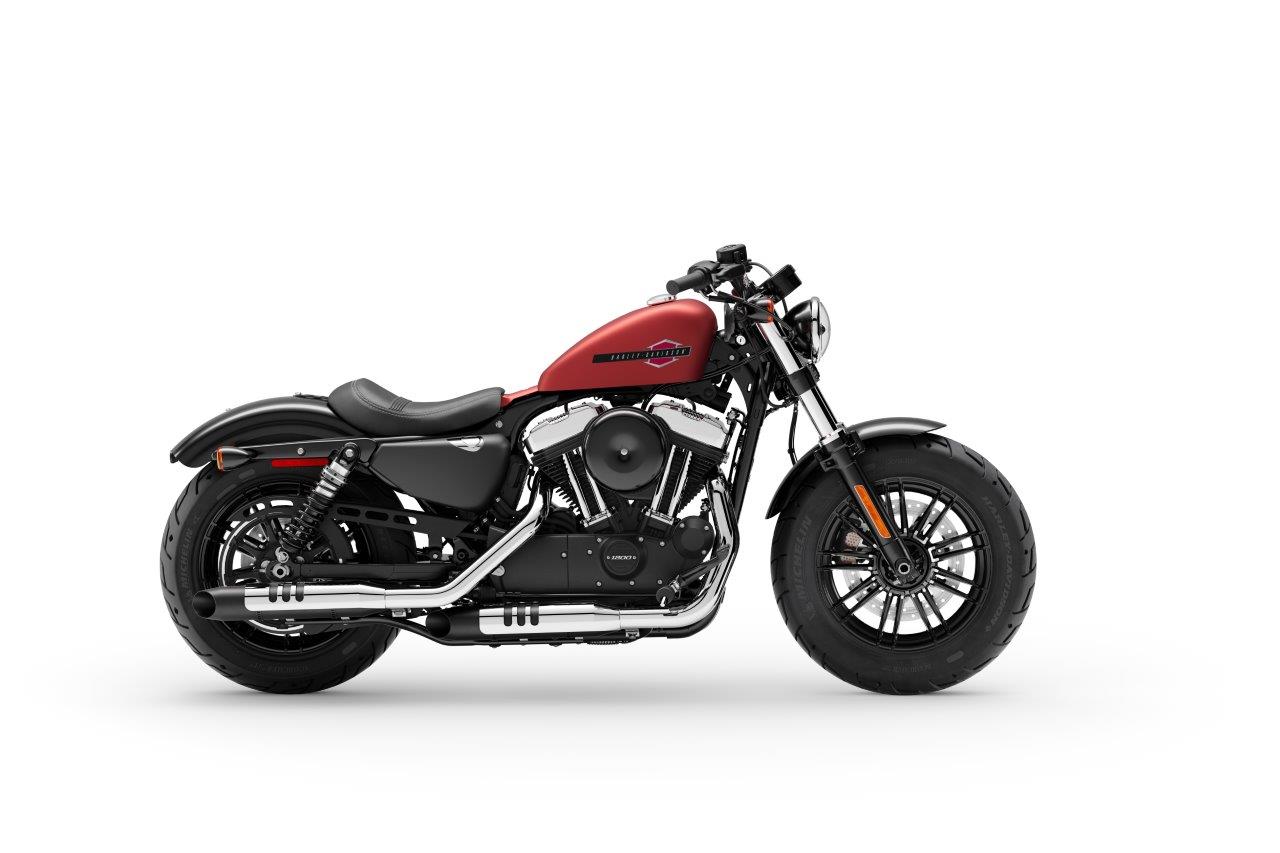

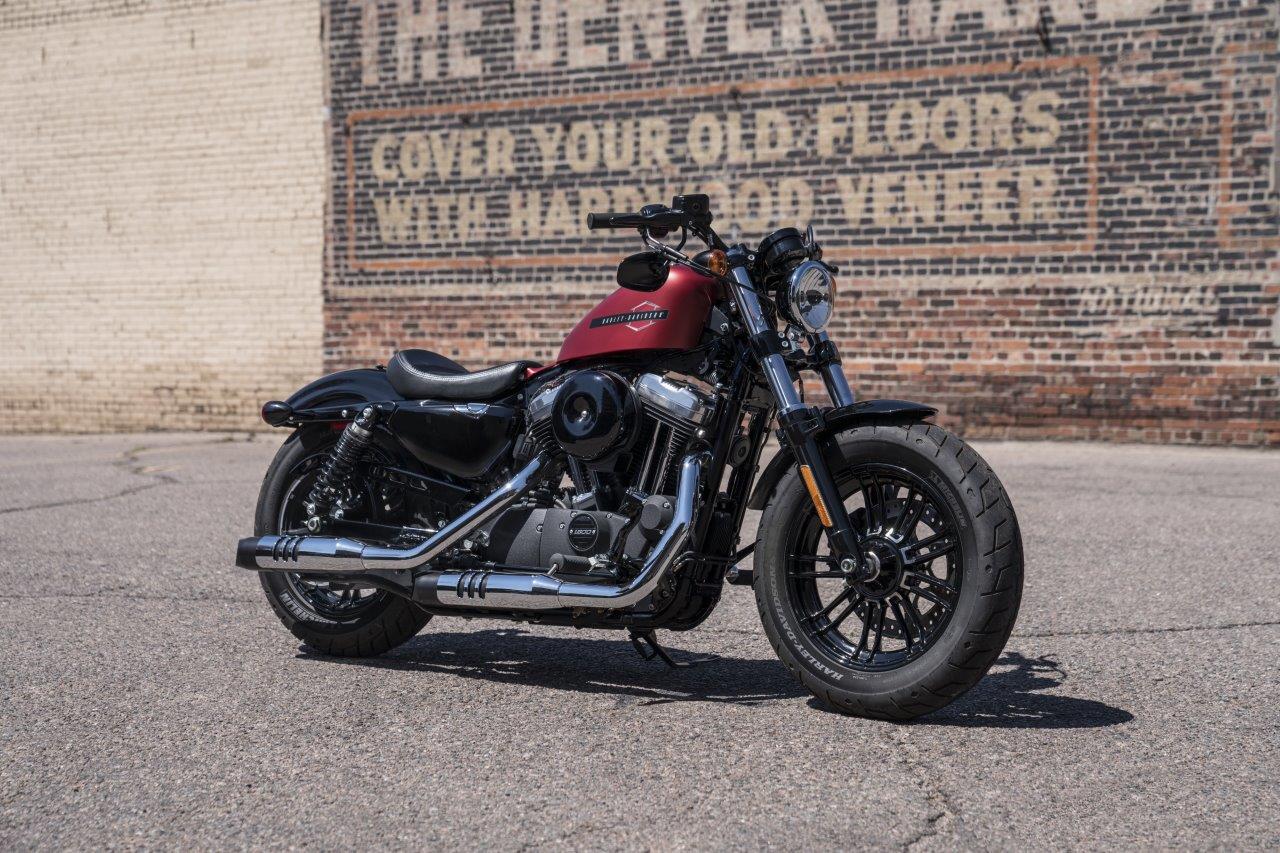

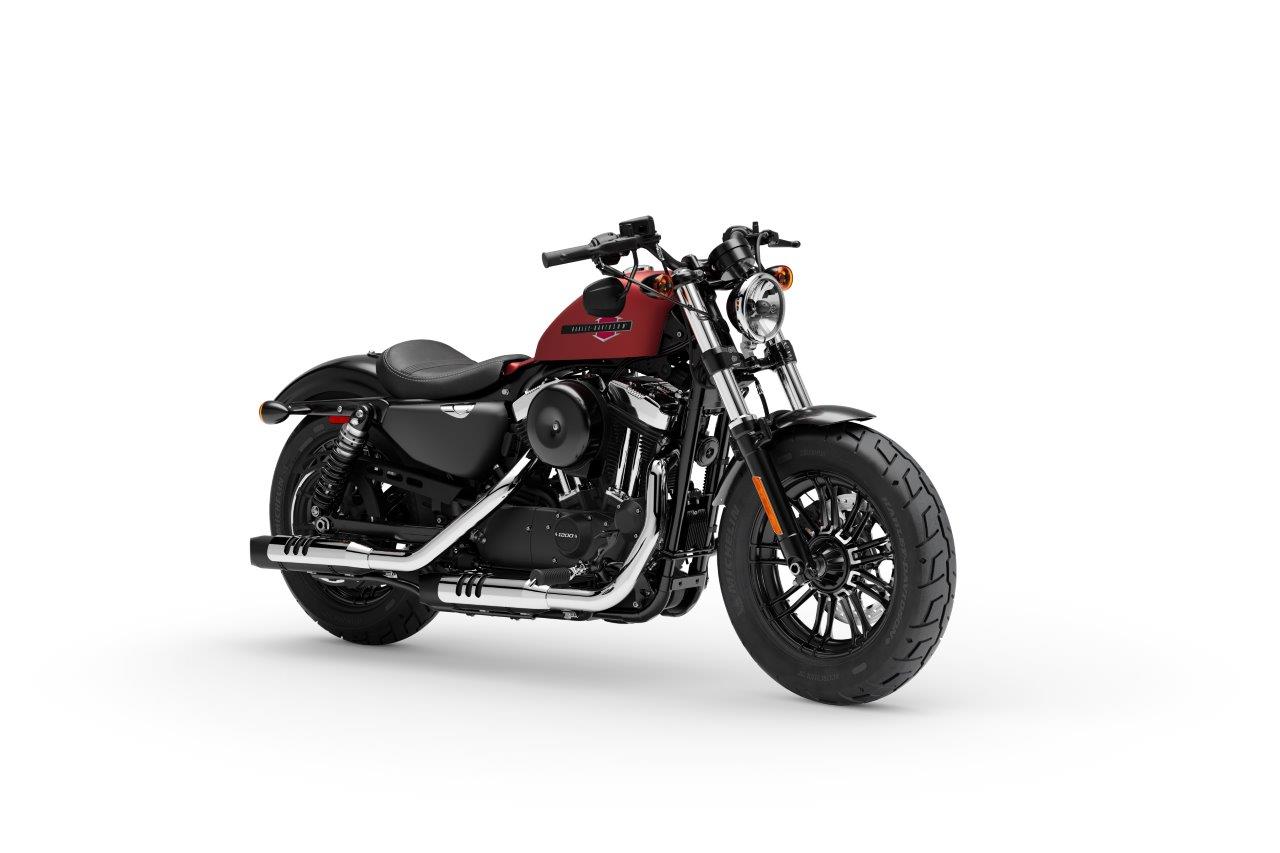

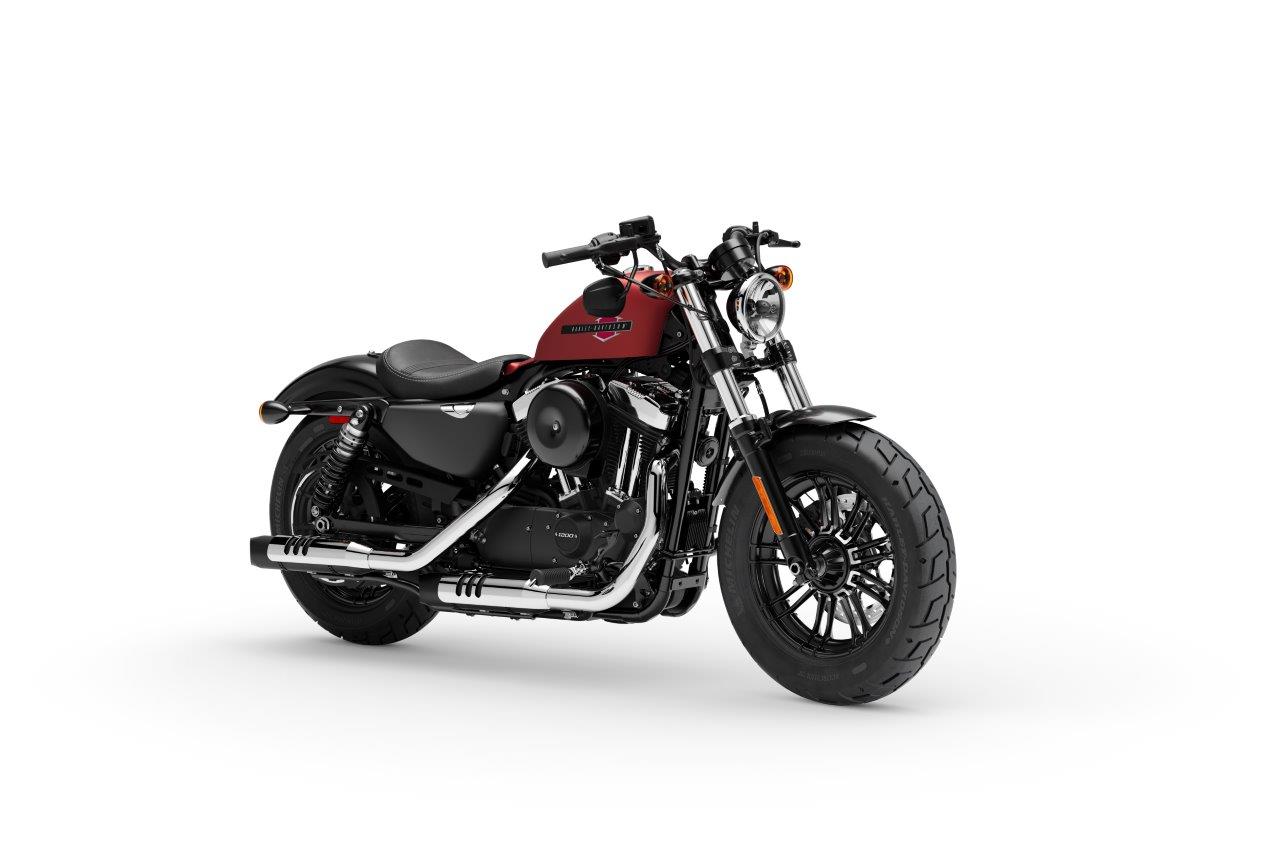

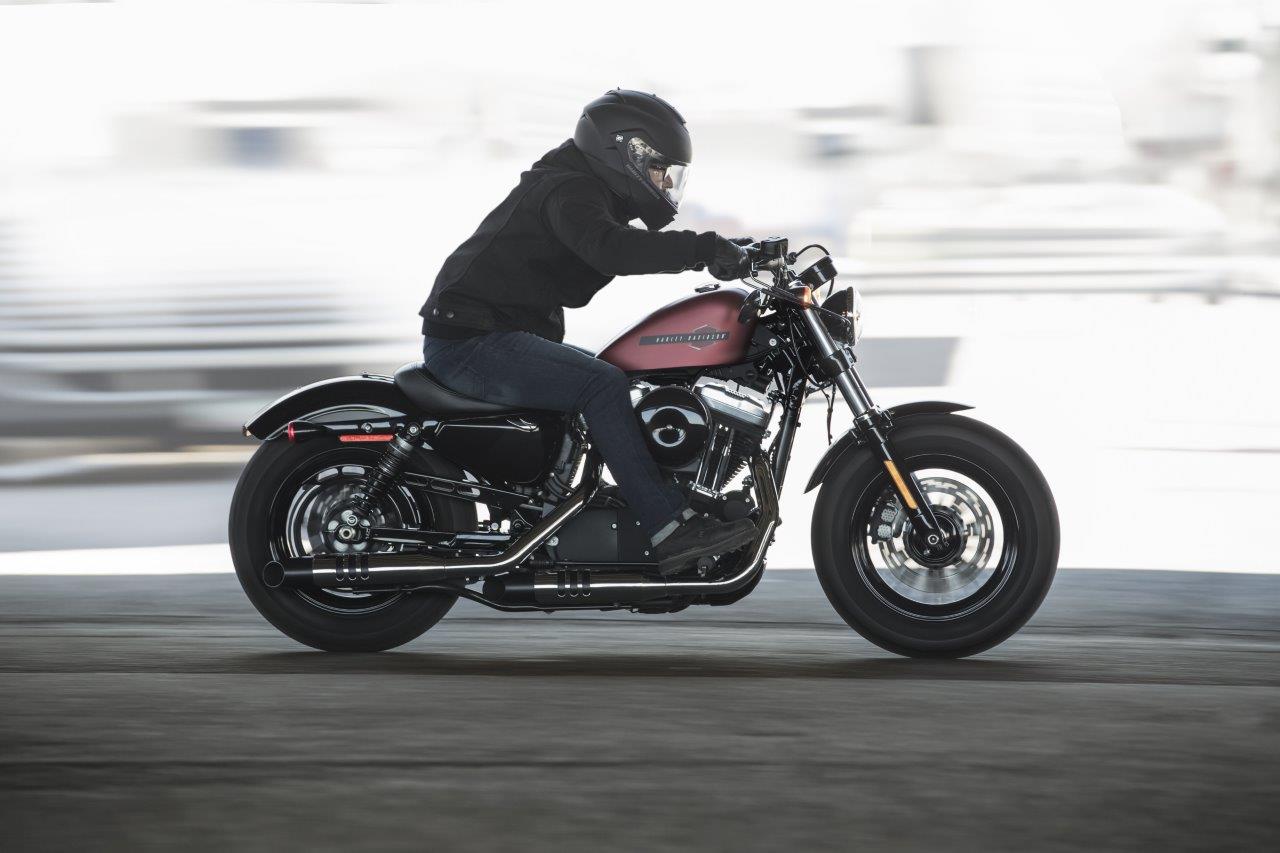

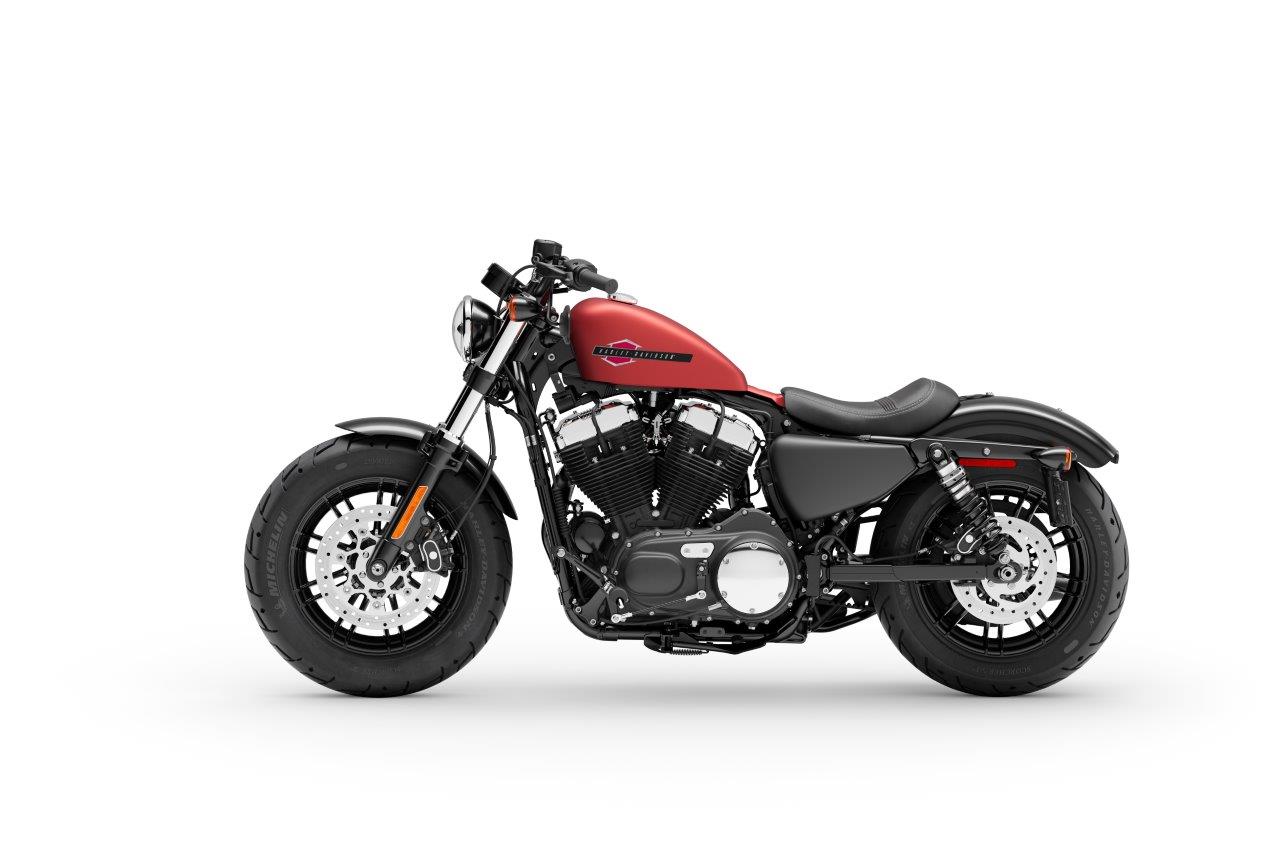

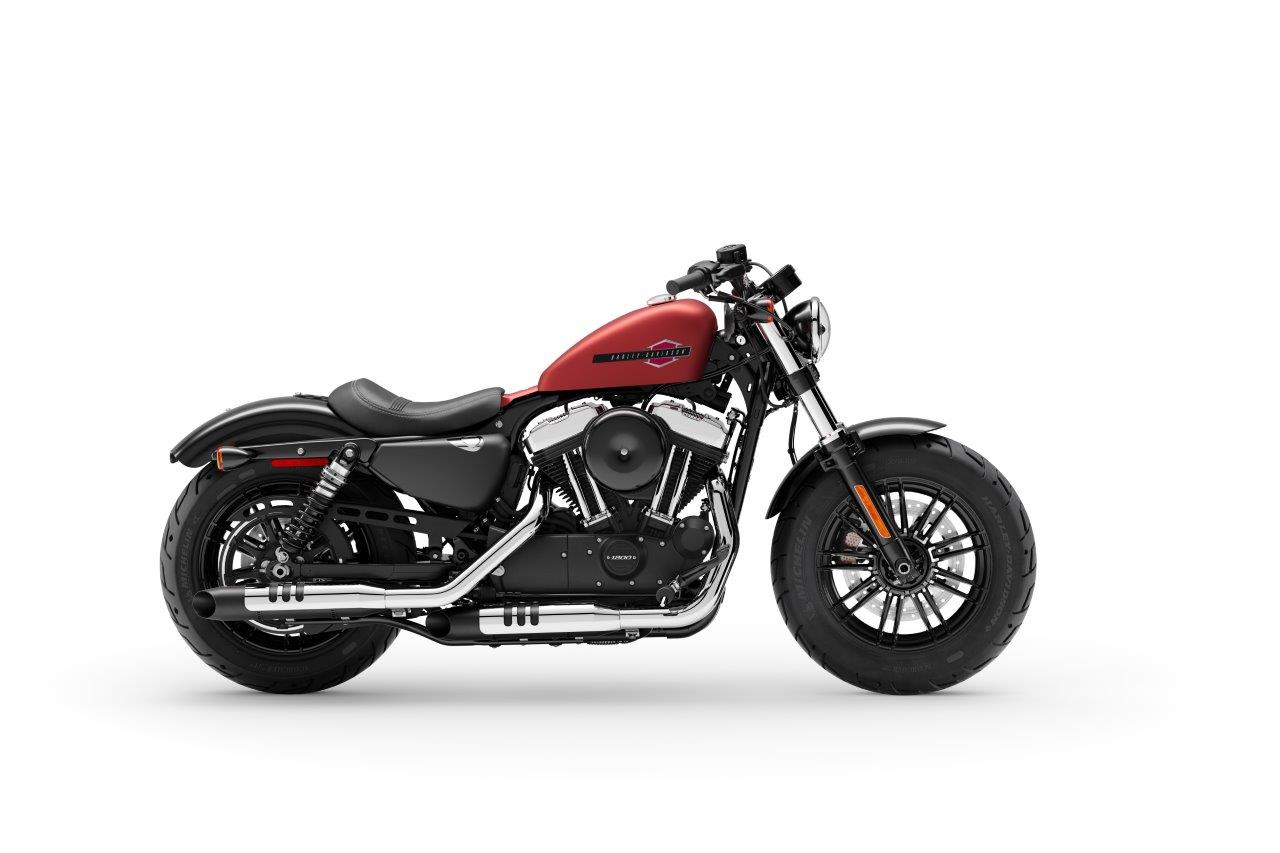

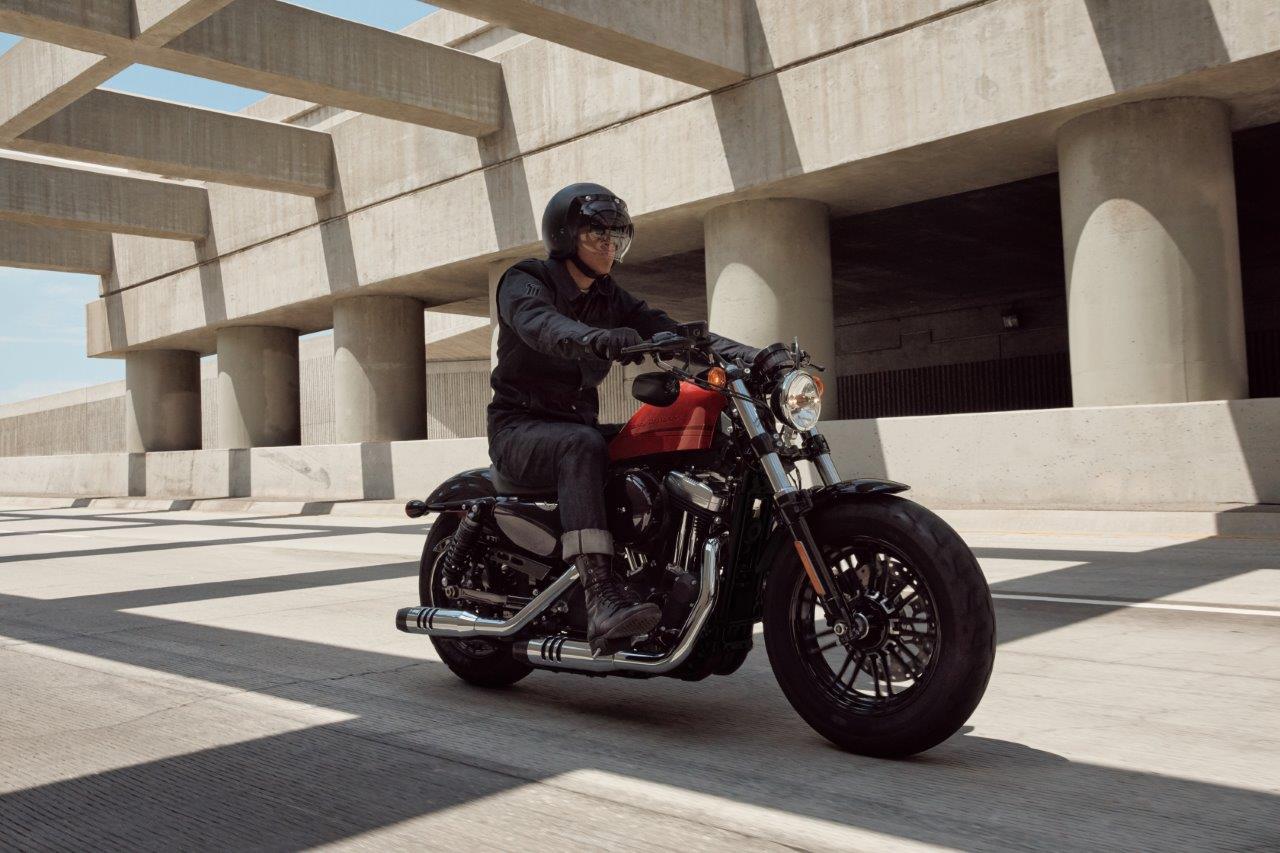

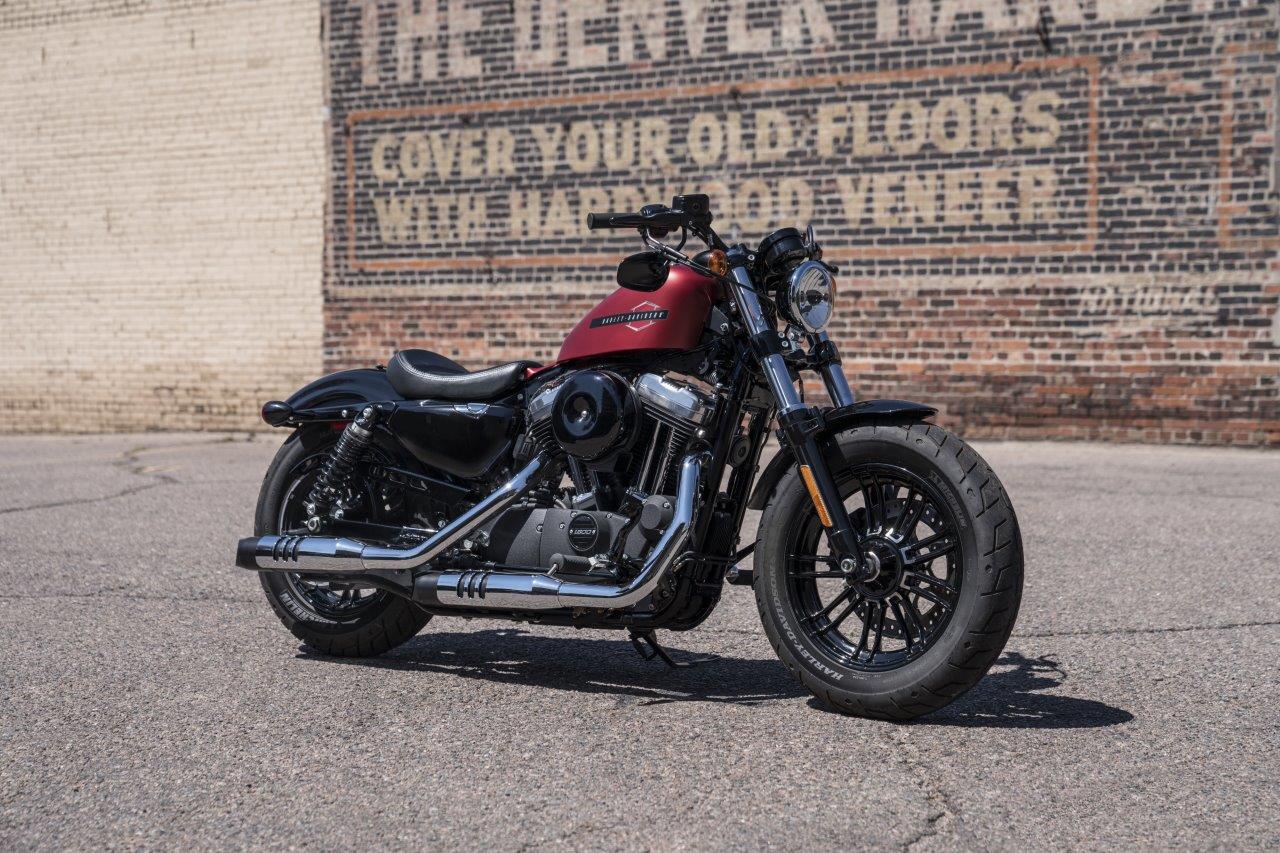

2020 Harley-Davidson Forty-Eight Photos
