Heated Motorcycle Jacket Liner
Gerbings Heated Jacket Liner
by Bill C. for webBikeWorld.com
More: wBW
Reviews Home
| Owner Comments (Below)
See Also: Our review of the
2010 Gerbing's Microwire Heated Jacket Liner
NOTE: This
review has been updated since it was originally posted. We tried the
liner again with motorcycles having higher-capacity alternators and found
that it works much better. Read the article for more information.
Back in the old days, when men were iron and
motorcycles burned castor oil, there was
no such thing as Cordura, Gore-Tex, Lorica and Scotchlite.
Riding
during winter meant throwing on a pair of long johns underneath your jeans,
a visor on your open-face helmet and maybe a hooded sweatshirt under your
leather surplus jacket.
I rode through winters in upper New York state, in an area where, it was
claimed, there were only two seasons: winter and the Fourth of July. Kick-starting the bike
in winter made you hot and sweaty, but
the air at 40 mph froze it off and literally took your breath away.
OK, OK - so it was a lot tougher back then. But there really
wasn't much in the way of purpose-built riding gear. My first piece of winter riding gear was
discovered by
accident - an old nylon insulated snowmobile riding suit I found hanging in
the garage where I parked the bike during the long winter months.
I'd
never seen one before, and I hesitated to try it on as I considered the
implications of riding a motorcycle wearing something as goofy-looking as
that.
Somehow, I got up enough nerve to slip it on over my clothes
and I took the bike out for a spin. It was great! The suite blocked the wind and
kept in the heat. Who cares what they think? I'm riding, it's 25
degrees F and I'm having fun!
In the 30-odd years since, we've seen the evolution of many different high-tech fabrics,
but not much has
really changed when you think about it. Keeping warm on a motorcycle
involves two basic concepts: blocking the wind and retaining as much body
heat as possible.
Sure, modern fabrics do that a heck of a lot better
with somewhat less bulk, but the idea is the same.
But as you've probably found, there's an interesting correlation between cost and
effectiveness. You can buy some cheap cotton waffle-knit undies and
get a little bit of extra warmth, or you can drop a couple of C's on neoprene
Gore-Tex windproof underwear and get warmer still.
But somewhere between the
two you will reach a point of diminishing returns, where pouring in a lot
more money doesn't really make you that much warmer. The
more expensive solutions usually get you less bulk, but layering is still
necessary.
My middle-aged bones can't take the ultra-low riding temperatures that I
endured in the past. Even layering on a selection of windproof underwear,
fleece jackets,
pants liners, down vests and more doesn't seem to do it for me. And I
end up looking (and feeling) like
M. Bibendum. So during a recent shopping trip whilst looking for some interesting review subjects for webBikeWorld,
I decided to try this Gerbing's heated jacket liner.
You'd think after all my adventures in winter riding that I'd have been
wearing heated clothing for years. But old habits die hard, I guess.
I knew about heated jackets, vests, gloves and other types of heated
garments,
but just never had the opportunity to try one.
I guess I somehow
equated them with big, overstuffed touring bikes and the matching his/hers
jackets and helmets crowd. So I really didn't know what to expect, but
I envisioned myself "laughing at the cold", as the old Damark underwear ads
used to say.
Gerbing Heated Jacket Liner
The Gerbing Heated Jacket Liner is a very utilitarian-looking piece of
clothing. The black fabric is very similar to what might be found in
a coat liner. It's a type of nylon taffeta, thin and light weight,
and although there's a Gerbing logo on the front, there's no way it looks
like anything other than a jacket liner, although I guess this is fine,
considering that it is a liner!
Just understand that the garment is
apparently not meant to be used as a regular jacket.
Gerbing also makes a heated jacket
(not just a liner), and I can only assume that its outer fabric is thicker than the
fabric on the liner.
I can understand why the inner fabric on the liner must be thin to transfer
the heat, but I don't understand why the outside of the liner can't use a
better quality fabric.
The
liner has two internal chest pockets without zipper or Velcro closures.
Each pocket is about 20cm (8") deep and 15cm (6") wide.
They're
handy for storing the assorted wires and connectors that are necessary to
power the jacket (more on that later), but it would have been nice to add a
strip of Velcro or a button or something to keep them closed.
The
jacket liner also has two front slash hand pockets, again without closures
of any type. They're about 15cm (7") deep with a 15cm (6") wide
opening.
They're not very useful - the electrical connectors are too
bulky to fit and the lack of a zipper or other type of closure makes them
much less useful than they could be.
The jacket liner has a fairly hefty zipper up the front, and the neck of
the jacket extends up about 80mm (3") from the body. There's no way to
adjust the neck diameter when the jacket is zipped up, so if your neck
doesn't fit, you're out of luck.
I take a size 43/44 men's street
jacket and I have a 17" neck. The neck on the liner fits, but just
barely. It would be better if the neck had some adjustability.
The jacket also has elastic cuffs,
which help keep the sleeves from bunching up when the liner is used under a
motorcycle jacket.

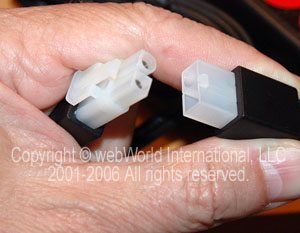

Gerbing includes wires at the end of the sleeves with connectors that
can be plugged into a pair of heated gloves (Gerbing's, naturally!). The connector ends fit into a tiny
pocket that keeps them from hanging loose.
The liner also has two main
connecting wires; one plugs into the controller (and the controller then
connects to the bike's power) and the
other can be used to connect a pair of heated pants. The wires are held inside the jacket with
a couple of strips of Velcro.
Gerbing also includes a harness that can be attached
directly to a battery. The harness has a 20-amp fuse and about 2 feet
of wire. We eventually figured out that it's probably easier in the
long run to install this harness to the bike, even if the bike has a
Euro-style adapter.
Gerbing's harness has a special end that looks
like the type of plug used on a stereo system. The extra length of
wire allows the harness to be threaded up under the fuel tank or to some
other location that makes it more convenient for connecting the jacket.
Heated clothing requires a heat controller of some type. The most
basic controller is an on/off switch, but a variable controller is a much
better solution that allows the temperature to be adjusted.
Gerbing's
Regular Temp-Controller costs $69.00 and has a rheostat-like knob to
turn the jacket on and off and also to adjust the heat. Gerbing's has
several other controllers, one of which has a dual circuit which allows the
separate control of two garments, such as a pair of gloves and the liner.
Gerbing uses a non-standard sizing method for their jacket liners.
The clerk in the store warned me not to pay attention to the sizes, but to
try different sizes until I found one that fits.
The jackets
are labeled in a body and sleeve size, like "44/34 or 48/38", but the numbers seem to have
no relation to any other type of standard clothes sizing system.
Gerbing will also make custom sizes on request.
It's important to make sure that heated motorcycle clothing is snug, to
ensure that the heat will transfer to your body. I tried on about a half-dozen different chest/sleeve
combinations in the store before settling on a "46/36" size as just about
right.
I normally take a men's size 44 street jacket and a 34" sleeve
length on a dress shirt, so I'm guessing that the Gerbing's sizes run two
sizes larger?
I tried on a size 44/34, but it was tight - too tight to close the zipper
in the front, and the sleeves were
too short. I have a 17"
neck, and the neck on the 46/36 jacket fits, but just barely.
Some
heated motorcycle clothing is available sans collar, and I now think that's
a better solution because if the collar is too tight, the jacket or vest
can't be completely closed and then the collar ends up just adding more bulk
under the neck of the motorcycle jacket in an area that usually is too tight
anyway.
Performance
I had never tried motorcycle heated clothing,
but I had
certain expectations that I don't think are unreasonable. I expected
that after a brief warm-up
period that I'd feel the warmth radiating throughout the entire jacket and
into my back, arms and legs.
I pictured myself having to turn down the
controller to limit the amount of heat, while I gleefully rode off into the
frigid winter air.
Unfortunately, that didn't seem to be the case at all when
we first tried the liner. We eventually found out, through a tip from
a webBikeWorld visitor, that the liner draws a lot of power at 77 Watts, so
the liner really only works best with an alternator of over 250 Watts (or
so) output.
The first two motorcycles we tried had a 200 and 250 Watt
output and, combined with the lights and other electrical draw on those
bikes, the liner barely threw out enough heat to notice.
After howls of protest from webBikeWorld visitors (and
Gerbing's fans - there are many of them for sure!) we borrowed another
couple of motorcycles and tried again.
Our opinion is that at least
300 Watts of output is needed to power the liner while still having enough
electrical capacity for the rest of the bike. At 300 Watts, we could
definitely feel the heat and on a bike with a 400 Watt alternator, it was no
problem at all.
UPDATE: We put a Voltmeter on the bikes and found
that when the controller was turned up to maximum, the 200 Watt alternator
was in a negative state (discharging the battery) at anything under 3,000 RPM.
The meter barely registered in the positive (i.e., charging the battery)
when the engine was running over 3,000 RPM. The bike with the 250 Watt
alternator was even at anything under 3,000 RPM and in the positive side
over that.
We have only used the liner on "naked" bikes with no
fairings. Owners of touring bikes or those with big windscreens will
likely feel much warmer at any given setting. Gerbing advises owners
to wear clothing that blocks the wind for best results.
It is interesting to note that we could find no mention on
Gerbing's website of
the minimum electrical capacity of a motorcycle that is required to power the heated clothing. But our feeling is that if you have a motorcycle with
less than a 250 Watt alternator, you may be disappointed.
By the way,
the number of Watts that a motorcycle's alternator produces isn't always
readily available. None of the 4 motorcycles we used had this
information listed in the owner's manual. The formula is
Watts
= Volts x Amps.
So if a motorcycle is 12 Volts and the
owner's manual says the alternator puts out 20 Amps, the bike has a nominal
240 Watt
alternator. Note that the alternator output and load can vary.
For example, over 3,000 RPM or so, the motorcycle's charging system may be
13.5 Volts or more. The flip side is that some systems will actually
go into a charging deficit when the engine is and under 2-3,000 RPM.
Power output will, of course, vary, depending upon things
like headlights, turn signals, brake lights and other powered devices.
A rough estimate of your bike's current draw can be developed by adding up
the number of Watts of the headlight (usually 55W), turn signals or brake
lights (usually 20-30W), etc. and subtracting that from the total.
Some motorcycles have very weak alternators and as a result, if the engine RPM's are kept under 2,000 or so, the battery will not be recharged and
will, in fact be slowly drained.
So if you're in a lot of stop and go traffic, you may want to turn off the
heated clothing.
At 300 Watts, the liner performed well, except that we
noticed that the heat is not uniform. It seems much hotter where the
liner is snug around the body. The front of my arms and a couple of
sections down my back were much warmer than anywhere else. If I moved
around, I could feel the warmth. This is why it's crucial to find the
correct fitting liner.
It needs to be snug enough for the heat to
transfer, without being too constricting. Our advice is to be very
careful when purchasing a liner over the Internet. Gerbing's strange
sizing conventions don't help matters. It definitely pays to try
several different chest/sleeve sizes on at your local dealer.
Here's the hot tip (sorry about the pun!): buy a
cotton turtleneck or long-sleeved T-shirt that's one or two sizes bigger
than you normally take. Put this on over the liner.
It helps the
liner to stay closer to your body and it seems to make the liner work much
more effectively - in fact, it can get very hot with the controller on
maximum (when using a bike with a powerful enough alternator).
There
seems to be a dramatic difference in the level of heat when the liner is
close to the body, which is another reason why it's important to make sure
you purchase the correct size liner.
Back to the liner: The thinness of the liner's outer fabric doesn't help matters
much, because it doesn't
perform well as a windbreaker. I think the product would benefit from a heavier outer fabric that not only looked better but
helped hold in the heat, whilst acting as a windbreaker.
I see no reason why the outer shell
couldn't be made of some nice, heavier weight colored nylon fabrics, similar to those found
in other relatively inexpensive windbreaker-type outerwear.
My lack of experience with heated clothing meant that I also hadn't really thought about the
implications of wiring the
jacket to the bike. My motorcycle has a European-type accessory outlet,
similar to the type
found on a BMW motorcycle.
I purchased the separate harness that converts
from the BMW-style accessory plug to the Gerbing's connector, which was
another $15.00. The wires that lead out of the heated liner have to be
plugged in to the controller, and then the controller plugs in to the
accessory plug.
My opinion is that all this wiring is a real pain, and
unless it's permanently mounted (which definitely can be done), it's hard to
find a convenient place to locate it.
The clerk at the store warned me against holding the controller in my
pocket, (he said it would "melt the liner"), but where else can one store a couple of feet of wire?
I ended
up using an Aerostich Darien jacket, which allows me to run the controller
out of the armpit vent, and although we got some chuckles, this actually
works very well, because it's easy to reach over and adjust it without
having to fumble around in a pocket.
The adjustment knob on the
controller is hard to feel with heavy winter gloves. It also would be
better if it had some type of click mechanism so that it could be adjusted
by feel.
The rest of the wires hang down out the
left-hand side of the liner and then into the bike's accessory outlet.
If your bike has an outlet on the right-hand side, this could be a problem.
Ideally, the controller would be located where it's easy to access.
Some owners attach the controller to the motorcycle itself, but this doesn't
eliminate the problem of multiple wires. Having to mess with the wires
kind of takes the spontaneity
out of riding a motorcycle.
It seems to take forever to get everything adjusted
just right. Although according to the comments we've received, it
apparently it becomes second nature after you get used to it.
The downside of all these wires is that it's very hard to
remember that you're plugged in to the bike. No matter how many times
I reminded myself, each time I dismounted I ended up pulling out one plug or
another.
This can be dangerous and I'm sure it's not very good for the
connectors either. If you plan on using the liner frequently, it would
probably be a better idea to mount the wiring and controller to the bike in
a location that would make it easier to use and where the plug and
controller are accessible.
Gerbing's offers a lifetime warranty on the electrical components in the
jacket and a one-year warranty on the non-electrical components.
Conclusion
The Gerbing's Heated Jacket Liner did not perform well at all with
alternators of less than 250 Watts output. With alternators of 300
Watts and above, it works well and provides lots of heat, but it's not as
uniform as we'd like.
The work involved in getting the wiring and
controller set and adjusted prior to each ride is the price to pay for
warmth.
Our suggestion would be for Gerbing to try and develop a
liner using elastic fabrics that would allow it to fit closer to the
wearer's body, which provides the best potential for heat transfer.
This is especially true in the neck, which may be too tight for many owners
when the liner is purchased in the correct chest/sleeve size.
It would also be nice if the liner had an outer fabric
that didn't look - or perform - like a cheap taffeta jacket liner.
This would also have the potential of making the jacket look acceptable for
use as outerwear.
One more note: Our liner is clearly labeled "Made in China", even though Gerbing's website indicates that the liners are made in the U.S.A.
|
wBW Product
Review: Gerbing's Heated Motorcycle Jacket Liner |
| Available
From: Gerbing's
Heated Clothing |
List Price (2004): $199.99; Controller $69.00; BMW Accessory Plug
$15.00 |
Colors: Black
Weight: 907 g (2 lbs.) |
Made
in: Gerbing's website claims U.S.A., but jacket is labeled
"Made in China". |
| Review Date:
December 2004 |
Note: For informational use only. All material and
photographs are Copyright © webWorld International, LLC - 2000-2009. All
rights reserved. See the webBikeWorld®
Site Info
page. NOTE: Product specifications, features and details may
change or differ from our descriptions. Always check before purchasing. Read
the
Terms and Conditions!
►Reader Comments and
Owner Feedback
Please
send
comments to
Comments are ordered from most recent to oldest.
Not all comments will be posted. Posted comments may be edited.
From "K.P." (12/09): "I purchased a Gerbing jacket liner, gloves and dual controller this spring
2009 before a May trip to Alaska.
I was a bit late in ordering so they shipped my order immediately and the
articles arrived in 2 days. I found their sizing chart to be exact. My
jacket liner and gloves fit like they were made for me.
My jacket liner is
wind and water resistant and looks like a regular jacket. Looking at it, a
person would not know it is heated clothing. My liner inner pocket holds the
dual controller and wires out of sight perfectly when not in use. The outer
pockets have zippers to keep things in them.
The plugs work well and do not
come apart unexpectedly. My leather jacket has a belt so the dual controller
fits nicely on it with the belt clip (extra). I ride a Suzuki C90 with a
stock windshield so I still get a fair bit of wind while riding. All I wear
now all year is a long sleeved turtle neck T-shirt, the Gerbing jacket liner
and my leather biker jacket that does not close up well at the neck. Gone
are all my bulky vests that never worked under or over my leather and my
other winter style jackets for the cold days.
I wear the Gerbing jacket
liner to replace my leather jacket liner. On warmer cool days the jacket
liner under my leather jacket keeps me warm without turning on the heat. I
have never turned the controller past ½ way for either gloves nor jacket
liner and have been toasty down to -5 C (approx. 22 F) riding at 100 K/hr
(60 m/hr).
I get weird looks riding to work when it is -5 C when everyone
has put their bikes away here in Calgary, but I am comfortable and loving
it. I have found the Gerbing jacket liner does not need to be tight to the
body as it is air tight at the neck and sleeves and as well, insulated. The
liner creates its own pocket of warm air around you as the cold does not
get in.
If there are any cold spots in the liner, the air pocket effect
nullifies it as I have never felt any. Where the liner touches you it feels
warm and where it does not, I am certainly not cold.
The first time I put it
on, I did not know which line worked the liner or the gloves so I cranked it
up all the way on one line and just about burned my neck as it is snug
there. Lesson learned is to start around 25% and adjust from there. It would
be impossible to turn it on and off all day long without a controller.
I
have had no issues with voltage either. After one year of riding in rain,
snow, sleet, hail, sun and wind across prairies and over mountains, I can
certainly say that I have been very comfortable for the first time in all my
riding years. I wish I would not have waited so long.
Next purchase will be
the pants as my thighs get a bit chilly on longer trips at -5C. Leather
engine guard chaps keep my feet and shins warm but the warm air off the
engine misses my thighs.
From reading some of the other comments on your web
site it sounds like some of the comments are about older products. My liner
is also soft and supple so I roll it into a small ball to put into the
saddlebags as they say you can. I like the life time warranty on the wiring
components and have only heard good comments on customer care. All I can say
so far is “Simply the best purchase ever”."
From "J.L.": "After much
deliberation and research, I purchased a Gerbing jacket liner
and glove liners. I also purchased a dual temperature
controller. On today's shake down ride the weather was in
the low to mid 40 degree range. Not very cold, so I
compensated with several miles over 80 mph to get a wind chill.
I wore a Joe Rocket Ballistic jacket and Olympic cold weather
gloves.
My motorcycle is a Triumph Speed Triple with no fairing or any
other sort of wind protection. Not only was I warm, but I
found myself turning the heat down because I became
uncomfortably hot. I do not know what the output of the
Triumph's alternator is, but that does not appear to be a
factor. One precaution I took was turn the gloves and
jacket off for the last couple of miles to insure the battery
had a good charge.
I do agree that the wire harness is a little messy, but I do not
find it to be too much of a hassle. I stuffed the
controller under a belt built into the jacket. I had no
trouble working the temperature knobs with my gloves. I
have the battery lead coming out between the seat and the rear
of the gas tank.
One of the factors leading to my decision is the almost fanatic
loyalty displayed by owners of Gerbing clothing. I stopped
by a local BMW shop figuring that is where I would find the most
die hard cold weather riders. The people there swore by
Gerbing's clothing. I also work with several people who
ride all winter in wet Seattle. All of them wear Gerbing
clothing. Loyalty like that doesn't come easily, so they must be
doing something right."
From "E.S.": "I don’t have this
specific product and can’t comment on it directly, BUT I offer
the following two additional pieces of information: Gerbing will
stand behind the electrical connections for as long as you own
the product. If a wire breaks, etc. you send the item back
to them, and they will repair and ship it back to you free!
Your only cost is to send the item to them.
For something
as light as a jacket liner, or a pair of gloves, it comes to a
few bucks. If you already have a removable liner for your
jacket, Gerbing will wire it up for you! I have a First Gear
Scout jacket, which came with a removable fully-sleeved
Thinsulate liner. Gerbing wired it for me for $160.
I commute by motorcycle every weekday through gray, wet, and
cold Seattle winters, and I’m still toasty."
From "C.B.": "Just wanted to let you know that
after dressing up as Mr. Bidendum myself & barely able to bend
my legs, I took the plunge 4 years ago & bought Gerbing's
"Ultimate Suit". It comes with the quilted liners which
are much thicker than the standard ones like you reviewed.
I also had it wired so the gloves are on 1 circuit & the
remainder of the suit on the other.
The "Heat Troller",
which is what they were using then, I attached with Velcro to an
old "Alpha-numeric" type pager belt clip I had modified & just
clip it onto the belt of my jacket. I don't need to see
the knobs or the lights unless there's a problem in which case
I'll be pulling over anyway.
I just reach down & turn it
up or down a pinch as needed. I usually wear a tee shirt &
a thin sweater only underneath the jacket & thin tight like
leggings. I've got the whole setup, Suit, gloves, & socks
& love the looks I get when it's really cold & I ride by @
80mph.
Yeah, the gloves & the wires are a hassle, but it keeps me
warm, extends the riding season dramatically so it's worth it.
Gerbing was great to deal with even when I sent the jacket back
for some alterations. Great service, especially from Mike Vlahos
(301-829-0452) the salesman I dealt with here in central MD.
BTW, I ride a '99 BMW K1200LT with LOTS of watts & miles. Really
enjoy your site."
From
"B.B.": "Hi Rick, Just read through the reviews of
the Gerbing's heated gear and wanted to comment on mounting the
Heat-Troller. I attached the Heat-Troller to my tank bag
using zip-ties - running the power wire to the connector that
sneaks out from under the saddle of my V-Strom. The
majority of the wiring is inside my tank bag, so the set-up is
fairly free of dangling wires. Access to the Heat-Troller
is simple and it can be adjusted easily "on the fly." I've
attached a picture of the set-up. Thanks for the great web
resource." Thanks for sending this information and
the photo, B.B.
Here's a larger (500x375) photo.
From "T.H.": "I live in southwest Michigan and
bought a liner and gloves two years ago. I don't use them
often because I ride a Kawasaki Concours while wearing an
Aerostitch Roadcrafter suit and with a long sleeve t-shirt and a
fleece jacket I am comfortable to about 30 degrees Fahrenheit
behind the fairing.
Colder than that and out comes the
electrics. I used a Widder vest and gloves for about
twelve years and got tired of my arms always being cold because
my shoulders were wider than the wind screen so I bought the
Gerbing liner with the sleeves.
This helps but I have cold spots on my back, one near the
left shoulder blade and the other near my right kidney area, and
under my left bicep. I've started using my fleece jacket
but the Roadcrafter sleeves get a little snug. I've asked
for a fleece vest for Christmas to at least keep my back warmer
so we'll see if that helps in the spring (late winter?). I
do think the Widder gives a better more even heat.
I attached Gerbings connector to the battery and run it under
the left edge of the seat when needed. I can slide the
wire in under the seat so only the plug is showing when I'm off
the bike or if the temperature goes up instead of fumbling with
the seat each time I want or don't need it.
When the
warmer temps are here to stay I put the whole harness under the
seat. I put a small patch of Velcro on the back of the
controller and stick it to the Velcro on my left thigh where the Aerostitch map holder attaches. I haven't experienced
trouble operating it but the knob is a little small for the
heated gloves.
The knob is usually pointed away from the
gas tank so I can pinch it between my thumb and index finger
more easily for adjustments. I normally set it about half way to
max and leave it till I get too warm or too cold.
My only major gripe is trying to plug in the gloves.
The pigtail from the sleeve is just about long enough to hold
between the heel of my hand and my pinky finger. Needless
to say, once they are connected I don't unplug them till I am
ready to take everything off. I just joke about my mommy putting
the wires on so I won't loose my gloves on the play ground.
Like you, the neck is too tight when zipped fully so I zip it
to a comfortable height and zip my jacket fully. I wear a
full face helmet. Behind the Connie faring this seems to
be enough. No cold spots on my throat otherwise, my neck
and base of my head gets really, really cold.
A nicer outer fabric would be a benefit, especially when I
take the riding suit off and would like to leave the liner on
walking from the bike to the restaurant or a store.
Something like the Widder outer shell. I don't think it
needs to be wind or water proof. Just cosmetically nicer."
From "C.A.": "Rick, great site!
I particularly like how you review items in detail. Just a
couple comments on your Gerbings article. Your electrical
formula "volts = watt x amps" is wrong .. it should be "volts =
watts / amps".
I've also got a Gerbing liner and it is plenty warm. I
wear it under a Joe Rocket Phoenix with the DryTech liner, on a
minimally faired VFR (which has a 430 watt alternator). I'd like
to counter some of your criticisms:
1. The thin shell: I don't think this product was ever
designed to be worn without a normal motorcycle jacket over it.
Note the complete lack of impact and abrasion protection, and it
is sold as a 'liner'. I think it is unfair to criticize
the liner for lack of wind and waterproofing when it is the
responsibility of the outer garment to provide that.
Personally I appreciate that I'm not spending money or packing
space on functions which my outer garments already provide.
2. The controller is hard to use with gloves. Get a real
Heat-troller
which has a better knob. I've also gone the extra length
of installing a permanently-mounted controller in my fairing.
It controls the output of a Powerlet, which my liner plugs
directly into. I can see the controller, easily adjust it,
and don't have lots of extra wiring hanging about.
3. Your statement "The liner also has two main connecting
wires; one plugs into the harness from the bike's power and the
other plugs into the controller." seems incorrect or at least
unclear.
On my jacket one is for the pants (i.e. an
accessory) and the other is to power the jacket (either for the
controller or to the battery harness). I hope you're not
wiring both to the battery, or trying to run the liner on the
accessory connector. I'm not an electrical engineer, but I
wonder if such a configuration would cause a short or reduced
output?
(Editor's Note: Sorry for the confusion -
it's the controller that has the two wires, one for the jacket
and one plugs in to the bike's power).
4. As a final note, Gerbings offers the liner in a quilted
version which has more insulation than the standard liner.
However, I have regular liner and underneath an unlined DryTech
wind/waterproof liner it is more than adequate down to 30F (and
colder than that I don't ride due to ice).
5. I've had an Aerostich vest which draws less juice (45W)
but found I needed to add a fleece layer over it, negating much
of the bulk-saving benefits. It just wasn't very warm.
However, what they did right was to use thinner but more heating
elements than Gerbing, so the heat was more evenly distributed
throughout the torso.
Keep up the great reviews!" Thanks for your
comments and clarifications, C.A.!
From "RGB": "Good review of the
Gerbings jacket liner -- except for the performance conclusion.
Wires are a nuisance to arrange especially with a three-quarter
length textile jacket and high-riding textile pants. But I
have used the jacket (and $79 glove liners) when frost was thick
on the road, and "toasty" is exactly how I felt. I keep
the thermostat in the optional leather pouch and clip it to a
Velcro strap on my left thigh. The knob does need to be
bigger, though I can rotate it -- sort of -- with my gloves.
Important to wear a thin fleece over it, however, as a textile
jacket by itself will lose heat in the wind. I ride a
'Strom behind a Cee Bailey's screen."
Editor's Response:
Thanks for the
email, RGB. One email I received today brought up a good
point that I hadn't considered. We're now thinking that
perhaps the motorcycles we used to try the heated liner over the
last several weeks do not have a big enough alternator to power
the liner. The bikes only have 200-250 Watt alternators.
I checked Gerbing's site again and found that the liner takes 77
Watts, which is a very big power draw. Someone wrote to
tell us that a bike with more output is probably necessary.
Gerbing doesn't warn about this on their site, so I never really
thought about it. A friend is coming over this weekend
with a BMW touring bike, so we'll try it with that bike, which I
think has 400 Watts output. We'll post the results,
perhaps we'll have to eat our words!
From "B.T.": "Rick sorry but I
have to be among the ones disagreeing with you on the Gerbing.
I have been totally satisfied with mine for the past 2 years.
I ride late model BMW's which have high output alternators which
may make the difference. Unless it's really cold, I have
to turn mine off at times. I only use an on/off switch
though. I currently ride an R1150R with a Cee Bailey's
windscreen."
From "R.F.":
"I just purchased a complete set of Gerbing heated clothing
(jacket liner, pants liner, gloves, and socks) to use when
riding my 2004 Harley Ultra Classic. I also purchased the
dual thermostat/controller. To date, I have used
everything except the socks and have been satisfied with the
performance.
I tend to be a bit anal regarding safety so I
wear leather chaps and leather jacket regardless of the
temperature. Wearing the heated garments under the chaps and
jacket does make one much bulkier and less agile but the trade
off in being warm far outweighs the inconvenience. Yes, it
is a pain and takes extra time to "gear up" to go riding but
again I feel being warm and comfortable is worth the effort.
My opinion of the pro's and con's are as follows:
CON'S
-
I
agree with you regarding the pockets being next to useless.
-
I very strongly agree with you about the outer layer of the
garments needing to be more durable and wind & water proof.
-
I found that all the associated wires are "stiff", hard to
work with and store.
-
I found that the storage pockets
for the accessory plugs to connect the gloves and socks are all
but useless.
-
Finding a place and means to mount/store
the control unit is a real problem. It has to be in an
area that is easily accessible as well as visible so that the
rider can see the LED indicators. I finally wound up
clipping mine the pocket of my chaps but don't know what I will
do when I have to put my rain suit on.
-
The two control
knobs on the controller are a bitch to use with gloves on!
-
Some means of fastening the gloves to the jacket or jacket
liner would be nice so that when you needed to remove the gloves
you did not have to mess with unplugging them or leaving them
dangle from the cord.
-
They are rather expensive.
PRO'S
-
Used as directed (under wind proofing), they
do work.
-
Gerbing seems to be responsive to their
customers and provides a good warranty.
-
Garments can
sustain being wet without shorting out or zapping the rider.
-
Wired as directed, the wires and system are protected by an
inline fuse.
-
Each garment comes with all required
wiring & switches (including fused lead from the scoot and a
simple on/off switch), optional thermostat/controller available.
-
Idiot proof, well labeled connection plugs.
MY OBSERVATIONS
I have found that when using the jacket liner
and the pants liner by themselves, worn under a wind proof outer
layer, and each controlled by their own separate channel on the
controller they both produce more than adequate heat on the
lowest thermostat setting. I am very sensitive to cold but
found that if I turned the thermostat up, I was soon roasting.
I did notice that when I plugged the gloves into the jacket
liner, therefore controlling both garments via one channel of
the thermostat, the quantity of heat produced by either garment
was dramatically reduced. Even turning the thermostat full
hot did not seem to make any difference.
This has the potential
to be a real problem when it gets seriously cold and I feed the
jacket liner and gloves from one channel and the pants liner and
socks from the second channel.
The only other option I can
see is to run a separate wiring harness from the scoot to 4
separate thermostat/controllers to supply each garment
independently. Gerbing provides the harness with each
garment but running 4 sets of wires and 4
thermostat/controller's is a bit much.
I also had/still have a problem in where to mount or keep the
thermostat/controller. It needs to be in a place that can
be reached easily and by touch as well as being visible so that
the LED indicators can be seen.
Taking your eyes and
concentration off the job of riding to adjust the heat is just
asking for one of those "OH S**T!" moments. Trying to
"feel" and adjust the thermostat with gloves on is almost an
exercise in futility.
I think some of the awkwardness of
the system could be alleviated by using wire that is more
pliable and less stiff as well as providing adequate storage
pockets and wire fasteners on the garments to store excess wire
and secure unused plugs.
In conclusion, even with the faults and negatives I observed,
I would still opt to purchase the garments. I can say this
because they do work. I can put up with a lot of
inconvenience as long as I can stay warm."
From "S.":
"Heated clothing - hmm - been playing with that for
some time now and here are some gems of information that may
help you along.
The Gerbing liner, especially puts out
heat but as note has no insulation - that's OK if you are
wearing your Rev'It! winter jacket - same combo I am using not
when wearing the Darien jacket - unless you are wearing the
liner too, the heat simply escapes and must be trapped.
That said - make sure that your connections are ok and that
the heat controller is working - a friend bought a Widder
temperature controller and then rode the iron butt - almost
froze to death (not literally but you get the idea) because the
controller was malfuntioning - try wiring with an on-off switch.
I've been out in 0 (degrees) F using heated clothing - it's
stupid-fun especially when I had a CB and the trucker's were
talking about me and my riding buddy. Without it I'd be dead.
try again - the stuff works - just some bug in the ointment
there with your set up. BTW - I have the Darien heated liner too
- it's nice but a waste of money since it doesn't keep you way
hot like the Gerbings does (or should)."
From
"D.D.": "Just
a note to say I use this while riding my GL1800 and love it.
I have to keep it turned down to avoid sweating. Perhaps
the liner was defective?"
Editor's Response:
We checked it out, D.D.,
and it does work. Apparently the heated jacket liner needs
to be worn under an insulating garment and also under a garment
that blocks the wind (according to Gerbing). This defeats
the goal of having fewer layers. And if this is the case,
we're not sure why it wasn't originally designed with it an
outer insulating layer and wind-blocking fabric?
From "R.&C.
T.": "I have owned and used Gerbings Heated riding
gear since 1978. I purchased 2 heated riding vests then
and still have both which are worn but the electrics (heat) work
perfectly. My wife and I both currently use Gerbings
heated jackets and gloves, which have worked perfectly for
years.
We put them on over a long sleeved shirt then our
riding jacket. We both have thermostats to control the
amount of heat.
Our motorcycles are a fully faired BMW R100RS, Moto Guzzi V11
Sport (with only a very small bug screen!) and our touring Vespa
P200E (which will run _one_ heated vest).
Two up on the
BMW in any kind of weather with the heated gear is very
comfortable. I usually ride the Guzzi solo and have no
problems with the heated jacket keeping me very warm.
I have met Gordon Gerbing and can say he has worked very hard
to build quality products and if there are any problems they
stand behind their gear."
|
