Honda 650 Deauville Motorcycles

2004 Deauville


Engine Type Liquid-cooled 4-stroke 6-valve SOHC 52° V-twin
Bore and Stroke 79 x 66mm
Displacement 647cc
Compression Ratio 9.2:1
Carburation 40 mm VE-type carburetor
Max. Power Output 55 bhp at 7750 rpm
Max. Torque 55Nm at 6250 rpm
Ignition Digital transistorised with electronic advance and HISS
Starter Electric
Transmission Transmission
Final Drive Enclosed shaft
Length x Width x Height 2215 x 780 x 1260mm
Wheelbase 1475mm
Seat Height 814mm
Ground Clearance 144mm
Fuel Capacity 19.5 litres
Dry Weight 228kg
Wheels Front ‘S’-section triple-spoke cast aluminum
Wheels Rear ‘S’-section triple-spoke cast aluminum
Tires Front 120/70 ZR17M/C (58W)
Tires Rear 150/70 ZR17M/C (69W)
Suspension Front 41mm telescopic fork, 115mm axle travel
Suspension Rear Single damper with adjustable preload, 120mm axle travel
Brakes Front 296mm dual hydraulic disc with Combined 3-piston calipers and sintered metal pads
Brakes Rear 276mm hydraulic disc with dual-piston caliper and sintered metal pads

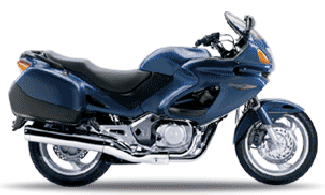

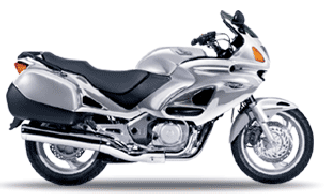

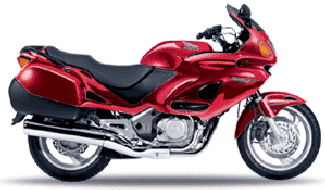

650 Deauville Image Gallery
