2023 BMW F900 XR [Specs, Features, Photos]

2023 BMW F900 XR
Last updated:

The 2023 BMW F 850 GS Embodies Versatility

The 2023 BMW F900 XR is designed for those who want the best of both sport riding and long-distance touring.  Its design is exciting and shows just how much fun sport or adventure riders will have on it. Thanks to BMW Motorrad’s comprehensive list of standard equipment, you can enjoy this riding experience every day no matter your riding preference or weather.  The 895cc water-cooled engine makes a healthy 99 horsepower that coupled with multiple riding modes and a useful windscreen, there’s no weather that can keep you from using all of that power.

Just like the other bikes in BMW’s lineup this year, the bike includes the latest in high-tech features and conveniences.  A bright and easy-to-read TFT display with BMW’s connectivity setup, multiple ride modes, and a 12V socket for accessories means you will be in control and able to take your personal electronics without fear of running out of charge.  Consistent with other European brands, BMW has included LED lighting all around.

The 2023 BMW F900 XR starts at $11,695 USD / $12,995 CAD

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new 2023 BMW F900 XR in one place.

2023 BMW F900 XR


Model Overview

  • Price: $11,695 USD  / $12,995 CAD
  • Key Features:
    • Adjustable hand controls
    • LED lighting
    • TFT Display with BMW Motorrad connectivity
    • Dual front disc brake, 4-piston radial brake calipers

Main Specs

  • Engine: 895cc Water-cooled, 2-cylinder, four-stroke engine
  • Power: 99 horsepower
  • Torque: 67.9 lb-ft
  • Weight: 504 lbs (229 kgs)
  • Seat Height: 32.5 inches (775 mm) w/ low seat up to 34.2” (868mm) w/ extra high seat

Competitors

2023 BMW F900 XR


2023 BMW F900 XR Specifications

From BMW

ENGINE

Engine 895cc, Water-cooled, 2-cylinder, four-stroke engine with four cam-operated valves per cylinder, two overhead camshafts and dry-sump lubrication
Engine Power 105 hp
Bore x Stroke 86 mm x 77 mm
Compression Ratio 13.1 : 1
Fuel delivery Electronic intake pipe injection / digital engine management system: BMS-X with throttle-by-wire
Starter Electric
Max Torque 67.9 lbs-ft at 6,500 rpm

DRIVETRAIN

Clutch Multiple clutch in oil bath, anti-hopping clutch, mechanically operated
Transmission Claw-shifted 6-speed gearbox integrated in the transmission housing
Drive Endless O-ring chain with shock damping in rear wheel hub

CHASSIS

Suspension Front Upside-down telescopic fork, diameter 43 mm
Suspension Rear Aluminum twin-sided swingarm, central shock absorber, spring pre-load hydraulically adjustable, rebound damping adjustable
Brakes Front Twin disc brake, floating brake discs, diameter 320 mm, 4-piston radial brake caliper
Brakes Rear Single disc brake, diameter 265 mm, 1-piston floating caliper
Tires Front 120/70 ZR17
Tires Rear 180/55 ZR17
Fuel Tank Capacity 15.5 l
Color Sport, Triple Black

ELECTRICAL

Alternator Permanent magnet alternator with 416 W (nominal power)
Battery 12 V /  12 Ah, maintenance-free
Headlight LED headlight
Tail Light LED tail light

DIMENSIONS

Overall Length 2,160 mm
Overall Width 860 mm (without mirror)
Overall Height 1,320 – 1,420 mm (above windshield, at DIN unladen weight)
Wheelbase 1,521 mm
Castor 105.2 mm
Seat Height 32.5″ (lowering: 30.5″; double seat low: 31.3″; seat high: 33.0″; comfort seat: 32.3″; seat extra high: 34.2″)
Unladen weight, road ready, fully fueled

219 kg

WARRANTY

Warranty 3 years warranty.
Extension

2023 BMW F900 XR


2023 BMW F900 XR Features

Two-cylinder in-line engine.

The two-cylinder deliver torque exactly where you need it.

Dynamic ESA

The Dynamic ESA allows you to switch between suspension settings while riding.

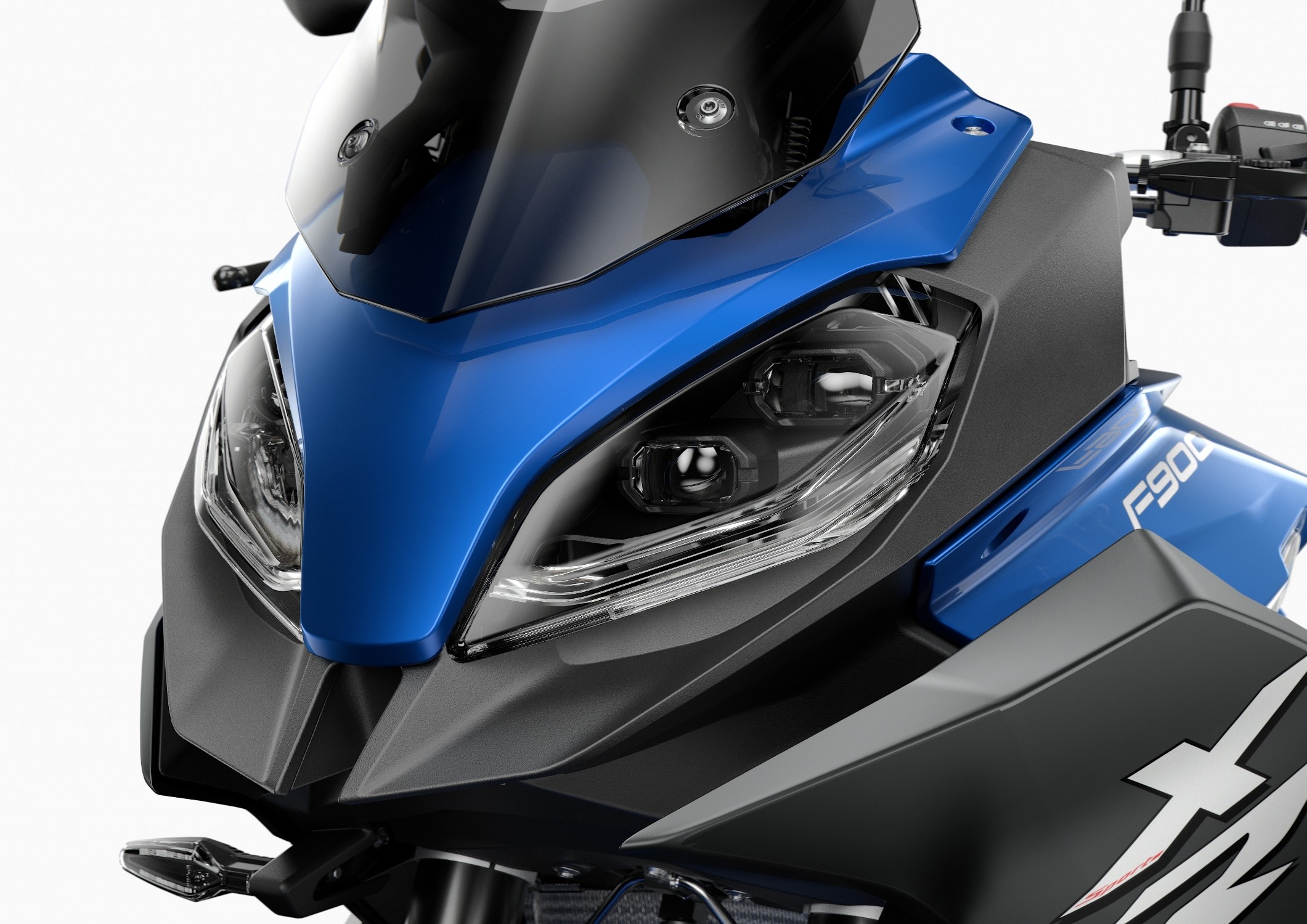

Adaptive cornering light

Can you enjoy curves more with your own lighting?

Seat heights: Wide range that just fit.

From 775 – 870 mm: With the F 900 XR, everyone can find their preferred seat height.

Height-adjustable windshield.

Practical: The wind and weather protector can be adjusted by hand.

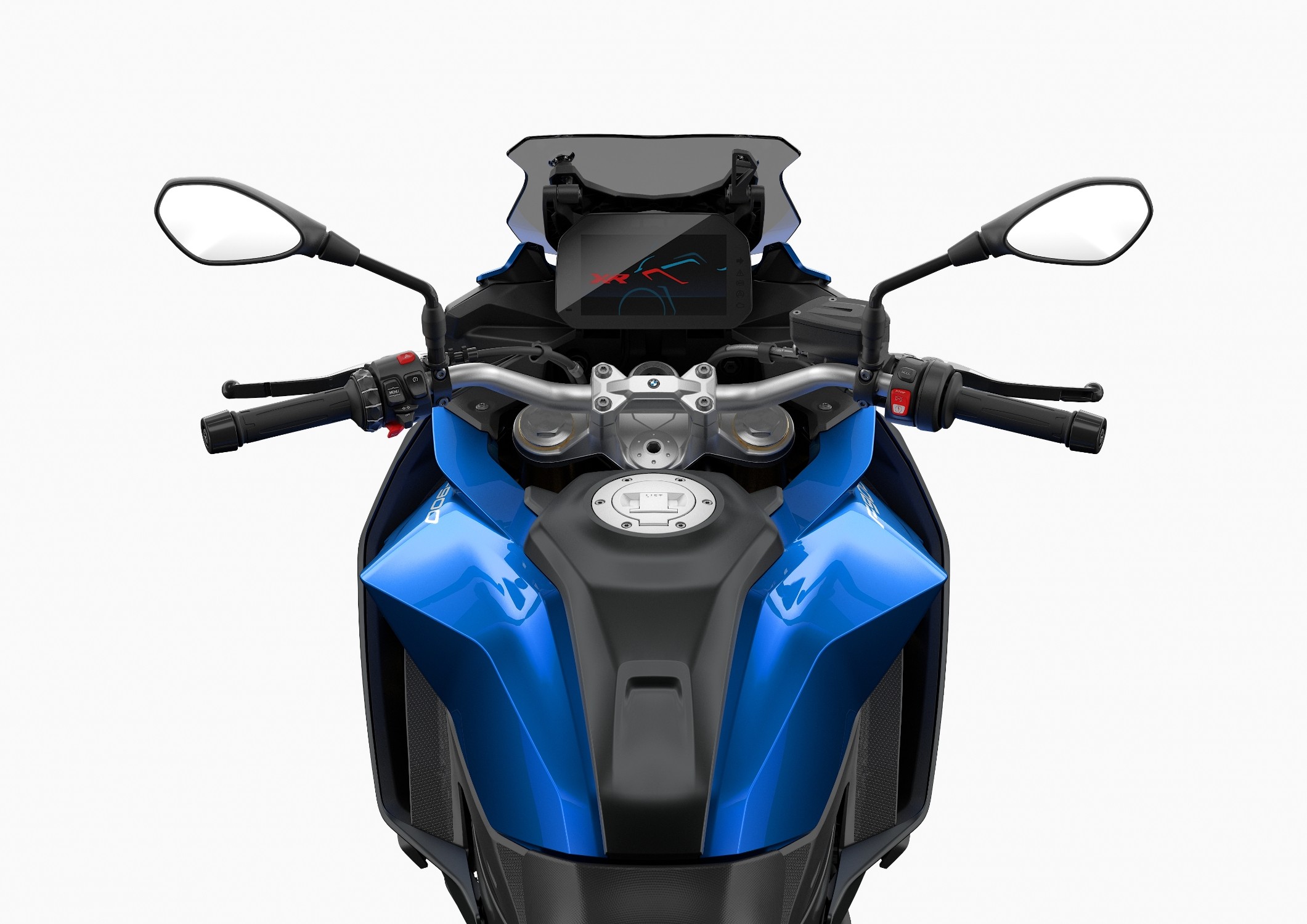

Always well-informed with BMW Motorrad Connectivity and TFT display.

The standard 6.5” TFT colour display and BMW Connectivity – direct connection with your smartphone.

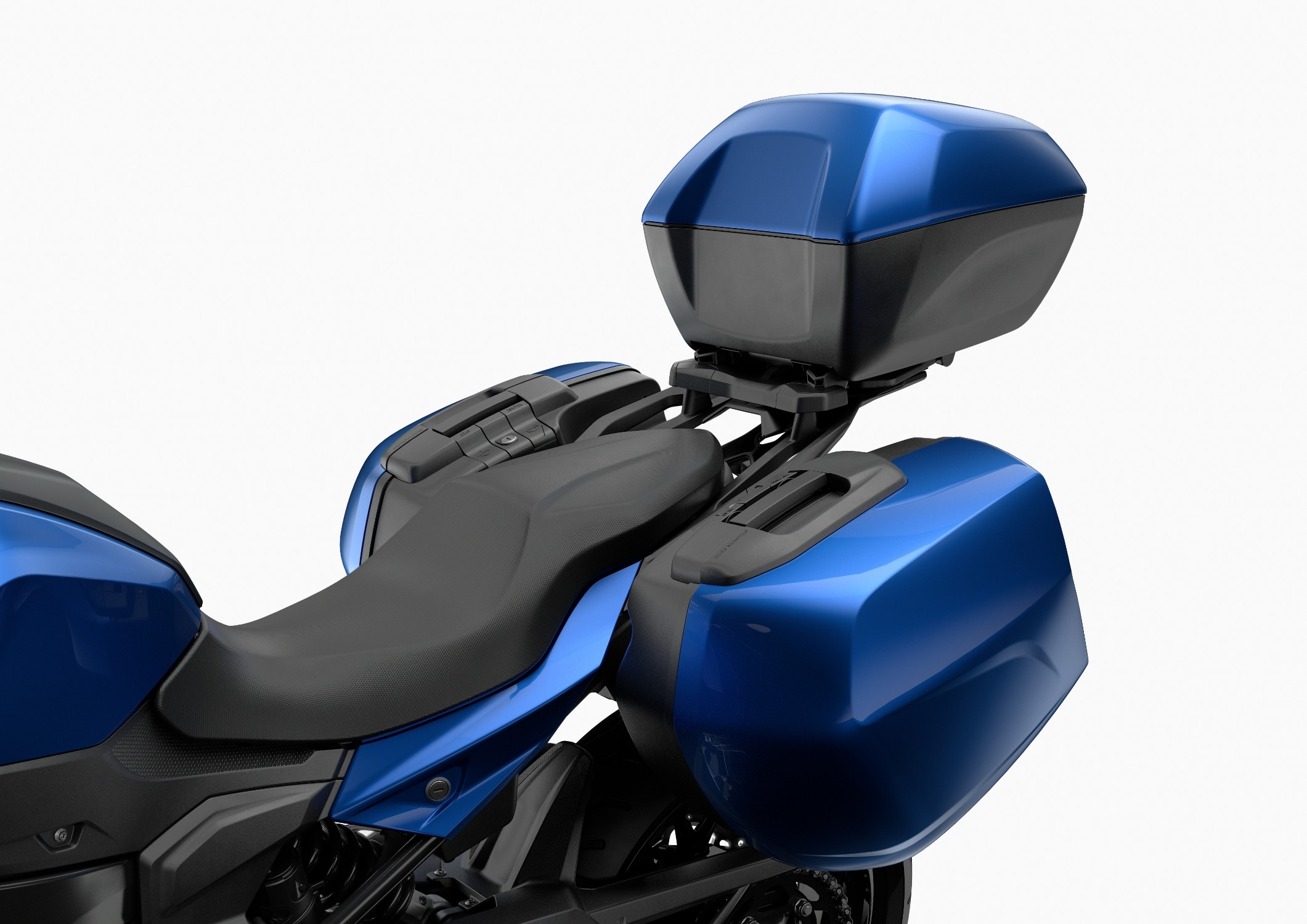

Convenient storage space

Long-distance performance in every detail: Bags in the vehicle colour are just one of the many highlight in terms of storage space.
