2018 Harley-Davidson Softail Fat Bob

2018 Harley-Davidson Fat Bob male motorcycle seat
Fat Bob

Good news for fans of the former Harley-Davidson Dyna Fat Bob: Now that it’s a Softail, it handles better and is more powerful with a choice of 107- and 114-cube Milwaukee Eight engines.

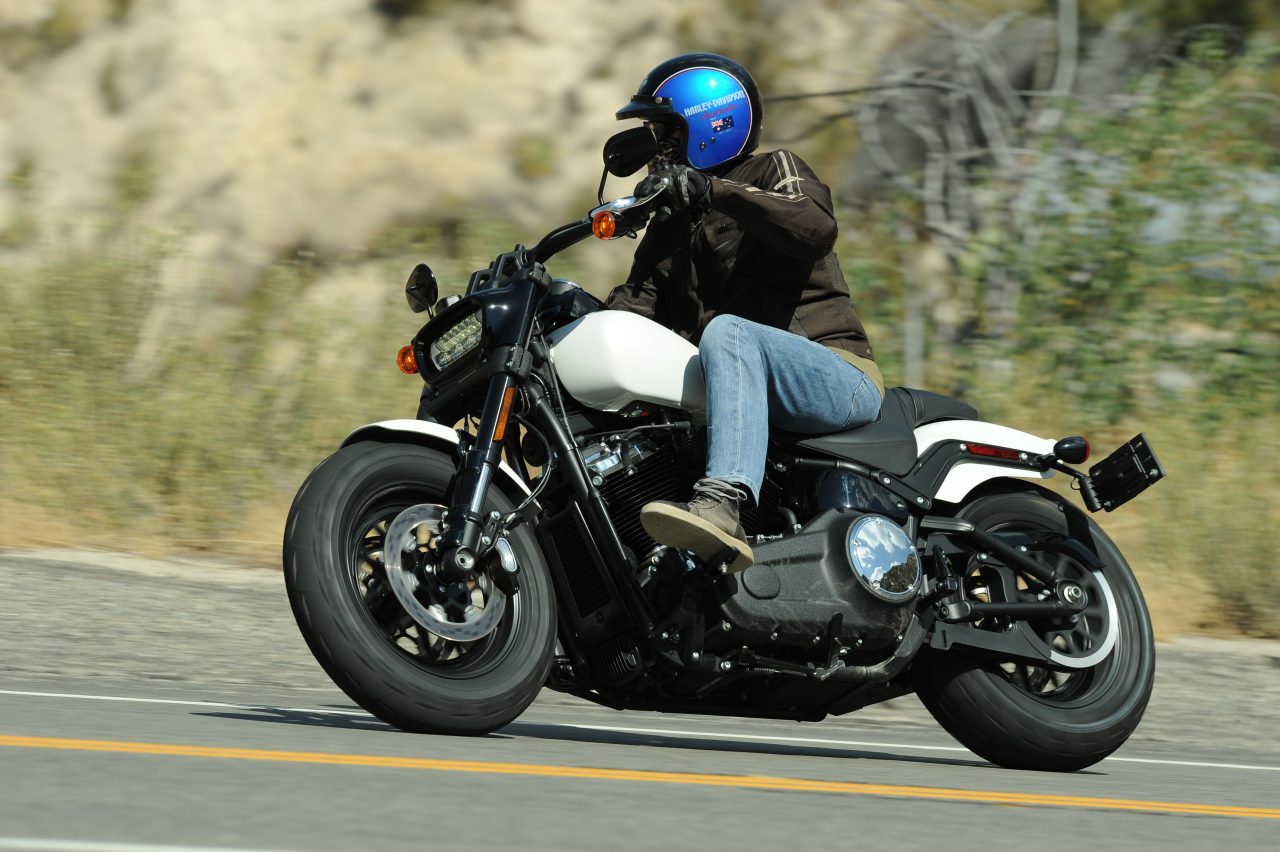

We’ve just ridden the Fat Bob and other former-Dyna models (Street Bob and Low Rider) that are now part of the Softail family from Pasadena up the twisting mountain roads to Big Bear Lake and back in blistering heat.

My performance pick from the eight Softails is the Fat Bob which is 11kg lighter than before, has the most cornering clearance, the best steering and menacing looks to go with its performance character.

Price has increased $2000 for the 107-cube FXFB at $27,495, while the bigger 114-cube FXFBS costs $30,250. Check all the 2018 Harley prices here.

Softail styling manager Kirk Rasmussen says they had an inside joke about the bike that it was a zombie apocalypse bike “ready to mow down zombies”.

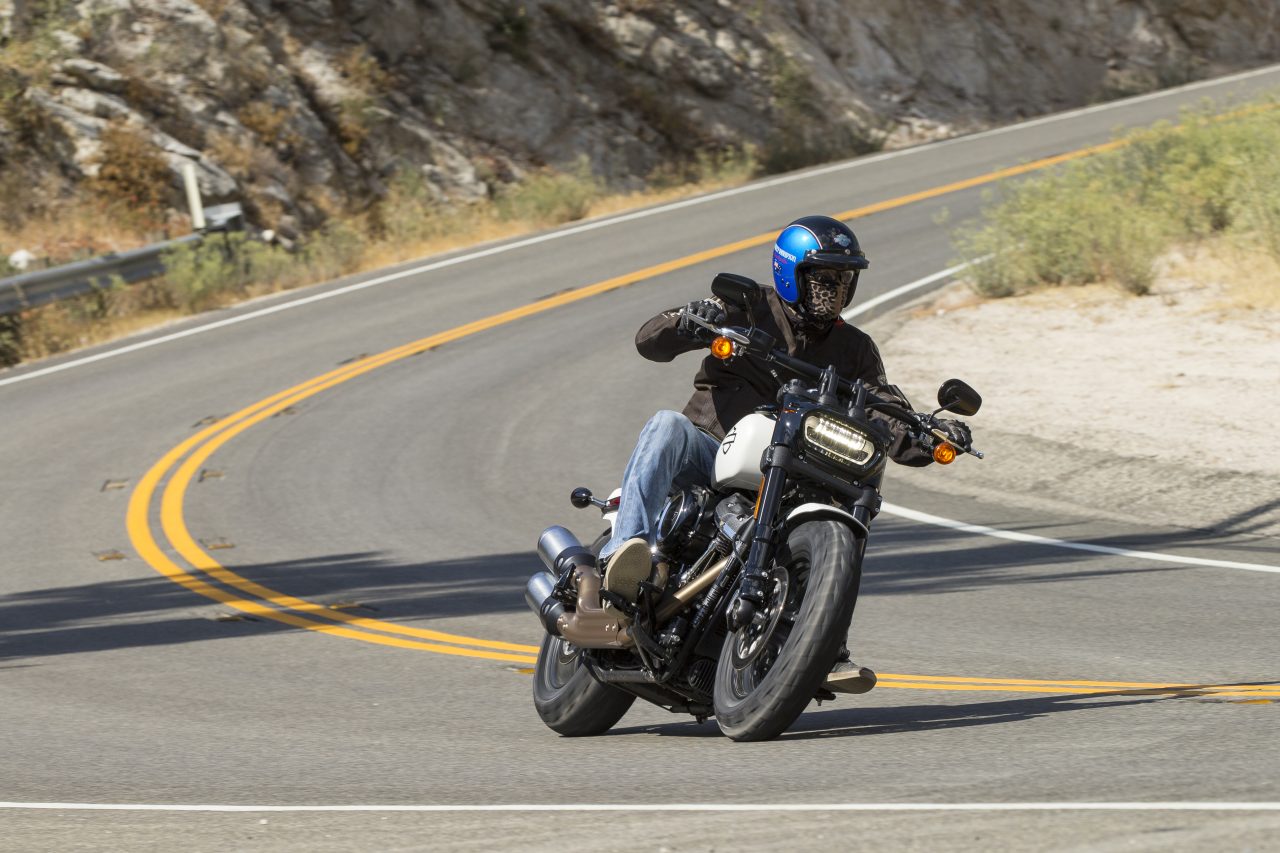

We didn’t mow down any zombies on the test ride, but we did mow down a lot of tight and twisty roads over the mountains north of LA.2018 Harley-Davidson Fat Bob

Hero Bike

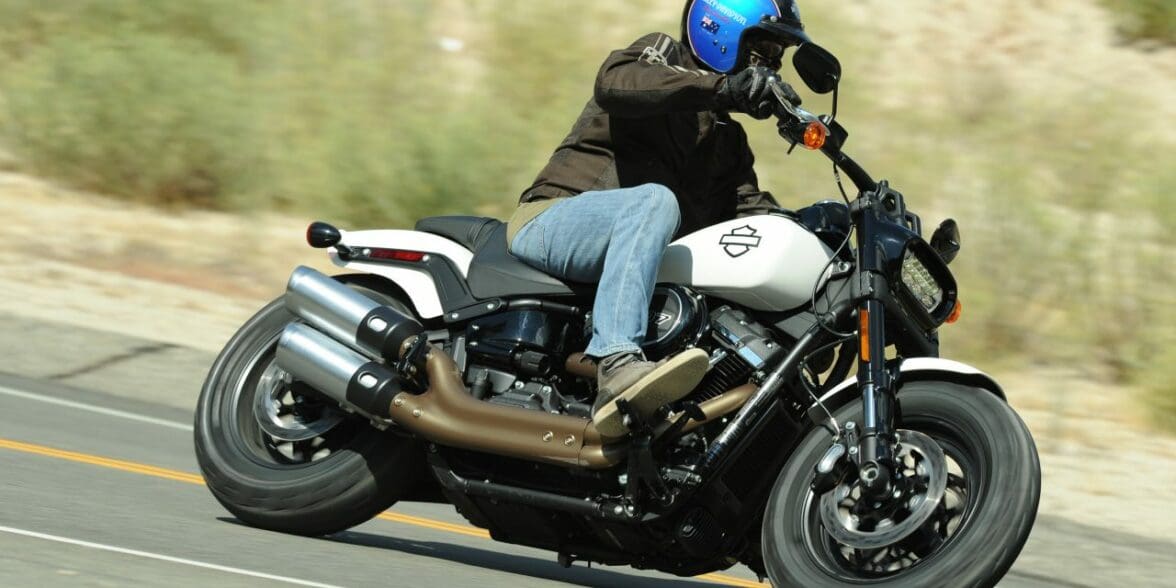

The “hero bike” of the new Softail line-up features dual front disc brakes, upside-down 43mm forks, performance shock with external preload hand adjuster and an upswept 2-1-2 exhaust.

Dyna fans may bemoan the loss of the rubber-mounted and unbalanced engine, but they will love the fact that the Fat Bob is now a much improved performer and handler.

Even though it has slightly less clearance (120mm versus 125mm), it has one degree more lean angle on each side (31 right and 32 left).

The rake and trail are also tightened up for a sharper steering experience.

It tips quickly into corners and while there is only one degree more of static corner clearance, you can lean it much further than before because the 34% stiffer frame doesn’t flex.

The stiffer suspension also prevents the bike from wallowing in corners and touching down the pegs.

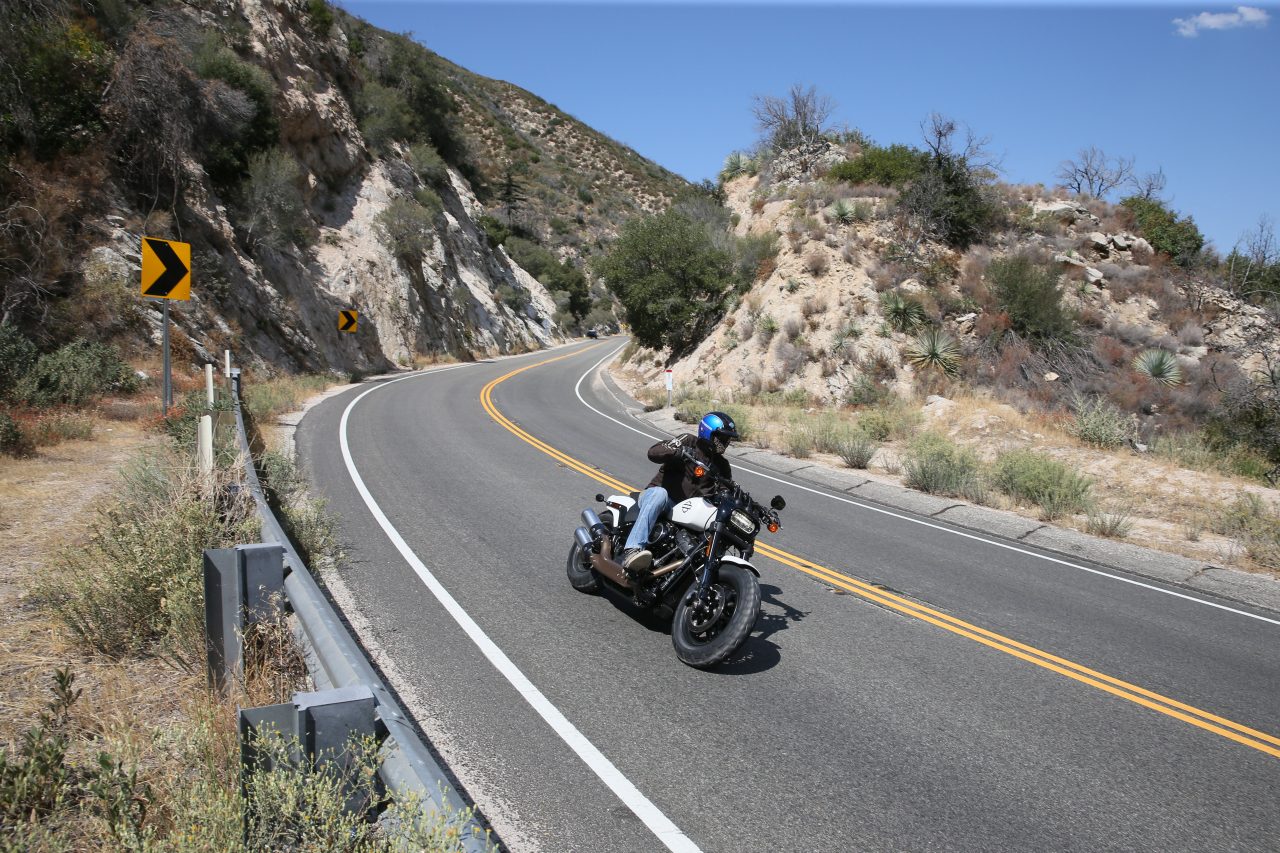

After spirited riding through the mountains most journos reported they didn’t touch down at all, or only on tight hairpins.2018 Harley-Davidson Fat Bob

Milwaukee Eight

We loved the new Milwaukee Eight engine when it was introduced in the Touring models last year.

It is mechanically quieter, more powerful, more economical, cooler and smoother.

The Touring engine, rubber mounted in the frame, was balanced 75% to retain some character.

Now that it is hard-mounted to the all-new Softail frame, it has been 100% balanced with a secondary balancer.

Harley doesn’t mention power, but torque in the 107 is slightly down from 152Nm at 3250rpm to 145Nm at 3000 revs probably thanks to the extra balancing.

There is also the option of the 114 engine with 155Nm of torque at 3000 revs, down from 168Nm at 3250rpm in the CVO Touring models.

However, with 11kg shaved off for a running weight of 306kg, it’s a lot lively performer than in any of the Touring models.

It doesn’t have that comical shaking character character of the old Dyna’s unbalanced engine that vibrated madly on its rubber mounts.

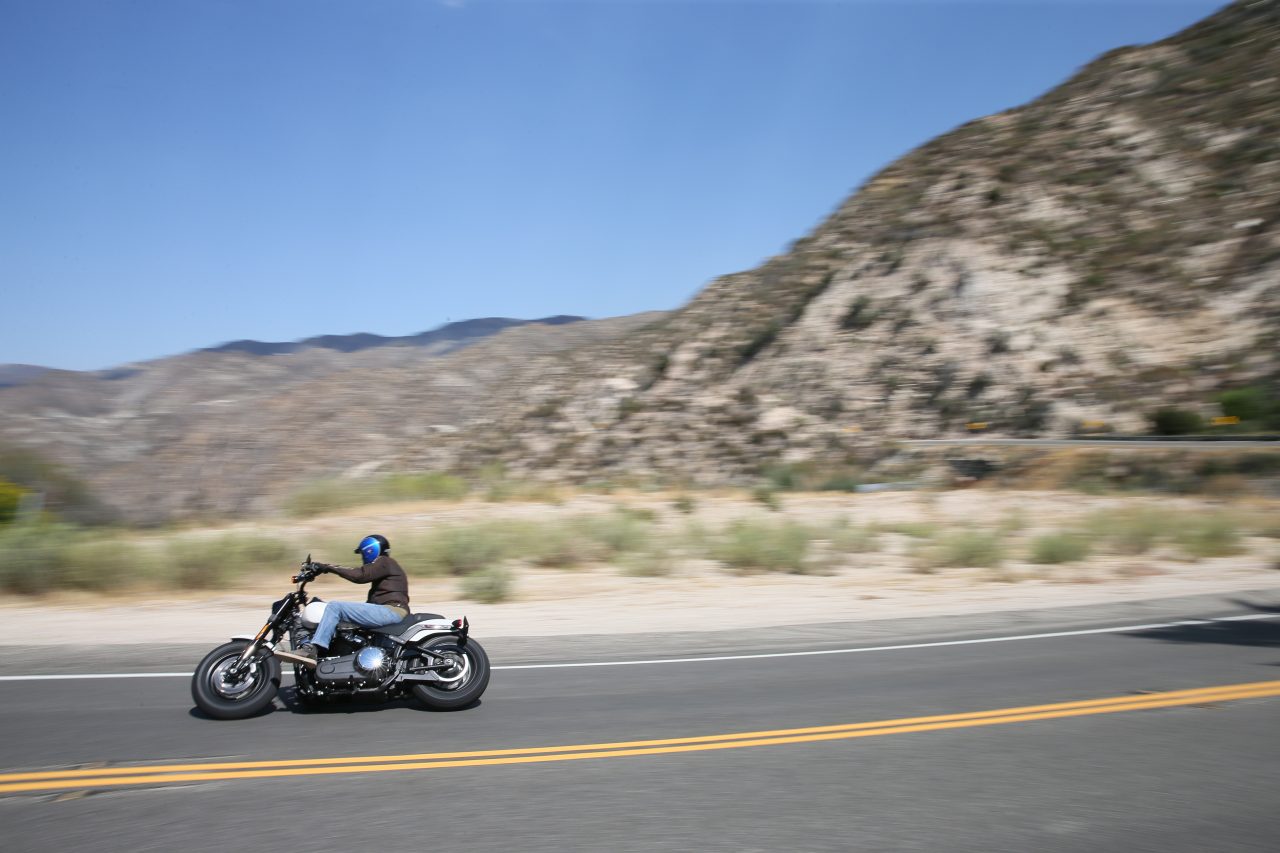

Instead, it’s smooth, sophisticated and still revs hard.2018 Harley-Davidson Fat Bob

Zombie style

While in LA, we also visited Roland Sands Design and Roland admitted the styling would polarise Harley fans and take some getting used to.

The most confronting element in the styling is the move from twin circular headlights to a horizontal rectangular shape with rounded edges.

The unique LED headlight is tucked inside a neat, gloss-black pillar-box nacelle.

New Softails fat bob
Confronting oval LED headlight on the Fat Bob

It looks strange in the photos, but in the flesh/metal/glass, it looks quite handsome yet menacing.

Of course the back end is now neater with a hidden single mono shock rather than the external dual shocks.

However, the hidden shock jacks up the rear end and the shorty rear fender leaves a massive gap above the slightly knobby-tread tyre.

Kirk’s styling department has also chosen some interesting finishes for the bike.

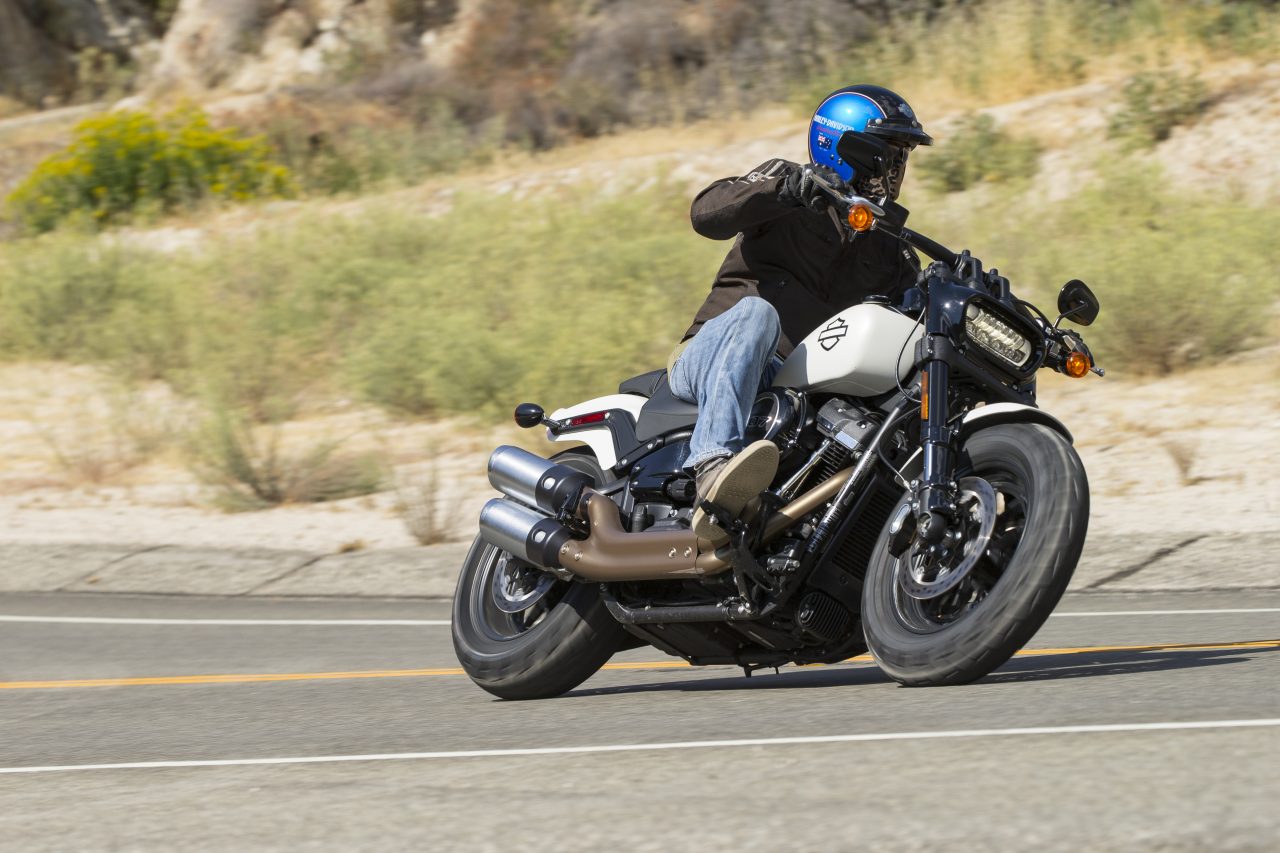

Despite dropping 11kg, more could have been shed if they went to plastic parts, but the “oil tank”, fenders and other parts are all metal for mowing down those zombies.2018 Harley-Davidson Fat Bob

We particularly love the bronzed header pipe covers and the silver “rattle-can” painted mufflers.

While we can appreciate the continuous sloping line from the triple clamp to the swingarm, the tank-mounted analogue instrument nacelle looks out of place with the modern custom looks.

We would have preferred to dispense with the nacelle and use the new “barely legal” digital instruments on the triple clamp like on the Street Bob. They are small, but easy to read in all light conditions and they really tidy up the front end.

2018 Harley-Davidson Softail Street bob fat bob

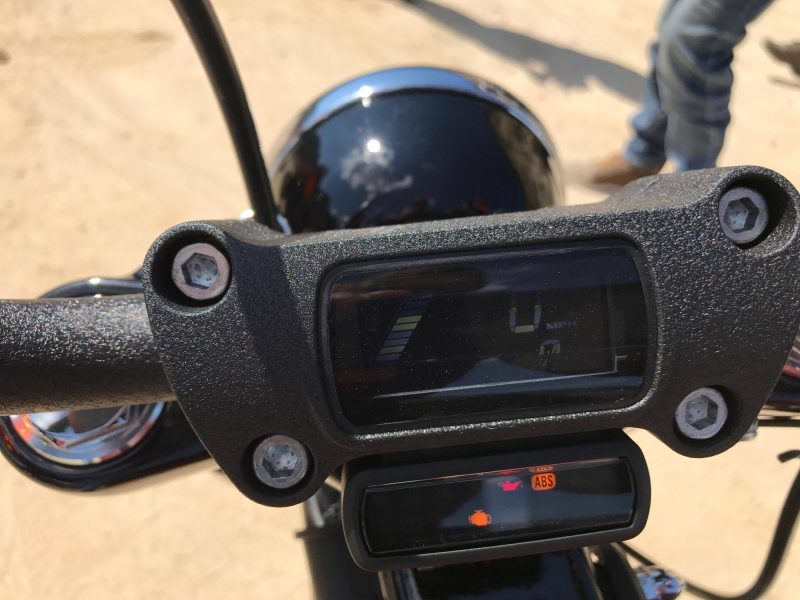

Digital instruments on the Street Bob

Speaking of tidying up the bike, the hidden cabling down the spine of the frame tucks most of the ugly plumbing out of sight.

The Dynas also get a shorter and more easily access sidestand.

However, it makes the bike stand up a bit more vertically, so you have to choose your parking spot with more care.

You also have to be careful that you have pushed the stand all the way forward and that it has slotted into the patented Harley locking mechanism. It cleverly prevents the bike rolling forward, even when parked downhill and in neutral!

Like all new Softails, it comes with new keyless ignition, more comfortable seats and new wheel designs.2018 Harley-Davidson Fat Bob

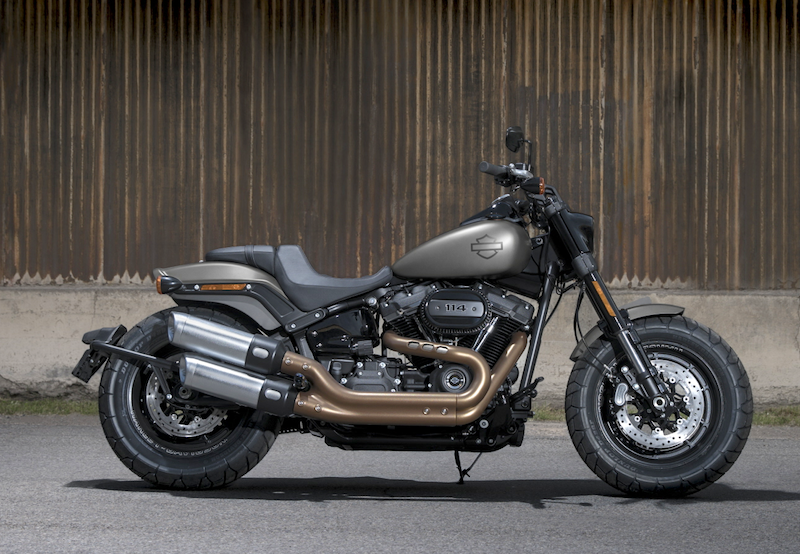

Harley-Davidson FXFB and FXFBS Fat Bob

  • Price: $27,495 (FXFB 107) and $30,250 (FXFBS 114) ride away
  • Engine: Milwaukee-Eight 107 (1745cc) and 114 (1868cc)
  • Torque: 145Nm (107) 155Nm @ 3000rpm
  • Length: 2340mm
  • Seat: 710mm
  • Clearance: 120mm
  • Rake/trail: 28 degrees/ 132mm
  • Wheelbase: 1615mm
  • Tyres: 150/80-16,71H,BW; 180/70B16,77H,BW
  • Fuel: 13.6 litres
  • Wet weight: 306kg
  • Brakes: 4-piston fixed front and 2-piston floating rear2018 Harley-Davidson Fat Bob
  1. Interesting. So Mark, how were the vibes when riding it? Did the mirrors blur? Any extra vibes in different areas of the rev range?

    I’d be interested in seeing a shorter 2-1, 2-2 pipe, black/chrome/that off-gold colour. Akraprovic make some HD pipes — be keen to see what they come up.

    Let’s not spruik the weight loss to much — a chunk came from a fuel tank that is nearly 5lt’s smaller. You do some work on the engine and ride it like it’s apparently designed to be ridden, you will miss that 5lt’s quickly.

    1. Hi,
      There is still some blurring in the mirrors, but it’s nowhere near as bad as it used to be with the former Dynas!
      It’s smooth and sophisticated for a big twin and has no rev points where it runs roughly, even at idle.
      The weight saving is a big thing and you can feel it even when you pick it up off the sidestand; an issue with many smaller and female riders. Actually most of the weight saving is in the frame, not the fuel tank.

  2. Hi,
    Just purchased a FXFBS and have found the rear suspension very hard and it bounces over uneven terrain. Is there any known issues with the rear or is it just very firm. I’ve adjusted the dial to setting 1, but on my basic knowledge this is a hydraulic feed to the shock, so I’m guessing it varies the dampening rate not the spring rating.
    All the adjustment seems to do is make the dampening incredibly rigid.
    Any thoughts please
    Other than this suspensions issue, the bike is unbelievable, power, smooth, handling. And a brilliant ride.


    1. Hi Jeff,
      Yes it is hard. I think a heavier rider might make it set further down on the suspension and take out some of the initial sting. However, it will bottom out quicker.
      If it’s uncomfortable on our rough roads, you actually need a stiffer spring and better damping, which means a new shock.

  3. Hi, Rahul from India. Just bought a fat Bob 107, a month back. The bike is great but the only issue is that I feel cramped in the seat, my tail bone pains and I have to stop every hour or 60 – 70 miles, to provide relief. Please suggest what will help. Also can I change the seat ?? Which seat ??
