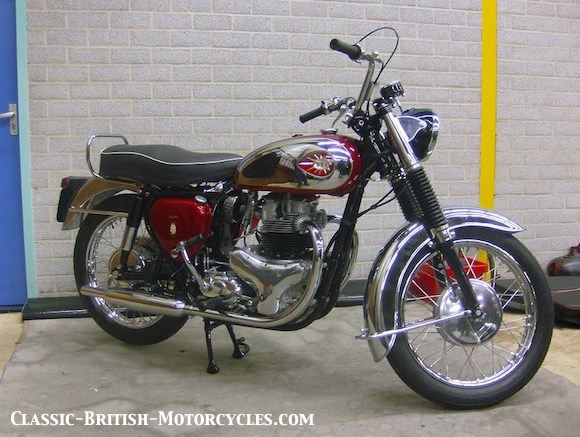

1963 BSA A10 SUPER ROCKET

1963 BSA A10 SUPER ROCKET
The Super Rocket was launched in 1957 with the introduction of a new alloy cylinder head and the addition of an Amal TT carburetor. In 1961 a new “357” high-lift racing cam was added. 1963 was the final year (a partial year) of A10 production as they ramped up production of the new unit-construction 650 A65, which started in late 1962, with over a year of overlapping production. With both bikes sitting side-by-side in the showroom, the old and the new, it must have been disheartening when BSA realized that the old bikes were selling better than the new ones. The 1963 BSA A10 Super Rocket was the last of the A10s, and represents the pinnacle of BSA’s pre-unit bikes.


1963 BSA A10 SPECIFICATIONS

Engine type

Displacement

Bore & Stroke

Compression

Carburetor

Engine output

Primary drive

Clutch

Final drive

Gearbox

Ratios, overall:

1st, Bottom

2nd

3rd

4th, Top

Wheelbase

Seat height

Ground clearance

Suspension, front

Suspension, rear

Brakes, front

Brakes, rear

Tires, front

Tires, rear

Fuel capacity

Curb weight

Air-cooled OHV vertical twin

646cc

70mm X 84mm

8.3:1

1- Amal Monobloc (TT)

42 hp @ 6,000 rpm

1/2″ X .305 single-row chain

Multi-plate, wet

5/8″ X 3/8″ chain

BSA constant-mesh 4-speed, foot shift

11.68:1

7.96:1

5.48:1

4.53:1

56.0″

30.0″, unladen

6.0″, unladen

telescopic forks, 2-way damping

swing arm, 2 hydraulic dampers

8.0″ SLS drum

7.0″ SLS drum

3.25″ x 19″

3.50″ x 19″

4.0 gal

439 lbs
