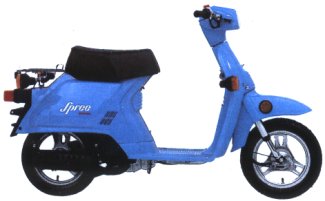

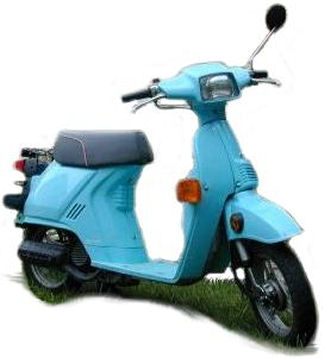

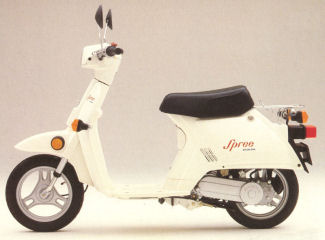

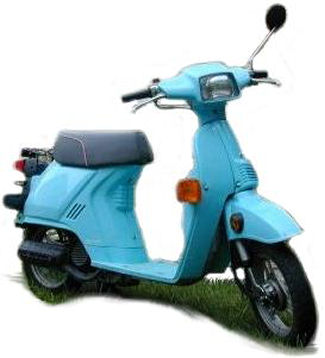

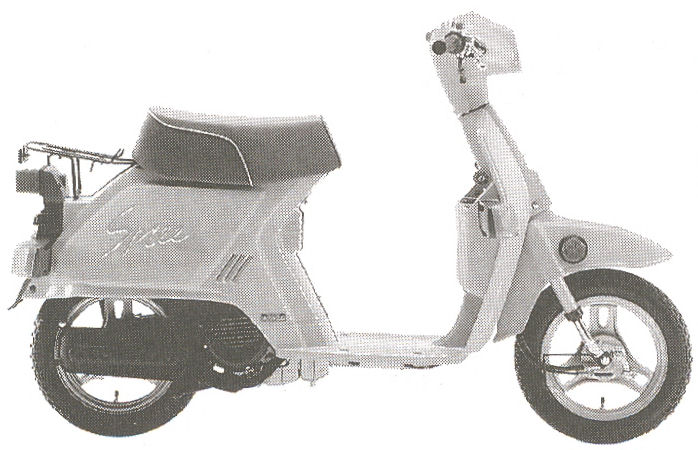

1984 SPREE 50 NQ50
Engine |
|
Engine Type | Forced-air-cooled two-stroke single cylinder |
Oiler | automatic oil injection |
Displacement | 49cc |
Bore & Stroke | 41 x 37.4mm |
Compression ratio | 7.2:1 |
Spark plug | BPR6HS |
Plug gap | .028 |
Fuel Delivery | 14mm piston-valve type |
Starter | Electric |
DRIVETRAIN |
|
Transmission | Single-speed |
Clutch | automatic centrifugal |
Drive line | Belt primary drive with gear final drive |
CHASSIS / SUSPENSION / BRAKES |
|
Brakes | Front and Rear drum |
Front suspension | Telescopic fork |
Rear suspension | Single shock |
Tire size | 2.50-10 front and rear |
Wheels | pressed steel |
DIMENSION |
|
Wheelbase | 1065mm (41.9 in.) |
Dry weight | 38.8 kg (85.5 lb) |
Overall length | 1490mm (58.6 in.) |
Overall width | 590mm (23.2 in.) |
Seat height | 693mm (27.3 in.) |
Fuel capacity | 2.5 liter (.66 US gal.) (.55 Imp. gal.) |
OTHER |
|
Accessory | Rear carrier |
Colors |
|
V.I.N. | JH2AF060XES000004 |
Engine | AF05E-2000005 |

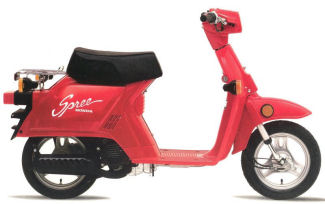

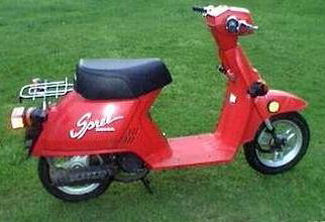

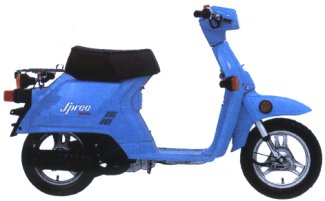

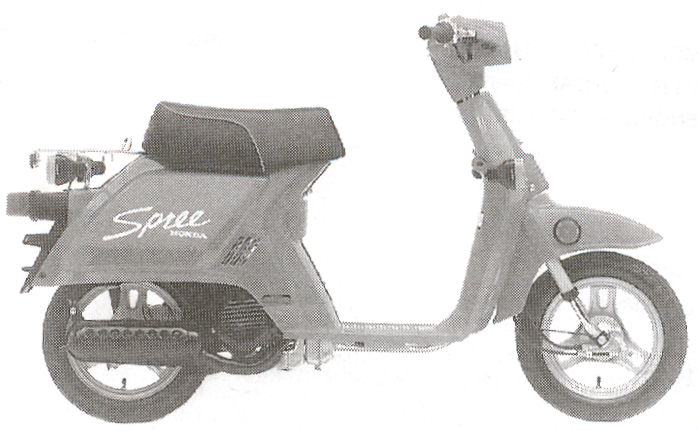

1985 SPREE 50 NQ50
Engine |
|
Engine Type | Forced-air-cooled two-stroke single cylinder |
Oiler | automatic oil injection |
Displacement | 49cc |
Bore & Stroke | 41 x 37.4mm |
Compression ratio | 7.2:1 |
Spark plug | BPR6HS |
Plug gap | .028 |
Fuel Delivery | 14mm piston-valve type |
Starter | Electric |
DRIVETRAIN |
|
Transmission | Single-speed |
Clutch | automatic centrifugal |
Drive line | Belt primary drive with gear final drive |
CHASSIS / SUSPENSION / BRAKES |
|
Brakes | Front and Rear drum |
Front suspension | Telescopic fork |
Rear suspension | Single shock |
Tire size | 2.50-10 front and rear |
Wheels | pressed steel |
DIMENSION |
|
Wheelbase | 1065mm (41.9 in.) |
Dry weight | 39 kg (85.9 lb) |
Overall length | 1530mm (60.2 in.) |
Overall width | 590mm (23.2 in.) |
Seat height | 710mm (27.9 in.) |
Fuel capacity | 2.5 liters (.66 US gal.) (.55 Imp. gal.) |
OTHER |
|
Accessory | Rear carrier |
Colors |
|
V.I.N. | JH2AF060XES000004 |
Engine | AF05E-2000005 |

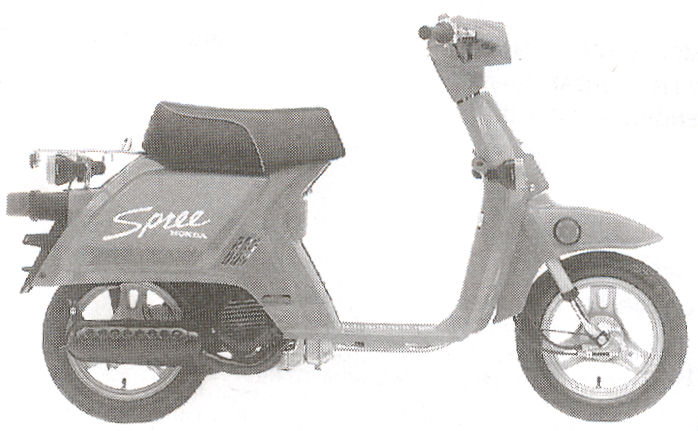

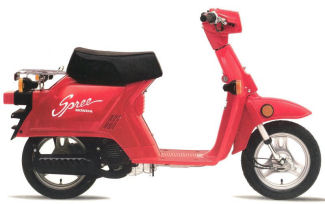

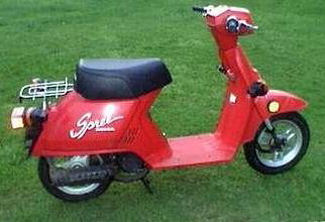

1986 SPREE 50 NQ50
Engine |
|
Engine Type | Forced-air-cooled 49cc two-stroke single cylinder with automatic oil injection |
Spark plug | BPR6HS |
Plug gap | .028 |
Starter | Electric |
DRIVETRAIN |
|
Transmission | Single-speed with automatic clutch |
CHASSIS / SUSPENSION / BRAKES |
|
Brakes | Front and Rear drum |
Front suspension | Telescopic fork |
Rear suspension | Single shock |
Tire size | 2.50-10 front and rear |
Wheels | pressed steel |
DIMENSION |
|
Wheelbase | 1065mm (41.9 in.) |
Dry weight | 39 kg (86 lb) |
Seat height | 700mm (27.6 in.) |
OTHER |
|
Accessory | Rear carrier |
Colors |
|
V.I.N. | JH2AF0603GS200001 |
Engine | AF05E-2200001 |

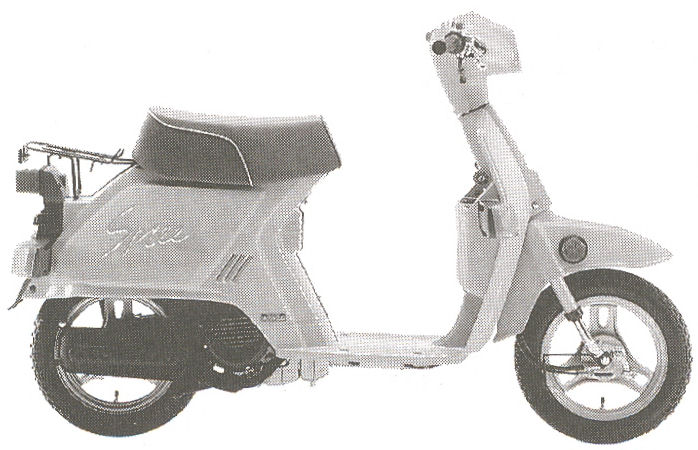

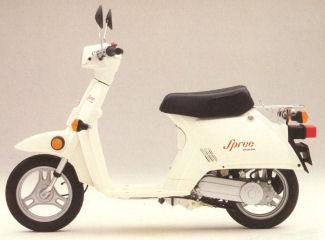

1987 SPREE 50 NQ50
Engine |
|
Engine Type | Forced-air-cooled 49cc two-stroke single cylinder with automatic oil injection |
Spark plug | BPR6HS |
Plug gap | .028 |
Starter | Electric |
DRIVETRAIN |
|
Transmission | Single-speed with automatic clutch |
CHASSIS / SUSPENSION / BRAKES |
|
Brakes | Front and Rear drum |
Front suspension | Telescopic fork |
Rear suspension | Single shock |
Tire size | 2.50-10 front and rear |
Wheels | pressed steel |
DIMENSION |
|
Wheelbase | 1065mm (41.9 in.) |
Dry weight | 39 kg (86 lb) |
Seat height | 700mm (27.6 in.) |
OTHER |
|
Accessory | Rear carrier |
Colors |
|
V.I.N. | JH2AF0603GS200001 |
Engine | AF05E-2200001 |
