DR650 HID Headlight Conversion

The “Bikemaster” brand HID headlight kit is available in several different bulb types.

We installed the H4 kit on the Suzuki DR650 (blog) but the steps are the same for every bike.

The HID bulb posed no difficulties; it is a direct replacement for the H4.

Locating a suitable mounting position for the ballast is a bit difficult, depending on the bike.

The new HID headlight is definitely “whiter” than the standard halogen bulb, but the pattern doesn’t seem quite as good.

Other than the color, there doesn’t seem to be much difference in light output. Thus, it’s an interesting accessory but probably not worth the effort on this particular bike.

Always on the lookout for new and better motorcycle accessories — especially when it comes to lighting — we purchased a Bikemaster brand HID headlight upgrade kit for the DR650.

Actually, there isn’t much wrong with the stock headlight on the DR650; it puts out a nice pattern with adequate light.

And when it’s combined with the night-into-day power of the Clearwater Krista LED lights (review), there’s basically nothing that can beat it.

That a “small” bike like the DR650 can place so many lumens at your disposal is a testament to modern science, that’s for sure!

But, to get that very last photon of lighting power, we figured an HID headlight upgrade would be the way to go.

Fortunately, there are now many HID headlight kits that are relatively inexpensive and readily available. Installing one is more-or-less a plug-and-play operation that just about any owner can accomplish.

The Bikemaster HID headlight upgrade kits are probably the most common and they have a pretty good reputation, so let’s take a look at a typical installation that should be similar for just about any motorcycle.

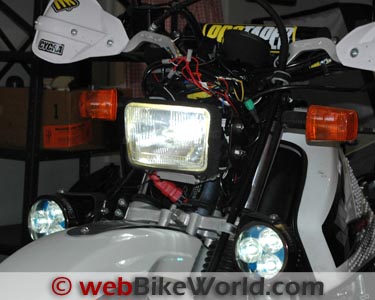

Bikemaster HID Headlight Conversion Kit
The basic Bikemaster HID headlight kit includes the HID bulb, the ballast, wiring and fuse.

The Bikemaster Motorcycle HID Headlight Upgrade Kit

“Back in the old days” (not all that long ago actually), HID motorcycle headlights were a novelty. Installing one was sometimes a shot in the dark, if you’ll pardon the pun.

You can basically learn the history of motorcycle HID headlight upgrades in the various reviews published on webBikeWorld during the last decade.

In fact, that 2005 story sums up the issues and problems in installing an HID headlight back then.

An owner had to choose a headlight (including the headlight shell and reflector), then a ballast, and somehow fettle everything together without burning up the bike, burning down the garage and without getting electrocuted in the process.

Which brings us to today.

All-in-one motorcycle HID headlight kits are now readily available, although some of the off-brand products are suspect.

Bikemaster isn’t one of them; the company is a well-known manufacturer of various motorcycle accessories, including LED lights and other electrical gizmos.

Their HID headlight replacement kits are compact, complete and well made.

This is an established brand, not one of those fly-by-night operators on that famous (infamous) used-to-be-an-auction-website everyone loves to hate…

The Bikemaster HID headlight kit is available with an H4 low/high beam, along with H7, H9, H11, H13 and 9005 type single-beam bulb replacements, so there should be one for just about every motorcycle out there.

The Suzuki DR650 has a basic old-school square headlight with a stock H4 55/60W halogen bulb, so we bought the Bikemaster H4 HID kit.

Note that some motorcycles may have separate and different headlight bulbs for low beam and high beam, which would require two HID kits, one for each bulb.

This would probably cause quite a bit of added complication in mounting both ballasts (or the owner could use either a low beam or high beam HID replacement only if desired).

The list price is $79.95 but the Bikemaster Motorcycle HID light kits can be had for as little as $52.36 through that webBikeWorld affiliate link. The H4 kit shown here cost $58.83.

HID Bulb Close-up
Close-up of the replaceable HID bulb unit (this one is an H4).

The HID Bulb

The Bikemaster kit comes with your choice of bulb type.

The H4 bulb has a sliding cover that changes the focus from low beam to high beam and we assume the other bulb types do the same.

This is different from “the old days”, when HID bulbs operated either on low beam or high beam but not always both.

The Bikemaster electronics switch the bulb from low to high beam just like the stock halogen incandescent bulb — one less engineering issue for the owner to solve. Replacement bulbs are also available for the Bikemaster system.

There isn’t a lot of information about the kit on the Bikemaster website, but some retailers claim that the HID bulb takes 35 Watts, compared to 55/60W for the stock bulb.

So this saves a few of those scarce DR650 electrons for other electronic goodies. The manufacturer makes no claim as to the actual output of the bulb.

By the way, if you’re looking for more power for your DR650, be sure to read our report on the DR650 250 Watt stator upgrade, which provides more power to the bike’s electrical system.

The H4 HID bulb replacement slips into the existing socket on the DR650 and then the three-prong connector from the Bikemaster kit replaces the stock unit.

As is the case with any headlight (or tail light) bulb, do not touch it, because the oil from your skin can cause hot spots on the bulb. If you do touch it, clean it with alcohol first.

The rubber bulb cover on our DR650 had been damaged by the previous owner, so it didn’t quite fit over the wider base of the Bikemaster H4 HID bulb and we had to use a cable tie to secure it (photo below).

The instructions state that the base mount of the H4 HID bulb type can be adjusted to fit different headlights, although we did not adjust ours.

Note that the HID light pattern can vary quite a bit, depending on the design of the reflector on your particular motorcycle.

We found that the HID light accurately replicates the standard pattern on this bike, which is the minimum requirement.

In other words, you don’t want to end up with a light pattern that is worse than what you have from the stock light.

Also, the Bikemaster HID headlight kits are available in different light “temperatures”. This kit is the 6000K (Kelvin) kit, which has a “white” light, roughly equivalent to the color of sunlight at noon.

An 8000K Bikemaster HID headlight kit is also available; the 8000K bulb has a “blue” light that can be annoying.

The 6000K HID bulb color matches both the Clearwater Krista LED lights (review) and the BikeVis Bullets (review) we have installed on the DR650 for a nice, even look when all the lights are on.

HID Ballast Close-up
Close-up of the HID ballast, which must be mounted separately.
HID Ballast Headlight Assembly
The ballast was mounted at the bottom of the DR650’s headlight bracket.

The HID Ballast

The kit comes with an attached ballast, which regulates the power output to the HID bulb.

There is a warning in the instructions that states that the ballast can store up to 23,000 Volts of juice, so you definitely want to make sure the power is off and the battery is disconnected before starting this installation.

The high power is used for the igniter that fires up the HID bulb at first to get the arc going. Once it’s up, the bike’s electrical system takes over.

This is why it’s important not to start and stop the bike quickly with an HID bulb installed.

Once the bike is started, it should really be left running for 5 minutes or so to make sure the HID light is powered up. Starting and stopping the light can shorten the lifespan of the HID bulb.

If you really want some technical info on how an HID ballast works, read this technical paper (.pdf) entitled Analysis and Design of High-Intensity-Discharge Lamp Ballast for Automotive Headlampby Yongxuan Hu (Virginia Polytechnic Institute and State University).

The Bikemaster HID kit ballast is relatively small, compared to some other brands (and especially compared to the ballasts of 10 years ago). It must be mounted separately somewhere on the bike.

Note also that each ballast is designed specifically for the particular bulb and kit, so it’s not a good idea to replace the ballast with a different brand.

There isn’t much room in the headlight assembly on the DR650 for mounting the ballast, but we fitted it under the headlight, attached to the square metal headlight bracket.

The ballast has three mounting holes, so it can be mounted under the headlight or inside a fairing on a bike so equipped.

Finding a location for and mounting the ballast is the most difficult part of the installation actually; everything else is plug-and-play.

The wiring harness is then connected directly to the motorcycle battery for power.

HID Ballast Mounted on Headlight
Rear view of the DR650 headlight assembly showing the ballast mounting. Note cable tie holding rubber cover.
HID Ballast Mounted on Headlight, Bottom View
Another view of the HID ballast mounting location.

The Results

We weren’t sure what to expect after installing the HID headlight kit, although we were anticipating more light.

It’s very difficult to get an accurate photograph of the lighting differences, and a couple of nights passed during the installation, which accounts for some of the differences in the photos.

But there doesn’t seem to be much of a difference between the HID light and the stock headlight on the DR650.

In fact, we might say that the HID headlight puts out less light than the stock bulb, although the pattern is roughly the same. This holds true when riding at night also; there just isn’t all that much difference between the two.

We wonder if any differences reported by owners are due to the light color, rather than any increased light output.

Also, the HID bulb doesn’t quite seem to cope with the DR650 headlight reflector and lens pattern as well as the stock bulb. The cutoff on low beam isn’t as defined with the HID bulb as it was with the stock bulb and we noticed this right away when riding at night.

The high beam pattern is nearly identical, however. This may be due to the arrangement of the HID bulb cover when switching from low to high beam.

These photos are an illustration. The light from the HID bulb is “whiter”, and the pattern is roughly the same. The first set of photos (stock bulb) was taken at f6.3, ISO800 with a 35.0 mm focal length.

The second set was the same except the focal length was slightly wider at 31.0 mm.

Low Beam Comparison

DR650 Low Beam Comparison
DR650 low beam comparison.

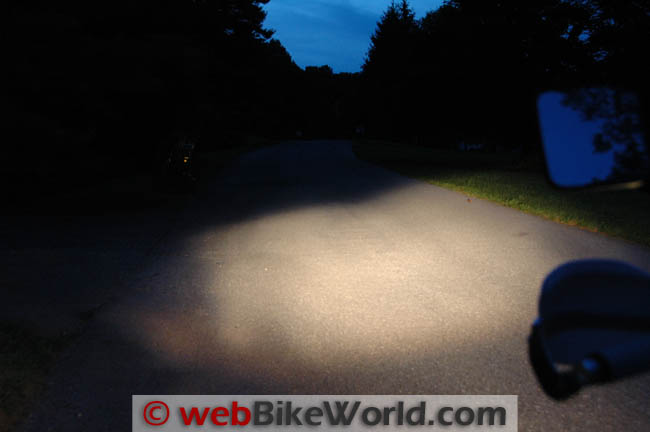

DR650 Low Beam
DR650 stock low beam. Sharper cutoff from left to right.
HID Low Beam
DR650 HID low beam.

High Beam Comparison

Here are some photos illustrating the difference between the stock Suzuki DR650 high beam and the HID headlight conversion kit.

DR650 High Beam Comparison
Stock high beam (L). HID high beam (R).
DR650 High Beam
Stock DR650 high beam.
HID High Beam
HID high beam; pattern and output roughly equivalent.


The Bikemaster HID headlight conversion kit is relatively easy to install — especially compared to HID systems from several years ago.

But the difference in light output just isn’t all that noticeable to us and this may be specific to the DR650 H4 kit, due to the reflector and lens assembly.

There is usually a compromise when installing an upgraded headlight bulb in a stock headlight shell; if the HID system was designed from scratch at the factory, the lens and reflector would be optimized to take advantage of the HID or Xenon bulb.

Your results may vary from worse to better. In this case, the HID kit wasn’t very expensive, so there’s not much lost. Would we do it again? Probably not.

The stock DR650 headlight is actually pretty good, all things considered.

Using a stock bulb also has some advantages; for example, if the bulb dies while you’re out in the boonies, it’s fairly easy to find or carry an H4 replacement.
