Embrace the Electric Revolution With The 2023 Zero SR/F

Model Overview
Specifications
Features
Photos
Videos
Links

The 2023 Zero SR/F is a stunning piece of machinery that’s packing a punch with its class-leading performance, connectivity features, and sleek design. The SR/F is powered by Zero’s new Z-Force 75-10 motor, backed up by a Z-Force 17.3 kWh lithium-ion battery. This translates into an exhilarating 140 foot-pounds of torque and 110 horsepower. Showcasing the ingenuity of this American motorcycle brand. Zero’s proprietary concentric motor and swingarm pivot design ensure constant drive-belt tension and maximum torque delivery to the rear wheel, providing you with optimal power transfer. Backing up that motor is a battery that allows an impressive 187 miles of range, meaning you can go further than ever on a single charge. And speaking of charging, this bike quick charges up in just one hour, keeping you on the road and out of the charging station.

Technology is a highlight of Zero’s latest 2023 lineup of bikes and this SR/F includes the Cypher III+ operating system, which is teeming with downloadable performance upgrades and customizable ride modes. Whether you’re cruising in the rain or carving in the canyons, the SR/F has a ride mode that fits.

Zero has all the “smart” tech you need on a motorcycle and is connected through cellular networks, transmitting info to the Zero app at all times. You can monitor your bike’s status, charge level, location, and more, all from your smartphone. It’s like having a digital co-pilot riding shotgun with you everywhere you go.

The SR/F hasn’t forgotten about comfort and has a seat height of 31 inches, making it accessible to riders of various heights. It tips the scales at 500 pounds, balancing heft and agility for a smooth, comfortable ride.

The 2023 Zero SR/F starts at $19,795 USD/$25,320 CAD

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new 2023 Zero SR/F in one place.

Motorcycle Overview

General Info

Price: $19,795 USD/$25,320 CAD
Key Features:
- 187 mile range with 1 hour quick charge
- Cypher III+ operating system for customization
- Cellular connectivity for monitoring
- 124 Mph top speed

Main Specs

Engine: Z-Force 75-10 air-cooled, interior permanent magnet AC motor
Power: 110 horsepower
Torque: 140 ft-lbs
Weight: 500 lbs (227 kgs)
Seat Height: 31 inches (787 mm)

Competitors

2023 Zero SR/F Specifications

From Zero Motorcycles

Motor
Peak torque	140 ft-lb (190 Nm)
Peak power	110 hp (82 kW) @ 5,600
Top speed (max)	124 mph (200 km/h)
Type	Z-Force 75-10 enhanced thermal efficiency, passively air-cooled, interior permanent magnet AC motor
Controller	High fficiency and power dense, 900 Amp, 3-phase AC controller with regenerative deceleration
Lubrication
Drivetrain
Transmission	Clutchless direct drive
Clutch
Final Drive	90T / 20T, Poly Chain® HTD® Carbon™ belt
Chassis
Suspension Front	Showa 43 mm Big Piston Separate Function forks, with adjustable spring preload, compression and rebound damping
Suspension Rear	Showa 40 mm piston, piggy-back reservoir shock with adjustable spring preload, compression and rebound damping
Brakes Front	Bosch Advanced MSC, dual J-Juan radial 4-piston calipers with radial master cylinder, 320 x 5 mm discs

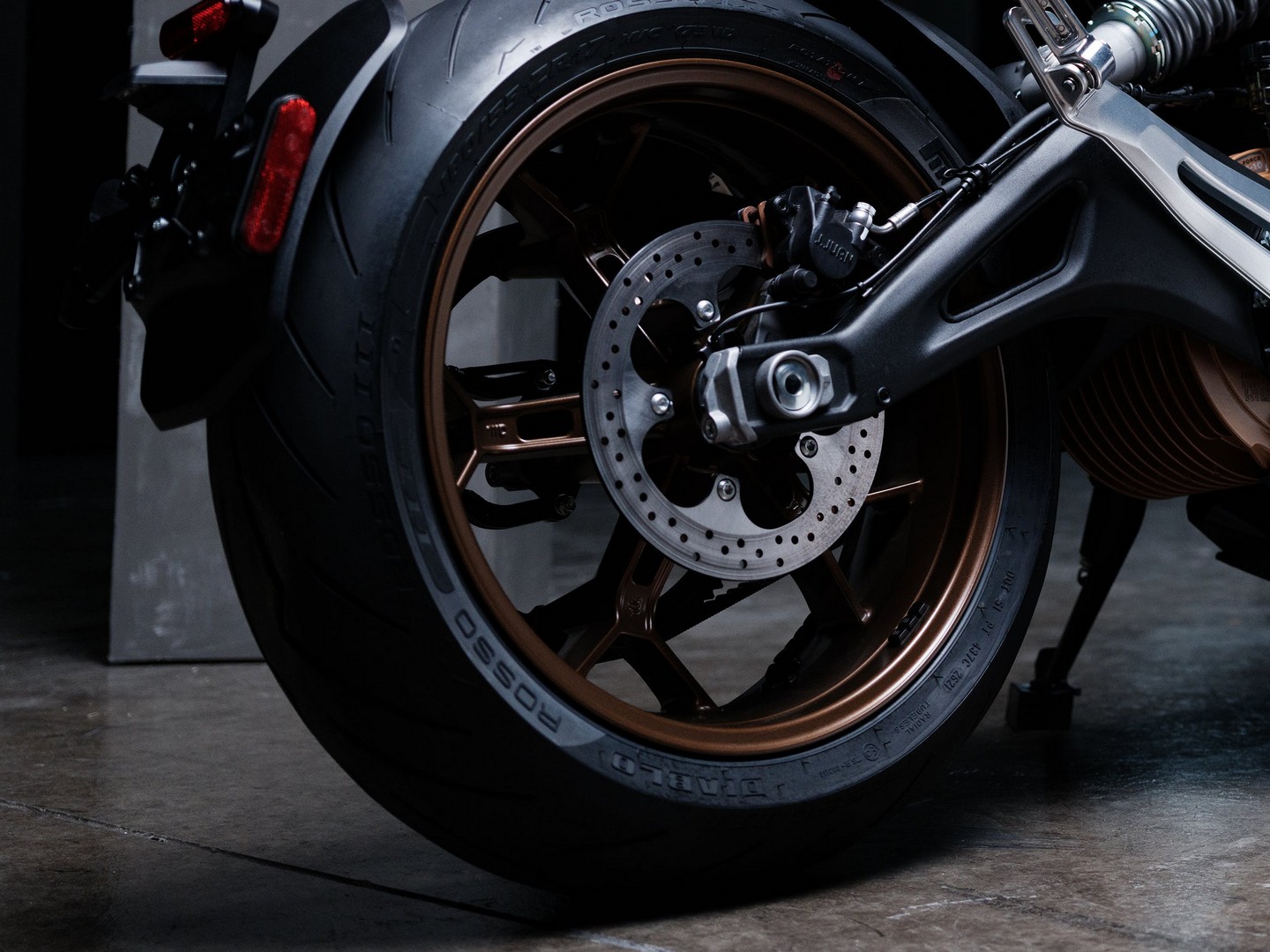

Brakes Rear	Bosch Advanced MSC, J-Juan single piston floating caliper, 240 x 4.5 mm disc
Tires Front	Pirelli Diablo Rosso III 120/70-17
Tires Rear	Pirelli Diablo Rosso III 180/55-17
Fuel Tank Capacity	N/A
Color
Power system
Power pack	Z-Force® Li-Ion intelligent integrated
Charger type	6.6 kW integrated
Charge time (standard)	2.7 hours (110% charged) / 2.0 hours (95% charged)
Dimensions
Wheelbase	57.1 in (1,450 mm)
Overall Width
Trail	3.7 in (94 mm)
Rake	24.5°
Seat Height	31.0 in (787 mm)
Curb Weight	500 lb (227 kg)
Warranty
Warranty	2 years
Power pack warranty	5 years/unlimited miles

2023 Zero SR/F Features

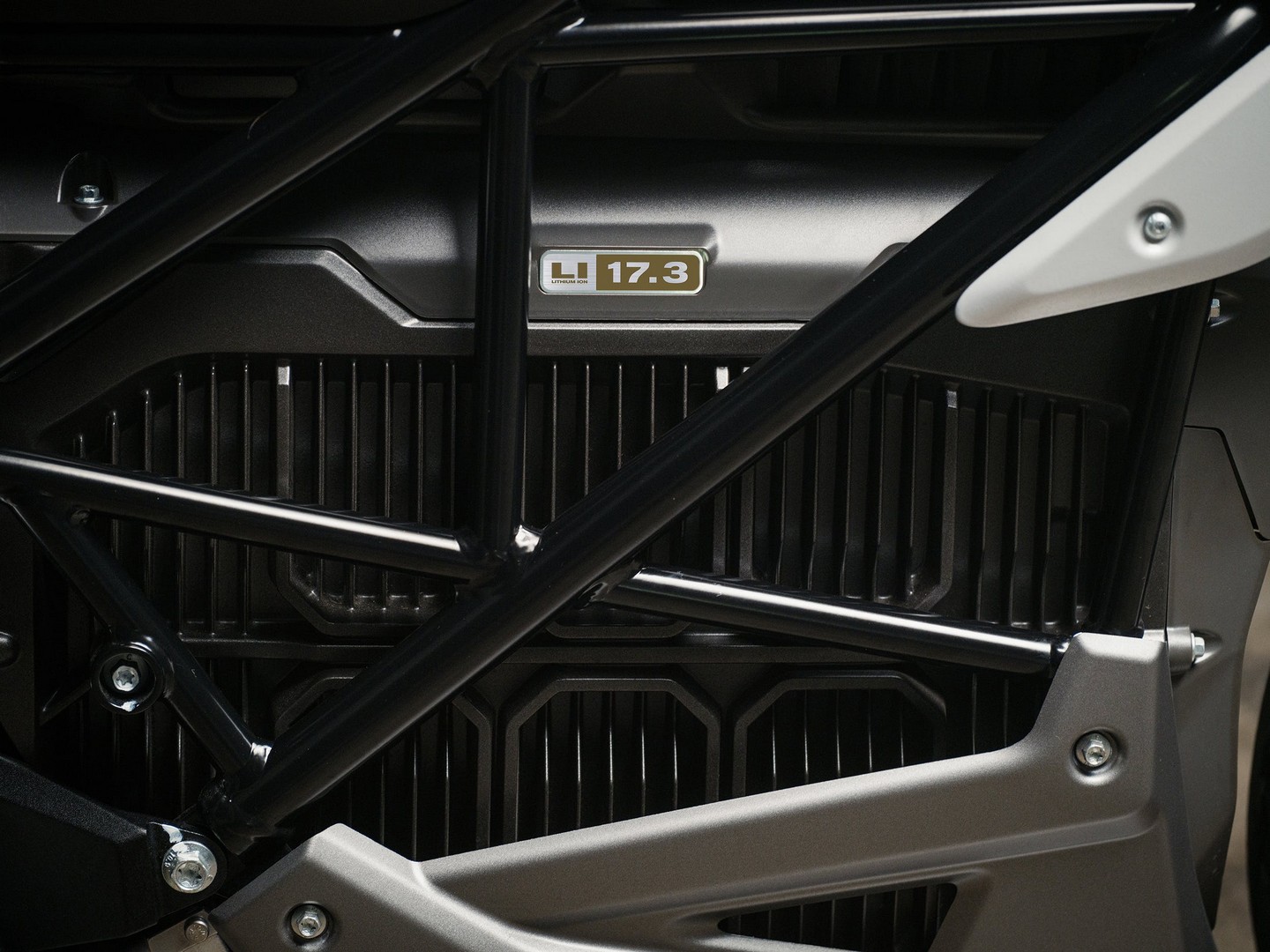

The all new Z-Force 17.3 kWh lithium-ion battery makes the SR/F capable of a 227-mile maximum range. The battery’s industry-leading power and energy density combined with an aluminum heat-sink housing and thermal transfer interface ensure consistent cell cooling and maximum long-term powertrain performance. Additionally, the available 3.6 kWh Power Tank brings the total available battery capacity to nearly 21 kWh.

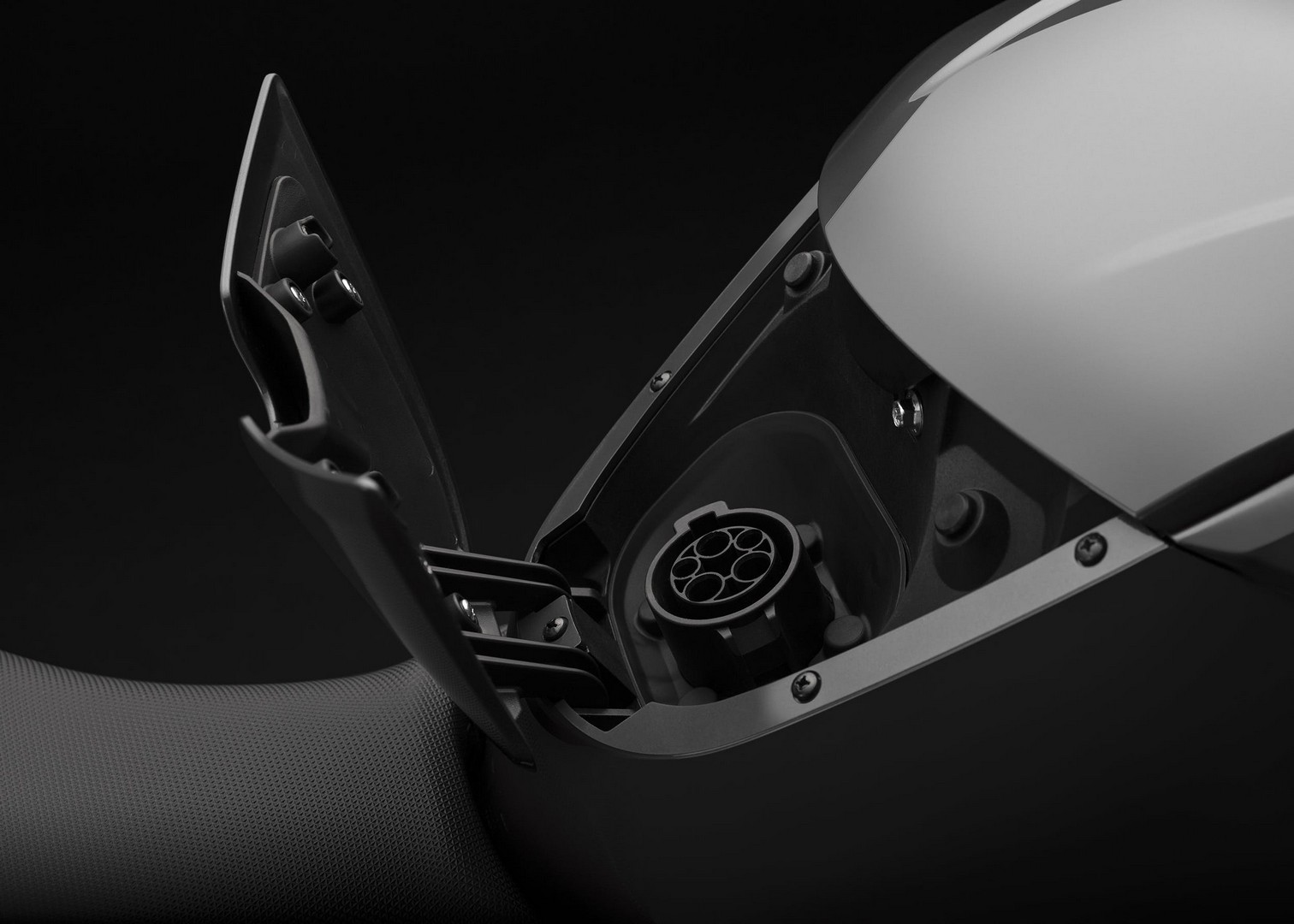

Our scalable Rapid Charge System allows the bike to be configured for different charging levels. Model Year 2023 SR/S 6 kW comes fully upgraded to 6.6 kW thanks to the included the Cypher Upgrade. In addition, you can purchase an additional 6 kw charging module (dealer install required) that can get you up to 12.6 kW. * Note: SR/S requires the use of included EVSE cord in order to charge on a standard 110 V wall outlet.

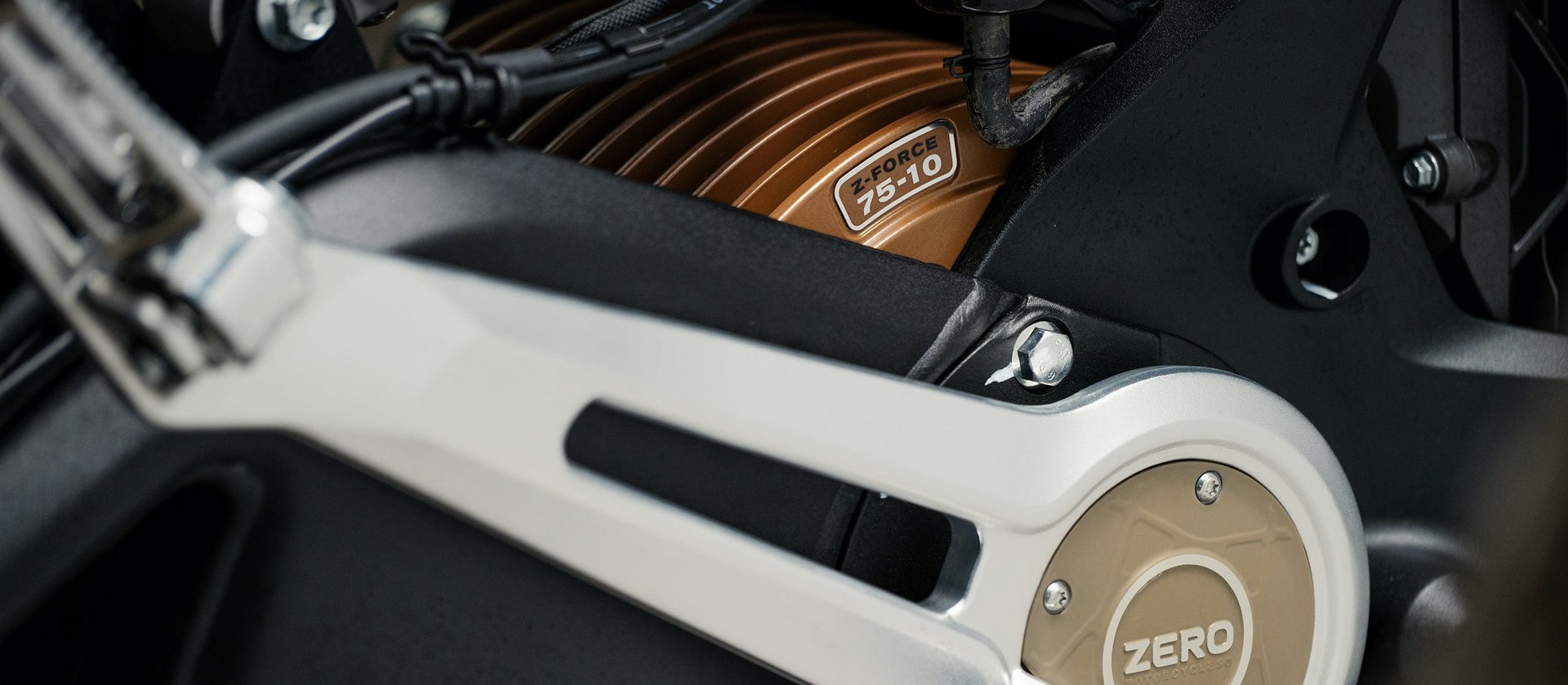

The Z-Force 75-10 motor delivers 140 ft-lbs of torque and 110 hp, effortlessly propelling the SR/F to a top speed of 124 mph. Pairing Zero’s renowned internal permanent magnet brushless architecture and a passively air-cooled compact design creates class-leading performance and efficiency.

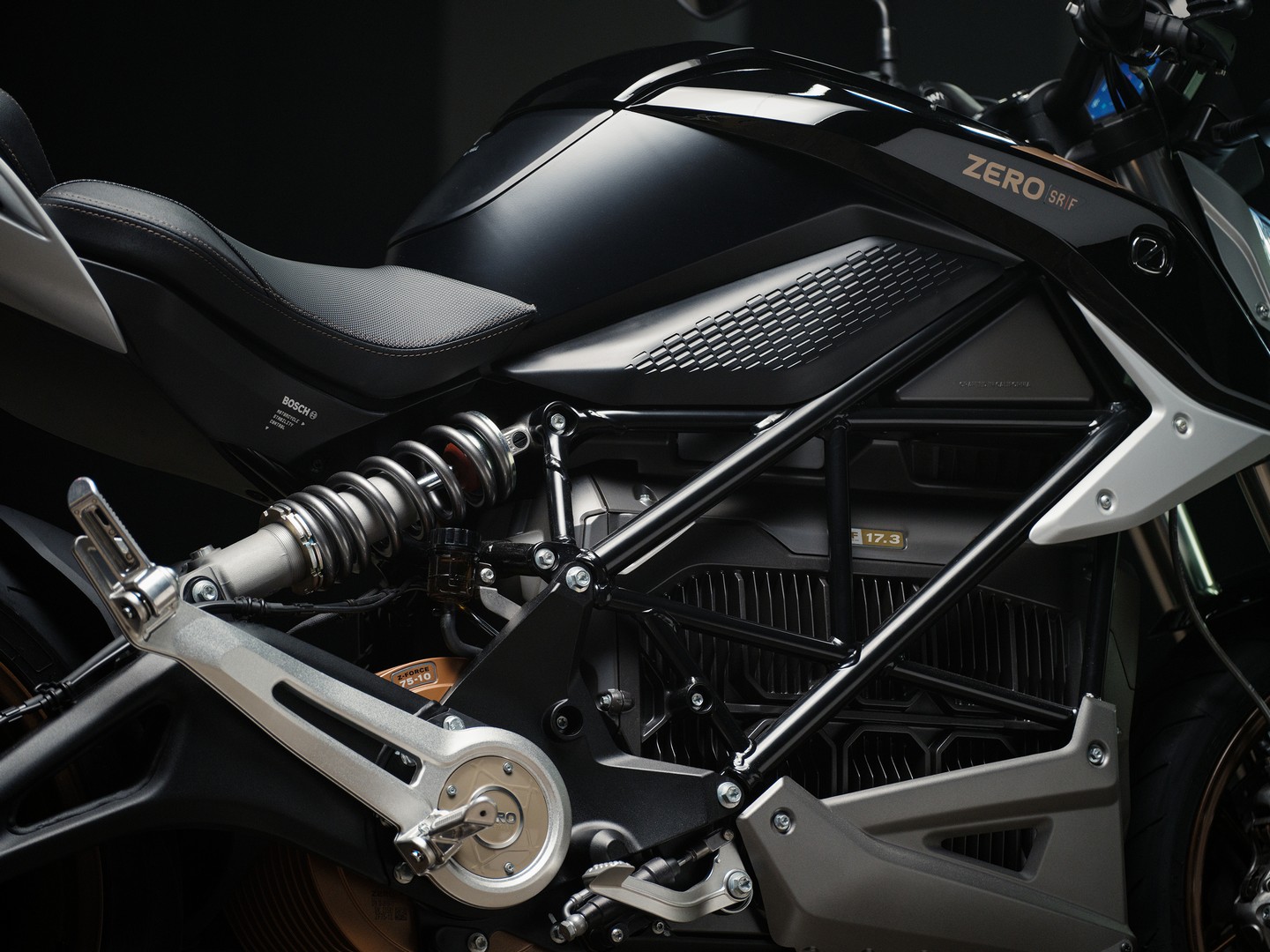

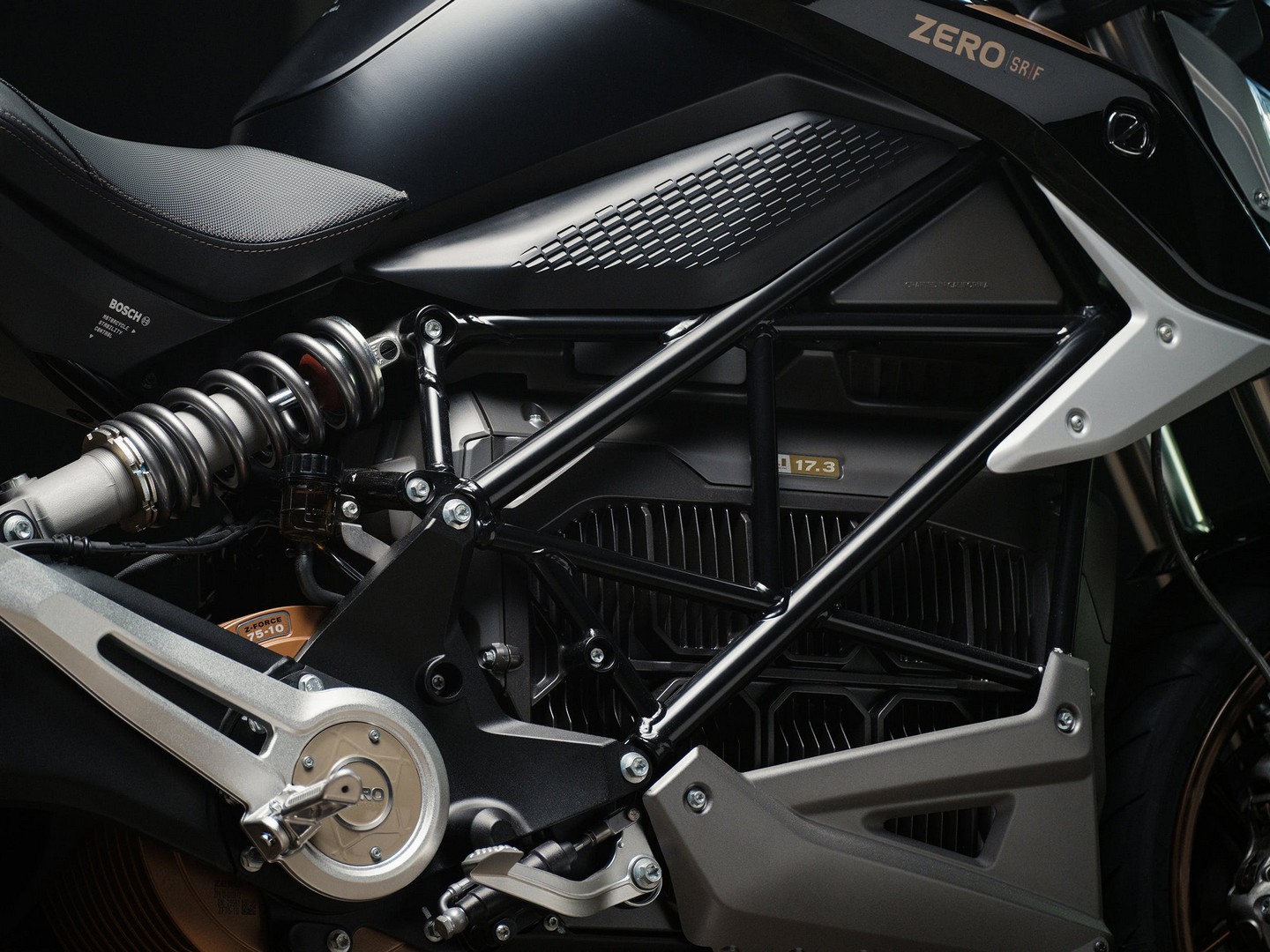

Incredibly light. Unbelievably strong. The steel-trellis frame, custom swingarm and advanced Showa suspension deliver an athletic and intuitive riding experience. The powertrain is perfectly distributed, resulting in a weight-optimized/mass-centralized design, while a dual radial front brake system makes shedding speed as exhilarating as building it.

The SR/S is the first electric motorcycle to integrate Bosch’s MSC System, renowned for dynamic acceleration and improved stability regardless of road surface or conditions. When combined with Cypher III+, the MSC’s full capabilities are unleashed, resulting in best-in-class straight-line ABS and cornering brake control, traction control, and drag torque control.

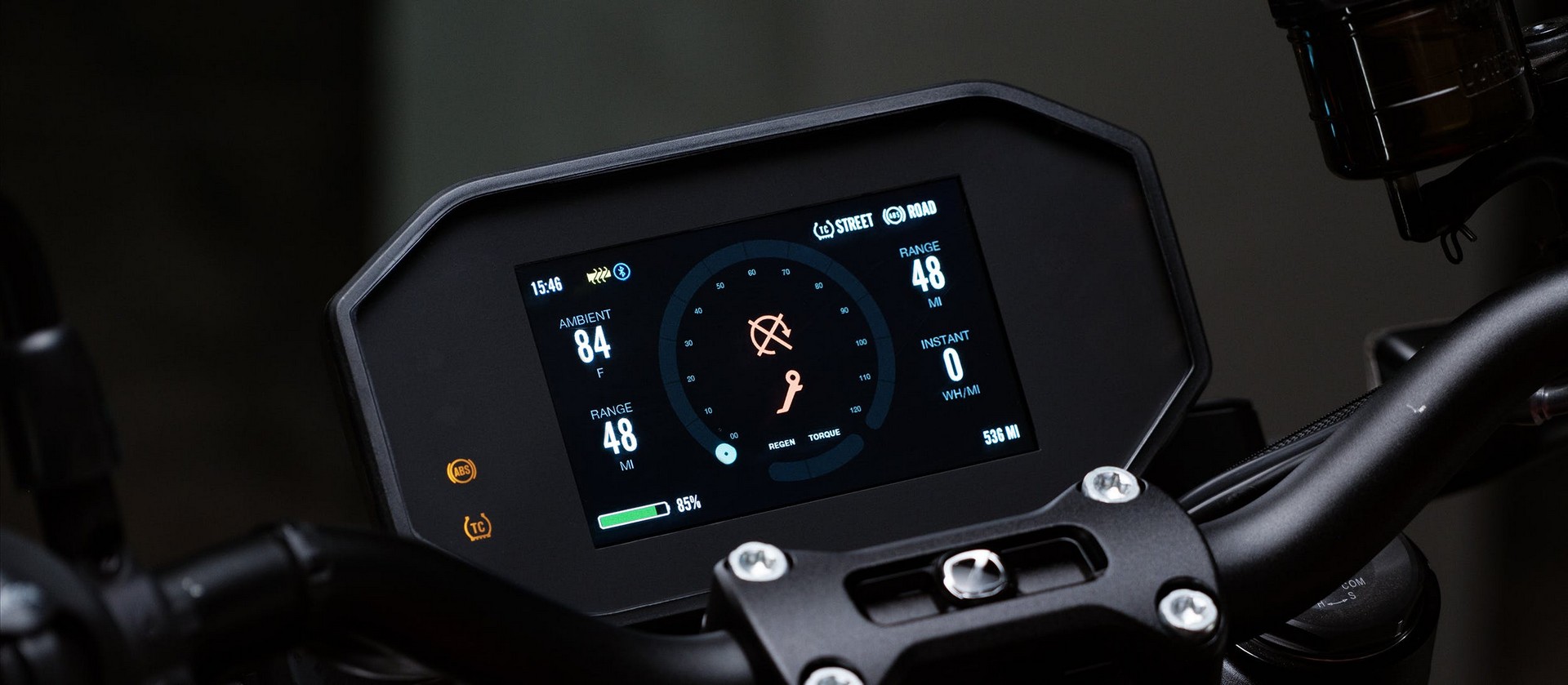

Customize your dash. Choose the bike info you want and see it clearly on the full-color 5” TFT display. Multi-mode navigation enables on-the-fly ride mode switching, cruise-control, heated-grips control and much more.
