2022 Yamaha TW200 [Specs, Features, Photos]

2022 Yamaha TW200

The 2022 Yamaha TW200: A Small-But-Mighty All-Rounder



How do you offer a capable and comfortable small dual-sport motorcycle without making the seat too high? Just ask Yamaha, whose TW200 seems designed specifically to answer that question. It might look a little different from other bikes in its class, with those fat tires and the big, square headlight—but it’s all part of a winning formula that this Japanese bike maker has been following for years.

The power here comes from a 196cc air-cooled four-stroke single-cylinder engine, delivering 16 HP and 11 lb-ft of torque. You get most of that in the bottom end of the rpm-range, which should be unsurprising since this bike is made to rip around dirt and gravel roads as well as paved surfaces. Other features include big fat tires, a low seat, an electric starter, an automatic cam chain tensioner, and an engine counterbalancer. Yamaha wants you to have fun, not get in over your head with maintenance.

No significant changes to last year’s model, but this one comes in the same Radical Grey color scheme as the new XT250, giving it a touch of class to contrast its natural grit. A compact off-roader that fits snugly into the 2022 lineup of Yamaha motorcycles, it’ll fit just as comfortably in your garage for just $4,799 USD/$5,499 CAD.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new 2022 Yamaha TW200 in one place.

2022 Yamaha TW200


Model Overview

General Info

  • Price: $4,799 USD/$5,499 CAD
  • Key Features:
    • Fat tires for riding on a wider variety of surfaces
    • Automatic cam chain tensioner
    • Engine counterbalancer to minimize vibrations
    • Rugged aluminum engine skid plate

Key Specs

  • Engine: 196cc air-cooled SOHC, 2-valve single-cylinder
  • Power: 16 hp
  • Torque: 11 lb-ft
  • Dry Weight:  278 lbs (126 kg)
  • Seat Height: 31.1 in (790 mm)

Key Competitors

2022 Yamaha TW200


2022 Yamaha TW200 Specifications

From Yamaha

ENGINE

Engine 196cc air-cooled SOHC 4-stroke; 2 valves
Power 16 HP
Bore x Stroke 67.0mm x 55.7mm
Compression Ratio 9.5:1
Fuel System Mikuni® 28mm
Starter Electric
Lubrication

DRIVETRAIN

Clutch Multiplate wet clutch
Transmission Constant-mesh 5-speed
Final Drive Chain

CHASSIS

Suspension Front Telescopic fork; 6.3-in travel
Suspension Rear Single shock; 5.9-in travel
Brakes Front Single disc, 220mm
Brakes Rear Drum, 110mm
Tires Front 130/80-18
Tires Rear 180/80-14
Fuel Tank Capacity 1.8 gal
Color

ELECTRICAL

Ignition TCI: Transistor Controlled Ignition
Spark Plugs
Headlight LED
Tail Light LED

DIMENSIONS

Overall Length 82.3 in
Overall Width 32.3 in
Overall Height 44.1 in
Wheelbase 52.2 in
Rake 25.8°
Maximum Ground Clearance 10.4 in
Seat Height 31.1 in
Wet Weight 278 lb

WARRANTY

Warranty 1 Year (Limited Factory Warranty)
Extension

2022 Yamaha TW200


2022 Yamaha TW200 Features

TOP FEATURES

  • Terrain-Conquering Tires
    Big fat tires deliver great traction and rider comfort over a wide range of terrain, and they make the TW200 the most distinctive-looking, dual-purpose machine around.
  • Low Seat Height
    A low seat and compact chassis help inspire confidence in anyone who rides the TW200, making it one of the most user friendly on- and off-road bikes on the market.
  • Electric Start
    The electric start and full-street equipment make the TW200 super convenient to ride just about anywhere you need to go.

ENGINE

  • Torquey Powerplant
    Strong-pulling 196cc air-cooled, four-stroke single delivers torquey low-and mid-range power that’s perfectly suited for off-road exploring.
  • 5-Speed Transmission
    Smooth-shifting five-speed transmission with manual clutch puts potent powerband to the ground for maximum on- and off-road performance.
  • Smooth, Counterbalanced Engine
    Internal engine counterbalancer keeps vibrations down for greater all-day comfort.
  • Digital Ignition
    Maintenance-free CDI ignition system ensures precise, reliable spark for peak engine performance at all rpm.
  • Electric Start
    The push-button electric start makes for easy and reliable starting.
  • Low Maintenance Engine
    Automatic cam chain tensioner means minimal maintenance and longer engine life.

CHASSIS/SUSPENSION

  • Plush, Long-Travel Suspension
    33mm telescopic front fork with 6.3 inches of travel soaks up the bumps for a plush ride.
  • Terrain-Conquering Tires
    Fat 130/80-18 front and 180/80-14 rear tires provide excellent traction and control for the TW200’s unique dual-purpose style.

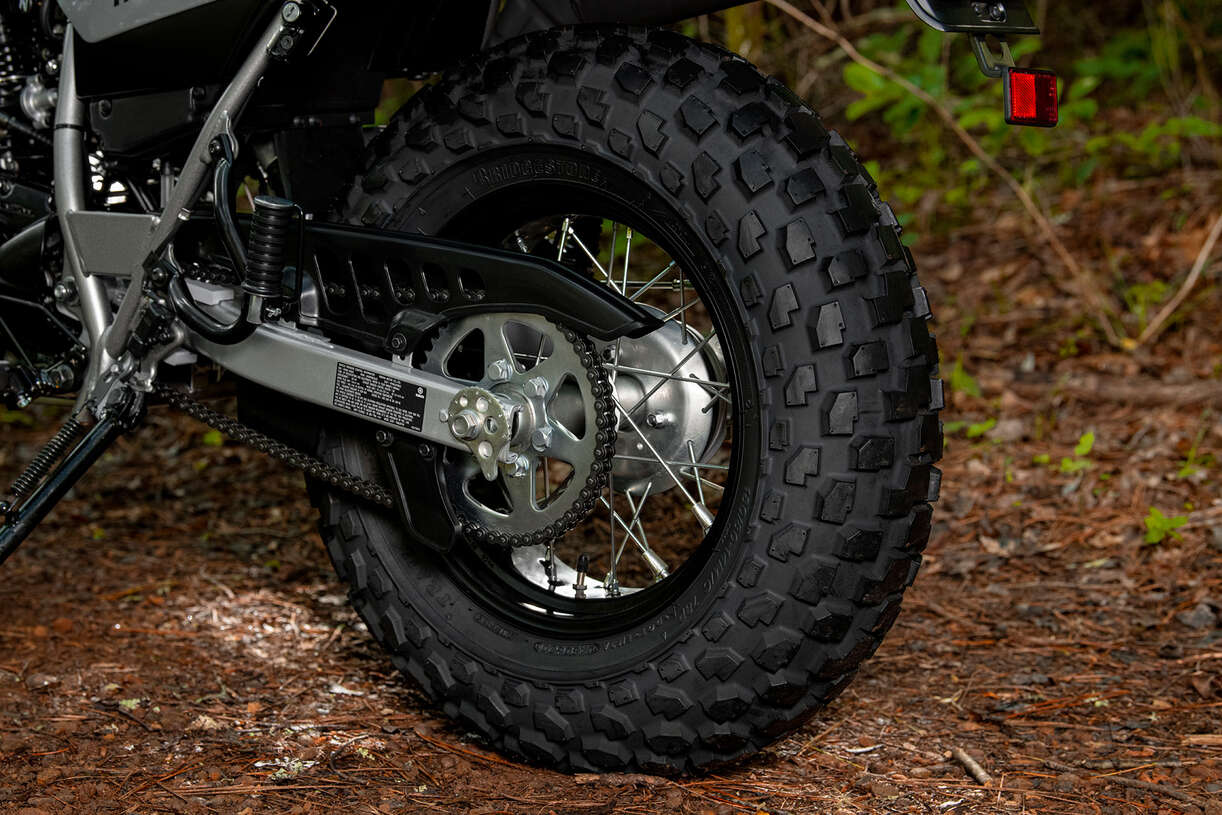

  • Lightweight Swingarm
    Lightweight box section swingarm and single rear shock with 5.9 inches of travel enhance handling and overall comfort both on- and off-road.
  • Disc Brake
    Hydraulic front disc brake ensures greater stopping power with less effort.

ADDITIONAL FEATURES

  • Comfortable Saddle
    Long, two-tone, motocross-style seat creates a balanced riding position for optimal rider movement and comfort.
  • Protective Fenders
    The durable and wide front fender keeps mud and dirt off the rider off-road.
  • Passenger-Ready
    Frame-mounted passenger foot pegs provide two-up riding capability.
  • Bright Illumination
    Enduro-style, 60/55-watt halogen headlight features high and low beams.
  • Dual Sport Lighting
    Flex-mounted turn indicators offer greater durability against breakage.
  • Fork Protection
    Durable fork shrouds help prevent rocks and debris from damaging fork sliders.

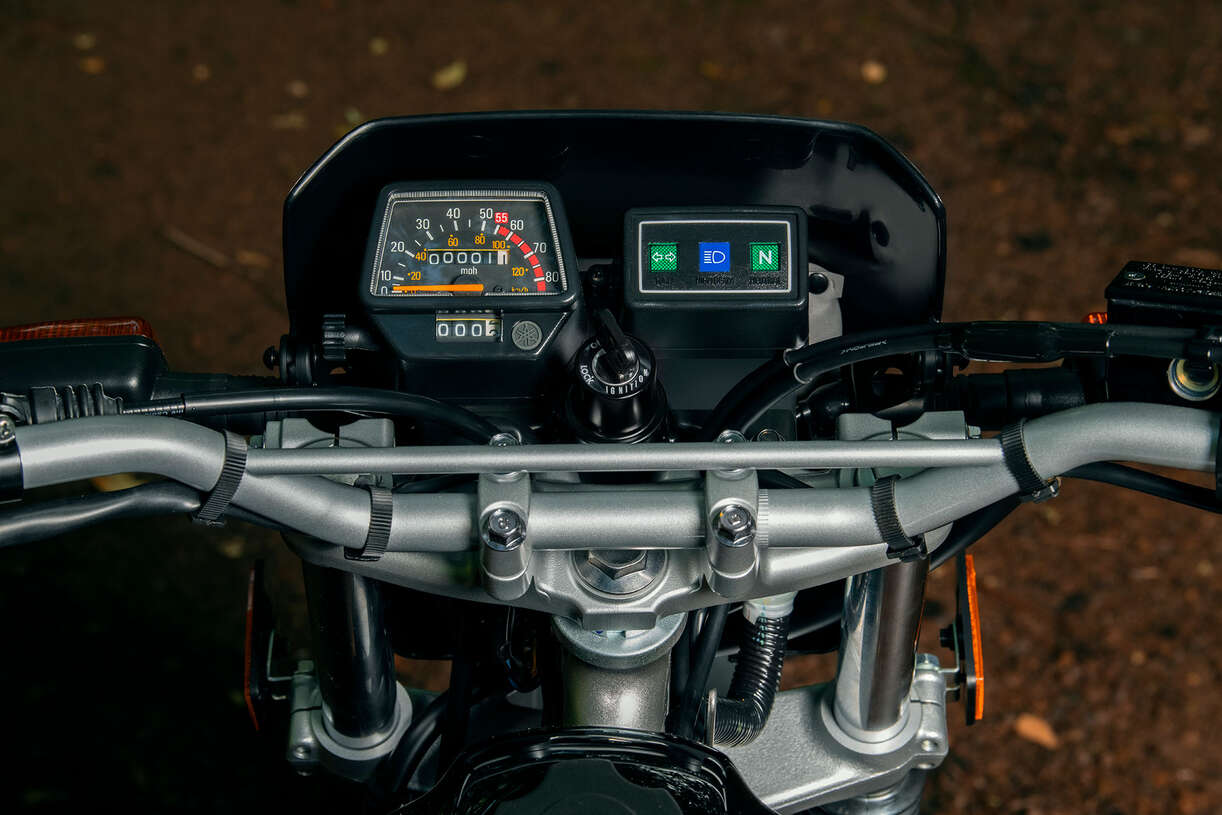

  • Complete Instruments
    A speedometer with odometer and resettable trip meter as well as indicator lights for neutral and high beams plus turn signals come standard.
  • Modern Battery
    Dependable, low-maintenance battery.

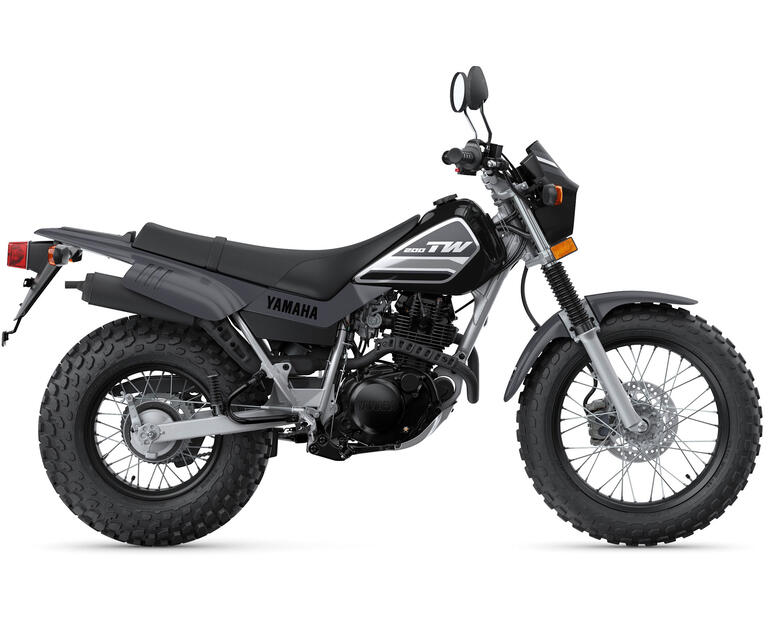

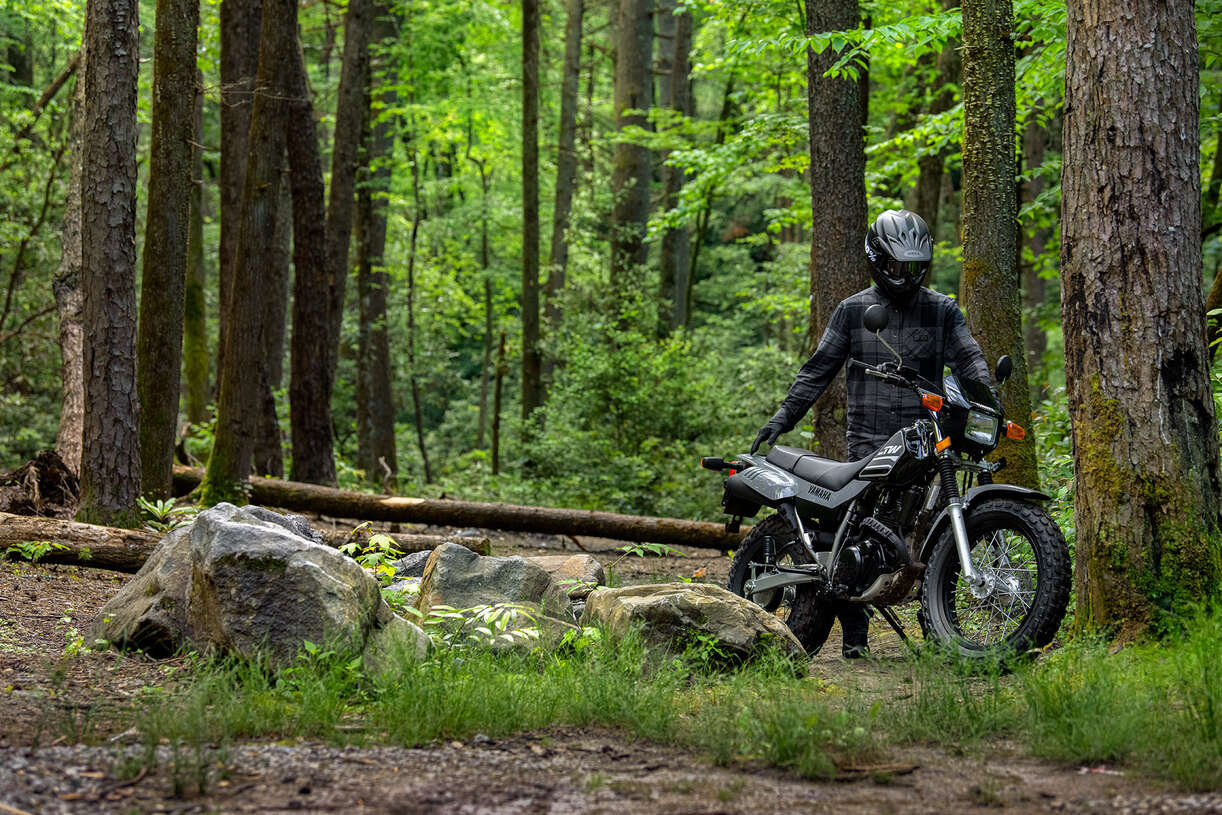

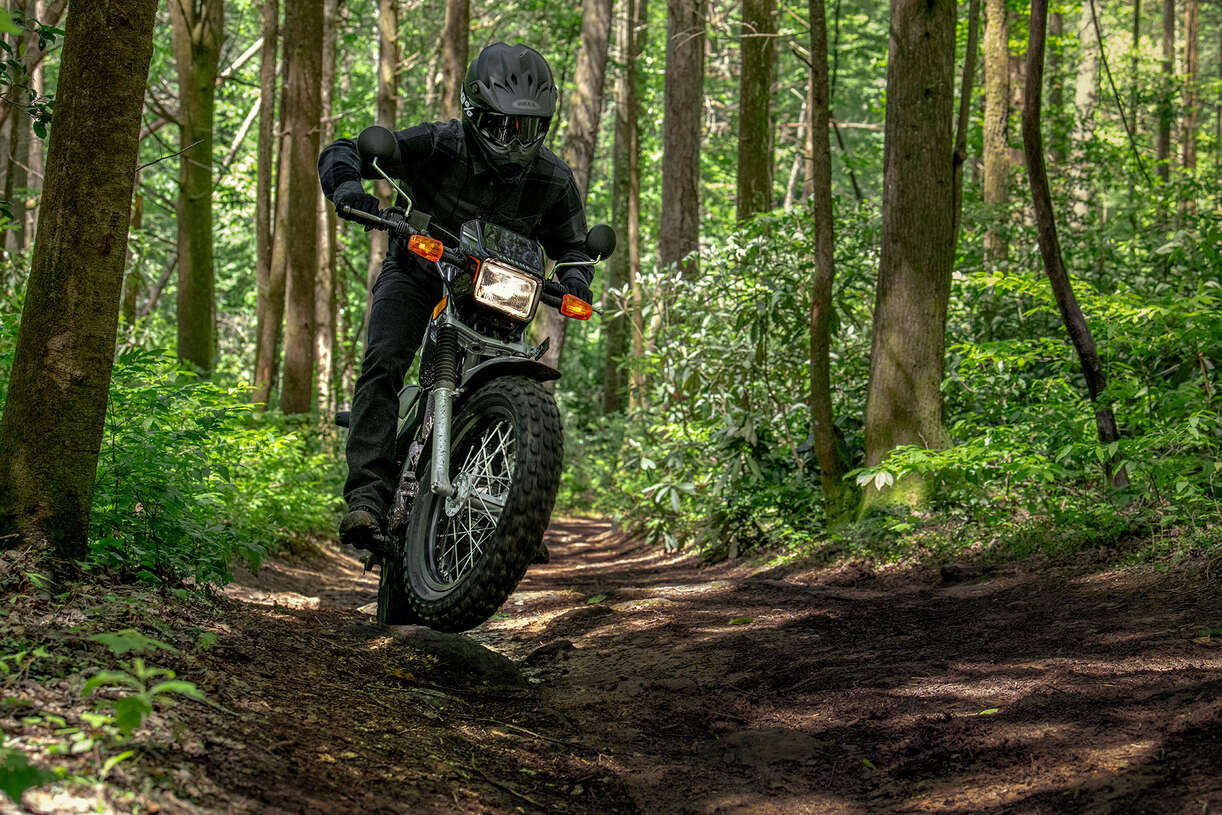

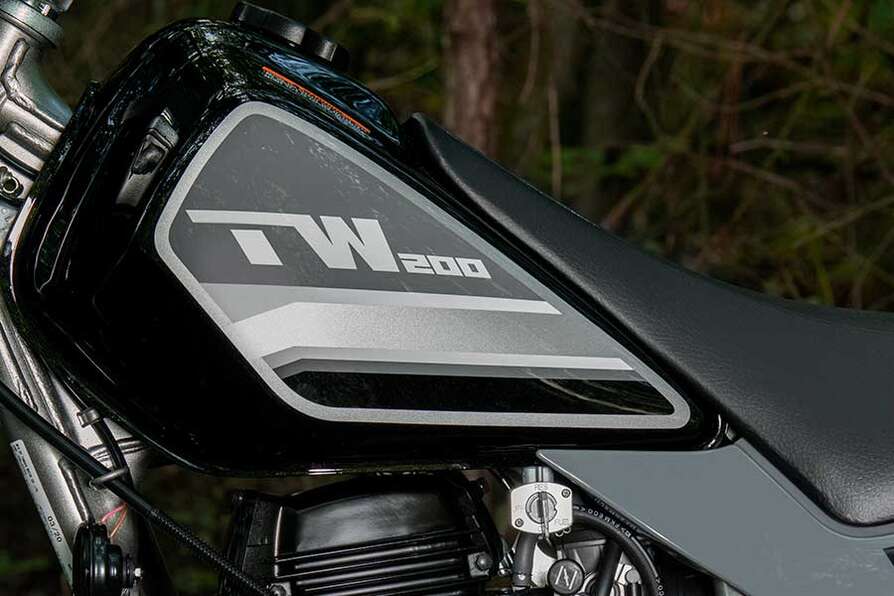

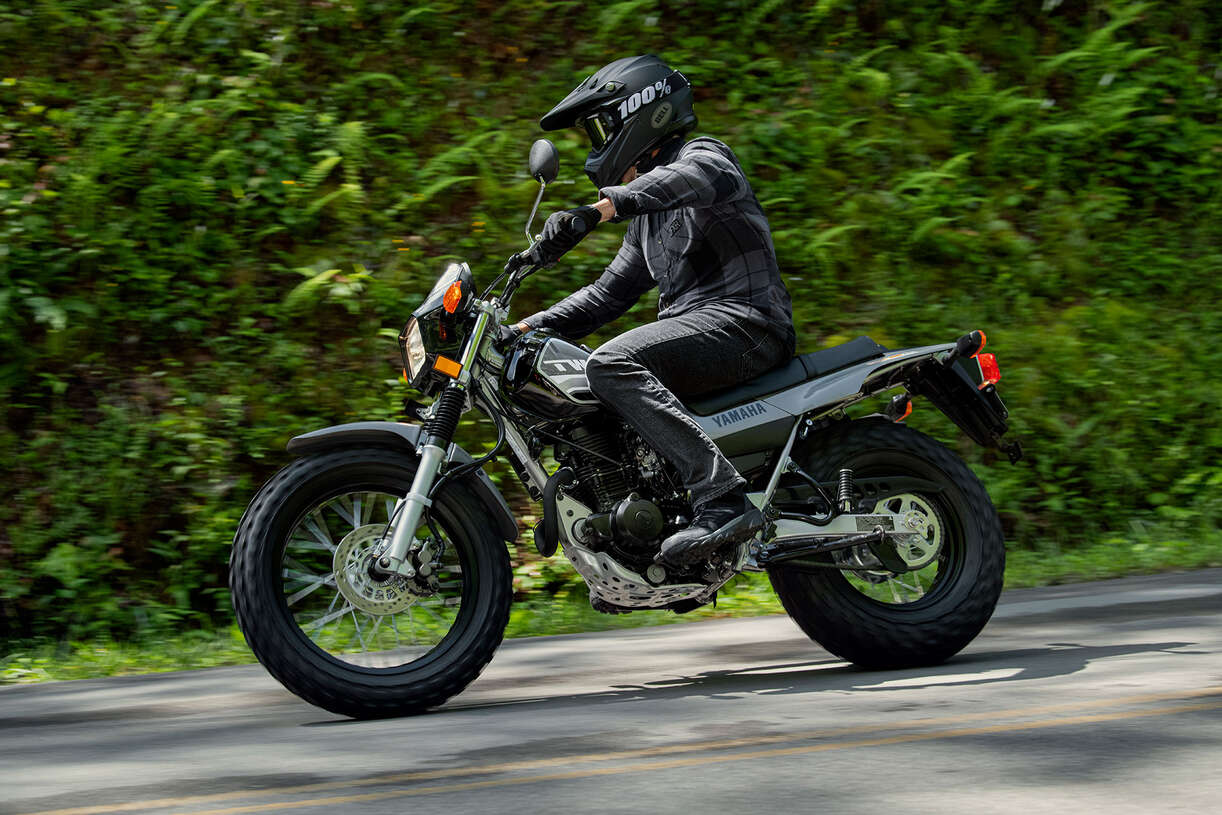

2022 Yamaha TW200 Photos
