2022 Ducati Panigale V4 / V4 S [Specs, Features, Photos]

2022 Ducati Panigale V4 / V4 S
Last updated:

The 2022 Ducati Panigale V4 Platform Gets MotoGP and WSBK Tech

The 2022 Ducati Panigale V4 and V4 S received the most thorough update yet, with revisions to the engine, chassis, electronics, aerodynamics, and ergonomics. Ducati Motorcycles Panigale V4 platform has been pushing the envelope in the superbike segment with cutting-edge tech trickled down from MotoGP and WSBK. The 2022 variant is no different.

The Italian Manufacturer’s MotoGP-derived Desmosedici Stradale engine maintains its 1,103cc capacity for 2022, but a new torque management system and dedicated mapping bump the V4 up to 210 HP at 12,500 rpm and 90.6 lb-ft of torque at 11,000 rpm. A new SBK gearbox with wider 1st, 2nd, and 6th gears helps deliver power where the rider needs it. With better slow-speed cornering, harder corner-exit acceleration, and a higher top speed.

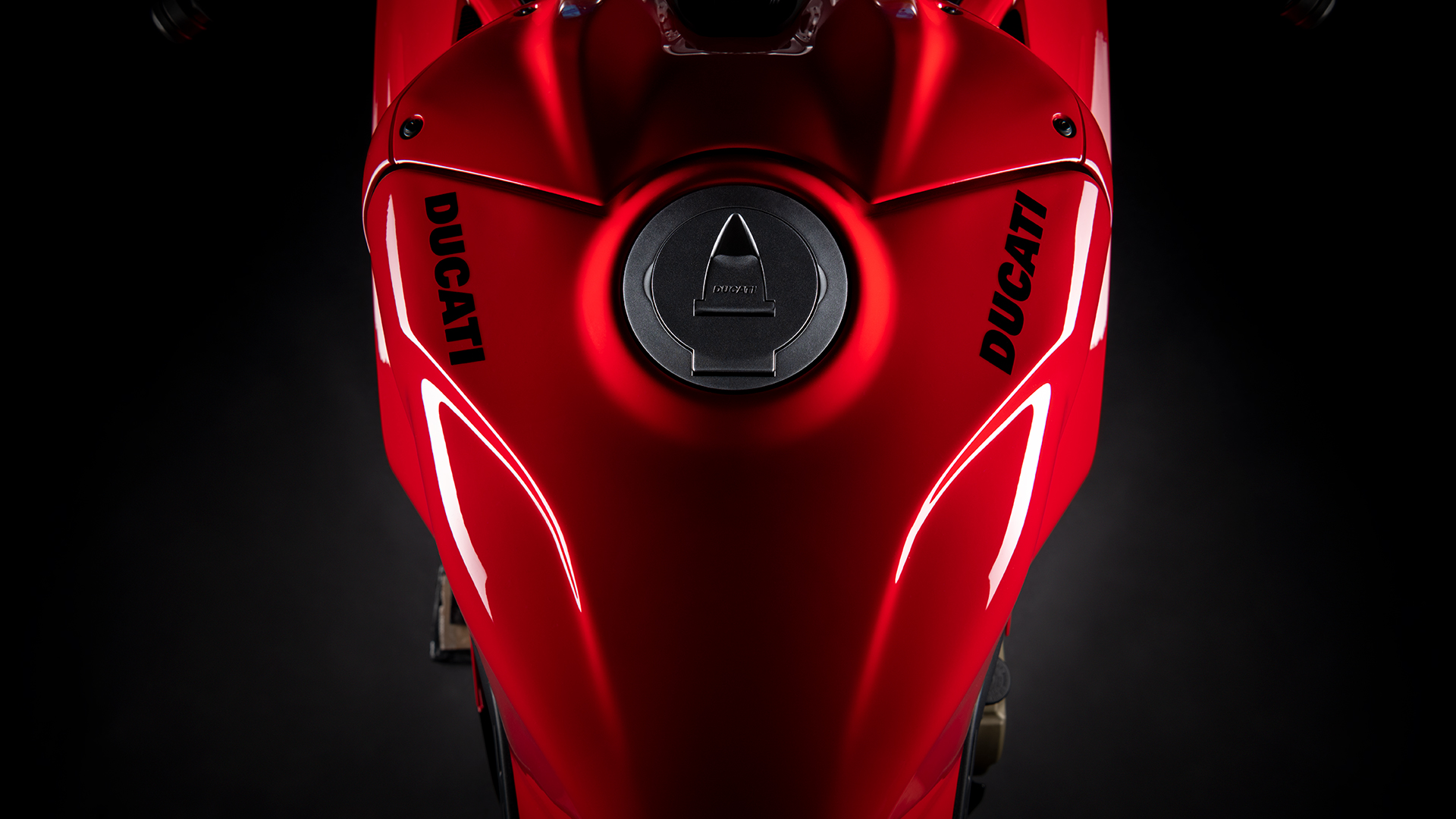

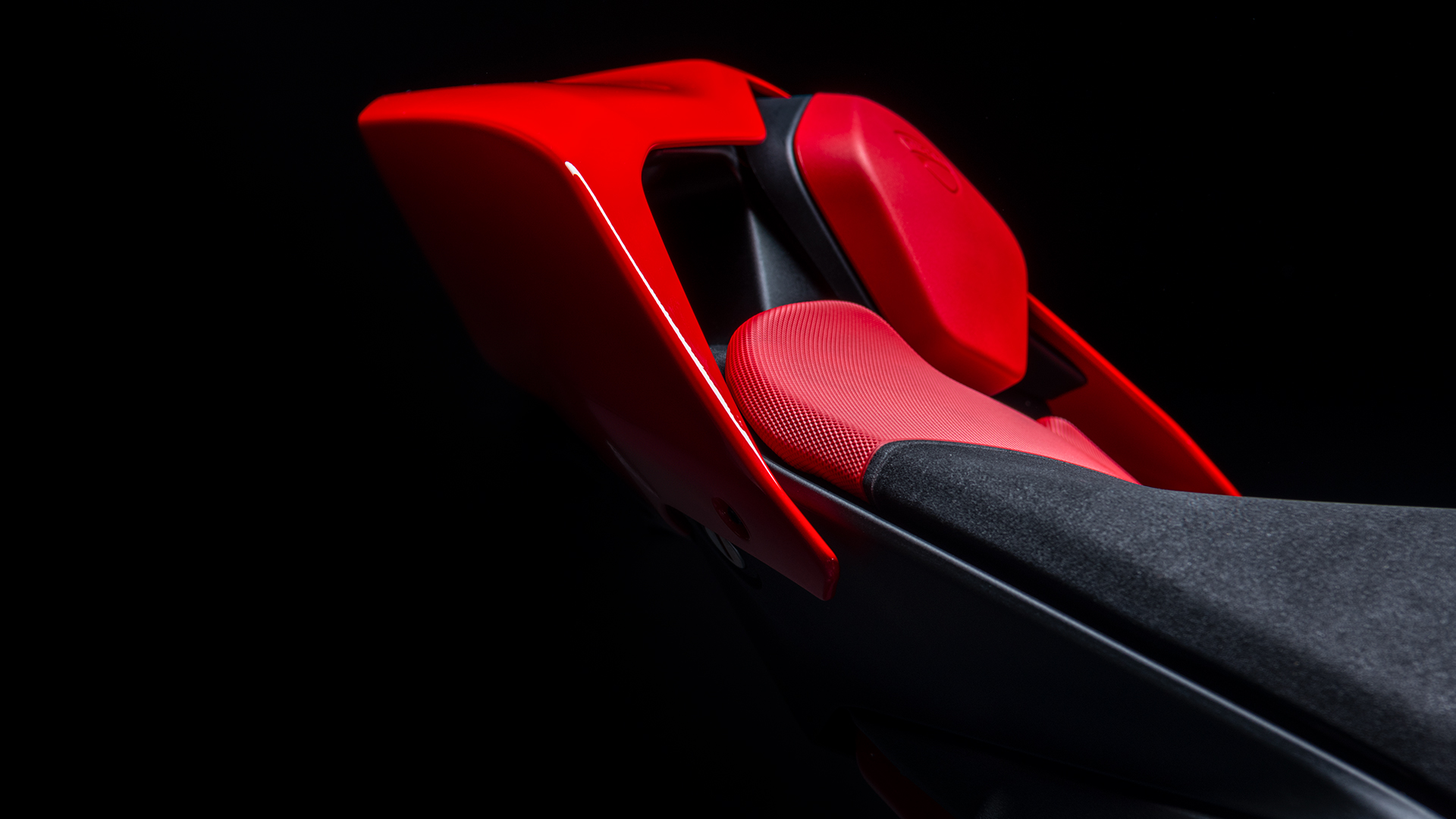

The seat and tank have been redesigned to maximize the rider’s performance and minimize the physical effort required for track riding. The grippy seat cover locks the rider in place during hard braking while a reshaped fuel tank offers a better anchor point for the legs.

There are four Riding Modes (Race A, Race B, Sport, Street) that change the superbike’s personality. Additionally, at the suggestion of Ducati MotoGP riders, technicians developed a new Track Evo info mode. By shifting the tachometer bar to the top of the display, the gear indicator at the center, and rider aids along the right side, the new layout provides the ideal screen legibility for amateur and track riders.

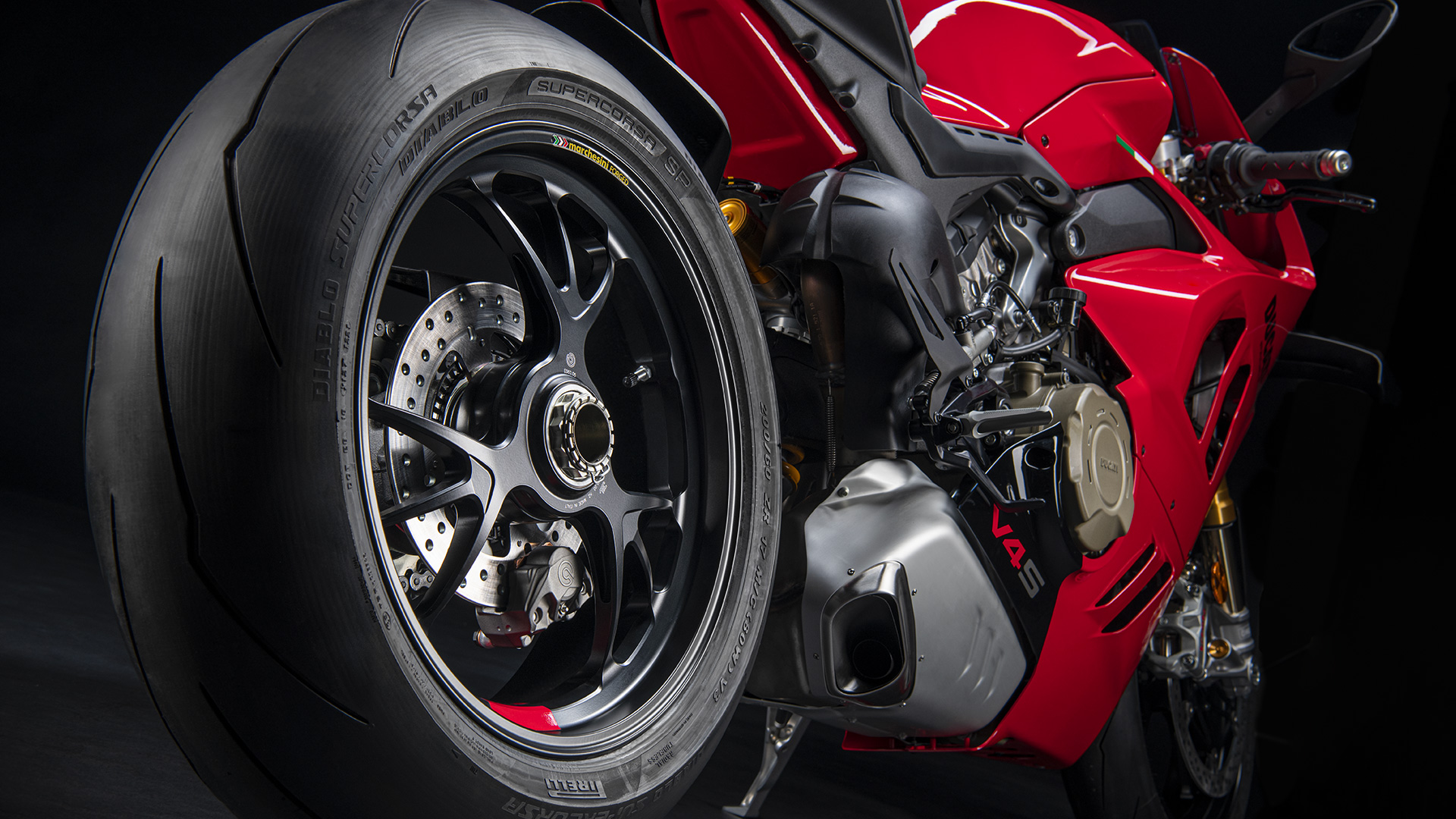

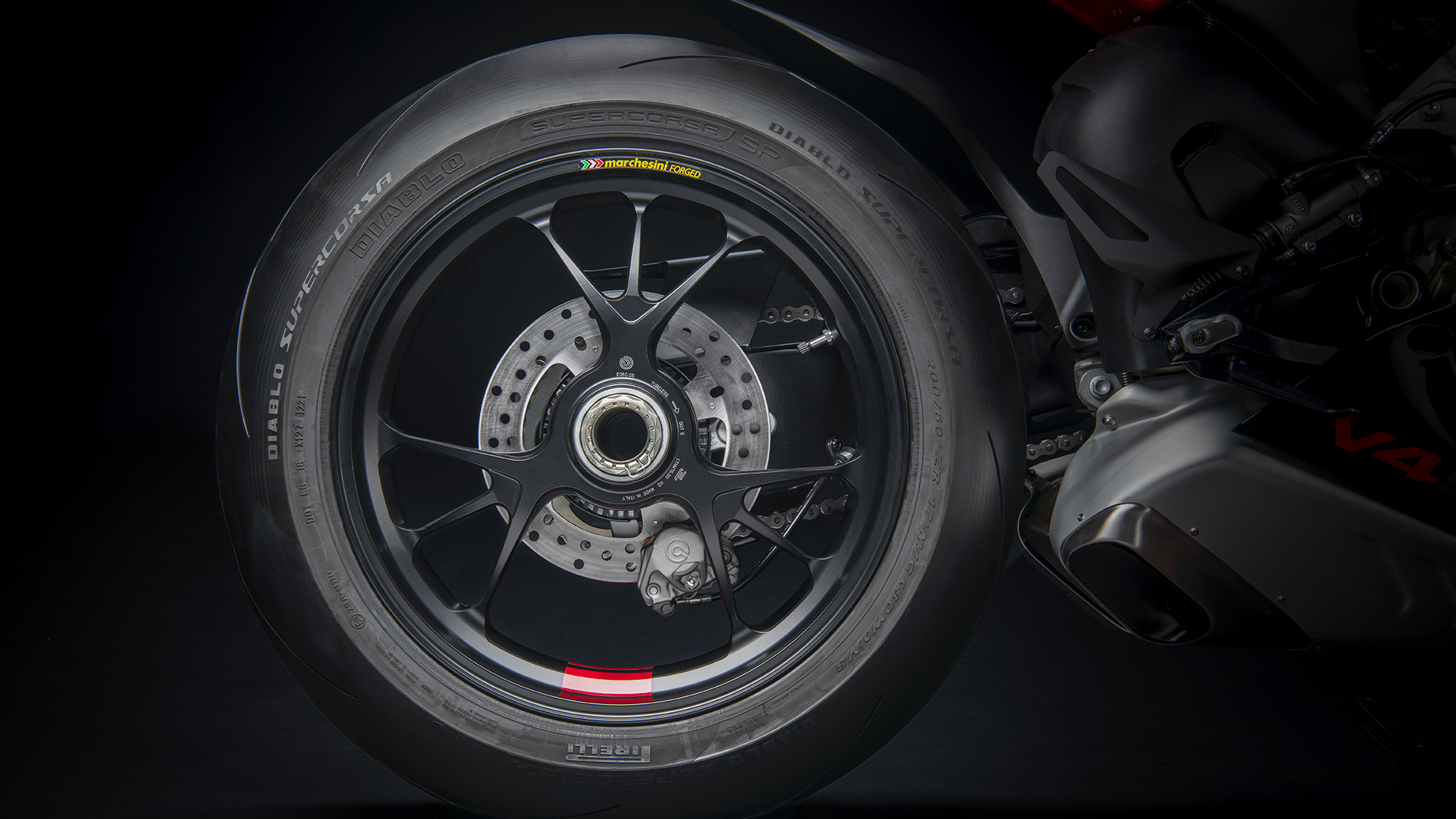

While the Panigale V4 and V4 S share much of the same equipment, the up-spec S model features electronically controlled Öhlins suspension, with an NPX 25/30 fork, TTX36 rear shock, and steering damper. Rolling on premium forged aluminum alloy wheels with Pirelli Diablo Supercorsa SP tires. The standard V4, on the other hand, is fitted with a fully adjustable Showa Big Piston fork, Sachs rear shock, Sachs steering damper, and cast-aluminum wheels.

Out of the 2022 Ducati lineup, the Panigale V4 line is the one to watch for any MotoGP trickle down tech. As you will see in the other variants.

The 2022 Ducati Panigale V4 / V4 S starts at:

  • Panigale V4 MSRP: $23,295 USD / $26,495 CDN
  • Panigale V4 S MSRP: $29,995 USD / $33,895 CDN

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new 2022 Ducati Panigale V4 / V4 S in one place.

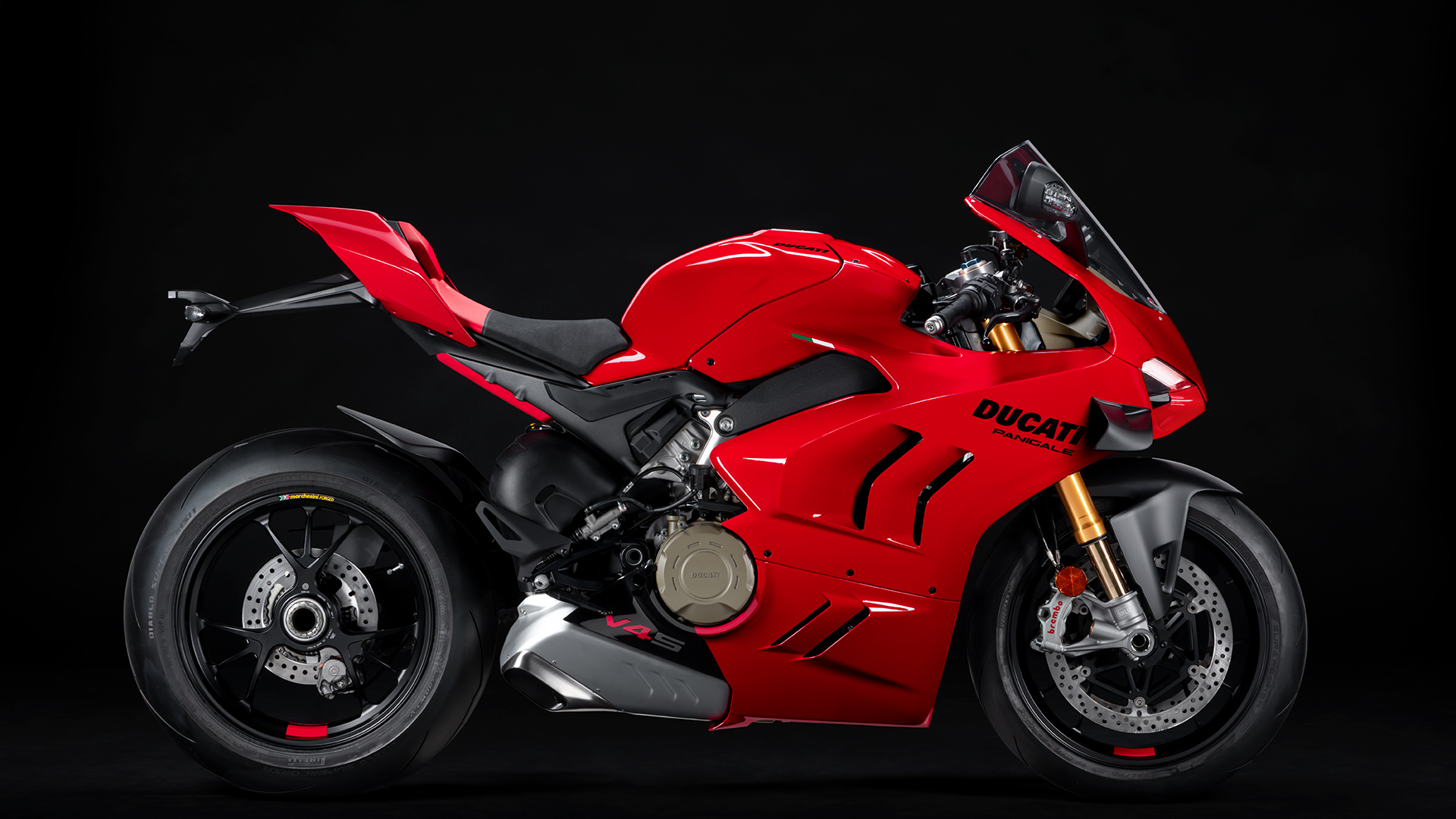

2022 Ducati Panigale V4 / V4 S


Model Overview

General Info

  • Price:
    • Panigale V4 MSRP: $23,295 USD / $26,495 CDN
    • Panigale V4 S MSRP: $29,995 USD / $33,895 CDN
  • Key Features:
    • 1,103cc Desmosedici Stradale engine
    • Updated aerodynamic and ergonomic
    • Longer WSBK-derived gearbox ratio
    • New and revised power modes
    • Bosch IMU-supported rider aids
    • Ohlins fully adjustable suspension (V4 S Edition)

Main Specs

  • Engine: 1,103cc Desmosedici Stradale engine
  • Power: 210 HP
  • Torque: 90.6 lbs-ft
  • Dry Weight: 384 lbs (174 kg)
  • Seat Height: 33.5 in (850 mm)

2022 Ducati Panigale V4 / V4 S


2022 Ducati Panigale V4 / V4 S Specifications

From Ducati

ENGINE

Engine 1,103 cc, Desmosedici Stradale 90° V4, counter-rotating crankshaft, 4 Desmodromic timing, 4 valves per cylinder, liquid-cooled
Power 210 HP
Bore x Stroke 81 x 53.5 mm
Compression Ratio 14.0:1
Fuel Injection  Electronic fuel injection system. Twin injectors per cylinder. Full ride-by-wire elliptical throttle bodies. Variable length intake system
Starter Electric
Exhaust 4-2-1-2 system, with 2 catalytic converters and 4 lambda probes.
Torque 123.6 Nm (91.2 lb-ft) @ 9,500 rpm
122.8 Nm (90.6 lb-ft) @ 11,000 rpm (USA/CAN/MEX)

DRIVETRAIN

Clutch Hydraulically controlled slipper and self-servo wet multiplate clutch. Self bleeding master cylinder.
Transmission 6 speed with Ducati Quick Shift (DQS) up/down EVO 2
Final Drive Chain 525; Front sprocket 16; Rear sprocket 41

CHASSIS

Suspension Front Fully adjustable Showa BPF fork 43 mm chromed inner tubes
Suspension Rear Fully adjustable Sachs unit. Aluminum single-sided swingarm

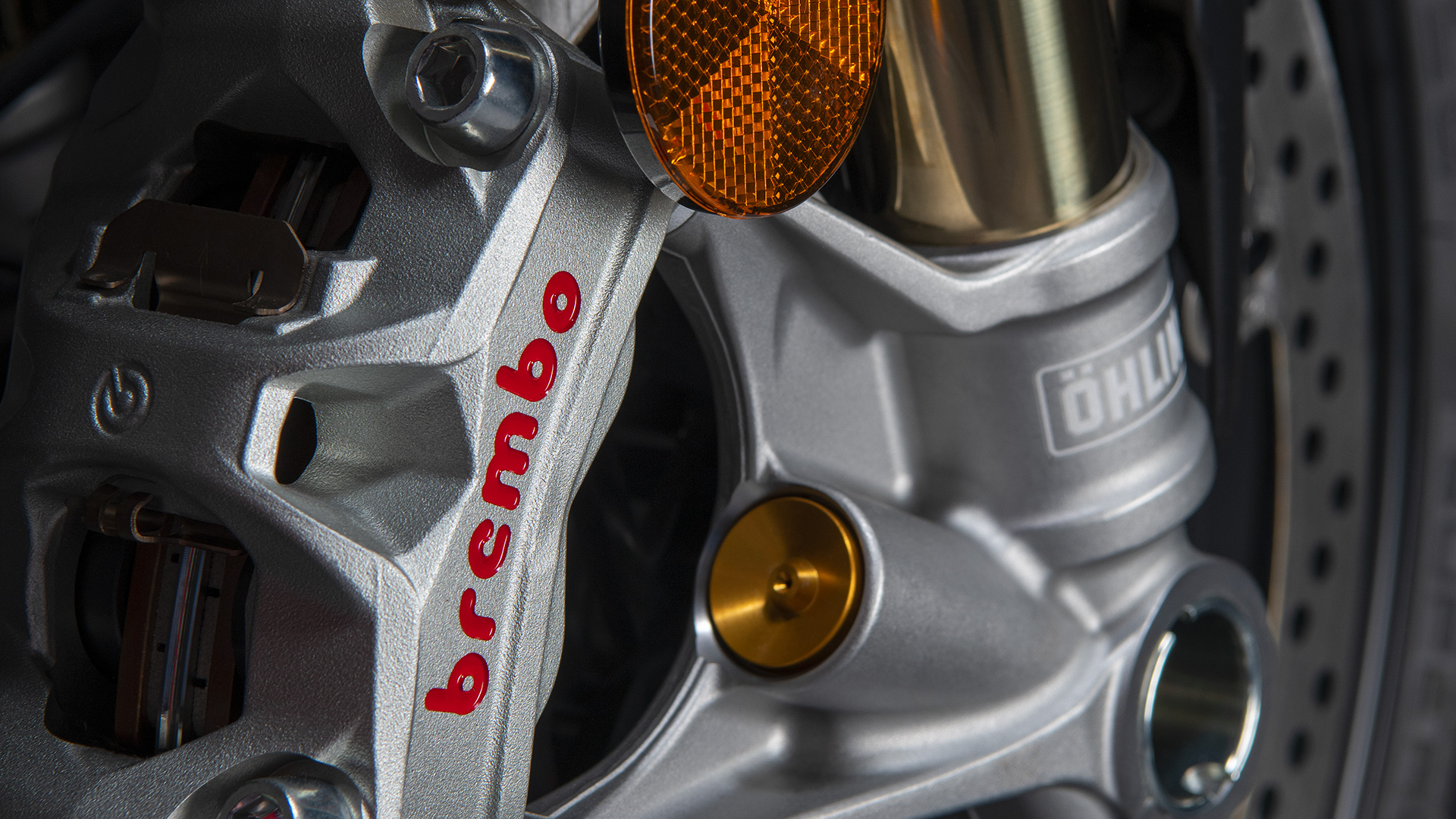

Brakes Front 2 x 330 mm semi-floating discs, radially mounted Brembo Monobloc Stylema® (M4.30) 4-piston callipers with Bosch Cornering ABS EVO. Self bleeding master cylinder.
Brakes Rear 245 mm disc, 2-piston calliper with Bosch Cornering ABS EVO
Tires Front Pirelli Diablo Supercorsa SP 120/70 ZR17
Tires Rear Pirelli Diablo Supercorsa SP 200/60 ZR17
Fuel Tank Capacity 17 l – 4.49 gallon (US)
Color Ducati Red

ELECTRICAL

Ignition
Spark Plugs
Headlight LED
Tail Light LED

DIMENSIONS

Max Length
Max Width
Max height
Wheelbase 1.469 mm (57,8 in)
Rake  24,5°
Trail
Seat Height 850 mm (33.5 in)
Dry Weight 175 kg (386 lb)

WARRANTY

Warranty 24 months, Unlimited mileage
Extension

2022 Ducati Panigale V4 / V4 S


2022 Ducati Panigale V4 / V4 S Features

Aerodynamic

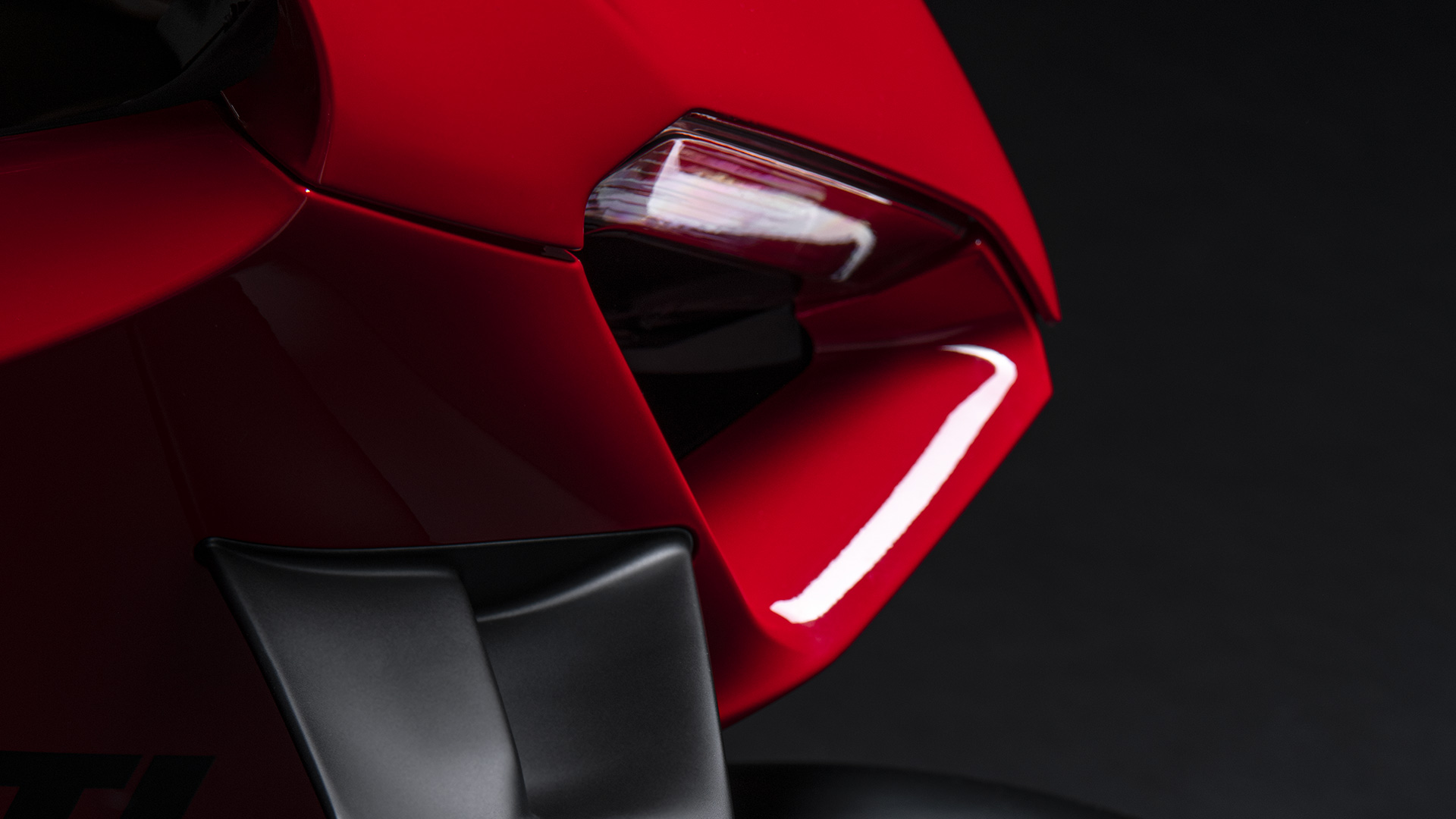

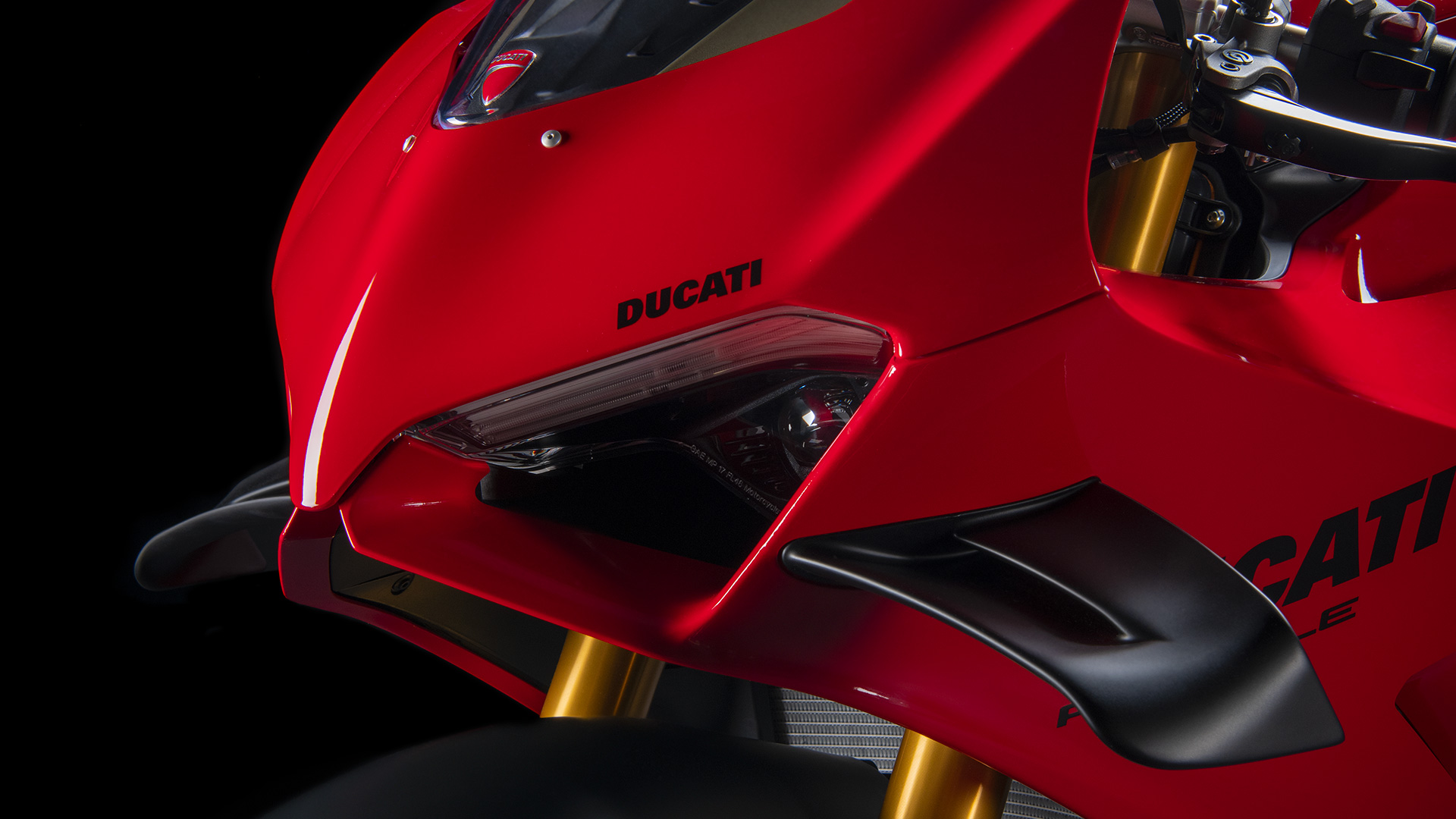

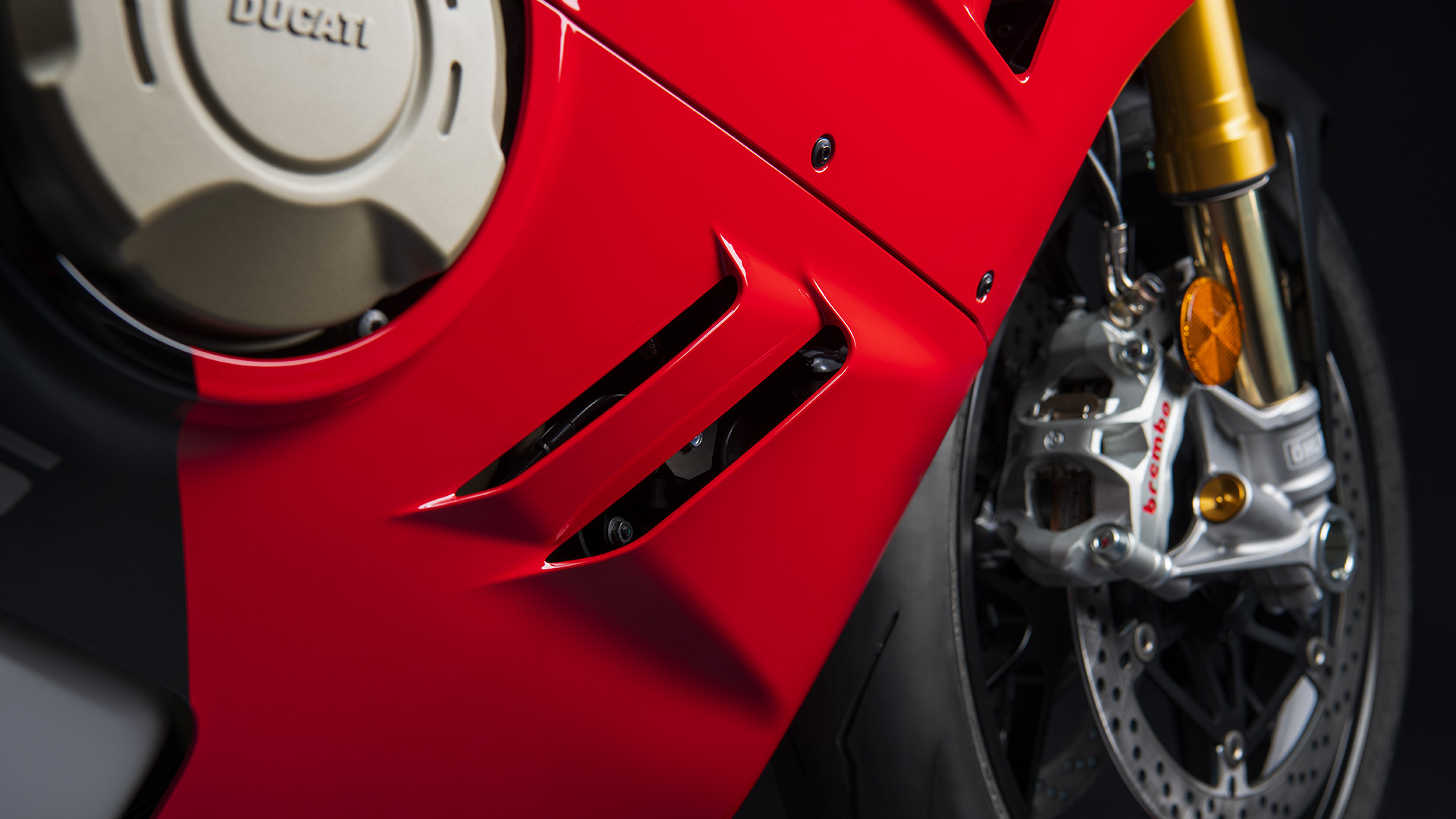

Even more beautiful with new, more compact and efficient double-profile-design wings and redesigned extraction sockets to improve the cooling system.

Engine

Raised power to 215.5 hp at 13,000 rpm (EU version only) and new SBK gearbox with lengthened I, II and VI gear. New torque management strategy that guarantees the rider the possibility of always having the optimal thrust when opening the throttle.

Chassis

The pivot of the single-sided aluminum swingarm is positioned 4 mm higher. Equipped with the new Öhlins NPX 25/30 electronically controlled pressurised fork that uses a pressurized cartridge damping system with a 125 mm travel.

Ergonomics

The seat and tank have been redesigned to maximise the rider’s performance and minimise the physical effort required for track riding.

Electronic controls

New Power Mode logic with 4 engine configurations to satisfy all types of riders, from professionals to amateurs tackling their first track days.

TFT equipment

SBK-style gear shift indicator. New graphics designed for the track to help the rider fine-tune the electronic controls.

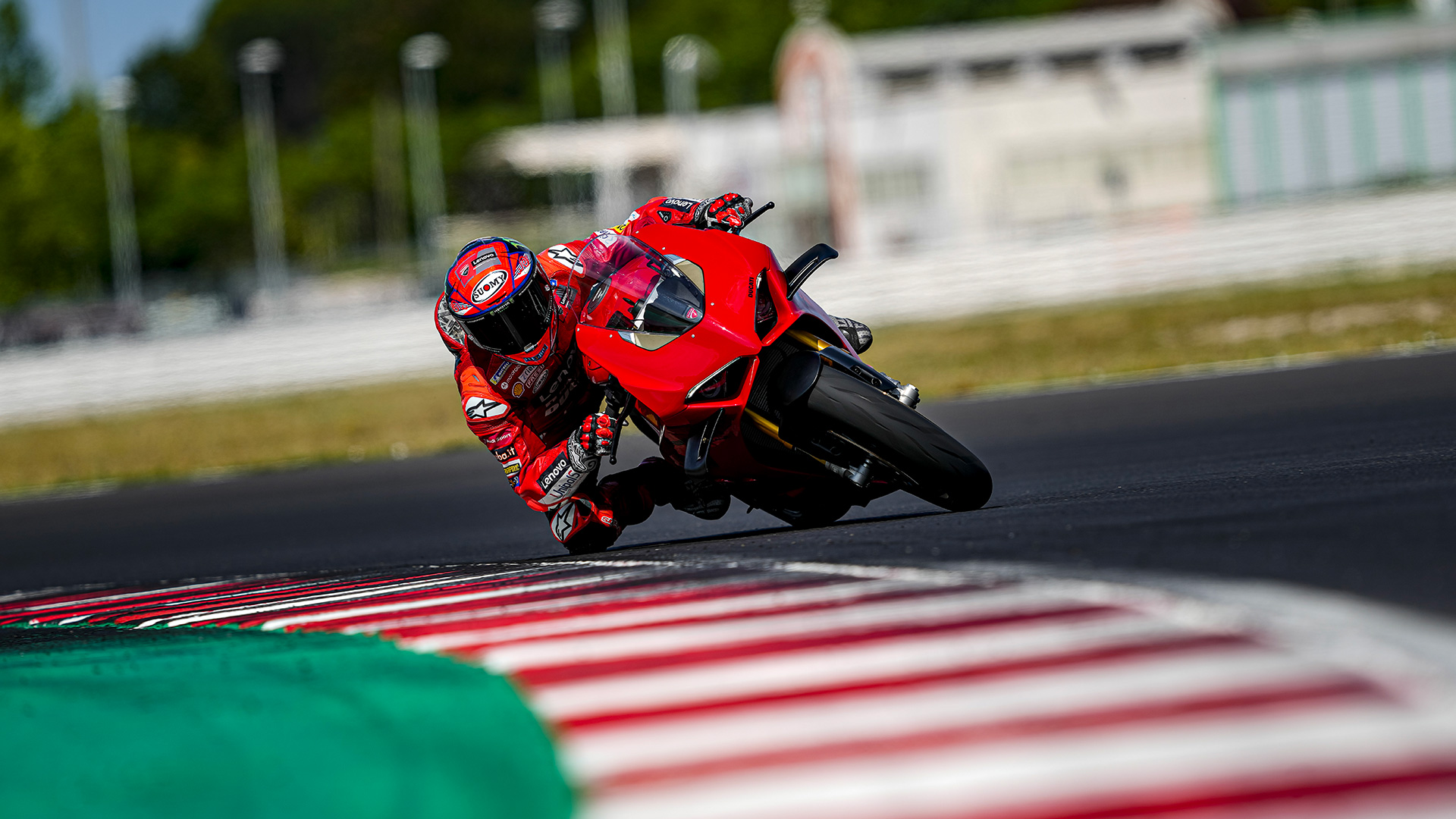

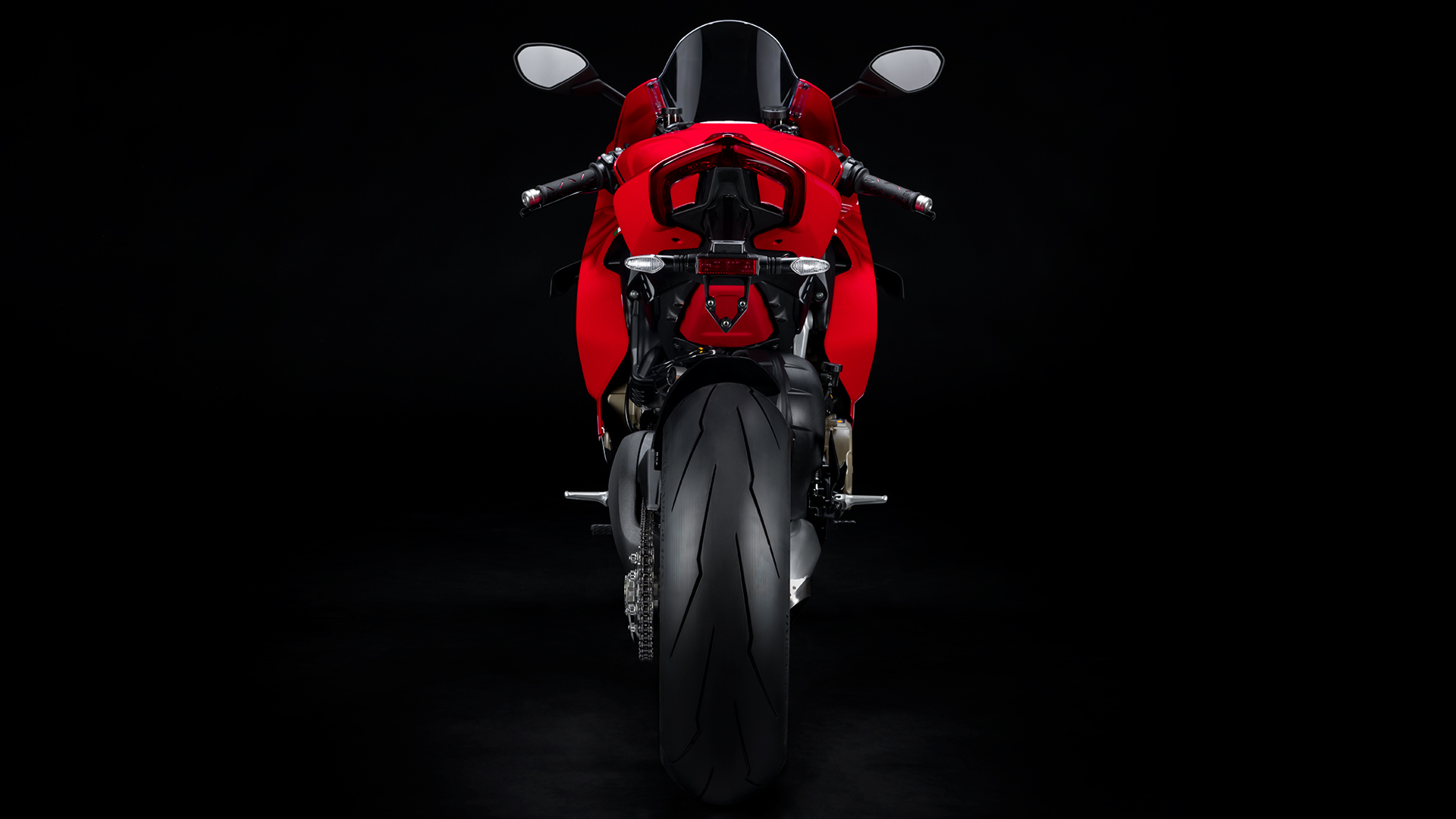

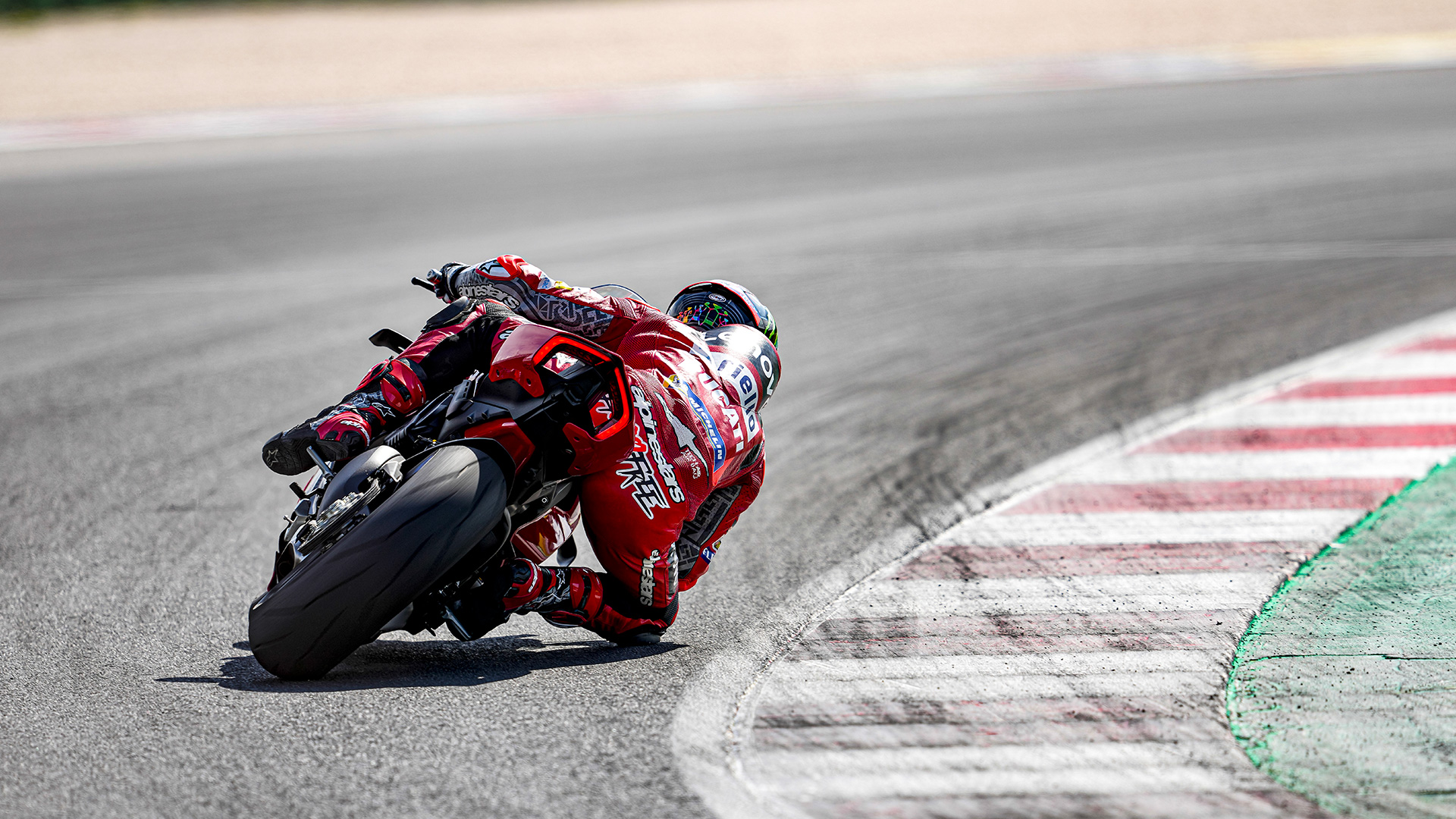

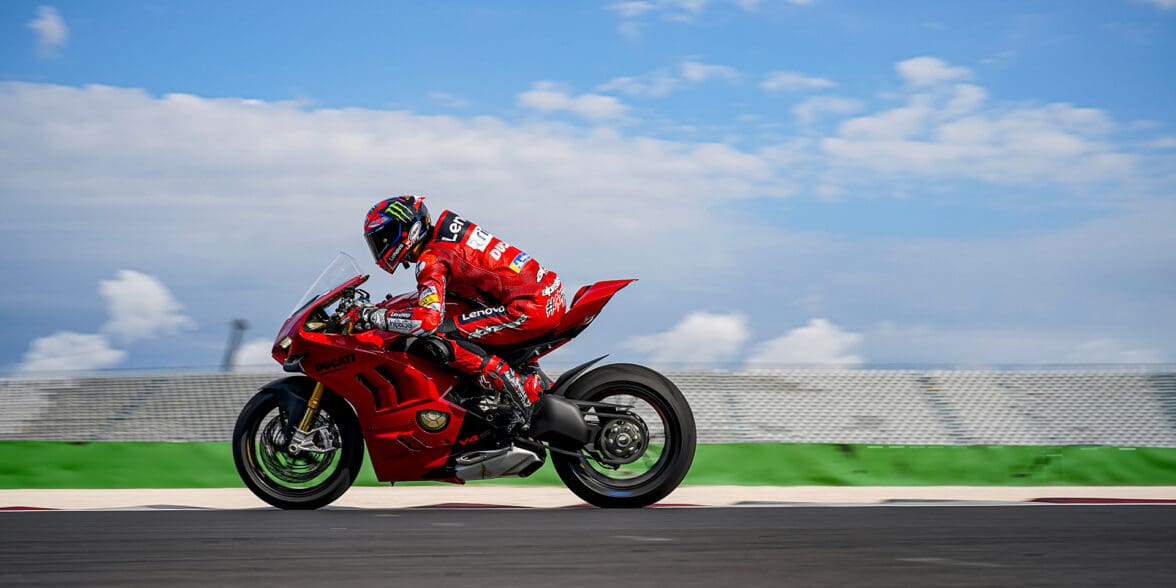

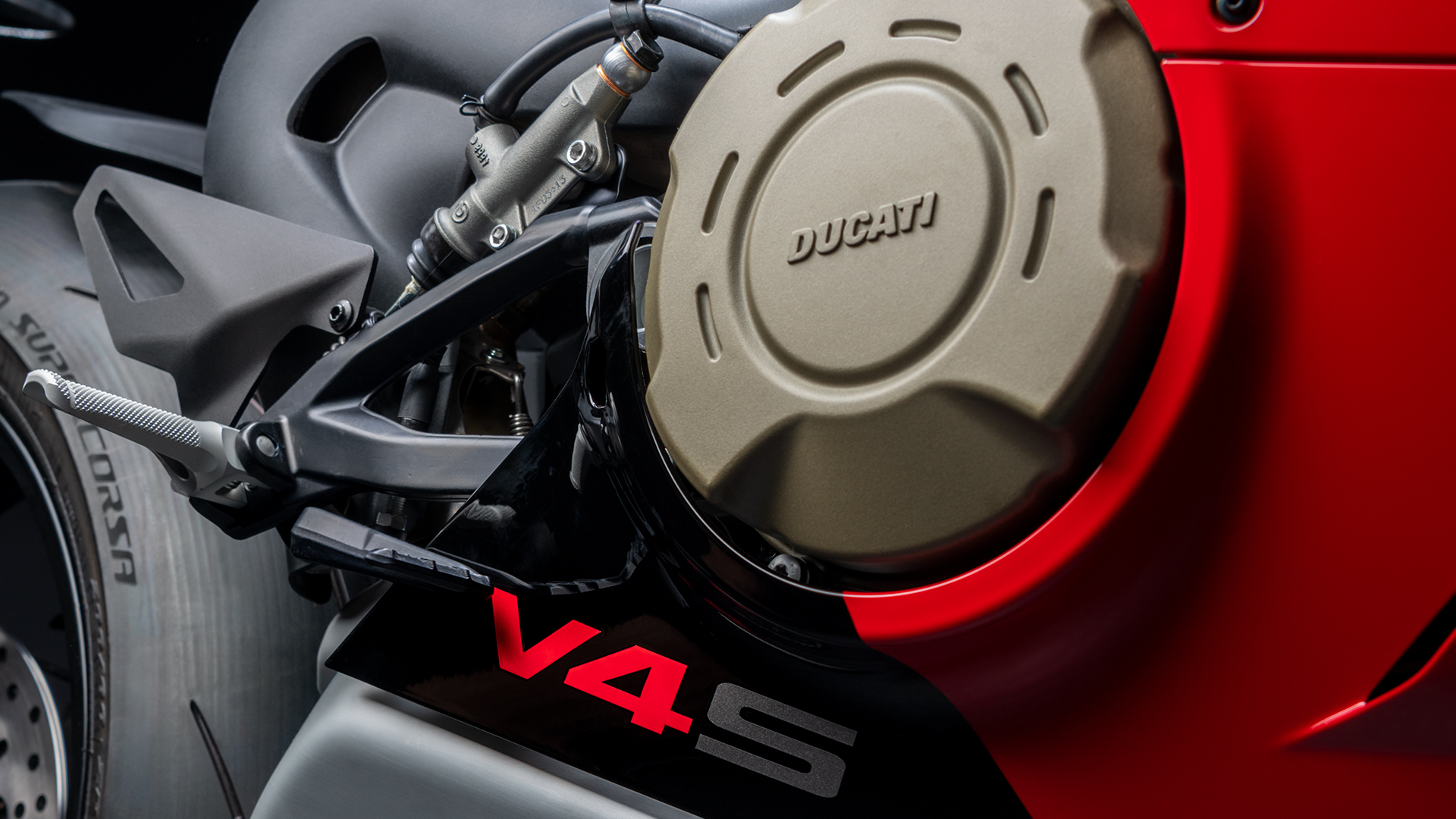

2022 Ducati Panigale V4 / V4 S Photos
