The Highly Anticipated 2020 Honda Rebel 500 Breaks Cover

When Honda pulled the covers off of the revamped Honda Rebel 500 back in 2017, a revolution occurred. Once a dowdy and tired looking model, the Rebel was redesigned into a smart and contemporary motorcycle that had instant appeal to both new and experienced riders alike. It was an instant success, and Honda has plans to build on that success with the updated Rebel 500 for 2020.

Upgrades come in the form of a new assist/slipper clutch that reduced the effort required to operate the clutch lever by as much as 30%, as well as improving control whilst decelerating. There are new forks up front with stiffer springs a new oil levels for superior handling and comfort compared with the 2019 model. Honda has also improved the rear shock to match.

Other improvements include new instrumentation with a gear position indicator and fuel levels, a new LED headlight and taillight with matching LED turn signals, and new rear loop on the frame. The new rear subframe section now accommodates a thicker seat than before for added comfort.

While the changes are impressive, we’re pleased to see that the engine and performance of the 2020 Rebel 500 remain the same as before. The Rebel is powered by a capable 471cc liquid-cooled parallel twin that delivers a modest 45.9 horsepower at 8,500 rpm and a cool 31.9 lb-ft of torque at 6,000 rpm, with plenty of low-end power and smooth delivery.

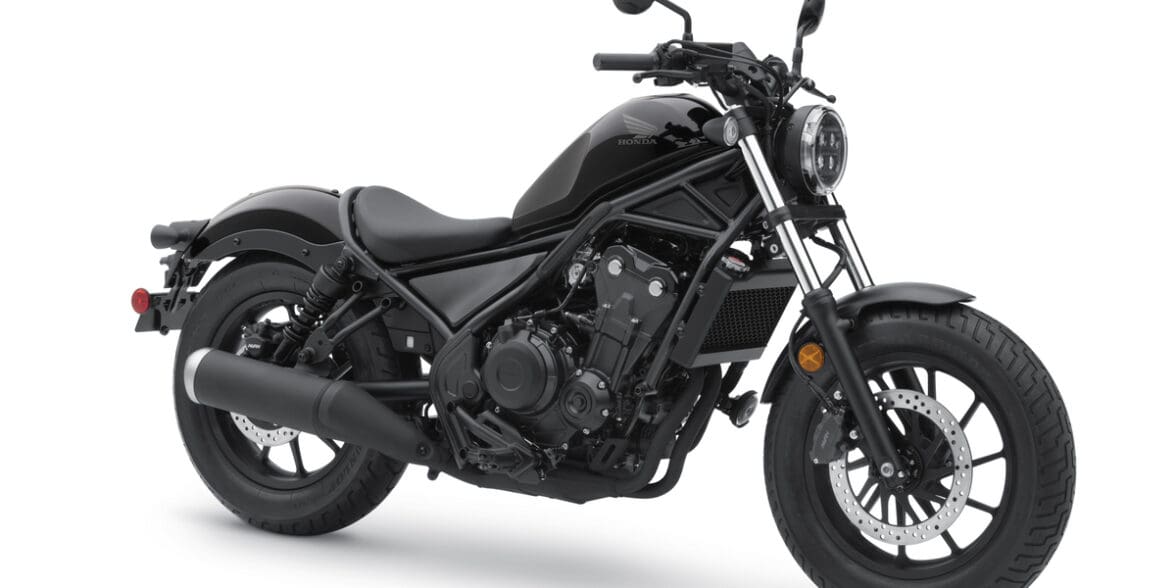

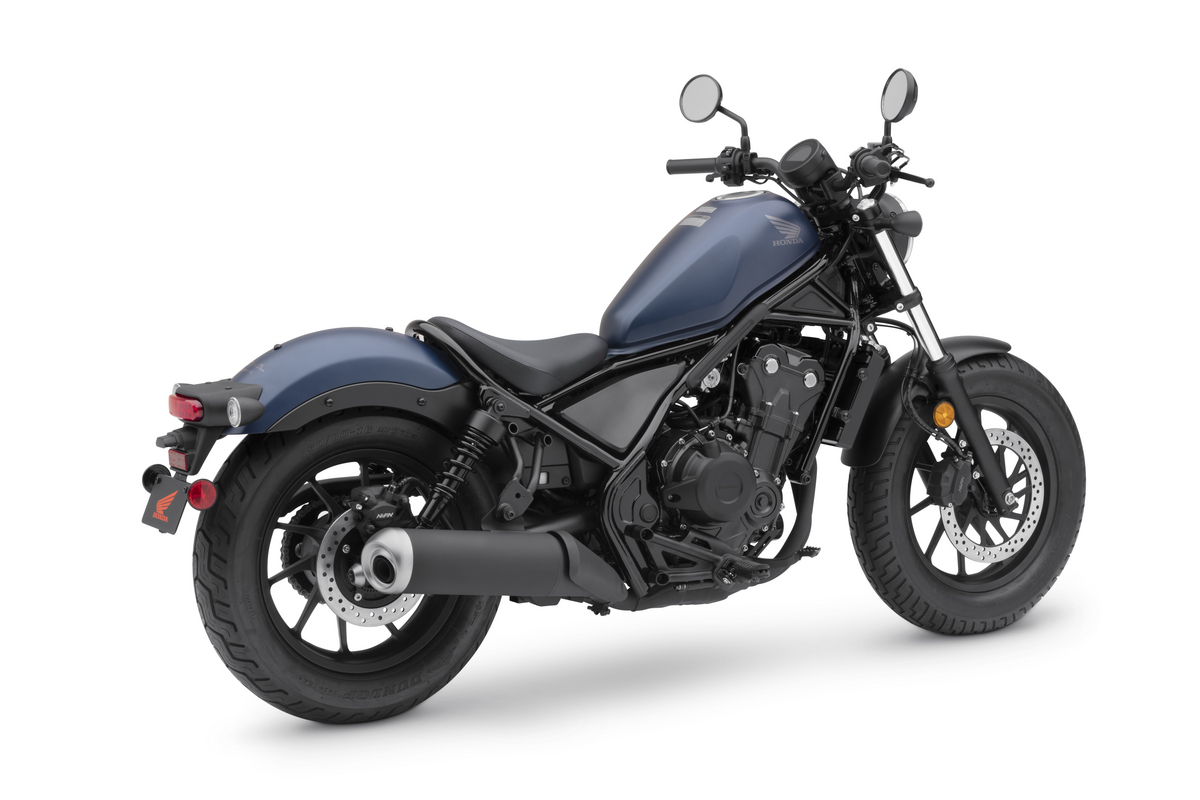

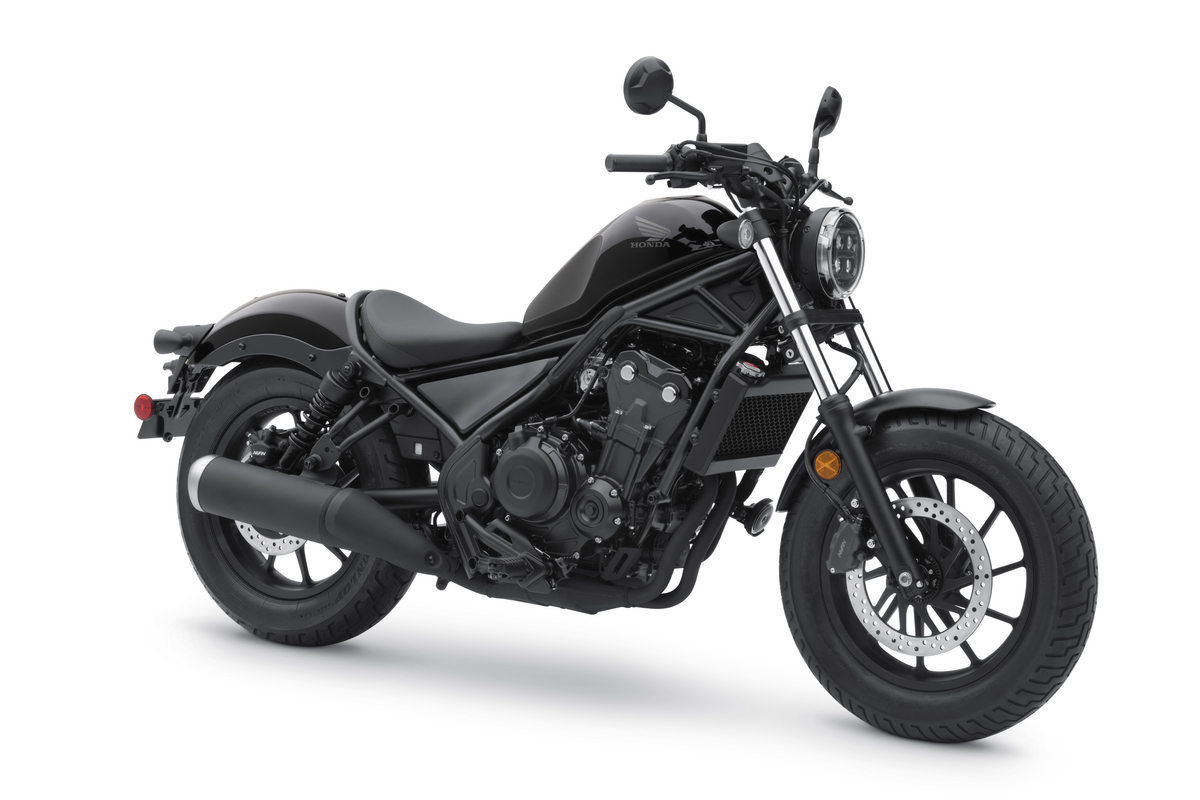

For 2020, Honda offers the Rebel 500 in three stylish color options: Matte Armored Silver, Graphite Black, and Matte Blue Jeans Metallic.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new Honda Rebel 500 in one place.

2020 Honda Rebel 500


Model Overview

General Info

  • Price: Est $6,199
  • Key Features:
    • Low seat height
    • Electric starter
    • Slipper/assist clutch

Key Specs

  • Engine type: 471cc liquid-cooled parallel-twin four-stroke
  • Power: 45.9Hp
  • Curb Weight: 408 lbs
  • Seat height: 27.2 Inch

Competitors

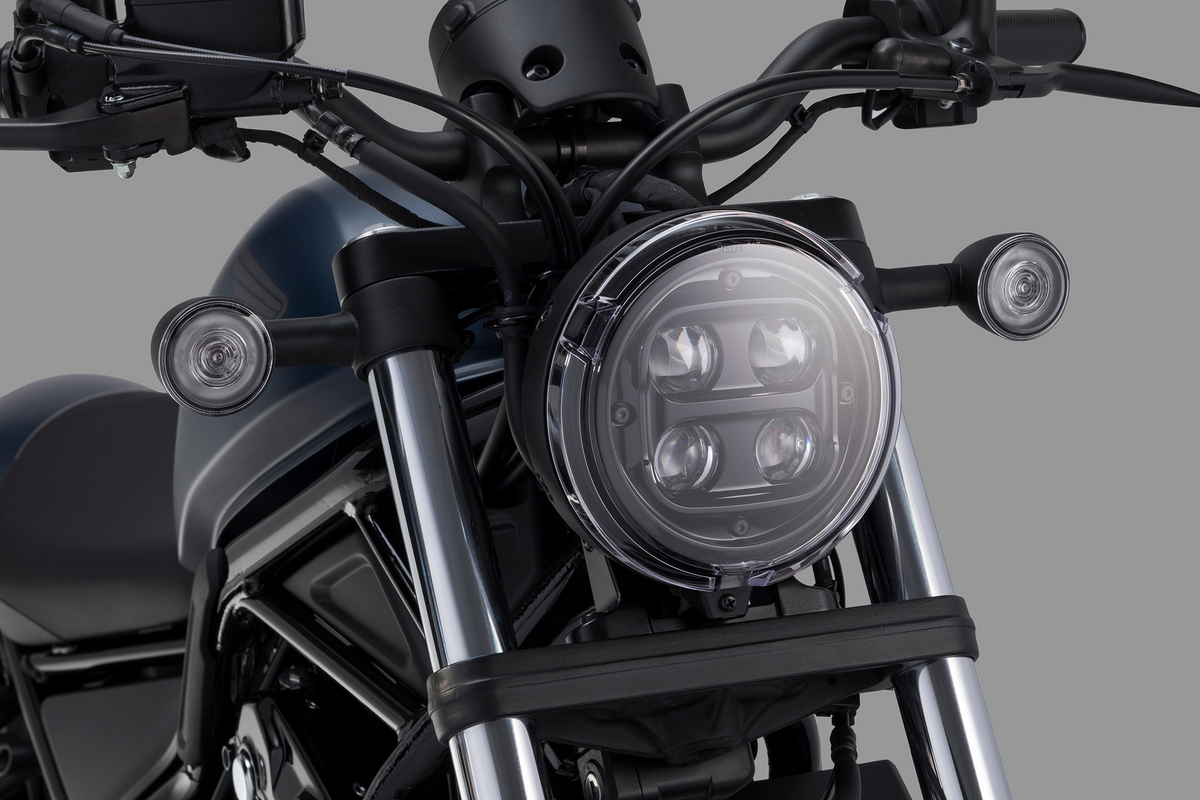

2020 Honda Rebel headlight off


2020 Honda Rebel 500 Specifications

From Honda

ENGINE

Engine 471cc liquid-cooled parallel-twin four-stroke
Power 45.9 Hp
Bore x Stroke 67mm x 66.8mm
Compression Ratio 10.7:1
Fuel System Fuel injection
Starter Integrated Starter Generator system
Lubrication

DRIVETRAIN

Clutch Slipper/assist clutch
Transmission 6-Speed
Final Drive O-ring-sealed chain

CHASSIS

Suspension Front 41mm fork; 4.8 inches of travel
Suspension Rear Dual shocks with 3.8 inches of travel
Brakes Front Hydraulic disc
Brakes Rear Hydraulic disc
Tires Front 130/90-16
Tires Rear 150/80-16
Fuel Tank Capacity 11.2 L (2.96 US gal.)

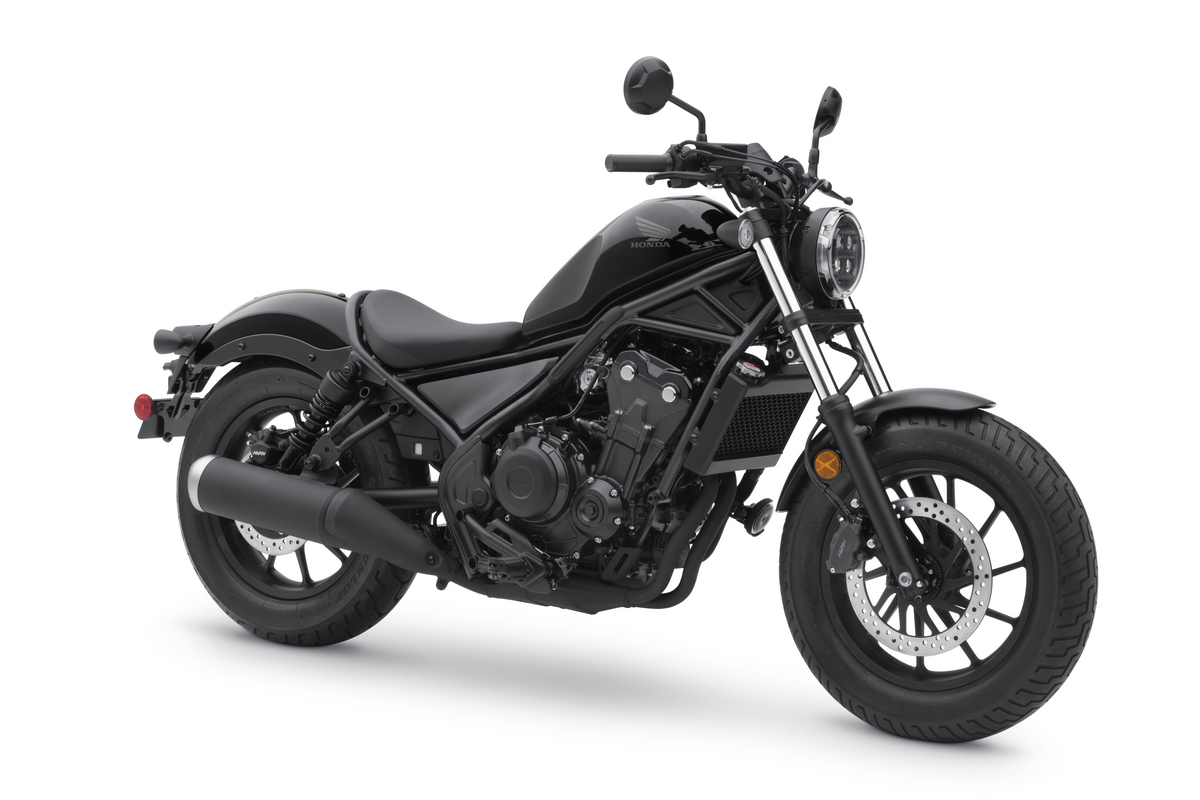

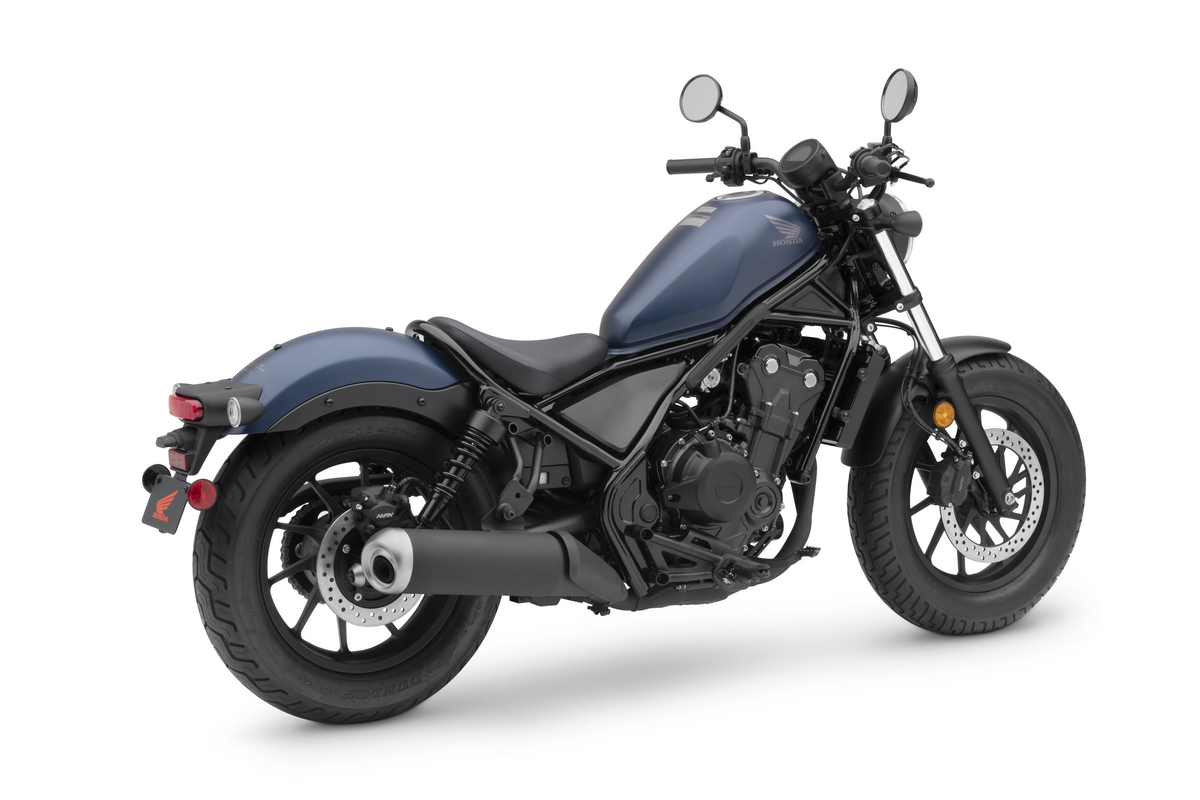

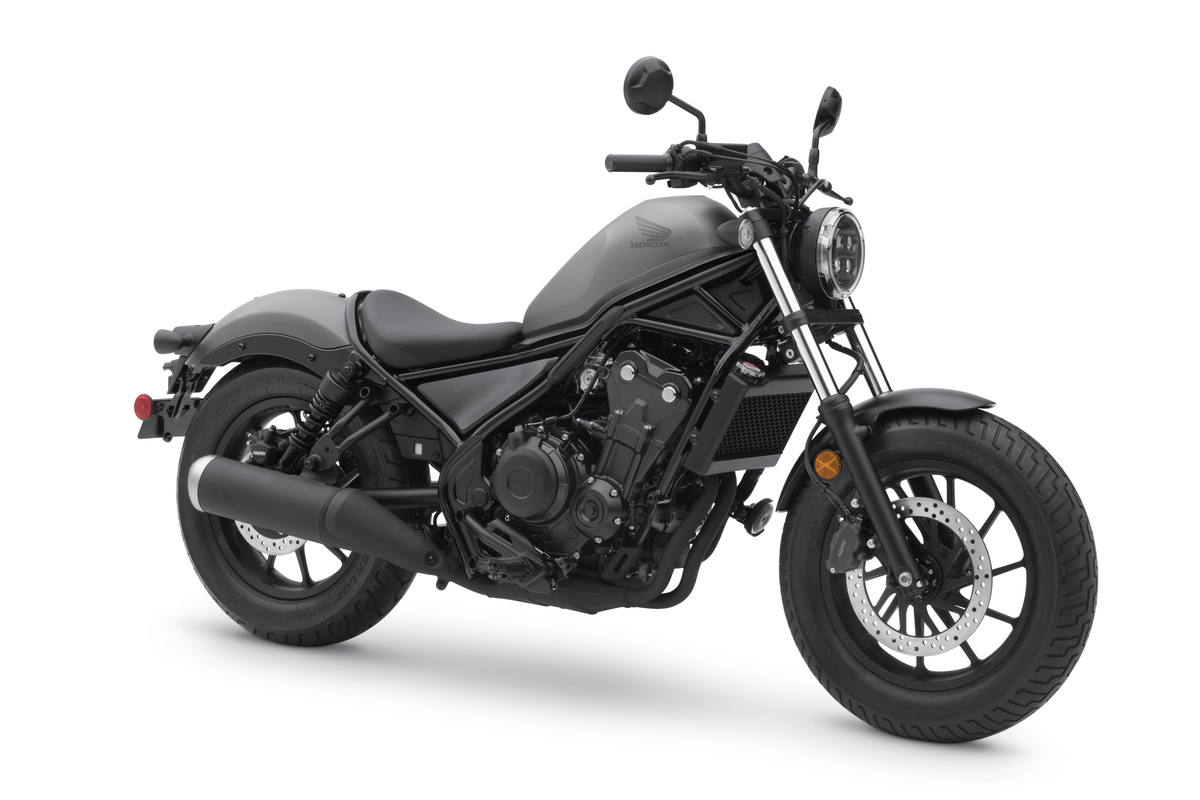

Color Matte Armored Silver, Graphite Black, Matte Blue Jeans Metallic

ELECTRICAL

Ignition Full transistorized ignition
Spark Plugs
Headlight LED
Tail Light LED

DIMENSIONS

Overall Length
Overall Width
Overall Height
Wheelbase 1490mm (58.7 in.)
Ground Clearance
Seat Height 690mm (27.2 in.)
Curb Weight 185 kg (408 lb.)

WARRANTY

Warranty One Year, Transferable, unlimited-mileage limited warranty
Extension Extended coverage available with a HondaCare Protection Plan®

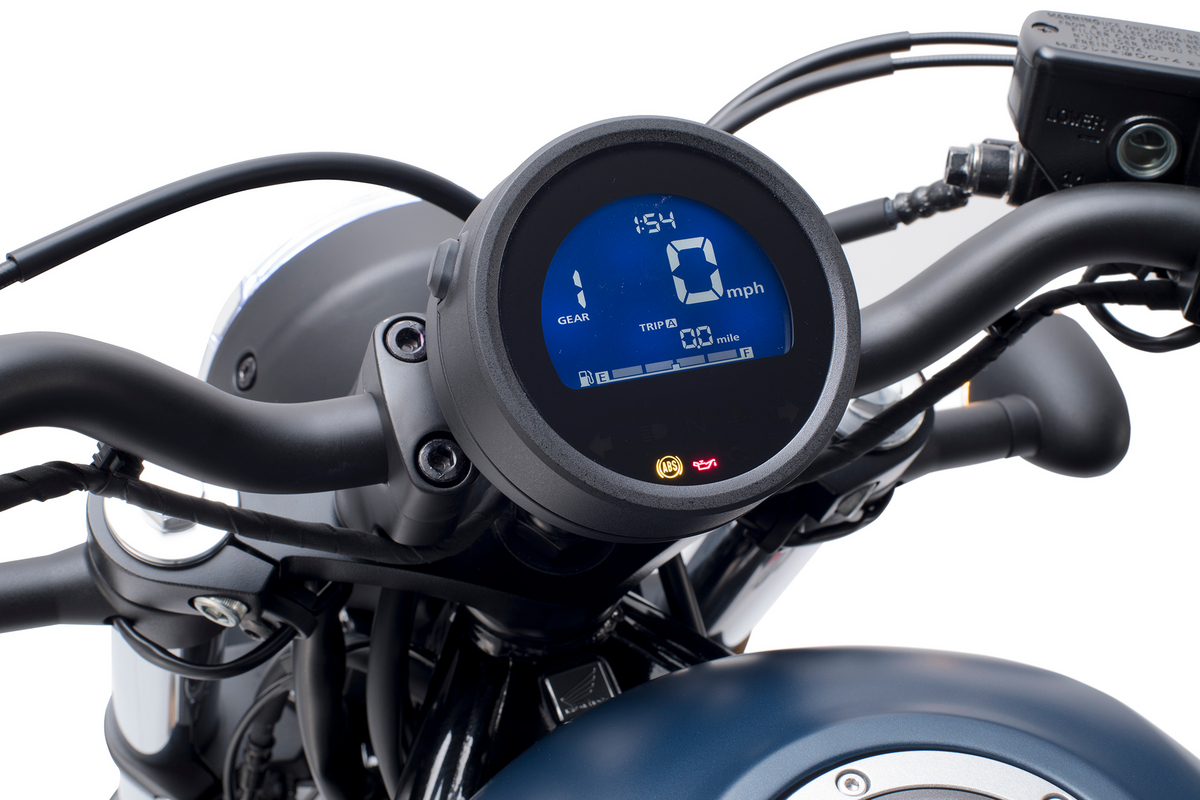

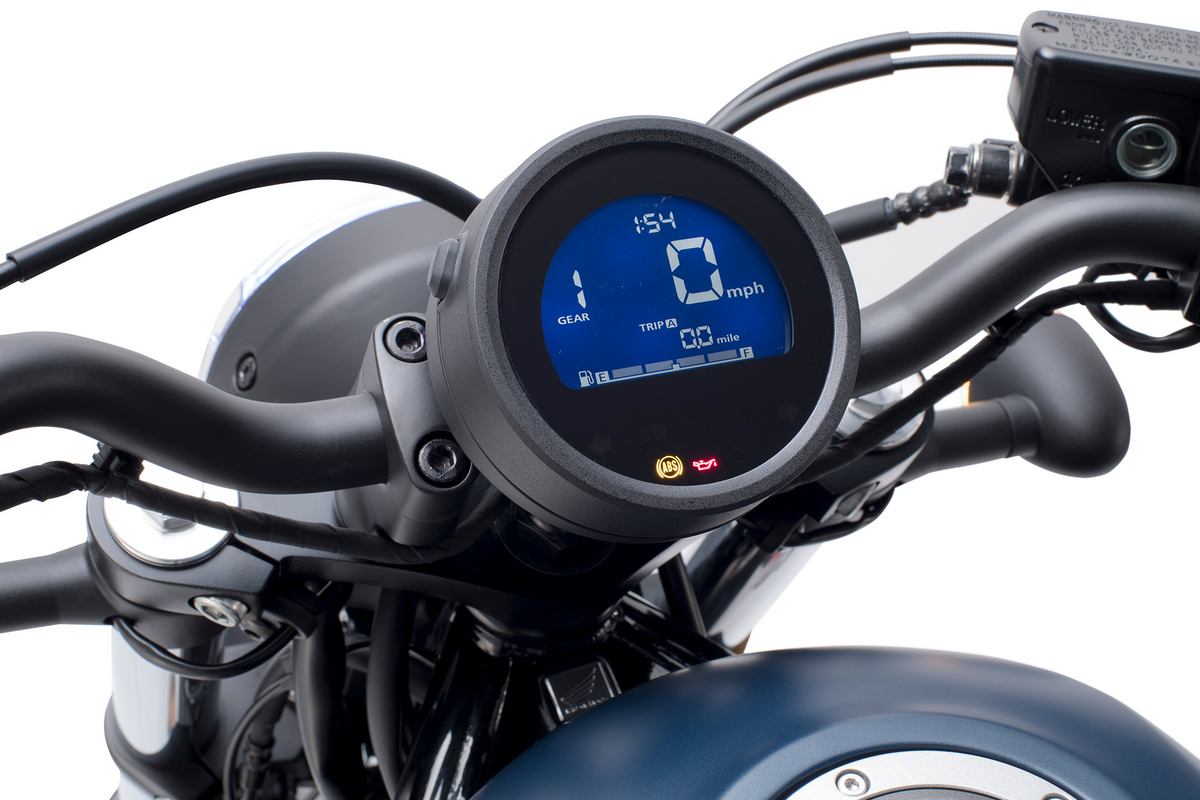

2020 Honda Rebel meter gear


2020 Honda Rebel 500 Features

Sporty Engine

Twin-cylinder engines are a great choice for a machine like the Rebel 500. Honda twins are famous for their versatility, and the 471cc Rebel 500’s engine is one of our best ever. The parallel-twin engine is narrow, which helps reduce overall bike size. Plus it offers lots of low-rpm torque, but plenty of higher-rpm performance.

Cast Aluminum Wheels

Cast wheels front and rear are light, practical, easy to keep clean, and give the Rebel a look that tells you this is not built like a retro machine. The wide rims and tires add to the bike’s appearance, too.

Blacked-out Style

The Rebel is a blank canvas for your self expression. But unlike the canvas you buy at the art store, this one’s not boring white. As is, its blacked-out engine pieces, frame, and bodywork elements look great during the day and even better at night.

Blacked-out Muffler

Forget about having to polish chrome—the Rebel’s blacked-out exhaust system blends perfectly with the bike’s overall look. And maybe the biggest plus? The awesome sound that’s so important to the riding experience.

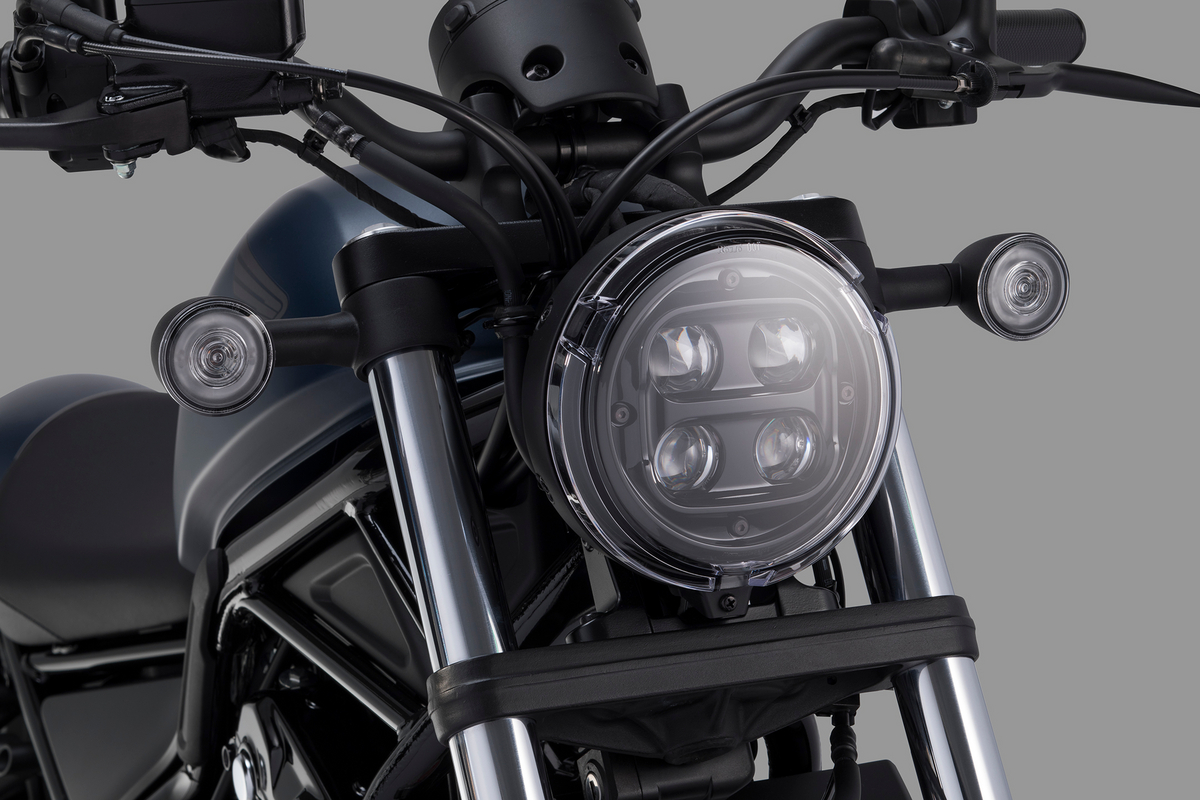

All Led Lighting Package

LED lighting is where it’s at now. LEDs can be lighter, brighter, and require fewer lifetime replacements than incandescent bulbs. For 2020, the Rebel 500 gets an all-LED lighting package—headlight, taillight, turn signals, even the license-plate light.

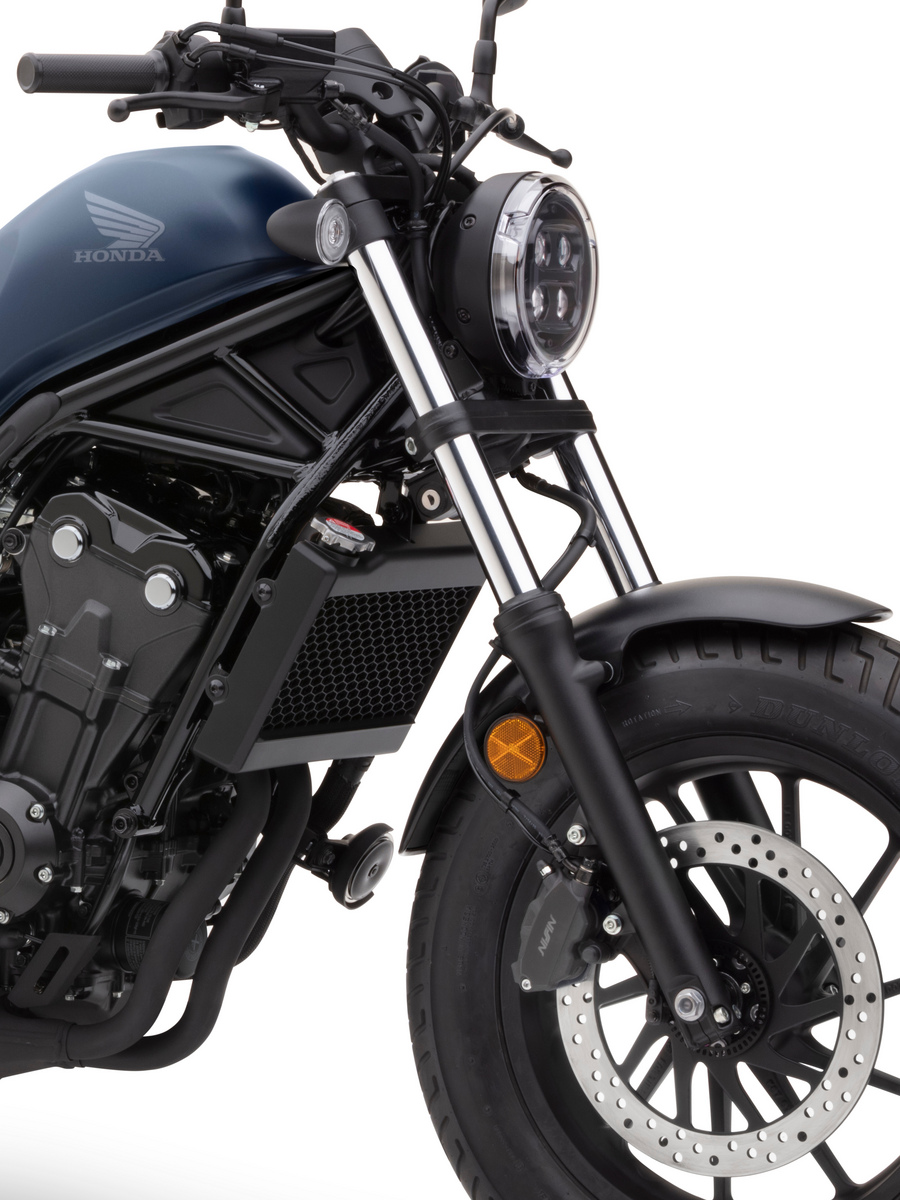

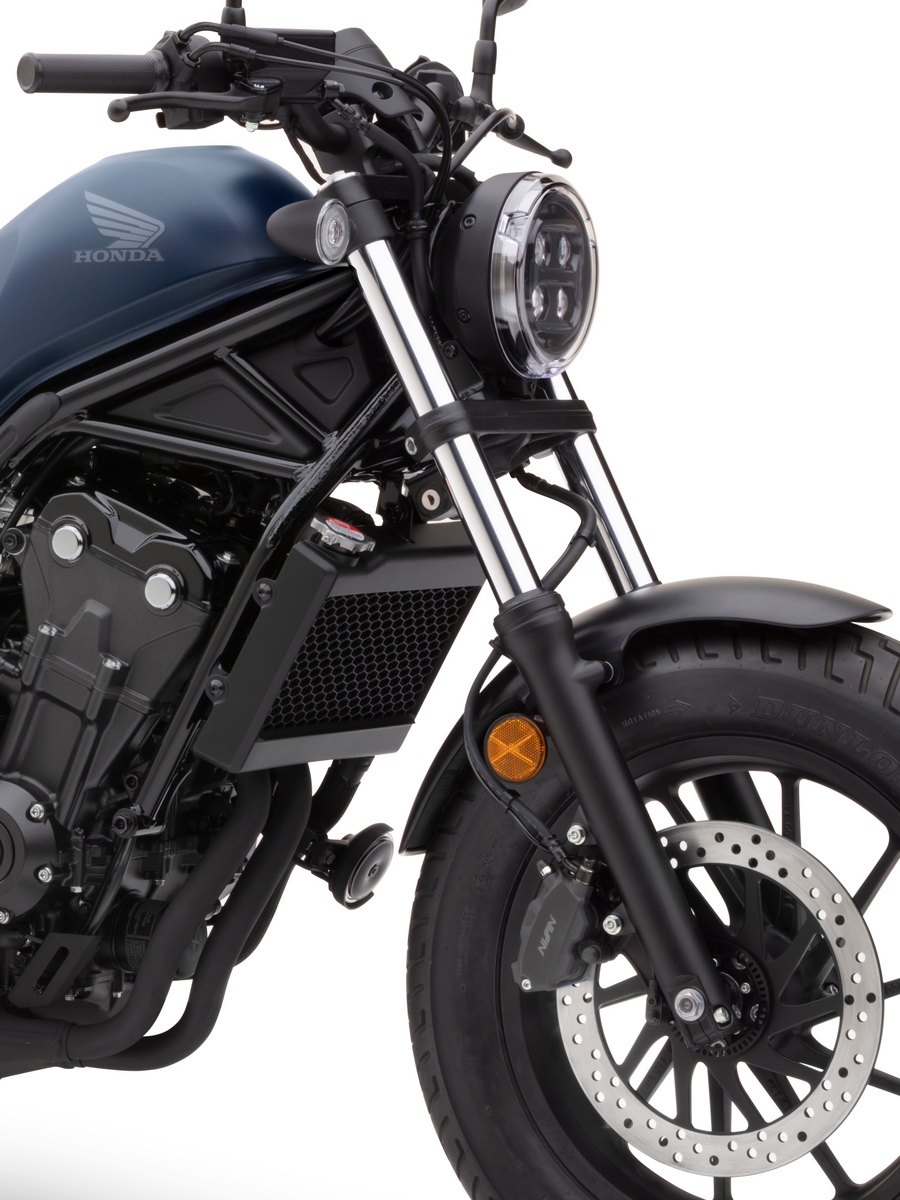

Wide 41mm Fork

It’s what’s up front that counts most in style, and the Rebel knocks it out of the park. Of course the front suspension offers precise steering and a plush ride, but the fat 41mm fork tubes give the bike a substantial presence too. For 2020, the fork is fine-tuned for even better comfort and performance.

Wide Front Wheel

The Rebel’s wide 130/90-16 front tire not only looks great, but it helps provide superior handling and stopping power.

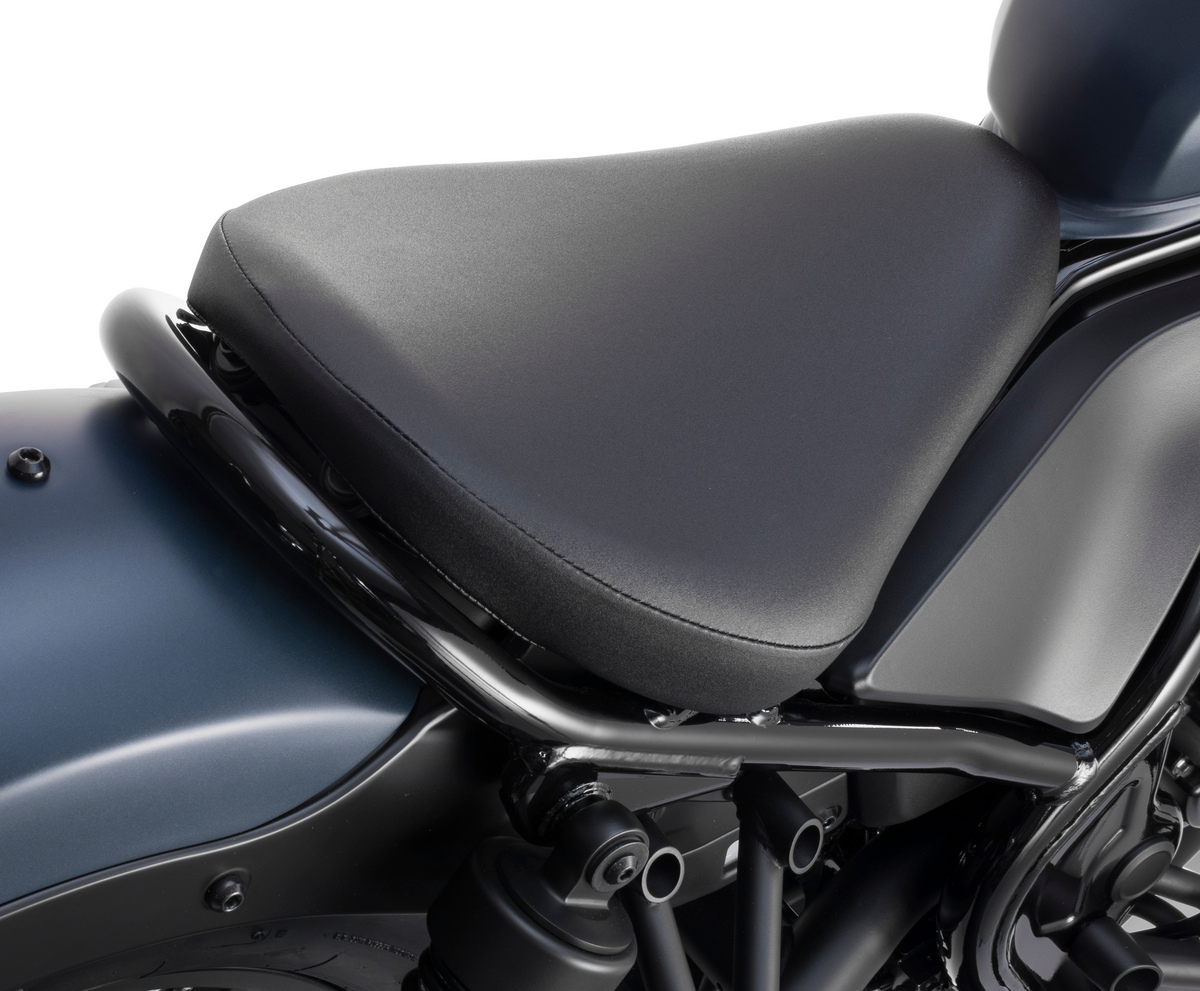

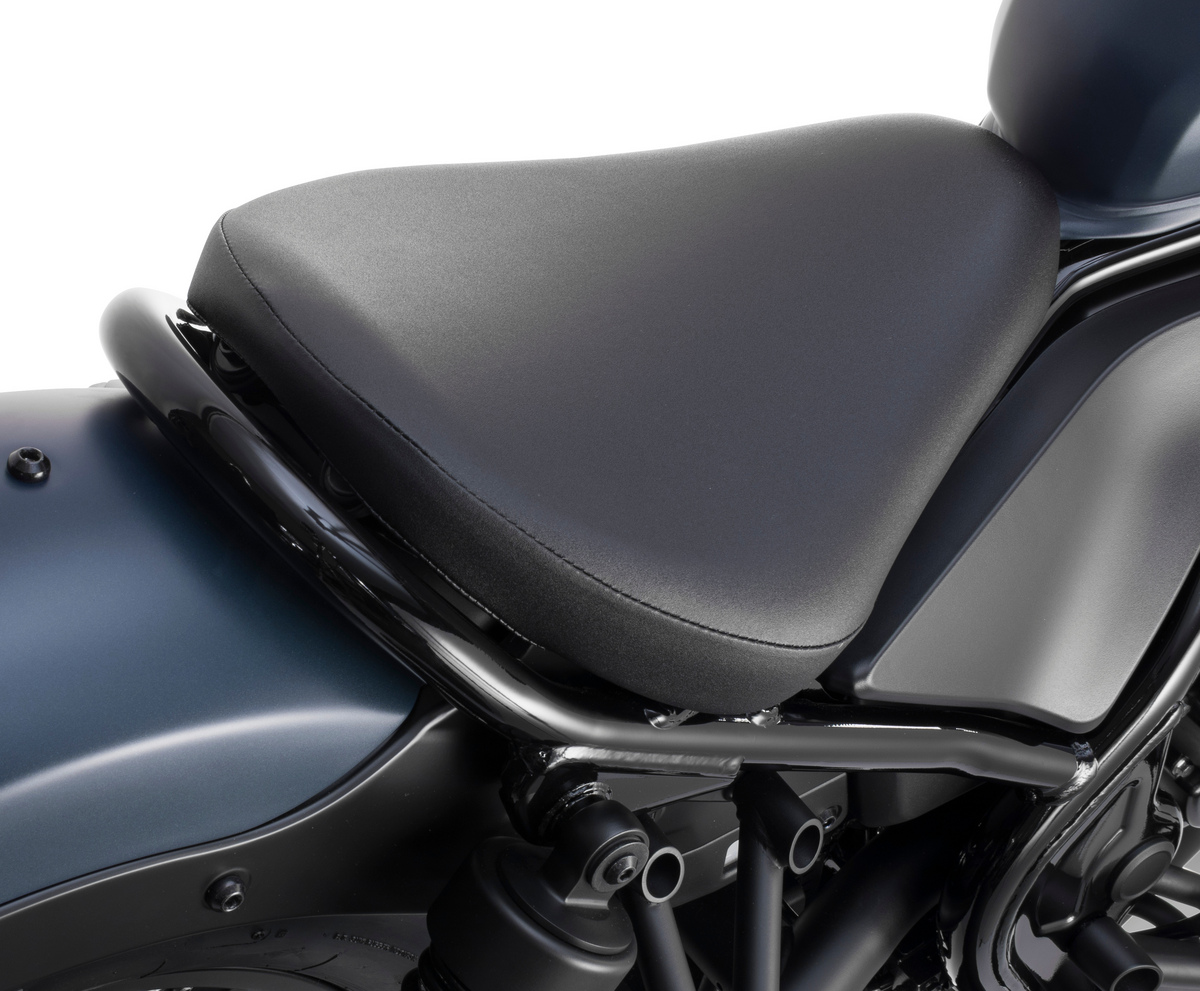

Low Seat Height

When it comes to seat heights, almost everyone likes them lower. At just 27.2 inches, the Rebel has one of the lowest seats in anyone’s lineup. It’s comfortable when you ride, and it makes it easier to flat-foot it at stoplights or in parking lots.

Light Weight

Weighing just 408 pounds (414 pounds for the ABS model) with a full tank of fuel, the Rebel 500 is a lot more fun and friendly to ride than some bigger machines—perfect if you’re just getting started, or if you’re looking for a nimble bike. The light overall weight and a low center of gravity help performance, too.

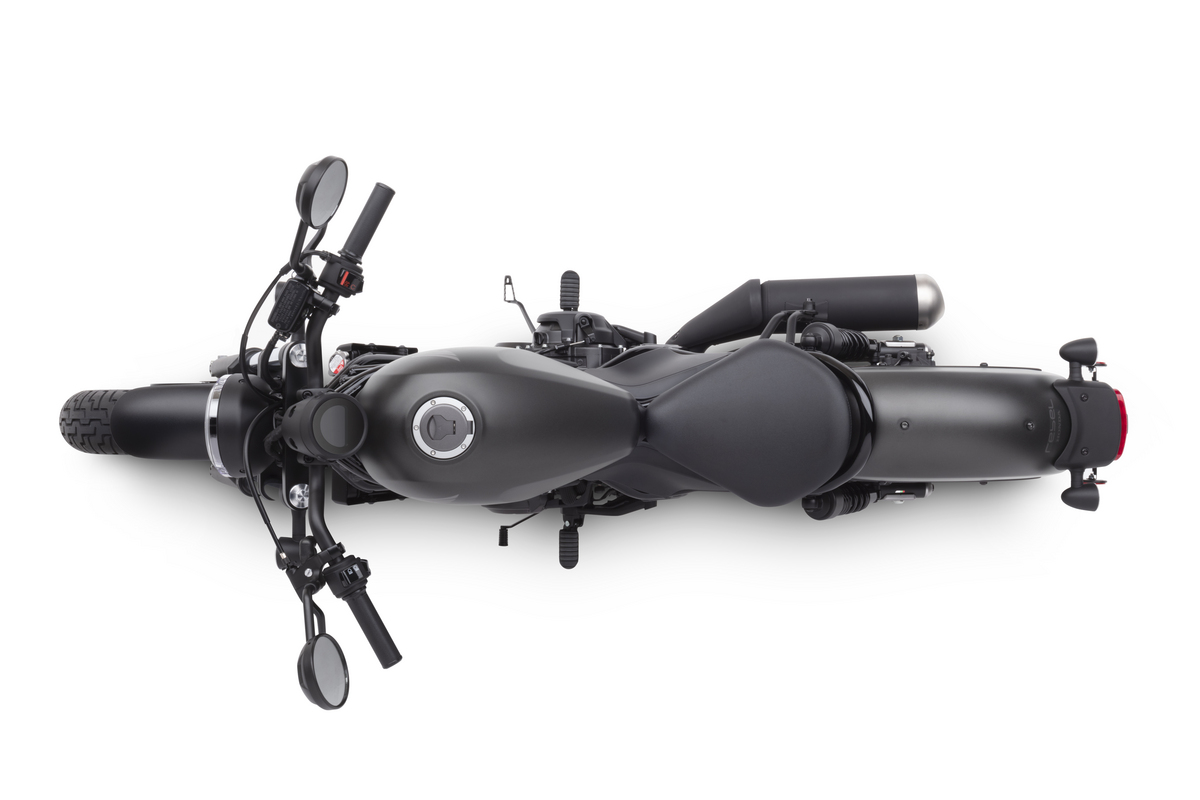

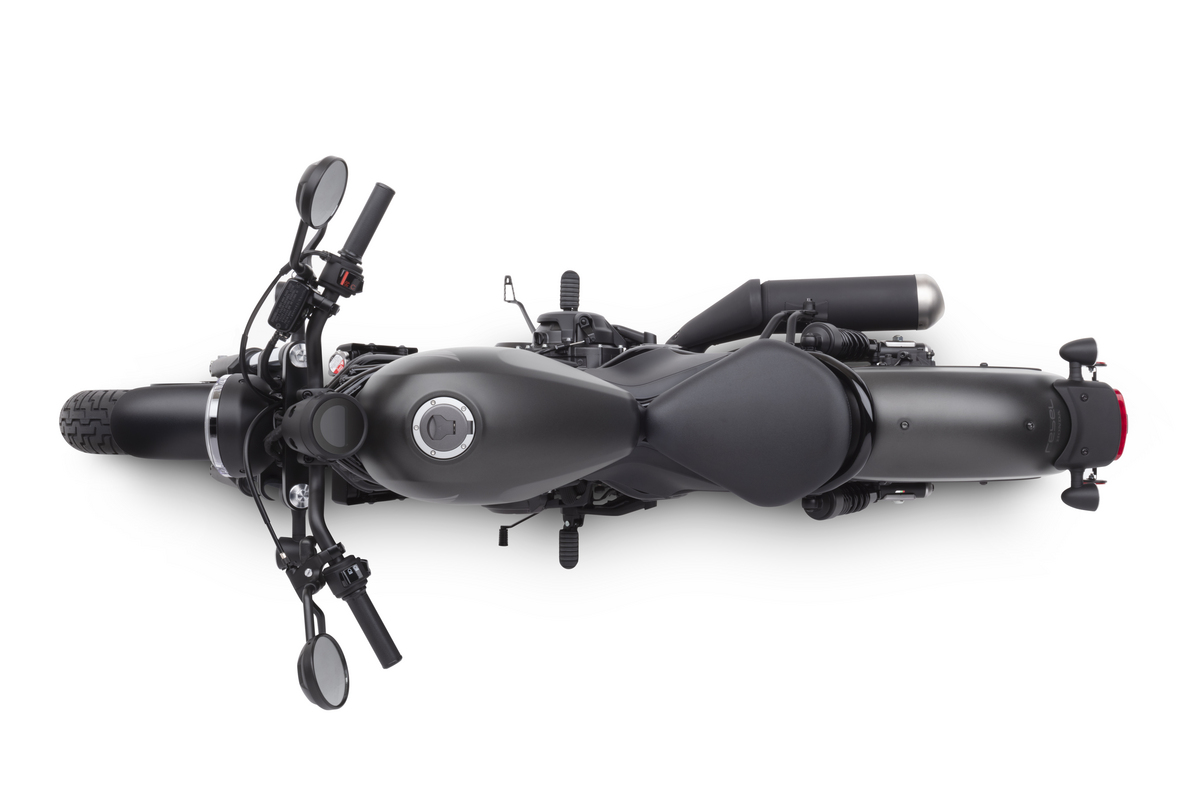

Narrow

Super-narrow, especially at the critical tank/seat junction, the Rebel makes it easier to get on and off the bike, and to put your feet down at stops. Plus, the Rebel fits a wide variety of riders.

Slipper/assist Clutch

New for 2020, this is technology first developed and perfected in Honda’s racing machines. The slipper/assist clutch means you get a lighter clutch pull at the lever, but a solid lockup when you release the lever and apply power. It’s technology that reduces clutch effort at the bar by about 30 percent.

Superior Handling

A lot of today’s motorcycles look great standing still, but disappoint once the road gets twisty. At Honda, we set high standards for the way all our bikes handle and feel, and the Rebel is a perfect example—we’ve paid just as much attention to the way this bike corners and handles as we have its knockout styling.

2.9-gallon Fuel Tank

One of the key items in motorcycle design is the fuel tank. Holding 2.9 gallons, the Rebel’s iconic fuel-tank shape is timeless, but functionally it also teams up with the bike’s great fuel efficiency to give you plenty of range.

Die-cast Aluminum Rear Subframe

Here’s a chance for Honda’s designers to take a functional part of the motorcycle and make it look extra cool. The aluminum subframe/fender mounts are strong, subtle, light, and provide a solid foundation for the optional/removable passenger seat.

Wide Rear Tire

The Rebel’s low, fat 16-inch rear tire gives you plenty of grip, and helps lower the bike’s overall seat height and stance. And it looks tough, too.
