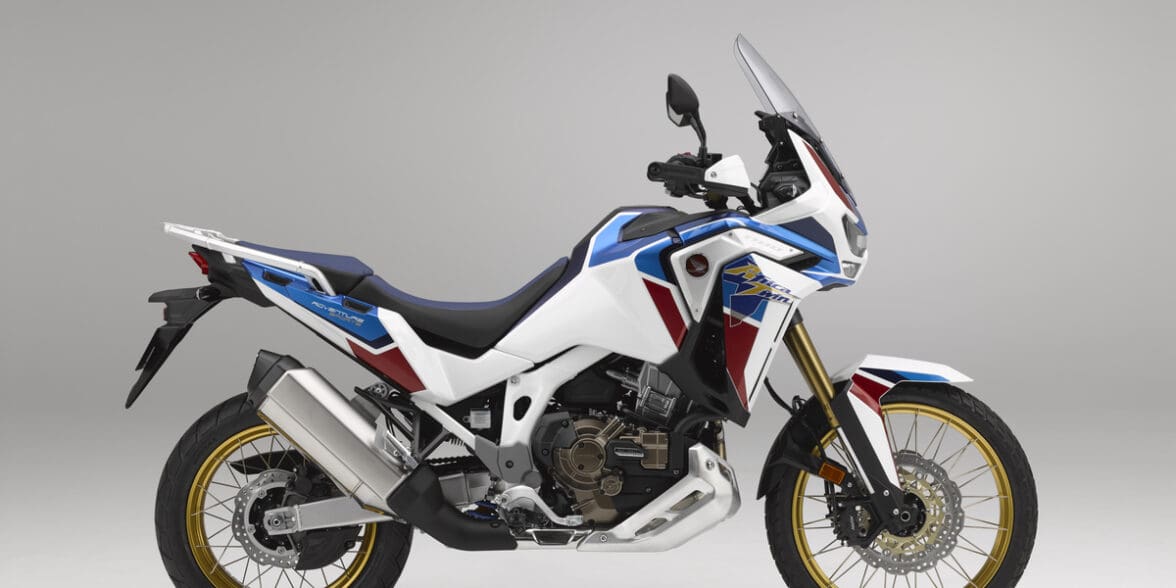

Introducing The 2020 Honda Africa Twin Adventure Sports ES DCT

For 2020, Honda pulled the covers off of four models in the Africa Twin family: the Africa Twin, Africa Twin DCT, Africa Twin Adventure Sports ES, and Adventure Sports DCT. Every model received impressive updates from the outgoing Africa Twin models, but it’s the Adventure Sports ES DCT model that really shows off what Honda’s versatile adventure bike can do.

The engine capacity has been increased by 86cc up to 1084cc, increasing the power and torque by up to 6% in places. To complement the new capacity, Honda introduced a new rear subframe and swingarm to decrease weight, significantly improving performance and optimizing handling. Honda has also improved the DCT for unparalleled riding comfort.

Honda has treated the new Africa Twin Adventure Sports models with a host of onboard gadgetry, including Cornering ABS, Rear Lift Control, Wheelie Control, Cruise Control, improved Honda Traction Control, and DCT Cornering Detection for the DCT model. The advanced technology is controlled by a smart six axis Inertial Measurement Unit, which was usually only found on Honda’s class-leading CBR1000RR.

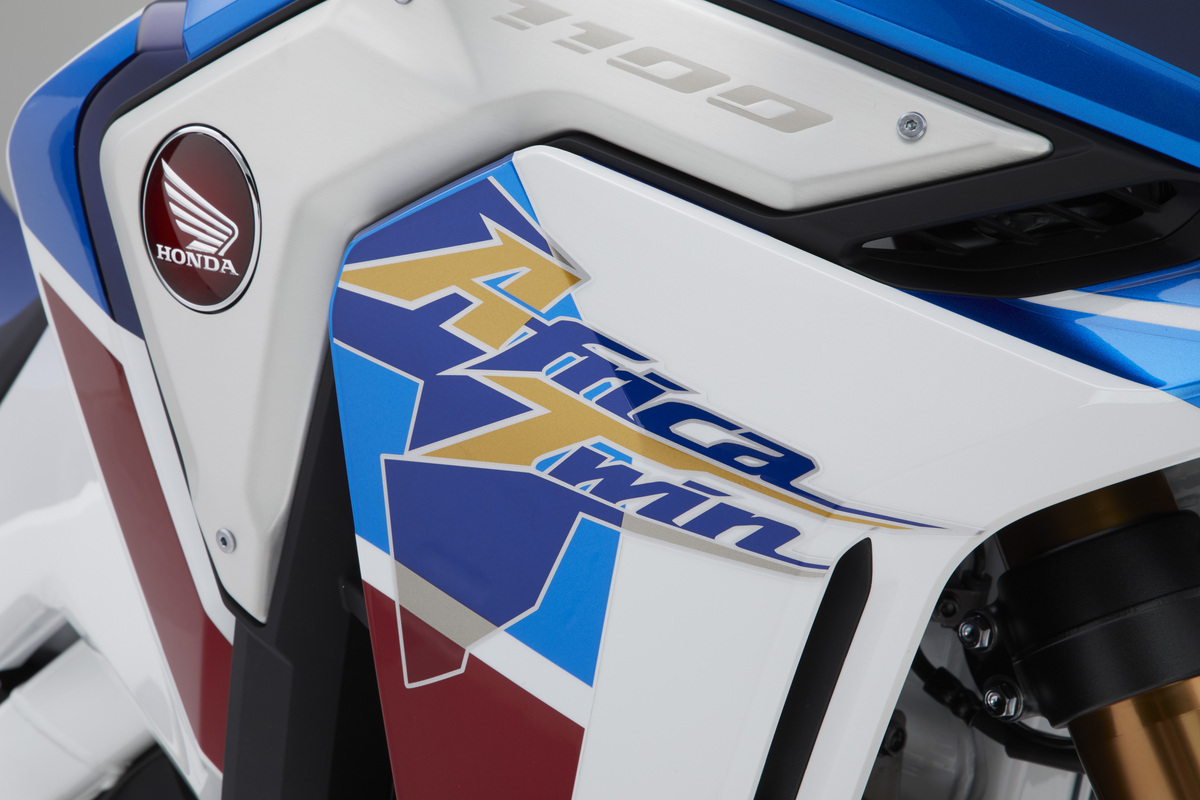

Add in Apple CarPlay and Bluetooth compatibility, a new TFT touchscreen display, slimmer bodywork and revised ergonomics, and you have a truly updated motorcycle. Available in Honda’s tricolor Pearl Glare White/Blue and Red, this adventure motorcycle is an entirely new beast.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new Honda Africa Twin Adventure Sports ES DCT in one place.

Africa Twin Adventure Sports ES DCT


Model Overview

General Info

  • Price: $ 17,999
  • Key Features:
    • Anti-lock brakes (ABS)
    • LED lights
    • Traction Control

Key Specs

  • Engine type: 1084cc liquid-cooled, parallel-twin
  • Power: 75.0kW/7500min-1
  • Wet weight: 501 lbs
  • Seat height: 34.3 Inch

Key Competitors

2020 Honda CRF1100L Africa Twin Adventure Sports SE


Africa Twin Adventure Sports ES DCT Specifications

From Honda

ENGINE

Engine 1084cc liquid-cooled Unicam® four-stroke 22.5º parallel-twin
Power 75.0kW/7500min-1
Bore x Stroke 92mm x 81.5mm
Compression Ratio 10.1:1
Fuel System PGM-FI electronic fuel injection (Throttle By Wire)
Starter Electric
Lubrication

DRIVETRAIN

Clutch Wet multiplate
Transmission 6-Speed
Final Drive #525 Chain; 16T/42T

CHASSIS

Suspension Front 45mm inverted telescopic fork; 9.1 inches of travel
Suspension Rear Pro-Link® system w/ single shock; 8.7 inches of travel
Brakes Front Two four-piston hydraulic calipers w/ 310mm disks; ABS
Brakes Rear Single one-piston hydraulic caliper w/ 256mm disk; ABS
Tires Front 90/90-21
Tires Rear 150/70R-18
Fuel Tank Capacity 18.92 L (5 US gal.)
Color Matte Black Metallic

ELECTRICAL

Ignition Full transisterized
Spark Plugs
Headlight LED
Tail Light LED

DIMENSIONS

Overall Length
Overall Width
Overall Height
Wheelbase 1574 mm (62in.)
Ground Clearance 250 mm (9.84 in.)
Seat Height 871 mm (34.3 in.)
Curb Weight 227 kg (501 lb.)

WARRANTY

Warranty 12-month Transferable, unlimited-mileage limited warranty
Extension Extended coverage available with a HondaCare Protection Plan®

2020 Honda CRF1100L Africa Twin Adventure Sports SE


Africa Twin Adventure Sports ES DCT Features

CRUISE CONTROL

Here’s one of the worst-kept secrets in the motorcycling world—Honda’s Africa Twins make great long-distance touring bikes. To that end, we’ve equipped our 2020 models with cruise control, just like our Gold Wings. Your next adventure really starts a couple of hundred miles away? No problem!

THROTTLE BY WIRE

Our throttle-by-wire system greatly expands the Africa Twin’s versatility. First, you get seven levels of Honda Selectable Torque Control. Second, you can choose from four power delivery modes: Tour, Urban, Gravel, and a fourth that’s user-programmable. First used on our RC213V-S, throttle-by-wire is an excellent example of how Honda’s technology works for you.

270-DEGREE-PHASE CRANK

Most twins use a 180-degree crank. By phasing the Africa Twin’s at 270 degrees, you get a unique power delivery that’s easy to modulate, especially in terrain where traction is challenging.

SELECTABLE ABS

Our 2020 Africa Twin models offer two ABS modes: on-road and off-road. A third setting lets you turn the rear ABS off altogether for riding in the dirt.

CORNERING ANTI-LOCK BRAKES

The Africa Twin’s Anti-lock Brake System (ABS) comes standard integrated with a 6-axis IMU, it knows when you’re leaned over, and compensates accordingly.

DRY-SUMP ENGINE

The Africa Twin’s dry-sump engine design is the only way to go. The more compact sump increases ground clearance and eliminates the vulnerability of a conventional wet sump.

LOW CENTER OF GRAVITY, COMPACT MASS

By locating heavy components like the battery as close to the bike’s center of gravity as possible, and using a compact engine, the Africa Twin provides a superior platform for excellent handling.

WATER PUMP

Can you see the Africa Twin’s water pump? Trick question! It’s tucked behind the right side cover, out of harm’s way. There are no vulnerable hoses leading to it either, a weakness on some bikes. Driven by the balancer shaft, in case of a tip-over or in rocky sections, it’s one less thing to worry about.

LIGHTWEIGHT LITHIUM-ION BATTERY

Conventional batteries are notoriously heavy—that’s why we gave the Africa Twin a high-tech, lightweight lithium-ion battery. Compared with a similar lead-acid battery, it holds a charge approximately four times longer, and its shelf life is 1.6 times longer. Plus, it’s way lighter.

LONG-TRAVEL FRONT SUSPENSION

The Africa Twin doesn’t just look like an adventure bike—it’s the real deal. Exhibit A: Check out its long-travel front suspension. The inverted Showa fork is fully adjustable with huge 45mm tubes and 9.1 inches of travel—the most front-end travel in the 1000cc off-road class.

NEW STEEL FRAME

The 2020 Africa Twin’s frame is almost four pounds lighter than our previous model’s. Plus, we’ve fine-tuned it by making the steering head more resistant to twist.

SEMI-DOUBLE-CRADLE-FRAME

The Africa Twin’s semi-double-cradle frame layout has been proven in countless Honda dirtbikes. In principle it’s similar to the design we use on our CRF450R Rally bike—a machine that’s designed to perform in the challenging Dakar rally and similar events.

FOUR-PISTON CALIPERS

Up front, the Africa Twin features twin four-piston brake calipers for powerful braking performance. The radial-mount design also helps make them stiffer, increasing brake feel and control.

43-DEGREE STEERING LOCK

With 43 degrees of steering lock both left and right, the Africa Twin provides excellent maneuverability on tight trails. This is one of the reasons the Africa Twin feels so much more nimble than many of the other bigger adventure bikes out there.

NEW SWINGARM

We shaved 500 grams from the 2020 Africa Twin’s swingarm—that’s more than a pound. This new piece uses technology developed on our CRF450R motocrosser. Any time you can take weight out of the suspension it’s a good thing, and helps handling and response.

HOLLOW AXLE SHAFTS

The Africa Twin uses large-diameter hollow steel axles front and rear. They’re super strong, durable, but also light: a combination which describes just about everything associated with this bike.

Honda SELECTABLE TORQUE CONTROL

The Africa Twin’s throttle-by-wire system lets us offer Honda Selectable Torque Control (HSTC). You can dial in exactly the kind of power delivery you want for the conditions at hand. Honda Selectable Torque Control features seven settings for a wide range of conditions, from pavement to fast, loose fire roads to challenging singletrack. You can also turn it off.

WHEELIE CONTROL

Front and rear wheel-speed sensors working with the Honda Selectable Torque Control (HSTC) let you dial in three levels of wheelie control. There’s also an “off” position—you’re the wheelie control here.

RIDING MODES

Both manual-transmission and DCT models offer six riding modes: Tour, Urban, Gravel, Off-Road, User 1 and User 2. The last two let you customize the system to your individual preference.

REAR SUSPENSION

Not only is the Africa Twin’s rising-rate Pro-Link® rear suspension fully adjustable, it offers a 220mm stroke for 8.7 inches of rear-wheel travel. Even better, there’s a special remote preload adjuster—you just turn a convenient knob, and you can compensate for varying loads like a passenger or full panniers.

TIRES AND WHEELS

Real adventure bikes use spoked wheels because they better survive the dings and hits of off-road riding. All Africa Twin models feature a 21-inch front and an 18-inch rear for superior performance, especially when it comes to off-road riding.

Apple CarPlay™

Apple CarPlay™* seamlessly integrates your compatible iPhone®* into your new Africa Twin. That means you can use your iPhone® to access Apple Maps, Apple Music, and other services easily. You’ll have access to weather, playlists and telephone numbers while aboard. Available Bluetooth®**-enabled wireless headsets let you communicate more easily than ever. And best of all, with more apps available every day, Apple CarPlay™ keeps your bike’s technology and convenience on the cutting edge.

*Apple CarPlay and iPhone are trademarks of Apple Inc.
**For using Apple CarPlay, connection to a commercially available Bluetooth headset is necessary. See owner’s manual for Bluetooth headset requirements.

NEW TFT TOUCHSCREEN DISPLAY

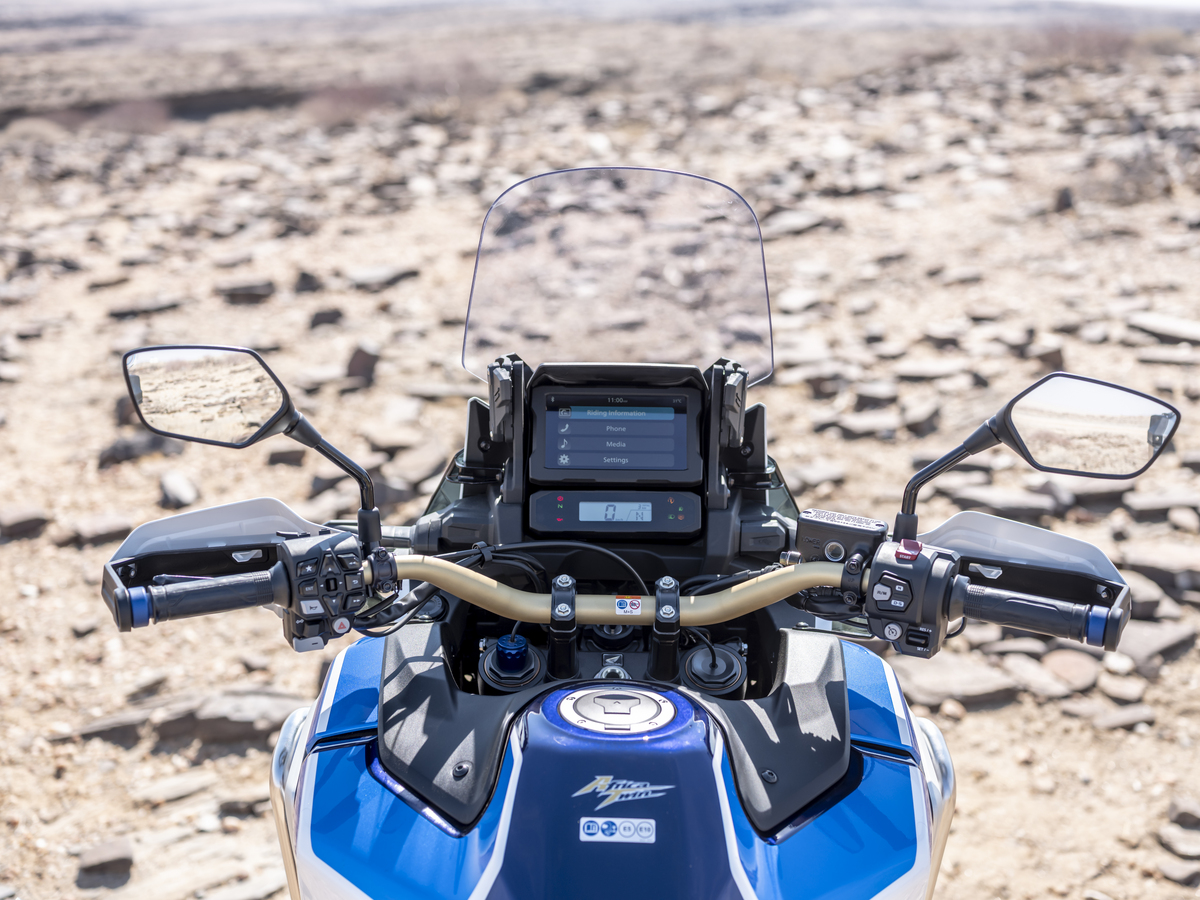

The new Africa Twins feature a 6.5-inch touch-panel LCD multi-information dash display. You can choose between three displays, too, depending on how much information you want to see at once. The screen also enables the Africa Twin to offer integrated Apple CarPlay.

SIX-SPEED MANUAL TRANSMISSION

The Africa Twin features a conventional six-speed manual gearbox with a handlebar-mounted clutch lever. It’s a proven, tough design that’s a little bit lighter, too.

OPTIONAL ALUMINUM LUGGAGE

Our optional three-piece hard luggage is sure to be one of your favorite accessories. All three bags feature weather-resistant liners, and the top box is big enough to hold a full-face helmet. And all three boxes use the same locking key, too.

LARGE FUEL TANKS

Our Africa Twin and Africa Twin DCT feature 18.8-liter (5.0-gallon) fuel tanks, while our two Adventure Sports ES models increase that capacity to 24-liters (6.3 gallons), enough for super-sized adventures.

TALLER HANDLEBAR

We raised the handlebar 22.5mm higher for 2020. That helps open up the cockpit, and works in concert with the new seat and windscreen to give you a more comfortable rider’s triangle for those long days in the saddle.

TAPERED ALUMINUM HANDLEBAR

Another example of fitting premium equipment to the Africa Twin wherever we can, the aluminum handlebar is lighter than a steel unit. The design tapers from a thinner diameter under your grips to a thicker section at the top clamp, and is fine-tuned for optimal flex and rigidity.

NARROWER SEAT

By narrowing the Africa Twin’s seat by 20mm, we’ve made it easier to move around on the bike, and also made it easier to get a foot on the ground at stoplights or in parking lots.

NARROWER REAR SUBFRAME

Two things here: First, the aluminum subframe is removable, to aid in servicing and repairs. Second, we narrowed it by 40mm for 2020. That helps the whole bike feel narrower and more nimble—a big plus in challenging terrain.

HEATED GRIPS

Standard on the Africa Twin Adventure Sports ES models, these seem like a luxury until the first time you really need them. Then there’s never going back.

NEW FAIRING

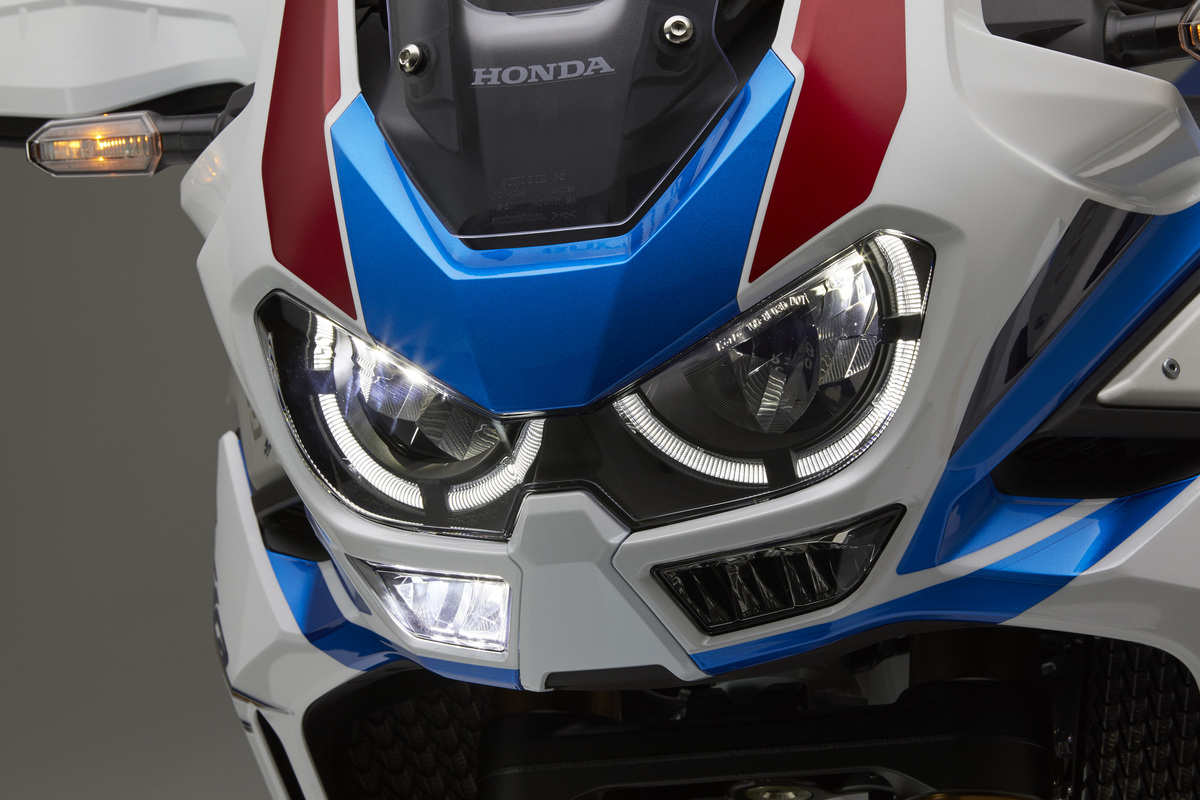

We’ve changed the Africa Twin’s fairing to give you better wind management. We’ve also taken the opportunity to fine-tune the headlights. You’re sure to appreciate the changes on longer rides—plus the new fairing just looks great, too.

BIAXIAL COUNTERBALANCE

By using counterbalancing elements on two axes, Honda’s engineers can cancel out both primary and coupling vibrations from the engine. The result is that we can mount the engine solidly for superior strength and handling, yet you still get an extraordinarily smooth, vibration-free ride.

ATHLETIC RIDING POSITION

Adventure riding is an active sport, and that means you need to be able to move around on your bike naturally and athletically. The Africa Twin is extremely narrow where you sit, and the peg-bar-seat triangle lets you move up and forward and far back as well, to enhance handling, especially under demanding trail conditions.

FULL ACCESSORY LINEUP

Right from the start, you can outfit your new CRF1100L Africa Twin with a full range of Honda accessories, items like a centerstand, quick shifter, top and side boxes, a rally seat, rally footpegs, and much more

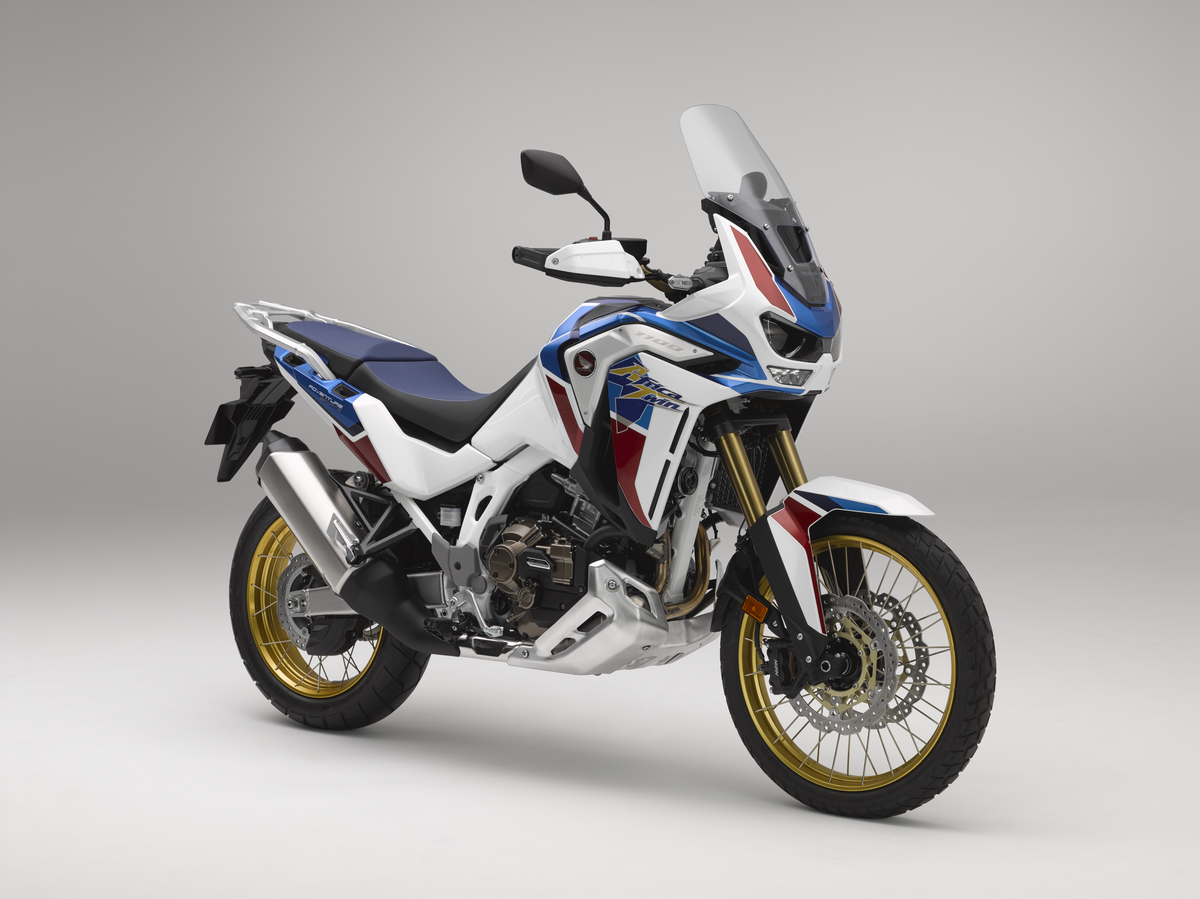

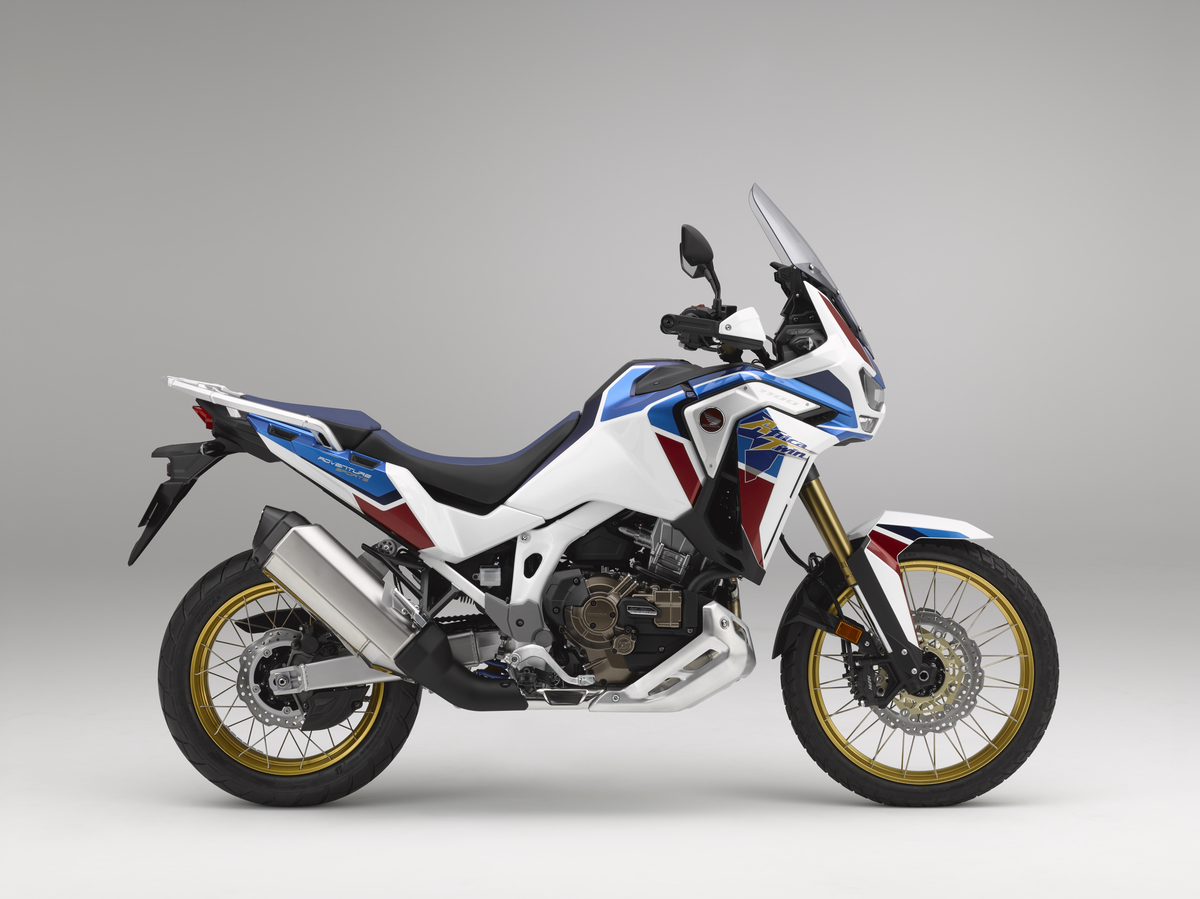

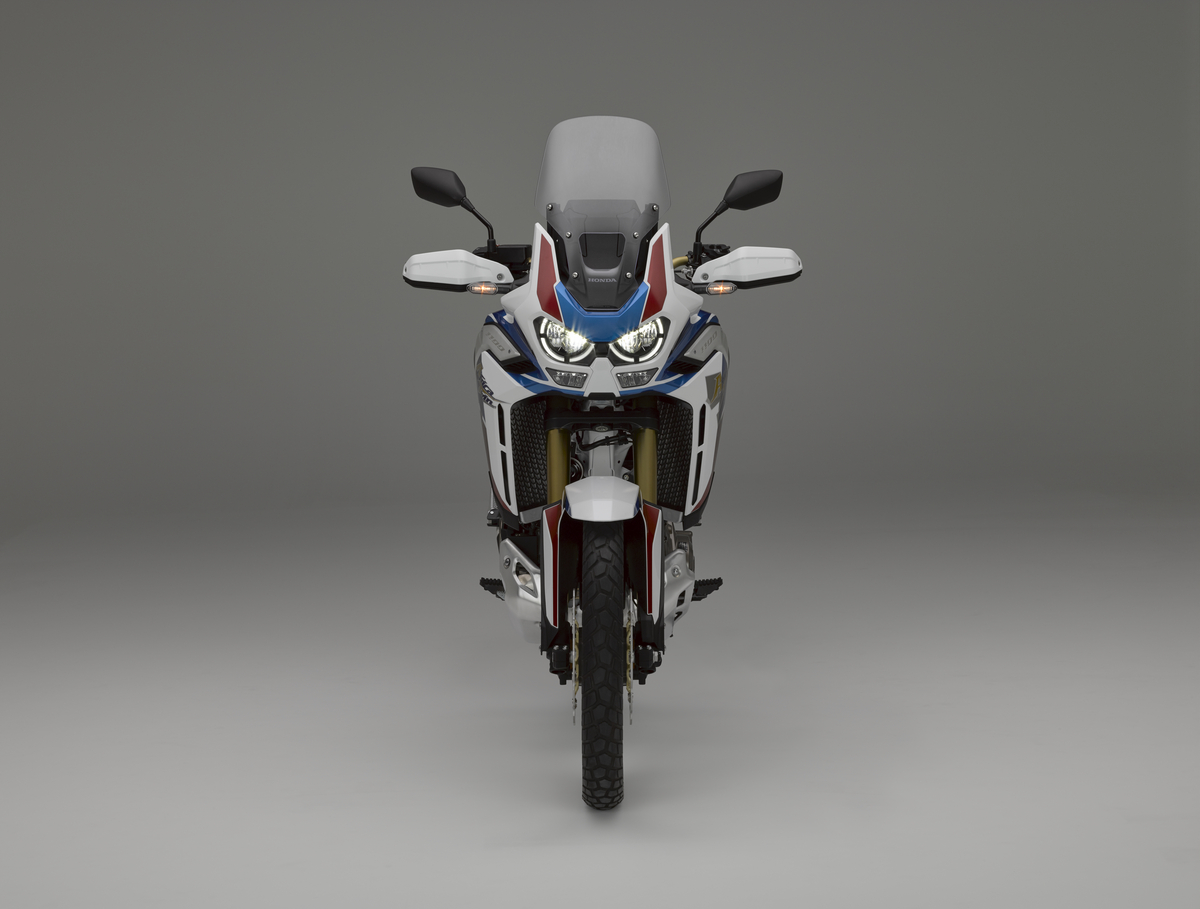

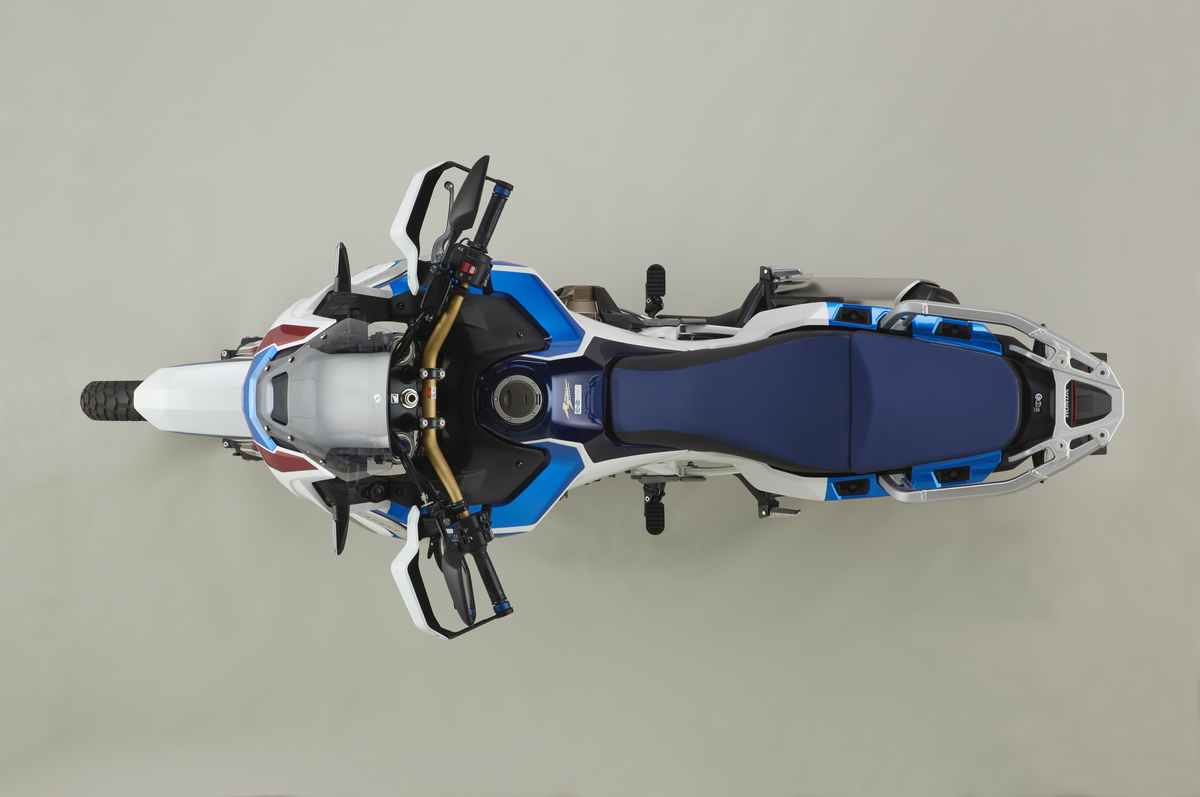

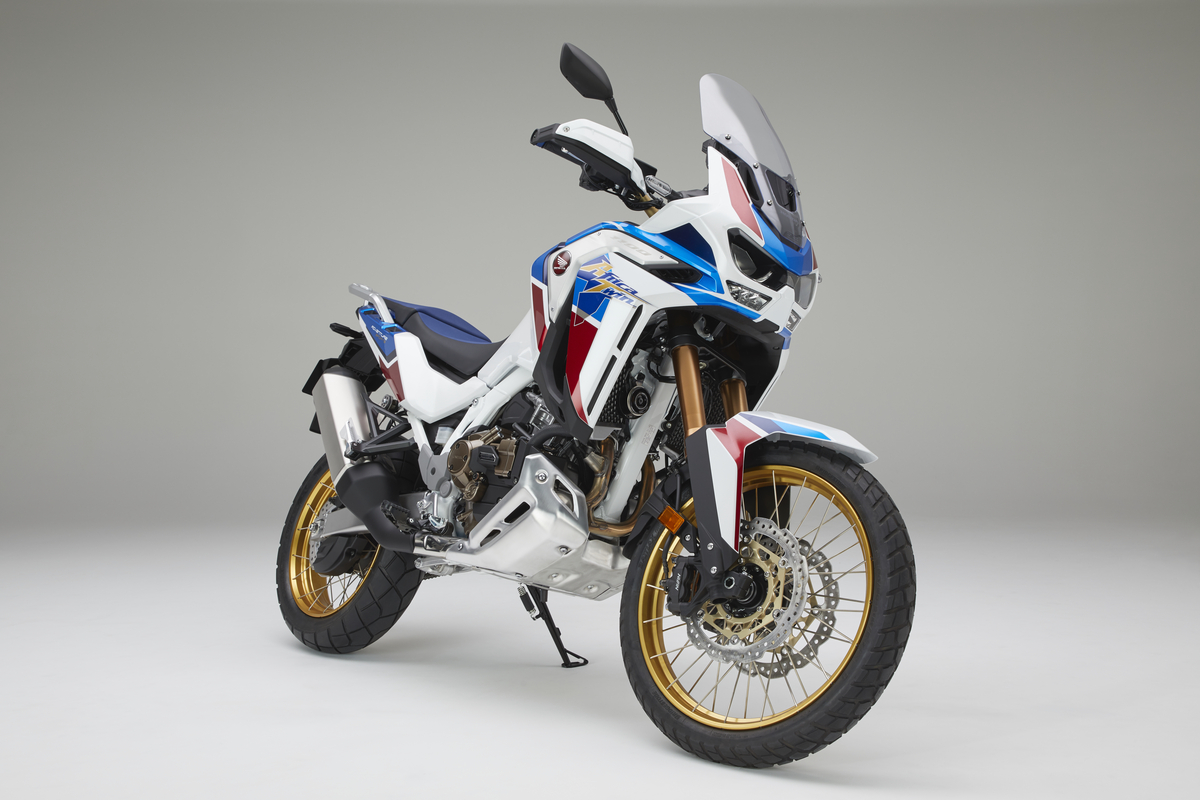

Africa Twin Adventure Sports ES DCT Photos


Africa Twin Adventure Sports ES DCT Videos
