Motorcycle HID Headlight Conversion

Motorcycle HID Headlight Conversion

Review Summary
Pros
Cons
Buy Now

This wasn’t my first attempt to add aftermarket HID lighting to my 2004 BMW K1200LT.

Last spring I fell for a “too good to pass up” $129.99 eBay conversion kit sold by CQ Lighting (similar kits can be had for under $80 now).

Ten days after making my payment, I received a tattered box from Hong Kong.

As I muddled my way through the instructions, I was disappointed to find that rather than the nice, snug fit of the stock bulb, the HID “bulb” slipped right through the socket in the headlight.

Two days later I emailed the seller, informing them that they had sent the wrong size bulb.

Their response informed me that I was to ship the entire contents back to Hong Kong after which the company “…would determine whether the equipment was damaged, and how much we would be to charge you for exchange [sic]…”.

It took three more emails to convince them to ship me a correct bulb and a postage-paid return envelope.

After finally getting it installed, I was thrilled with the dramatic improvement in visibility…for three days. Then the igniter stopped functioning.

My email to the company (which claimed to have over three thousand customers at the time) initially resulted in an identical demand for me to return the equipment to Hong Kong at my expense for them to evaluate whether they would correct the issue.

When I threatened to rescind my PayPal payment instead, a miraculous upgraded igniter became available and was shipped the next day. That one worked for a whole week… So I removed the HID hardware, re-installed the OEM lighting, and demanded a refund.

Apparently the language in my correspondence was strong enough to get the attention of the seller, as a brand new kit arrived via FedEx the next day. Against better judgment, I once again opened the toolbox and went to work, installing the “new and improved” lighting kit that looked to my untrained eye to be exactly the same as the one that added ten years to my life in unbridled frustration.

I quickly experienced the same problems, the most dangerous of which was that the system wouldn’t work every third time I started the motorcycle — something I wouldn’t know in the daytime if I didn’t walk around the front of the bike or pull behind a clean, dark-colored vehicle. So again, I pulled the HID hardware and re-installed the OEM lighting, figuring “you get what you pay for.”

Pete generously donated his honorarium for writing this article to charity (see wBW Charities).

XenonDepot HID Conversion Kit

The HID motorcycle conversion systems from XenonDepot are advertised as “not just automotive kits split into two.”

Special features of the system include plug-and-play wiring harnesses (for H1, H3, H7, H11, 9004, 9005, 9006 or 9007 bulb systems), special vibration-resistant ballasts made for motorcycles, six feet of wiring between bulb and ballast instead of the usual eighteen inches to allow for various mounting options, and a weather-proof and heavy-duty igniter system.

Offered in 4300K, 6500K and 8000K temperatures (the measurement for color in this kind of lighting), I opted for the 4300K system which XenonDepot advertises as “…utilizes cutting edge HID components made with superior Japanese craftsmanship and quality,” and includes, “German engineered Philips capsules (which) have been laser calibrated to ensure proper fitment and optically correct beam patterns.”

Shipping took about three days; my HID conversion kid was shipped via UPS and carefully packed. Here are a couple of photos of the XenonDepot kit on the left vs. the CQ Lighting kit on the right:

Motorcycle HID Light Conversion Kit by XenonDepot
XenonDepot HID Light Motorcycle Conversion Kit
XenonDepot HID Light parts (left); CQ Lighting HID Light parts (right)
XenonDepot HID Conversion kit (left); CQ Lighting (right).
XenonDepot HID Conversion kit (left); CQ Lighting (right).
XenonDepot HID Conversion kit (left); CQ Lighting (right).

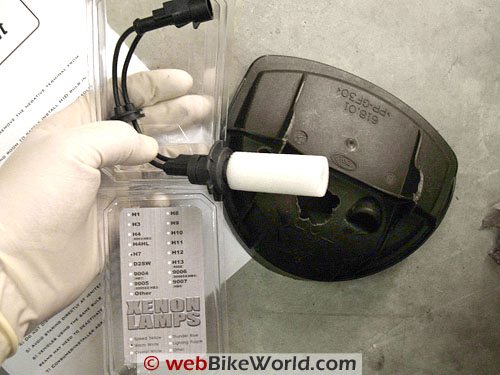

HID light with cover
HID light with cover.
Buy Now

Installing the XenonDepot HID Light Conversion Kit

HID lighting installations will, of course, vary, depending upon the make and model of motorcycle and other factors. Kits may not be available for all motorcycles, but HID kit prices have dropped dramatically over the last few years and the kits now usually include everything the owner might need to make the job easier.

Here’s a pictorial overview of an HID light installation on a BMW K1200LT. These steps are fairly generic and will probably be applicable to many other motorcycle models:

Disconnect the negative terminal from the battery.

Remove headlamp cover; that is, the cover that protects the back side of the bulb.

On the K1200LT, it’s under the nose, a metal “spring” bar holds it in place, just pull the spring down to disengage and free the plastic cover.

CAREFULLY remove bulb from separate packaging, leave the foam protection on the bulb.

Be extra careful not to get any finger oils on the HID bulb as it can cause premature bulb failure!  If you do, wipe it with a tissue soaked with rubbing alcohol.





Drill a 23mm hold in the headlamp cover — mine is sloppy from a previous install, do a better job than I did!

Feed the wires through the cover so the plugs are on the outside.

Slide the rubber grommet that is attached to the wires through the 23mm hole, forming a seal.

The top photo shows the XenonDepot wires; compare those to the wires on the CQ Lighting HID bulb in the bottom photo!



Note that I used electrical tape to seal

the drill hole area that would be filled by the system’s rubber gaskets had I not made too large an opening in previous install attempts.

HID bulb differences: The CQ Lighting HID bulb is on the left, and the XenonDepot bulb is on the right.

Layout the rest of the HID kit.

Then connect the wires to the bulb. Note that there is only one set of wires that connect to the bulb, and only one way to connect, so it’s foolproof.

Connect the HID light ballast wiring and igniter wiring.

Aagain, only one thing fits in here, so it should be foolproof.





CAREFULLY remove HID “bulb” cover and place it in the empty socket where the OEM bulb was.

Note: the HID “bulb” has tabs that fit in notches in the socket — if it doesn’t fit securely, the buld is not aligned properly.

Secure the HID “bulbs” in the socket.

On the K1200LT, there are two steel springs that bend over and secure in plastic tabs, your motorcycle is probably similar — see the shop manual if it’s not obvious. Then secure the headlamp cover back in place.



Run a zip-tie to secure the relay. Longer zip-ties may be necessary; two can be connected to work.

Remember, it’s weather-resistant, so as long as it’s out of sight, no big deal.

Buy Now

Plug and Play

Connect the headlight “negative” and “ground” to the HID wiring harness. This is easy to do — everything is plug and play and all of the wiring is shown on the downloadable instructions from XenonDepot.

Two wire leads are left; one goes to ground and the other (with an in-line fuse) goes to a battery “Positive”. This is illustrated in the directions.

As an added measure of safety, I connected my “positive” battery connection to an aftermarket fuse block. This isn’t necessary, but since it IS a BMW K1200LT, I naturally have 300 other accessories attached, so it makes add-ons easier.

Final step: re-connect your battery lead, and enjoy…

NOTE:  Typically, HID conversions are not used for high-beam lamps because “flash-to-pass” usage can result in premature bulb failure.

HID bulbs don’t have a filament in the middle like conventional bulbs, rather an inert gas is electrified which in turn gives off light in different color “temperatures.”  It takes a few moments for the “bulb” to reach full heat (and full intensity of light) when the system has been turned on. Rapid on/off doesn’t allow the lamp to throw light properly, and can damage the mechanism.

Here are some before/after photos:

Motorcycle Standard Halogen Light - Low Beam Motorcycle Standard Halogen Light - High Beam
Stock halogen light on low beam; left is a close-up and from a distance on the right.
HID Light Low BeamHID Light High Beam
HID conversion low beam; left is a close-up and from a distance on the right.

HID Lights: Low or High Beam?

webBikeWorld reader “N.W.” wrote and asked a great question:  “Thanks for yet another interesting and informative article, even though it may end up costing me money (like so many of the articles!) when I install HID lights on the Guzzi, but what the heck.  However, I do have one question: the article says “Typically, HID conversions are not used for high-beam lamps because “flash-to-pass” usage can result in premature bulb failure.”

I don’t understand – obviously the conversion works for both high and low beam (per the photos, and in any case it wouldn’t be much use otherwise) – but I have a ‘flash-to-pass” button on the Guzzi – does this mean I can’t install this or any other HID kit?  I’m probably missing something obvious, but would appreciate clarification. Thanks again, both for this and the great website.”

Pete’s Response: Actually, I missed that caption description on the photos…it’s NOT the low and high beams (in the photos above)…let me explain.

The HID Conversion is for LOW BEAM only. The photos above are of the low beam halogen “before” (top pair of photos) and the low beam “after” (bottom pair of photos). In other words, if I were to click the headlight switch on my K1200LT from low to hi-beam, the bulb in the center of the headlight (a standard halogen bulb) would also illuminate — in addition to the HID light that is on — making the headlamp even brighter.

So the dramatic difference in the clarity and quantity of illumination shown in the “before” and “after” install pictures gets even BETTER when enhanced with the addition of high-beam lights during the day (or at night when no oncoming traffic will be negatively affected).

So yes, your ‘Guzzi will be happy with an upgrade, as will you!

There are, indeed, HID systems (including some sold by XenonDepot.com) for “dual-filament” bulb systems. These are motorcycles and automobile lights that use single bulbs with two filaments, one for low and one for high. With some of the cheaper systems, this is accomplished with a servo-system that actually tilts the bulb/capsule slightly when “hi” is selected.

Either way, using what is often referred to as flash-to-pass is a great way to dramatically shorten the life of the system, and true HID conversions or even OEM systems are not meant for rapid on/off use because the voltage has to be ramped up to fully electrify the gasses within the lighting capsule in order to give off what we see as light.

Note:  Replacement “bulbs” for HID systems –“capsules” is the correct term –can be pretty pricey. Yes, you can find them cheap on eBay, but high-end capsules, like the Phillips capsules in the system I reviewed, can cost as much as $90 each for exotic sizes…reason enough to stick with the common HID-for-low-beam and conventional-for-high-beam formula!

More or Less Power for HID Lighting?

webBikeWorld reader “D.W.” asks: “Just read your review and I am wondering if this type of lighting system presents a bigger drain on the electrical system than incandescent bulbs. Some bikes may not have as robust a charging system as your Beemer.”

Pete’s Response:  Yes indeed, HID systems as a whole, and the XenonDepot system specifically, use significantly less power than conventional headlight “bulbs.”  This is the primary reason that motorcycles that utilize CAN-BUS wiring “brains” will require the optional wiring relay in order to make the system fully functional.

Without it, when the HID conversion (this or any other) is installed, the motorcycle’s or car’s electrical system “reads” that the headlamp is only drawing, say, 35W instead of 55W or 65W, and reports it to the controlling computer as a defective or “blown bulb” and you will get a system error, a warning light, or in some cases the bike may not start as a safety precaution. The relay corrects for this, much the same way that conversion kits for LED taillights work.

And, for those readers who are migrating to dual-sport bikes like the BMW GS, and those who enjoy night time riding but aren’t interested in meeting Bambi up close and personal, PIAA, Hella and other auxiliary lighting manufacturers sell true HID aux lighting kits, some of which are no bigger than 2 1/2″ in diameter!

Results and Conclusion

HID lighting systems make an ENORMOUS difference, both in what you can see when riding, and in your visibility to other drivers.

I was impressed with the quality and workmanship of the XenonDepot system, especially when I compared it with the system I purchased less than a year ago. Installation was relatively simple, taking just under an hour and a half on a notoriously difficult-to-work with fully-faired motorcycle.

I’m no master mechanic, but I’d have no problem betting that I could do a very stealthy install on a cruiser (or naked bike with a little room under the seat in less than 45 minutes.

At $199.99, this is a system that really works (some motorcycles may need an additional $39.99 “CAN/BUS” wiring harness adapter; contact XenonDepot before ordering).

Publication Date: February 2008
