BMW XChallenge

BMW Announces the New XChallenge

The BMW G 650 Xchallenge is termed “the Hard Enduro for the off-road enthusiast”.

The BMW G 650 Xchallenge is a new departure for BMW and has a lot to offer: This is an uncompromising off-road machine with long spring travel and not one single gram of extra weight.

In its design, the BMW G 650 Xchallenge is dominated by proportions typical of a genuine Enduro a high-lying, but smooth and flat fly line merging directly into the high and slender rear end to offer the rider the ideal seating position. Made of fracture-proof and elastic plastic (mainly polypropylene), the fairing components both light and robust are likewise ideal for tough off-road requirements.

More:  Complete and detailed list of the G650 X-Series specifications and model comparison charts.

The front wheel cover is fitted directly to the lower fork bridge, giving the front wheel superior smoothness and running freedom under all conditions. The slender fairing, in turn, gracefully takes up the asymmetrically contoured headlight featuring a reflector in free-form design. Positioned off-center, the parking light, finally, helps to provide that typical look of BMW Motorrad further enhanced by paintwork in Aura White and the Blue seat.

Benefiting from 270 millimeters or 10.63´´ spring travel both front and rear, BMW Motorrad’s new Hard Enduro will easily take on any challenge off the beaten track. Tube diameter of 45 millimeters or 1.77´´, in turn, gives the upside-down fork enormous overall stiffness, allowing a handlebar lock
of 40°.

The springs and dampers are all specially tuned for off-road use, meeting the highest demands in every respect. As a function of his own weight and personal preferences, the truly ambitious Enduro rider is even able to fine-tune the dampers on their inbound and rebound strokes, the adjustment mechanisms offering predetermined rest points for smooth, consistent adjustment.

Again in the interest of minimum weight, the wheel axle measuring 20 millimeters or 0.79´´ in diameter is drilled hollow on both the front and rear wheel. The rear wheel suspension also allows various adjustments and set-ups, albeit of a very different character: Like the BMW HP2 Enduro, the BMW G 650 Xchallenge features the BMW Motorrad Air Damping System, a special spring/damper system operating exclusively with air.

In its configuration and functions, the Air Damping System is the same as on the HP2 Enduro and has merely been adjusted in terms of weight and its running requirements.

The BMW Motorrad Air Damping System comes with a piston inside, similar to the configuration in conventional spring struts. Instead of hydraulic fluid, however, this system forces out air through plate valves into a second chamber, the damping effect being achieved by throttling the flow of air.

Since gas is compressible, the air within the system can act as a kind of spring replacing the usual steel spring and thus offering the advantages already lauded on the BMW HP 2 Enduro: Natural progression of spring rates under high load (with growing pressure within the system).

Reliable and smooth operation minimizing the risk of the suspension giving way (physical law of gases: pressure increases as a function of temperature). Natural progression of the damping effect under high loads (the viscosity of air increases as a function of temperature). Frequency-dependent, selective damping effect. Resistant to overheating (no temperature-induced weakening of the damping effect under high loads). Simple option to adjust the dampers to the load carried.

Low weight of the entire system and its components. Individual adjustment and set-up of the suspension matched to the rider’s weight and the load carried by means of a water level presenting the normal position and trim of the motorcycle.

The reduction in unsprung masses also improves spring response and traction on the rear wheel. To the outside, the spring strut is sealed hermetically and is therefore protected from contamination, with any losses caused by leakage being set off by filling in air through a valve. The system adjusts very easily and conveniently to different load conditions simply by varying the pressure filling. And to pump up the system while traveling, the rider has the option to use a hand-operated high-pressure pump fitted beneath the seat of the G 650 Xchallenge.

BMW Xchallenge - On The Road

A feature unique to this air spring damper system is the choice of frequency related damping achieved by varying the inner flow system together with the throttle openings. And an important effect achieved in this way is much better traction of the rear wheel on bumpy, undulating surfaces: The damping effect can be appropriately adjusted in the frequency ranges typically encountered on the rear wheel swing arm as a result of bumpy surfaces, the wheel thus following any such bumps in an ideal motion, maintaining optimum ground contact at all times.

The result is even better grip and traction when accelerating all-out, as well as extra safety when applying the brakes. Any risk of the springs sagging and giving way, as is often the case on long, undulating surfaces and under high loads, is largely excluded by natural adjustment of the spring rates in the air springs together with the frequency specific damping effect: An adjustment bolt opening up a bypass in the damper enables the rider to pre-set the damper characteristics to two stages for either more comfortable riding on regular roads or for a firmer set-up on off-road terrain.

BMW Xchallenge - Right Side Rear

It almost goes without saying that the wheels and tyres also meet the typical requirements of off-road riding. Due to their better elasticity, spoke wheels come as standard on the BMW G 650 Xchallenge, offering all the features of lightweight technology. The wheel hubs made of aluminium are hollow cast and are connected to the epoxy-plated aluminium rims by extra-strong wire spokes.

To build up sufficient stabilizing gyro-forces also on difficult and slow trails, the G 650 Xchallenge comes with a front wheel measuring 21 inches in diameter and running as standard on a 90/90-21 tyre, while at the rear an 18-inch wheel running as standard on a 140/80-18 tire allows the use of specialized off-road tyres whenever required.

Measuring a significant 300 millimeters or 11.81´´ in diameter at the front and 240 millimeters or 9.45´´ in diameter at the rear, the brake discs and indeed, the entire brake system are conceived without compromises for handling high loads. Apart from saving weight, the cross-drilled Wave brake discs on the G 650 Xchallenge have a better self-cleaning effect than conventional discs.

And while the front wheel disc runs within a double-piston floating caliper configuration, the rear disc is held tight when required by a single piston floating caliper.

With its 15-tooth pinion and a 47-tooth sprocket, the G 650 Xchallenge has a shorter final drive ratio than the other two models in the new G 650 X model range.

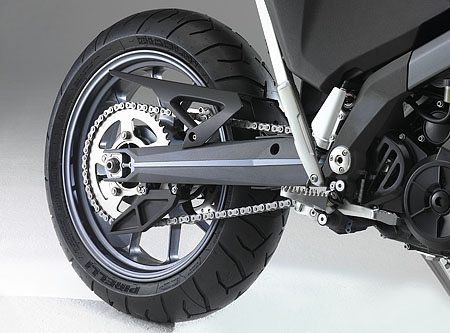

BMW Xchallenge - Swingarm

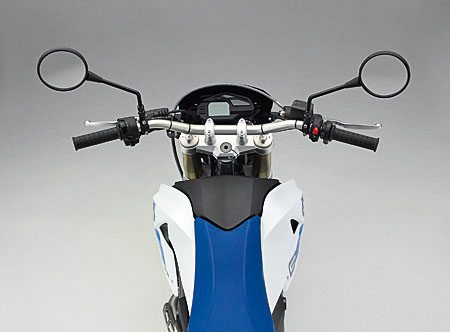

BMW Xchallenge - Dashboard
