 2009 Moto Guzzi Bellagio

2009 Moto Guzzi Bellagio

Moto Guzzi Announces Revisions to the 2009 Bellagio
w
BW News
- Edited by webBikeWorld.com

More:  2009 Moto Guzzi Overview  |  2009 Moto Guzzi Bellagio Specifications (Below)  |  wBW Moto Guzzi Page  |  2008 Moto Guzzi Bellagio  |  Owner Comments (Below)

Moto Guzzi announced the revised 2009 Bellagio at the 2008 EICMA show in November. It's one cool-looking ride, with more bling than the subdued 2008 Bellagio.

Here's an edited version of the Moto Guzzi press release, including more photos and also the specifications on the 2009 Bellagio (below).


December 23, 2008 - The new Bellagio symbolizes the depth of the relationship between Moto Guzzi and its surrounding territory. This relationship is so strong that the immense beauty of the Lariano area affects both the ideas and creativity of man and in a sense leads him to create works of natural beauty in all his endeavors.

This empathy between the local environment and human inventiveness can be clearly seen in the new Moto Guzzi Bellagio that identifies a place known the world over for its beauty with the free spirit of those that revel in motor cycling.

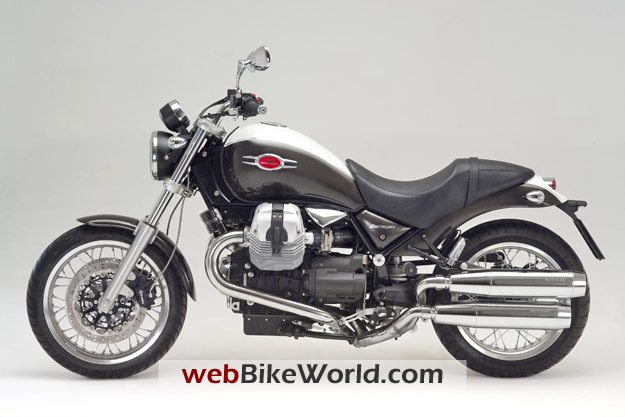

2009 Moto Guzzi Bellagio - Left Side
2009 Moto Guzzi Bellagio

Individuality and sheer style are embodied in a reserved, but sophisticated design that displays highly advanced innovative technological solutions balanced with a trendy image.

The CARC (Reactive Shaft Drive System) is a good example of this advanced technology. This system transforms the might of the new 940 cc engine into silky smooth acceleration making this machine Moto Guzzis most powerful cruiser bike.

Other indicators are seen in the presence of the progressive rear suspension system, in the Brembo floating caliper brake system that act on 320 mm discs, in the rear shock absorber and the fully adjustable forks.

These technical high quality solutions favor active safety, set a dynamic equilibrium and provide such riding pleasure that the Bellagio is the new point of reference in the category. The Bellagio has the temperament of a sportbike under the skin of a custom machine.

The spoked wheels, drag bar, rear-set saddle and forward positioned foot pegs are just a few examples of the details of a style that concentrates weight on the rear wheel giving the impression of a bike that is fixed to the ground, ready to take off at the drop of a hat.

The new 940 cc engine is more than capable of making this machine fly. While the engine is docile and vibration-free, it puts out huge power with immense torque from even very low revs. This power can be heard in the legendary engine note emitted from new twin silencers that sing a song called Bellagio.

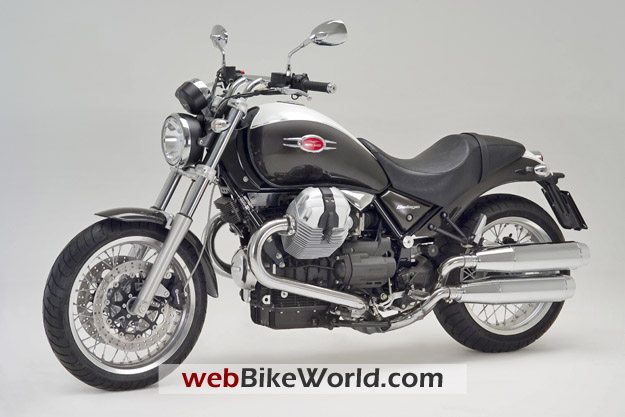

2009 Moto Guzzi Bellagio - Left Front

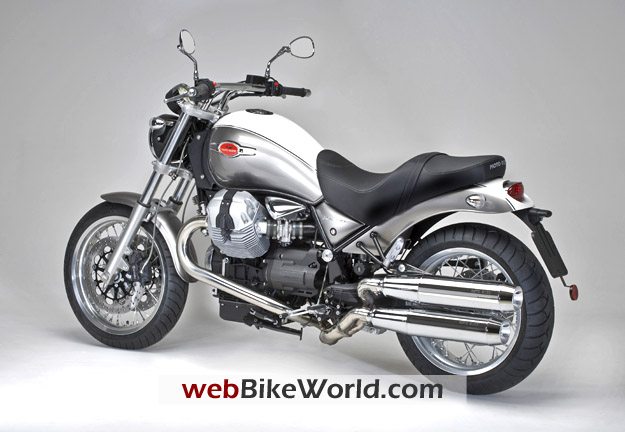

2009 Moto Guzzi Bellagio - Right Front

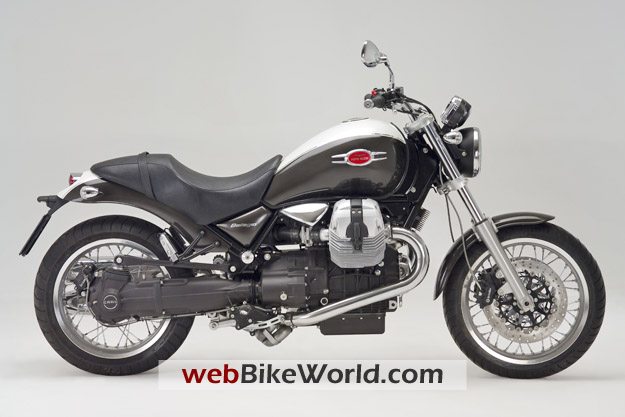

2009 Moto Guzzi Bellagio - Right Side

Use this link to buy your motorcycle gear at RevZilla
and help support webBikeWorld!

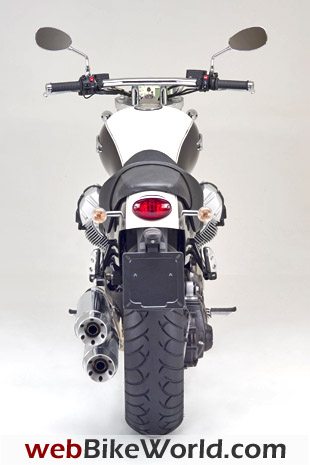

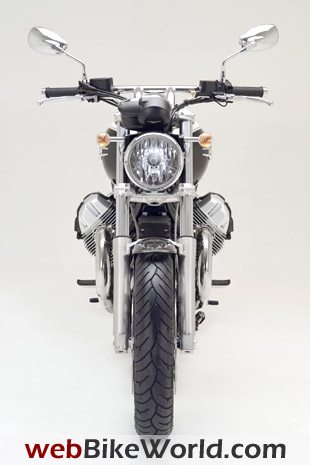

2009 Moto Guzzi Bellagio - Front View2009 Moto Guzzi Bellagio - Rear View

2009 Moto Guzzi Bellagio - Left Rear



2009 Moto Guzzi Bellagio - Specifications
Engine
  Type Four-stroke V 90 twin
  Cooling Air cooled
  Capacity   935.6 cc
  Bore and Stroke 95 x 66 mm
  Compression Ratio   10:1
  Timing 2 valves per cylinder commanded by light alloy cam acting on rocker arm and mechanical tappets
  Intake valve opening  24 before upper TDC.  Intake valve closing 52 after lower TDC.
  Exhaust valve opening  54 before lower TDC.  Exhaust valve closing 22 after upper TDC. Timing diagram  measured with rocker arm/valve play
  Maximum HP 55 KW at 7,200 rpm"
  Maximum Torque 78 Nm at 6,000 rpm"
  Fuel Supply Multipoint sequential electronic injection, Magneti Marelli IAW phased, alfa-n system; 2 40 mm throttle bodies with Weber IW 031 injectors"
  Starter Electric
  Ignition Digital electronic with Magneti Marelli IAW 15RC inductive discharge
  Exhaust System 2 stainless steel pipes connected to 1 expansion chamber connected to two chromed steel silencers; 3-way catalyzer with Lambda probe.
  Homologation   Euro 3
Transmission
  Gearbox 6 speed constantly engaged cogs with integrated flexible couplings


Gear ratios

1st 17/38 = 1 : 2.235
    2nd 20/34 = 1 : 1.7
    3rd 23/31 = 1 : 1.348
    4th 26/29 = 1 : 1.115
    5th 31/30 = 1 : 0.968
    6th 29/25 = 1 : 0.862
  Lubrication   Forced lubrication with lobe pump and pressure regulator
  Primary Drive Helicoidal gears, ratio 24/35 = 1 : 1.458"
  Final Drive Shaft drive, ratio 12/44 = 1 : 3.667"
  Clutch Dry mechanically operated twin plate
Chassis
  Frame Very rigid high tensile steel tubular twin cradle
  Wheelbase 1,570 mm
  Rake   165 mm
  Steering Angle   28
  Front Suspension Marzocchi 45 mm adjustable front forks
  Front Wheel Travel 140 mm
  Rear Suspension Single swingarm with progressive action single rebound adjustable shock absorber with easy to operate pre-load setting knob
  Rear Wheel Travel 120 mm
  Front Brakes Twin floating 320 mm stainless steel discs, floating Brembo calipers with 2 parallel pistons.
  Rear Brakes Single 282 mm fixed stainless steel disc, floating Brembo calipers with 2 parallel pistons.
  Wheels   Spoked aluminum alloy (tubeless)
  Front Wheel 3.5 x 18
  Rear Wheel 5.5 x 17
  Front Tire 120/70 ZR 18 M/C (59W) TL Roadtec Z6
  Rear Tire 180/55 ZR 17 M/C (73W) TL Roadtec Z6
  Electrics   Voltage12 V
  Battery   12 V 18 Ah
  Alternator   12 V - 350 W
Dimensions
  Length 2,270 mm
  Width   890 mm
  Height 1,310 mm
  Saddle Height 780 mm
  Min Clearance 150 mm
  Dry Weight 224 kg
  Fuel Tank Capacity 19 liters
  Reserve   4 liters
