2022 Harley Davidson Low Rider S/ST [Specs, Features, Photos]

2022 Harley Davidson Low Rider S/ST

The 2022 Harley Davidson Low Rider S/ST: It Just Got Better

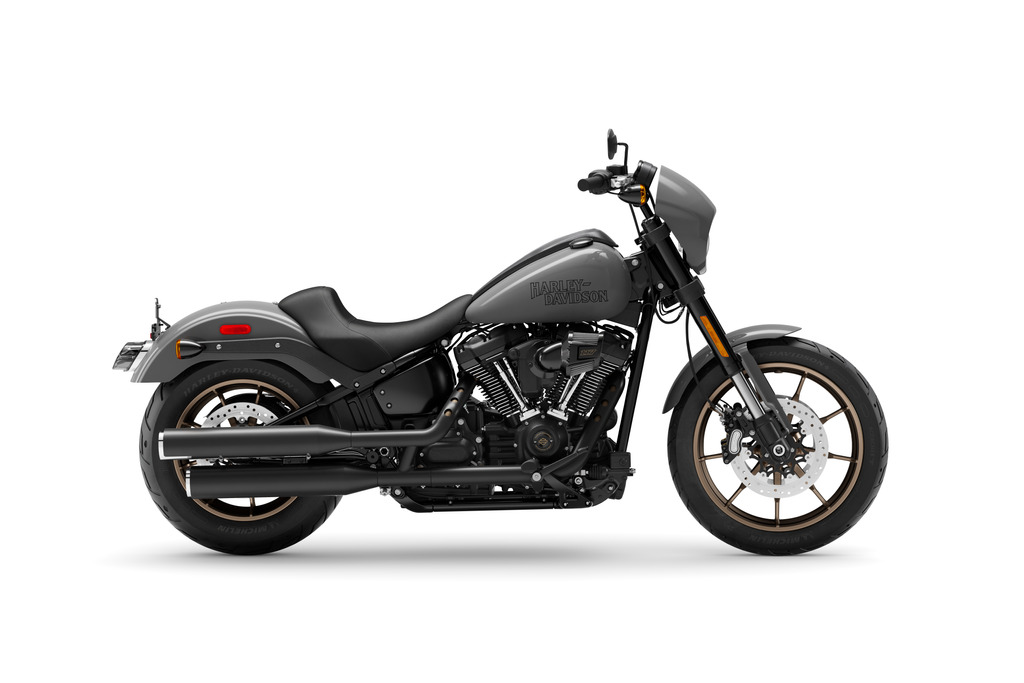

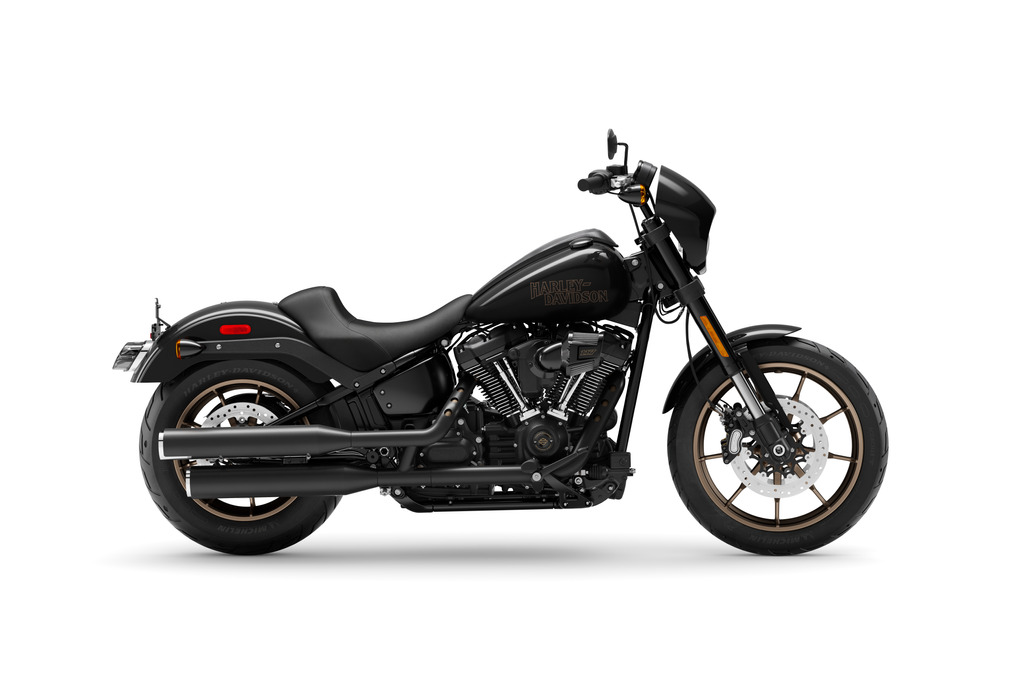

This is the Low Rider may have been waiting for. Heavily updated for the 2022 Harley Davidson lineup, the Low Rider S now packs the American-made Milwaukee-Eight™ 117 V-Twin engine. Still fully blacked out, once you get a leg over and settle into the deep solo saddle the ergonomics will feel just right.

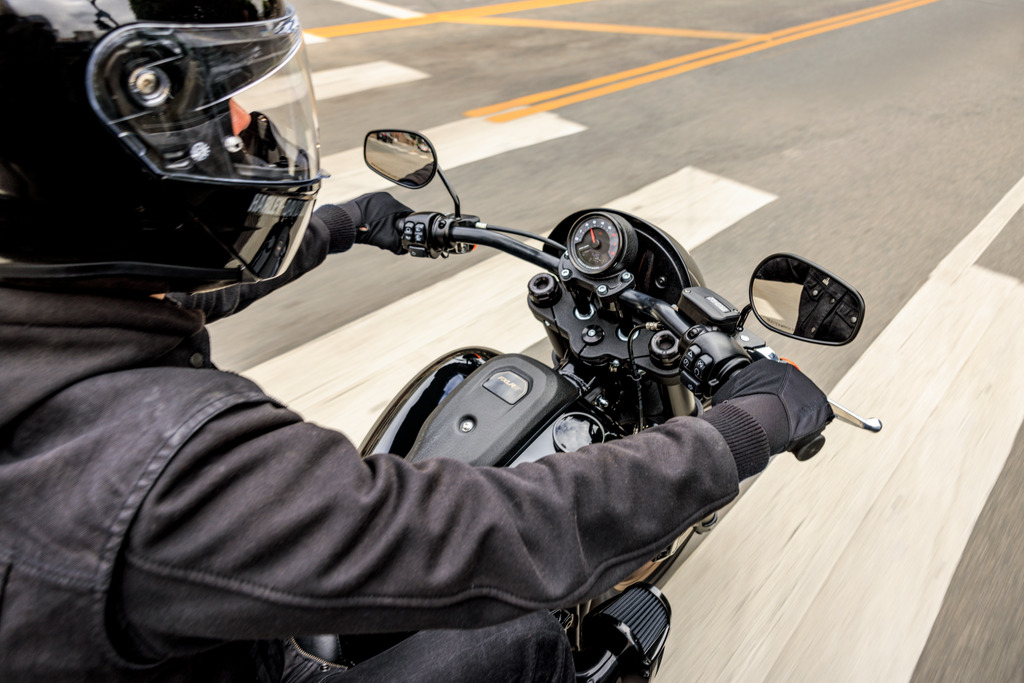

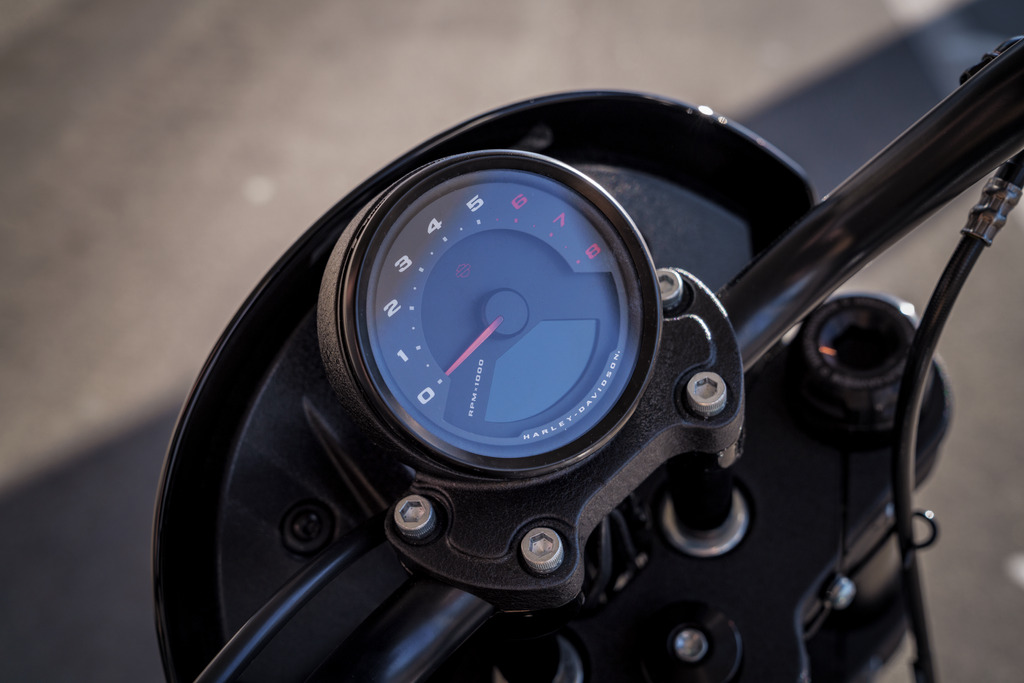

The gauges have been moved off the tank and up to the bars which now sit off a 4” riser. Outback there is a new mono-shock adding about an inch of ground clearance, overall this will give a small increase in lean angle.

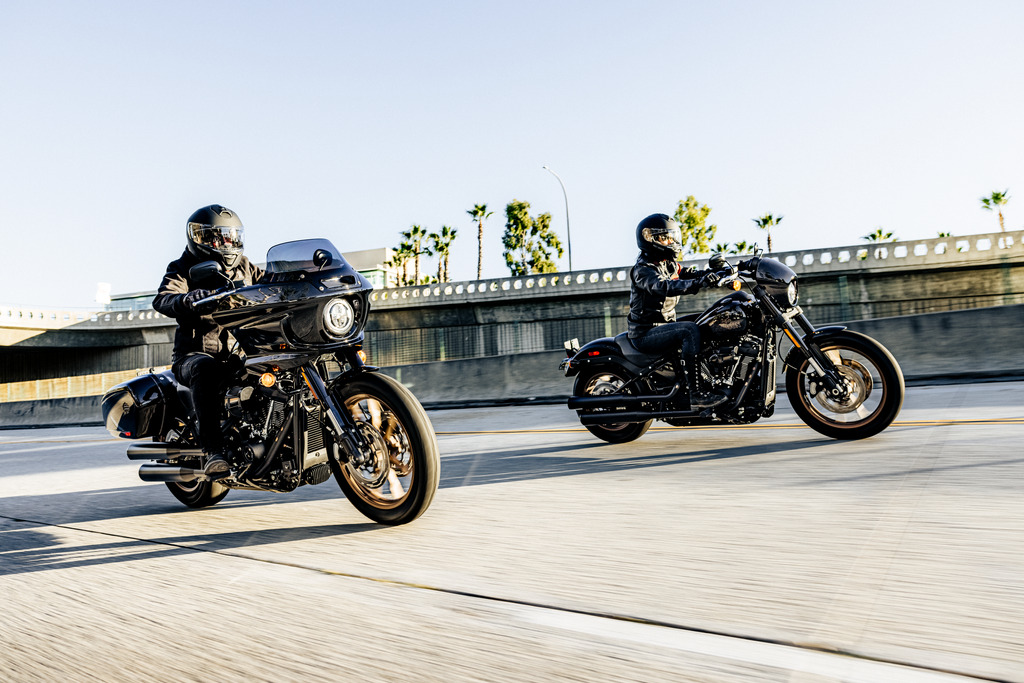

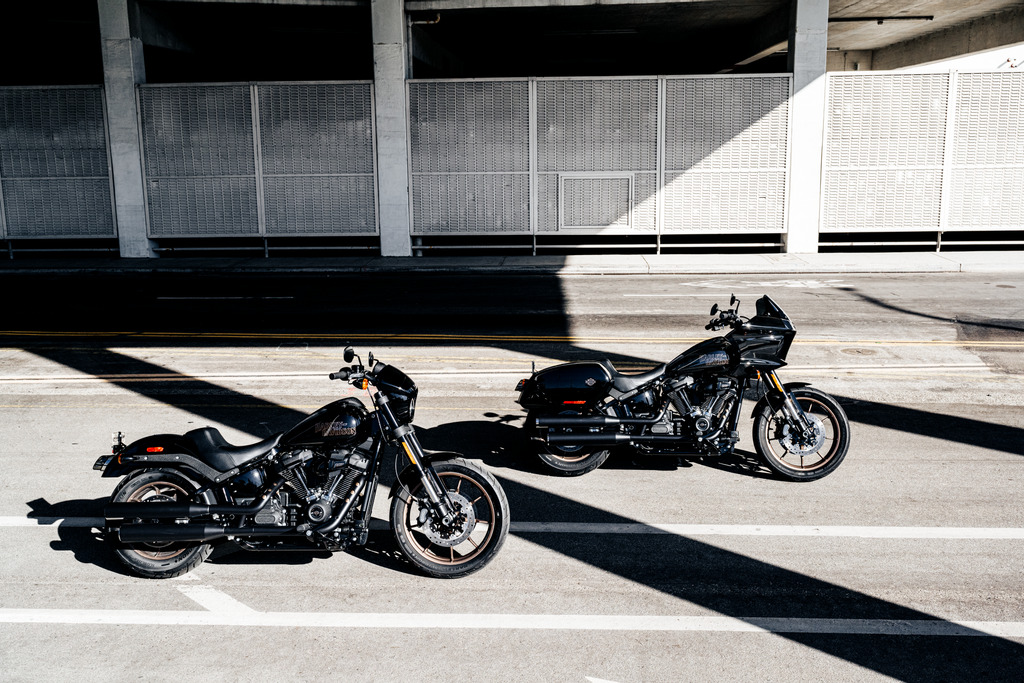

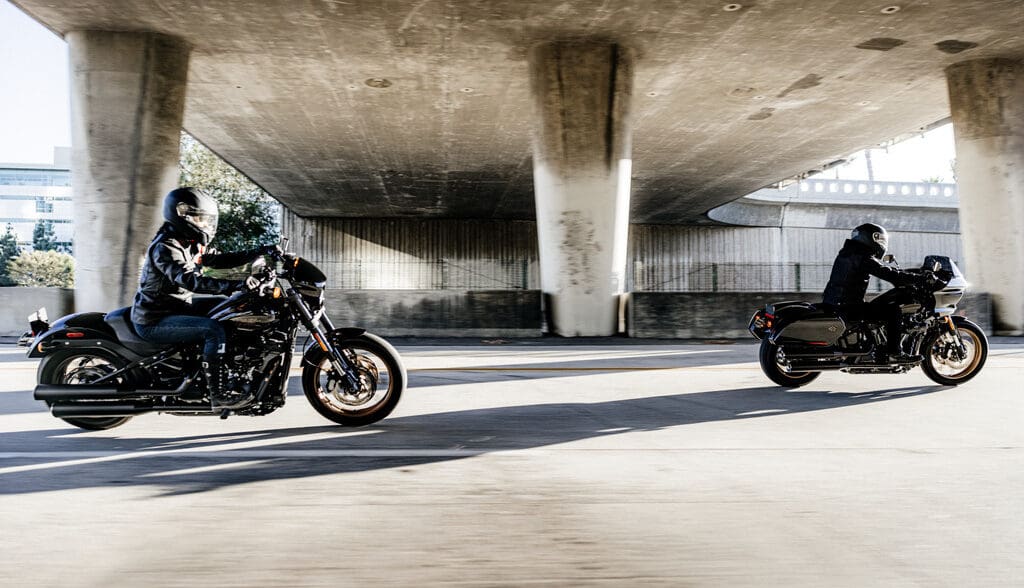

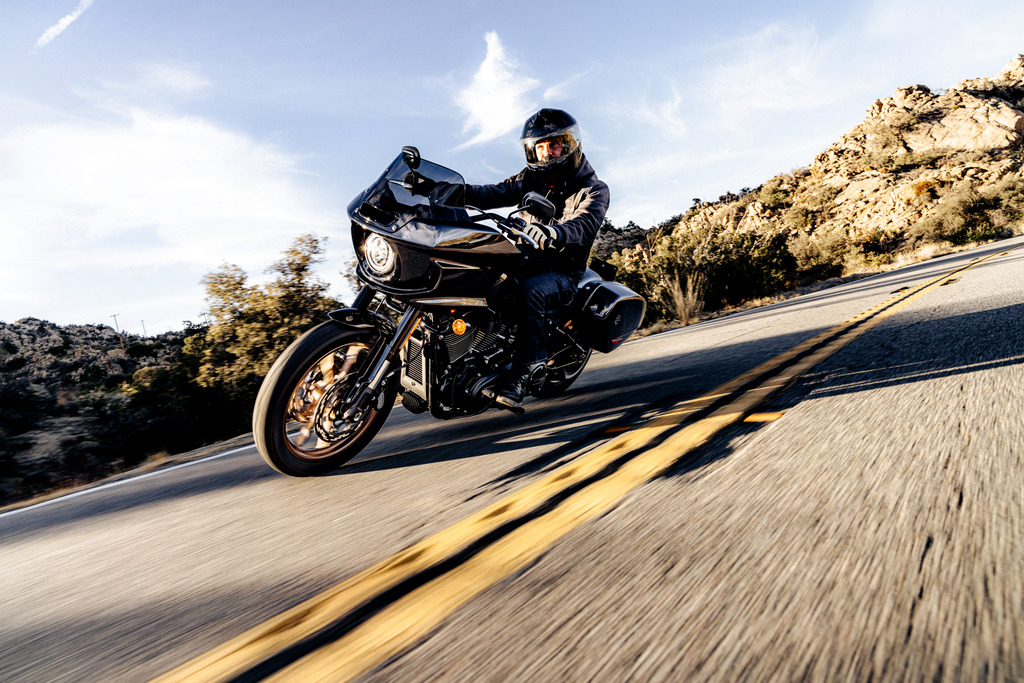

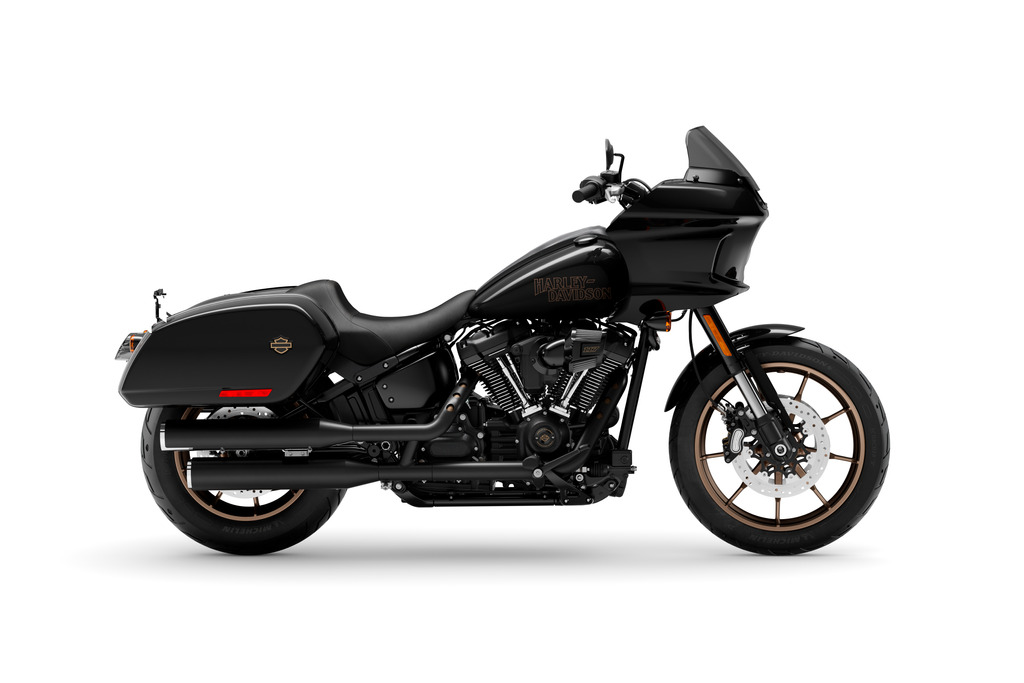

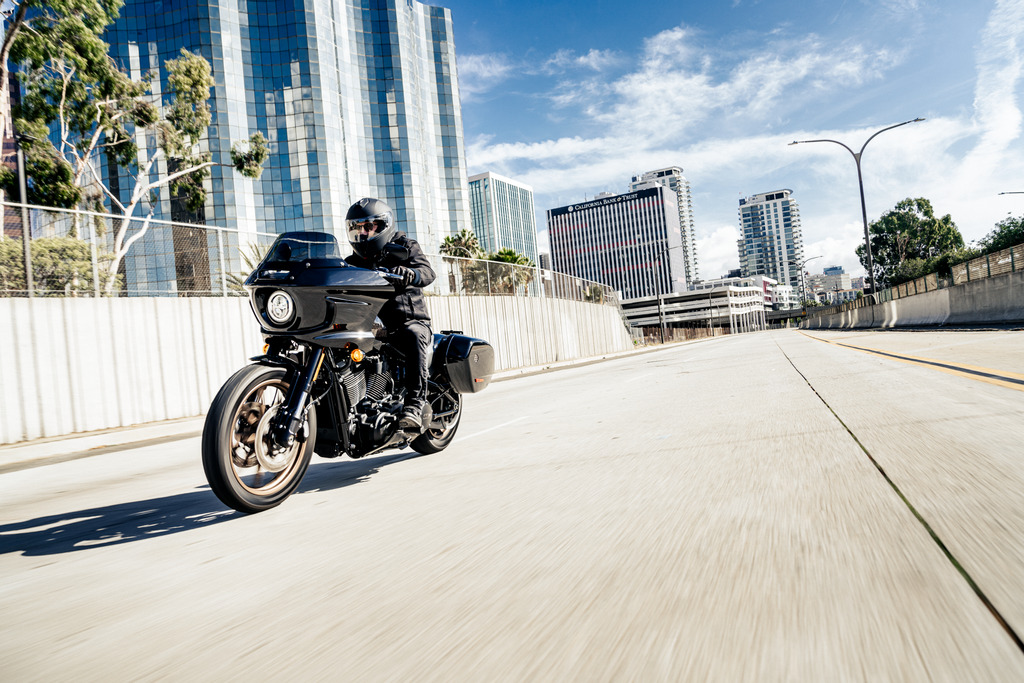

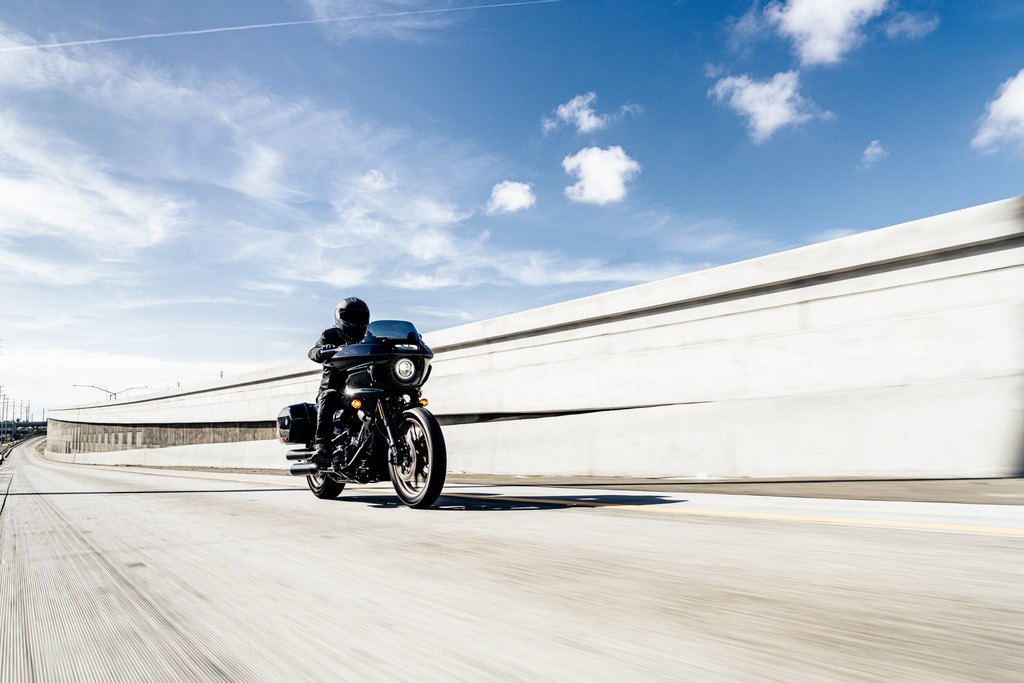

Adding one more option to the Low Rider package is the all-new ST variant. Harley Davidson adds a frame-mounted fairing and removable saddlebags to the Low Rider S, transforming the bike into a more performance-minded Road Glide style bagger.

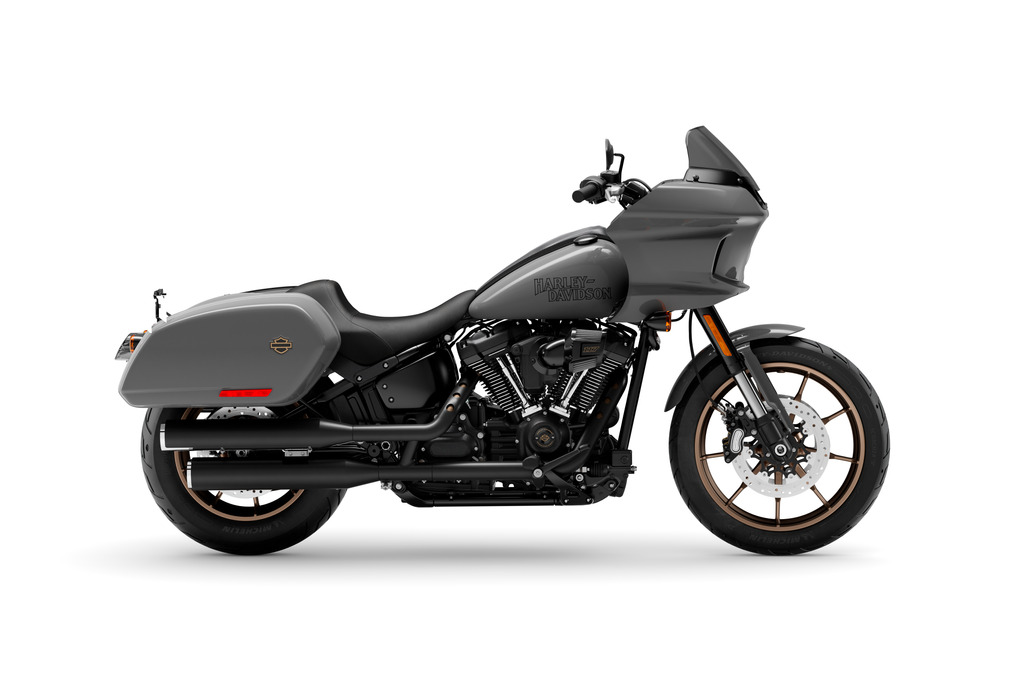

2 color choices exist for the 2022 Harley Davidson Low Rider S/ST: Vivid Black, and Gunship Gray.

The 2022 Harley Davidson Low Rider S starts at $17,530 USD / $23,799 CAD.

The 2022 Harley Davidson Low Rider ST starts at $21,749 USD / $26,799 CAD.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new 2022 Harley Davidson Low Rider S/ST in one place.

2022 Harley Davidson Low Rider S/ST


Model Overview

General Info

  • Price: $17,530 USD / $23,799 CAD – $21,749 USD / $26,799 CAD
  • Key Features:
    • Milwaukee-Eight™ 117 V-Twin engine
    • West Coast Styling
    • ST offers a bagger style option
    • Improved Rear Mono-Shock

Main Specs

  • Engine: 1,923cc V-twin
  • Power: 103 HP / 77 kW @ 4750 rpm
  • Torque: 125 lbs-ft @ 3500 RPM
  • Wet Weight: 679 lbs (308 kg)
  • Seat Height: 28 in. (710 mm)

2022 Harley Davidson Low Rider S/ST


2022 Harley Davidson Low Rider S/ST Specifications

From Harley-Davidson

ENGINE

Engine 1,923cc V-twin, Milwaukee-Eight® 117
Engine Power 103 HP / 77 kW @ 4750 rpm
Bore x Stroke 4.075 in x 4.5 in.
Compression Ratio
10.2:1
Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
Starter Electric
Exhaust 2-into-2 offset shotgun; catalyst in muffler

DRIVETRAIN

Clutch
Transmission 6-speed
Primary Drive
Gear, 34/46 ratio

CHASSIS

Front Fork
Single cartridge 43 mm inverted with aluminum fork triple clamps; triple rate spring
Rear Fork
Hidden, free piston, coil-over monoshock; 56 mm stroke; hydraulic preload adjustment
Wheels, Front Type
Dark bronze, Radiate cast aluminum wheel
Wheels, Rear Type
Dark bronze, Radiate cast aluminum wheel
Brakes Front
4-piston fixed front
Brakes Rear 2-piston floating rear
Tires Front
110/90B19,62H,BW
Tires Rear
180/70B16,77H,BW
Fuel Tank Capacity 5 gal.
Color Gunship gray, Vivid black

ELECTRICAL

Ignition
Spark Plugs
Headlight High beam
Tail Light LED

DIMENSIONS

Length
93.1 in.
Trail
5.7 in.
Rake 28
Wheelbase
63.6 in.
Ground Clearance
5.7 in.
Seat Height
27 in.
Weight, As Shipped
650 lb.

WARRANTY

Warranty
Extension

2022 Harley Davidson Low Rider S/ST


2022 Harley Davidson Low Rider S/ST Features

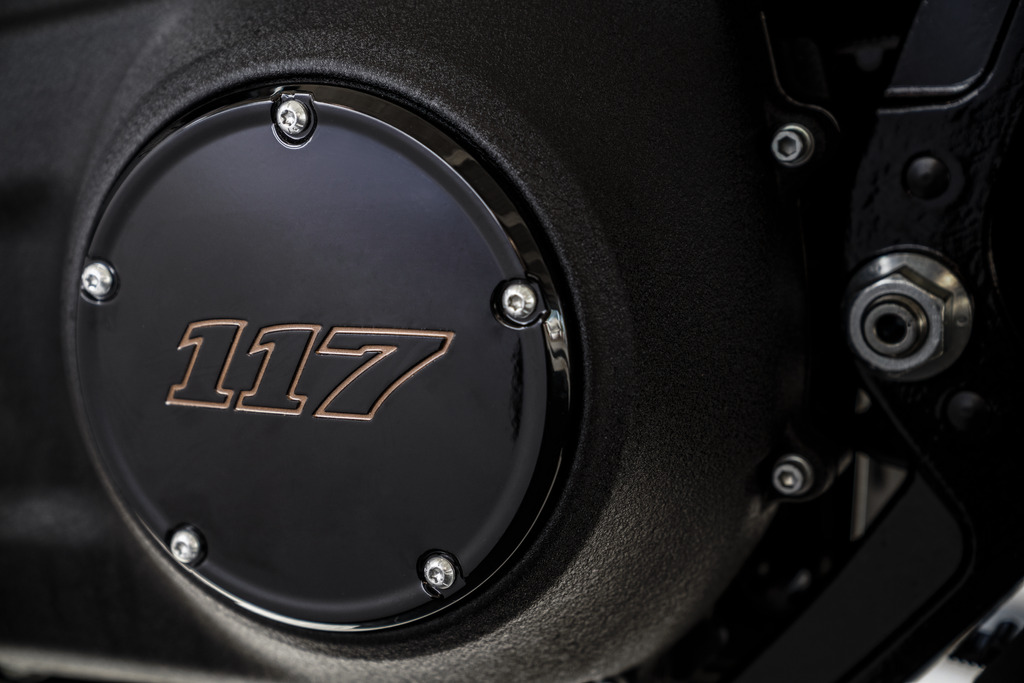

Milwaukee-Eight® 117 V-Twin

High-performance engine with precision oil/air cooling is the new pinnacle of torque and displacement in a factory-installed Harley-Davidson® powertrain. And if that’s not enough, boost performance further with Dealer-installed Screamin’ Eagle® Performance Parts Stage Upgrades from Harley-Davidson® Genuine Motor Parts & Accessories.

BLACKED OUT WITH SOLO SEAT

The powertrain, primary cover, triple clamps, top clamp, rear fender supports and tank console are finished in Wrinkle Black; the derby cover, intake, lower rocker covers and handlebar riser are Gloss Black. The handlebar is Satin Black. The forks are anodized black. Mufflers and exhaust shields are Jet Black. An everything black overload, paired with a deep solo seat for lone-wolf attitude..

HANDLEBARS

One-inch moto handlebar mounted on four-inch risers gives the overall look of the bike a Coastal style element that puts the rider in an aggressive posture on the bike.

CONSOLE

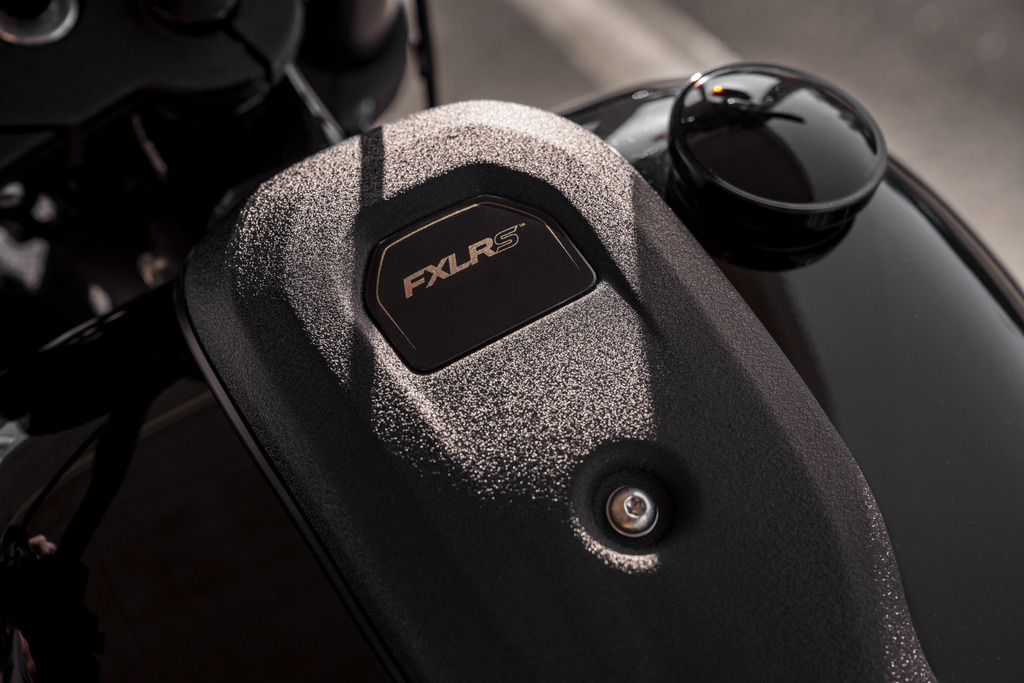

Low-profile textured black tank console with FXLRS badge covers the fuel tank weld and replaces the console with gauges used on Low Rider® S 114 model.

2022 Harley Davidson Low Rider S/ST Photos


2022 Harley Davidson Low Rider S/ST Videos

2022 Harley-Davidson Low Rider S (FXLRS) Test Ride & Review:

A Sport Touring Dream? 2022 Harley Davidson Low Rider ST Test Ride & Review:
