2022 Harley Davidson CVO Tri Glide [Specs, Features, Photos]

2022 Harley Davidson CVO Tri Glide

The 2022 Harley Davidson CVO Tri Glide: The Ultimate

Pure American-made luxury, attitude, style, and sound tickle all your senses from the saddle of this unique CVO, the ultimate Trike in the  2022 Harley Davidson lineup. There is nothing else available that can even come close to the level of comfort, fit and finish, and three-wheeled awesomeness of the CVO Tri Glide.

Feel all 126 ft-lbs of torque from the 117-cubic-inch Milwaukee-Eight® engine. See it all with the New Daymaker® Adaptive LED Headlamp. Stay connected with top-of-the-line BOOM!™ Box GTS infotainment, and the BOOM!™ Audio 30K Bluetooth® wireless headset. Stay warm with heated rider and passenger seats, and keep it all balanced on new 19-inch front and 18-inch Tomahawk™ contrast cut wheels. This Harley cruiser doesn’t just have everything—it makes you feel everything.

1 color choice for the 2022 Harley Davidson CVO Tri Glide: Dante’s Red Fade

The 2022 Harley Davidson CVO Tri Glide starts at $49,999 / $59,999 CAD.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new 2022 Harley Davidson CVO Tri Glide in one place.

2022 Harley Davidson CVO Tri Glide

Model Overview

General Info

  • Price: $49,999 / $59,999 CAD
  • Key Features:
    • Milwaukee-Eight® 117 V-Twin engine
    • Kahuna™ Collection: Heated rider grips, pegs, rider and passenger floorboards, and muffler tips
    • All LED Lighting
    • Tomahawk™ Contrast Cut cast-aluminum wheels, Front 18-inch and Rear 18-inch
    • Cornering Safety Enhancements are standard

Main Specs

  • Engine: 117 ci V-twin
  • Power: 105 HP (estimated)
  • Torque: 126 lbs-ft @ 3750 RPM
  • Wet Weight: 1,269 lb. (577 kg)
  • Seat Height: 25.9 in. (658 mm)


2022 Harley Davidson CVO Tri Glide

2022 Harley Davidson CVO Tri Glide Specifications

From Harley-Davidson


Engine Twin-Cooled Milwaukee-Eight® 117
Engine Torque 125 ft-lb
Bore x Stroke 4.075 in. X 4.5 in.
Compression Ratio
Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust 2-1-2 dual exhaust with slash cut tip


Transmission 6-speed
Primary Drive
Chain, 34/46 ratio


Front Fork
49mm dual bending valve
Rear Shocks
Hand-adjustable emulsion rear suspension
Wheels, Front Type
Gloss Black and Contrast Clear Tomahawk
Wheels, Rear Type
Gloss Black and Contrast Clear Tomahawk
Brakes Front
32mm 4 piston fixed Dual floating rotors
Brakes Rear floating 36mm piston integrated park brake
Tires Front
130/60B19 M/C 61H
Tires Rear
P215/45R18 83T
Fuel Tank Capacity 6 gal.
Color Dante’s Red fade


Spark Plugs
Headlight All LED headlamp
Tail Light LED


105.1 in.
3.94 in.
Rake 26
65.7 in.
Ground Clearance
5.1 in.
Seat Height
25.9 in.
Weight, As Shipped
1,239 lb.



2022 Harley Davidson CVO Tri Glide

2022 Harley Davidson CVO Tri Glide Features

Milwaukee-Eight 117 V-Twin

The new pinnacle of torque and displacement with a factory-installed powertrain. Precision oil/air cooling. 126 ft. lbs. of torque at 3750 RPM. Tuned heavy breather intake and high flow exhaust maximize engine performance, a boost you can feel with every twist of the throttle.


Premium paints and finishes
Heated Kahuna Collection hand grips match Kahuna shifter pegs, brake pedal cover, muffler end caps, heated grips and rider and passenger boards
Fugitive custom wheels

The Ride

All the features you need for a ride that feels comfortable and rides secure.

  • H-D Touring Chassis
  • Daymaker Adaptive LED headlamp and bright LED lighting for enhanced visibility
  • Corner Safety Enhancements

Harley-Davidson® Audio powered Rockford Fosgate

Step up to the ultimate motorcycle audio experience. Harley-Davidson Audio powered by Rockford Fosgate Stage II speakers deliver ultra-clear highs, super clean mids, and ground thumping bass. These amplified three-way speakers feature a durable injection molded woofer and a separate bridge-mounted Midrange and Tweeter speakers.

Boom! Box GTS Infotainment

Nothing standard about this state-of-the-art system with color touch screen, two fairing-mount speakers and hidden radio antenna. Every element is optimized to enhance the rider’s interaction with the bike and connectivity with the world.

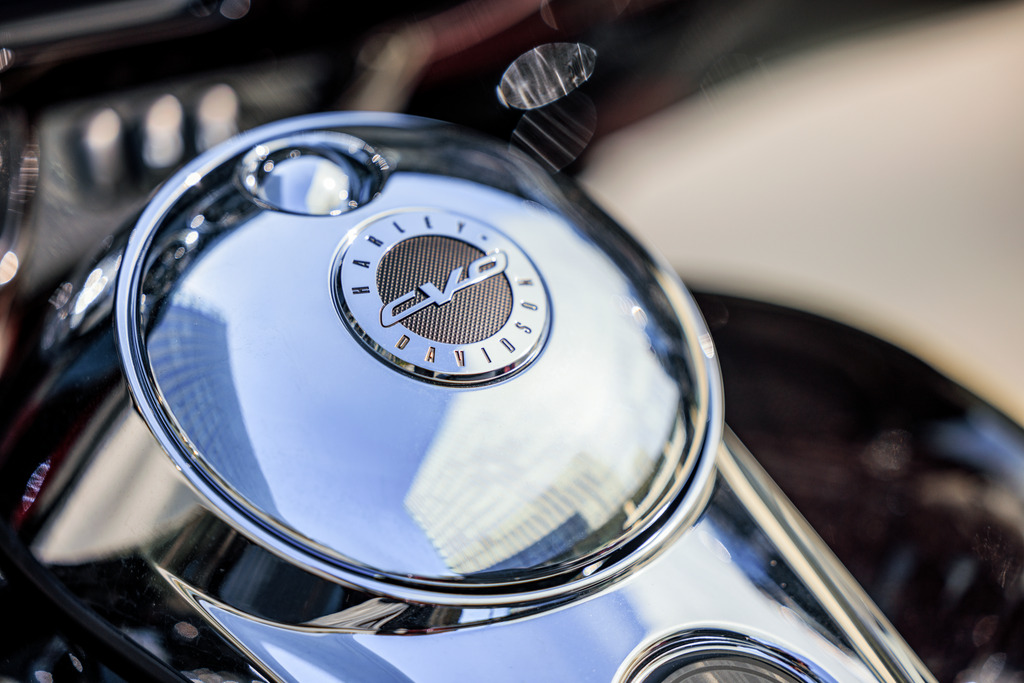

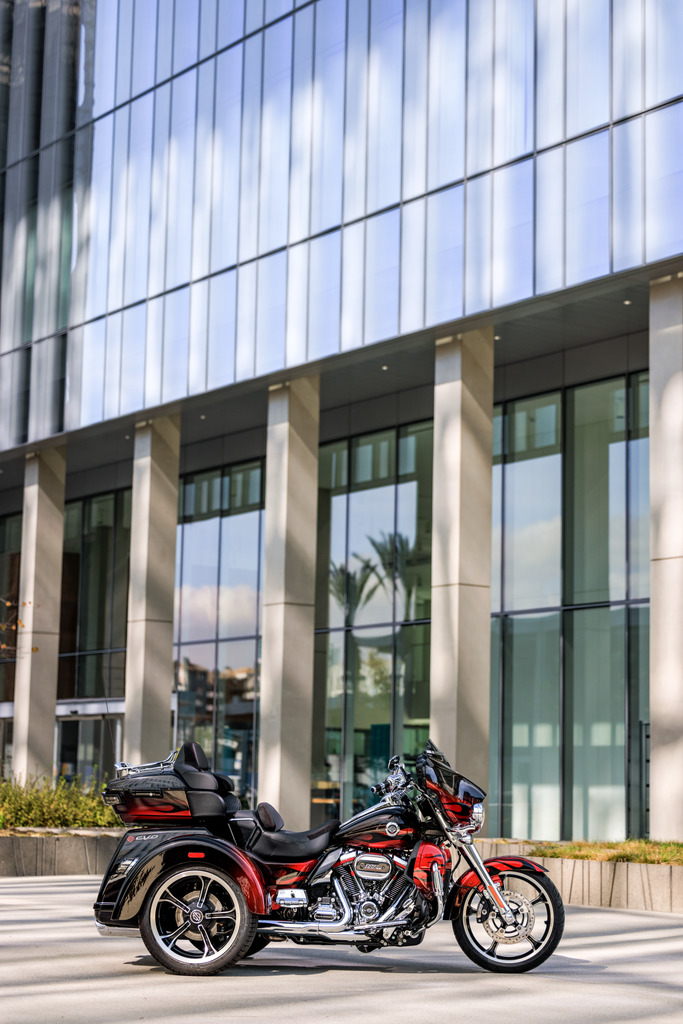

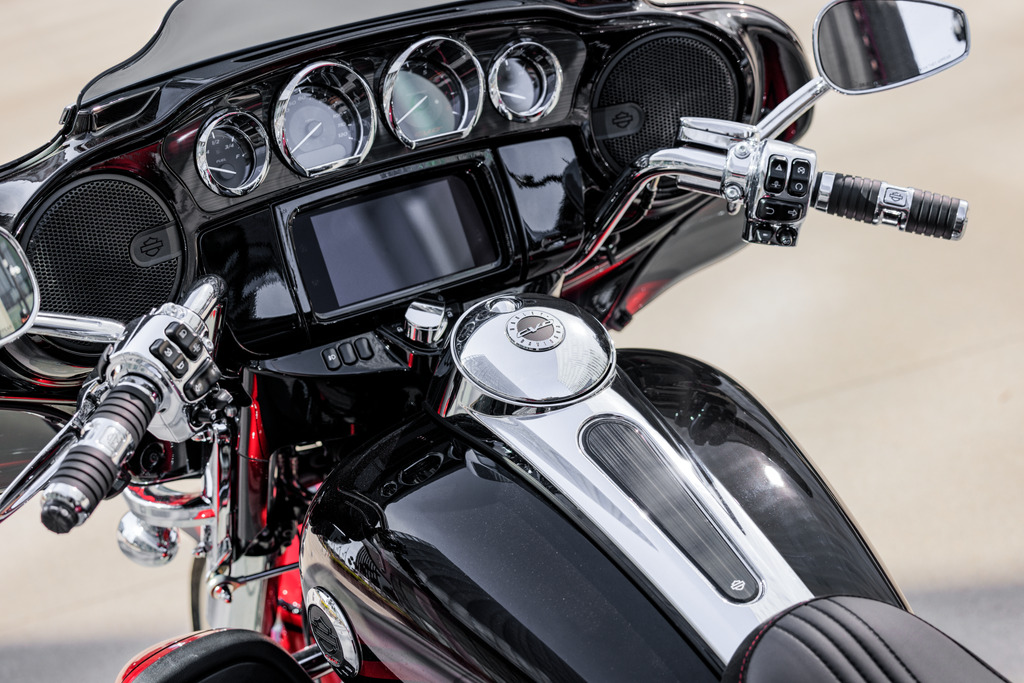

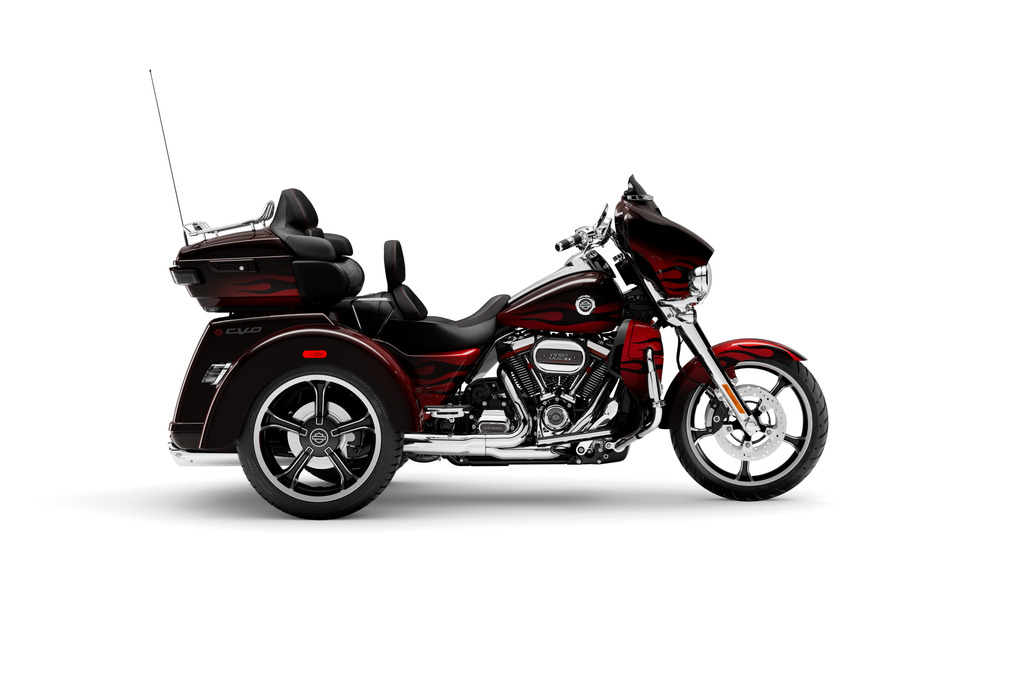

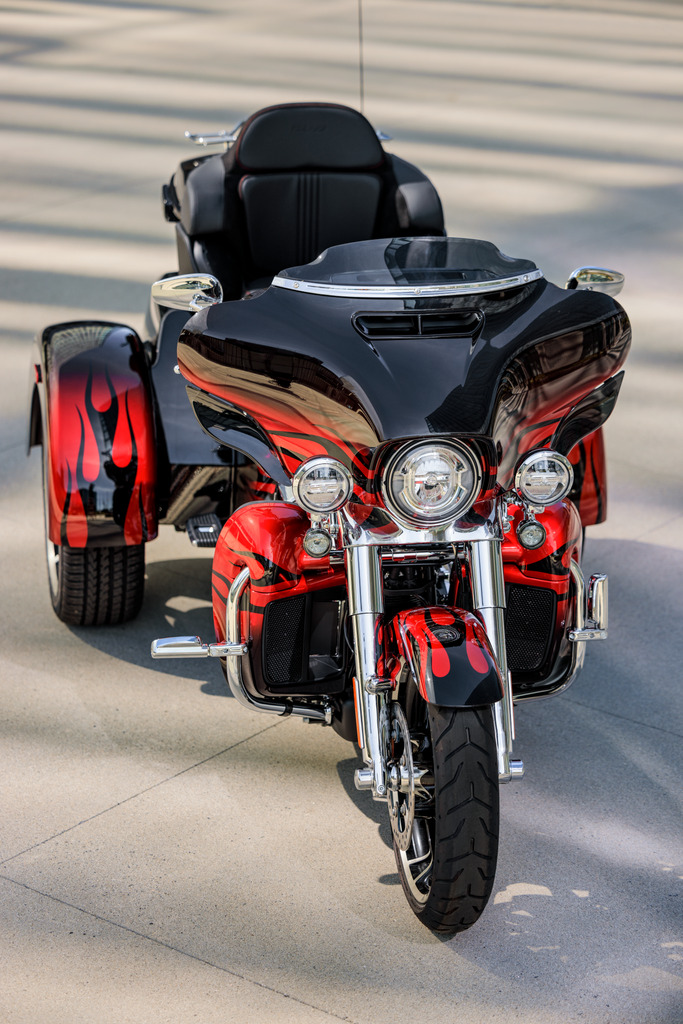

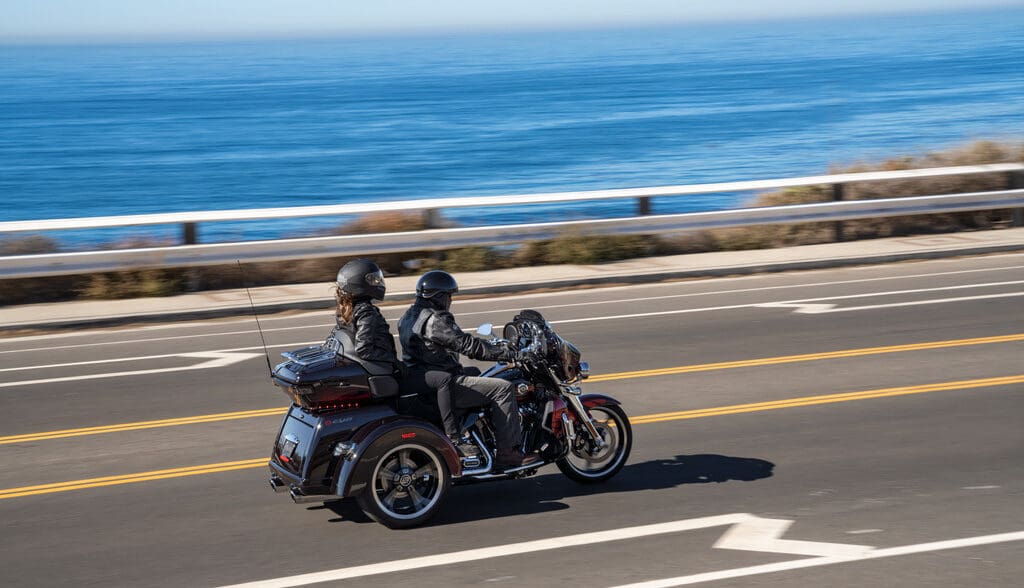

2022 Harley Davidson CVO Tri Glide Photos

2022 Harley Davidson CVO Tri Glide Videos

2022 Tri Glide CVO Demo Ride At Daytona Bike Week:

Everything You Need To Know About The 2022 Harley Davidson CVO Tri Glide:
