Suzuki DR650 Hand Guards

Cycra Hand Guards Review
Cycra Hand Guards Review
by Rick K. for webBikeWorld.com

wBW Reviews Home  |  Owner Comments (Below)

More: Suzuki DR650 Blog

Summary

It took four different sets of hand guards to figure out a solution for the DR650.

The Cycra Probend CRM hand guards are not  the perfect solution and it takes a bit of customizing to get them installed, but they do the job.

Background

A good set of hand guards is a must-have accessory for any dual-sport motorcycle.

The Suzuki DR650 comes with a set of very flimsy hand guards that are "guards" in name only. I'd call them "finger shields" instead. The Suzuki shields are small plastic bits that serve to keep some air off the hands and they offer zero protection for the handlebars and controls in a crash.

Riding off-road means an occasional fall and this can result in damage to the brake or clutch lever, bent handlebars or worse. It doesn't matter if you're doing 30 MPH or crawling, a simple tip-over can damage some parts.

So a good, solid set of hand guards -- that is, a strong bar that protects either side -- is a must-have.

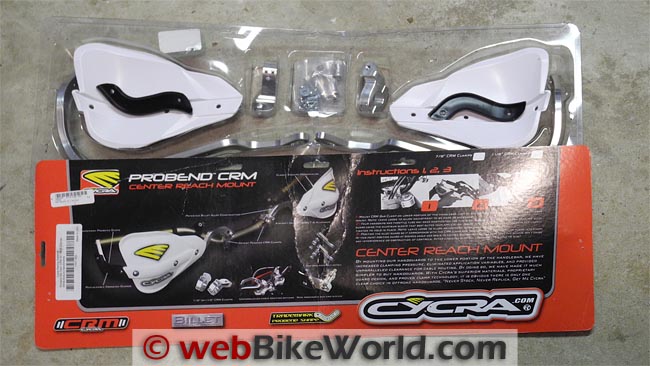

Cycra Hand Guards
The Cycra Probend hand guard kit was the only set I found that fit the DR650 -- with some modifications.
Suzuki DR650 Hand Guards

Who knew it would be this difficult? There are a zillion accessory parts for a Suzuki DR650, but the "perfect" set of hand guards doesn't exist. Or at least I never found them...

I trolled through dozens of DR650, dual-sport, Thumper and off-road forums to see what types of hand guards other DR650 owners -- most of whom have way more experience than me with this bike -- were installing. Opinions varied, as opnions do, and there didn't seem to be a consistent answer to the question.

To make a long story short, the bottom line is that I did not find a set of hand guards that would install correctly on my DR650 using the stock handlebars. This is despite the various postings I read where owners claimed they could install a particular set or another without modifications.

My criteria were simple -- or so I thought. I wanted a set of hand guards that was basically a "drop in" installation. I did not want to modify the brake and shift levers and I wanted good protection for my hands from the wind and to protect from branches when riding off-road. Of course, the hand guards would have to protect the handlebar and controls in case of a tip-over.

The most curious disconnect was the reports from owners who claimed they did not have to modify their shift or brake levers to fit behind the hand guard bar. I went through three different brands/sets of hand guards and could not find a set that would fit without cutting the ball tips off the levers, so in the end, I had to take a deep breath and break out the Dremel.

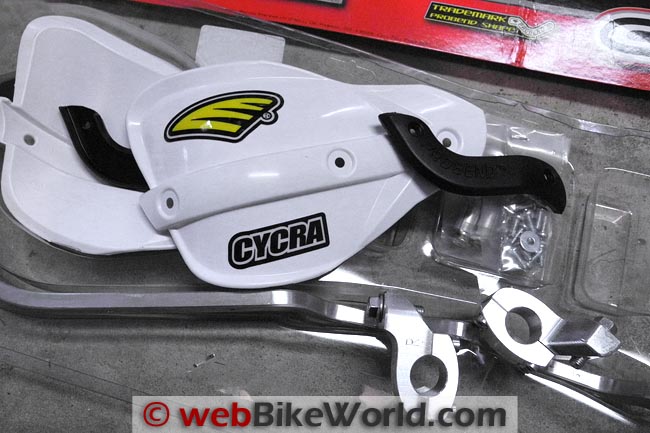

Cycra Hand Guard Parts
The Cycra Probend hand guard kit parts.
Twisted Throttle
BUY YOUR
Suzuki DR650 Accessories
With This Link and Support webBikeWorld!
Try and Try Again...

The first set of hand guards was purchased was from Pro Cycle. We have purchased many accessories for the DR650 for our Budget Adventure Tourer series from Pro Cycle and they have a huge assortment of goodies for the bike. An email confirmed that their hand guard set would fit. In addition, the description for their hand guard kit on the Pro Cycle website states that it "Will not interfere with your levers!".

Unfortunately, I did not find this to be the case. I could not get the kit to fit my DR650, with or without modifying the levers, and this after messing around with it for several days, trying everything I could think of. So it was returned to Pro Cycle.

Next, I tried a set from Moose Racing. I carefully removed one of the hand guard bars from the package and lined it up on the DR650 to get an idea of how it lined up. It didn't even look close, so I just as carefully put the bar back in the package and returned the kit.

Back to the forums to do some more research, where I next settled on a Tusk Racing hand guard set, purchased from Rocky Mountain ATV. Owners claimed this set would also fit without modifications, and again we messed around with it for several days before finally giving up.

This was getting expensive!

Next, I bought a set of the "Cycra Center Reach Mount - Complete Racer Pack" hand guards from Cycra Racing. Again we spent a few days trying various methods to get it to fit with no luck.

Suzuki DR650 Handguards

BUY YOUR
Adventure Touring Gear
With This Link to RevZilla and Help Support webBikeWorld!
Pro Taper SE Handlebar

Eventually, I pieced together a set that worked. I used the handlebar clamps from the Tusk Racing set, the Cycra Probend hand guard bars and I had to break down and buy a new handlebar -- a Pro Taper SE with the Honda CR bend (which I calculated to be almost identical to the stock DR650 bar configuration).

The key was the new handlebars, which are just slightly taller (a slightly higher rise), which allowed enough room to fit the Tusk handlebar clamps and hold the Cycra hand guards. Actually, if I had to do it over, I'd probably buy a bar with about 15-20 mm more rise.

I'm glad I got the Pro Taper handlebar though, even though I really didn't want to go through all the trouble of installing it, which involves removing the controls. It is definitely much nicer, higher quality and made from much thicker aluminum than the stock bar, which, according to reports, folds like a wet napkin at the first sign of trouble when the bike tips over.

I added a set of the Pro Taper "Pillow Top" grips and I'm glad I did; they are comfortable, sticky and they provide excellent feel and plenty of grip with every type of glove I've tried.

Why finding and installing a set of hand guards is so difficult for a bike that is as popular as the Suzuki DR650 is beyond me. Anyway, here are some photos with descriptions of how it works. Feel free to email me with your tips or suggestions and/or pics of your DR650 hand guard installation.

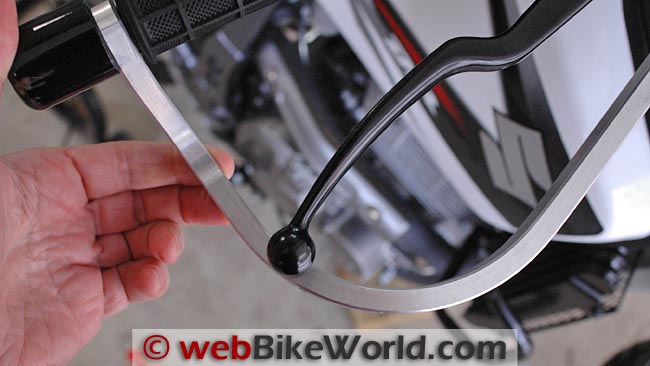

Cycra Hand Guard Interference
Four different brands of hand guards had the same problem: interference with the levers.

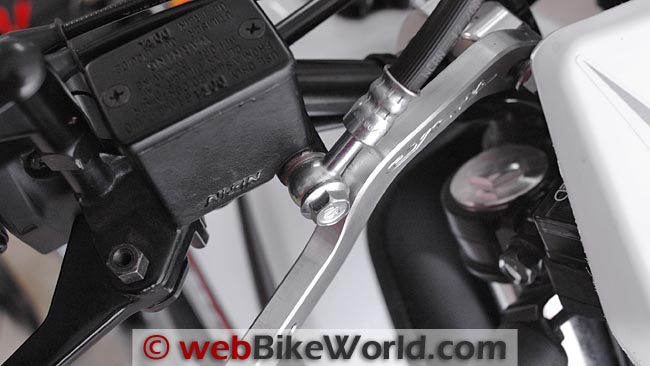

Cycra Hand Guard Interference With Master Cylinder
It's a tight fit between the Cycra guard on the right and the master cylinder.

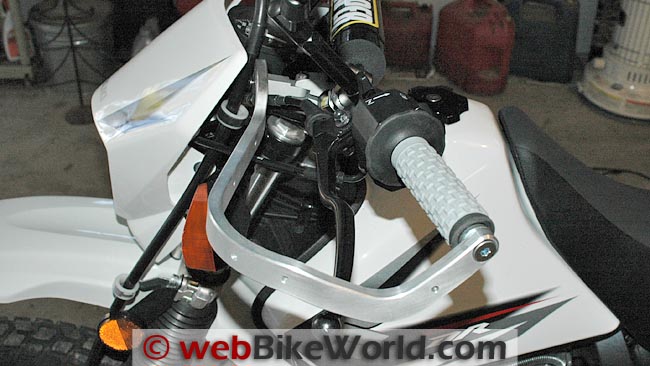

Cycra Hand Guards Side View
Side view of the Cycra hand guards during installation. The Pro Taper Pillow-Top grips are excellent.
Hand Grip Installation
One of the issues with installing a new set of handlebars is the stock Suzuki grips, which are glued to the carrier. I had to use a wire wheel to grind off the rubber, then used some hair gel to slide the new Pro Taper hand grips on to the old carrier. Hair gel works great because it's slippery and then dries hard.
Handlebar Clamps
Handlebar clamps from the Cycra kit (L) wouldn't fit, so i used the clamps from the Tusk racing kit. I discovered later that Cycra sells many different parts and accessories for mounting their hand guards.
Twisted Throttle
BUY YOUR
Suzuki DR650 Accessories
With This Link and Support webBikeWorld!
Conclusion

My cobbed-together hand guard set works; it feels solid; and it fits (just barely). The bike has tipped over accidentally and the guards performed, although the hand guard bar on the right-hand side did move slightly, so apparently it isn't as tight as it could be.

This is a problem because it seems nearly impossible to get these things tight enough to stay in place. I'm not sure what would happen if the bike hits the ground or a rock at higher speeds...but I'll have to assume the results will be better than with no guards at all.

Costs

Suzuki DR650SE Blog Home

Note: For informational use only. All material and photographs are Copyright © webWorld International, LLC since 2000. All rights reserved. See the webBikeWorld© Site Info page. Product specifications, features and details may change or differ from our descriptions. Always check before purchasing. Read the Terms and Conditions!

Your Comments and Feedback

Please send comments to
Comments are ordered from most recent to oldest.
Not all comments will be published (details).  Comments may be edited for clarity prior to publication.

From "J.S." (December 2011):  "I think most folks do the install in one of two ways. One group (the ďI like to stand when ridingĒ group) re-orients the levers downward. Clearance is a non-issue for these folks. The other group installs a spacer between the end of the bar and the hand guard which moves the guard out enough to clear the levers. Most folks donít seem to install the factory bar ends and just leave them off. Most kits donít include spacers, but Procyclesí kit does."


From "T.M." (December 2011):  "Have you seen these handguards (Acerbis)? Looks like they fit but kind of hard to tell."

Rick's Reply: I've seen only the photos but wasn't too fond of the looks and not sure if they would fit?


From "M.S." (December 2011):  "I have the same kind on my DRZ400 and except for bending a tiny bit the handlebar ends, no issues like you have had. I do remember I had to be careful which mounts to order.

I also prefer to mount the other end to a triple clamp rather than a handlebar. Itís just more solid. Iíve been down twice and it would not move at all. Except for a scratch on the slider, no other damage. I remember that at the TT site, it was not that difficult to pick the right mount."


From "B.Z." (December 2011):  "Just read your latest installment of the handguard thing with your DR. I went through similar things with my old Monster that I had sorta motarded before the Hyper was ever conceived.

The system I wanted to use and couldn't with the Monster, but you could is (the Woodblaster). When my bike got laid down at VIR, the handguards did their job, but they will shift and bend if you hit anything hard enough, which could in turn bend the bars and/or tweak the top triple in the perch mounting bushings. The latter is usually just adjusted by some slapping it back into place kind of antics, but still.

The Woodblaster is meant to aid in this regards by being a much more stout unit and keep from those kinda of things from happening."
